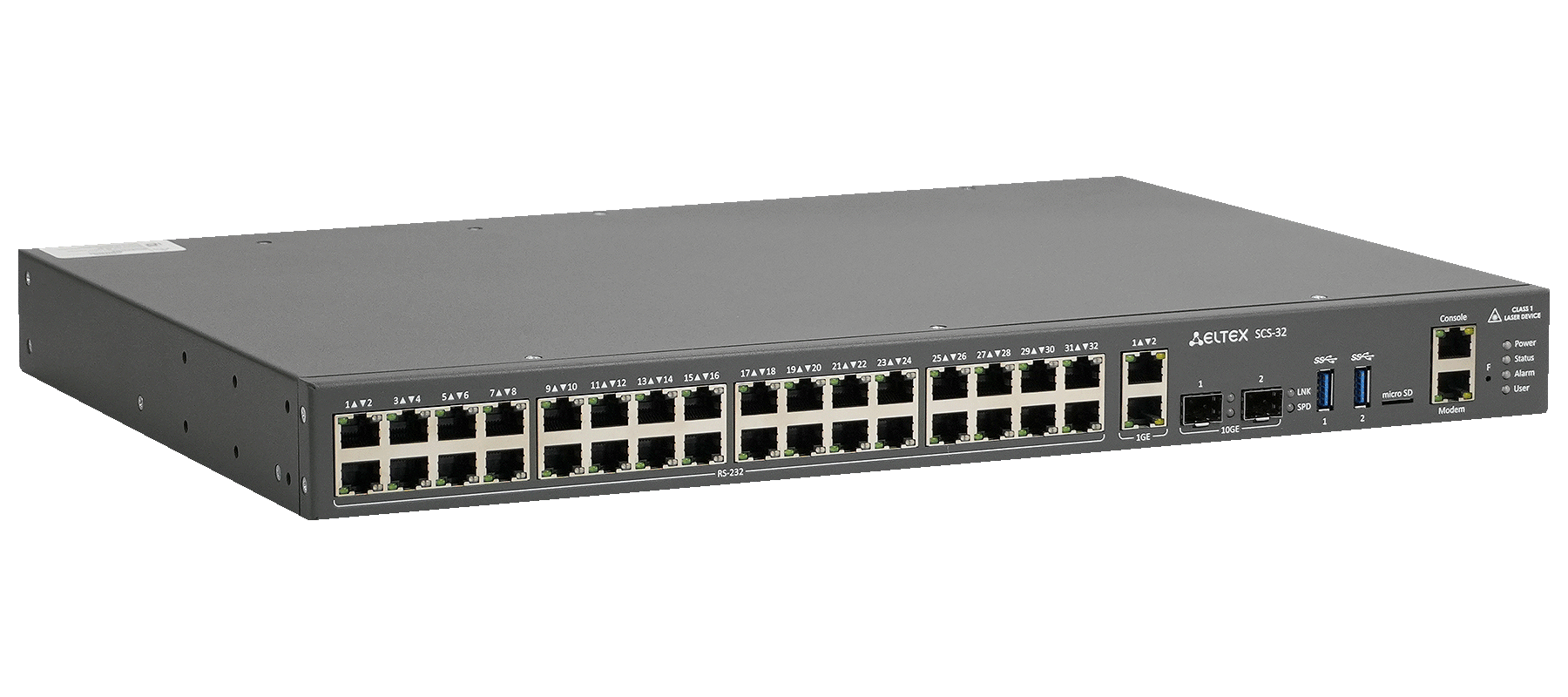

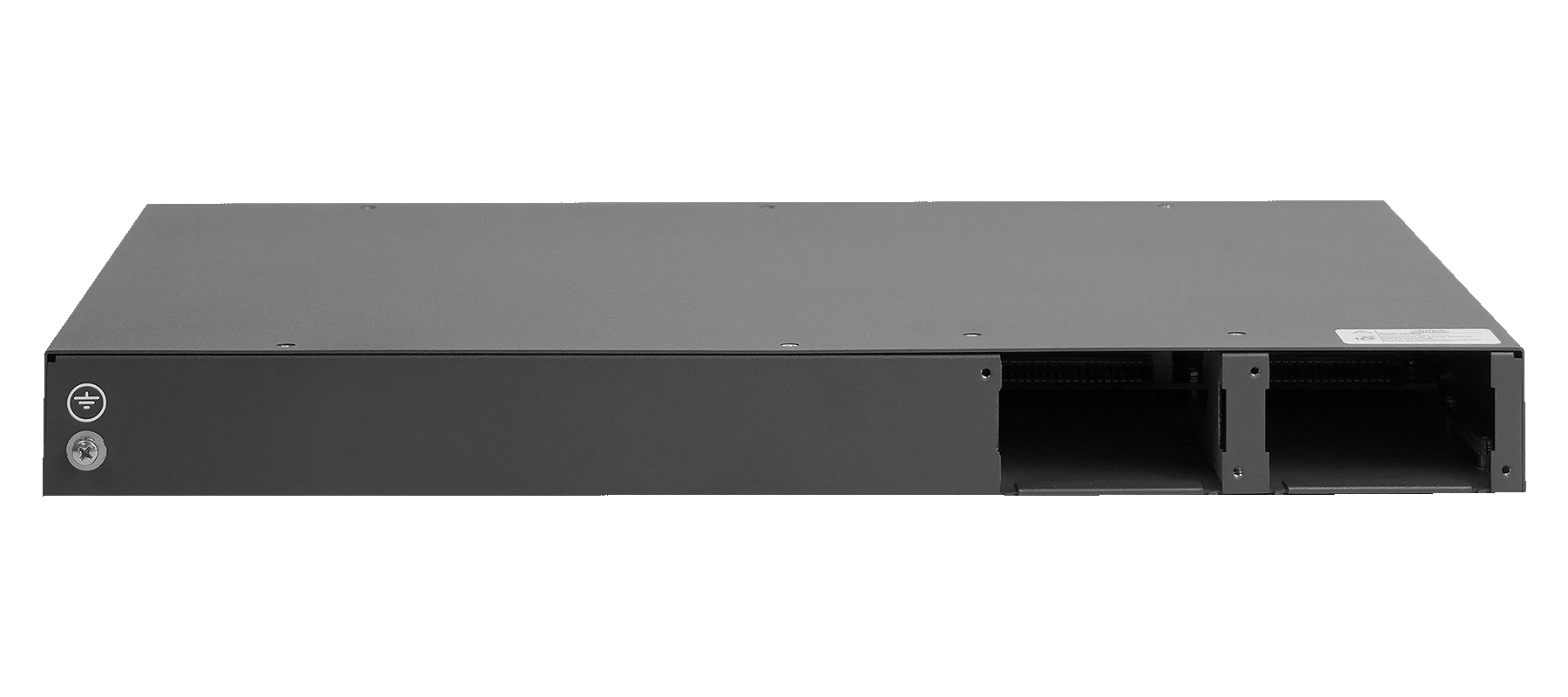

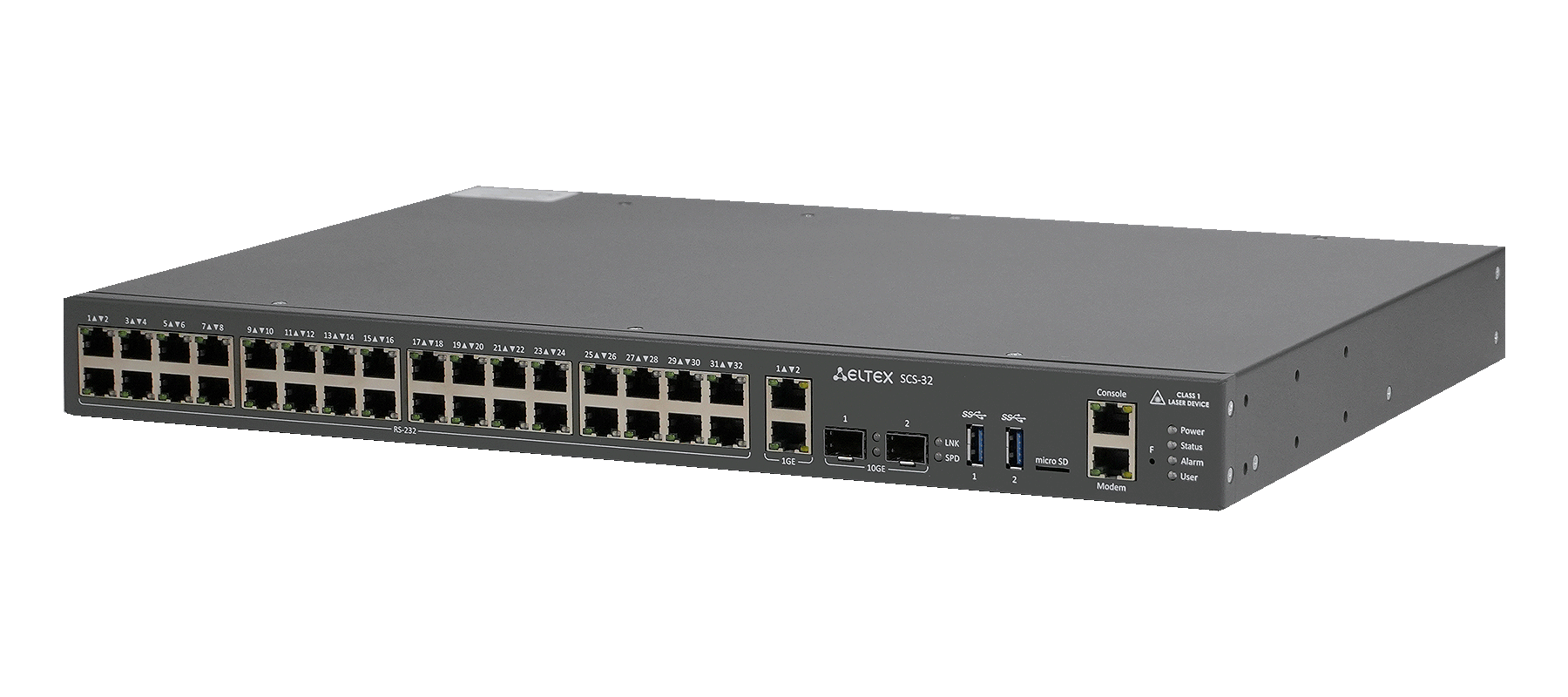

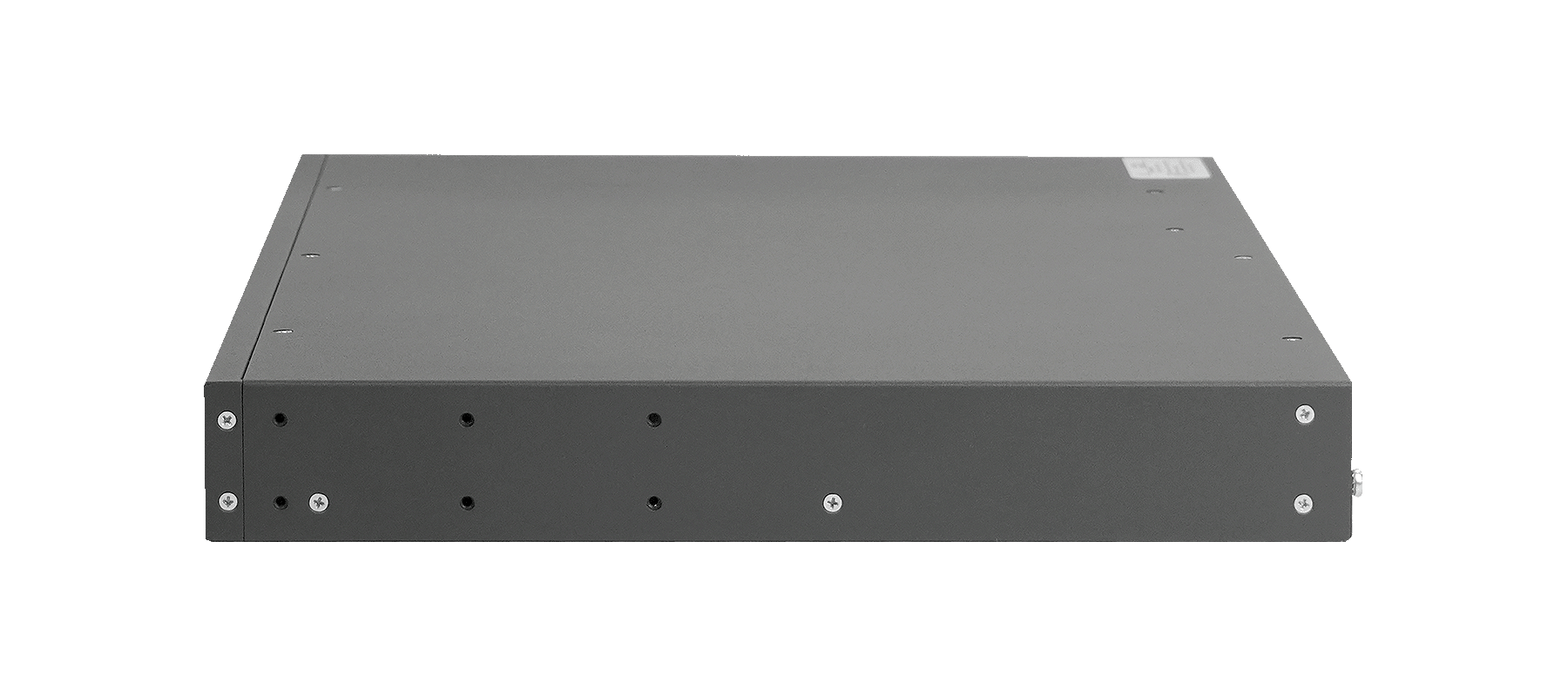

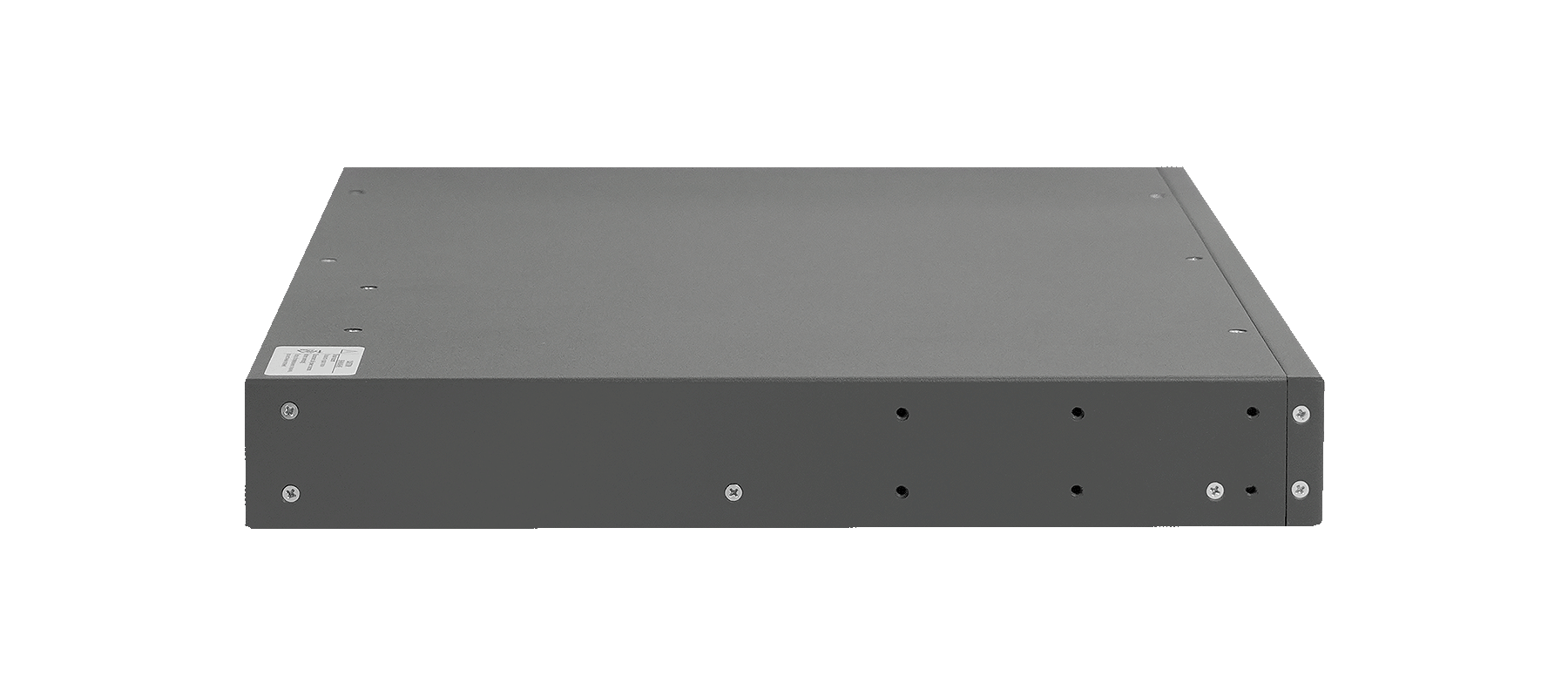

Console server SCS-32
- Interfaces:
- 32xSerial (RS-232), 2x1G, 2x10G SFP+
- Power supply:
- AC/DC, 2 hot-swappable power modules
Description
The SCS-32 console server is a device that provides secure remote access to network equipment (servers, routers, switches, and other devices) for administration purposes. Access to the devices is provided via console management ports.
The console server's fault tolerance is ensured by redundant power supplies (1+1) and the ability to hot-swap them.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces:
- 32xSerial (RS-232), 2x1G, 2x10G SFP+
- Power supply:
- AC/DC, 2 hot-swappable power modules
- DCE Mode
- Routing:
- Static Route
- Reverse Telnet SSH
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Serial RS-232
32
10/100/1000BASE-T
2
1000BASE-X (SFP)/10GBASE-R(SFP+)
2
USB 3.0
2
Console RS-232 (RJ-45)
1
Performance:
L2 switching performance (1518B frames)
196 Mbps;
16.1k packets/s
Network and service functions:
L2 Management
VLAN
Q-in-Q
Routing
Static
Security
ACL
User authentication via: local database, RADIUS, TACACS+
Management and monitoring
Protection against configuration errors, automatic configuration recovery
Local and remote saving of configurations
CLI
Syslog
System resource usage monitoring
Ping, monitor, traceroute (IPv4/IPv6), output packet information in console
Local management via the RS-232 (RJ-45) console port
Remote management, Telnet, SSH (IPv4/IPv6)
LLDP
Remote console access to connected devices (AUX mode) using Reverse Telnet or Reverse SSH
UART BREAK signal forwarding
Support for GSM modems
Redundancy
Port-Channel
Services
DHCP client
NTP client
Physical specifications and environmental parameters:
RAM
4 GB DDR4
Maximum power consumption
32 W
Power supply
100–240 V AC, 50–60 Hz
36–72 V DC
Up to two hot-swappable power supplies
Operating temperature
From -10 to +45 °С
Storage temperature
From -40 to +70 °С
Storage humidity
From 10 to 95 %
Dimensions (WxHxD)
440x44x310 mm
Weight
3.854 kg
