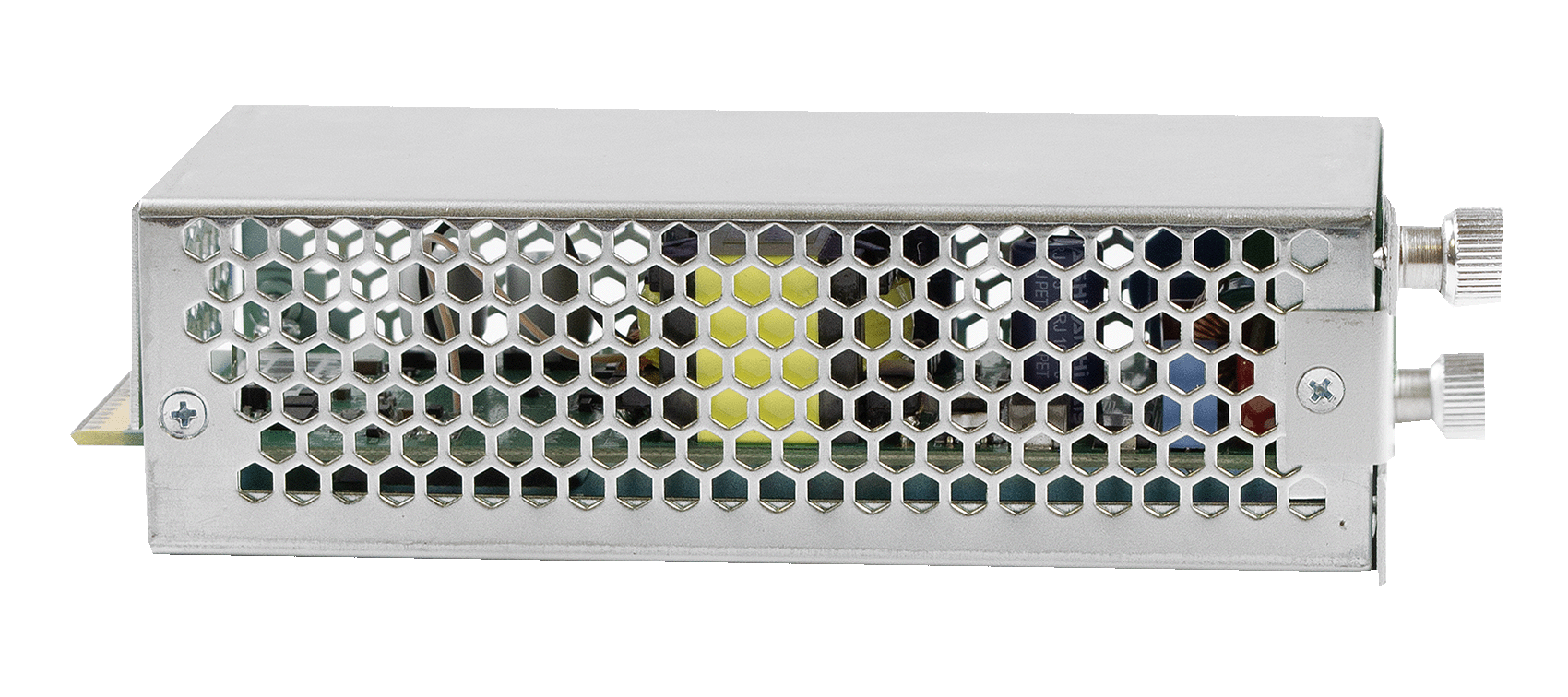

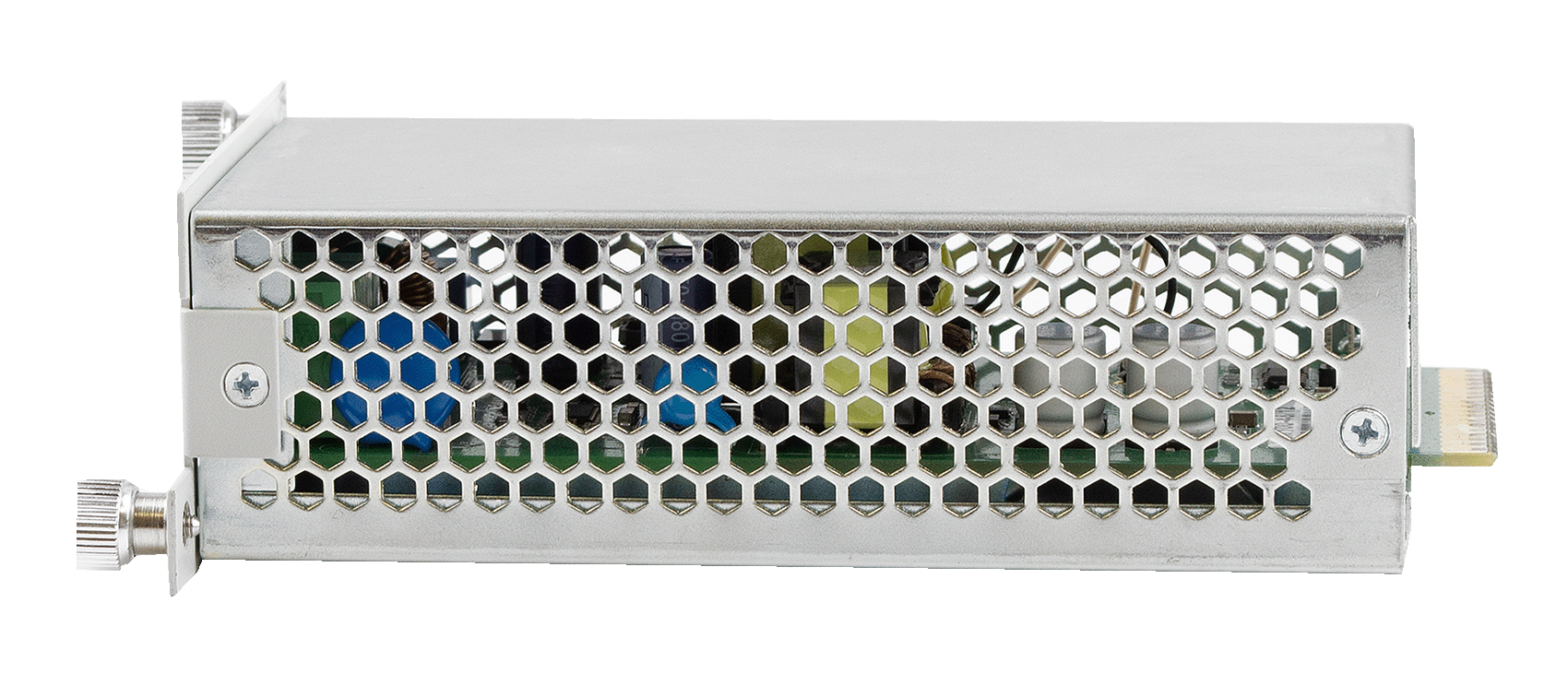

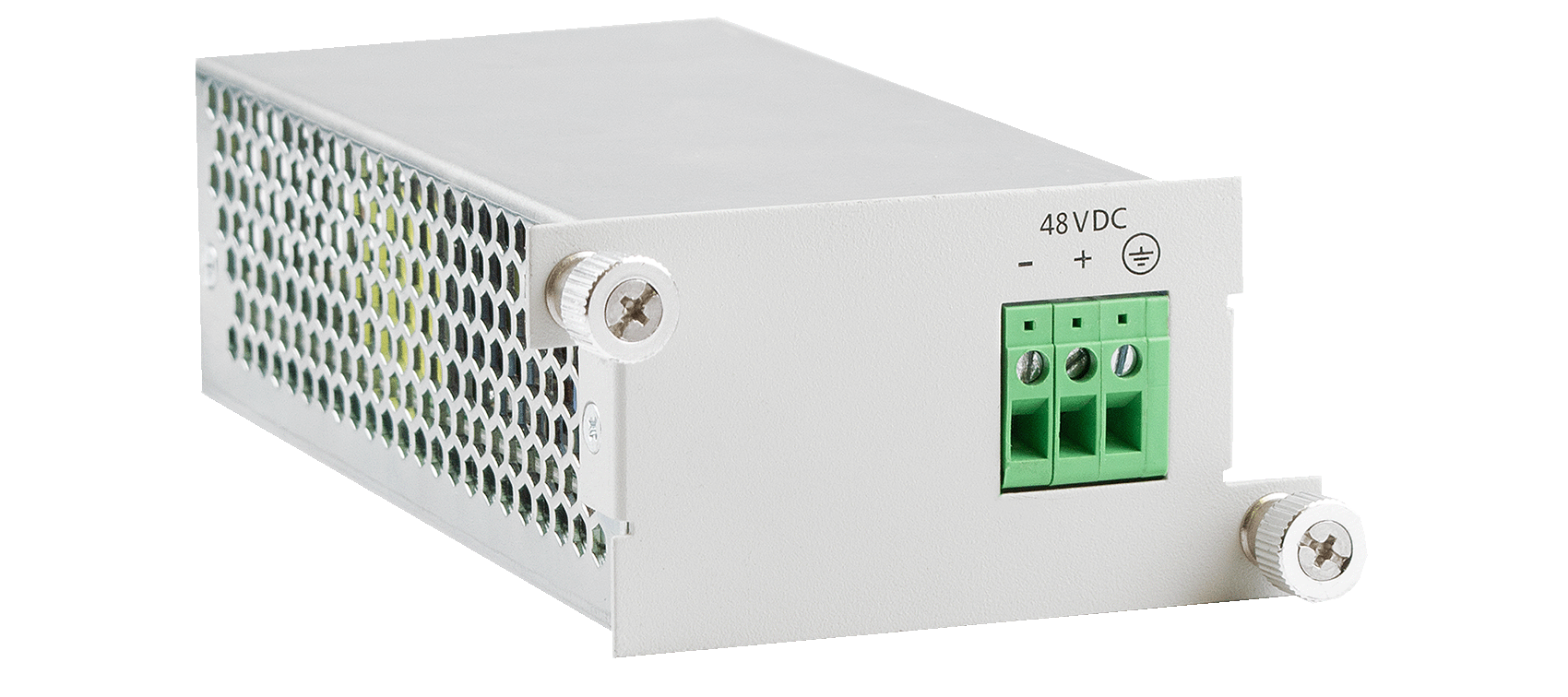

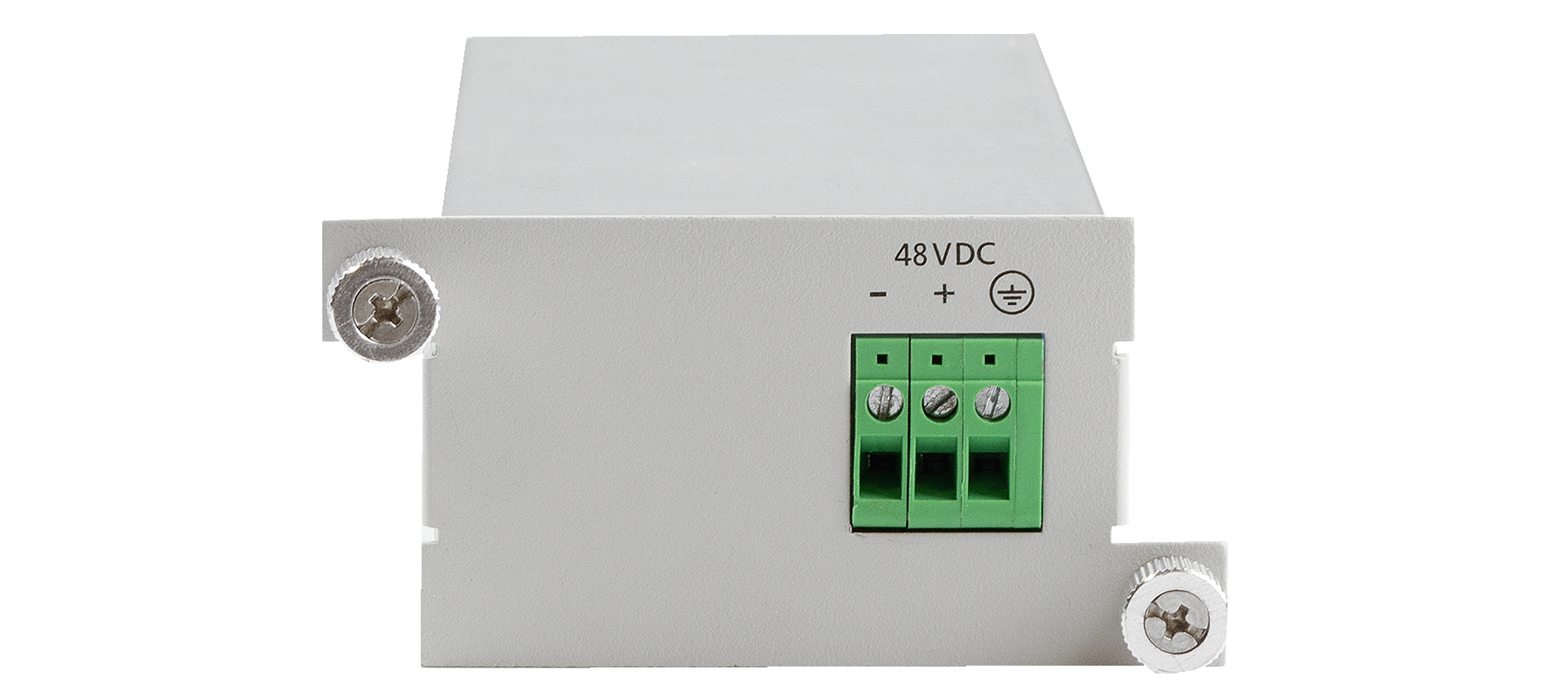

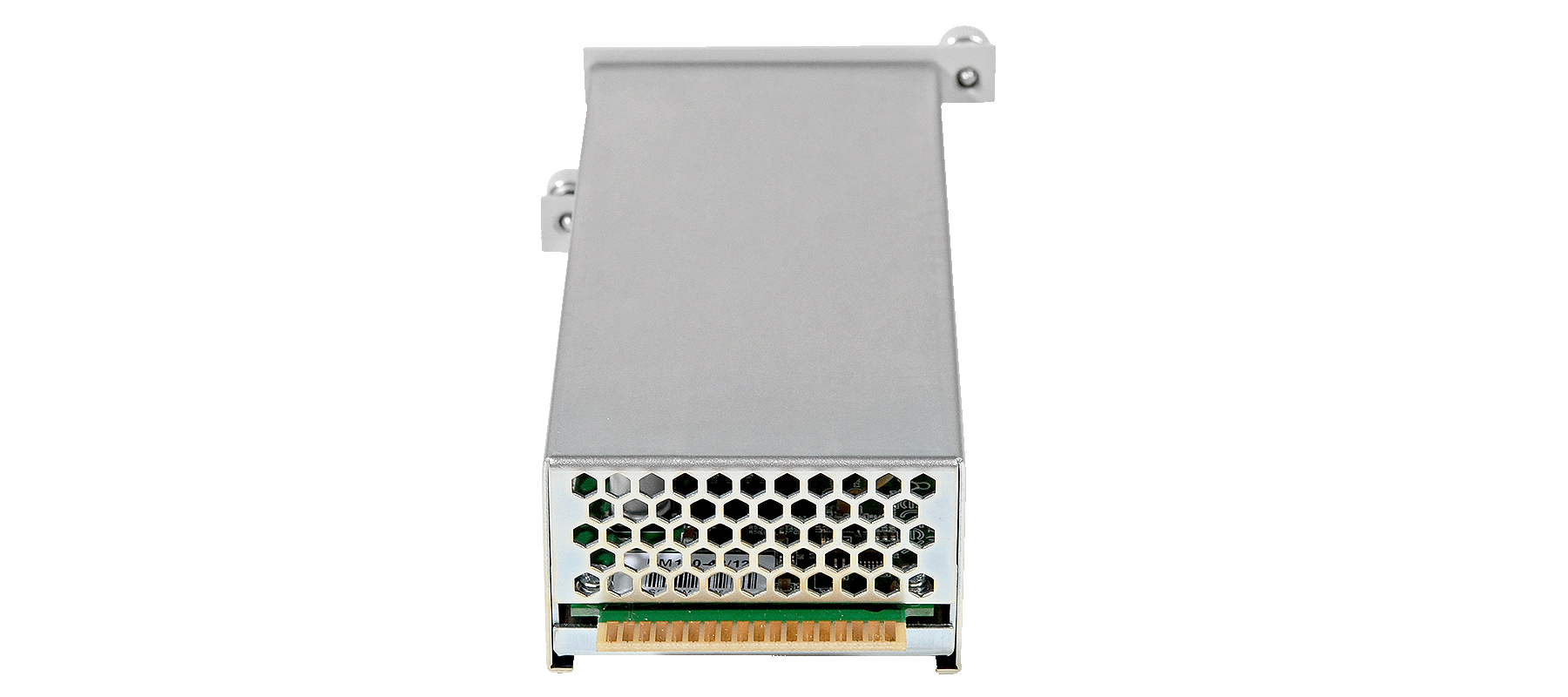

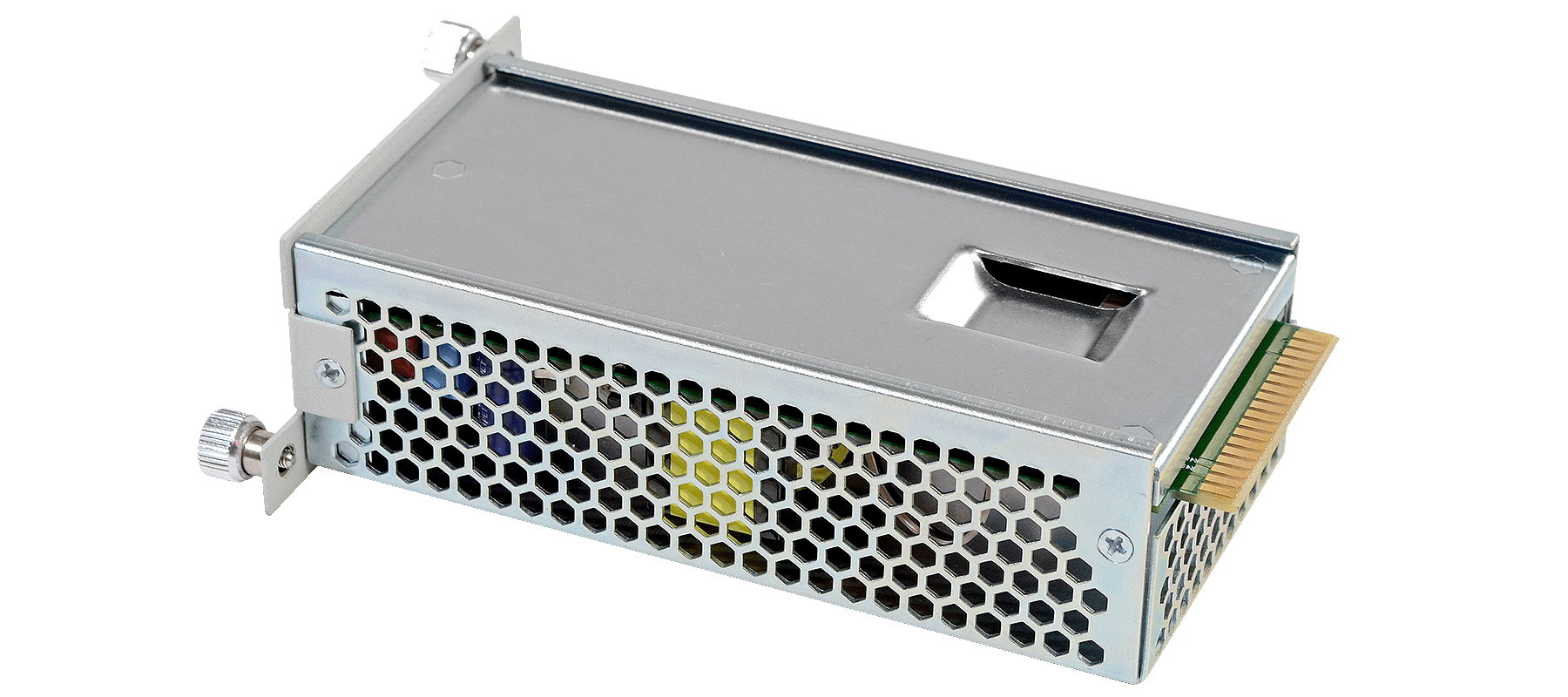

Power module PM100-48/12
- Type:
- DC
- Output voltage:
- 12 V
- Max. output power:
- 100 W
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage DС max. range
36–72 V DC
Output voltage
12 V
Max. output power
100 W
Physical features and ambient parameters:
Operating temperature
-40 to +60 °С
Storage temperature
-50 to +75 °С
Operating humidity at +25 °С
Up to 80 %
Dimensions
86x44x156 mm
Weight
0.4 kg
Supported devices
Trunk gateway SMG-1016M with IP PBX functions
VoIP Trunk Gateway SMG-3016 with IP-PBX support

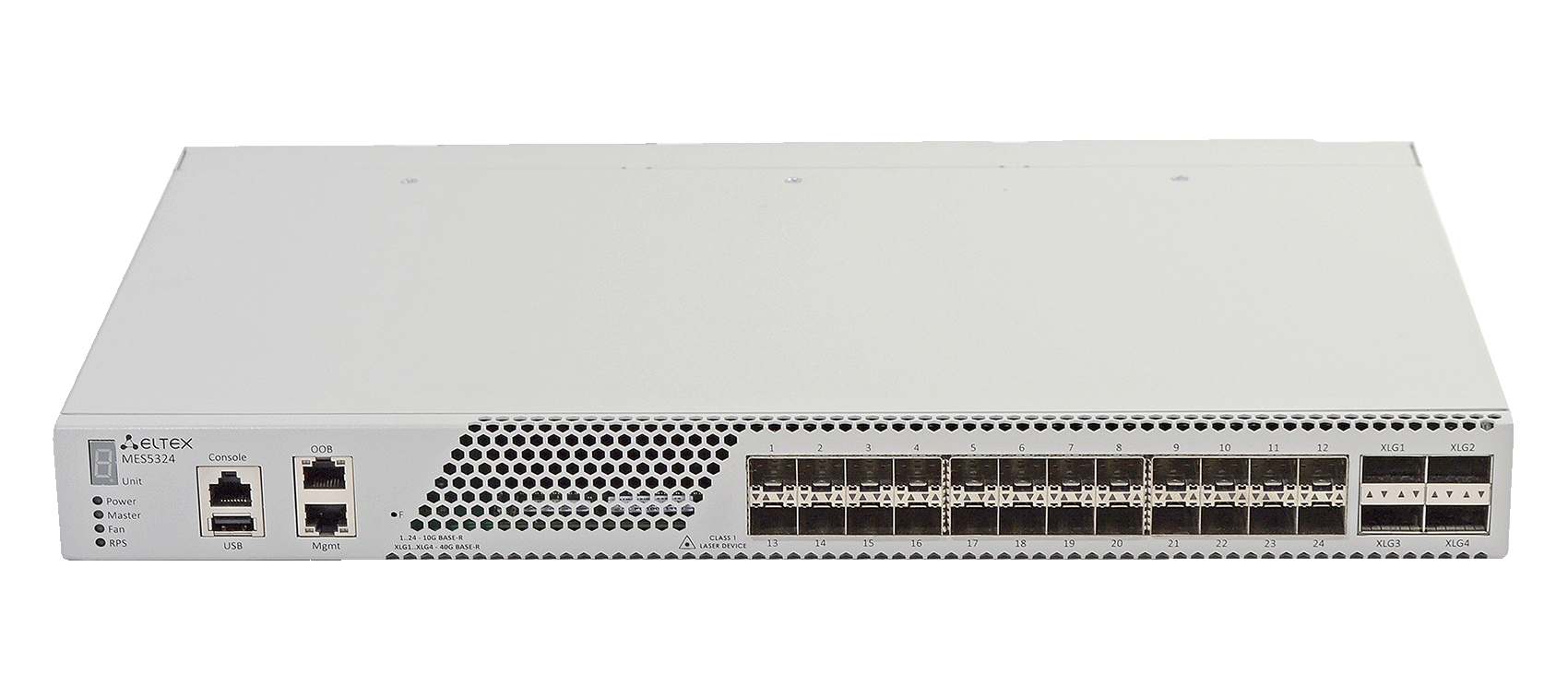

Aggregation 10G/40G Switch MES5324

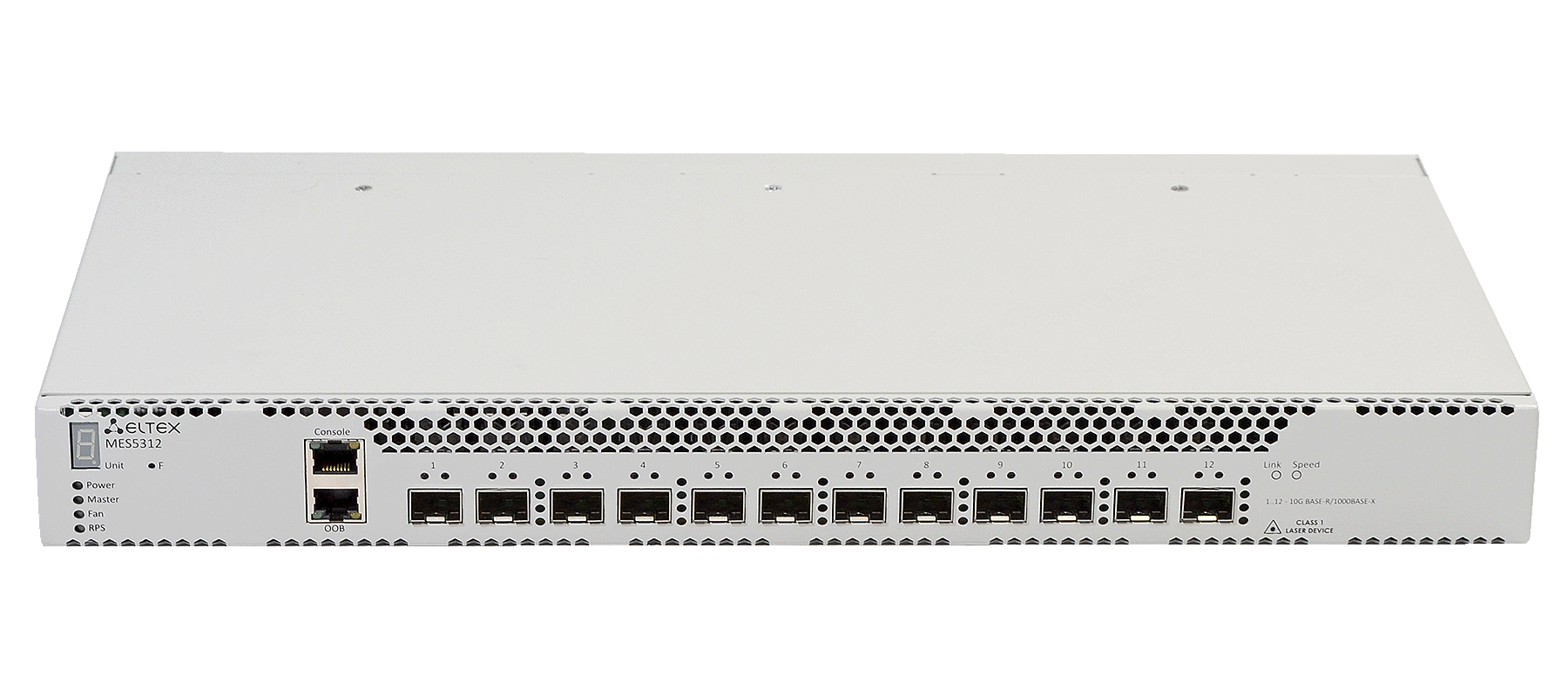

Aggregation 10G Switch MES5312
Aggregation 10G Switch MES5316A

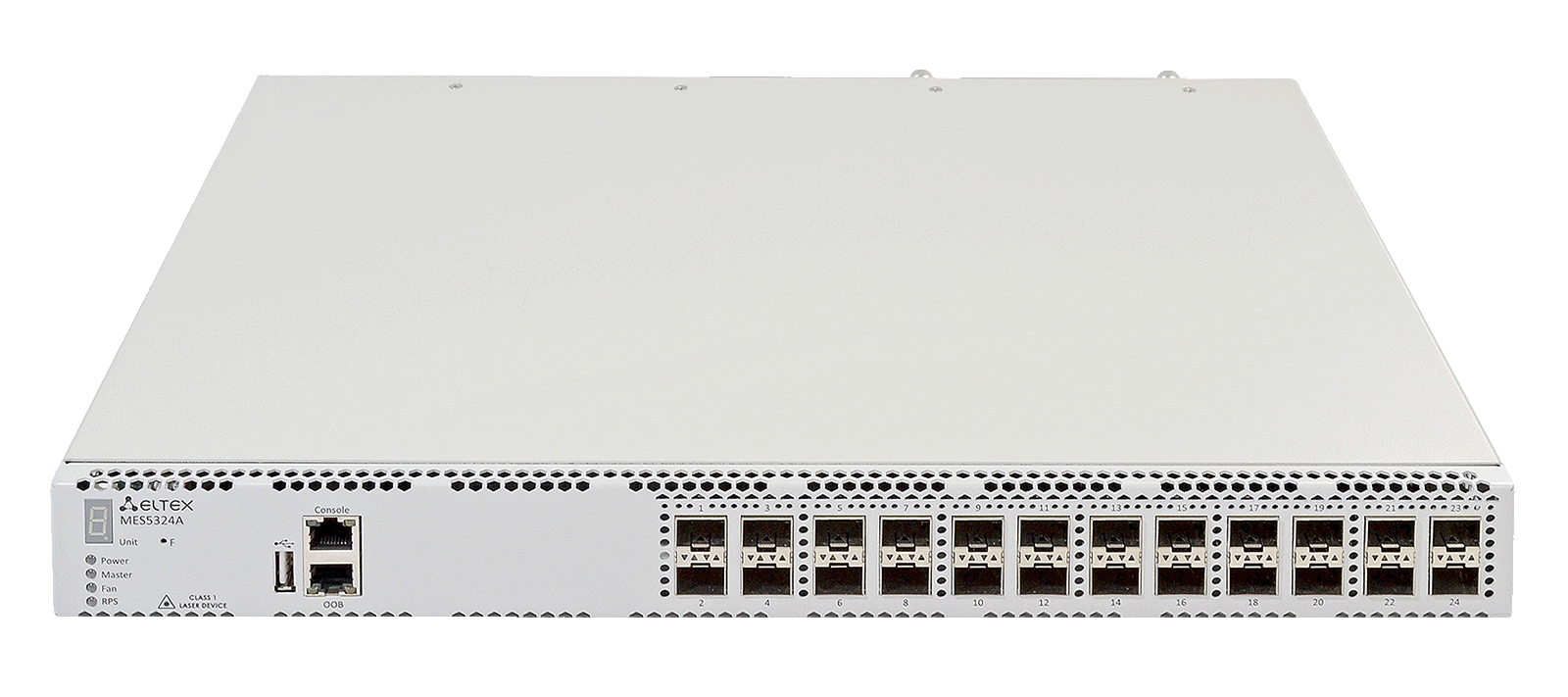

Aggregation 10G Switch MES5324A
