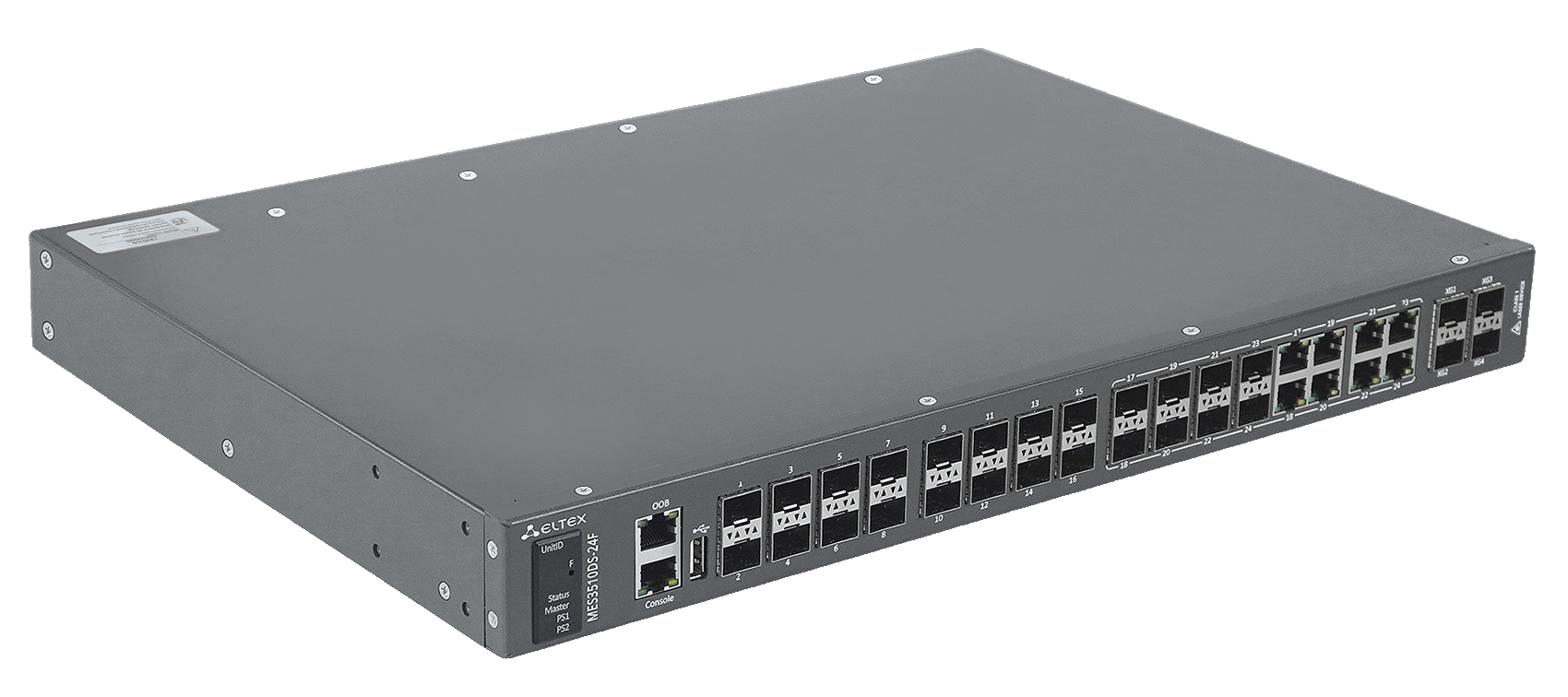

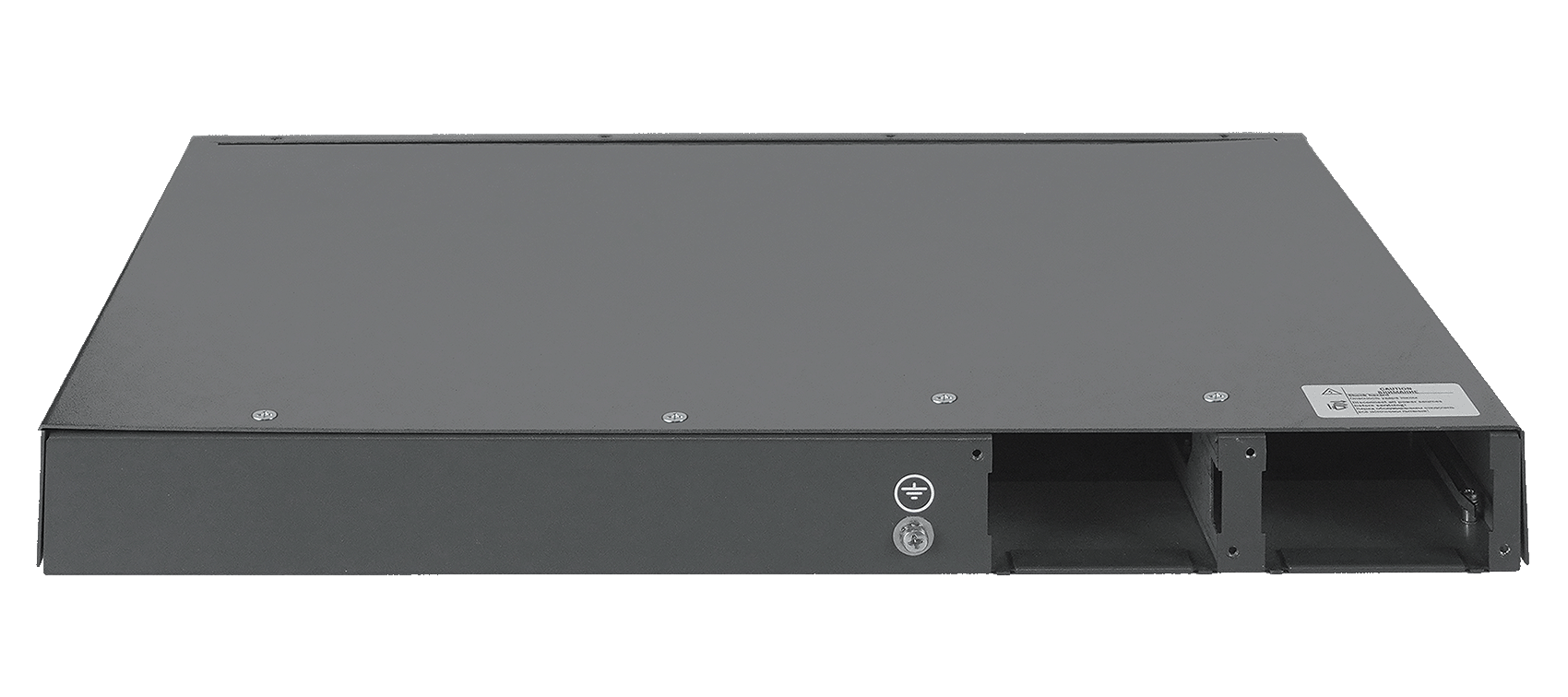

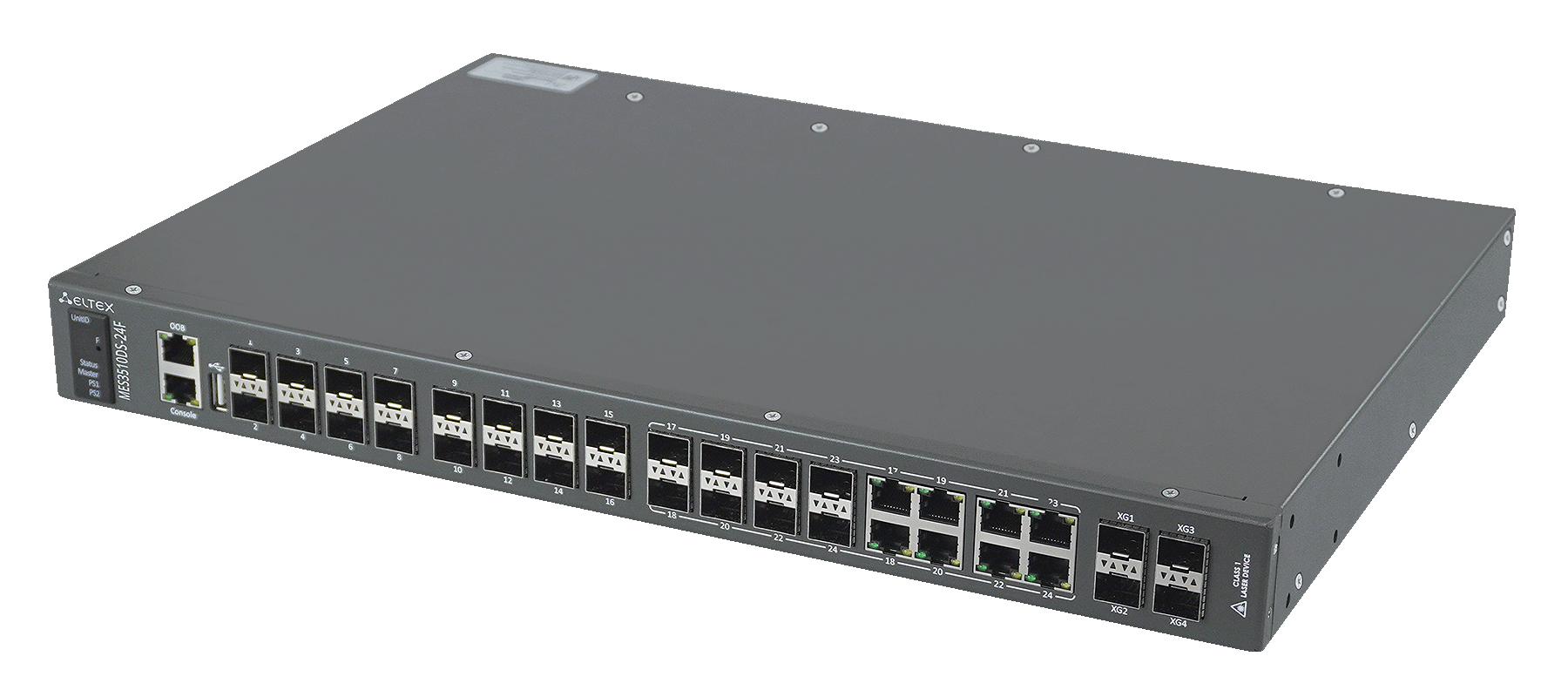

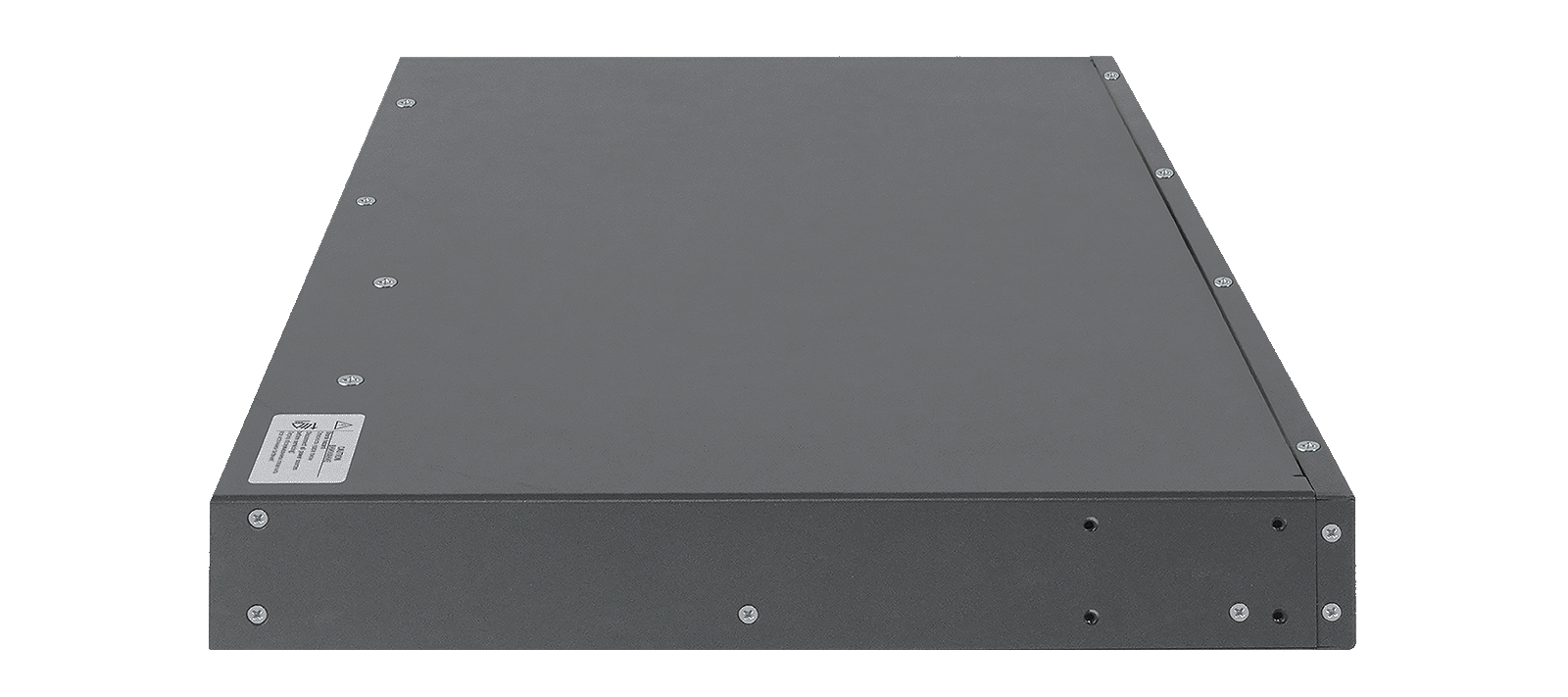

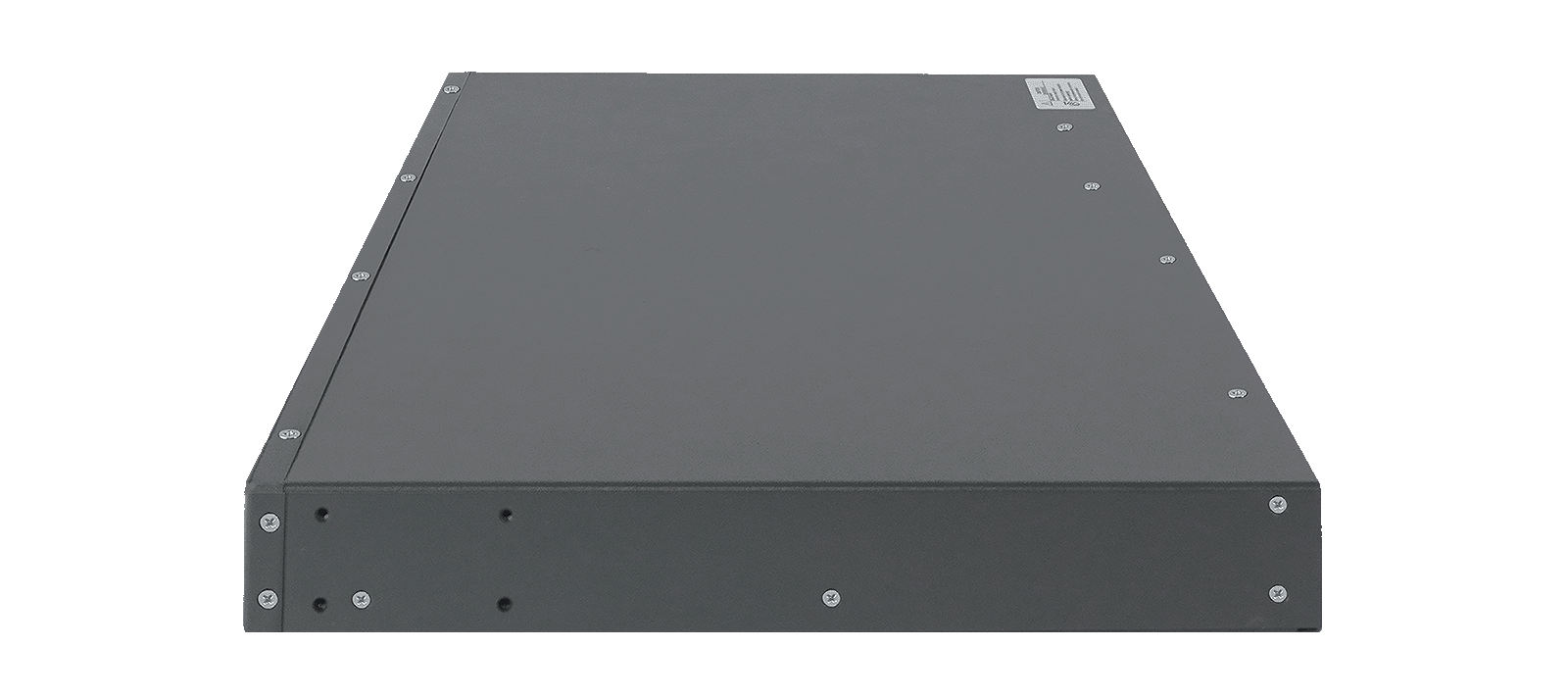

Industrial switches MES3510DS-24F
- Level:
- L3
- Bandwidth:
- 128 Gbps
- Interfaces:
- 16x1G SFP, 8x1G Combo, 4x10G SFP+
- Power supply:
- AC/DC, 2 hot-swappable power supplies Place an order
Description
MES3510DS-24F industrial switches are designed to organize secure fault-tolerant data transmission networks on sites with high requirements to temperature, vibrations and mechanical impact.
MES3510DS-24F has Combo ports of 10/100/ 1000BASE-T/100BASE-FX/1000BASE-X and ensures high performance due to the interfaces operating at speeds of 10 Gbps or 1 Gbps. The MES3510DS-24F model has 100BASE-FX and 1000BASE-X ports for connecting SFP transceivers installation.
For high-precision time synchronization, the PTP (IEEE 1588v2) protocol is supported in Transparent Clock mode. To ensure data channel redundancy without packet loss during switching, the PRP (IEC 62439-3) protocol is implemented.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth:
- 128 Gbps
- Interfaces:
- 16x1G SFP, 8x1G Combo (RJ-45/SFP), 4x10G SFP+
- Degree of protection:
- IP30
- Cooling:
- Passive
- QoS:
- 8 egress queues per port
- Power supply:
- AC/DC, 2 hot-swappable power supplies
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
100BASE-FX/1000BASE-X (SFP)
16
10/100/1000BASE-T/100BASE-FX/1000BASE-X (RJ-45/SFP) Combo
8
10GBASE-R (SFP+)
4
Console port RS-232 (RJ-45)
1
USB 2.0
1
OOB
1
Performance:
Stacking
8 devices
Bandwidth
128 Gbps
Buffer memory
3 MB
RAM (DDR4)
2 GB
ROM (RAW NAND)
512 MB
MAC table
16384
VLAN table
4094
VRRP routers
15
Link Aggregation Groups (LAG)
123, up to 8 ports per LAG
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Physical features and ambient parameters:
Power supply
100–240 V AC, 47–63 Hz (for PM65-220/12,
PM160-220/12, PM165-220/12)
36–72 V DC (for PM100-48/12)
Power supply options
1 AC/DC power supply
2 AC/DC hot-swappable power supplies
Operating temperature
From -40 to +70 °C
Storage temperature
From -50 to +85 °C
Cooling
Passive cooling
Operating humidity
From 5 to 95 % (non-condensing)
Dimensions (WxHxD)
430x44x305 mm
