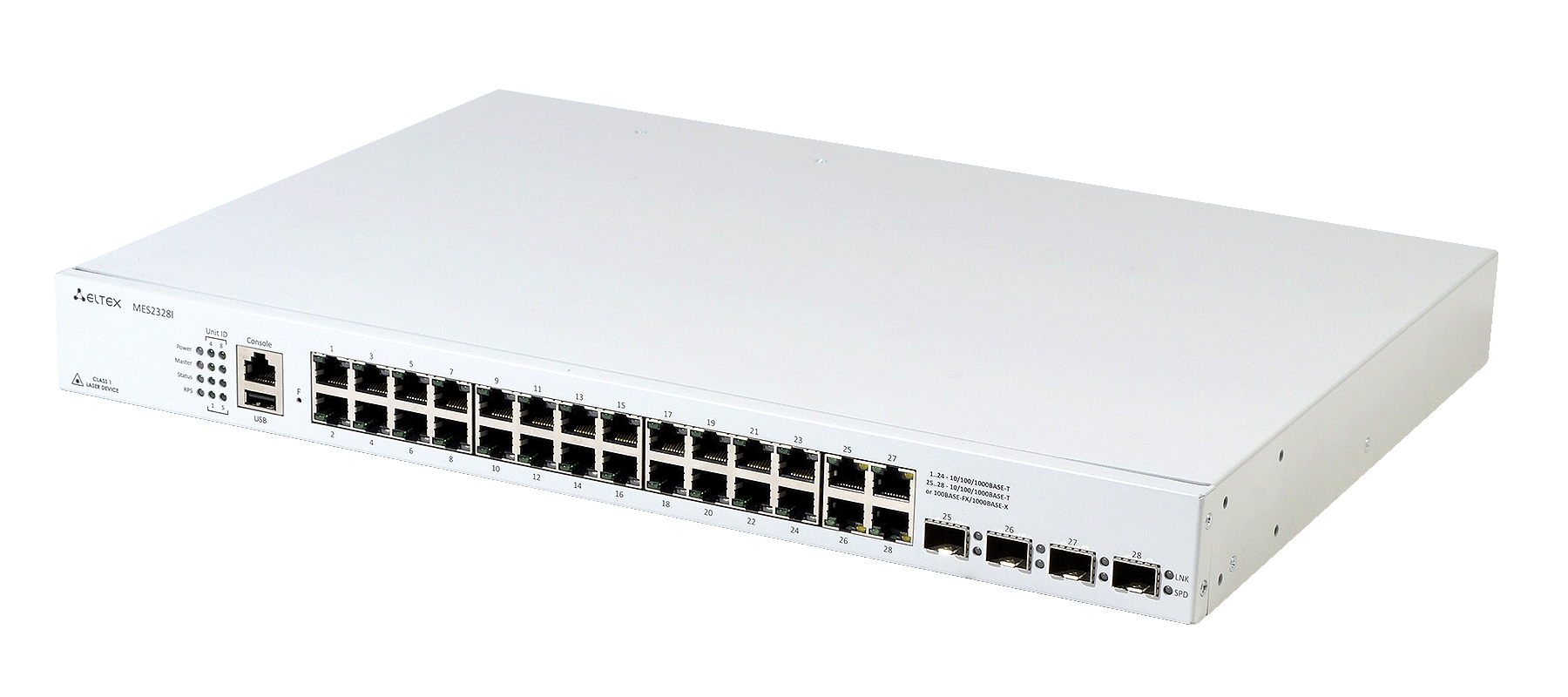

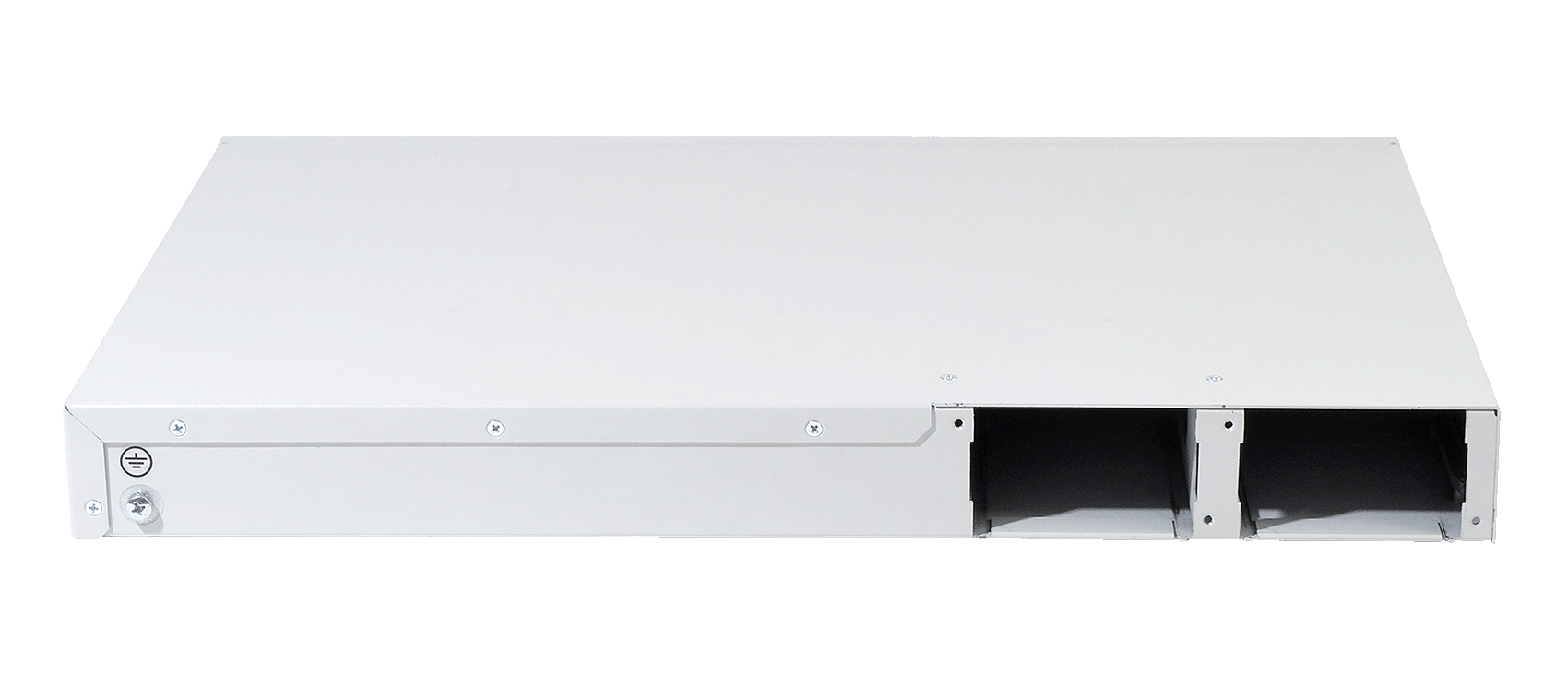

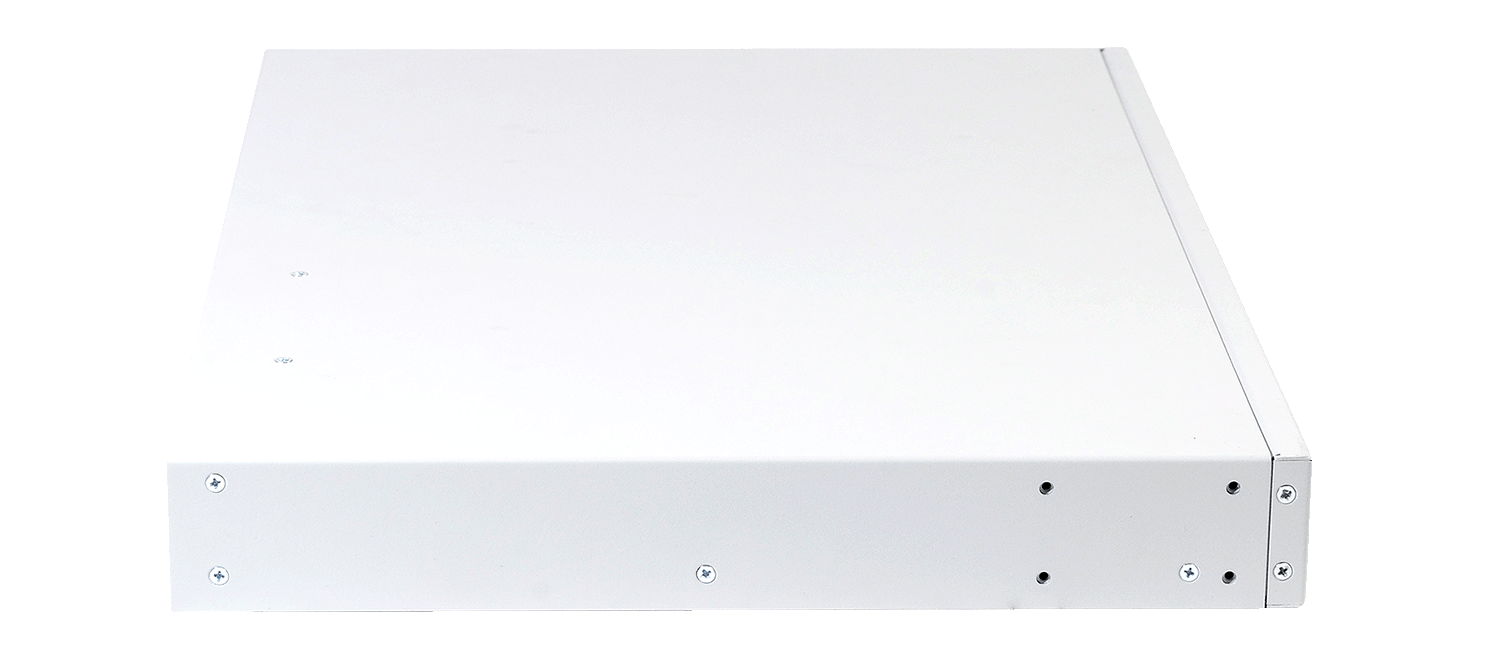

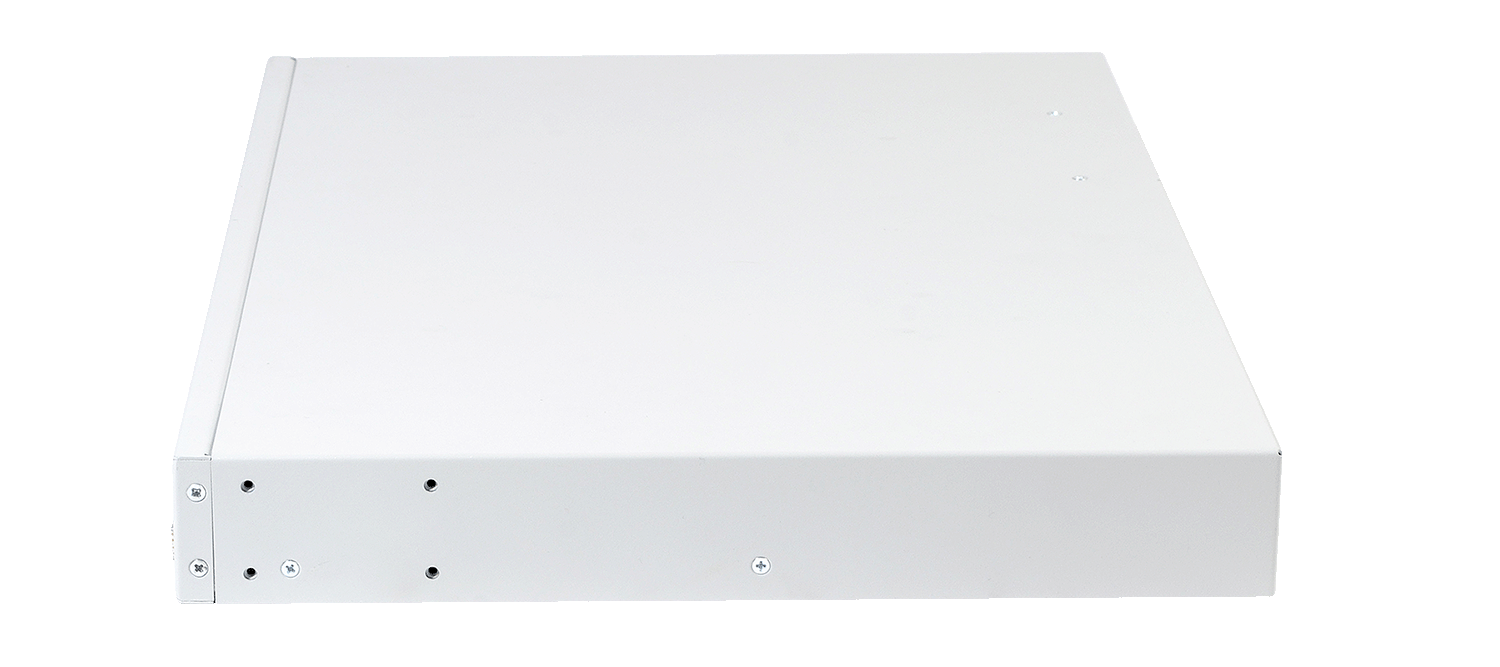

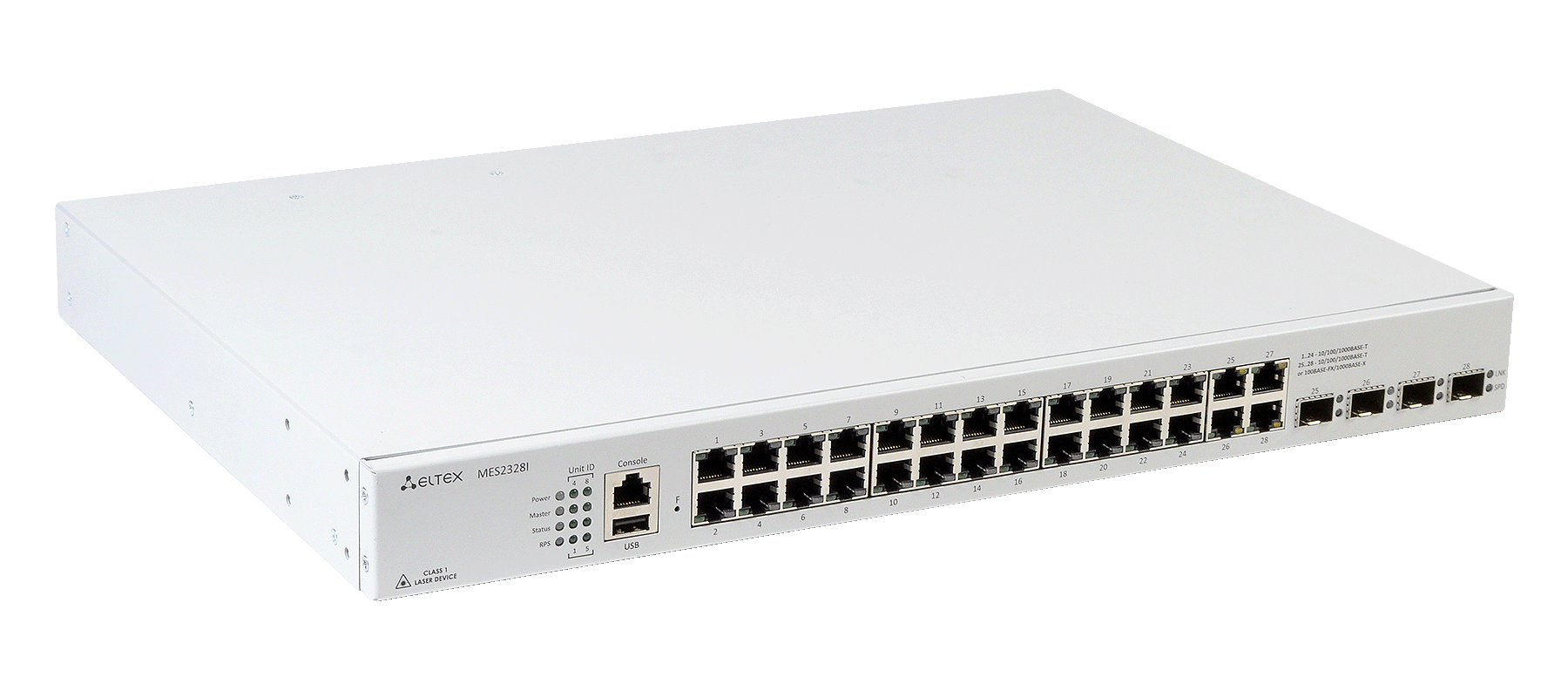

Industrial switch MES2328I

Personal order only
Key features
  • Bandwidth up to 56 Gbps
  • Non-blocking architecture
  • L3 switches
  • Stacking of up to 8 devices
  • Hot-swappable redundant power supplies
  • Passive cooling
  • Support for Multicast (IGMP Snooping, MVR)
  • Advanced security functions (L2-L4 ACL, IP Source Guard, Dynamic ARP Inspection, etc.)
MES2328I industrial switch is designed for organization of the secure data transmission networks on sites where it is necessary to fulfill the requirements for ensuring resistance to temperature influences.

The switch has 10/100/1000BASE-T Gigabit ports and 10/100/1000BASE-T/1000BASE-X/100BASE-FX combo ports for optional connection of an optic-fiber cable.

The distinctive features of the switch are passive cooling and hot-swappable redundant power supplies.
Specifications
Modules and additional devices
Documents and files
Warranty
Interfaces
  • 10/100/1000BASE-T (RJ-45) - 24
  • 10/100/1000BASE-T/1000BASE-X/ 100BASE-FX Combo - 4
  • Console port RS-232 (RJ-45) - 1
  • USB 2.0 - 1
Performance
  • Bandwidth - 56 Gbps
  • Throughput for 64 bytes1 - 41,6 MPPS
  • Buffer memory - 1,5 MB
  • RAM (DDR3) - 512 MB
  • ROM (RAW NAND) - 512 MB
  • MAC table - 16384
  • ARP table2 - 820
  • VLAN table - 4094
  • L2 Multicast groups - 2047
  • SQinQ rules - 958 (ingress/egress)
  • ACL rules - 958
  • L3 IPv4 Unicast routes3 - 816
  • L3 IPv6 Unicast routes3 - 210
  • L3 IPv4 Multicast routes (IGMP Proxy, PIM)3 - 412
  • L3 IPv6 Multicast routes (IGMP Proxy, PIM)3 - 103
  • VRRP routers - 255
  • Maximum size of ECMP groups - 8
  • VRF - 16 (including default VRF)
  • L3 interfaces - 130
  • Link Aggregation Groups (LAG) - 48, up to 8 ports per LAG
  • Quality of Service (QoS) - 8 egress queues per port
  • Jumbo frames size - 10240 bytes
  • Stacking - 8 devices
Interfaces functions
  • Head-of-line blocking (HOL) protection
  • Back Pressure
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow control (IEEE 802.3X)
  • Port mirroring (SPAN, RSPAN)
  • Stacking
MAC addresses functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Automatic MAC addresses aging
  • Static MAC Entries
  • MAC Flapping logging
VLAN functions
  • Voice VLAN
  • IEEE 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Port/host based IGMP Snooping Fast Leave
  • Pim-Snooping
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spaning Tree protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree, IEEE802.1s)
  • STP Multiprocess
  • PVSTP+
  • RPVSTP+
  • Spanning Tree Fast Link option
  • STP Root Guard
  • STP Loop Guard
  • BPDU Filtering
  • STP BPDU Guard
  • Loopback Detection (LBD) на основе VLAN
  • ERPS (G.8032v2)
  • Flex-link
  • Private VLAN, Private VLAN Trunk
  • Layer 2 Protocol Tunneling (L2PT)
L3 functions
  • Static IP routes
  • RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP4 (IPv4 Unicast, IPv4 Multicast, IPv6 Unicast)
  • BFD (for BGP)
  • Address Resolution Protocol (ARP)
  • Proxy ARP
  • Policy-Based Routing (IPv4)
  • VRRP
  • PIM SM, PIM DM, IGMP Proxy, MSDP
  • IP Unnumbered
  • ECMP Load Balancing
  • VRF Lite

Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
  • Multi-Switch Link Aggregation Group (MLAG)
IPv6 functions
  • IPv6 Host
  • Dual-stack
Service functions
  • Virtual Cable Testing (VCT)
  • Virtual Cable Testing
  • Green Ethernet
Security functions
  • Protection against unauthorized DHCP servers (DHCP Snooping)
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • First Hop Security
  • sFlow
  • MAC-based authentication, Port Security, Static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN
  • DoS attack prevention
  • Traffic segmentation
  • DHCP clients filtering
  • BPDU attack prevention
  • NetBIOS/NetBEUI
  • PPPoE Intermediate Agent
ACL (Access Control List)
  • L2-L3-L4 ACL (Access Control List)
  • Time-Based ACL
  • IPv6 ACL
  • ACL based on:
    • physical port number
    • IEEE 802.1p
    • VLAN ID
    • EtherType
    • DSCP
    • protocol type
    • TCP/UDP port number
    • User Defined Bytes
Quality of Service (QoS)
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1p Class of Service (CoS)
  • Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
  • Bandwidth management
  • Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR) algorithms
  • Three marking colors
  • ACL-based CoS/DSCP assignment
  • ACL-based VLAN assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS/CoS to DSCP remarking
  • 802.1p, DSCP mark assignment for IGMP
ОАМ/CFM
  • 802.3ah Ethernet Link OAM
  • 802.1ag Connectivity Fault Management (CFM)
  • 802.3ah Unidirectional Link Detection
Management functions
  • Download and upload of configuration file via TFTP/SCP/SFTP
  • Redirecting the output of CLI commands to an arbitrary file on ROM
  • SNMP
  • Command Line Interface (CLI)
  • WEB interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • NTP (Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • Processing traffic management with two 802.1Q headers
  • Authorization of entered commands using TACACS+ server
  • Access control – privilege levels
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS and TACACS+ (Terminal Access Controller Access Control System) client
  • SSH, Telnet server
  • SSH, Telnet client
  • Remote start of commands via SSH
  • SSL
  • Macrocommands
  • CLI commands logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (Option 82)
  • DHCP Option 12
  • DHCPv6 Relay, DHCPv6 LDRA (Option 18, 37)
  • DHCP server
  • PPPoE Circuit-ID tag
  • Debugging commands
  • Rate limit of traffic to CPU
  • Password encryption
  • Password recovery
  • Ping (IPv4/IPv6 support)
  • DNS server (Resolver)
Monitoring functions
  • Interface statistics
  • RMON/SMON
  • IP SLA
  • CPU utilization monitoring per task and per traffic type
  • RAM utilization monitoring
  • Temperature monitoring
  • TCAM utilization monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 271,1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 3289 DIFFSERV MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 DS field in the IPv4 и IPv6 header
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
  • IEC 61850
Physical specifications and environmental parameters
  • Power supply:
    • 100–240 V AC, 50–60 Hz;
    • 36–72 V DC
  • Power supply options:
    • 1 AC/DC power supply
    • 2 AC/DC hot-swappable power supplies
  • Input current:
    • 3.03–7.27 A for AC
    • 1.2–2.4 A for DC
  • Maximum power consuption - 33 W
  • Heat dissioaration - 33 W
  • Hardware support for Dying Gasp - no
  • Operating temperature - from -40° to +60°С
  • Storage temperature - from -50° to +70°С
  • Operating humidity - no more than 80%
  • Case - metal case, IP30
  • Cooling - passive cooling
  • Form factor - 19", 1U
  • Dimensions (WxHxD) - 430x44x305 mm
  • Weight - 3,85 kg


1The value is given for one-way transmission
2 For each host in the ARP table, an entry is created in the routing table
3 IPv4/IPv6 Unicast/Multicast routes share hardware resources
4 BGP protocol support is provided under license

Additional modules (doesn't included in basic package)

PM160-220/12

PM160-220/12 power module, 220V AC, 160W

PM100-48/12

PM100-48/12 power module, 48V DC, 100W

1 fiber

Part Number

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS3 / FH-SB5312CDS3

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL3 / FH-SB5312CDL3

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS20 / FH-SB5312CDS20

SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL20 / FH-SB5312CDL20

SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM, INDUSTRIAL

FH-SB3512IDS20 / FH-SB5312IDS20

SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL40 / FH-SB5312CDL40

SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS40 / FH-SB5312CDS40

SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL80 / FH-SB5412CDL80

SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS80 / FH-SB5412CDS80

SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL120 / FH-SB5412CDL120

SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS120 / FH-SB5412CDS120

SFP 1.25 GE module 160 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL160 / FH-SB5412CDL160

 2 fibers

SFP 1.25 GE module 550 m, MM, 2 fibers, 850 nm,  LC,  DDM

FH-S8512CDL05

SFP 1.25 GE module 2 km, ММ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL2

SFP 1.25 GE module 20 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL20

SFP 1.25 GE module 40 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL40

SFP 1.25 GE module 80 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL80

SFP 1.25 GE module 120 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL120

SFP 1.25 GE module 160 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL160
