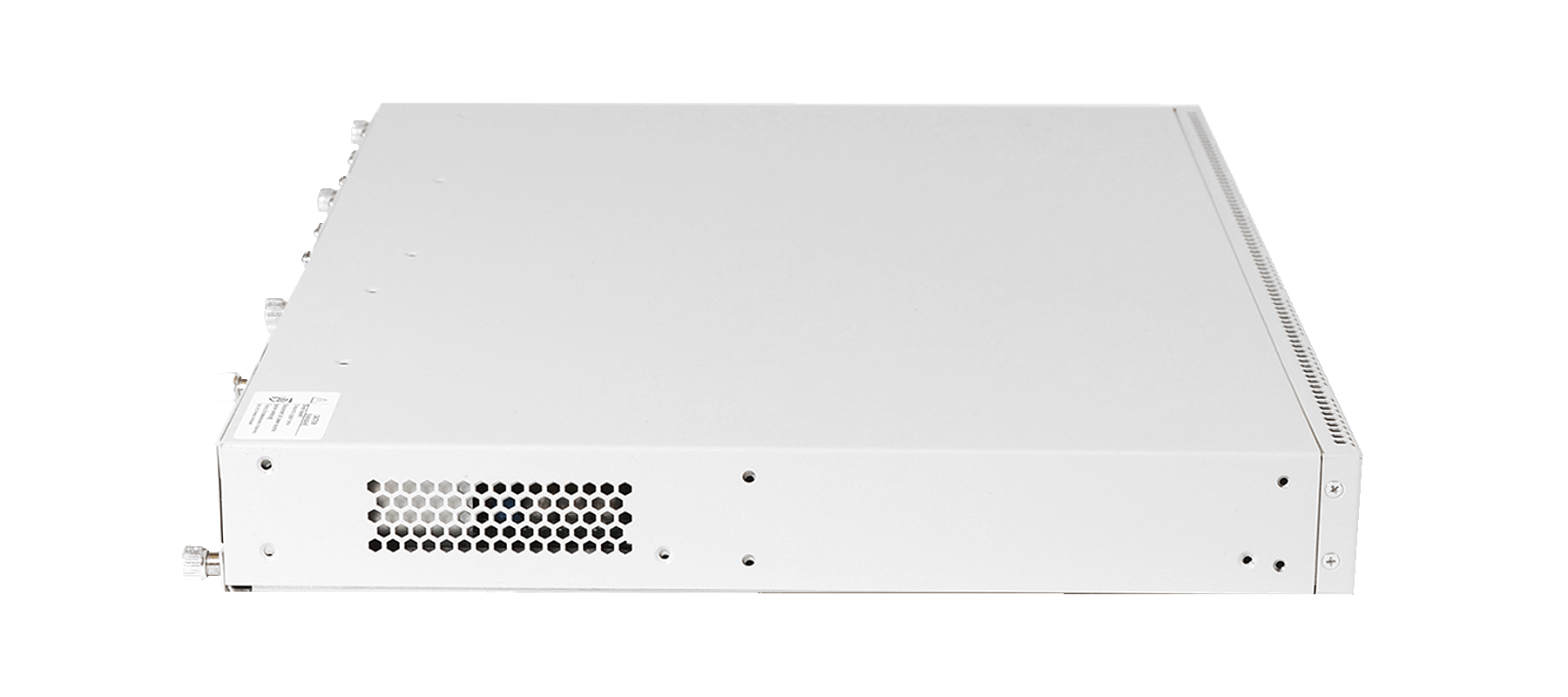

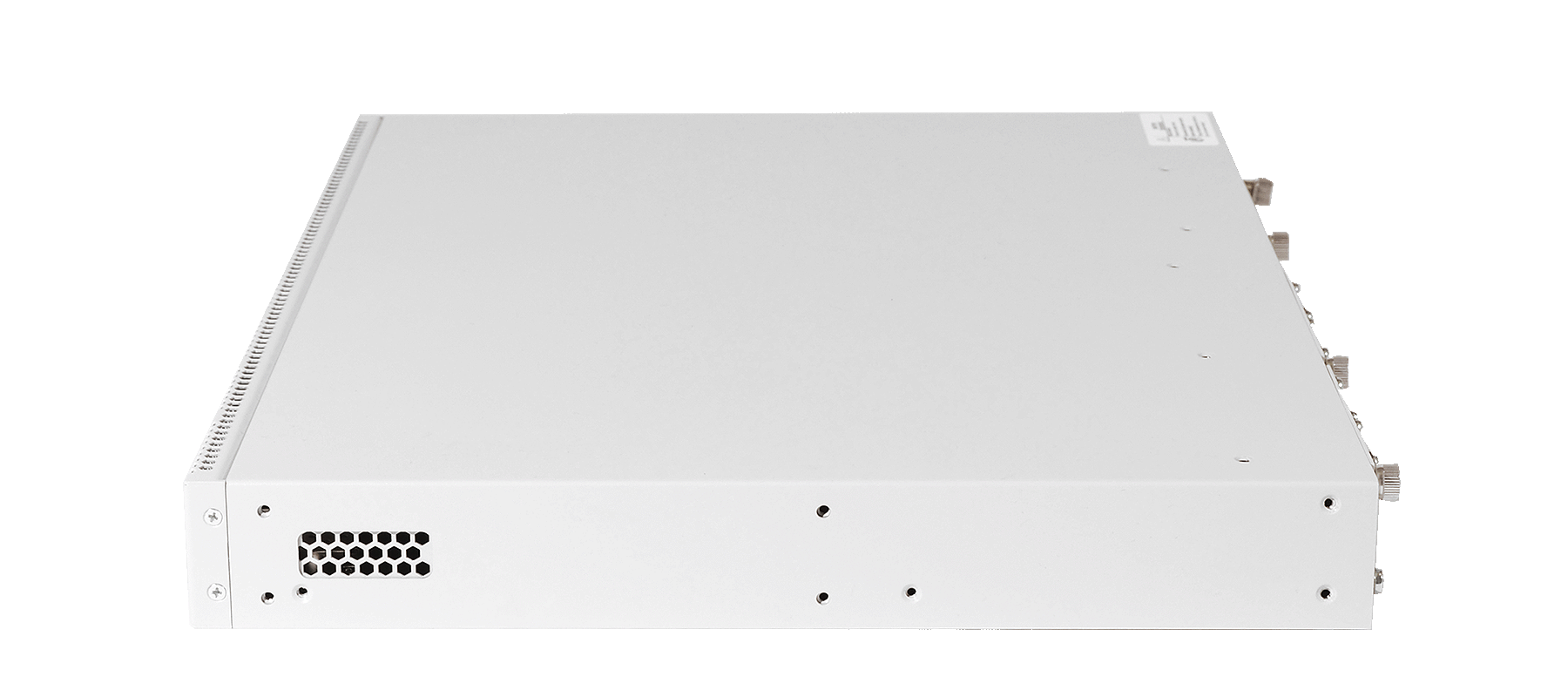

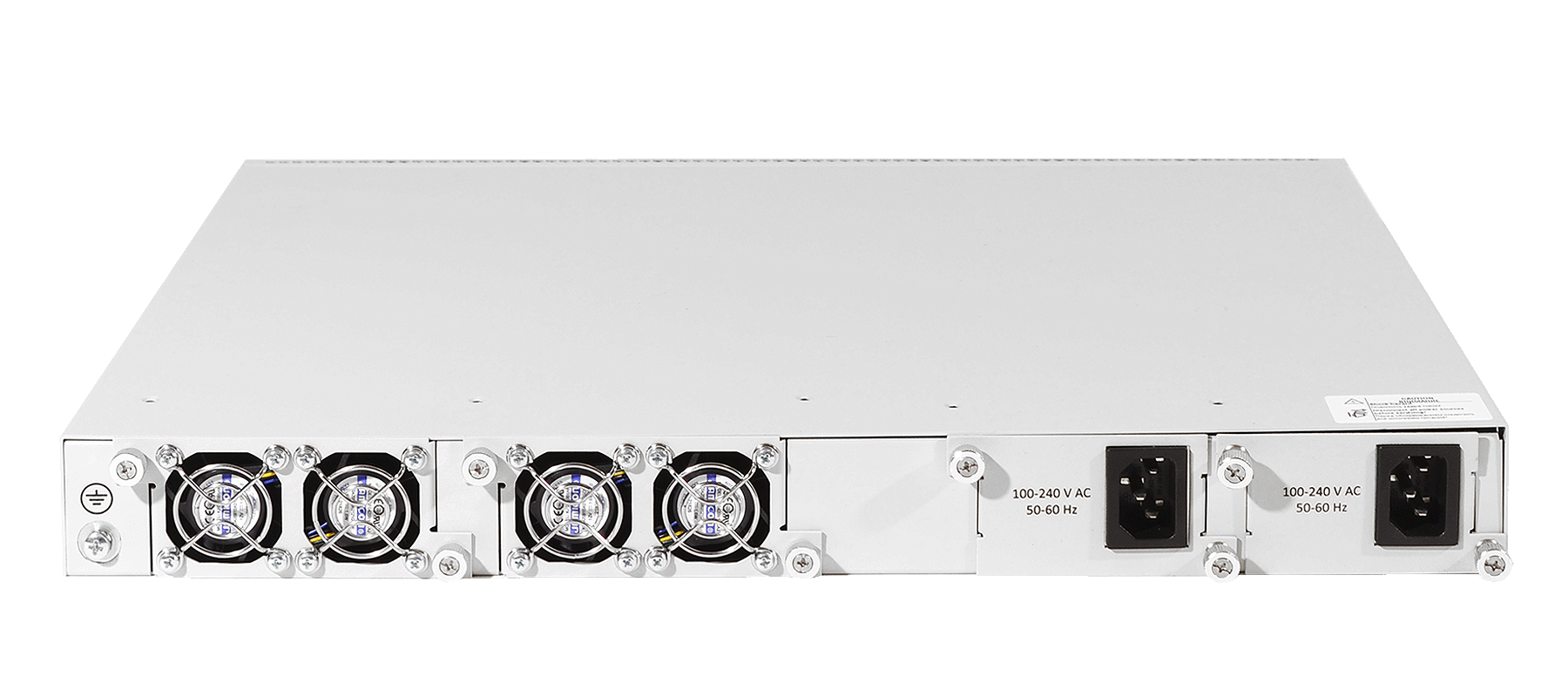

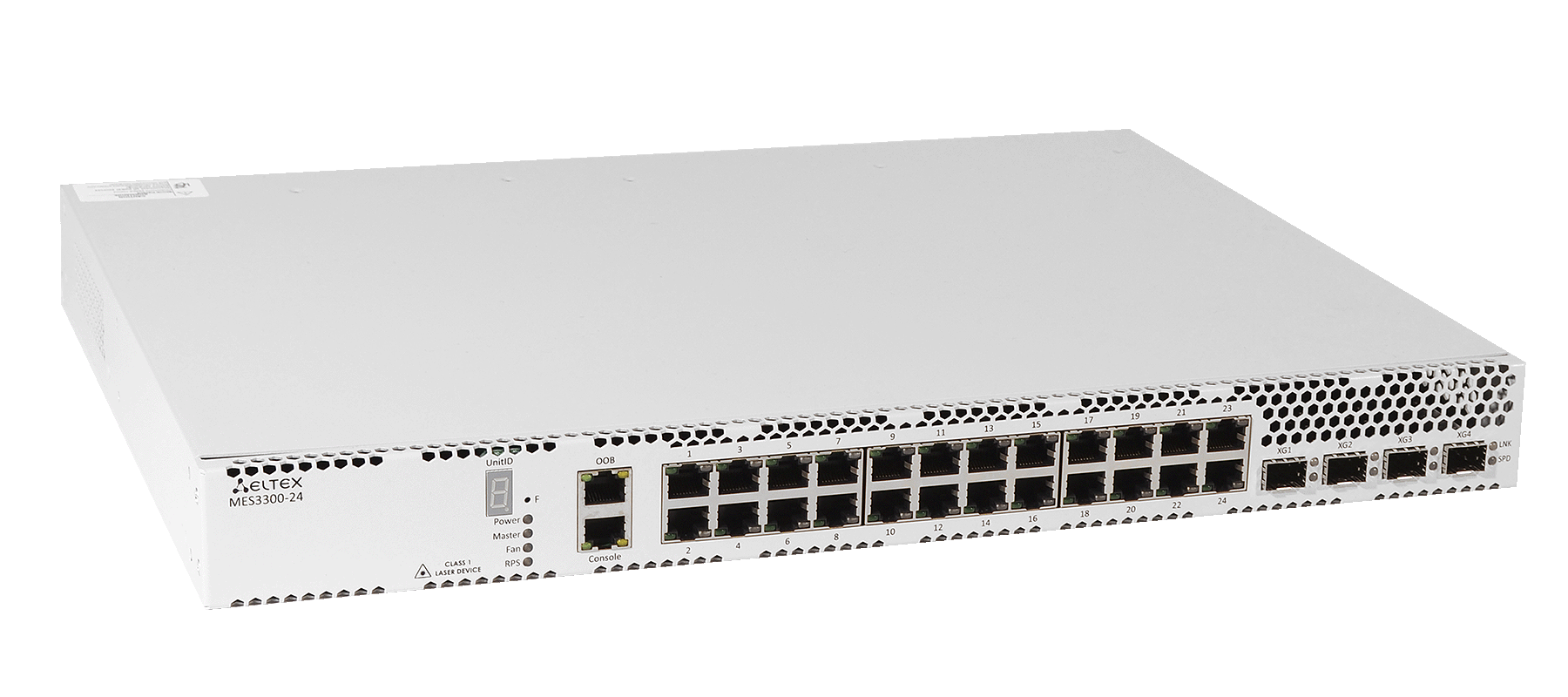

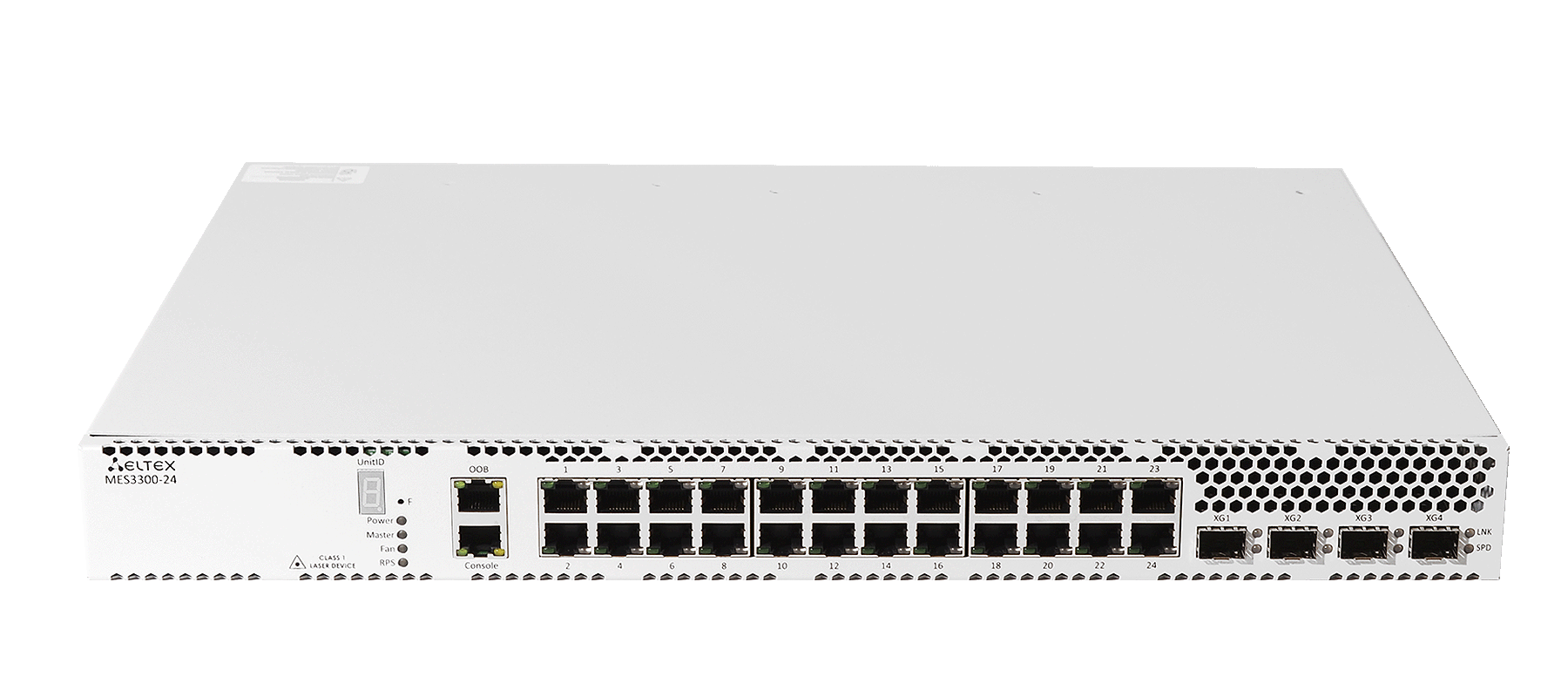

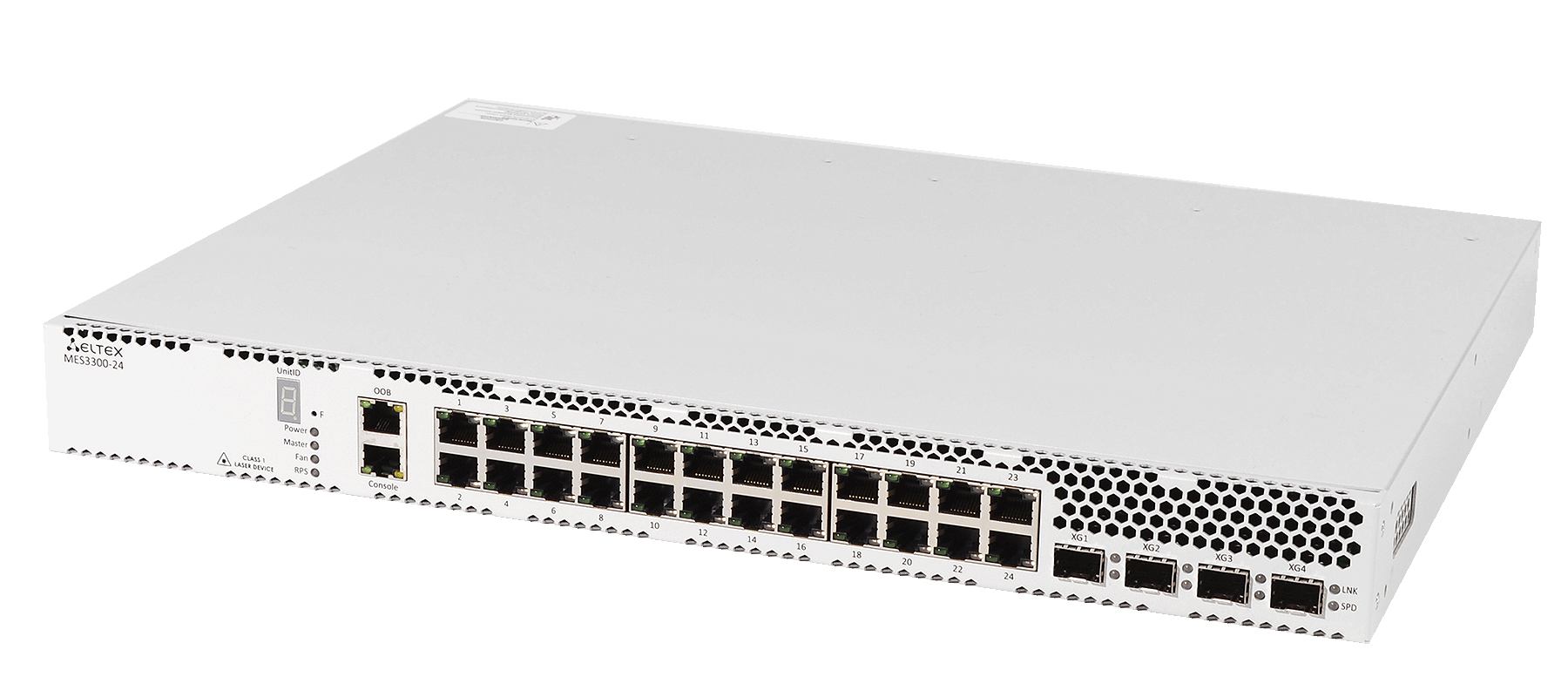

Aggregation Switch MES3300-24

Pre-production
Key features
  • Bandwidth up to 128 Gbps
  • Non-blocking architecture
  • 4 × 10G ports in basic configuration
  • L3 switches
  • Stacking up to 8 devices
  • Hot-swappable redundant power supplies
  • Dual ventilation system
  • Front-to-Back cooling
The new generation switches can be used in service provider networks as aggregation or transport switches. They ensure high performance due to the interfaces operating at speeds of 10 Gbps or 1 Gbps. MES aggregation switches’ feature set includes advanced L2 functions, static routing, dynamic routing, stacking of up to 8 devices, redundant and hot swappable power supplies.
Specifications
Documents and files
Warranty
Interfaces
  • 10/100/1000BASE-T - 24
  • 10GBASE-R (SFP+)/1000BASE-X (SFP) - 4
  • 10/100/1000BASE-T (OOB) - 1
  • Console port RS-232 (RJ-45) - 1
Performance
  • Bandwidth - 128 Gbps
  • Throughput for 64 bytes¹ - 95.2 MPPS
  • Buffer memory - 1.5 MB
  • RAM (DDR4) - 2 GB
  • ROM (RAW NAND) - 512 MB
  • MAC table - 16384
  • ARP table2 - 4087
  • VLAN table - 4094
  • L2 Multicast groups - 4092
  • SQinQ rules - 1320 (ingress), 1320 (egress)
  • MAC ACL rules - 3000
  • IPv4/IPv6 ACL rules - 2999/1500
  • L3 IPv4 Unicast routes³ - 13278
  • L3 IPv6 Unicast routes³ - 3316
  • L3 IPv4 Multicast (IGMP Proxy, PIM) routes³ - 4087
  • L3 IPv6 Multicast (IGMP Proxy, PIM) routes³ - 1642
  • VRRP routers - 255
  • Maximum size of ECMP groups - 8
  • VRF number - 16 (including default VRF)
  • L3 interfaces - 2050
  • Link Aggregation Groups (LAG) - 32, up to 8 ports per LAG
  • Quality of Service (QoS) - 8 egress queues per port
  • Jumbo frames size - 10240 bytes
  • Stacking - 8 devices
Interface features
  • Head-of-line blocking (HOL) protection
  • Back pressure
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow Control (IEEE 802.3X)
  • Port Mirroring (SPAN, RSPAN)
МAC address functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC Flapping logging
VLAN functions
  • Voice VLAN
  • 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast groups
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Host/port-based IGMP Snooping Fast Leave
  • PIM-Snooping
  • IGMP proxy-report
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spaning Tree Protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
  • PVSTP+
  • RPVSTP+
  • Spanning Tree Fast Link option
  • STP Root Guard
  • BPDU Filtering
  • STP BPDU Guard
  • Loopback Detection
  • ERPS (G.8032v2)
  • Flex-link
  • Private VLAN
  • Layer 2 Protocol Tunneling (L2PT)
L3 functions
  • Static IP routes
  • Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP4 (IPv4 Unicast, IPv4 Multicast)
  • BFD protocols (for BGP)
  • Address Resolution Protocol (ARP)
  • Proxy ARP
  • VRRP
  • Multicast dynamic routing protocols PIM SM, PIM DM, IGMP Proxy, MSDP
  • ECMP Load Balancing
  • IP Unnumbered
  • VRF lite
Link Aggregation functions
  • LinkAggregationGroups (LAG)
  • LACP
  • LAG Balancing Algorithm
  • Multi-Switch Link Aggregation Group (MLAG)
IPv6 functions
  • IPv6 Host
  • Dual-stack IPv4, IPv6
Service functions
  • Virtual Cable Tester (VCT)
  • Optical transceiver diagnostics
  • Green Ethernet
Security functions
  • Protection against unauthorized DHCP servers (DHCP Snooping)
  • DHCP option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • First Hop Security
  • sFlow
  • MAC-based authentication, MAC address limitation, static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN
  • DoS attack prevention
  • Traffic segmentation
  • DHCP clients filtering
  • BPDU attack prevention
  • NetBIOS/NetBEUI filtering
Quality of Service (QoS)
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1р Class of Service
  • Storm control for different traffics (broadcast, multicast, unknown unicast)
  • Bandwidth management
  • Strict Priority and Weighted Round Robin (WRR) scheduling algorithms
  • Three marking colors
  • ACL-based CoS/DSCP assignment
  • ACL-based VLAN assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS, CoS to DSCP remarking
  • 802.1p DSCP mark assignment for IGMP
OAM
  • 802.3ah Ethernet Link OAM
  • 802.3ah Unidirectional Link Detection
Access Control Lists (ACL)
  • L2-L3-L4 ACL (Access Control List)
  • Time-Based ACL
  • IPv6 ACL
  • ACL based on:
    • Switch port
    • 802.1p
    • VLAN ID
    • EtherType
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • User Defined Bytes
Management functions
  • Configuration file download and upload via TFTP/SCP
  • SNMP
  • Command Line Interface (CLI)
  • Web interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • Access control — privilege levels for users
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS/TACACS+ (Terminal Access Controller Access Control System) clients
  • SSH server, Telnet server
  • SSH client, Telnet client
  • SSL
  • Macrocommands
  • CLI command logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (Option 82)
  • DHCP Option 12
  • Debbugging commands
  • Rate limit of traffic to CPU
  • Password encryption
  • Pasword recovery
  • Ping (IPv4/IPv6)
Monitoring functions
  • Interface statistics
  • RMON/SMON remote monitoring
  • IP SLA
  • Taskand traffictype-based CPU utilization monitoring
  • RAM monitoring
  • Temperature monitoring
  • TCAM monitoring
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 1271, 1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 3289 DIFFSERV MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
  • IEC 61850

Physical parameters

Power supply

100–240 V AC, 50–60 Hz;

36–72 V DC

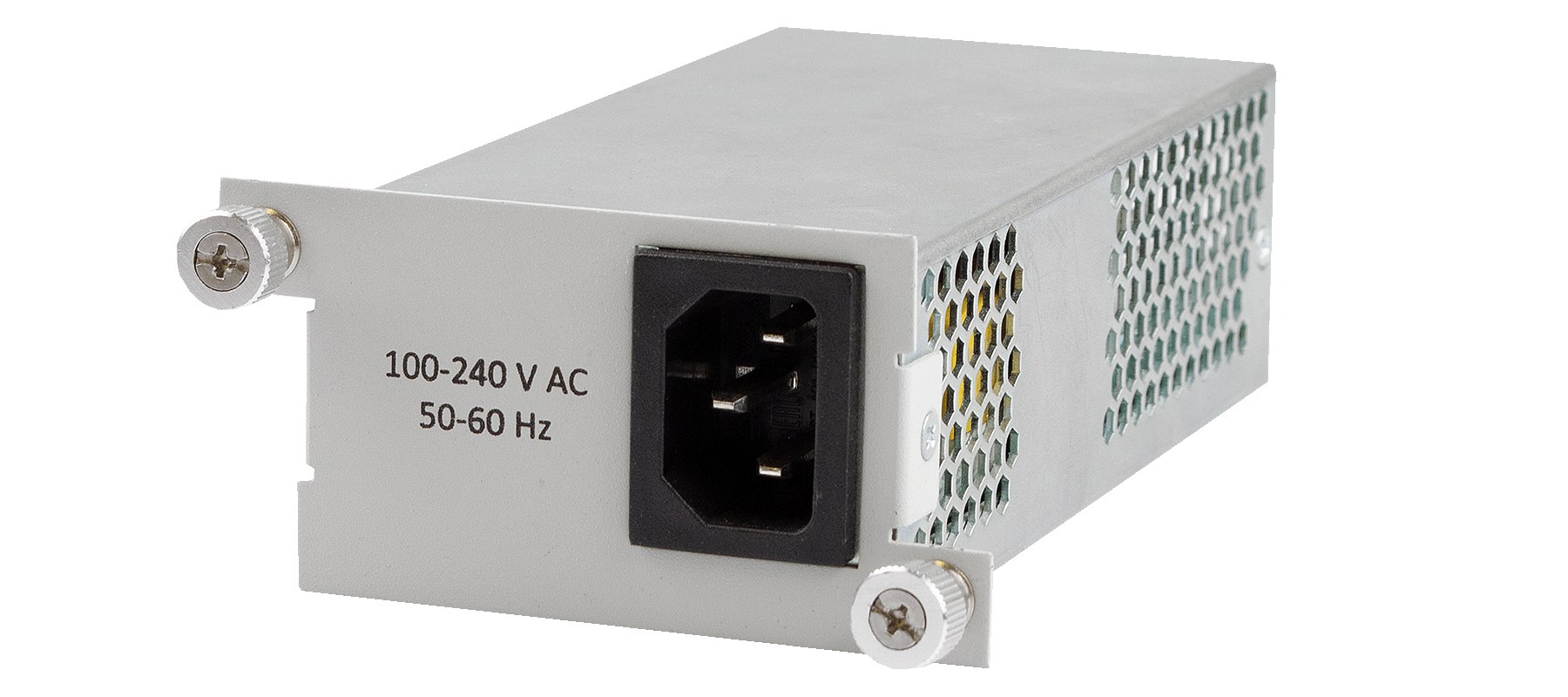

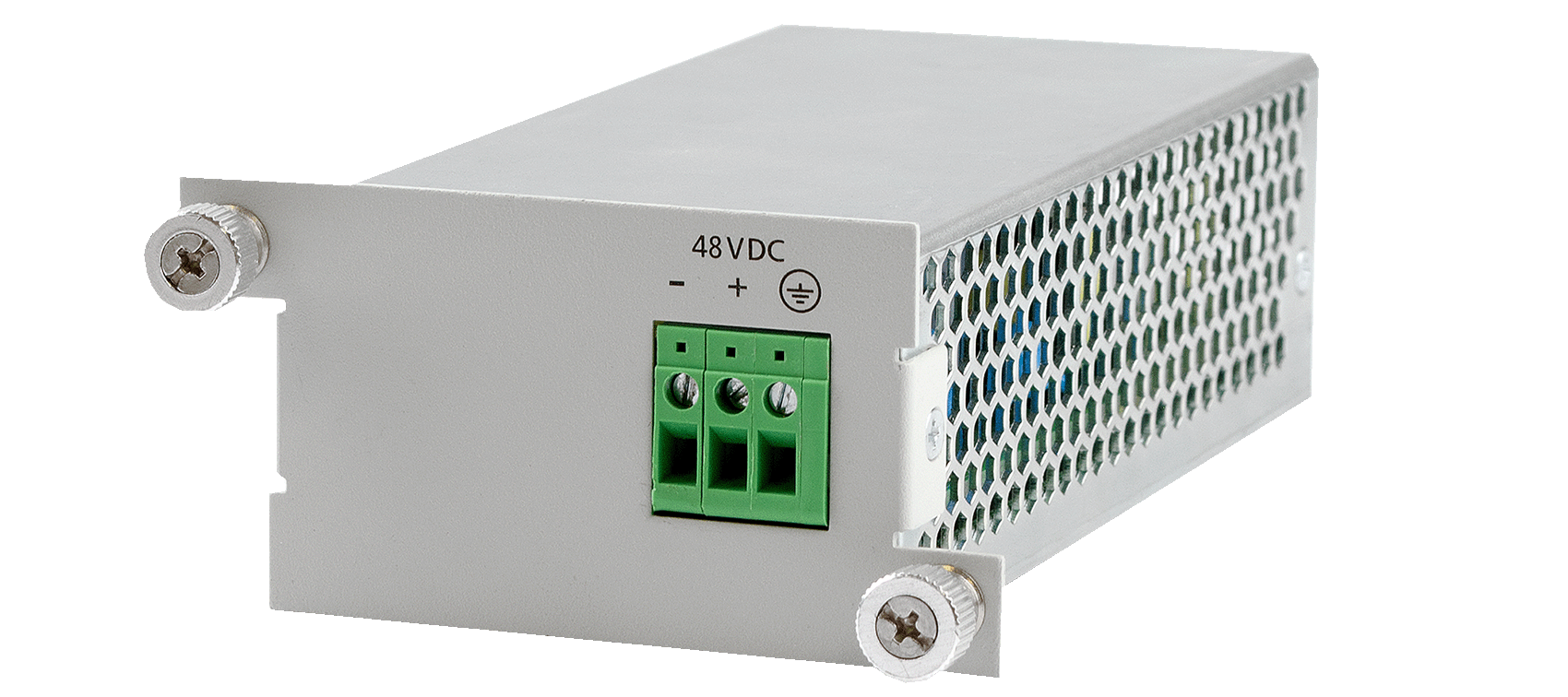

Power supply options:

  • 1 AC/DC power supply
  • 2 hot-swappable AC/DC power supplies

Input current

0.2–0.35 A for AC

0.4–0.8 A for DC

Maximum power consumption

33 W

Heat dissipation

33 W

Dying Gasp support

no

Operating temperature

from -10 to +45 °С

Storage temperature

from -50 to +70 °С

Operating humidity

no more than 80 %

Cooling

Front-to-Back, 4 fans

Form factor

19", 1U

Dimensions (W × H × D)

430 × 44 × 330 mm

Weight

5.13 kg



¹ Values are given for one-way transmission.
² For each host in the ARP table, an additional entry is created in the switching table.
³ IPv4/IPv6 Unicast/Multicast routes share hardware resouces.
4BGP protocol support is provided inder license
Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.
