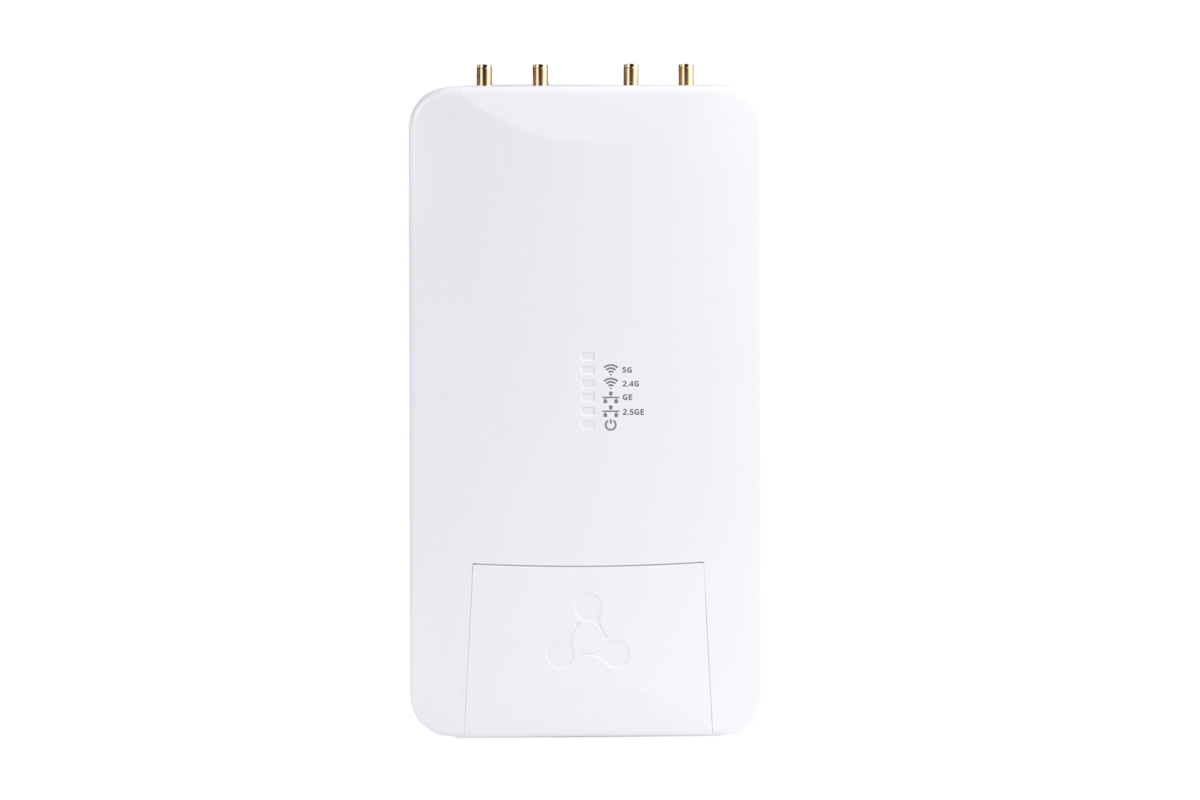

Wireless access point WOP-50L

MU-MIMO:
2x2
Wi-Fi 7:
802.11be
Roaming:
802.11r/k/v
Power supply:
PoE+ 48 V/56 V

Description

WOP-50L is a Wi-Fi 7 all-weather access point designed to provide a reliable wireless network in outdoor environments. The device is designed for year-round operation in demanding conditions: from extreme cold to high temperatures, in high humidity, precipitation, and dusty environments, and operates reliably where standard office equipment cannot be used: at industrial sites, stadiums, in parks, warehouses, and other outdoor areas. Support for Wi-Fi 7 provides high speed, low latency, and a stable connection with a large number of simultaneously connected devices, making WOP-50L a convenient solution for guest access in crowded places, as well as for communications in cottage settlements and remote sites without developed wired infrastructure.


Scalability

WOP-50L integrates easily into an existing network and allows the coverage area to be expanded as the number of users and devices grows without complicating the infrastructure. External antennas with SMA connectors provide flexibility when planning radio coverage: omnidirectional, sector, or panel antennas can be selected for a specific application. Connecting access points to a hardware (WLC) or virtual (vWLC) controller combines them into a managed network with centralized configuration and seamless roaming between devices.


Wireless connection

Due to support for the IEEE 802.11be standard, the WOP-50L access point provides data rates of up to 688 Mbps in the 2.4 GHz band and up to 2882 Mbps in the 5 GHz band. Multi-Link Operation (MLO) technology combines both frequency bands into a single connection. This increases the total data rate, reduces latency, and improves connection reliability. Compared to previous-generation equipment, WOP-50L significantly increases throughput and operates more reliably in high-density client environments. MU-MIMO 2×2 technology and omnidirectional antennas provide uniform coverage and simultaneous service for multiple devices, making WOP-50L a universal solution for public network deployment.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
Outdoor
Wi-Fi 7:
802.11a/b/g/n/ac/ax/be
Roaming:
802.11r/k/v
Encryption:
WPA/WPA2/WPA3/OWE
MU-MIMO:
2x2
Multi-Link Operation (MLO)
OFDMA
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000/2500BASE-T (RJ-45) with PoE support
1
10/100/1000BASE-T (RJ-45)
1
Wi-Fi 2.4 GHz
EEE 802.11b/g/n/ax/be
Wi-Fi 5 GHz
IEEE 802.11a/n/ac/ax/be
SMA-type (female) connectors for external antennas (Omni, sector, panel, etc.)
4
WLAN capabilities:
Standards support
IEEE 802.11a/b/g/n/ac/ax/bе
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx)
Yes
WMM-based packet priorities and planning
Yes
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Auto channel selection
Yes
Spectrum analyzer
Yes
Virtual access points
14
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN
Yes
С-VLAN
Yes
Management VLAN
Yes
DHCP client
Yes
GRE
Yes
Local switching
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3/OWE
Captive Portal
Yes
Authorization via RADIUS server when logging into the device
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulations
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
MU-MIMO
2х2
Multi-Link Operation (MLO)
Yes
OFDMA
Yes
Bandwidth
20, 40 MHz for 2.4 GHz
20, 40, 80 and 160 MHz for 5 GHz
Operating channels:
802.11b/g/n/ax/be
1–13 (2401–2483 MHz)
802.11a/n/ac/ax/be
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
2.4 GHz, 802.11be
688 Mbps
5 GHz, 802.11be
2882 Mbps
Maximum power of the transmitter:
2.4 GHz
20 dBm
5 GHz
21 dBm
Receiver sensitivity:
2.4 GHz
Up to -94 dBm
5 GHz
Up to -94 dBm
Maximum number of concurrent connections
119
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
Physical specifications:
Power supply
PoE+ 48 V/56 V (IEEE 802.3at-2009)
Maximum power consumption
No more than 13.5 W
SPI-NAND Flash
128 MB
DDR3 RAM
512 MB
Operating temperature
From -45 to +65°C
Bracing
Armstrong, threaded rod, ceiling/wall mount
Ingress protection
IP55
Dimensions (WxHxD)
125х236,5х50,4 mm
Weight
0,8 kg
