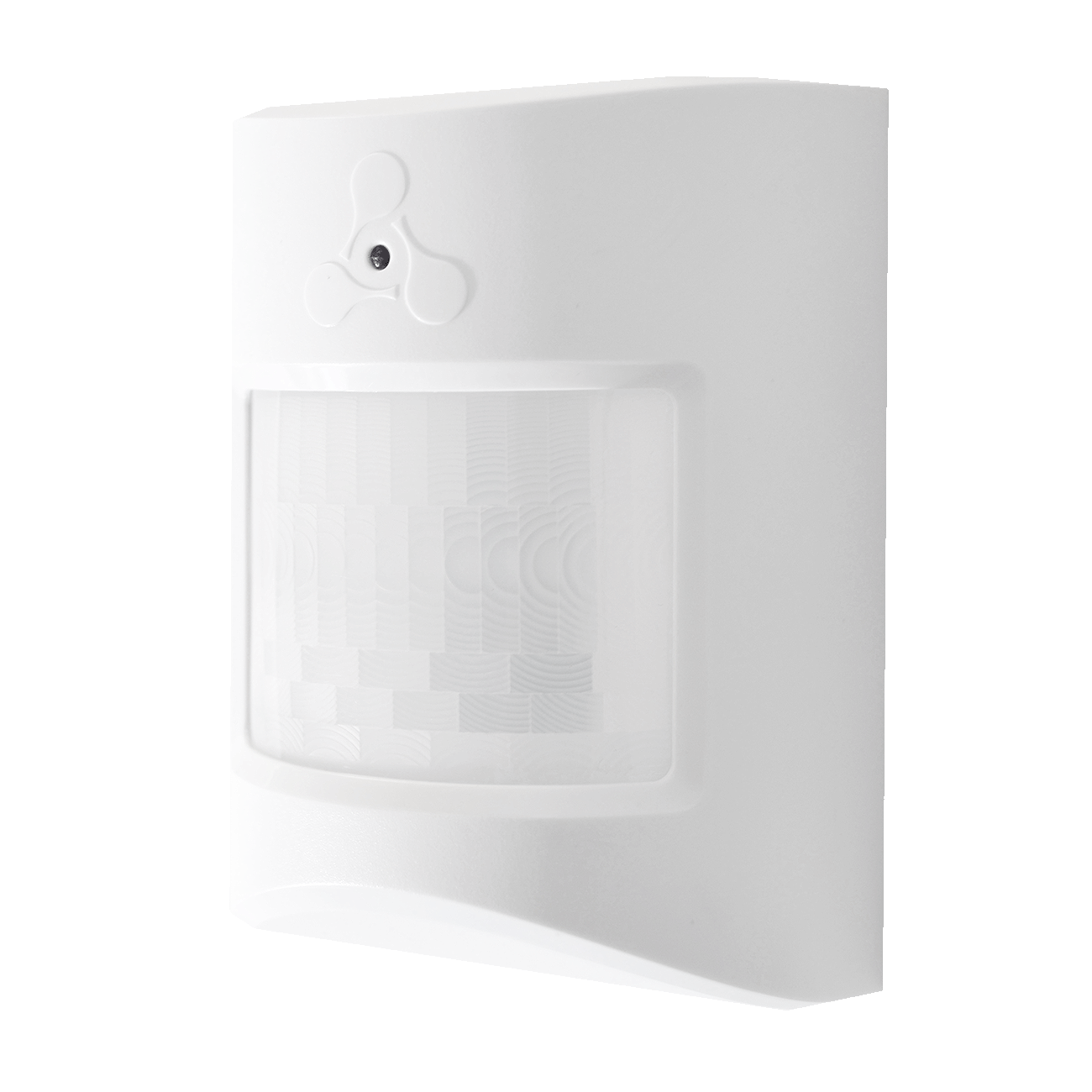

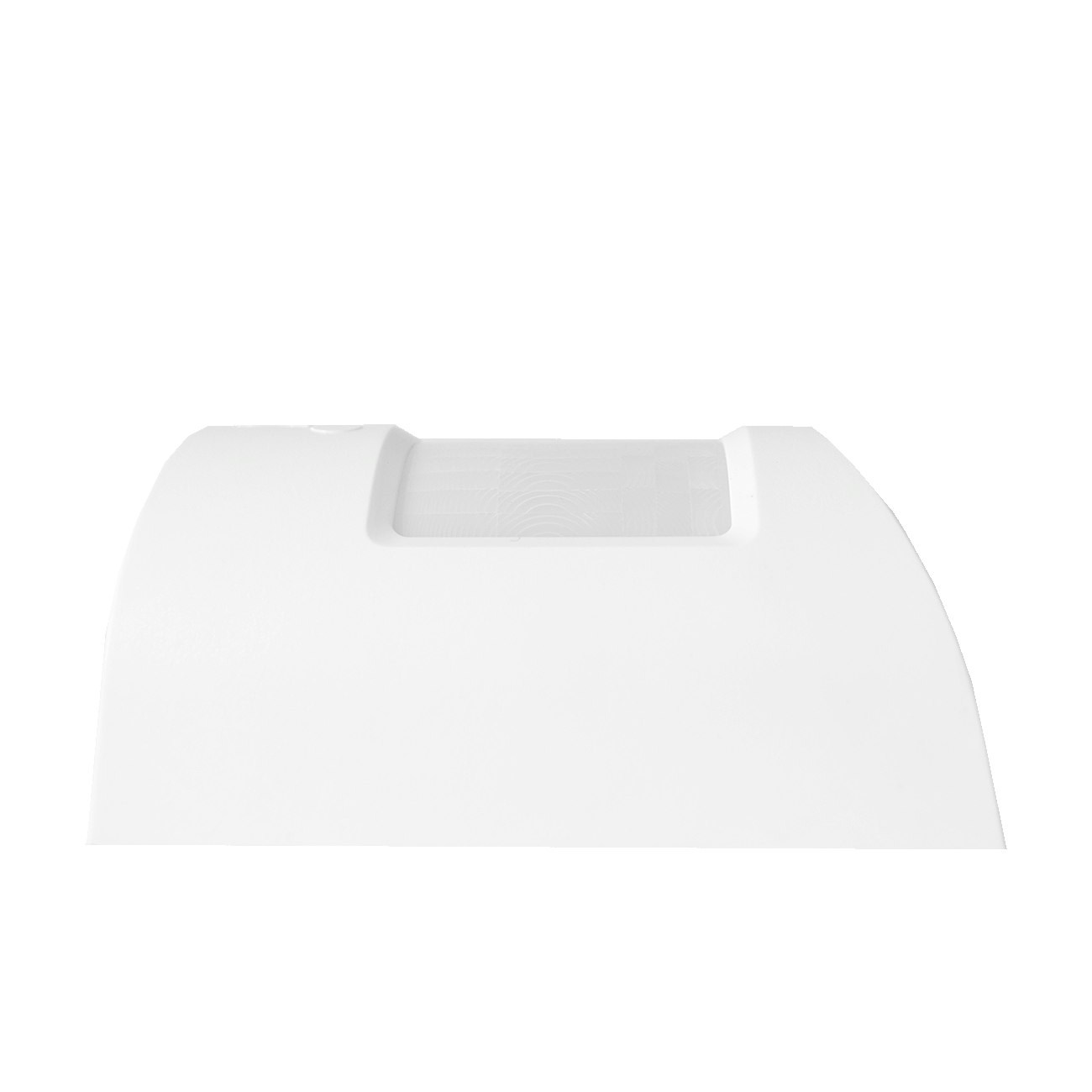

ST-PIR
- Volumetric infrared motion sensor based on Matter over Thread technology
Description
ST-PIR is a volumetric infrared motion sensor that operates under Matter over Thread technology. When people or animals enter the protected area, the sensor sends a signal to the Eltex smart home hub.
The device is battery-operated, so it can be installed in the location of choice without the need for wiring.
ST-PIR has a built-i light sensor, allowing the smart home system to automatically switch lights on and off depending on the time of day.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Battery-operated
- Support for Matter over Thread protocol
- Operation in smart home scenarios
Features and capabilities
For full specifications and manuals see Documents and files section below
General parameters:
Power
Li-ion CR123A, 3 V
Signal frequency
2.4 GHz
Maximum distance from hub
120 m (in the absence of obstacles)
Object detection range
Up to 9 m
Horizontal beam angle
90°
Light sensor range
From 0 to 2000 lx
Ingress protection
IP20
Dimensions (WxHxD)
68x97x76 mm (with bracket installed)
Weight
106 g (including battery)
Operating temperature
From +5 to +45 °C
Operating humidity at 40 °C
No more than 93 %
Maximum RF strength
+14 dBm
