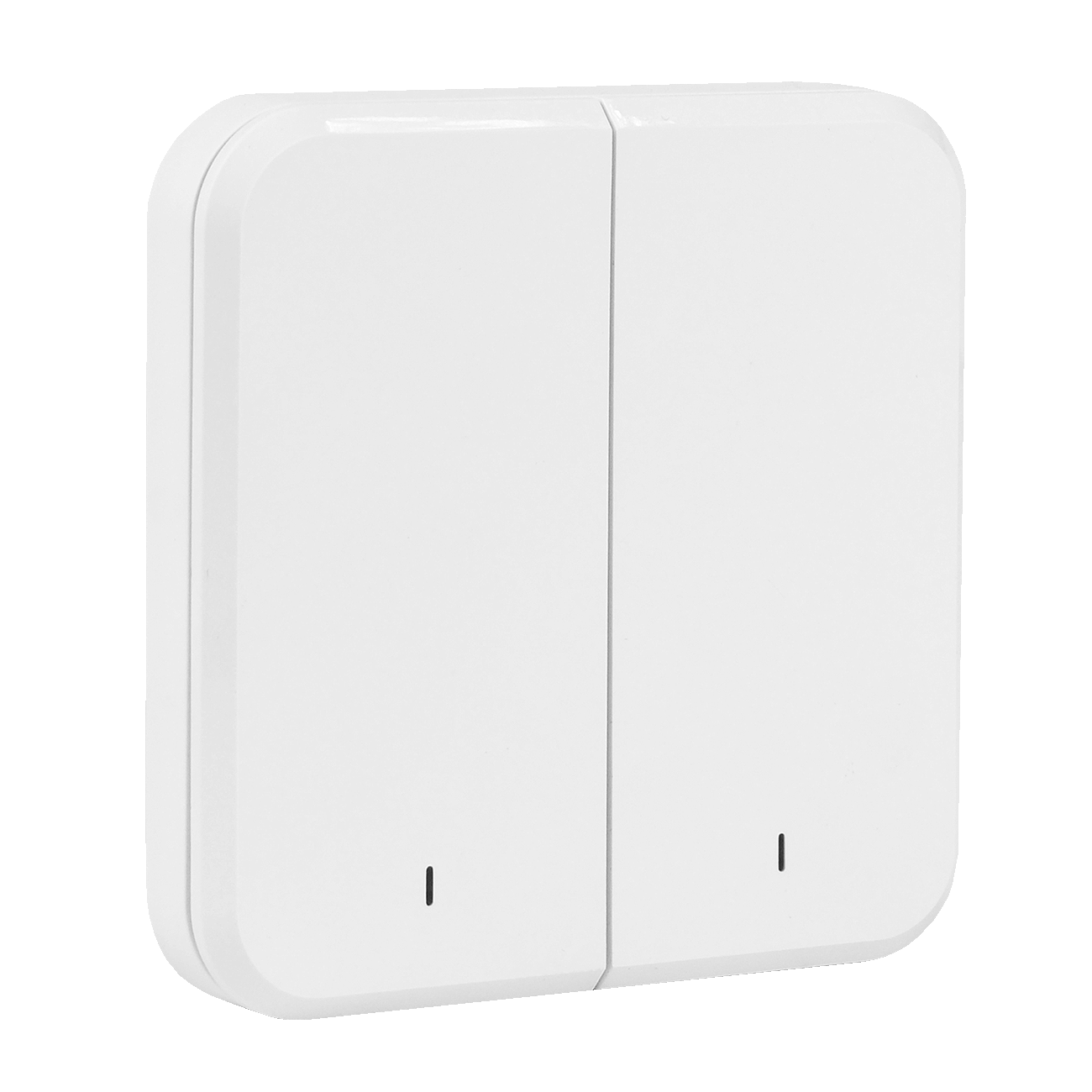

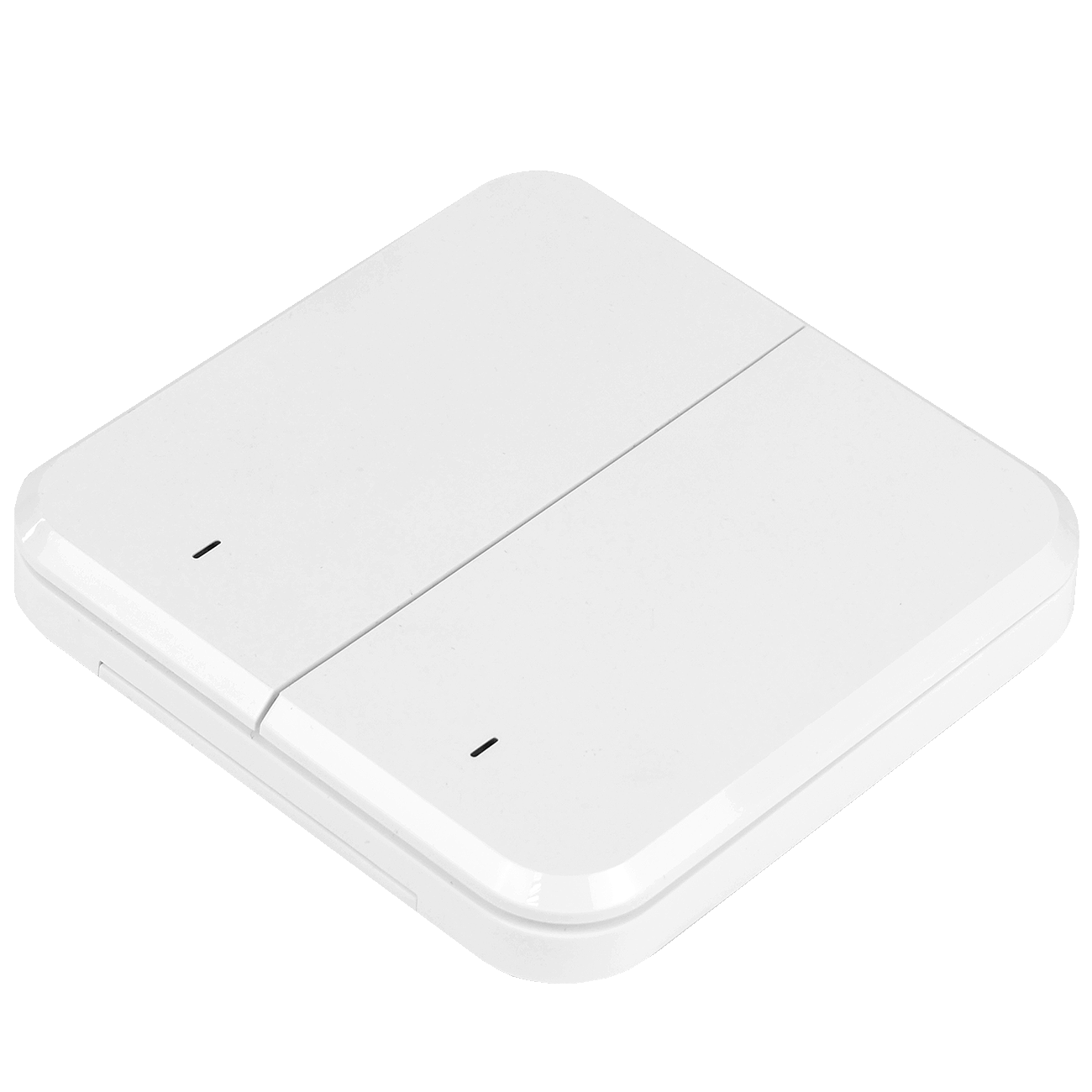

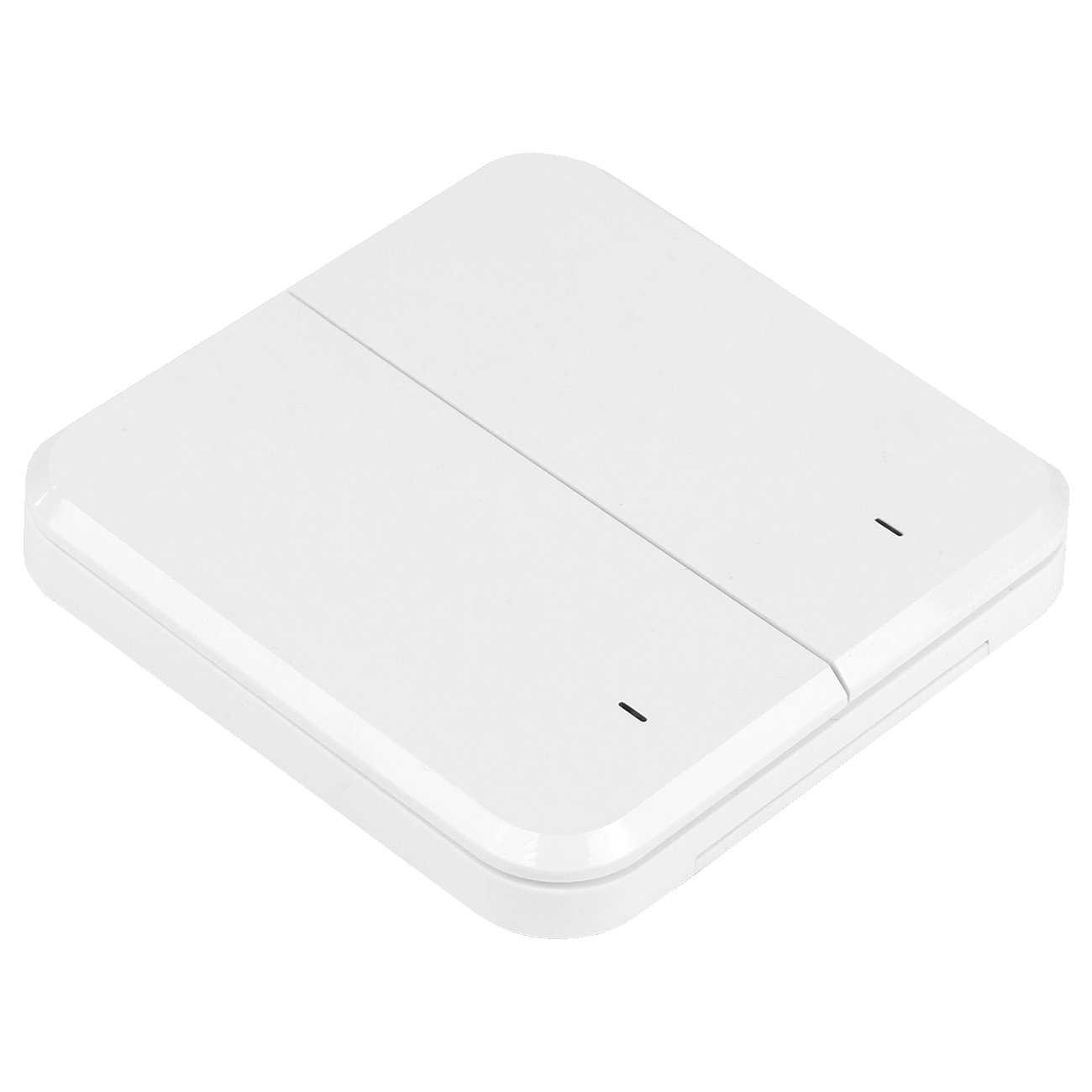

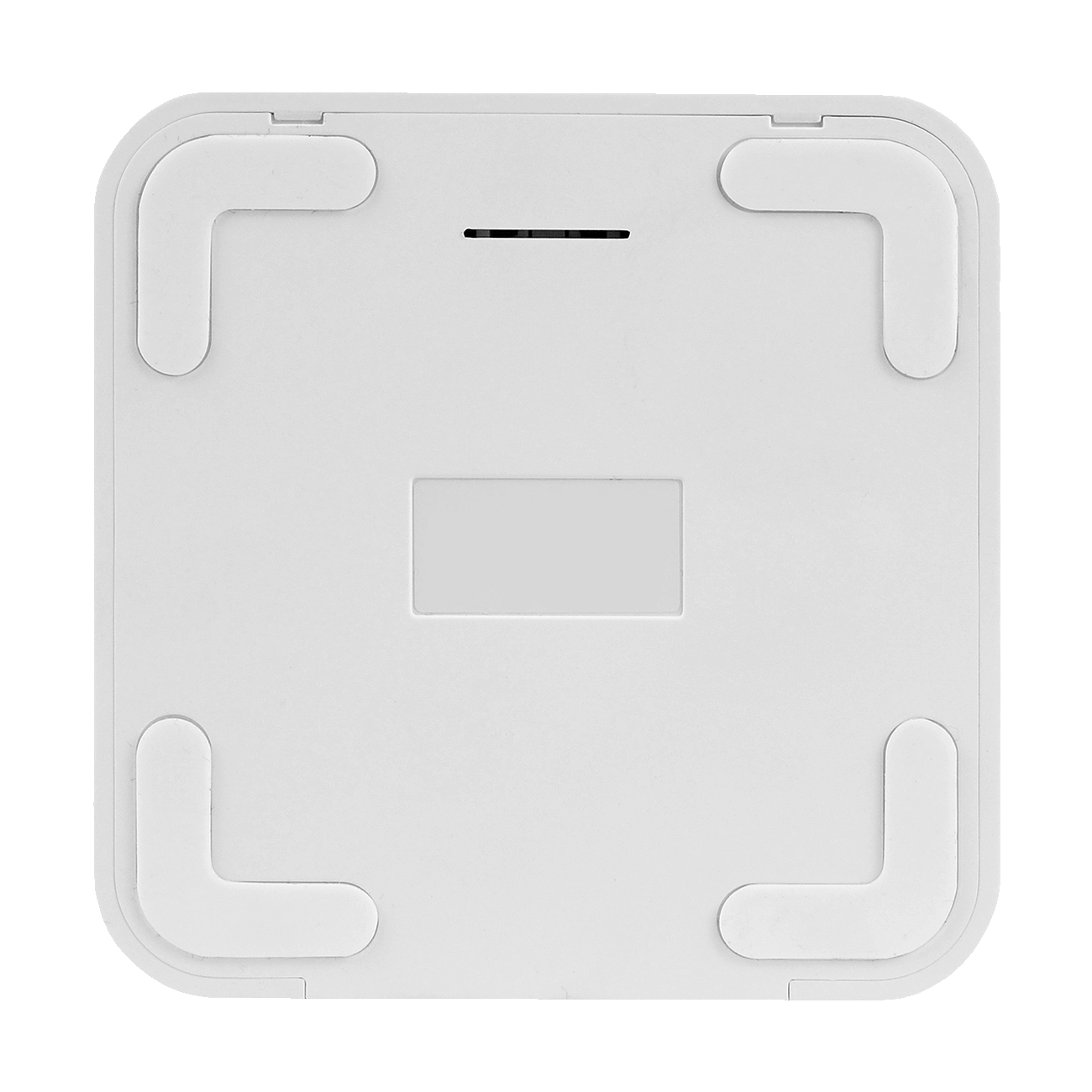

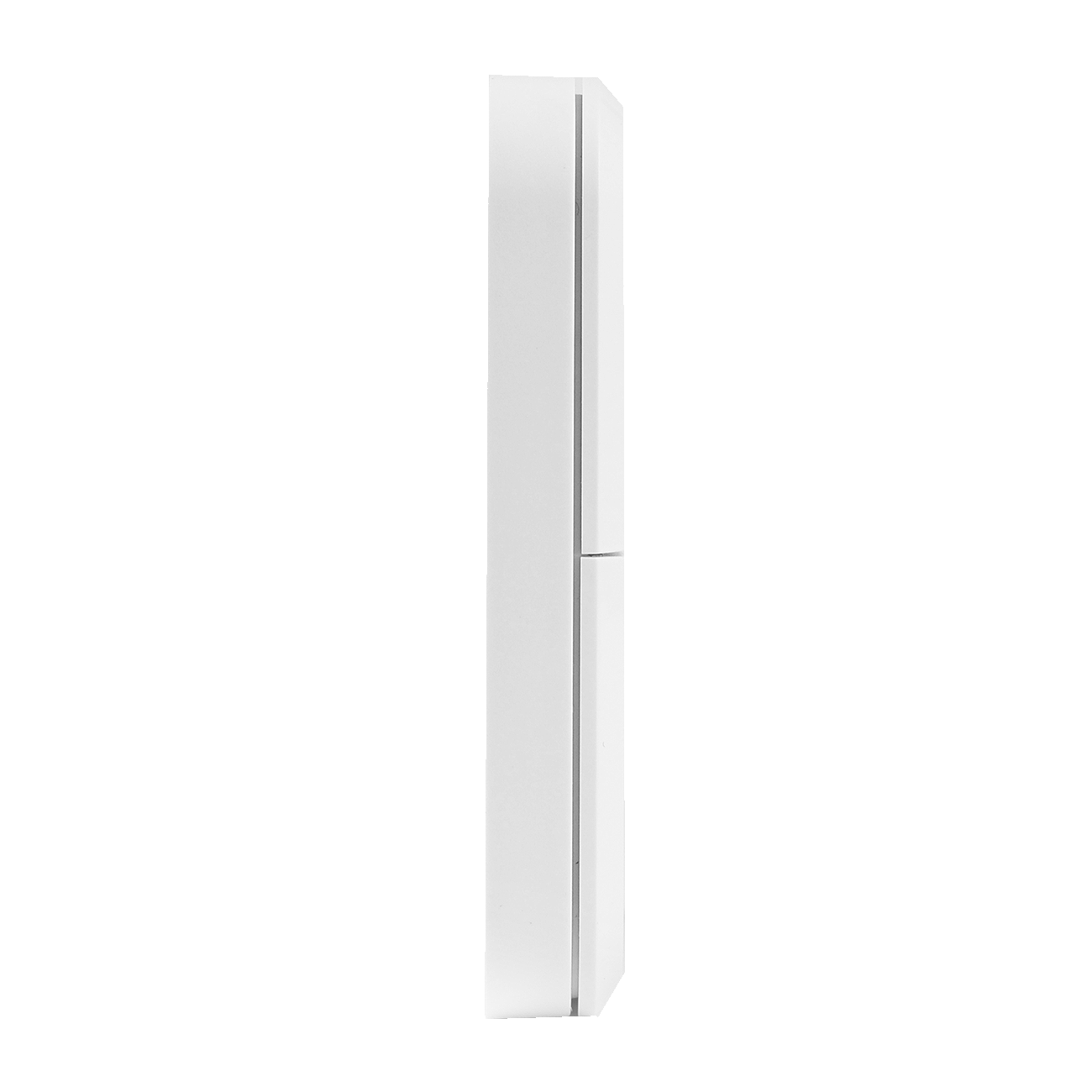

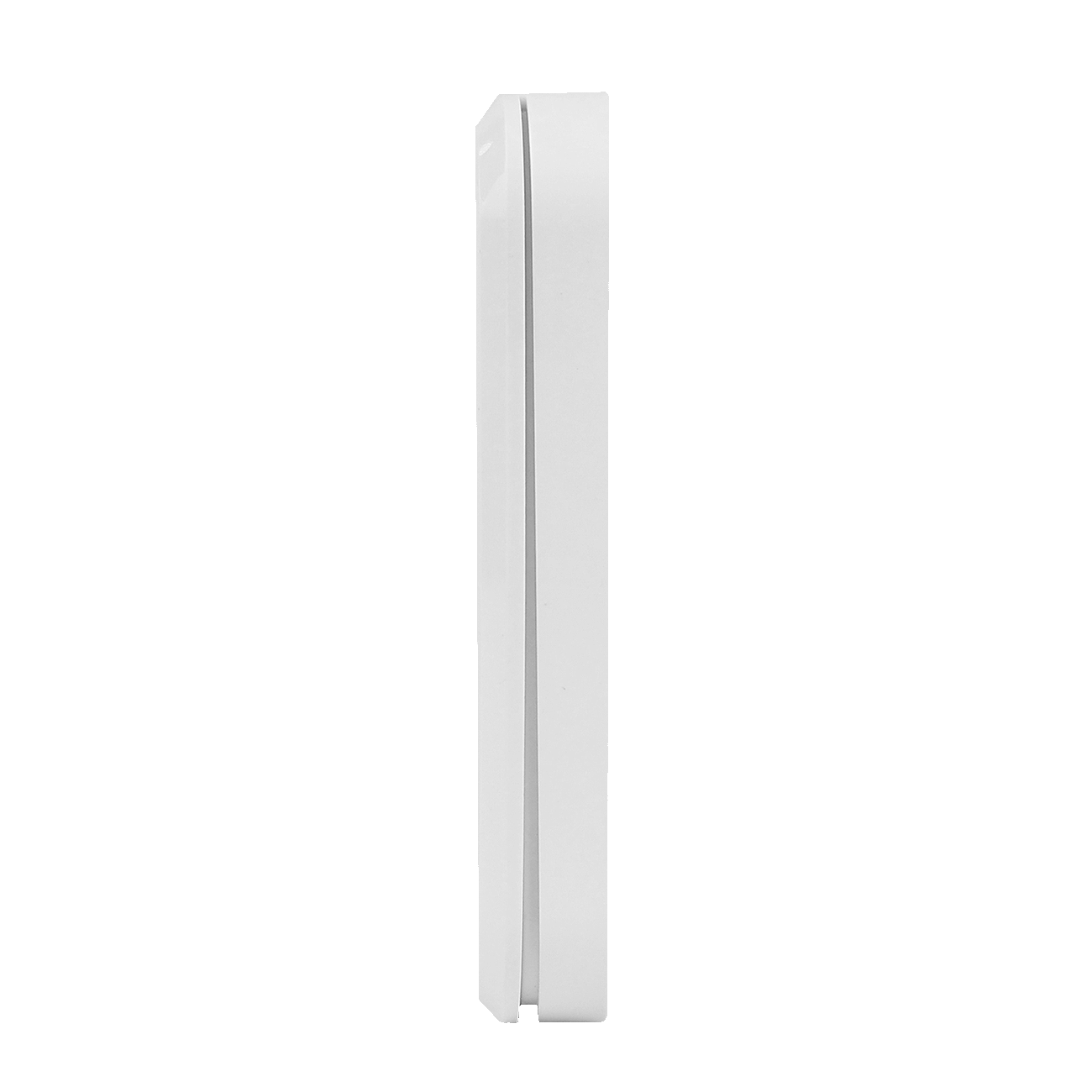

Two-gang wireless switch SZ-SBR
- Two-gang wireless switch that operates under Z-Wave technology
Description
SZ-SBR is a two-gang wireless switch that operates using Z-Wave technology. The device is battery-powered and can be installed in any location without wires.
Eltex smart home
SZ-SBR is part of the Eltex smart home ecosystem based on the ELIS (Eltex Smart IoT System) platform. Users manage smart devices and sensors via a smart home hub using an iOS or Android mobile device with the Eltex Home app installed. It can be downloaded from the App Store and Google Play. The app is also available in Huawei AppGallery.
SZ-SBR allows to control other smart home devices, such as Wi-Fi relays and sockets, or run pre-set scenarios. A Z-Wave hub is required to connect the switch to the network.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Lighting and other device control
- Use in automation scenarios
- Support for Z-Wave protocol
Features and capabilities
For full specifications and manuals see Documents and files section below
General features:
Power
1xCR2450 battery
Signal frequency
869 MHZ
Maximum distance from the hub
Up to 100 m (within line of sight)
Ingress protection
IР20
Dimensions (LxWxH)
85x85x5 mm
Weight
0.08 kg (including power battery)
Operating humidity at +40 °С
No more than 93 % non-condensing
Operating temperature
От +5 до +45 °С
Maximum RF strength
+14 dBm
