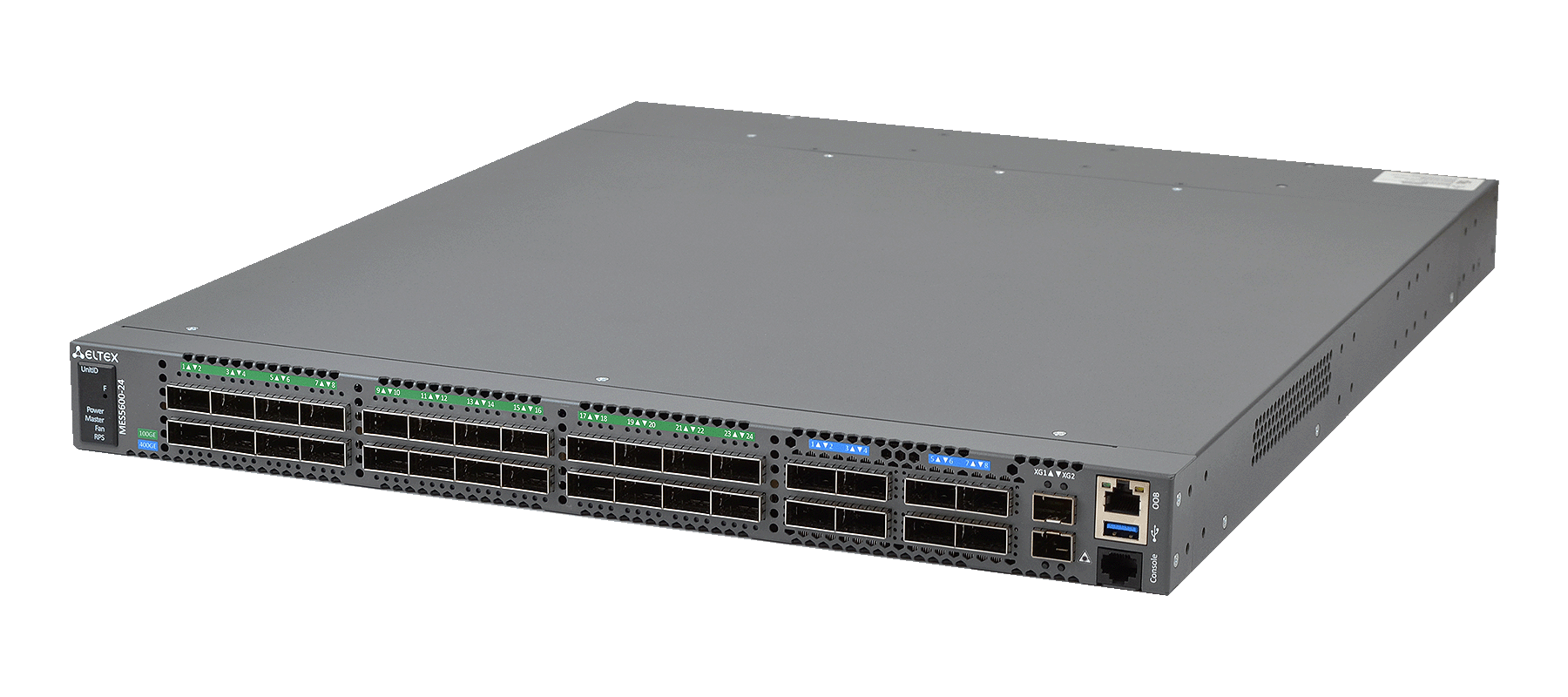

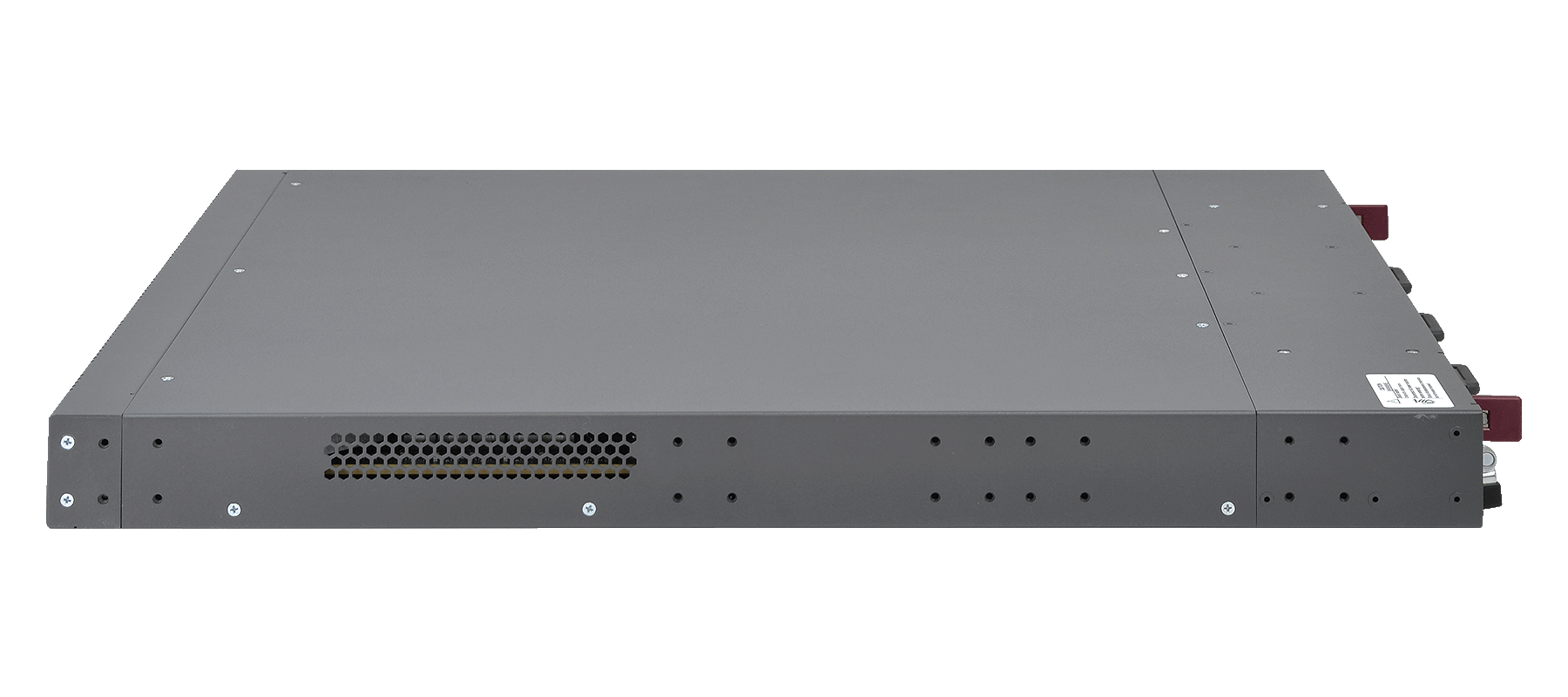

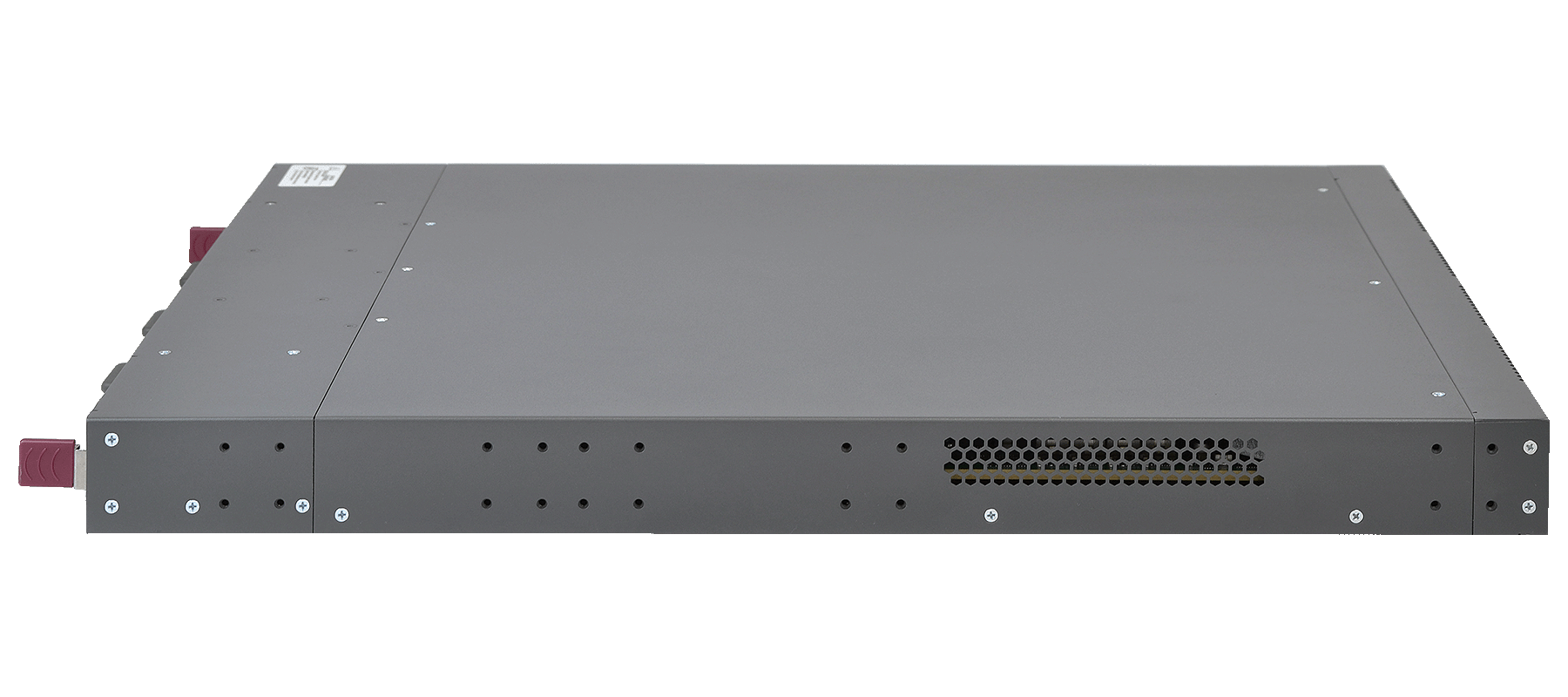

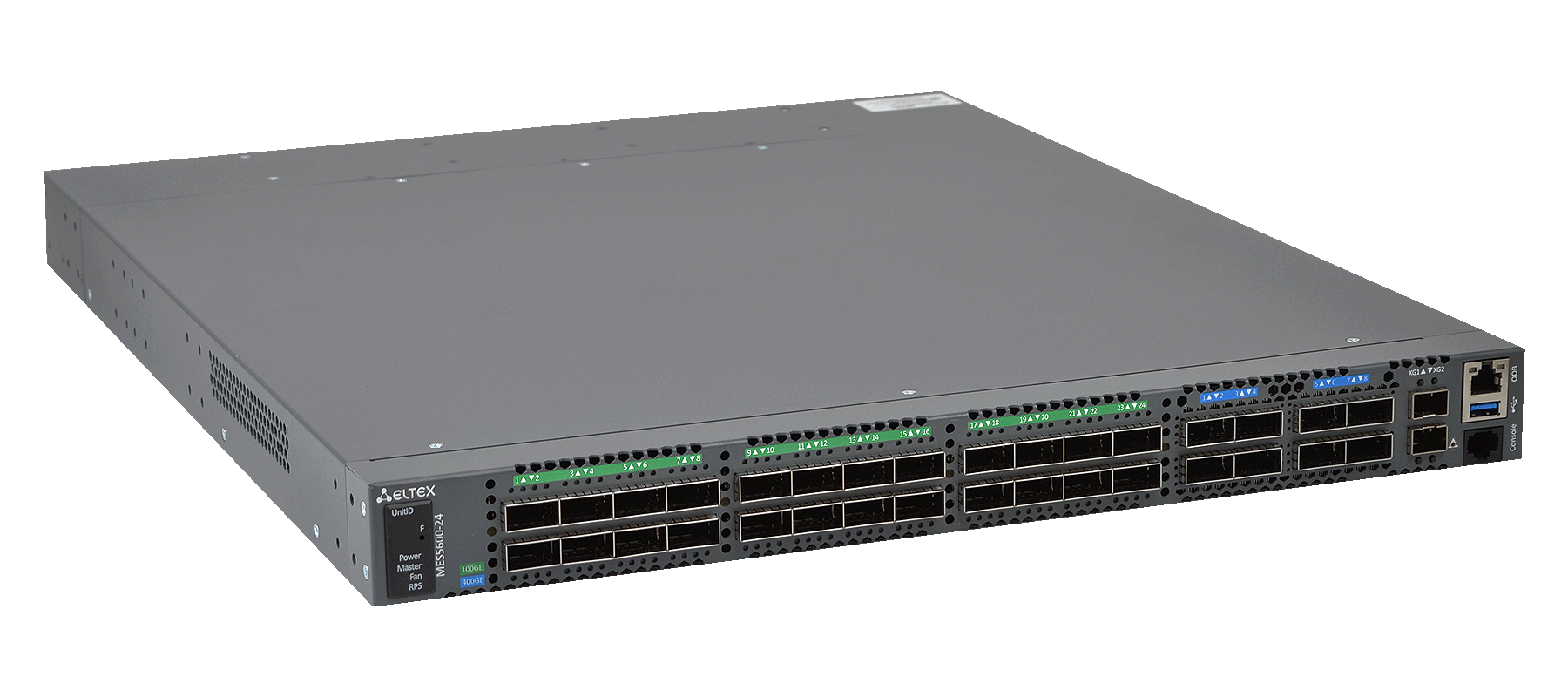

Data center switches MES5600-24
- Level:
- L3
- Bandwidth:
- 11.24 Tbps
- Interfaces:
- 24x100G QSFP28, 8x400G QSFP56-DD, 2х10G SFP+, 1xOOB
- Power supply:
- AC, 2 hot-swappable power supplies
Description
MES5600-24 switches are high performance devices with 400GBASE-R8, 100GBASE-R4 and 10GBASE-R interfaces that can be used as Leaf, Spine, Top-of-Rack or End-of-Row switches for data centers.
The non-blocking architecture guarantees lossless packet forwarding at wire speed with minimum and predictable delays for all types of traffic.

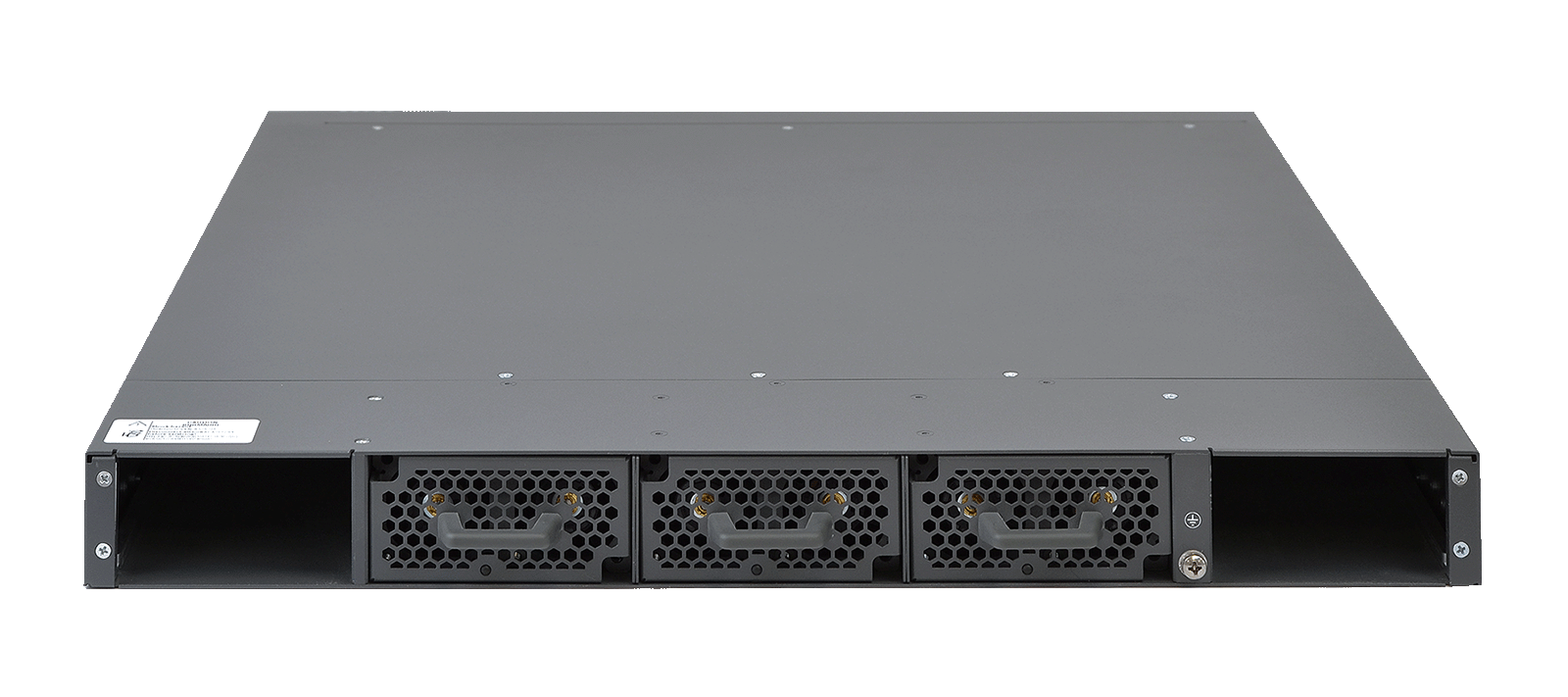

Fault tolerance of the devices is ensured by redundant power supplies (1+1) and the use of replaceable fans. The redundant and hot-swappable fans and AC/DC power supplies along with advanced hardware monitoring functions provide high reliability and uninterrupted services.
The devices support EVPN/VXLAN technology to create networks with simple, high-performance and scalable data center architecture.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces:
- 24x100G QSFP28, 8x400G QSFP56-DD, 2х10G SFP+, 1xOOB
- Bandwidth:
- 11.24 Tbps
- MAC table:
- 131072
- Dynamic routing:
- RIP/OSPF/IS-IS/BGP
- EVPN/VXLAN
- Power supply:
- AC, 2 hot-swappable power supplies
- Cooling:
- Front-to-Back
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
10/100/1000BASE-T (OOB)
1
10GBASE-R (SFP+)
2
40GBASE-R4 (QSFP+)/100GBASE-R4 (QSFP28)
24
40GBASE-R4 (QSFP+)/100GBASE-R4 (QSFP28)/ 400GBASE-R8 (QSFP56-DD)
8
USB 2.0
1
Console port RS-232 (RJ-45)
1
Performance:
Bandwidth
11.24 Tbps
Buffer memory
48 MB
RAM (DDR4)
8 GB
ROM (embedded uSSD)
8 GB
MAC table
131072 (Maximum value in mid-l3-mid-l2 mode)
262144 (Maximum value in min-l3-max-l2 mode)
VLAN table
4094
VRRP routers
127
Link Aggregation Groups (LAG)
128, up to 32 ports in one LAG
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Stacking
Up to 8 devices
Physical parameters:
Power supply
100–240 V, 50–60 Hz
Power supply options
1 AC power supply
2 hot-swappable AC power supplies
Operating temperature
From 0 to +45 °С
Storage temperature
From -50 to +70 °С
Cooling
Front-to-Back, 6 dual fans
Operating humidity
No more than 80 % (without condensing)
Dimensions (WxHxD)
440x44x530 mm
