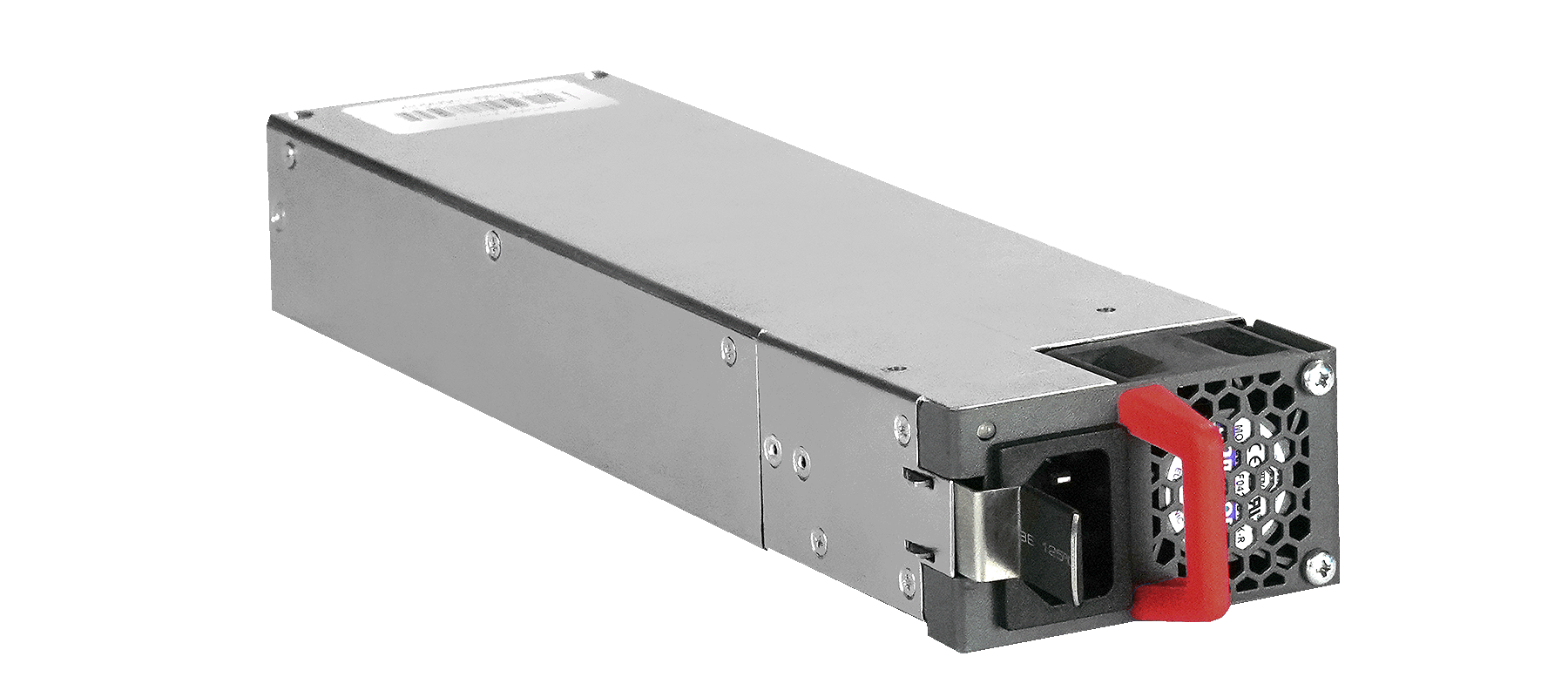

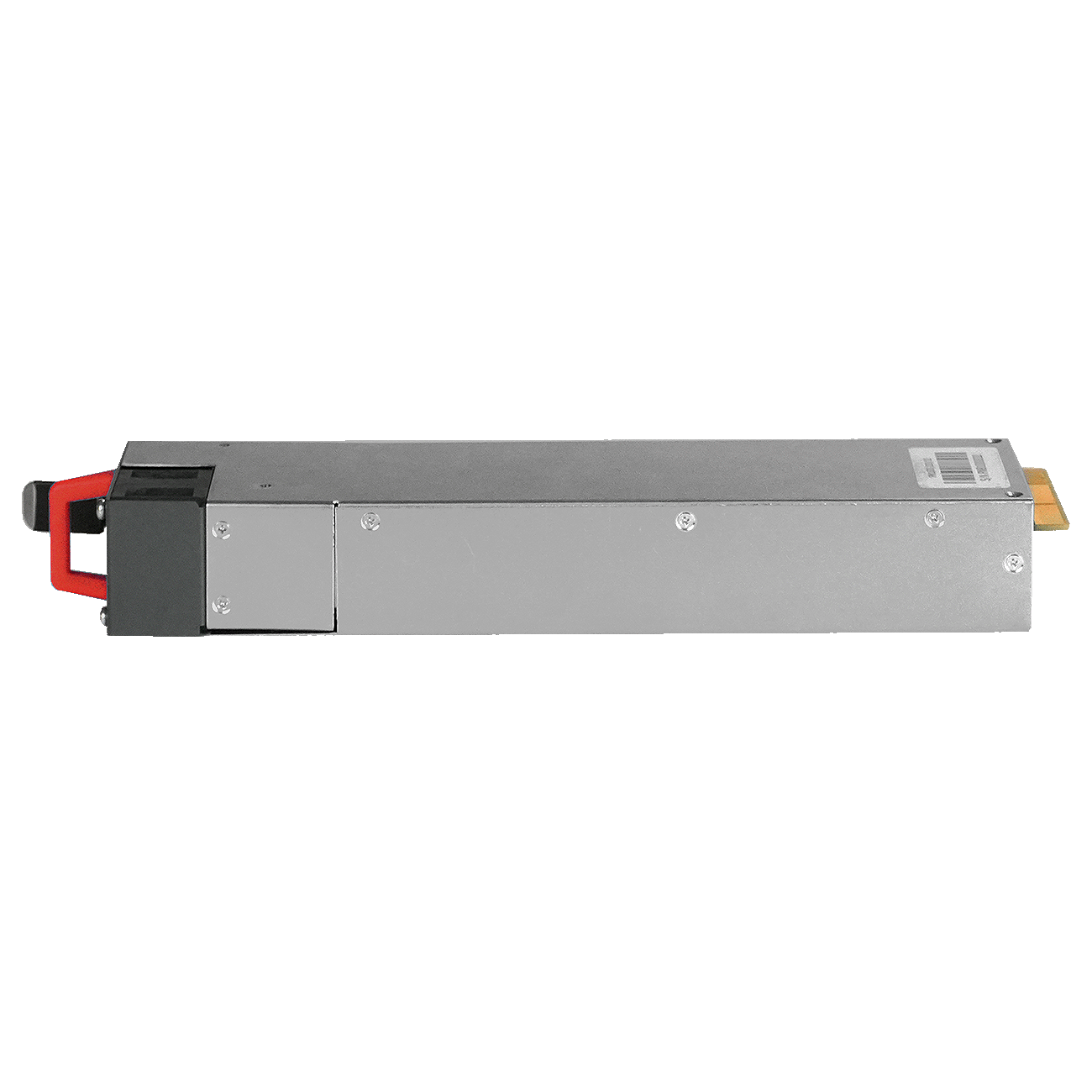

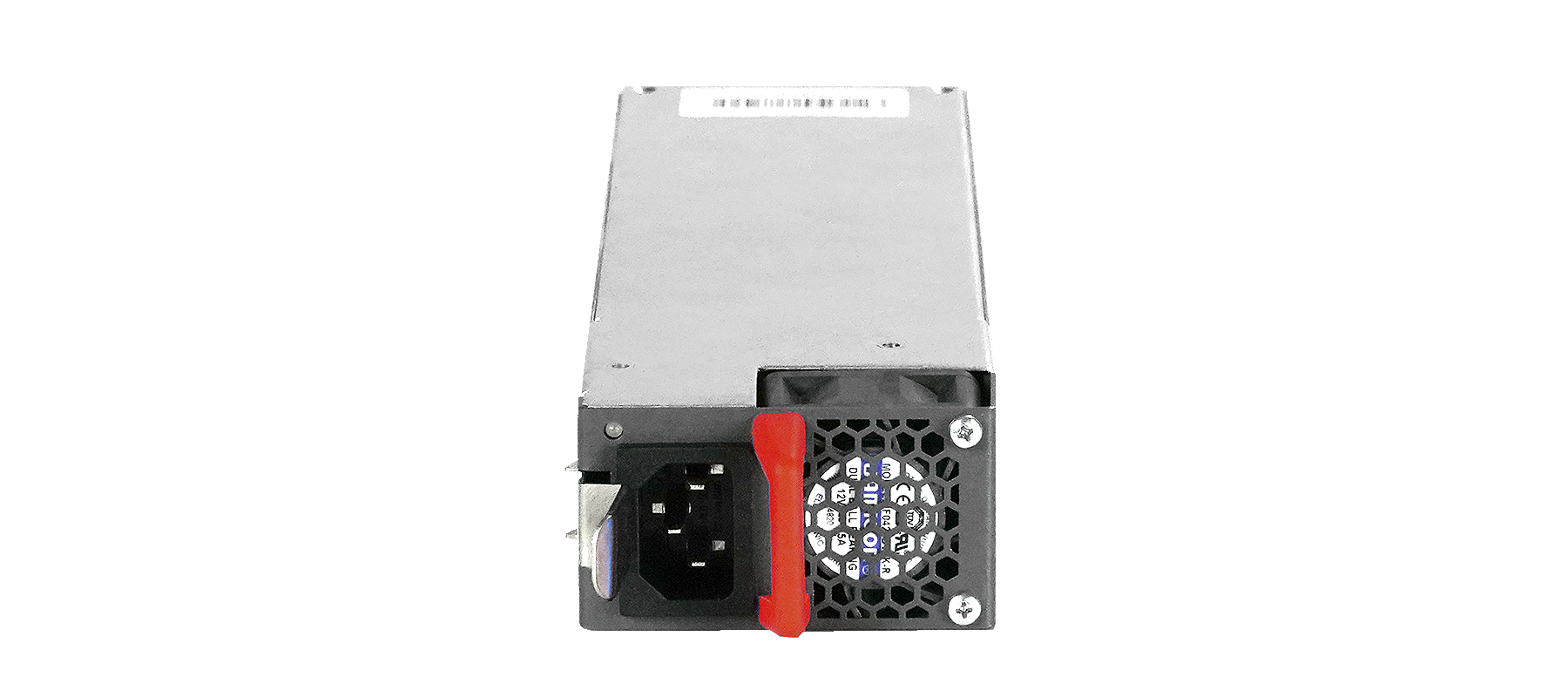

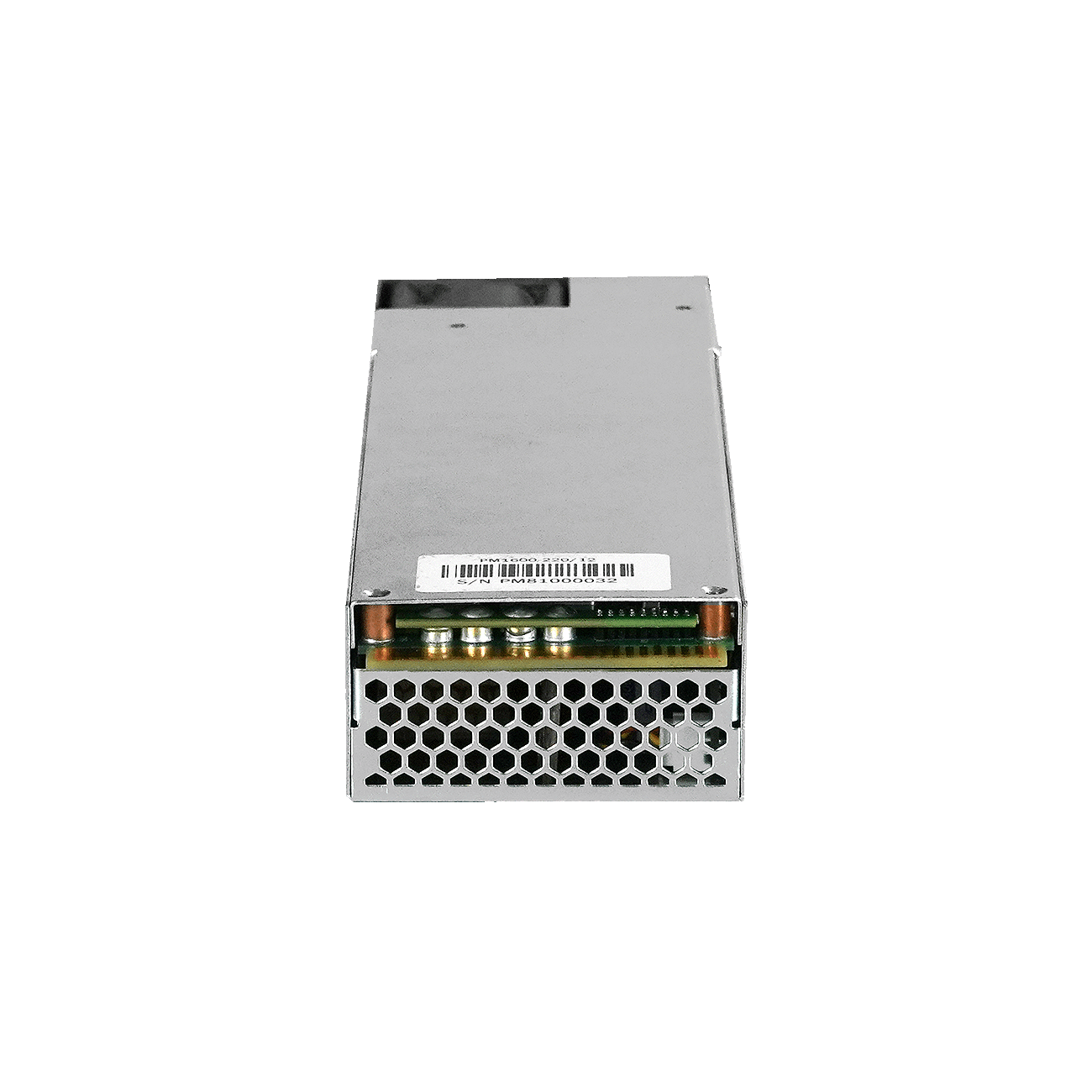

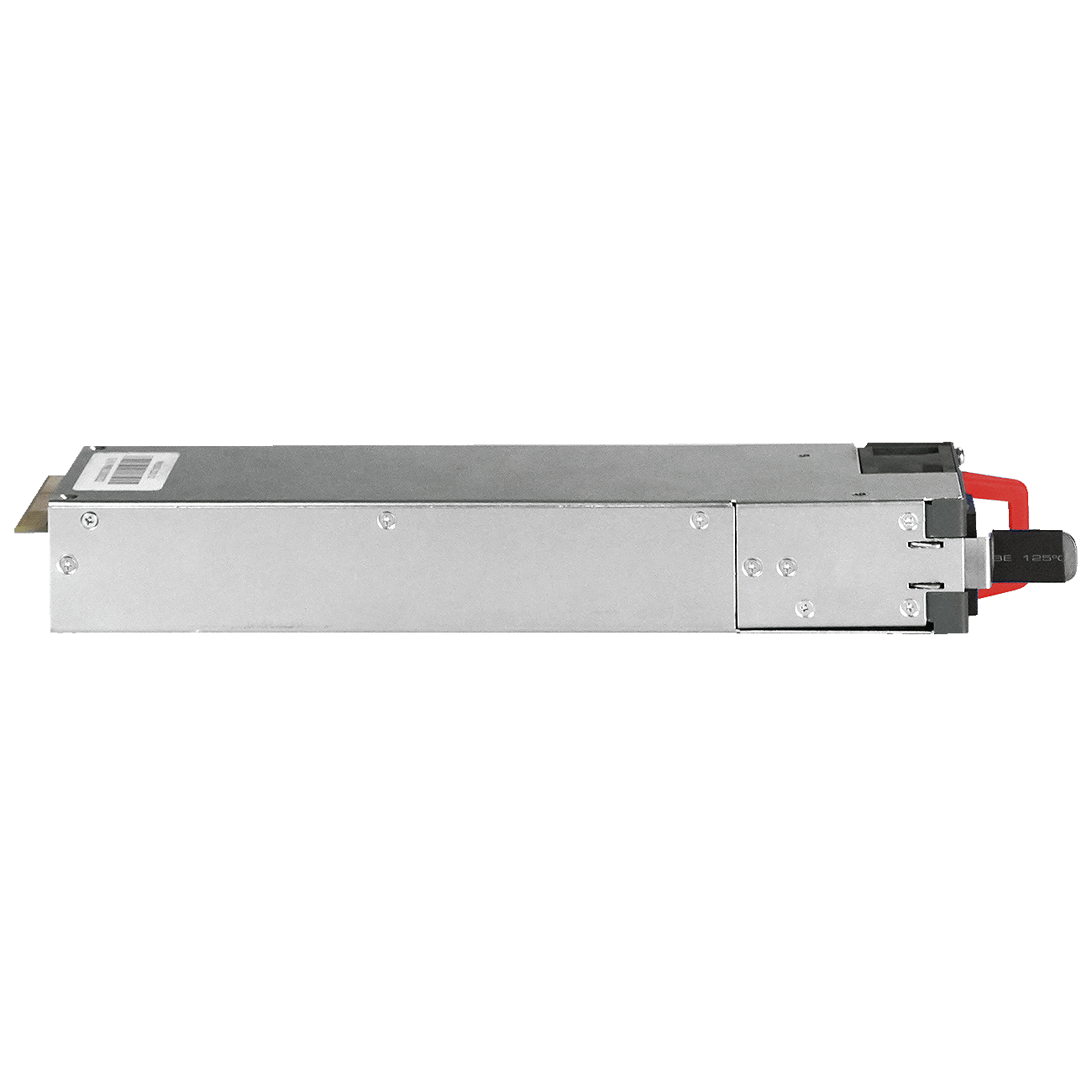

Power module PM1600-220/12
- Type:
- AC
- Output voltage:
- 12 V
- Max. output power:
- 1600 W
Description
PM1600-220/12 power modules are intended to be used for the following Eltex equipment: MES5700-32 and MES5600-24.
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage АС nominal range
200–240 V АС
Input frequency
47–63 Hz
Inrush current
50 A
Output voltage
12 V
Max. output power
1600 W
Physical features and ambient parameters:
Operating temperature
From 0 to +45 °С
Storage temperature
From -40 to +70 °С
Operating humidity at +25 °C
(without condensation)
Up to 80 %
Dimensions (WxHxD)
73.5x39x308 mm
Weight
1.15 kg
Supported devices
Data center switch MES5700-32
Data center switches MES5600-24
