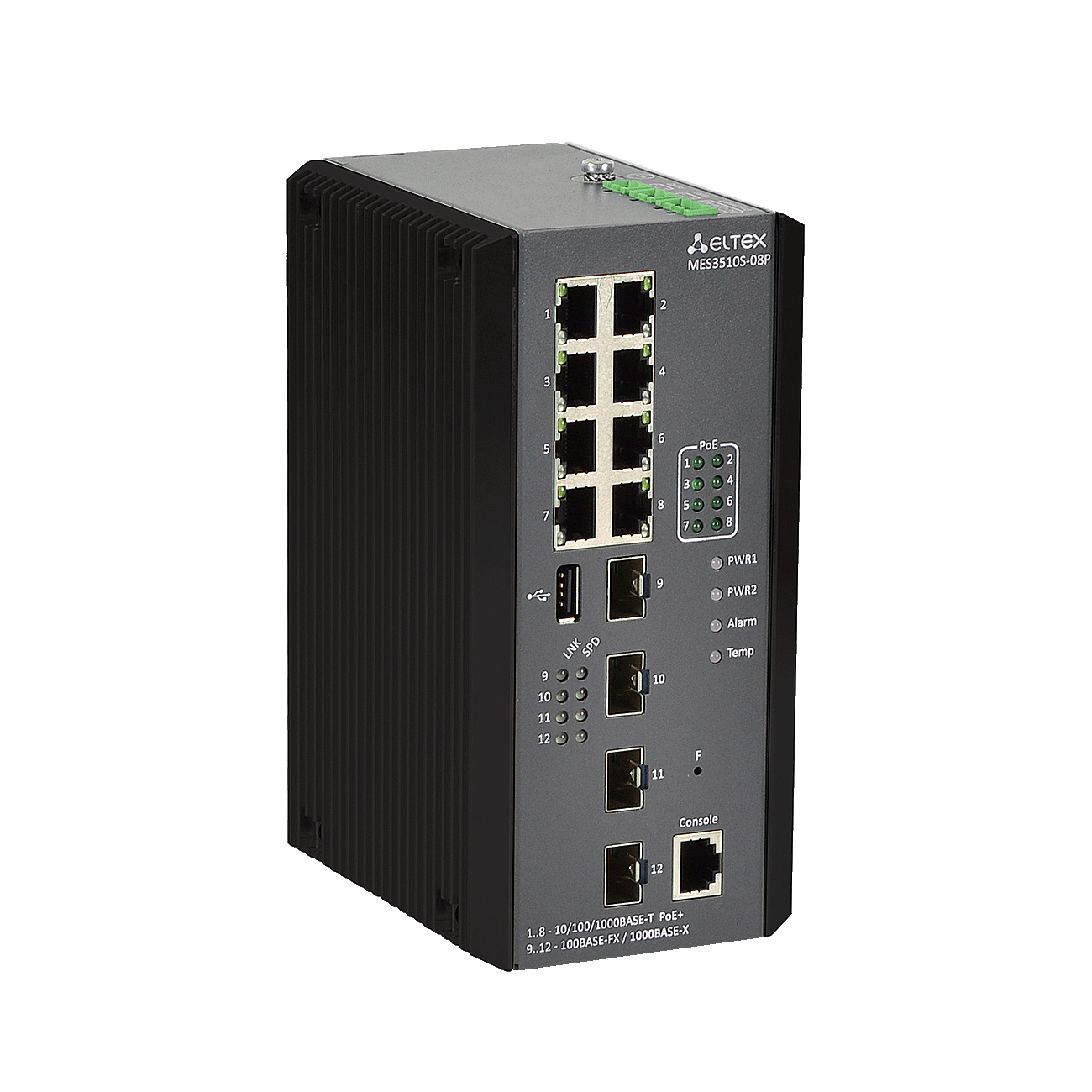

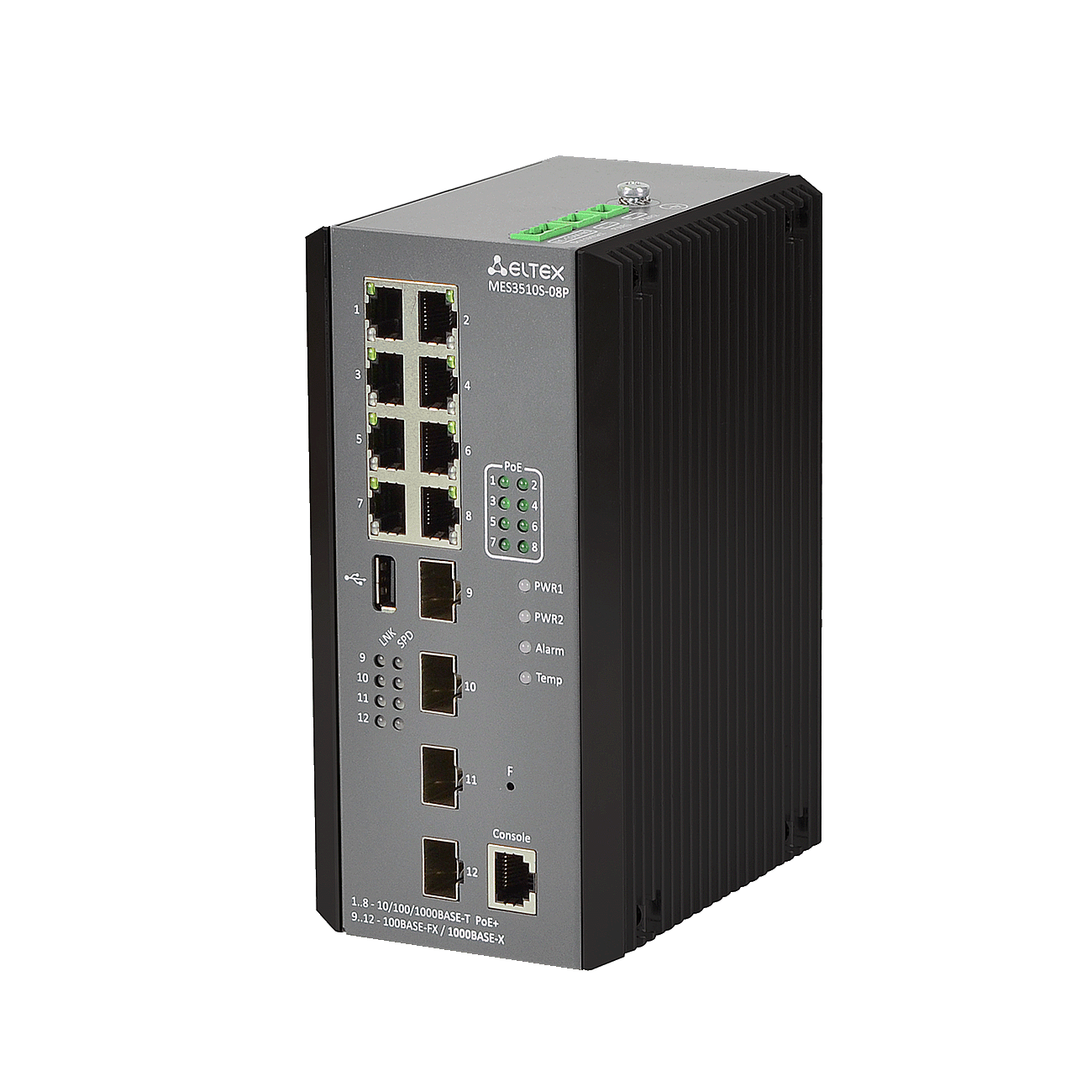

Industrial switches MES3510S-08P
- Level:
- L3
- Bandwidth:
- 24 Gbps
- Interfaces:
- 8x1G PoE/PoE+ (RJ-45), 4x1G SFP
- Power supply:
- DC
Description
MES3510S-08P industrial switches are designed to organize secure fault-tolerant data transmission networks on sites with high requirements to temperature, vibrations and mechanical impact.
MES3510S-08P has ports of 10/100/1000BASE-T with PoE/PoE+ technology support. The MES3510S-08P model has 100BASE-FX and 1000BASE-X ports for connecting SFP transceivers installation.
For high-precision time synchronization, the PTP (IEEE 1588v2) protocol is supported in Transparent Clock mode. To ensure data channel redundancy without packet loss during switching, the PRP (IEC 62439-3) protocol is implemented.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth:
- 24 Gbps
- PTP (IEEE 1588v2)
- Interfaces:
- 8x1G PoE/PoE+ (RJ-45), 4x1G SFP
- PRP
- Degree of protection:
- IP30
- PoE budget:
- 240 W
- QoS:
- 8 egress queues per port
- Power supply:
- DC
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
10/100/1000BASE-T PoE/PoE+ (RJ-45)
8
100BASE-FX/1000BASE-X (SFP)
4
Console port RS-232 (RJ-45)
1
USB 2.0
1
Performance:
Bandwidth
24 Gbps
Buffer memory
3 MB
RAM (DDR4)
2 GB
ROM (RAW NAND)
512 MB
MAC table
16384
VLAN table
4094
VRRP routers
15
Link Aggregation Groups (LAG)
123, up to 8 ports per LAG
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Physical features and ambient parameters:
Power supply
With PoE enabled: 45–57 V DC
With PoE disabled: 20–57 V DC
Maximum power consumption
260 W
PoE budget
240 W (for 802.3at applications,
54–56 V DC is recommended)
Dying Gasp support
No
Operating temperature
From -40 to +70 °C
Температура хранения
From -50 to +85 °C
Cooling
Passive cooling
Operating humidity
From 5 to 95 % (non-condensing)
Dimensions (WxHxD)
87x175x115 mm
