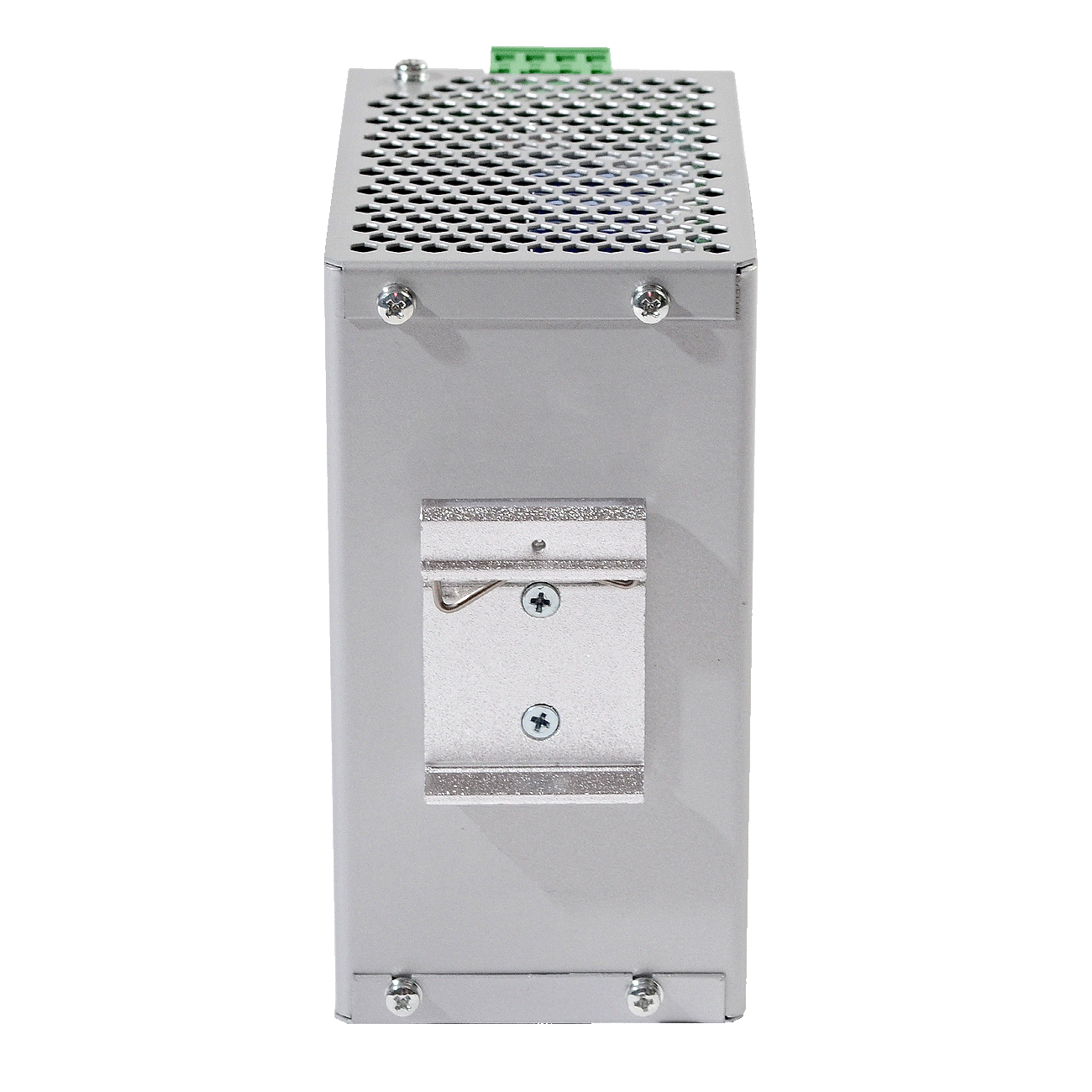

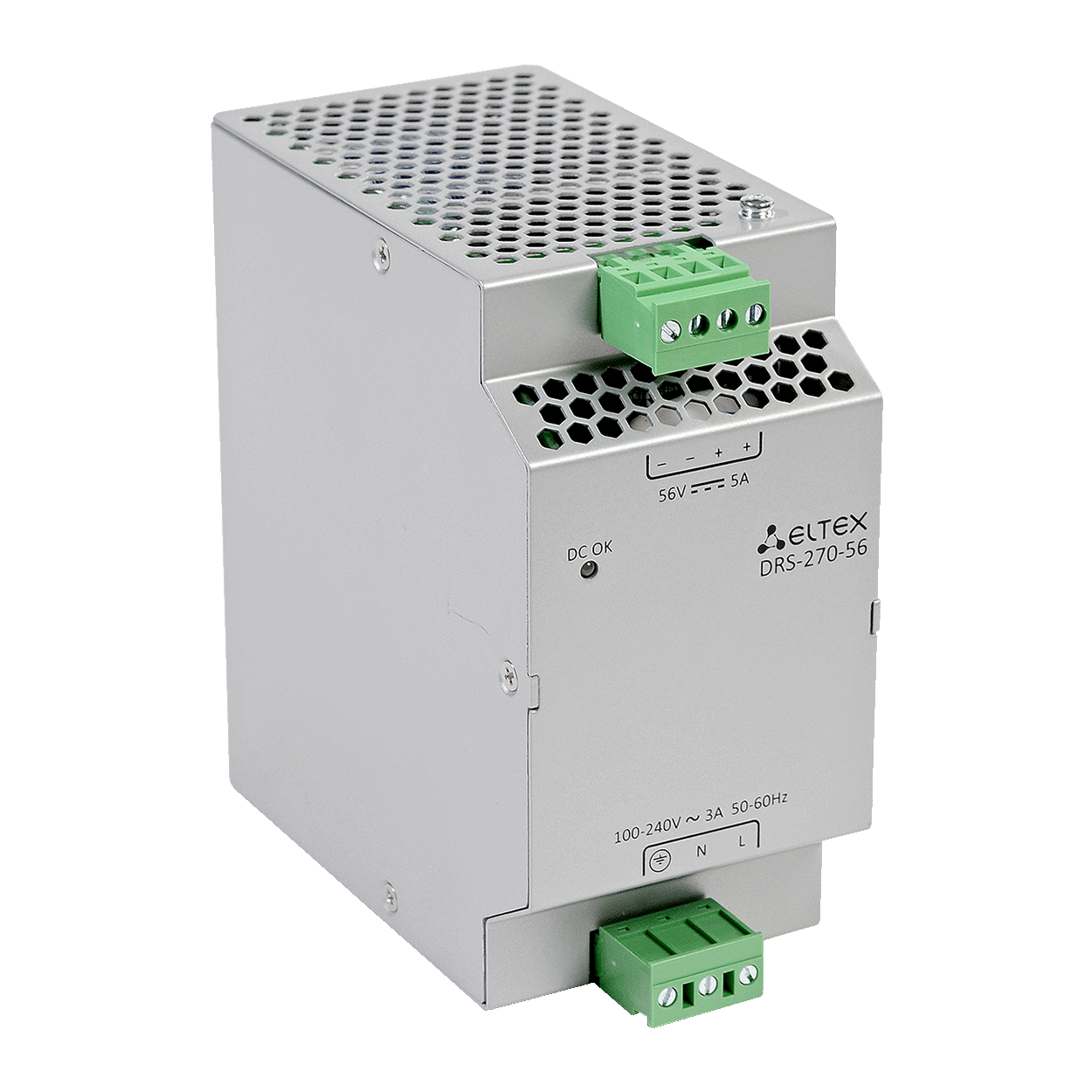

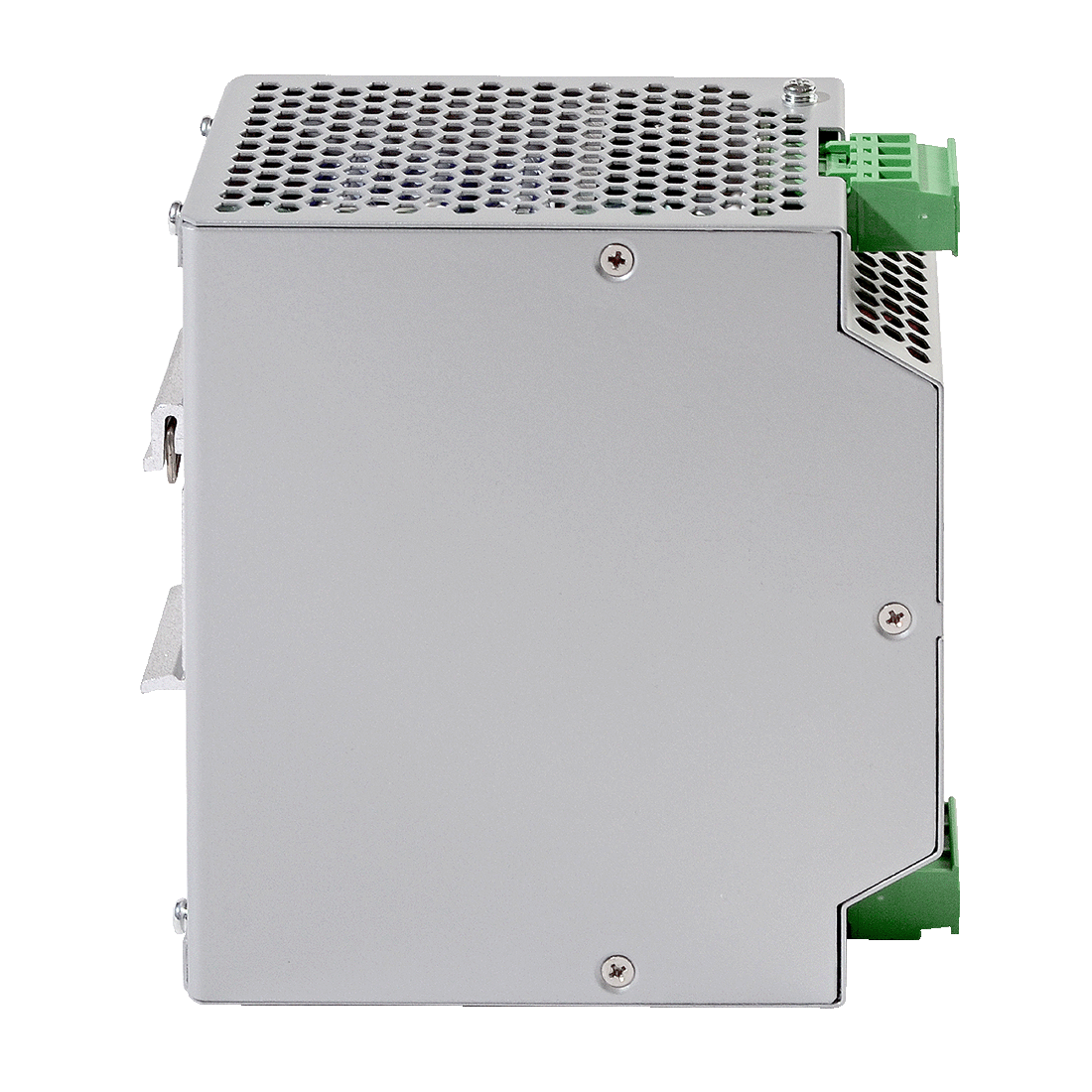

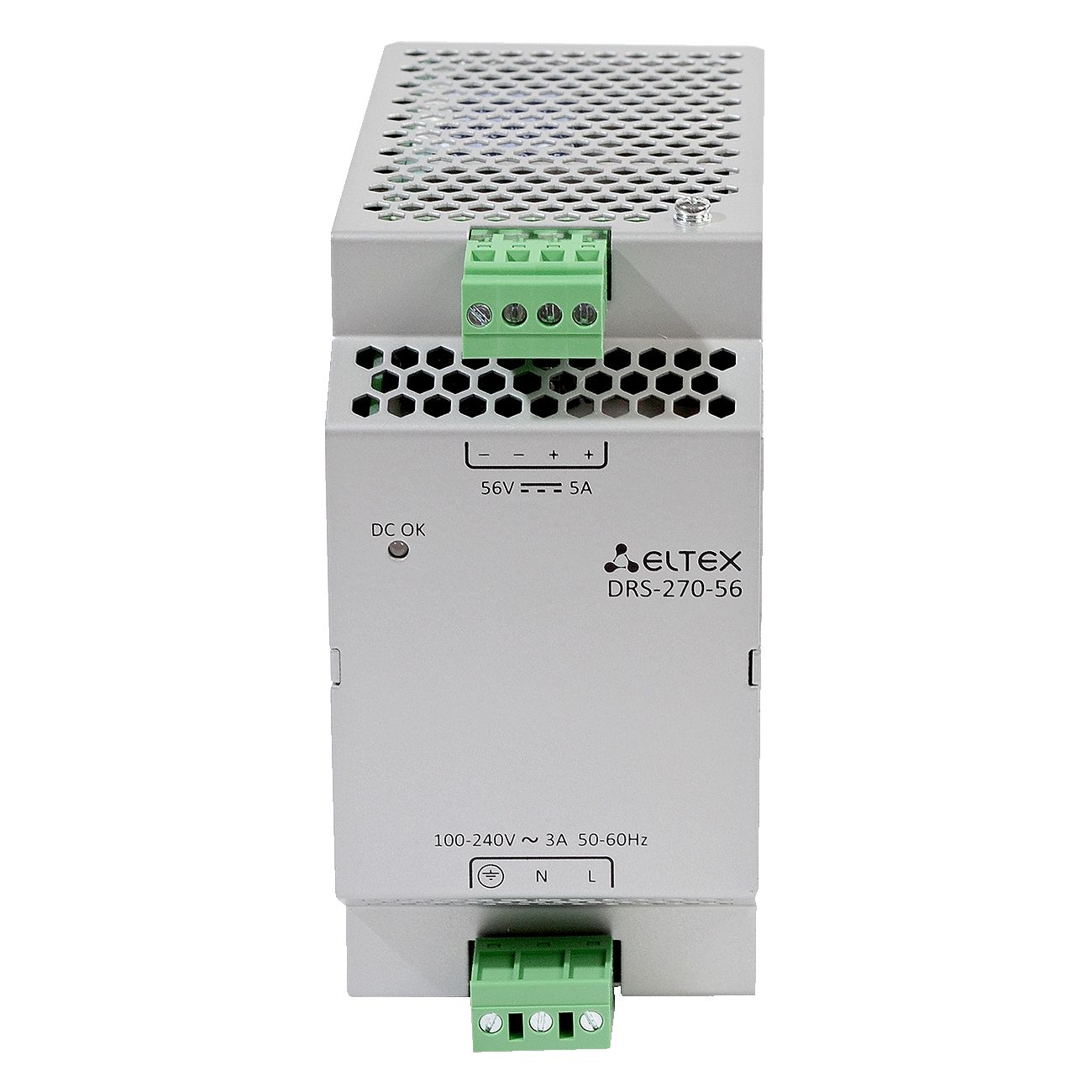

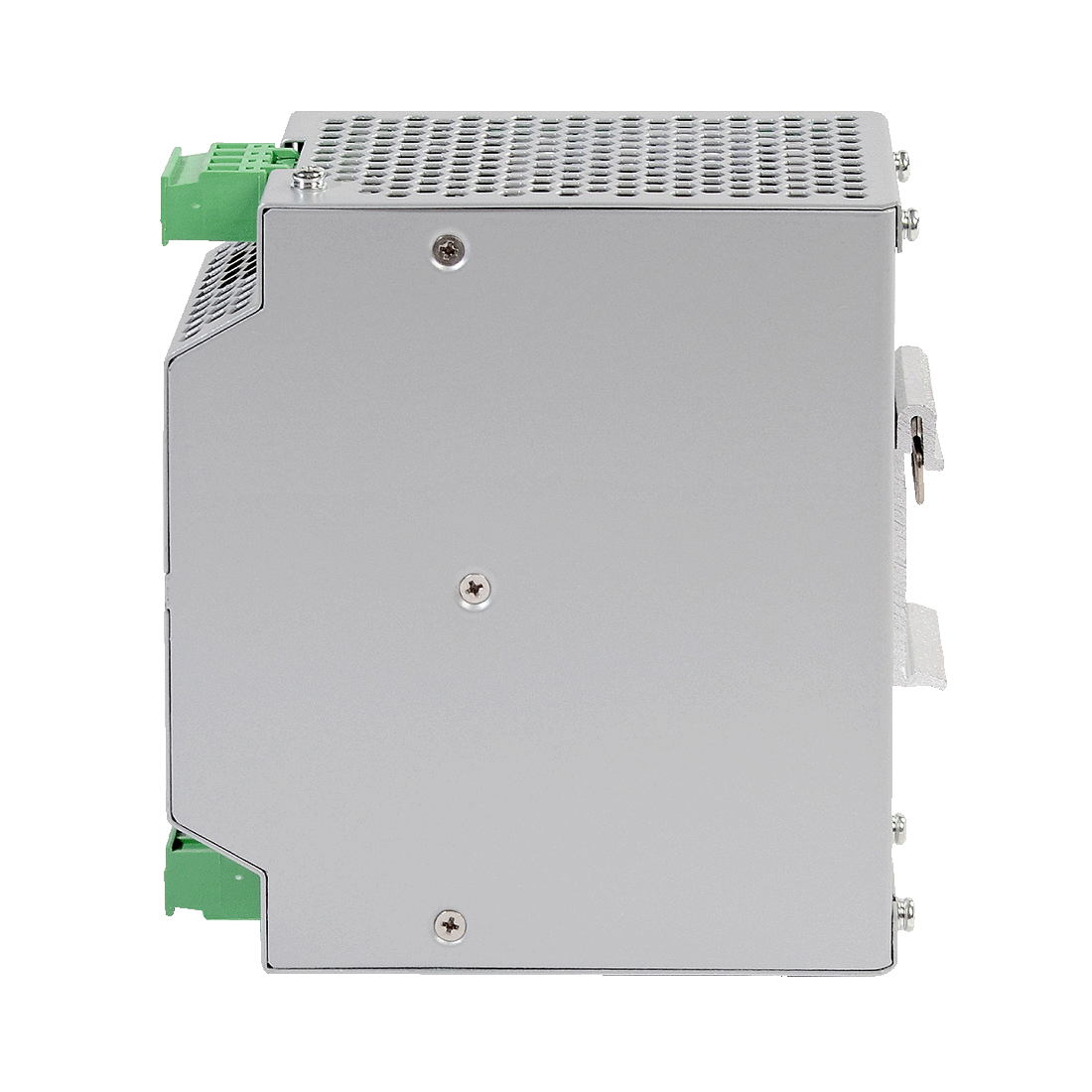

Power module DRS-270-56
- Type:
- AC
- Output voltage:
- 54 V
- Max. output power:
- 270 W
Specifications
For full specifications and manuals see Documents and files section below
Electrical features
Input voltage ΠΠ‘ max. range
110β276 V AC
Input voltage ΠΠ‘ nominal range
115β240 V AC
Input frequency
47β63 Hz
Output voltage
54 V
Max. output power
270 W
Physical features and ambient parameters:
Operating temperature
-40 to +70 Β°Π‘
Storage temperature
-40 to +85 Β°Π‘
Operating humidity at +25 Β°Π‘
Up to 80 %
Dimensions
64x125x127 mm
Weight
0.8 kg
Power Cable
PVS 3x0.75. 2m (included)
Supported devices
Industrial switch MES3500I-08P
Industrial switch MES3500I-10P
Industrial switch MES3508
Industrial switch MES3508P
Industrial switch MES3510P
Industrial switch MES3710P
