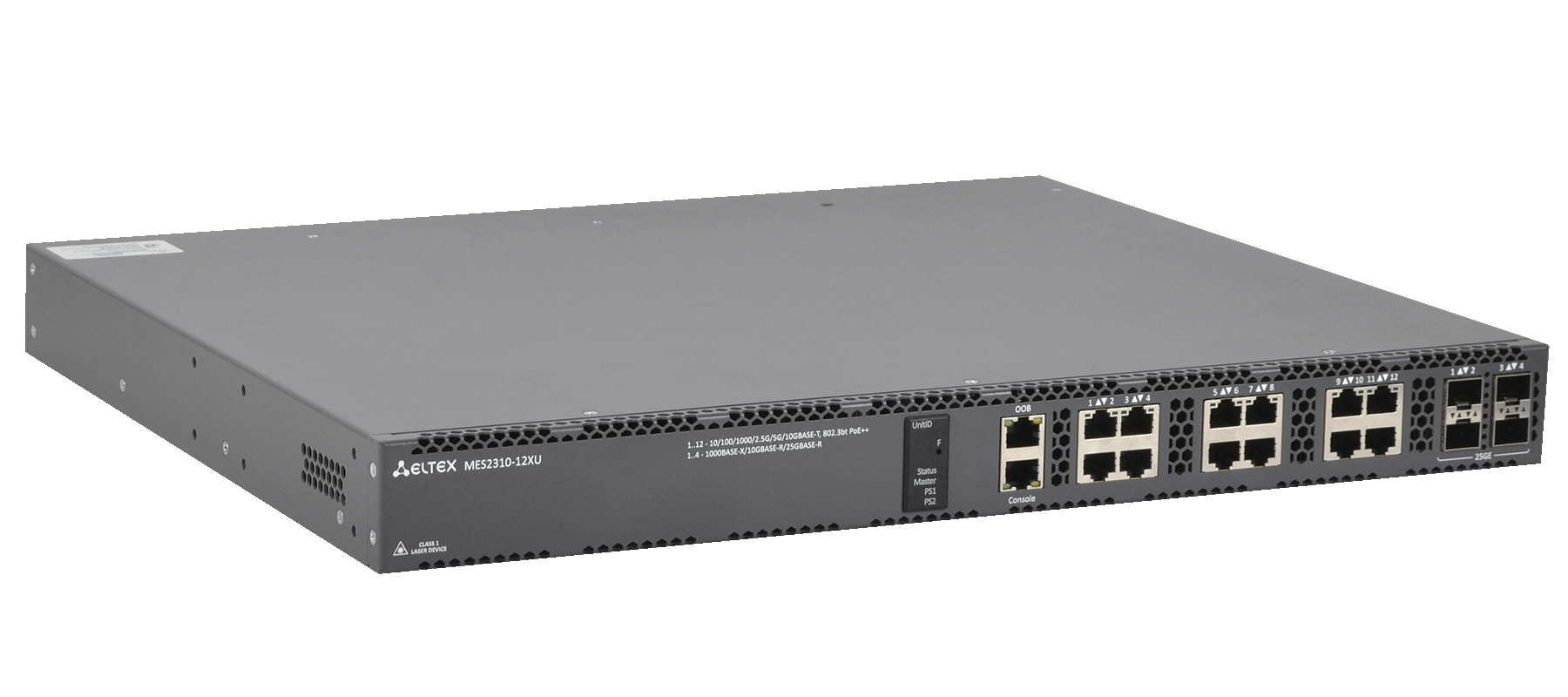

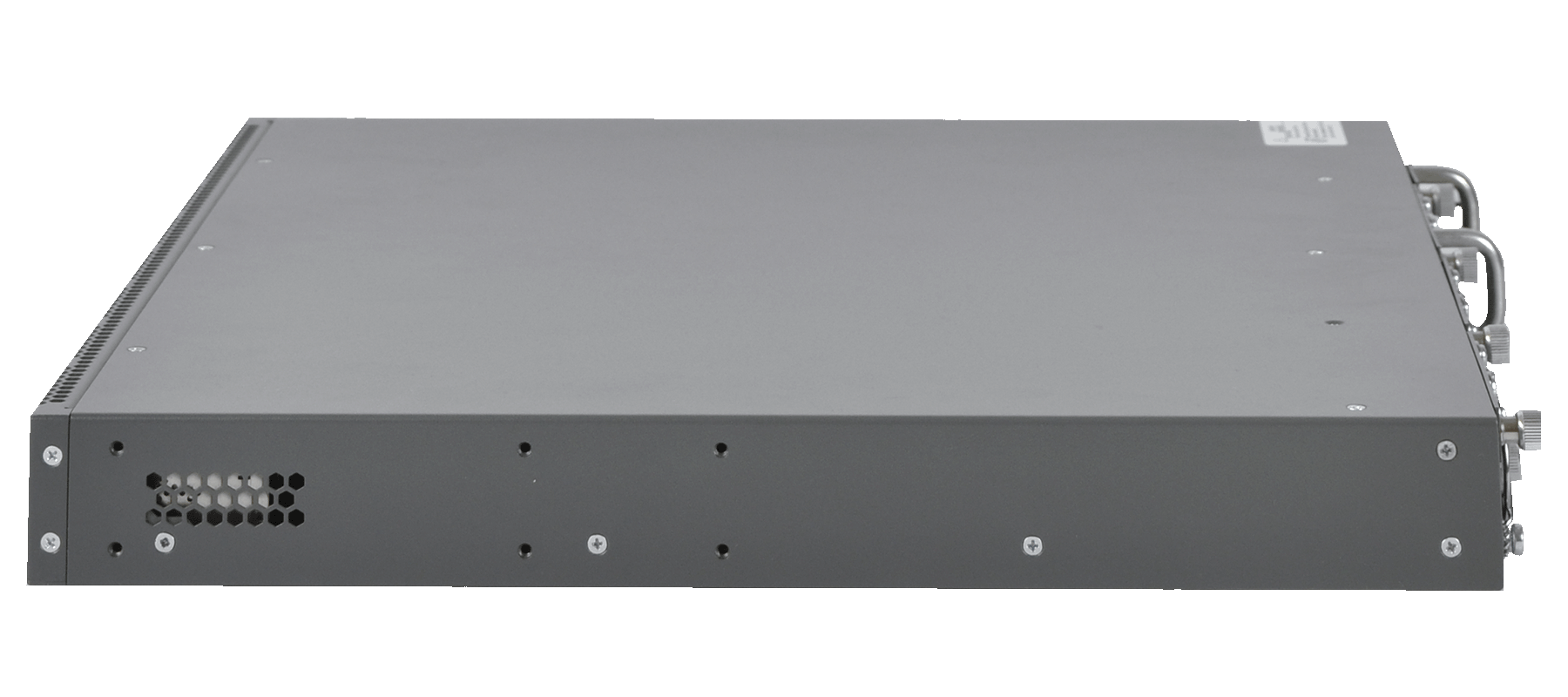

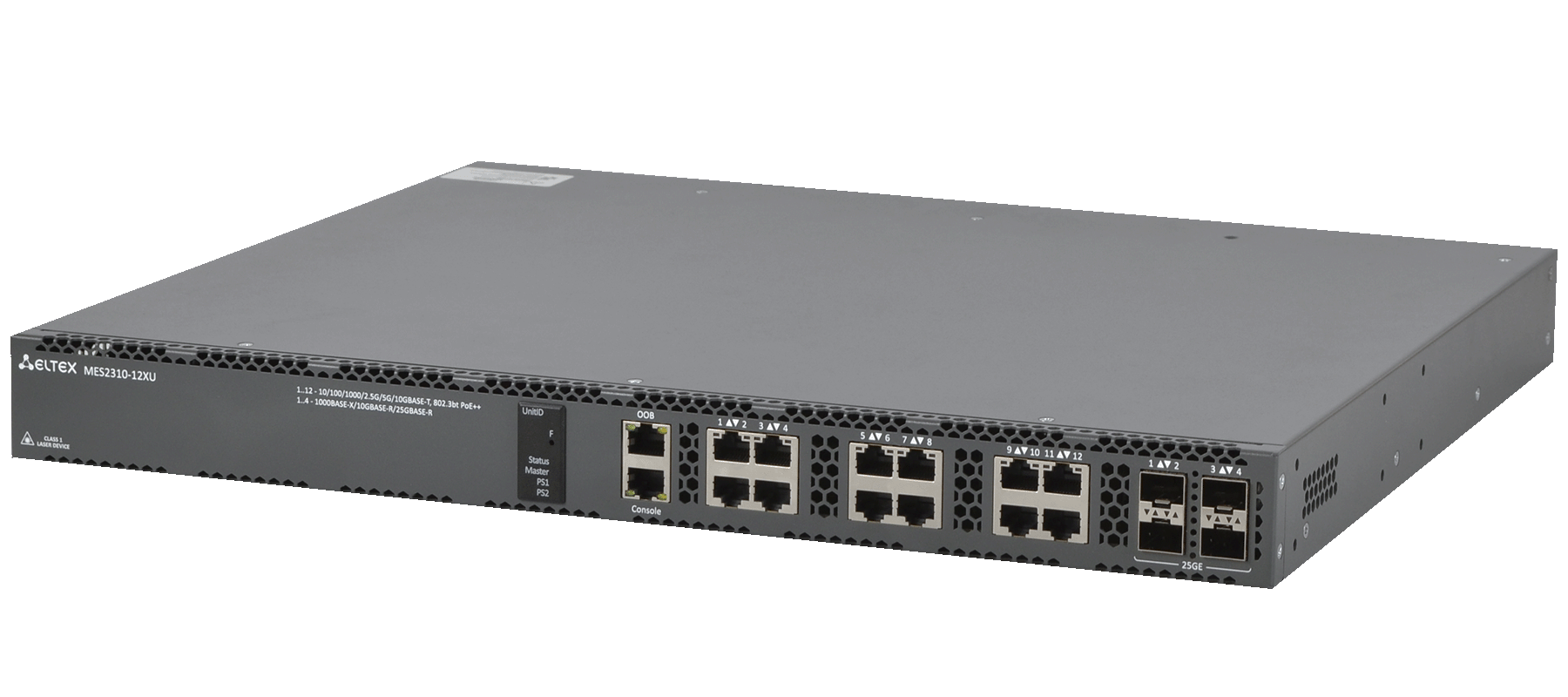

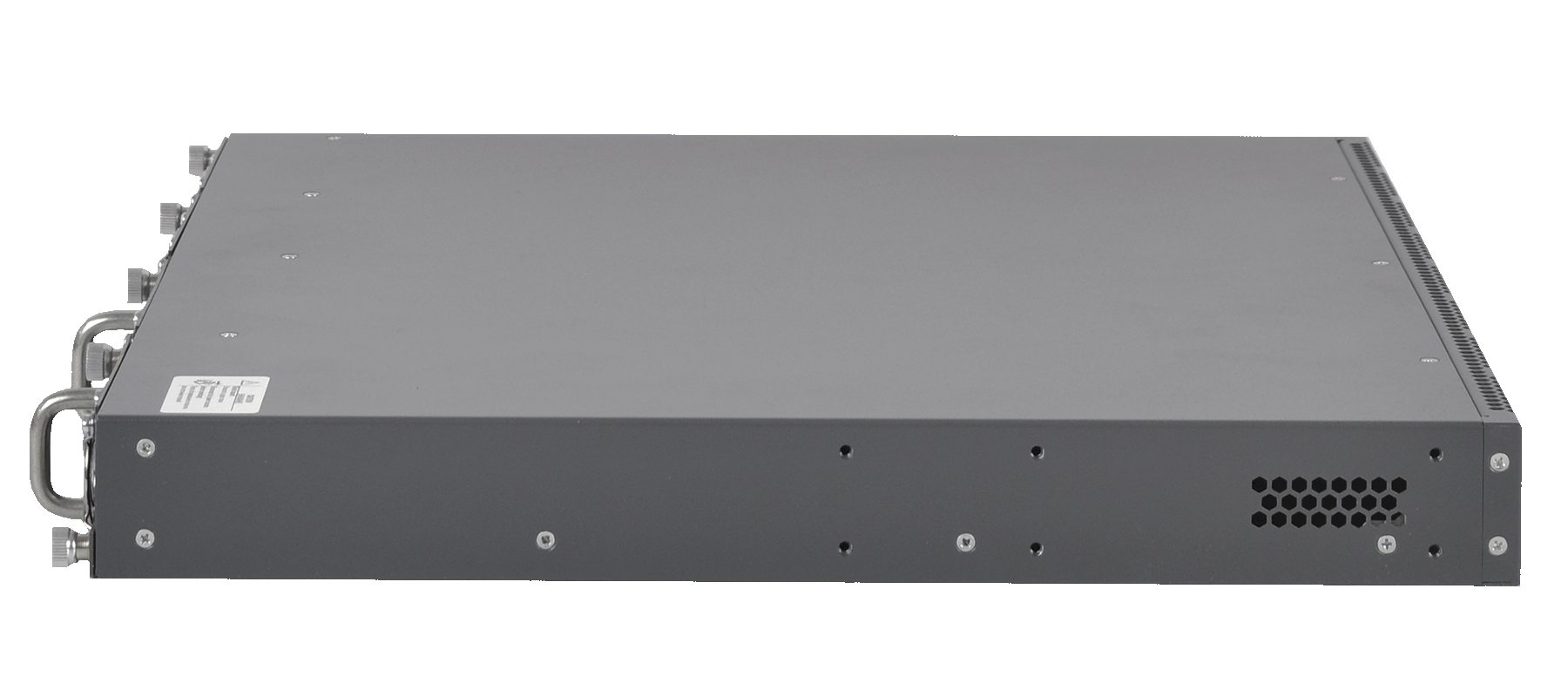

Access switch MES2310-12XU
- Level:
- L3
- Bandwidth:
- 440 Gbps
- Interfaces:
- 12x10G PoE/PoE+/PoE++, 4x25G SFP28
- Power supply:
- AC, 2 hot-swappable power supplies
Description
MES2310-12XU with PoE++ support is designed to connect end users to the network of large enterprises, small and medium-sized businesses and to the telecommunication operators network using 25GBASE-R interfaces.
The switch features provide physical stacking, support for virtual local area networks, multicast distribution groups, and advanced security.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth
- 440 Gbps
- Interfaces:
- 12x10G PoE/PoE+/PoE++, 4x25G SFP28
- MAC table
- 32768
- PoE budget:
- 800 W
- QoS:
- 8 egress queues per port
- Power supply:
- AC, 2 hot-swappable power supplies
- Stacking:
- Up to 8 devices
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
10/100/1000/2500/10GBASE-T PoE/PoE+/PoE++
12
1000BASE-X (SFP)/10GBASE-R (SFP+)/25GBASE-R (SFP28)
4
10/100/1000BASE-T (OOB)
1
Console port RS-232 (RJ-45)
1
Performance:
Bandwidth
440 Gbps
RAM (DDR4)
2 GB
ROM (RAW NAND)
512 MB
MAC table
32768
VLAN table
4094
VRRP routers
127
Link Aggregation Groups (LAG)
123, up to 8 ports in one LAG
Quality of Services (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Stacking
Up to 8 devices
Physical parameters:
Power supply
200–240 V AC,
50–60 Hz;
Up to 2 hot-swappable power supplies
PoE budget
800 W
Operating temperature
From -20 to +50 °С
Storage temperature
From -50 to +70 °С

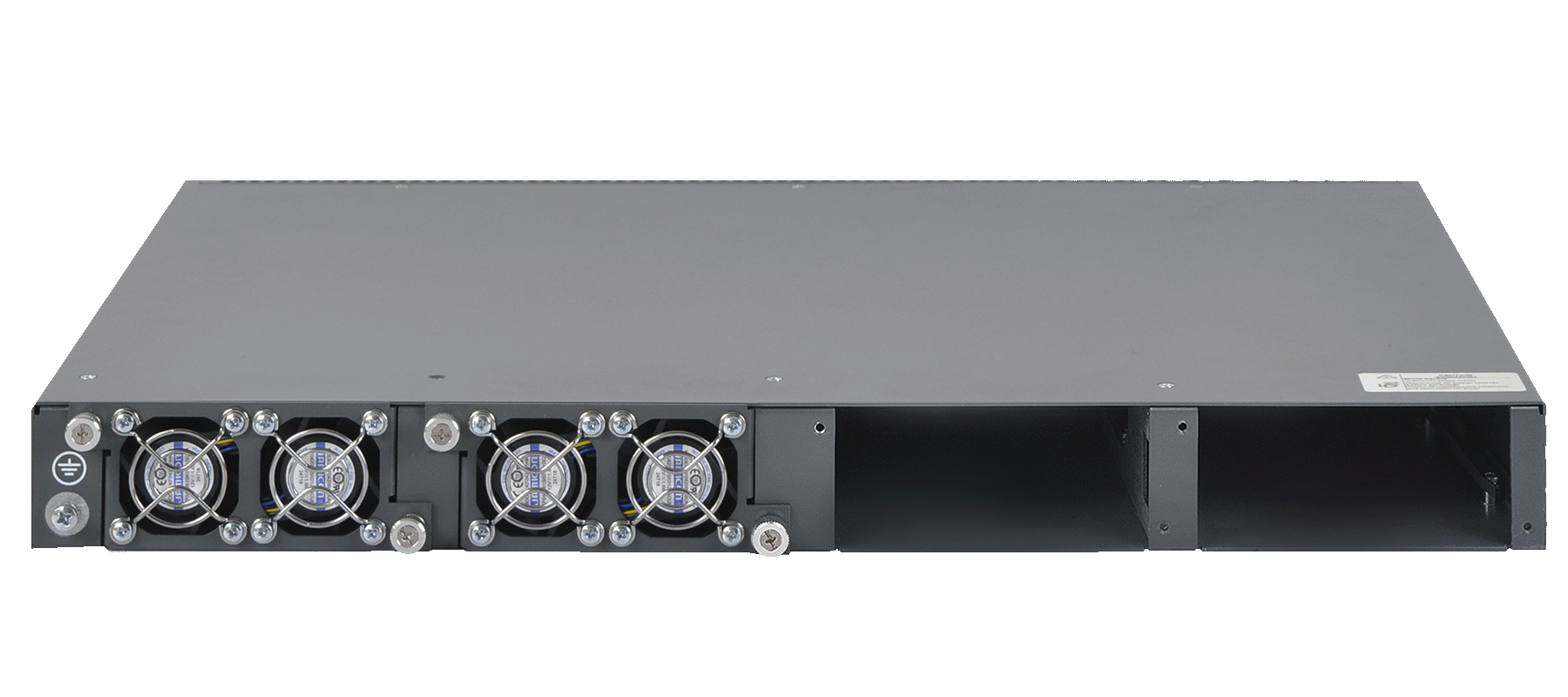

Cooling
Front-to-Back, 4 fans
Operating humidity
No more than 80 % (without condensing)
Dimensions (WxHxD)
440x44x342.7 mm
Free
Basic warranty
Up to 5 years
Extended warranty
