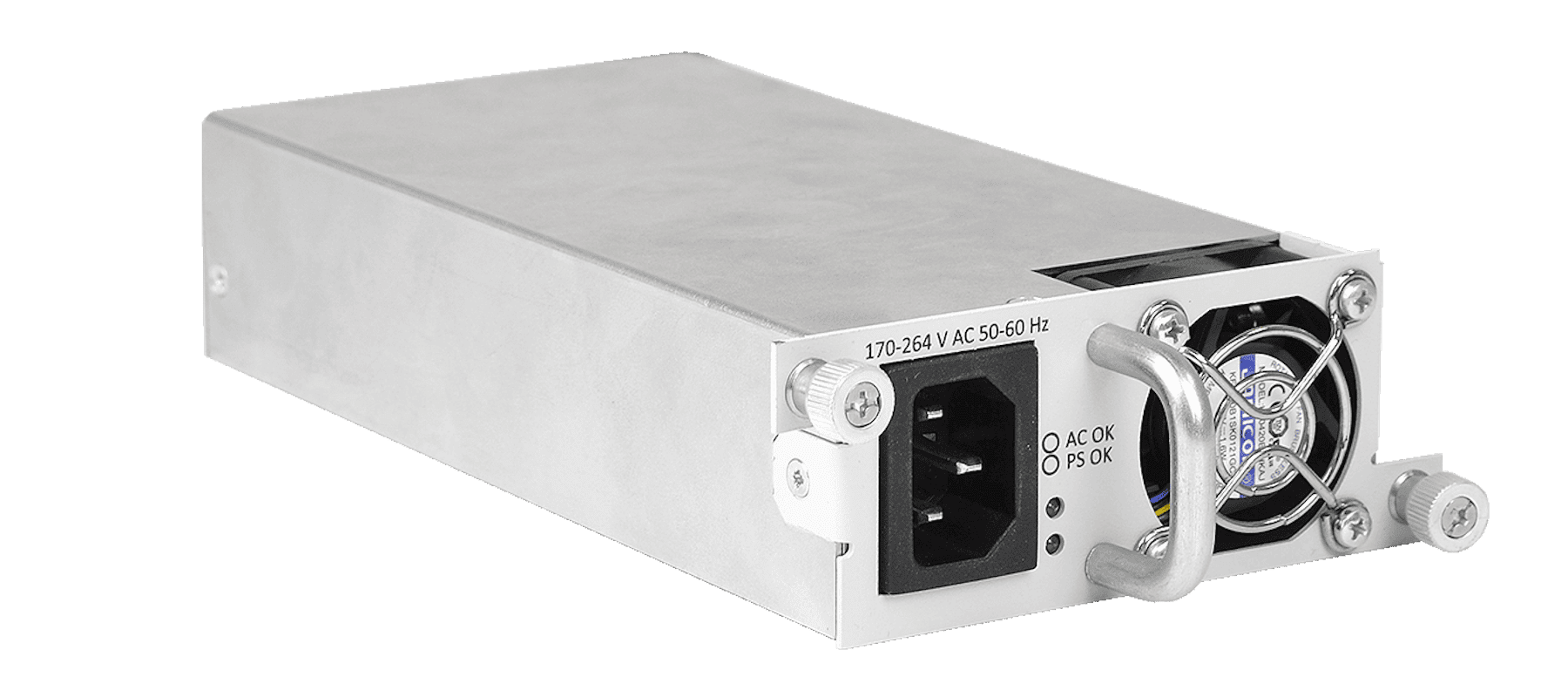

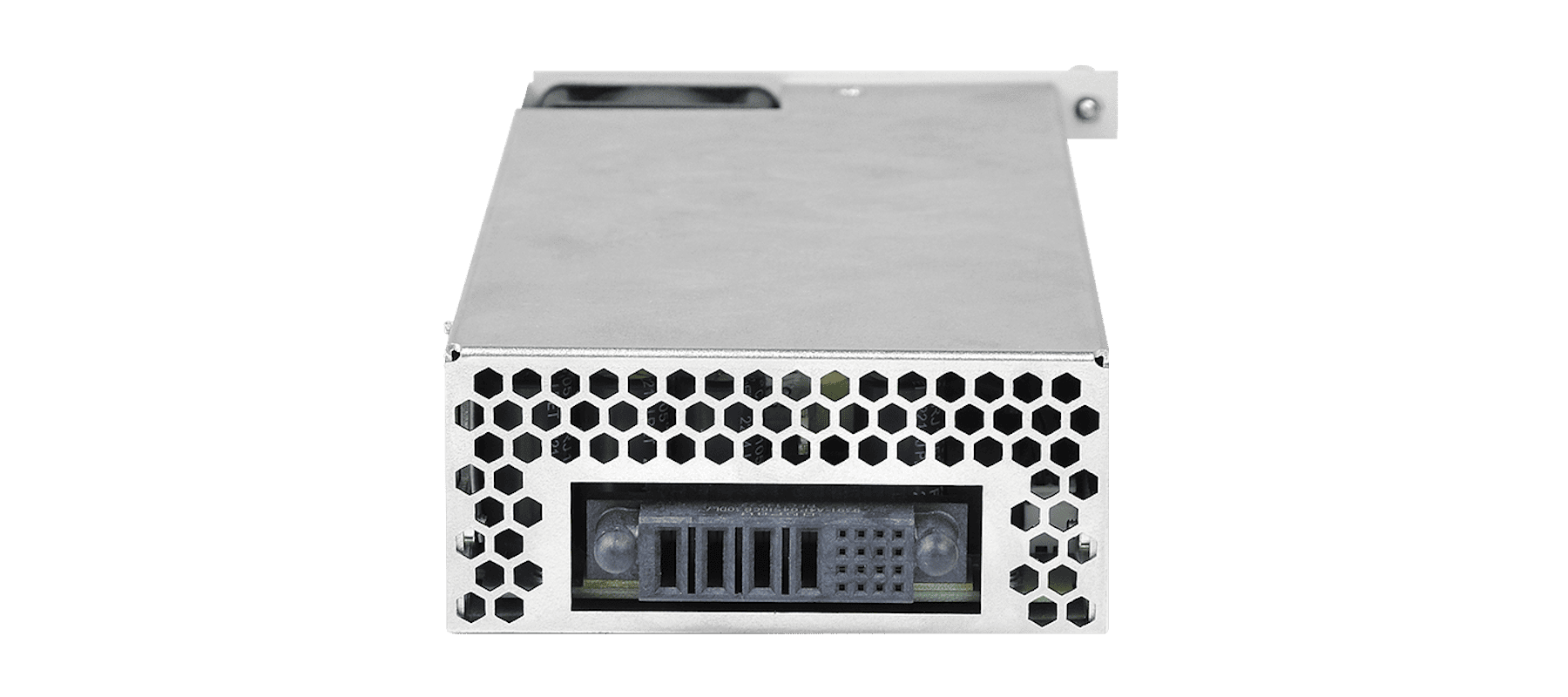

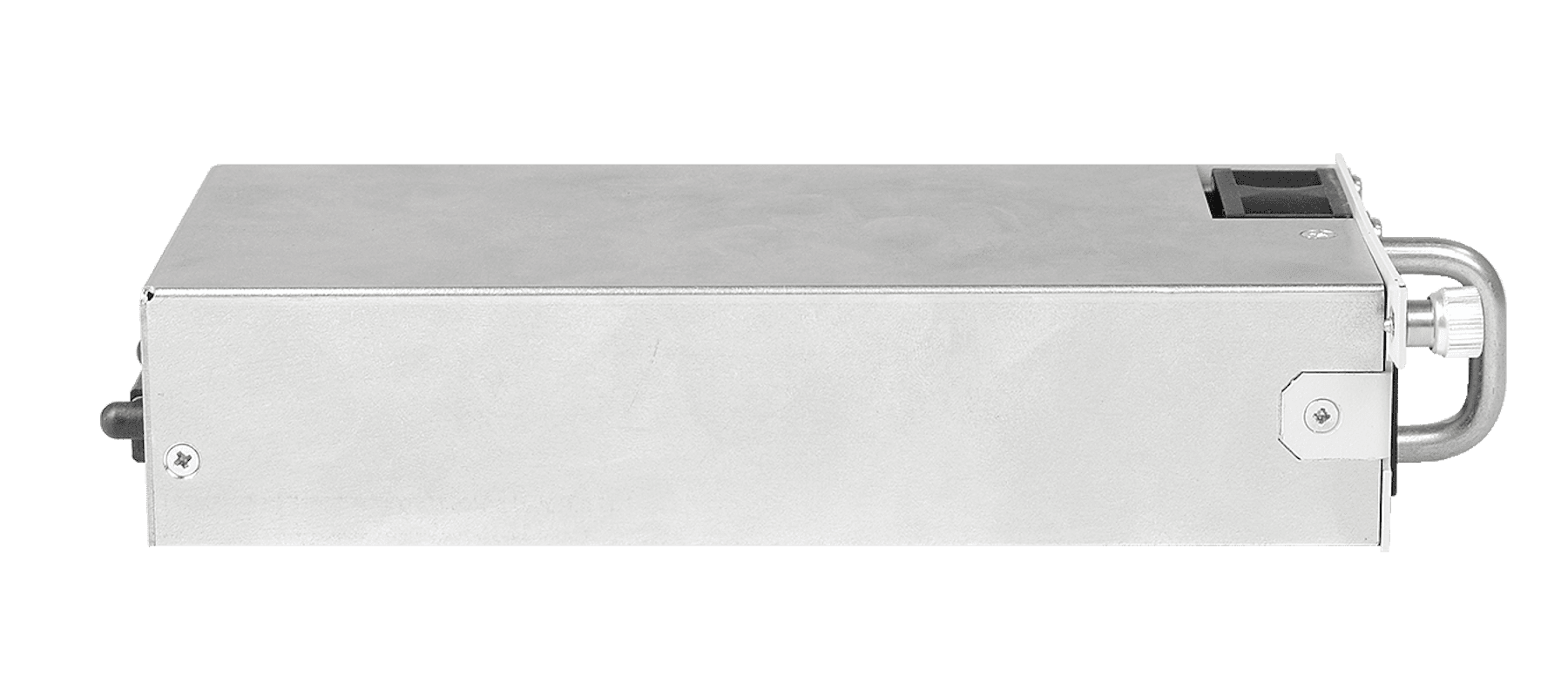

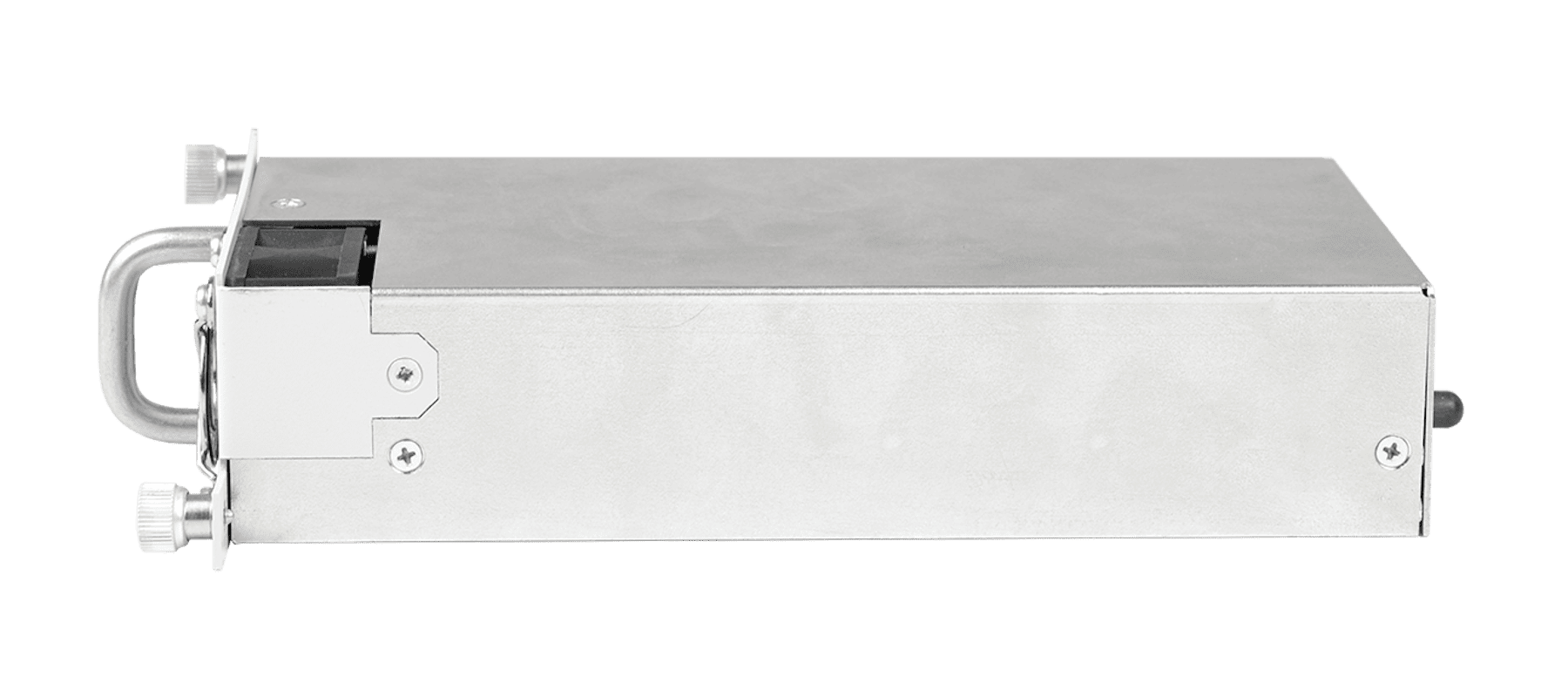

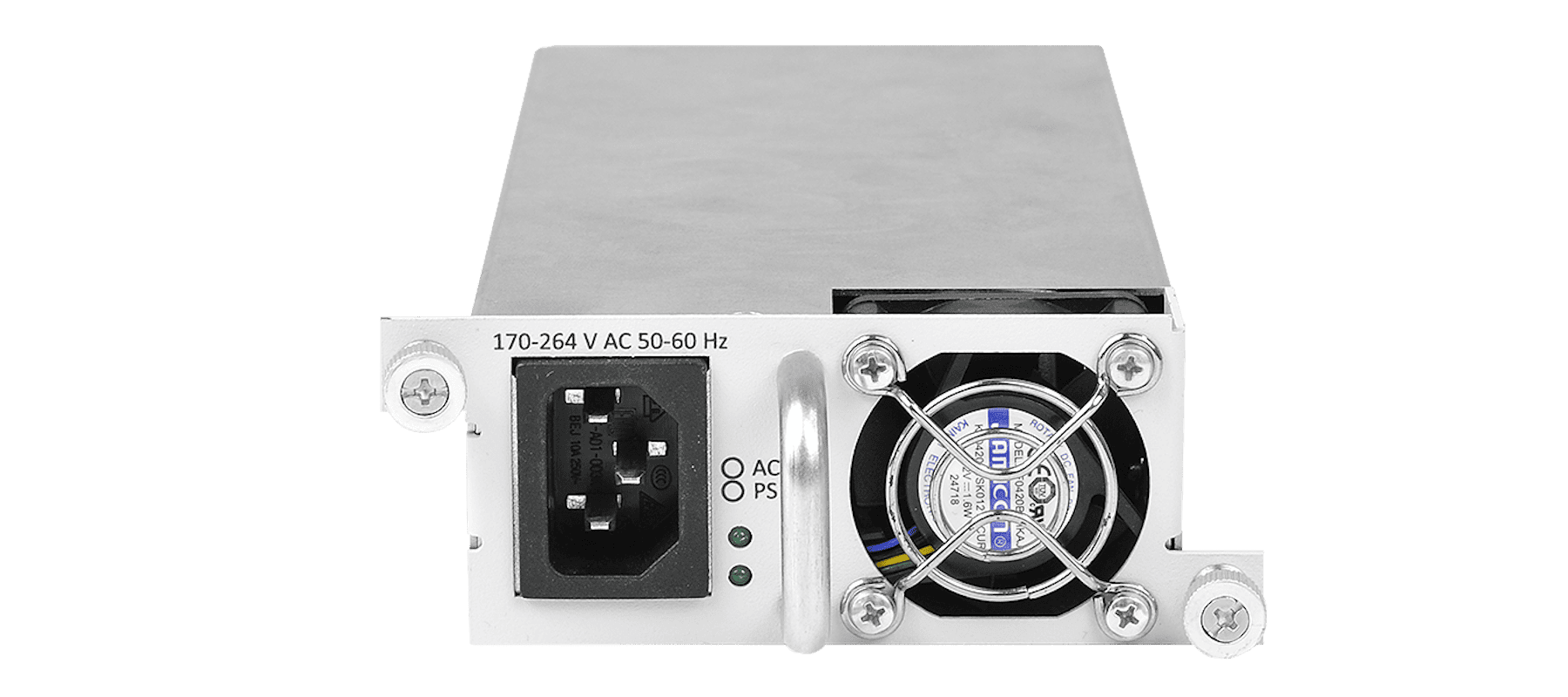

Power module PM450-220/56
- Type:
- AC
- Output voltage:
- 54 V
- Max. output power:
- 450 W
Description
PM450-220/56 power modules are intended to be used for the following Eltex equipment: MES2300D-24P, MES2310-12XU, MES2420D-24DP, MES2448P.
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage АС max. range
176–264 V AC
Input voltage АС nominal range
200–240 V AC
Input frequency
47–63 Hz
Output voltage
54 V
Max. output power
450 W
Inrush current
15 А
Physical features and ambient parameters:
Operating temperature
From -10 to +50 °С
Storage temperature
From -40 to +70 °С
Operating humidity at +25 °C
(without condensation)
Up to 80 %
Dimensions (WxHxD)
111х43х218 mm
Weight
1.0 kg
Supported devices
Ethernet Access Switch MES2300D-24P
Ethernet Access Switch MES2420D-24DP
Ethernet Access Switch MES2448P
Ethernet Access switch MES2310-12XU
