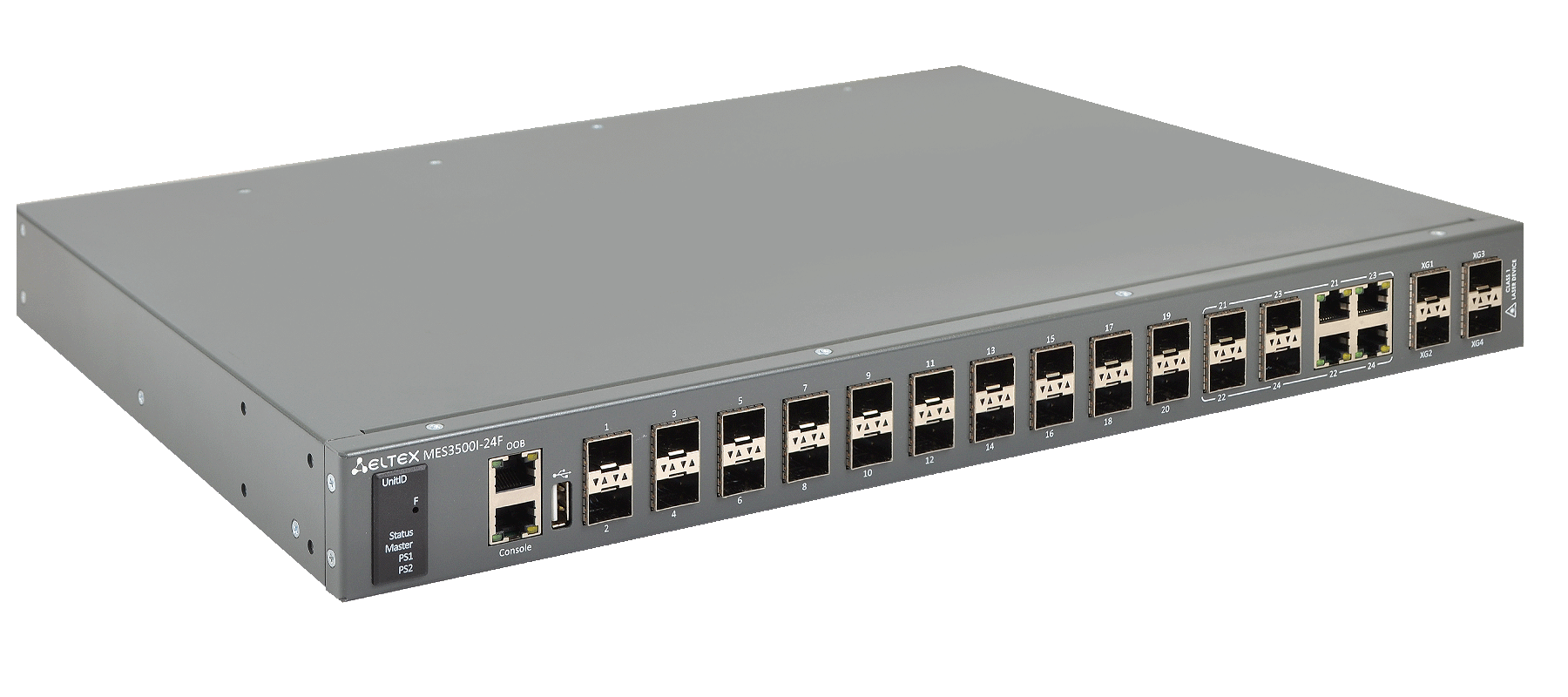

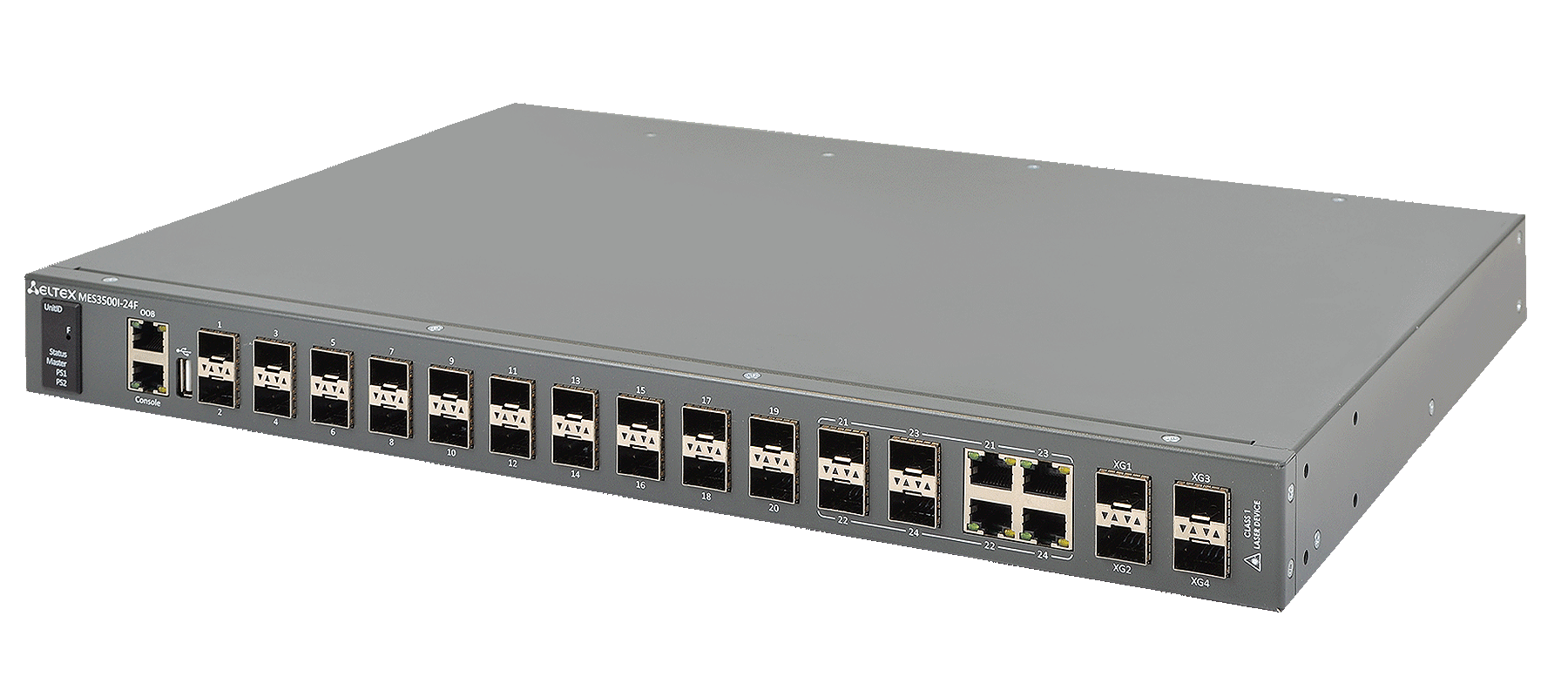

Ethernet aggregation switches MES3500I-24F
- Level:
- L3
- Bandwidth:
- 128 Gbps
- Interfaces:
- 20x1G SFP, 4x1G Combo (RJ-45/SFP), 4x10G SFP+
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Description
The new generation MES3500I-24F switch is designed to organize secure fault-tolerant data transmission networks at sites where it is necessary to meet requirements for ensuring resistance to temperature impact. The device has a significant margin in performance due to interfaces operating at 10 Gbps or 1 Gbps. The switch has 1000BASE-X/100BASE-FX Gigabit ports, as well as 10/100/1000BASE-T/ 1000BASE-X/100BASE-FX combo ports. The distinctive features of the switch are passive cooling and redundant hot-swappable power supplies.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth:
- 128 Gbps
- Interfaces:
- 20x1G SFP, 4x1G Combo (RJ-45/SFP), 4x10G SFP+
- Cooling:
- passive
- ARP:
- 4029
- QoS:
- 8 egress queues per port
- Power supply:
- AC/DC, 2 hot-swappable power supplies
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
100BASE-FX/1000BASE-X (SFP)
20
10/100/1000BASE-T/100BASE-FX/1000BASE-X (RJ-45/SFP) Combo
4
10GBASE-R (SFP+)
4
Console port RS-232 (RJ-45)
1
USB 2.0
1
OOB
1
Performance:
Bandwidth
128 Gbps
Buffer memory
1.5 MB
RAM (DDR4)
2 GB
ROM (RAW NAND)
512 MB
MAC table
16384
VLAN table
4094
VRRP routers
255
Link Aggregation Groups (LAG)
32, up to 8 ports per LAG
Quality os Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Physical parameters:
Power supply
100–240 V AC, 50–60 Hz, 120–370 V DC;
36–72 V DC
Power supply options
1 AC/DC power supply
2 hot-swappable AC/DC power supplies
Input current
0.2–0.5 A for AC
0.4–1.0 A for DC
Operating temperature
From -40 to +70 °С
Storage temperature
From -50 to +85 °С
Cooling
Passive
Operating humidity
No more than 95 %
Dimensions (WxHxD)
430x44x305 mm
