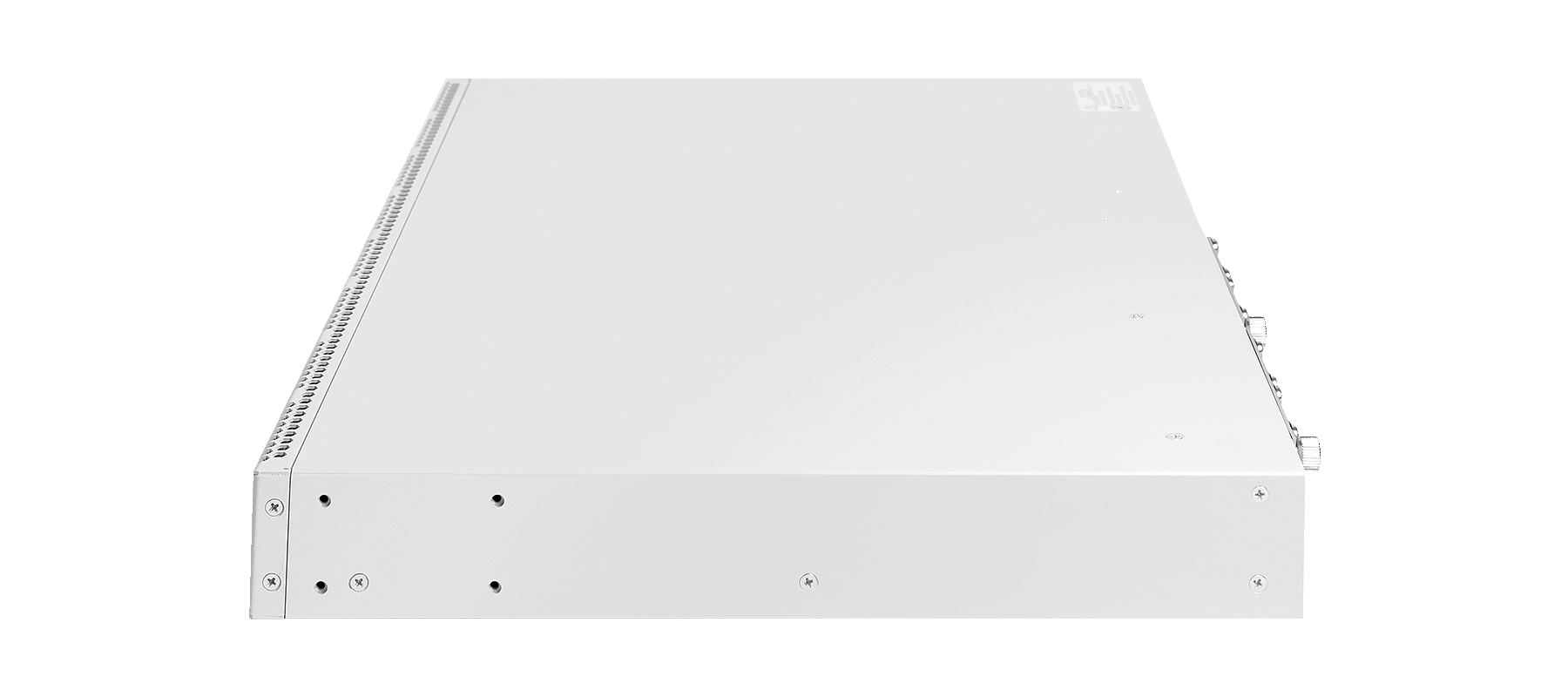

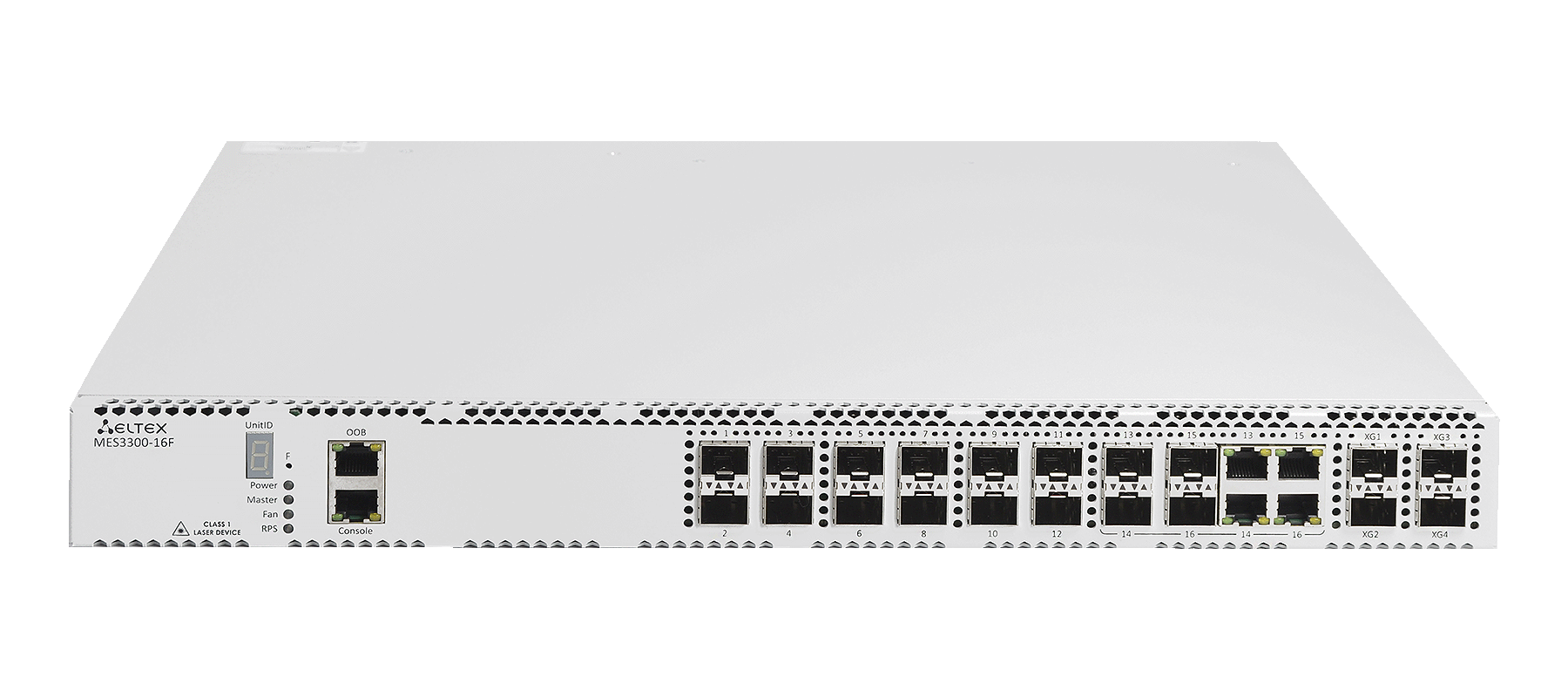

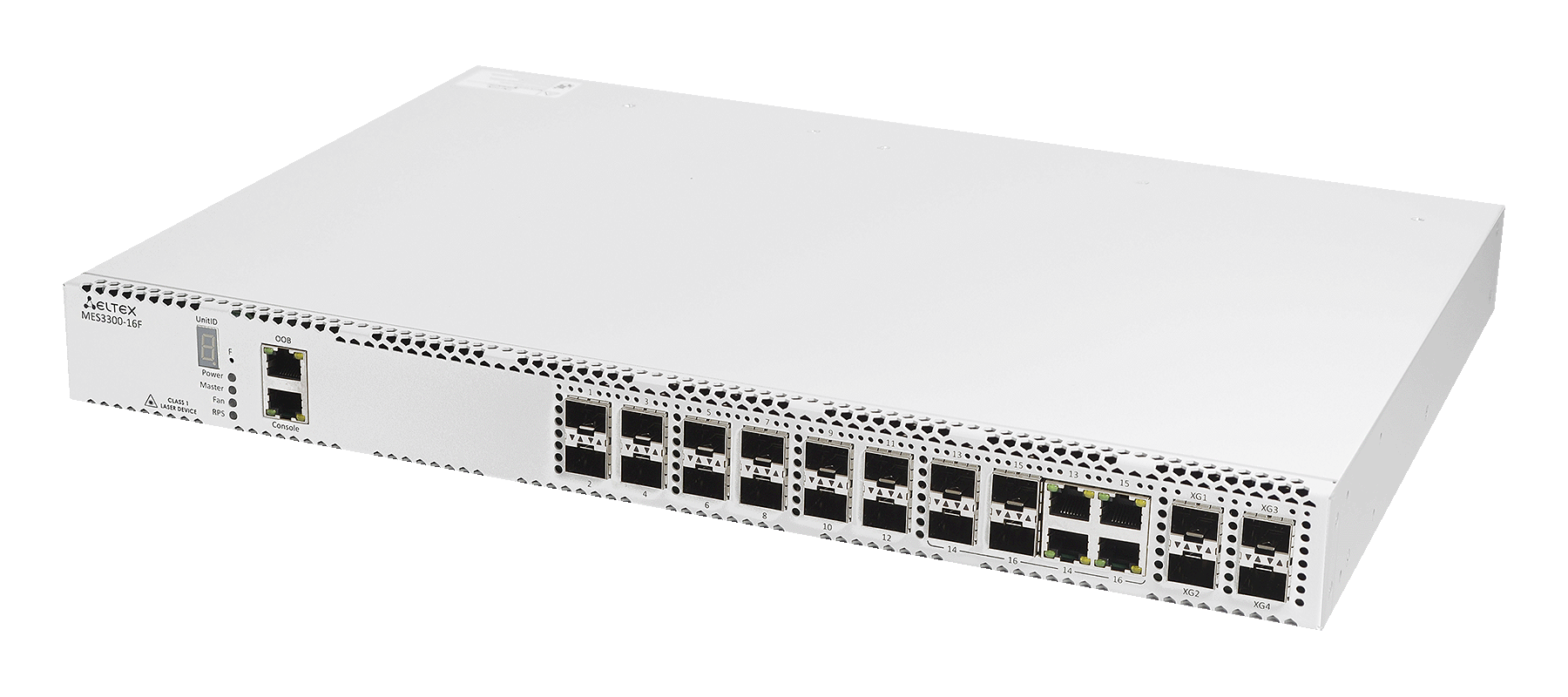

Aggregation Switch MES3300-16F

Mass production

Bandwidth up to 112 Gbps
Non-blocking architecture
4 ports of 10G
L3 functions
Stacking up to 8 devices
Hot-swappable redundant power supplies
Dual ventilation system
Front-to-Back cooling

MES3300-16F switches can be used as aggregation or transport switches in carrier networks and as Top-of-Rack switches for data centers. They ensure high performance due to the universal interfaces operating at speeds of 10 Gbps or 1 Gbps.

The benefits of MES aggregation switches include advanced L2 functions, support for static and dynamic routing, stacking of up to 8 devices, and hot-swappable redundant power modules.

Show all

Interfaces

1000BASE-X/100BASE-FX (SFP) - 12
10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo - 4
10GBASE-R (SFP+)/1000BASE-X (SFP) - 4
10/100/1000BASE-T (OOB) - 1
Console port RS-232 (RJ-45) - 1

Performance

Bandwidth - 112 Gbps
Throughput for 64 bytes¹ - 88.3 MPPS
Buffer memory - 1.5 MB
RAM (DDR4) - 2 GB
ROM (RAW NAND) - 512 MB
MAC table - 16384
ARP table² - 4087
VLAN table - 4094
L2 Multicast groups - 4092
SQinQ - 1320 ingress, 1320 egress
MAC ACL - 3000
IPv4/IPv6 ACL - 2999/1500
L3 IPv4 Unicast³ - 13278
L3 IPv6 Unicast³ - 3316
L3 IPv4 Multicast (IGMP Proxy, PIM)³ - 4087
L3 IPv6 Multicast (IGMP Proxy, PIM)³ - 1642
VRRP routes - 255
Maximum size of ECMP groups - 5
VRF 16 (including default VRF)
L3 interfaces 2050
Link Aggregation Groups (LAG) - 32, up to 8 ports per LAG
Quality of Service (QoS) - 8 egress queues per port
Jumbo frames - 10240 bytes
Stacking - 8 devices

Interface functions

Head-of-line blocking (HOL) protection
Back Pressure
Auto MDI/MDIX
Jumbo Frames
Flow control (IEEE 802.3X)
Port Mirroring (SPAN, RSPAN)
Stacking

MAC table functions

Independent learning mode per VLAN
MAC Multicast Support
Configurable aging time of MAC addresses
Static MAC Entries
MAC Flapping logging

VLAN functions

Voice VLAN
802.1Q
Q-in-Q
Selective Q-in-Q
GVRP

L2 Multicast functions

Multicast profiles
Static Multicast groups
IGMP Snooping v1,2,3
Port/host-based IGMP Snooping Fast Leave
Pim-Snooping
IGMP proxy-report
IGMP authorization via RADIUS
MLD Snooping v1,2
IGMP Querier
MVR

L2 functions

Spanning Tree Protocol, IEEE 802.1d
Rapid Spaning Tree Protocol, IEEE 802.1w
Multiple Spanning Tree Protocol, IEEE802.1s
PVSTP+
RPVSTP+
Spanning Tree Fast Link option
STP Root Guard
BPDU Filtering
STP BPDU Guard
Loopback Detection
ERPS (G.8032v2)
Flex-link
Private VLAN
Layer 2 Protocol Tunneling (L2PT)

L3 functions

Static IP routes
Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP⁴ (IPv4 Unicast, IPv4 Multicast, IPv6 Unicast)
BFD (for BGP)
Address Resolution Protocol (ARP)
Proxy ARP
VRRP
PIM SM, PIM DM, IGMP Proxy, MSDP
ECMP Load Balancing
IP Unnumbered
VRF lite

Link Aggregation functions

Static LAG
Dynamic LAG (LACP)
LAG Balancing Algorithm
Multi-Switch Link Aggregation Group (MLAG)

IPv6 functions

IPv6 Host
Dual stack

Service functions

Virtual Cable Testing (VCT)
Optical transceiver diagnostics
Green Ethernet

Security functions

Protection against unauthorized DHCP servers (DHCP Snooping)
DHCP Option 82
IP Source Guard
Dynamic ARP Inspection
First Hop Security
sFlow
MAC-based authentication, Port Security, Static MAC entries
Port-based authentication IEEE 802.1x
Guest VLAN
DoS attack prevention
Traffic segmentation
DHCP clients filtering
BPDU attacks prevention
NetBIOS/NetBEUI filtering

Quality of Service (QoS)

QoS statistics
Shaping, Policing
IEEE 802.1p Class of Service (CoS)
Storm Control for different types of traffic (broadcast, multicast, unknown unicast)
Bandwidth management
Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
Three marking colors
ACL-based CoS/DSCP mark assignment
ACL-based VLAN assignment
Setting the IEEE 802.1p priority for management VLAN
DSCP to CoS/CoS to DSCP remarking
802.1p, DSCP mark assignment for IGMP

OAM

802.3ah Ethernet Link OAM
802.3ah Unidirectional Link Detection

ACL (Access Control Lists)

L2-L3-L4 ACL (Access Control List)
Time-Based ACL
IPv6 ACL
ACL based on:
- Physical port number
- IEEE 802.1p
- VLAN ID
- EtherType
- DSCP
- Protocol type
- TCP/UDP port number
- User Defined Bytes

Management functions

Download and upload of configuration file via TFTP/SCP
SNMP
Command Line Interface (CLI)
Web interface
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (802.1ab) + LLDP MED
Authorization of entered commands using TACACS+ server
Access control – privilege levels
Management interface blocking
Local authentication
IP addresses filtering for SNMP
RADIUS and TACACS+ (Terminal Access Controller Access Control System) clients
SSH server, Telnet server
SSH client, Telnet client
SSL
Macrocommands
CLI commands logging
System log
DHCP autoprovision
DHCP Relay (Option 82)
DHCP Option 12
Debugging commands
Rate limit of traffic to CPU
Password encryption
Password recovery
Ping (IPv4/IPv6 support)
Monitoring functions
Statistics on interfaces
RMON/SMON
IP SLA
CPU utilization monitoring per task and per traffic type
RAM utilization monitoring
Temperature monitoring
TCAM utilization monitoring

MIB/IETF

RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1493, 4188 Bridge MIB
RFC 1157, 2571-2576 SNMP MIB
RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
RFC 1271, 1757, 2819 RMON MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2737 Entity MIB
RFC 4293 IPv6 SNMP Mgmt Interface MIB
Private MIB
RFC 3289 DIFFSERV MIB
RFC 2021 RMONv2 MIB
RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
RFC 2668 802.3 MAU MIB
RFC 2674, 4363 802.1p MIB
RFC 2233, 2863 IF MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP
RFC 2620 RADIUS Accounting Client MIB
RFC 2925 Ping & Traceroute MIB
RFC 768 UDP
RFC 791 IP
RFC 792 ICMPv4
RFC 2463, 4443 ICMPv6
RFC 4884 Extended ICMP for Multi-Part messages support
RFC 793 TCP
RFC 2474, 3260 DS field in the IPv4 and IPv6 header
RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
RFC 826 ARP
RFC 854 Telnet

Physical parameters

Power supply
- 100–240 V AC, 50–60 Hz;
- 36–72 V DC
Power options:
- one DC or AC power supply
- two hot-swappable DC or AC power supplies
Input current - 0.8–0.2 A
Maximum power consumption - 37 W
Heat dissipation - 37 W
Dying Gasp hardware support - no
Operating temperature - from -10 to +45 °C
Storage temperature - from -50 to +70 °C
Operating humidity - no more than 80 %

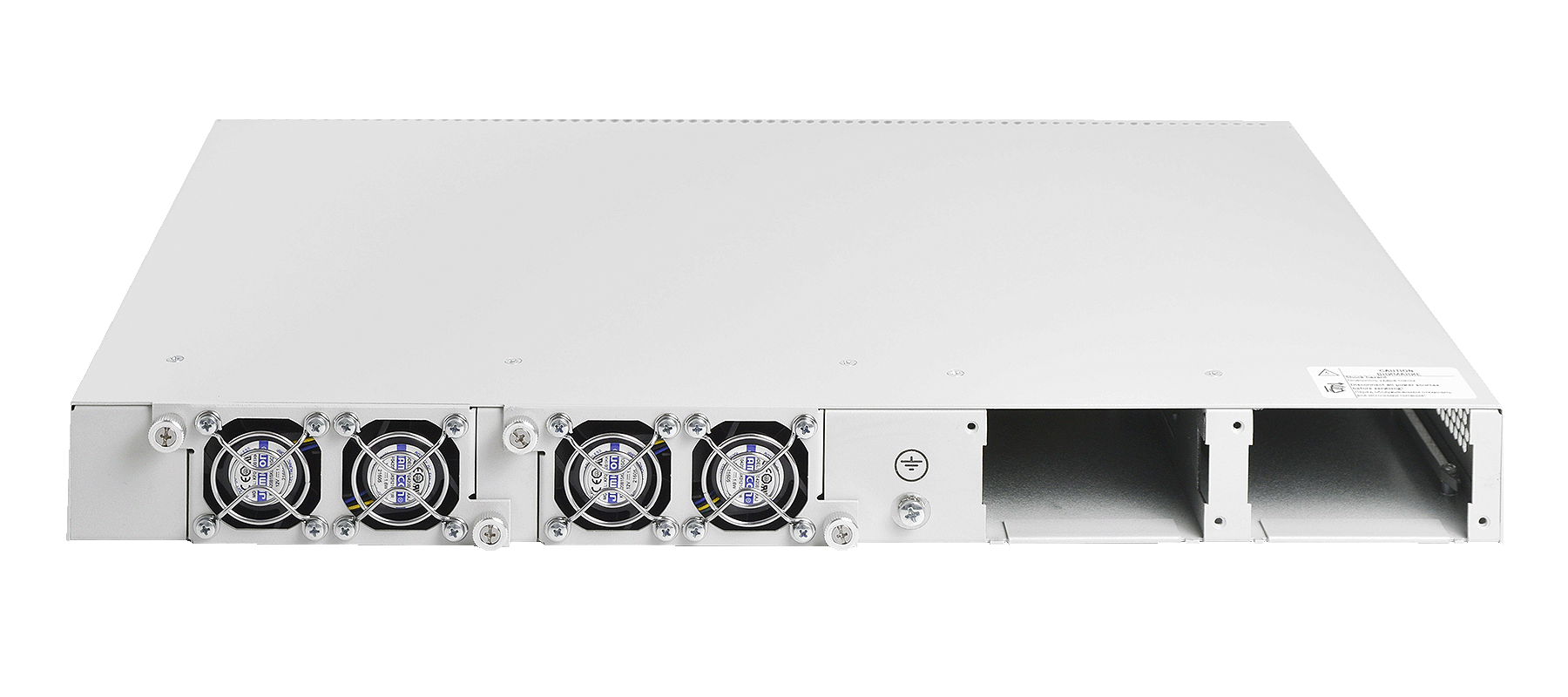

Cooling - Front-to-Back, 4 fans
Form factor - 19", 1U
Dimensions (W × H × D) - 430 × 44 × 305 mm
Weight - 4.89 kg

¹Values are given for 1-way transmission.

²For each host in the ARP table, an entry is created in the routing table.

³IPv4/IPv6 Unicast/Multicast routes share hardware resources.

⁴BGP protocol support is provided under license.
