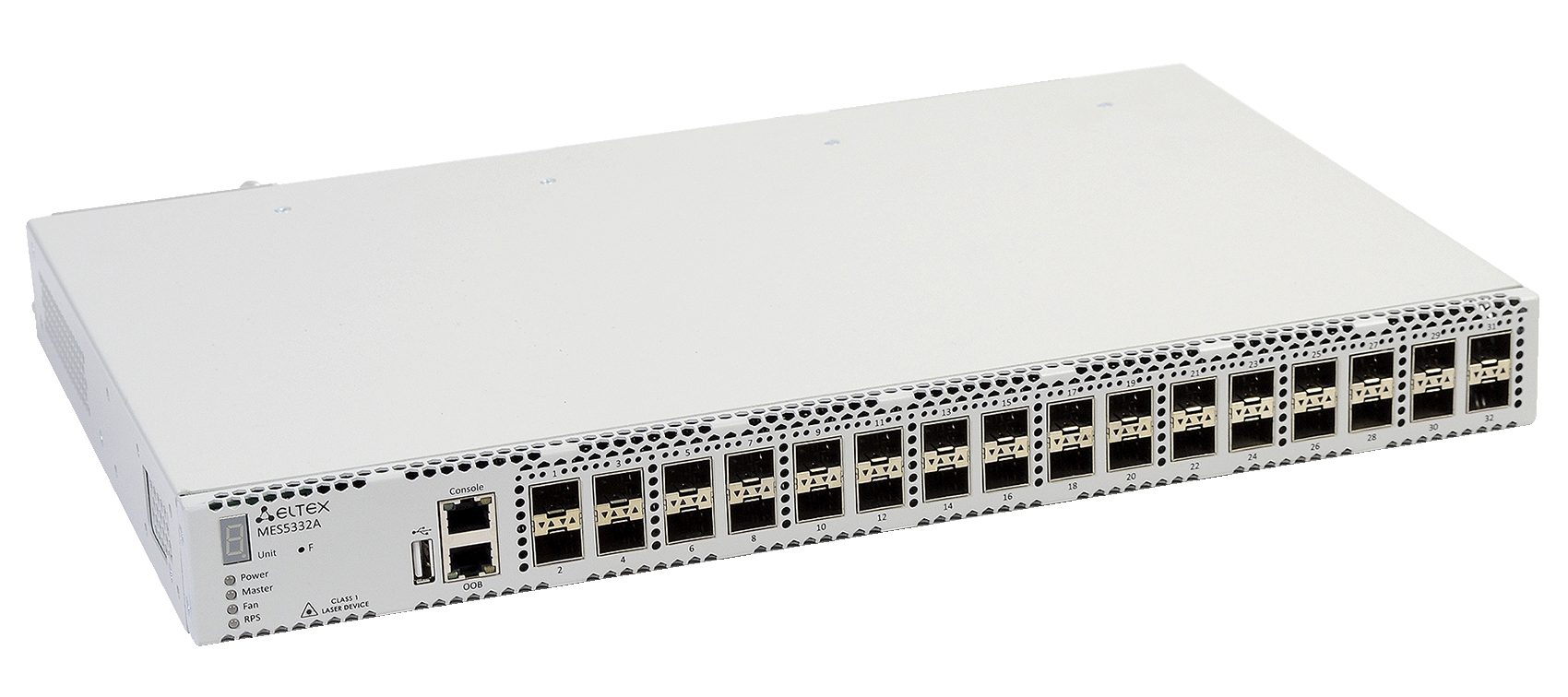

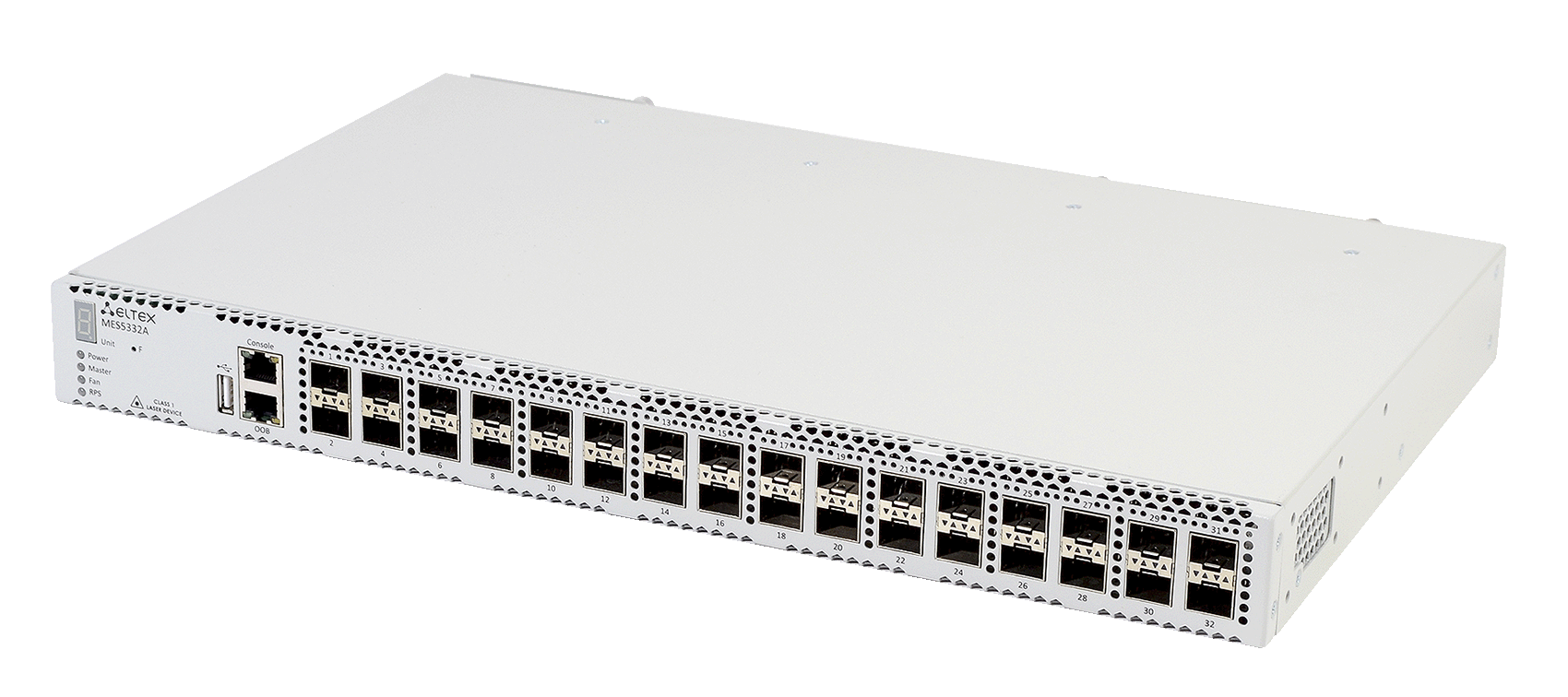

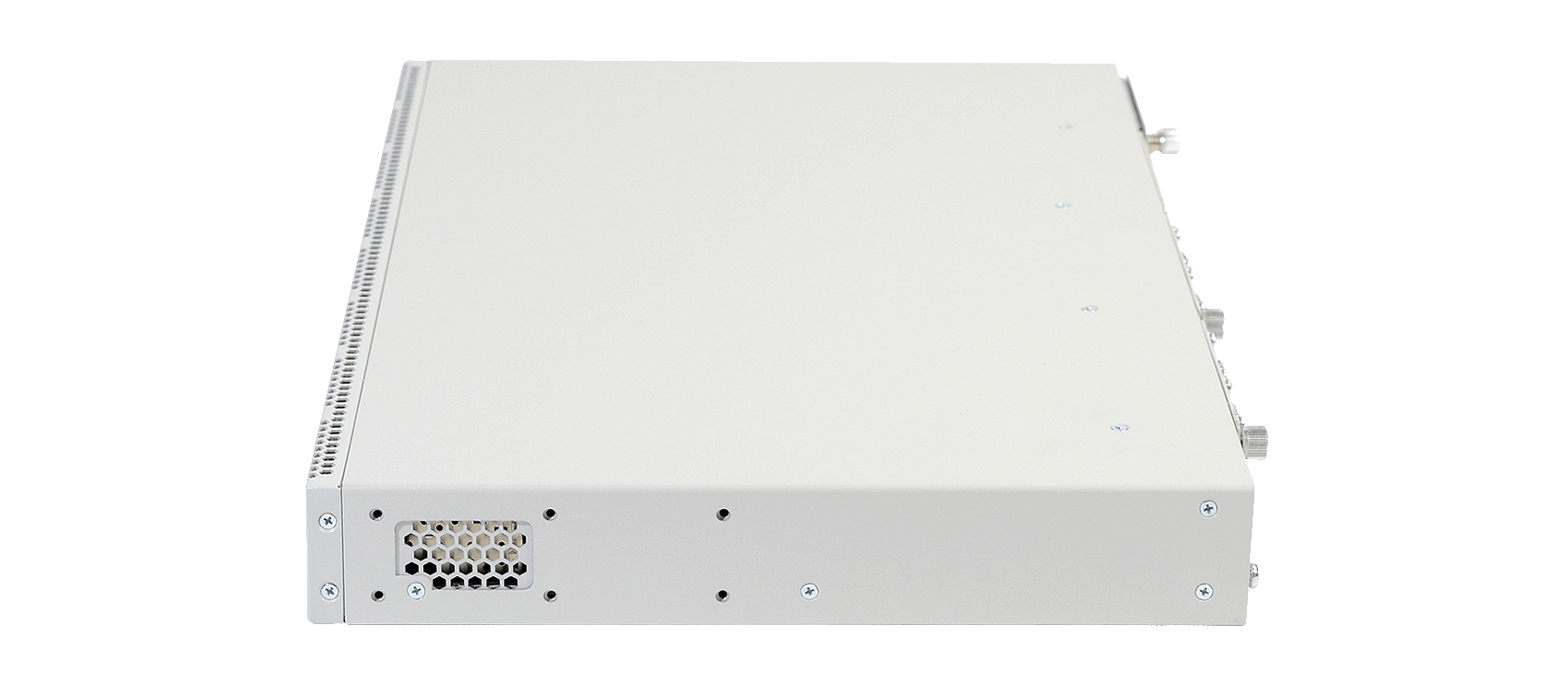

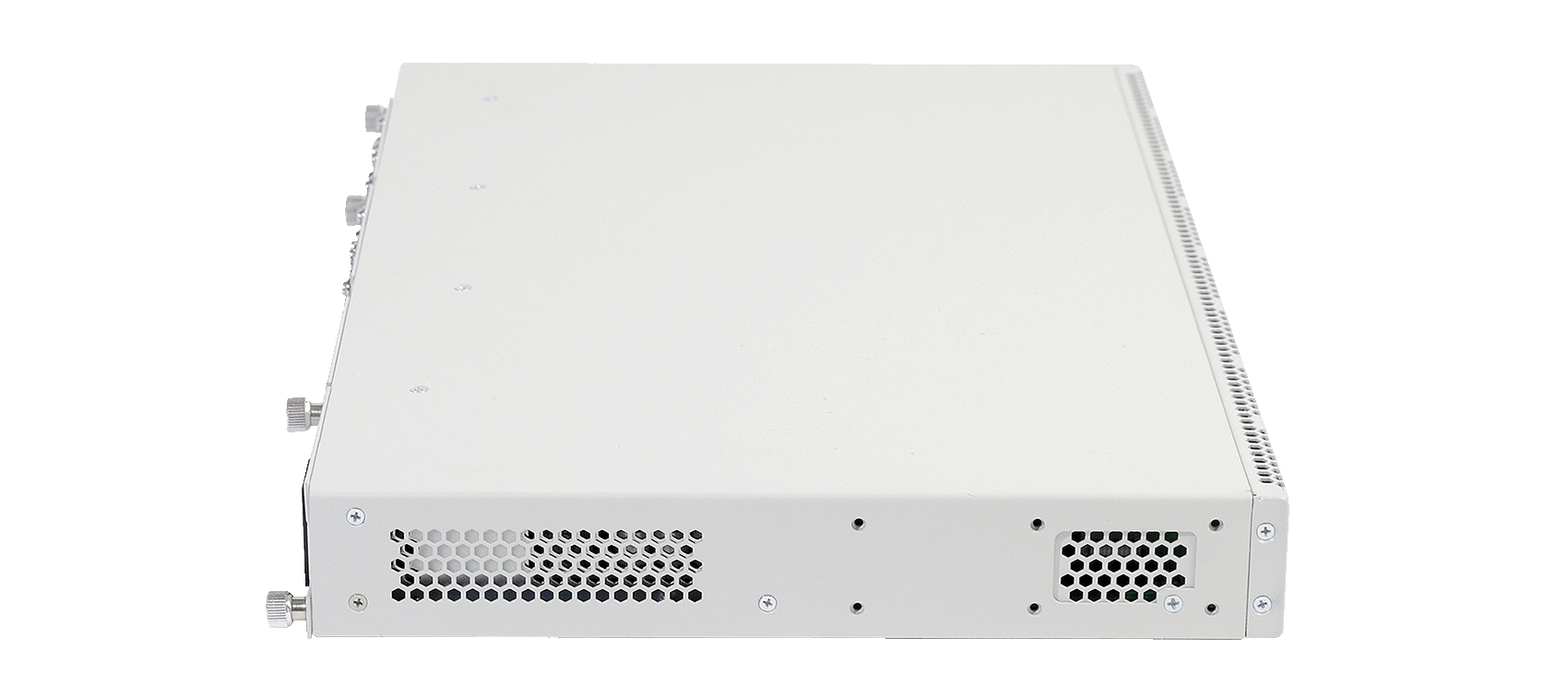

Aggregation 10G Switch MES5332A rev.C

Mass production
 Key features
  • Bandwidth up to 640 GBPS
  • Non-blocking architecture
  • Up to 32x10G ports
  • L3 switches
  • Front-to-Back cooling
  • Stacking up to 8 devices
  • Hot-swappable redundant power supplies

MES5332A switches are high performance devices with 10GBASE-R/1000BASE-X that can be used as aggregation switches in carrier networks and small data centers.

The devices support operating bandwidth of 1 Gbps (SFP) and 10 Gbps (SFP+) that provides flexible using and ability of smooth transition to higher data rates. The non-blocking architecture guarantees lossless packet forwarding at high loads with minimum and predictable delays for all types of traffic.

The front-to-back cooling provides effective cooldown in modern data centers.

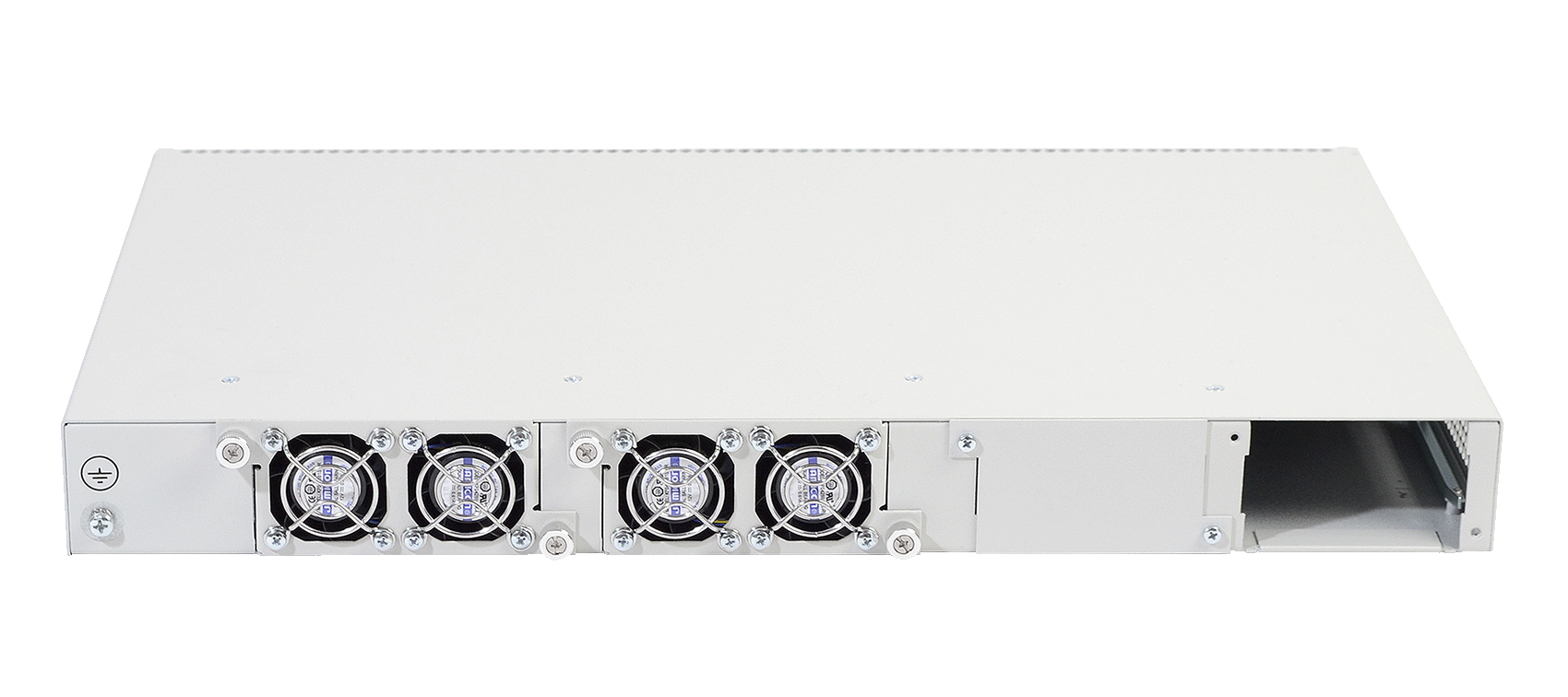

The redundant and hot-swappable fans and AC/DC power supplies with advanced hardware monitoring functions provide high reliability and uninterrupted services.
Specifications
Modules and additional devices
Documents and files
Warranty

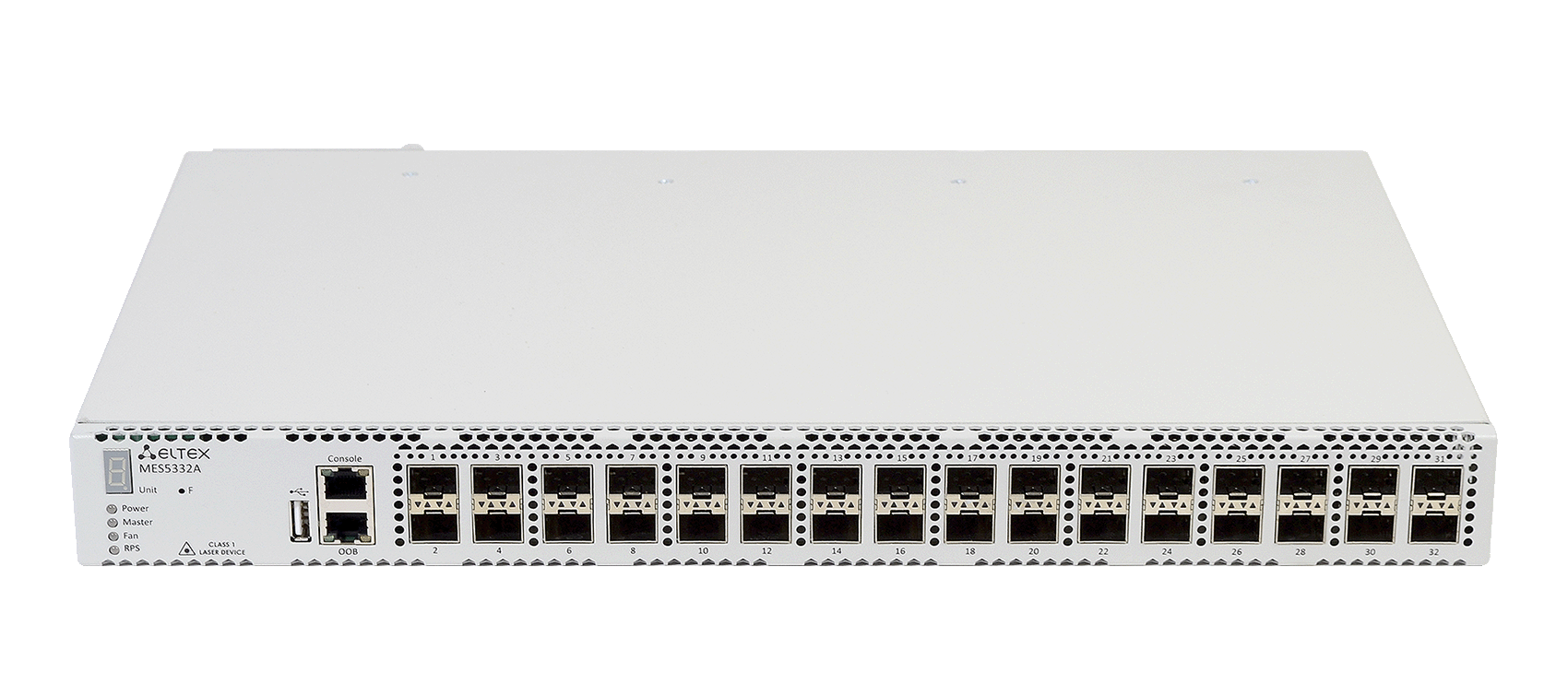

Interfaces
  • 10GBASE-R (SFP+)/1000BASE-X (SFP) - 32
  • 10/100/1000BASE-T (OOB) - 1
  • USB 2.0 - 1
  • Console port RS-232 (RJ-45) - 1
Performance
  • Bandwidth - 640 Gbps
  • Throughput for 64 bytes1 - 238 MPPS
  • Buffer memory - 3 MB
  • RAM (DDR3) - 2 Gb2
  • ROM (NAND Flash) - 1 GB
  • MAC table - 32768
  • ARP table3 - 8183
  • VLAN table - 4094
  • L2 Multicast group - 4092
  • SQinQ rules - 1320 (ingress), 1320 (egress)
  • MAC ACL rules - 3000
  • IPv4/IPv6 ACL rules - 2999/1500
  • L3 IРv4 Unicast routes4 - 16286
  • L3 IРv6 Unicast routes4 - 4070
  • L3 IРv4 Multiicast (IGMP Proxy, PIM) routes4 - 8143
  • L3 IРv6 Multiicast (IGMP Proxy, PIM) routes4 - 2033
  • VRRP routers - 255
  • Maximum size of ECMP groups - 64
  • VRF number - 16 (including default VRF)
  • L3 interfaces - 2050
  • Maximum number of VXLAN - 2094
  • Link Aggregation Groups (LAG) - 128, up to 8 ports in one LAG
  • Quality of Services (QoS) - 8 egress queues per port
  • Jumbo frames - 10240 bytes
  • Stacking up to 8 devices
Interface features
  • Head-of-line blocking (HOL) protection
  • Back pressure
  • Auto MDI/MDIX
  • Jumbo frames
  • Flow Control (IEEE 802.3X)
  • Port Mirroring (SPAN, RSPAN)
  • Stacking
MAC address functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses
  • Static MAC Entries
  • MAC Flapping
VLAN functions
  • Voice VLAN
  • IEEE 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast groups
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Host/port-based IGMP Snooping Fast Leave
  • PIM-Snooping
  • IGMP proxy-report
  • IGMP authorization through RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree Protocol, IEEE 802.1s)
  • PVSTP+
  • RPVSTP+
  • Spanning Tree Fast Link option
  • STP Root Guard
  • BPDU Filtering
  • STP BPDU Guard
  • Loopback Detection (LBD)
  • ERPS (G.8032v2)
  • Private VLAN
  • Layer 2 Protocol Tunneling (L2PT)
L3 functions
  • Static IP routes
  • Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, IS-IS (IPv4 Unicast), BGP5 (IPv4 Unicast, IPv4 Multicast)
  • BFD protocols (for BGP)
  • Address Resolution Protocol (ARP)
  • Proxy ARP
  • VRRP
  • Multicast dynamic routing protocols PIM SM, PIM DM, IGMP Proxy, MSDP
  • ECMP Load Balancing
  • IP Unnumbered
  • VRF lite
EVPN/VXLAN6
  • L2VPN
  • L3VPN
Link Aggregation functions
  • LAG groups creation
  • LACP
  • LAG Balancing Algorithm
  • Multi-Switch Link Aggregation Group (MLAG)
IPv6 functions
  • IРv6 Host
  • Dual-stack IРv6, IРv4
Service functions
  • Optical transceiver diagnostics
  • Green Ethernet
Security functions
  • Protection against unauthorized DHCP servers (DHCP Snooping)
  • DHCP option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • sFlow
  • MAC-based authentication, Port Security, Static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN
  • DoS attack prevention
  • Traffic segmentation
  • DHCP clients filtering
  • BPDU attack prevention
  • NetBIOS/NetBEUI filtering
Access Control Lists (ACL)
  • L2-L3-L4 ACL (Access Control List)
  • Time-Based ACL
  • IРv6 ACL
  • ACL based on:
    • Switch port
    • IEEE 802.1p
    • VLAN ID
    • EtherType
    • DSCP
    • IP protocol type
    • TCP/UDP port number
Quality of Service (QoS) and rate limiting
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1р Class of Service
  • Storm control for different traffics (broadcast, multicast, unknown unicast)
  • Bandwidth management
  • Strict Priority and Weighted Round Robin (WRR) scheduling algorithms
  • Three marking colors
  • ACL-based CoS/DSCP assignment
  • ACL-based VLAN assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS, CoS to DSCP remarking
  • 802.1p, DSCP mark assignment for IGMP
OAM
  • 802.3ah Ethernet Link OAM
  • 802.3ah Unidirectional Link Detection
Management functions
  • Configuration file download and upload via TFTP/SCP
  • SNMP
  • Command Line Interface (CLI)
  • Web interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • LLDP (IEEE 802.1ab)
  • Access control – privilege levels for users
  • Management ACL
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS/TACACS+ client (Terminal Access Controller Access Control System)
  • Telnet server, SSH server
  • Telnet client, SSH client
  • SSL
  • Macrocommands
  • CLI commands logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (Option 82)
  • DHCP Option 12
  • DHCP server
  • Debugging commands
  • Traffic to CPU rate limiting
  • Password encryption
  • Password recovery
  • Ping (IPv4/IPv6)
Monitoring functions
  • Interface statistics
  • RMON/SMON remote monitoring
  • IP SLA
  • CPU utilization monitoring per task and per traffic type
  • Temperature monitoring
  • TCAM monitoring
MIB
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 1271,1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 IEEE 802.3 MAU MIB
  • RFC 2674, 4363 IEEE 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 3289 MIB for Diffserv
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 headers
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571-2574 SNMP
  • RFC 826 ARP
  • RFC 854 Telnet
Physical parameters and environmental features
  • Power supply
    • AC: 100–240 V, 50–60 Hz;
    • DC: 36–72 V
  • Power supply options:
    • 1 AC/DC power supply
    • 2 hot-swappabe AC/DC power supplies
  • Input current
    • 0.4– 1.0 A for AC
    • 1.1–2.3 A for DC
  • Maximum power consumption - 85 W
  • Heat dissipation - 85 W
  • Dying Gasp support - no
  • Operating temperature - from -10 to +45 °С
  • Storage temperature - from -50 to +70 °С
  • Operating humidity - no more than 80 %
  • Cooling - Front-to-Back, 4 fans
  • Form factor - 19", 1U
  • Dimensions (W × H × D) - 430 × 44 × 275 mm
  • Weight - 3.8 kg

1 Values are given for one way transmission
2 RAM for MES5316A rev.C, MES5324A rev.C, MES5332A rev.C, MES5316A rev.C1, MES5324A rev.C1 models is 2 GB
3 For each host in the ARP table, an additional entry is created in the switching table. The number of ARP entries with an installed EVPN license for MES5312, MES5316A,
MES5324A, MES5332A is 6135.
4 IPv4/IPv6 Unicast/Multicast routes share hardware resources
BGP protocol support is provided under license.
EVPN technology support is provided under license.

Additional modules (doesn't included in basic package)

PM160-220/12

PM160-220/12 power module, 220V AC, 160W

PM100-48/12

PM100-48/12 power module, 48V DC, 100W

1 fiber

Part Number

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS3 / FH-SB5312CDS3

 SFP 1.25 GE module, 3 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL3 / FH-SB5312CDL3

 SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS20 / FH-SB5312CDS20

SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL20 / FH-SB5312CDL20

SFP 1.25 GE module, 20 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM, INDUSTRIAL

FH-SB3512IDS20 / FH-SB5312IDS20

SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 LC set, DDM

FH-SB3512CDL40 / FH-SB5312CDL40

SFP 1.25 GE module 40 km, SM, 1 fiber, TX/RX 1310/1550 SC set, DDM

FH-SB3512CDS40 / FH-SB5312CDS40

SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL80 / FH-SB5412CDL80

SFP 1.25 GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS80 / FH-SB5412CDS80

SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL120 / FH-SB5412CDL120

SFP 1.25 GE module 120 km, SM, 1 fiber, TX/RX 1490/1550 SC set, DDM

FH-SB4512CDS120 / FH-SB5412CDS120

SFP 1.25 GE module 160 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SB4512CDL160 / FH-SB5412CDL160

 2 fibers

SFP 1.25 GE module 550 m, MM, 2 fibers, 850 nm,  LC,  DDM

FH-S8512CDL05

SFP 1.25 GE module 2 km, ММ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL2

SFP 1.25 GE module 20 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL20

SFP 1.25 GE module 40 km, SМ, 2 fibers, 1310 nm, LC, DDM

FH-S3112CDL40

SFP 1.25 GE module 80 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL80

SFP 1.25 GE module 120 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL120

SFP 1.25 GE module 160 km, SМ, 2 fibers, 1550 nm, LC, DDM

FH-S5512CDL160

SFP+

 1 fiber

SFP+ 10GE module 3 km, SM, 1 fiber, TX/RX 1290/1310 LC set, DDM

FH-SPB311TCDL3 / FH-SPB191TCDL3

SFP+ 10GE module 20 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL20 / FH-SPB321TCDL20

SFP+ 10GE module 40 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL40 / FH-SPB321TCDL40

SFP+ 10GE module 60 km, SM, 1 fiber, TX/RX 1330/1270 LC set, DDM

FH-SPB231TCDL60 / FH-SPB321TCDL60

SFP+ 10GE module 80 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SPB451TCDL80 / FH-SPB541TCDL80

SFP+ 10GE module 100 km, SM, 1 fiber, TX/RX 1490/1550 LC set, DDM

FH-SPB451TCDL100 / FH-SPB541TCDL100

 2 fibers

SFP+ 10GE module, 0.3 km, MM, 2 fibers, 850 nm, LC, DDM

FH-SP851TCDL03

SFP+ 10GE module, 20 km, SM, 2 fibers, 1310 nm, LC, DDM

FH-SP311TCDL20

SFP+ 10GE module, 40 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL40

SFP+ 10GE module, 80 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL80

SFP+ 10GE module, 100 km, SM, 2 fibers, 1550 nm, LC, DDM

FH-SP551TCDL100

SFP/SFP+ transceivers with RJ-45 interface

SFP transceiver of 10/100/1000 BASE-T

FH-ST2

SFP+ transceiver of 10GBASE-Т

FH-10SFP-T

SFP+ Direct Attach Cable

SFP+ Direct attach cable, 10G, 1m

FH-DP1T30SS01

SFP+ Direct attach cable, 10G, 2m

FH-DP1T30SS02

SFP+ Direct attach cable, 10G, 3m

FH-DP1T30SS03

SFP+ Direct attach cable, 10G, 5m

FH-DP1T30SS05

Operational lifetime of the ELTEX equipment
In development
1
Pre-production
2
Mass production
3
Mass production is over
4
Sold out
5
Support is over
6
Regardless of the operational lifetime stage, Eltex provides a 12 months warranty on all its telecommunication equipment.
During the warranty period the manufacturer ensures technical support and free-of-charge repair at the Enterprise which is situated in Novosibirsk.
As part of the warranty service, technical support is provided on the first-in first-out principle.
The priority support packages of 8/5 and 27/7 types are subjects to additional charges.

Помогите сделать
сайт лучше
