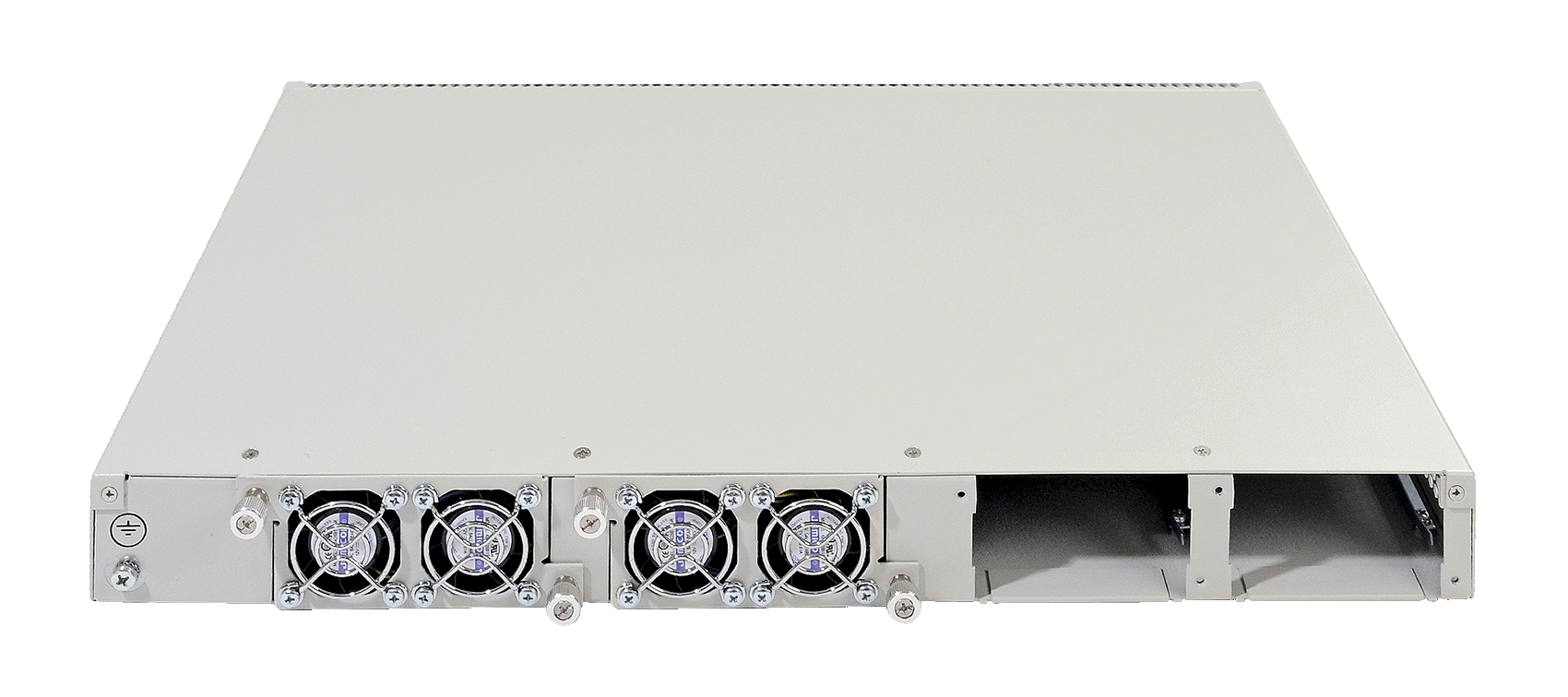

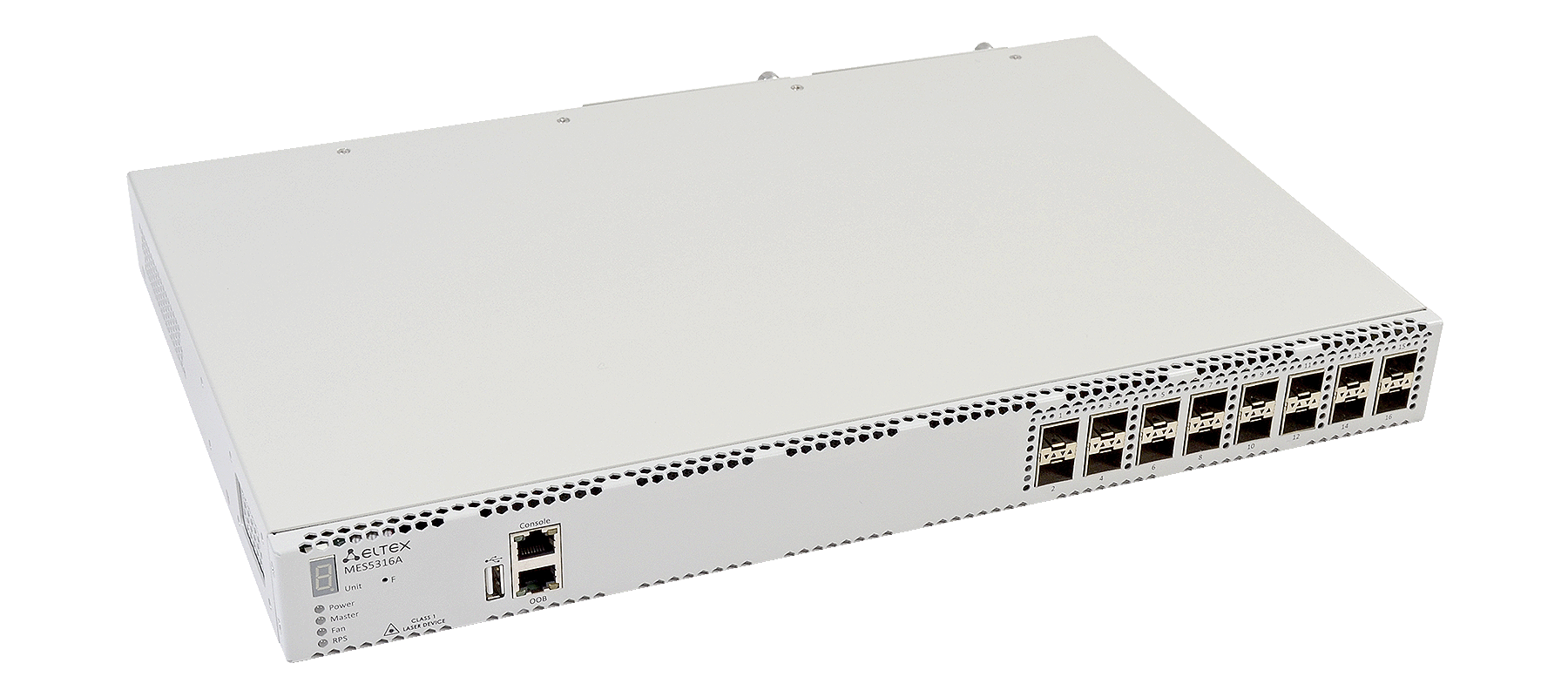

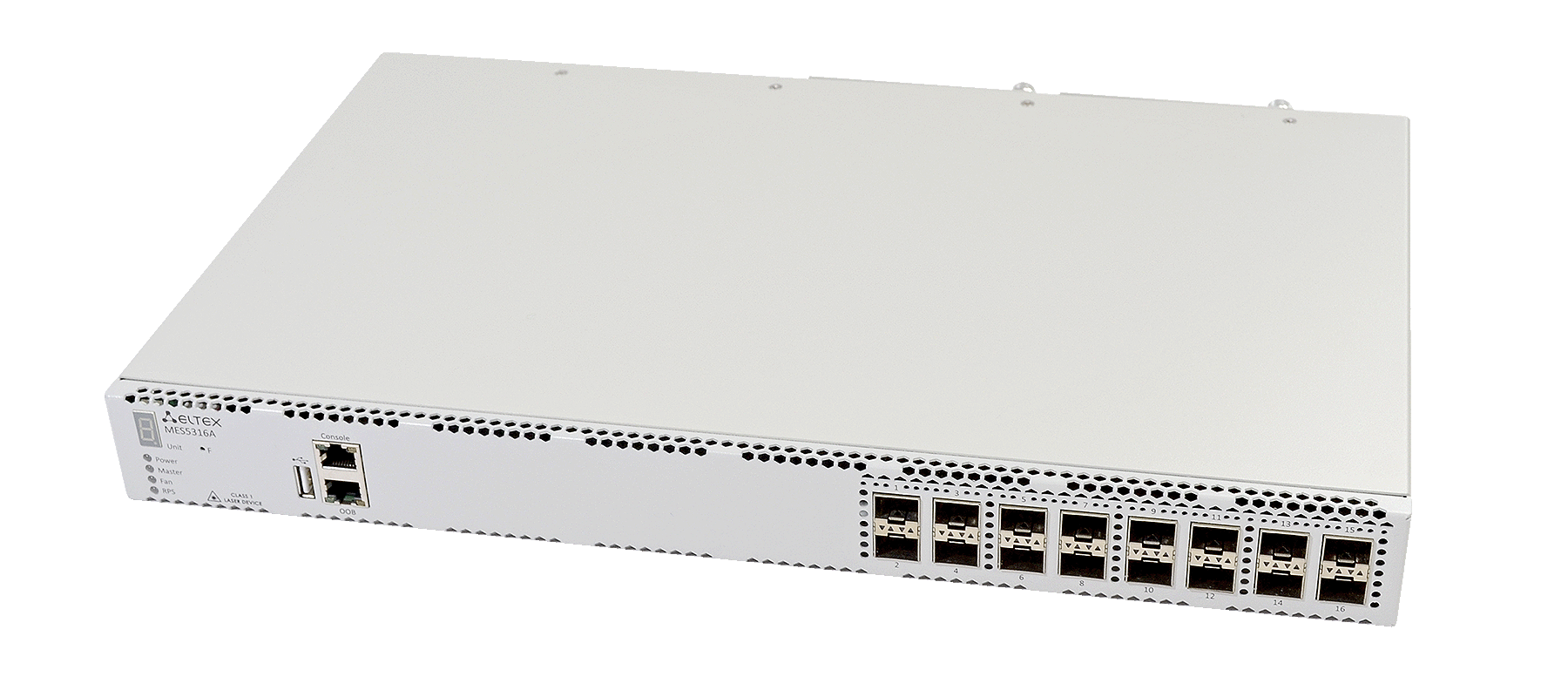

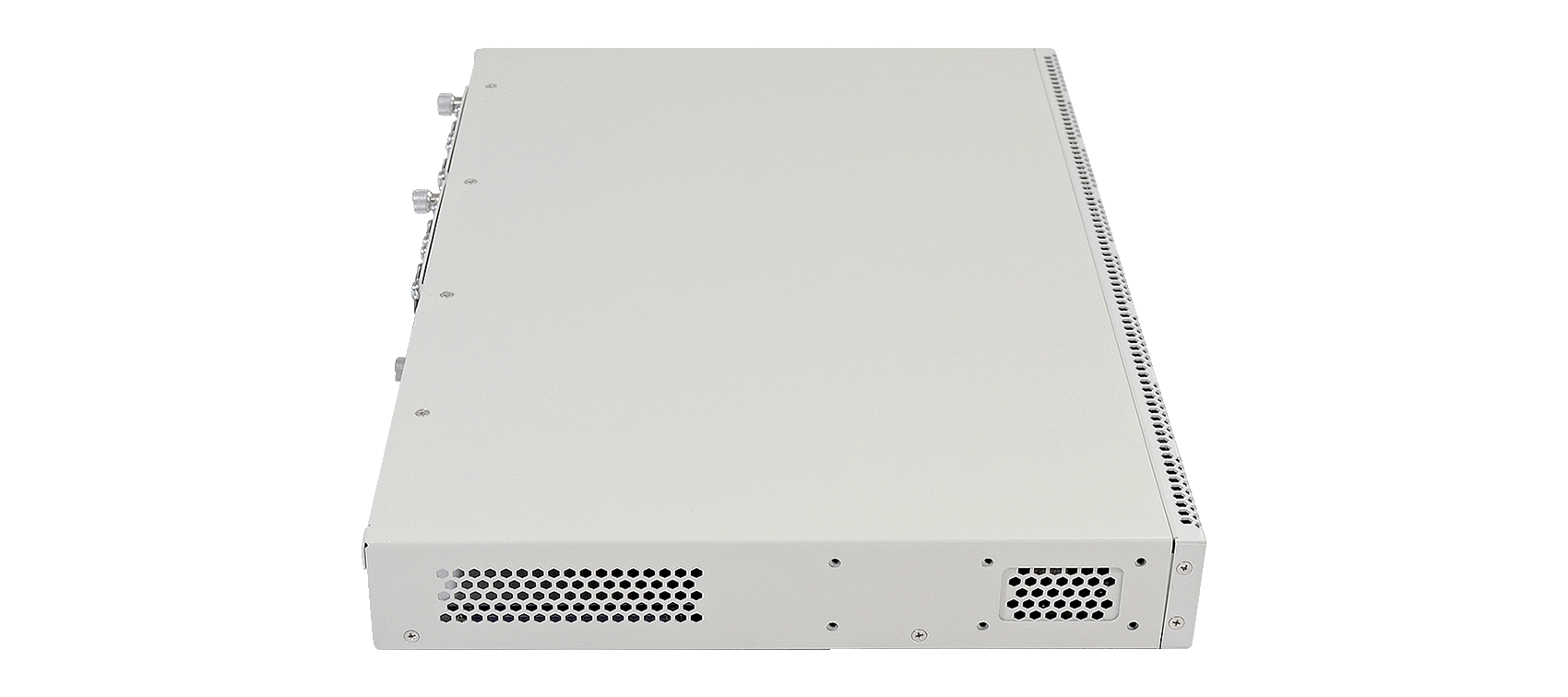

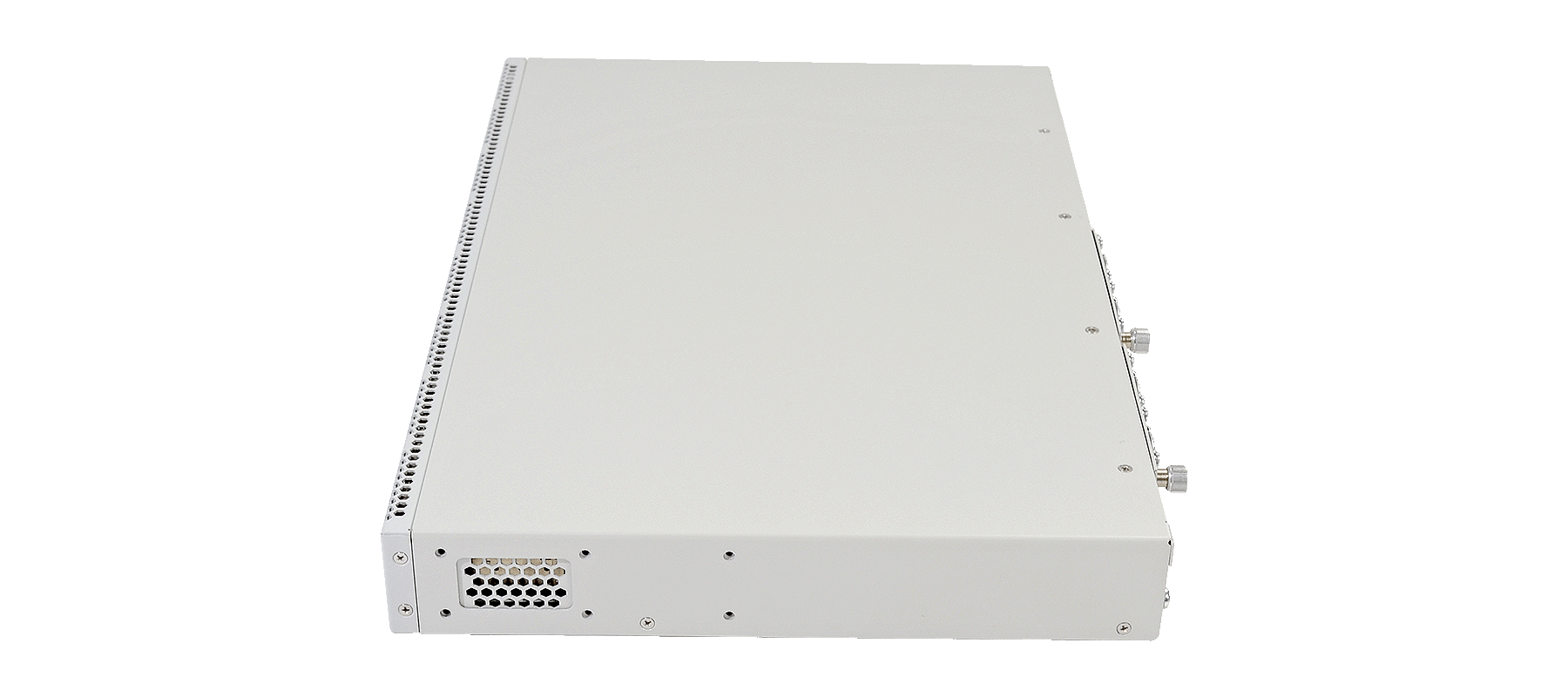

Aggregation 10G Switch MES5316A
Production is over
Support is provided
Alternatives
You can purchase a similar device instead of the discontinued one
Aggregation 10G Switch MES5332A
- Level:
- L3
- Bandwidth:
- 640 Gbps
- Interfaces:
- 32x10G SFP+, 1xOOB
- Power supply:
- AC/DC
Production is over
Specifications
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Related products
Components, modules, and software options that are purchased additionally
.png)
.png)
.png)
.png)
Free
Basic warranty
Up to 5 years
Extended warranty
Hit
Free
First in, first out
Monday to Friday (GMT +7)
Priority support
Monday to Friday (GMT +7)
Priority support
Monday to Friday (GMT +5)
Support
Hit
Documents and files
Firmware version 5.5.4.4 R16 (intermediate firmware version for switches MES53xxA when switching from versions 5.5.x.x to 6.0.2 and later) (Issue date: 10-04-2025)
ZIP, 23.0 Mb
Firmware version upgrade guide (Issue date: 18-04-2025)
PDF, 969 Kb
Firmware version 6.6.8.8 R3 (Issue date: 03-09-2025)
ZIP, 39.4 Mb
MIB files (Issue date: 03-09-2025)
ZIP, 1.49 Mb
The firmware is compatible with other device models:
MES5332A, MES5324A
Firmware updates
Firmware version 6.6.8.8
Added:
- Added NSF (Non-Stop Forwarding) support for stacking mode;
- Added the ability to assign the Backup role to the maximum number of devices in the stack;
- Changed the algorithm in which a device that took the Master role in the stack transferred mastery back to the former device with the Master role that returned to work after a reboot if the system Uptime was less than 10 minutes.
Fixed:
- Fixed a bug that could cause a reboot of the Backup/Slave switch in the software image loading process;
- Fixed a bug that caused the switch to reboot after receiving BPDU on an interface that is included in a VPC group and operating in Portfast mode;
- Fixed an error where the EVPN Type 2 route was not generated when changing the type of MAC address on the ESI-LAG port.
Previous versions
Firmware version 6.6.8.2
Fixed:
- Fixed device reboot when connected to it by the dropbear ssh client;
- Fixed an error in transmitting traffic to a host connected via EVPN-multihoming;
- Fixed an error in the optical interface display on the MES3300-48F.
Firmware version 6.6.8.1
Added:
- Increased the number of characters in the route-map name to 64;
- Increased the number of characters in the prefix-list name to 64;
- The SFTP client is implemented;
- Implemented the functionality of 802.1x authentication with inaccessible authentication bypass;
- Implemented the Change of Authorization (CoA) functionality;
- User disconnection when receiving a Disconnect Request from Radius (CoA) is supported;
- Radius attribute No. 8 Framed-IP-Address is supported;
- Added the ability to configure the OOB source interface for sFlow;
- Added the ability to configure source-vrf for TFTP;
- Added the ability to configure UDP src port for SNTP;
- Implemented automatic addition of the phone's mac address to the oui-table for Voice VLAN functionality;
- Added a mechanism to avoid learning the mac address from incoming LLDP from the phone;
- Implemented the sending of an SNMP trap when adding a unit to the stack;
- Added the ability to copy the license for the specified unit in the stack;
- DNS operation in VRF is supported;
- sFlow operation in VRF is supported;
- SSH client operation in VRF is supported;
- Added the ability to change the administrative distance for the OSPF protocol in VRF;
- Added support for the NTP protocol;
- Added the ability to set a Port-Channel in RSPAN as the output interface;
- Implemented the ability to configure the RADIUS NAS-Port-Id attribute(87);
- Implemented the ability to authorize MAC and 802.1x clients on different radius servers.
Fixed:
- Fixed an error in the output of the show radius-servers status command with multiple configured RADIUS-servers;
- Fixed an error in the operation of the ip ssh port command. It now applies to all VRFs.;
- Fixed an error in the operation of the ACL with the log-input setting;
- Fixed an error in sFlow flow-sampling;
- Fixed the output of a false message when sFlow is running;
- Eliminated the output of information about non-existent interfaces in the stack using the SNMP protocol;
- Fixed an error when using the ip route 0.0.0.0 /0 x.x.x.x track command;
- Fixed the desynchronization of mac address tables on different VTEPs within the same ESI;
- Fixed MAC-Flapping in the scheme with VPC;
- Fixed an error when deleting the ACL and Port-Channel from the interface;
- Fixed reboot when executing the show qos tail-drop unit 1 command;
- Fixed device freezes during multiple reboots;
- Improved stability of the VPC protocol;
- Fixed the error of long Port-Channel transition to the Forwarding state when the portfast spanning-tree is configured on it;
- Improved VPC stability;
- Fixed incorrect operation of the BFD via the Port-Channel interface.
Firmware version 6.6.7.5
Added:
- Added information about the hardware version of the device to the output of the show system id command;
- The possibility of adding VLANs on LAG interfaces via the WEB has been implemented;
- Added support for LACP Force operation mode;
- Added the display of static multicast records in the ip igmp snooping table;
- Added support for collaboration between DHCP relay and DHCP server;
- Added the ability to disable the USB port;
- Added the ability to statically configure OSPF neighbors;
- Added OSPF network type non-broadcast, point-to-multipoint non-broadcast;
- Added VRF support in DHCP Relay;
- Added support for TCP adjust-mss;
- Added the possibility of extended IS-IS database output;
- The collaboration of DHCP Relay with EVPN/VXLAN is supported;
- Added Multi-VRF support for hardware BFD sessions;
- Added the ability for VPC peer detection to work in VRF;
- Added synchronization of ARP records between switches of the same EVPN multihoming ESI group.
Fixed:
- Fixed reboot when copying configuration via scp/tftp/flash;
- Optimized work with flash memory;
- Fixed a reboot when entering the show logging command in the stack;
- Fixed a bug that causes stack units to reboot when there is a high CPU load;
- The do show ip interface vrf all command has been restored;
- Fixed the issue of LAG LACP recovery in timeout short mode;
- Fixed an erroneous change of the OSPF zone in the settings when executing the passive-interface command;
- Fixed mac address authorization in multi-sessions mode;
- Fixed an error when copying a configuration containing the switchport trunk allowed vlan all command;
- Fixed an error displaying the role of neighbors in the output of the show ip ospf neighbor command;
- Fixed the problem of interrupting traffic processing on the master's CPU when there is a high load on the stack;
- Fixed a problem with VXLAN traffic transmission when using trunk ports between spine/leaf;
- Fixed a problem with traffic routing via L3VNI VXLAN when there is a default route;
- Fixed the error of removing standard ipv4/ipv6 ACLs from the configuration;
- Fixed the possibility of restarting the device at the time of removing the ACL from the VLAN interface with qos advanced-mode trust dscp configured;
- Fixed a problem with blocking traffic on slave units when configuring BPDU Guard in RPVST mode;
- Fixed an issue with an i2c bus failure in the stack;
- Fixed an issue with resetting the exp label in the mpls header in transit traffic;
- Fixed a bug with MAC Flapping in the VPC scheme when using the Po interface, number above 48;
- Fixed critical errors that occur when editing device configurations in a VPC pair.;
- Fixed an error with rebooting the switch during SNMP requests for DDM information;
- Fixed an error with switching to local command authorization when there is no response from the tacacs server;
- Fixed an error with authorization of commands on the backup tacacs+ server when the main server is unavailable;
- Fixed an error with rebooting the switch when authenticating on the tacacs+ server in single-connection mode;
- Fixed an error indicating an incorrect port in the logs when receiving TC BPDU;
- Improved stability of the SSH server;
- Fixed the error of long Port-Channel transition to the Forwarding state when the portfast spanning-tree is configured on it;
- Improved VPC stability;
- Fixed incorrect operation of the BFD via the Port-Channel interface.
Firmware Version 6.6.5.4
Added:
- Ability to configure OOB interface as a source-interface for SNMPv2;
- Ability to configure OOB interface as a source-interface for SNMPv3;
- SNMPv2 support in VRF;
- SNMPv3 support in VRF;
- GRE tunnel support;
- Hardware BFD implemented;
- Support for multihomed connections for EVPN/VxLAN scenario with Ingress Replication.
Fixed:
- Improved stability of peer-detection functionality in VPC;
- Erroneous removal of voice vlan from interface by timeout in the presence of port security settings;
- SSH session hangs due to an error in calculating Message authentication code in SSH packet.
Firmware Version 6.6.5
Added:
- Added support for BGP Route Map, Community List and AS-Path List in VRF;
- Added BFD support for BGP in VRF;
- Added BFD support for OSPF in VRF;
- Added support for encryption of the user's password using the SHA512/md5 algorithm;
- Added BFD support for IS-IS;
- Added the ability to change the ipv4 gateway address in EVPN type 5 routes;
- Added support for the RADIUS client in VRF;
- Added the ability to configure the source-interface OOB for SYSLOG;
- Added the ability to configure the OOB source-interface for TACACS+;
- Added BFD support for OSPF;
- Added support for VCT cable diagnostics for SFP-T;
- Added support for an extended number of UDBs in the ACL;
- Increased the number of ACEs in ACL to 512;
- Added support for filtering routes by the value of the as-path attribute in BGP;
- Added community support in BGP;
- Added the ability to configure the source-interface OOB for SNTP;
- Added support for SNTP operation in VRF;
- Added support for SYSLOG operation in VRF;
- Added support for the TACACS+ client in VRF;
- Added support for SSH server operation in VRF;
- Added ARP suppression support for EVPN/VXLAN.
Fixed:
- Fixed the process of removing the VRF setting from the OOB interface;
- Fixed the behavior in which STP root BPDU packets did not pass through the VPC peer-link;
- Fixed a reboot that occurred when the number of ACL rules with port-range was exceeded;
- Fixed L3VNI collaboration with VXLAN in multicast replication mode;
- Fixed incorrect operation of PBR with VRRP;
- Fixed device freeze when configuring SNMPv3;
- Fixed a behavior where a MAC-flapping storm started in a VPC;
- Fixed incorrect isolation of VPC groups from peer-link;
- Fixed a issue with OSPF neighbours breaking when CPU utilisation is high;
- Fixed issue with sending BGP update EVPN Type-2 when MAC address re-learning in a different ethernet-segment;
- Fixed issue with traffic switching via VRRP backup;
- Fixed problem with parasitic ICMP Redirect from VRRP backup when pinging a VRRP IP;
- Fixed a critical error occurring when CPU utilisation is high;
- Fixed critical error occurring when adding OUI for VOICE VLAN;
- Fixed critical error occurring when configuring sflow in stack;
- Fixed a critical error occurring when stack links are broken;
- Fixed critical errors occurring when building STP tree or VPC neighborhoods;
- Fixed L3VNI collaboration with VXLAN in multicast replication mode;
- Fixed PBR collaboration with VRRP;
- Fixed device freeze when removing ACL;
- Fixed device reboot related to the operation of the BGP protocol;
- Fixed device reboot when adding ACLs with UDP and TCP port ranges to the interface;
- Fixed device reboot when deleting VLAN bound to VXLAN;
- Fixed mac flapping between LAG when using VPC;
- Fixed incorrect addition of outgoing VRRPv2 protocol packets;
- Fixed a behavior in which STP root BPDU packets did not pass through the VPC peer-link.
Firmware Version 6.6.4
Added:
- The bit depth of the uptime counter has been increased;
- Added support for macro operation based on track status;
- Added support for displaying information about QSFP28 in the output of the show inventory command;
- Added support for J9285D DAC cables;
- Added VRRP support to VRF;
- Added support for tftp in VRF;
- Added VRF support for the OOB interface;
- Added the ability to disable sending an empty packet to check the availability of the TFTP server;
- Added route-map support for OSPF;
- Added support for policy base routing next-hop;
- Added the ability to summarize routes in BGP;
- The value of the upper limit for the rate-limit has been increased;
- Added the ability to redistribute routes from eBGP to L3VPN;
- Added support for password encryption when logging commands;
- Added the possibility of simultaneous operation of MAC and IP access lists on interfaces;
- Added the ability to check the source mac address in the IP source-guard;
- Added the ability to limit the number of DHCP clients per port;
- Added the ability to send an snmp trap to the login/logout event.
Fixed:
- Software flow control is disabled for the console port;
- Fixed vulnerability of the Web interface;
- The position of the AAA command block in the configuration has been changed;
- Fixed the operation of the DHCP server when sending DHCP NAK packets;
- The operation of optical and copper switches in the same stack has been restored;
- Fixed an error that causes a cyclical reboot of a Slave unit in the stack when upgrading to version 6.6.3.8;
- Fixed rebooting of switches in the scheme with VxVLAN/EVPN when restarting the ospf process;
- Fixed single-hop BFD for eBGP neighborhoods;
- Fixed an error that caused the device to reboot when adding a non-existent VPC domain to the VPC group;
- Fixed an error that causes the role to be retransmitted after the Primary device is rebooted in the VPC;
- Fixed the problem of device freezing when flapping MLAG links in VPC;
- Fixed the problem of incorrect VPC assembly after restarting one of the paired devices;
- Fixed a cyclic reboot of the device when there is an ethertype switchport dot1q setting on the interface;
- Fixed an error in restoring the switchport default-vlan tagged command when updating software;
- Fixed an error where the L3 interface of the physical port did not switch to the Up state when rapid-pvst was enabled;
- Fixed the problem of blocking MLAG, after restarting it, in RPVST;
- Changed the default value of the spanning-tree cost parameter for 25G/40G/100G ports;
- Fixed spanning-tree cost calculation for port-channel interfaces;
- Fixed device reboot when polling the dot1dTpFdbEntry SNMP table;
- Fixed an error that occurs when deleting the SNMPv3 server settings from the configuration;
- Fixed an error when binding the ACL to the interface vlan.
Firmware Version 6.6.3.5
Added:
- FEC operation support for 25G ports.
Fixed:
- Fixed switching part of the links to the UP status when using the FH-DP4T26QS05 40G QSFP/4 SFP+ Fang Zhang Copper Twinax Cable 5M cable.
Firmware Version 6.6.3
Added:
- Added sending a bgp update when retraining a mac address from the evpn-vxlan type to static;
- Added sending a bgp update when retraining a mac address from the evpn-vxlan type to dynamic;
- Added the ability to configure the number of telnet/ssh authorization attempts before the TCP session is terminated;
- Added support for MAC-mobility mechanisms;
- Added information about the current MTU to the output of the show ports jumbo-frame;
- Added the ability to filter traffic by S-VLAN tags between ports, with Double QinQ configured;
- Added the ability to configure private-vlan in trunk mode;
- Added the ability to configure fast convergence timers for the OSPF protocol;
- Increased the number of OSPF processes to 20.
Fixed:
- Fixed a bug that caused the device to reboot when receiving a Join/Leave packet from RP for S,G records;
- Fixed traffic degradation in the EVPN/VXLAN + symmetric IRB scheme when Spine-Leaf links are broken;
- Fixed an error that caused the device to reboot when removing the ACL from the vlan interface;
- Fixed a bug that caused the device to reboot when storm-control was set up;
- Fixed CLI hangup when configuring multicast group in Vxlan;
- Fixed an error that caused the device to reboot when the show ip ospf command was output with a certain device configuration;
- Fixed a bug that caused the private-vlan primary configuration to disappear from the configuration after a reboot;
- Fixed a bug that caused the backup switch in the stack to restart again after the first reboot;
- Fixed the problem of filtering stp BPDUs on ports with STP disabled and pvid other than default vlan;
- Fixed a situation where erps and flex-link were not activated due to a conflict with the already disabled STP protocol;
- Fixed an error that caused the device to reboot when repeatedly displaying information of show commands in a telnet session using scripts;
- Fixed an error copying files from the device via scp if there are directories in the file path;
- Fixed an error that caused the device to reboot when connected via SSH;
- Fixed errors that cause the device to reboot when connecting via SSH using the 3des encryption algorithm;
- Fixed errors that cause the device to reboot when connected via SSH.
Firmware Version 6.6.2.9
Fixed:
- Fixed an error disabling hardware routing in VRRP;
- Fixed the error of selecting the Endpoint address of the tunnel when rebuilding the IGP;
- Fixed a peer-link blocking error when receiving PVST bpdu;
- Fixed the SFP-T status error;
- Fixed the error of processing OSPF Hello packets;
- Fixed the collision of MAC addresses of VRRP processes;
- Fixed MD5 error for BGP neighbor's;
- Changed the MAC address of the OOB interface to the system one;
- Fixed the RPVST problem that causes SVI interfaces to be Down;
- Fixed a problem that leads to stack collapse with high traffic load on the CPU;
- Fixed a problem that causes ports to drop out of LAG when there is a high traffic load on the CPU.
Firmware Version 6.6.2
Added:
- Added the option to select the checksum calculation method for VRRPv3;
- Added support for IP-MAC EVPN routes Type 2;
- Added the ability to change Administrative Distance for static routes and for OSPF routes;
- Added support for authentication in BGP;
- Added the ability to change the privilege level for commands;
- Added VRRP authentication;
- Added support for FangHang FH-DP10T30QQ03 100G QSFP28 Copper 3M DA module;
- The MTU size has been increased to 10240 bytes for transit routed traffic.
Fixed:
- Fixed behavior blocking the passage of a client ARP packet through a multicast VXLAN tunnel;
- Improved the stability of the ERPS sub-columns;
- Fixed a problem when copying configuration from BGP;
- Fixed the reboot of the backup unit in the stack when there is a negotiation bypass setting;
- Fixed an issue that causes the switch to reboot when polling it in the first seconds of booting via SNMP with OID: 1.3.6.1.4.1.35265.41.1.1.1.1.4.0.5.
- Fixed the problem of detecting link drop on a neighboring device using SFP-T;
- Fixed a possible hang when configuring VxLAN Multicast replication;
- Fixed SSH server freezing when receiving a package with an empty SSH version;
- Fixed a reboot that occurred when re-creating a VPC group;
- Fixed incorrect status of VPC groups after rebooting one of the devices in a VPC pair;
- Added support for joint operation of the VRRP and VPC protocols.
Firmware Version 6.5.2.1
Added:
- Added the ability to authorize input commands via the TACACS+ protocol;
- Added support for the NAS-ID (32) RADIUS attribute in Access-Request;
- IGMP snooping table size increased;
- Increased the number of LAG interfaces to 128;
- Added binding of Dying Gasp to OAM.
Fixed:
- Delays in switching traffic in the scheme with a VPC have been eliminated when one of the switches of the pair is rebooted;
- Fixed a bug with raising the link to SFP-T after the shutdown/no shutdown command;
- Fixed a bug in RPVST where the RPVST tree is built for a VLAN that is missing on the port;
- Fixed a reboot of the switch at the time of switching on the ERPS if there is an ACL binding to any port;
- Fixed switch reboot when arp table overflow;
- Fixed the appearance of Link flapping when using various DAC and SFP+ modules to connect to servers with an Intel X722 adapter;
- Fixed the hang of one device in the VPC pair after rebooting the second device;
- Fixed a bug in learning the mac address of a neighbor of a VPC pair on a peer link;
- Fixed incorrect cleaning of the arp table and output of the corresponding messages to the console.
Firmware Version 6.5.1.4
Fixed:
- Fixed incorrect disconnection of SFP-T when the port is turned off;
- Fixed non-connection of the link to the SFP-T after turning off/on the port;
- Fixed the problem of retraining MAC addresses on VPC devices of the pair.
Firmware Version 6.5.1.1
Added:
- Added the ability to configure the DHCP Option 82 format by templates;
- Added the possibility of simultaneous relabeling of VLAN ID, COS and DSCP via service policy;
- Added the ability to monitor the parameters of power supplies;
- Added the ability to configure storm control, rate-limit and policer in pps;
- Added the possibility of relabeling DSCP to COS traffic;
- Added Root guard for individual instances in mst;
- Added the ability to set 802.1p priority for VLAN management;
- Added the ability to configure SNMP trap to change the state for each port;
- Added support for Ethernet OAM;
- Added support for STP TC Protection;
- Added the ability to configure supported Ethertype for LAG;
- Added the ability to configure Lookup Length for the disposal of FDB for MES53xxA switches;
- Added logging when receiving STP BPDU with the Topology Check flag;
- Added information about the interface with the last accepted Topology code in the output of show spanning-tree;
- Added support for IGMP Snooping per-port Fast Leave.
Fixed:
- Fixed a problem with traffic transfer to VRF for stack units with backup and slave roles;
- Fixed the behavior in which the RPVST tree is built in VLANs forbidden on the port;
- Fixed hanging of one device from a VPC pair when rebooting;
- Fixed device reboot while using ERPS and binding the ACL to the physical interface at the same time.
Firmware Version 6.5.0.2
Added:
- Added show-commands for displaying EVPN/VXLAN information;
- Added the ability to select algorithms for the SSH server;
- Added sending SNMP trap and syslog messages when the device is rebooted using the reload command;
- Added MSDP support;
- Added support for EVPN multihoming;
- The number of loopback interfaces has been increased to 64;
- Added support for Multicast VXLAN;
- Added support for IGMP static groups for PIM and IGMP-Proxy;
- Added support for Route Target Community;
- Added support for Symmetric IRB;
- Added support for PIM snooping;
- Added support for BGP in VRF;
- Added support for OSPF in VRF;
- Added support for static routes in VRF;
- Added display of BGP Community and Extended Community;
- Added the ability to configure the default route announcement condition in the BGP protocol.
Fixed:
- Fixed possible incorrect restart when the device is booting;
- Fixed error when ACL is deleted from vlan interface;
- Fixed displaying "Security level" field in the WEB interface;
- Fixed a problem with learning ARP for IP interfaces on Port-Channel;
- Fixed a critical error after the closed of a remote SSH session;
- Fixed error when viewing show inventory;
- Fixed error when loading configuration via TFTP;
- Fixed error when connecting to a device via SSH;
- Fixed local user authorization error when the Radius server is unavailable and the break method is enabled.
Firmware Version 6.4.1.3
Added:
- SFP+ Intel FTLX8571D3BCV-IT tranceivers are now supported;
- Added ability to ignore auto-negotiation on the ports.
Fixed:
- 8008 TCP port is now closed.
Firmware Version 6.4.1.2
Added:
- Added the ability to configure the default BGP route announcement;
- Added the ability to bind track to static routes;
- Added simplex communication mode for physical ports.
Fixed:
- Fixed reboot of the stack unit when PVST is enabled;
- Fixed incorrect output of information about CPU load;
- Fixed frequent change of port states in RPVST.
Firmware Version 6.2.2.1
Added:
- Added the ability to disable transmitting icmp-unreachable packets;
- Added MTU feature on SVI-interface;
- Added support for exec-user RADIUS attribute exec-user.
Fixed:
- Fixed ignition of the port indication in the absence of a link in the SFP-T module;
- Fixed switch slowdown when polling DDM parameters;
- Fixed switch reboot when SSH session crashes;
- Fixed backup unit reboot when SNMP polling DDM parameters of the stack;
- Fixed CLI freezing when polling via snmp-bulk;
- Fixed changing LACP link status to UP when there is no LACP-BPDU from the opposite side;
- Fixed high stack CPU utillization bug when polling via SNMP;
- Fixed switch reboot when sending SNMPv3 Inform;
- Fixed filtering by IP address in SNMP community settings.
Firmware Version 6.2.2
Added:
- Supported operation of the OSPF protocol in point-to-point networks;
- Supported operation of option 43 DHCP server;
- Added ability to configure poll timer to synchronize with sntp server;
- Added the ability to disable the reception of BPDUs with the TCN flag;
- Added support for MVR;
- Added the ability to filter unregistered multicast in a specific VLAN;
- Added ability to set 802.1p priority for IGMP frames;
- Extended set of load balancing methods in Port-Channel;
- MLAG/VPC work supported;
- Implemented Flex-Link function;
- Added monitoring (logging + trap) and thresholds (thresholds) for fan speed and temperature sensors;
- Added monitoring (logging + trap) and thresholds (thresholds) for utilization of CPU, RAM and flash memory;
- Added the ability to monitor port utilization for various time intervals;
- Implemented support for Port-Based QinQ with TR-101 mode;
- Implemented L2PT function;
- The function of filtering incoming tagged traffic on access ports has been implemented;
- Added the ability to set a password to enter U-Boot;
- Added ability to view threshold ddm information;
- Added maintenance of statistics on protection against TCP-SYN attacks.
Fixed:
- Fixed error displaying and saving the setting "ip ospf mtu-ignore";
- Fixed reboot of the device after entering the command "show ip ospf database router";
- DHCP client on port OOB is now enabled by default;
- Removed the ability to configure interfaces that are not on the device;
- Increased the number of remote control sessions to 5;
- Fixed reboot of the device due to overflow of buffers for receiving packets on the CPU in the jumbo-frame switch mode;
- Fixed CLI hang during SNMP polling via OOB port;
- Fixed switch reboot when trying to log OSPF events about a neighbor if its router-id has the maximum character length;
- Fixed switch reboot when intercepting ultra-long frames on the CPU.
Firmware Version 6.1.2
Added:
- Added the ability to upload configuration files via HTTP protocol;
- USB-interface is now supported;
- Increased the size of the System Name column in the show lldp neighbors command output up to 30 characters;
- Increased displayed part of hostname up to 35 characters;
- Added the ability to restrict multicast, TCP-SYN and SFLOW traffic on the CPU;
- Added encryption for SNMP community, RADIUS and TACACS+ key in configuration;
- Increased the number of MSTP instances up to 64;
- Increased the number of local users up to 30;
- PVST+/RPVST+ is now supported;
- Added the ability to select source IP address for DHCP packets and DHCP server IP address for DHCP Relay;
- Added chain authentication mode;
- Added the ability to configure 31 and 32 bit masks on IP interfaces;
- Added the ability to configure 31 and 32 subnet masks on IP interfaces;
- Added the extra information to the show interface status command output;
- Default settings have been changed. Now IPv6 on VLAN 1 interface is disabled by default;
- Default settings have been changed. Now ip ssh password-auth command is enabled by default;
- Added the ability to change the IP address to another one from the same subnet;
- The number of L3 interfaces has been increased up to 2050;
- IP unnumbered is now supported.
Fixed:
- Fixed behavior when VLAN name could not be configured in vlan database context;
- Fixed behavior when there was a break in traffic transmission when the ARP timeout expired;
- Fixed behavior when SSH-Server required re-entering login when connecting;
- Fixed long output of show ipv6 interface brief command;
- Fixed the incorrect output of the GVRP enable command;
- Fixed port blocking when non-existent access-list was triggered;
- Fixed the incorrect output of the speed of aggregated channels;
- Fixed no mac address-table learning command not beeing displayed in show running-config.
Firmware Version 6.1.1
Added:
- WEB-interface is now supported;
- Show tech-support output is expanded;
- Increased DHCP snooping binding table size to 10240 entries;
- Added automatic configuration backup feature;
- Added QoS statistics output to interface statistics output;
- Added logging for MAC addresses flapping;
- Added IGMP proxy-report feature;
- Added port status display to show interfaces description command output;
- Added support for ECMP technology;
- Implemented protection against downloading a firmware file from another series of devices;
- Added ability to customize ethertype field;
- Provider bridge group address supported in STP BPDU;
- Added the ability to programmatically disable the F button;
- Added the ability to log commands executed in the CLI;
- Added the ability to reset the settings of physical and logical interfaces;
- Added ability to view ports uptime via CLI;
- Added support for IGMP Radius authentication;
- Added support for host-based IGMP snooping fast leave mode;
- Added the ability to limit multicast traffic using profiles;
- Added the ability to spoof the source IP address in igmp report packets from the client;
- Added support for BGP protocol;
- Added support for BGP protocol extension - Multicast BGP;
- Added support for IS-IS protocol;
- Added license management feature;
- Added support for Filter-List feature in OSPF protocol;
- Enabled the collection of statistics on processes on the CPU in the factory settings of the switch;
- Added the switchport trunk allowed vlan command, which sets the list of allowed VLANs for the interface;
- Added support for 64-bit packet counters on interfaces.
Fixed:
- Fixed switch reboot when deleting zone in OSPF;
- Changed the construction of the content of the configuration file;
- Fixed extra console output when the PIM protocol is running;
- Fixed incorrect display of the size of flash memory when loading the device;
- In the default configuration, all VLANs are unreserved for internal use;
- It is forbidden to export SSH keys when unloading a configuration;
- Increased the maximum possible number of learned MAC addresses for the port security function to the size of the MAC table;
- Fixed switch reboot when receiving an invalid packet on the OOB port;
- Eliminated the need to assign IP addresses from the same subnet to the switch interface and client equipment for correct igmp report processing;
- Fixed mirroring of CDP protocol packets when transferring via LAG;
- Fixed behavior where a link periodically dropped out of the LAG;
- Fixed incorrect display of LAG utilization when adding / removing ports from it;
- Fixed tagged PVST BPDU blocking;
- Fixed incorrect display of LAG bandwidth.
Firmware Version 6.0.2
Added:
- Qos tail-drop profile is now supported;
- Added 'show interfaces" command';
- Added command for managing the list of allowed VLANs in Trunk mode;
- Added 'switchport forbidden default-vlan' command;
- SFP transciever's power level output in dBm is now supported;
- Added 'switchport default-vlan tagged'command;
- The number of IPv4-interfaces in OSPF has been increased to 512.
Fixed:
- Fixed unavailability of the full RAM space;
- Fixed Link-Flapping on SFP transcievers operating on long distances (about 20 km);
- Fixed the incorrect display of DDM information;
- Fixed the incorrect work of OOB port;
- Fixed switch reboot after displaying STP information in MSTP mode;
- Fixed freezing of the switch after the query of a non-existent interface via SNMP.
Firmware Version 5.5.4.2
Added:
- The size of the ARP table has been increased to 7K.
Firmware Version 5.5.4
Added:
- ERPS support.
Fixed:
- Fixed problem with duplication of 802.1q header during PVST bpdu transit.
Firmware Version 5.5.2
Added:
- Support for copper 1G SFP;
- Disabling an interface that is a member of Port-Channel.
Fixed:
- Error while polling via SNMP, leading to a reboot;
- Reflect CDP and PVST + packets back to port.
