High-speed XGS-PON network powered by Eltex equipment

Eltex offers the XGS-PON solution, which allows providing a variety of telecommunications services over a single optical line

Description

General solution scheme

Equipment

Description

Modern telecommunication services demand on the speed and stability of the Internet connection. XGS-PON technology provides the optimal solution for users who need high performance and reliability. It allows data transmission over fiber-optic lines with symmetrical speeds of up to 10 Gbps over distances of up to 20 km between operator and subscriber terminals. The absence of active components on the line minimizes the likelihood of failures and reduces network operating costs.

The XGS-PON solution based on Eltex equipment provides access to a wide range of telecommunication services via a single optical line: high-speed Internet, IP telephony and 4K television. The Eltex solution is used both to create a new infrastructure based on the modern XGS-PON standard, and to work together with existing GPON networks.

Composition of the solution

OLT terminals

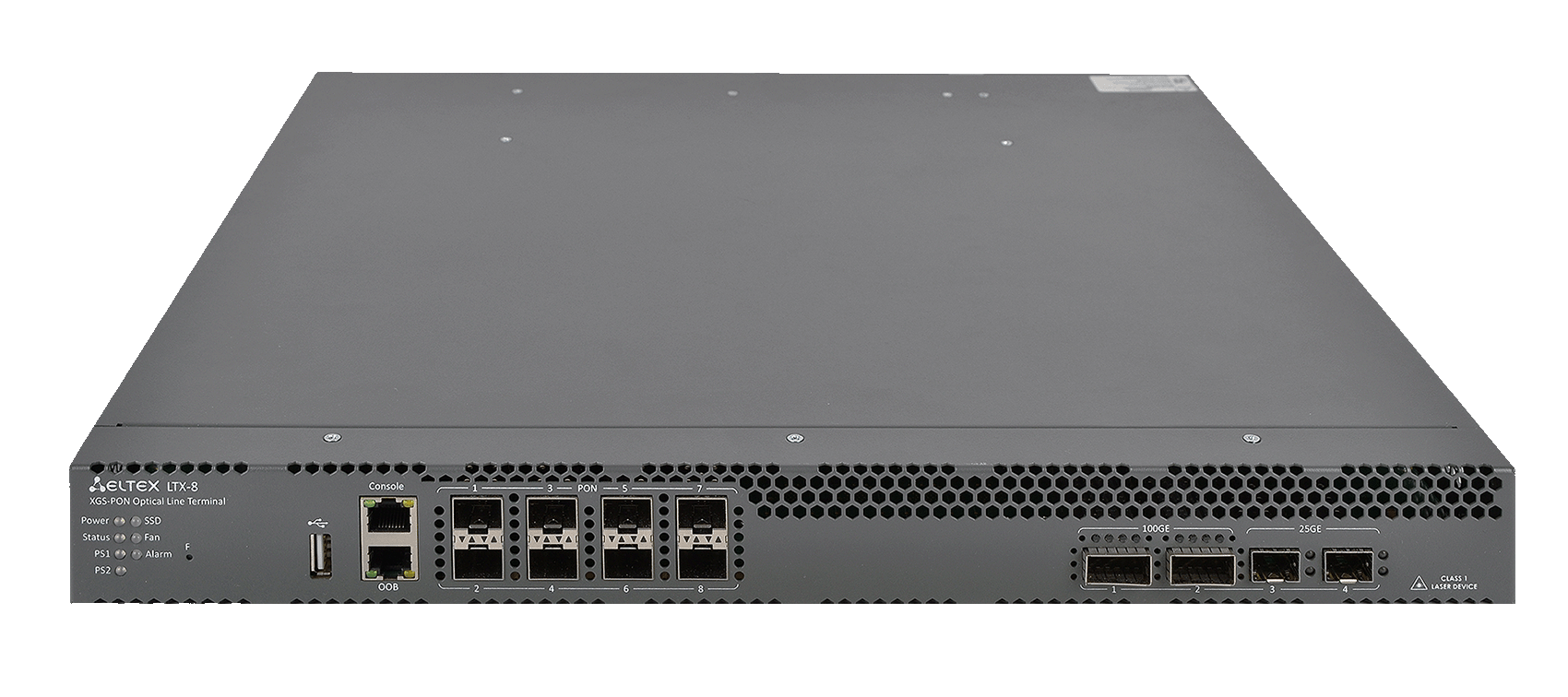

LTX-8 rev.B and LTX-16 rev.B are equipped with 8 and 16 XGS-PON ports, the bandwidth of each model is up to 300 Gbps. Each port supports connection of up to 128 subscribers via GPON or up to 256 via XGS-PON. Two SFP28 ports of 25 Gbps and two QSFP28 ports of 100 Gbps are provided for connection to the backbone network.

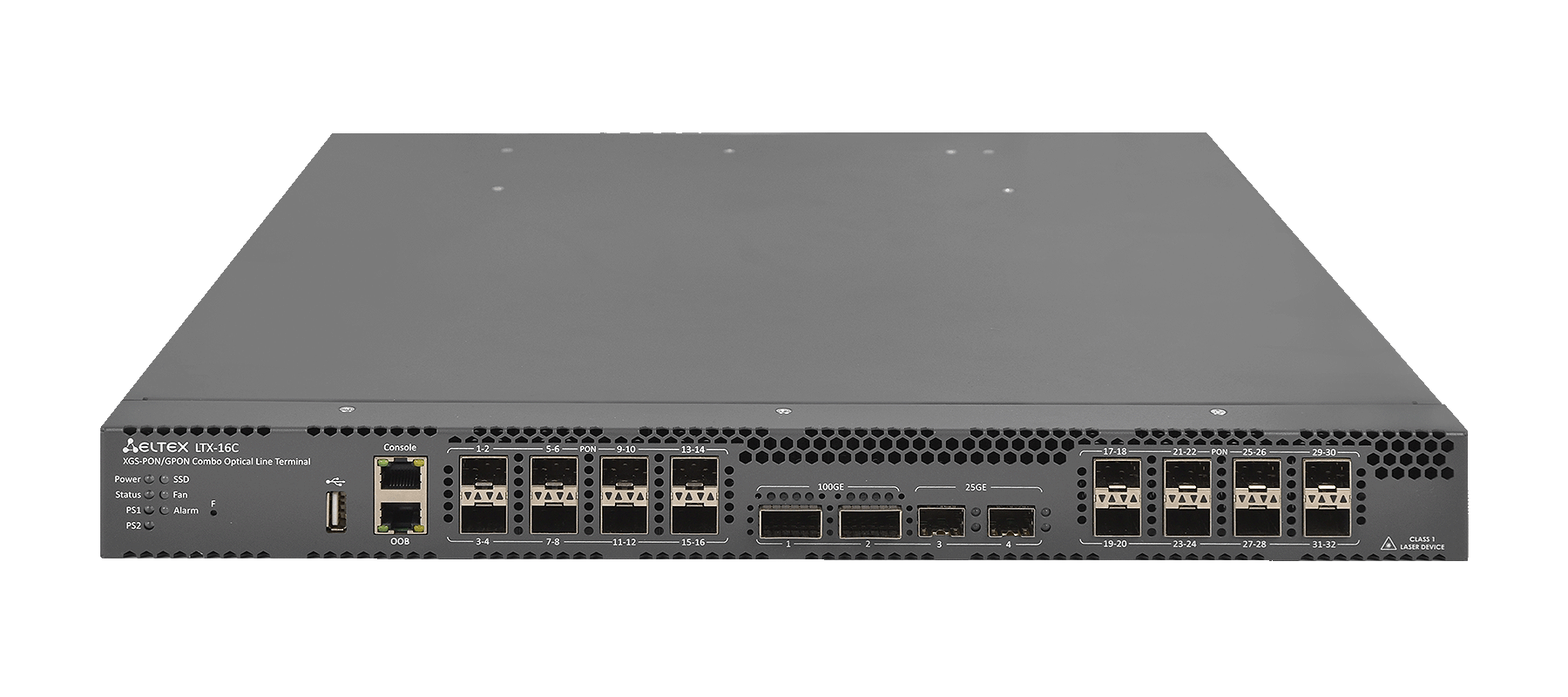

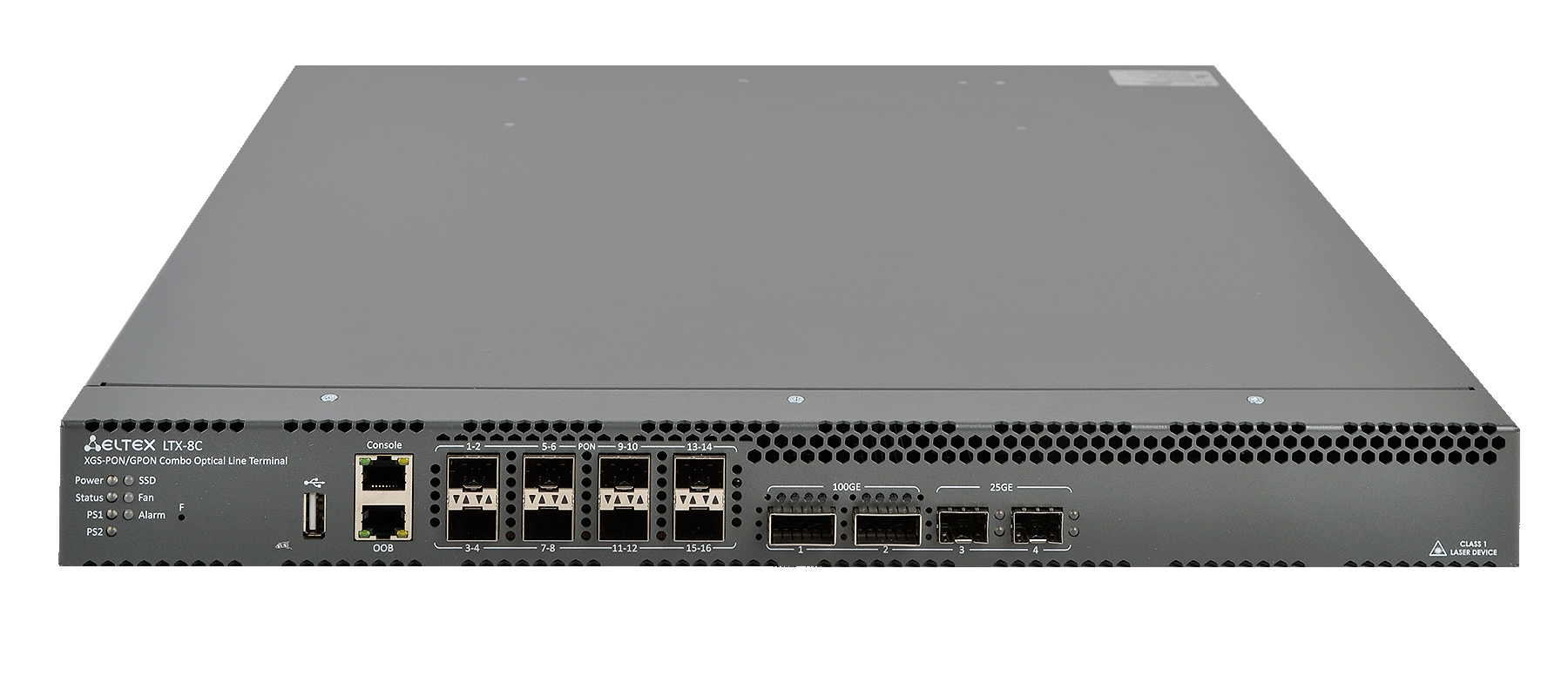

The LTX-8C and LTX-16C models with support for ComboPON technology are also included in the series of station equipment. Due to this technology, it is possible to provide GPON and XGS-PON services via a single optical port without additional devices.

To increase reliability, the terminals are equipped with two hot-swappable power modules and an automatic redundancy switchover.

ONT terminals

Subscribers are connected via NTX series devices:

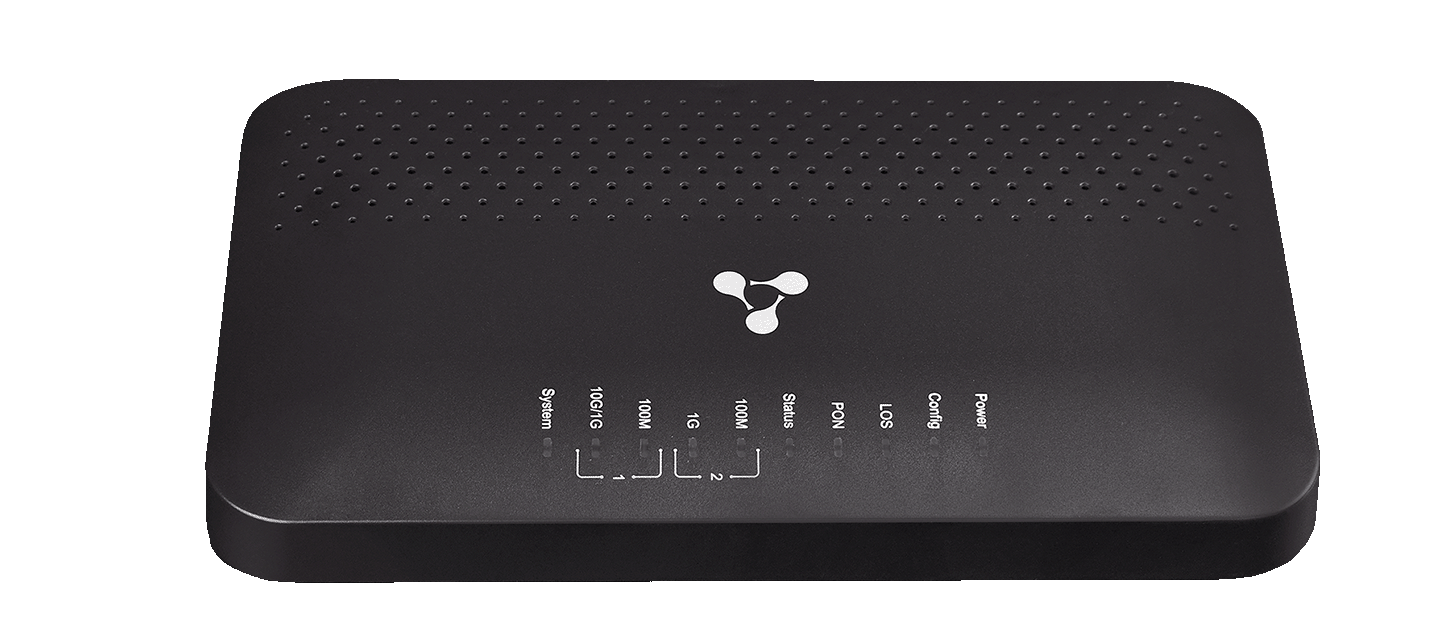

The NTX-1 is a basic model with one 10 Gbps XGS-PON port and two Ethernet ports of 1 Gbps and 10 Gbps.

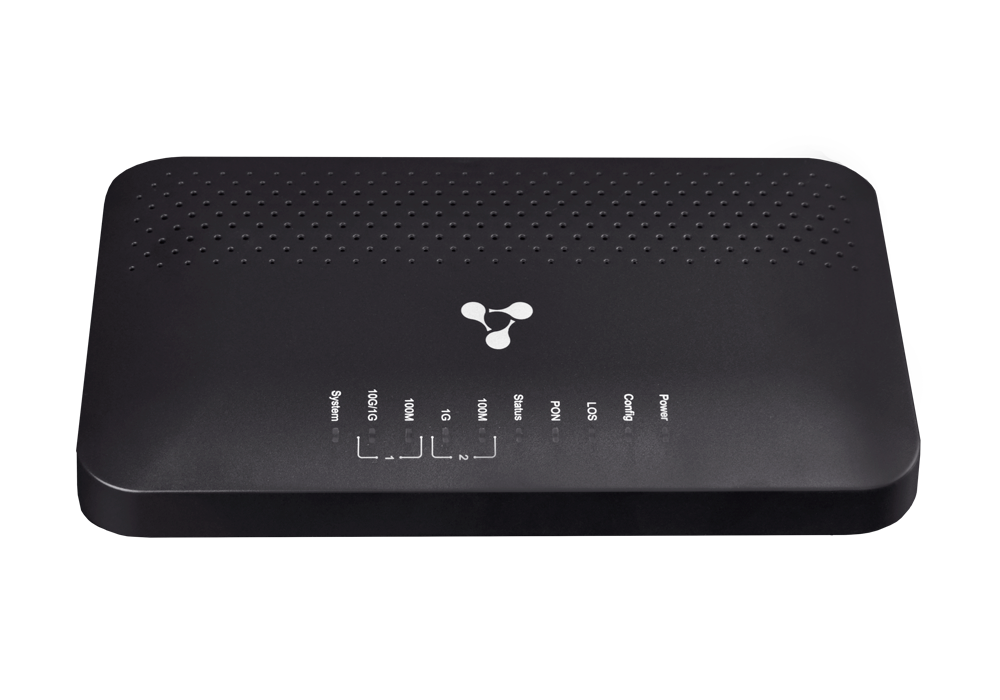

NTX-1F is a modification of the NTX-1 with an SFP+ port instead of 10 Gbps Ethernet port.

Advantages

High performance of up to 10 Gbps (Duplex)
Up to 4096 subscribers per OLT
ONT terminals with extensive capabilities
TriplePlay services over a single fiber optic line
Smooth migration from GPON to XGS-PON
Russian development, production and support

General solution scheme

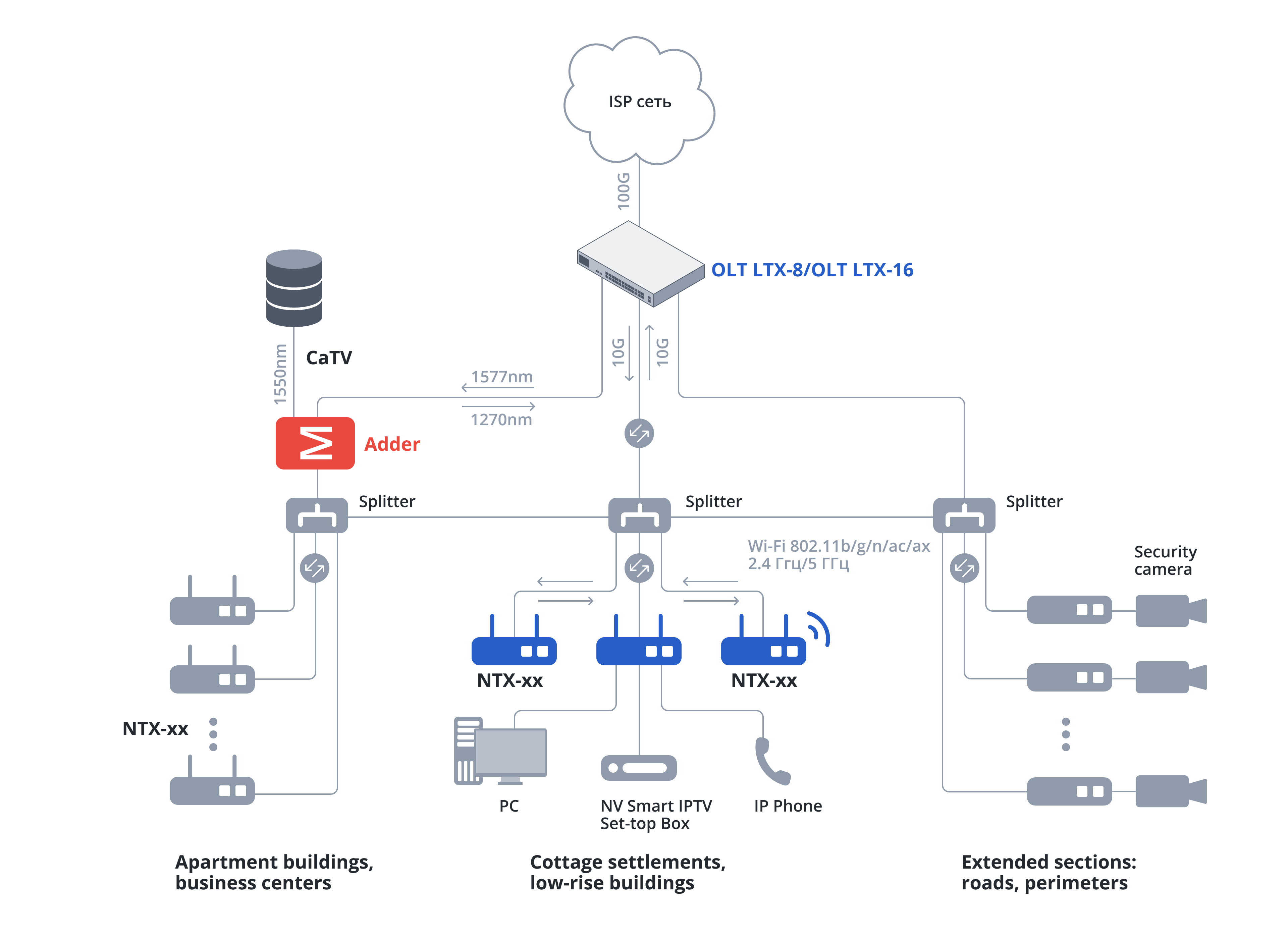

Scheme 1

The introduction of a "pure" XGS-PON is suitable for cases where building a new network with maximum bandwidth is required. For example, in new residential complexes or business centers where high-speed requirements are imposed. Eltex equipment allows deploying a network with symmetrical speeds of up to 10 Gbps for each subscriber and provides maximum performance for deploying resource-intensive services.

Detailed information on creating a 10G-PON optical network based on Eltex equipment is available in the Design Guide.

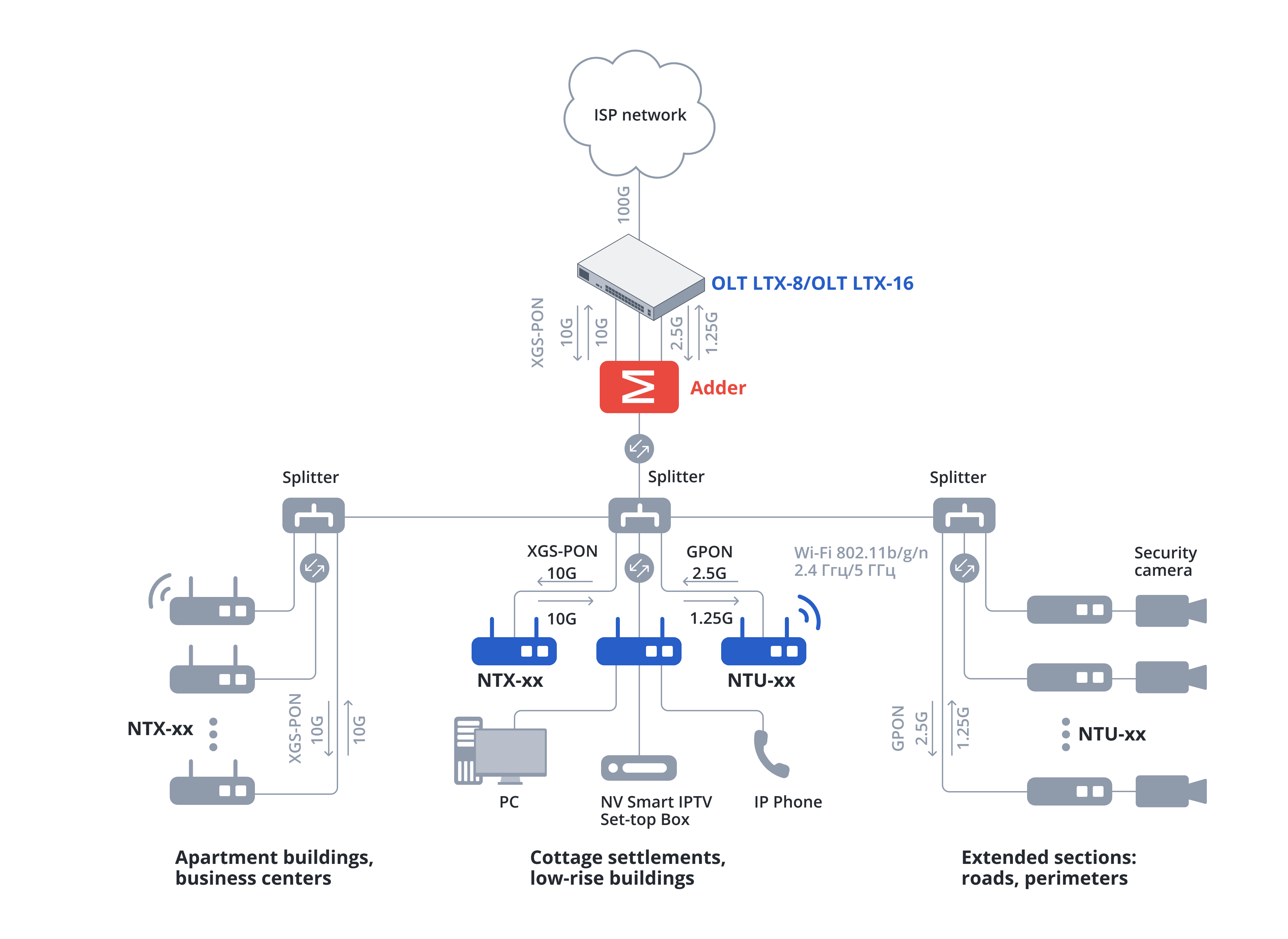

Scheme 2

The scheme shows a scenario where customers are already using GPON technology on the network, but want to gradually transfer subscribers to XGS-PON, while maintaining the existing infrastructure. Optical adders are used to simultaneously connect GPON and XGS-PON subscribers over the same line.

Detailed information on creating a 10G-PON optical network based on Eltex equipment is available in the Design Guide.

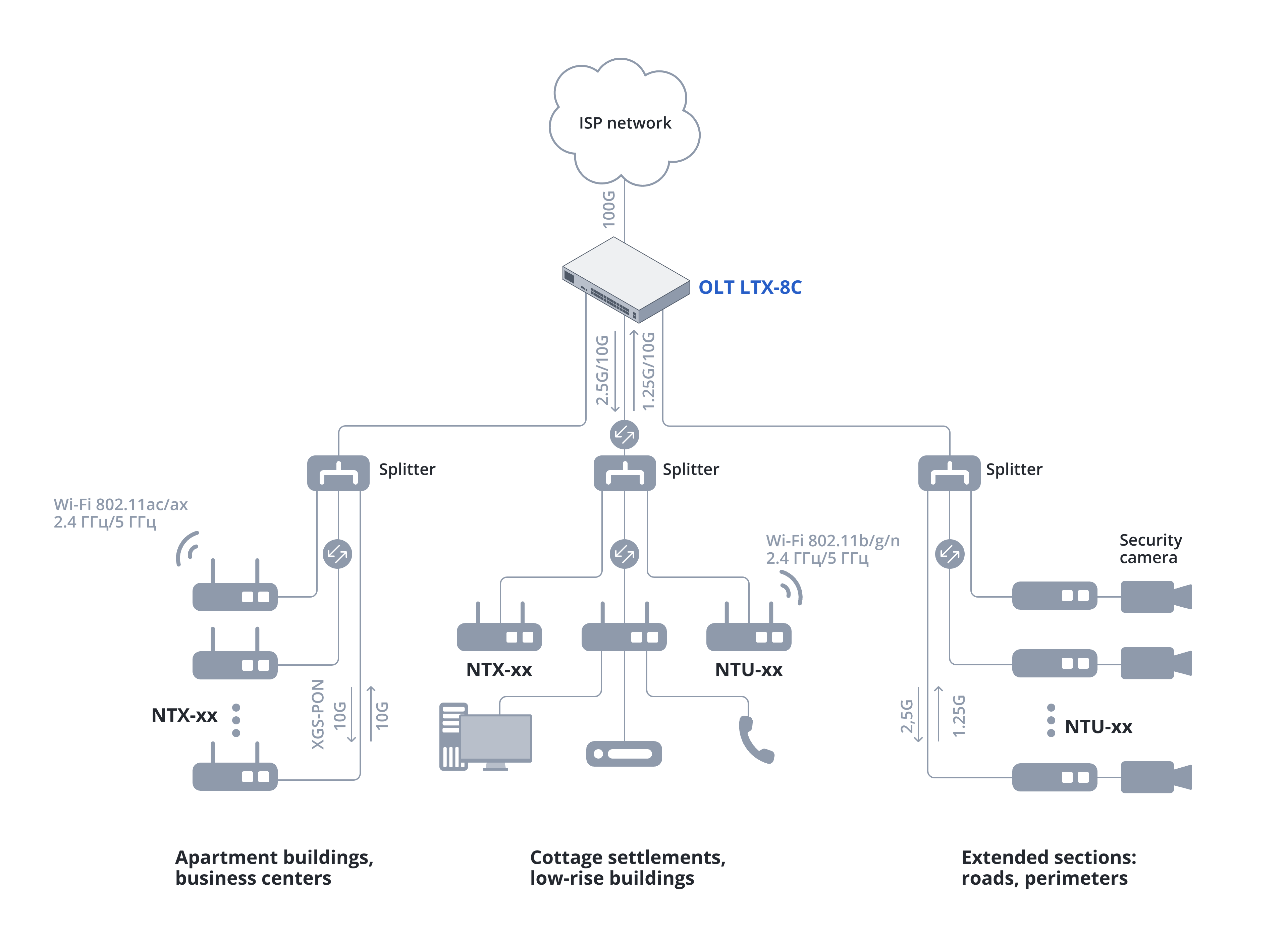

Scheme 3

The new-generation LTX-8C and LTX-16C OLTs, with support for ComboPON, enable simultaneous transmission of GPON and XGS-PON traffic without the need for extra equipment. This approach simplifies network architecture, lowers operational costs, and provides flexible subscriber connectivity.

Detailed information on creating a 10G-PON optical network based on Eltex equipment is available in the Design Guide.
