XGS-PON OLT MA5160
- Form factor:
- 19" 11U eurorack
- GPON/XGS-PON:
- up to 16 GPON/XGS-PON modules (256 GPON/ XGS-PON ports)
- ONT:
- XGS-PON up to 65536 and GPON up to 32768
Description
Multi-service access and aggregation node is dedicated for access networks based on GPON/XGS-PON technologies. The system allows operators to construct scalable, fault tolerant "last mile" networks meeting high safety requirements in either urban or rural areas. МA5160 controls customer equipment, traffic switching and access to transport networks.
A core element of МA5160 is a scalable Ethernet L2+ switch MA5K-FC64, that interacts with optical access modules MA5K-LC16G, MA5K-LC16XG and MA5K-LC16C1, GPON to connect customer devices via GPON/XGS-PON technologies.

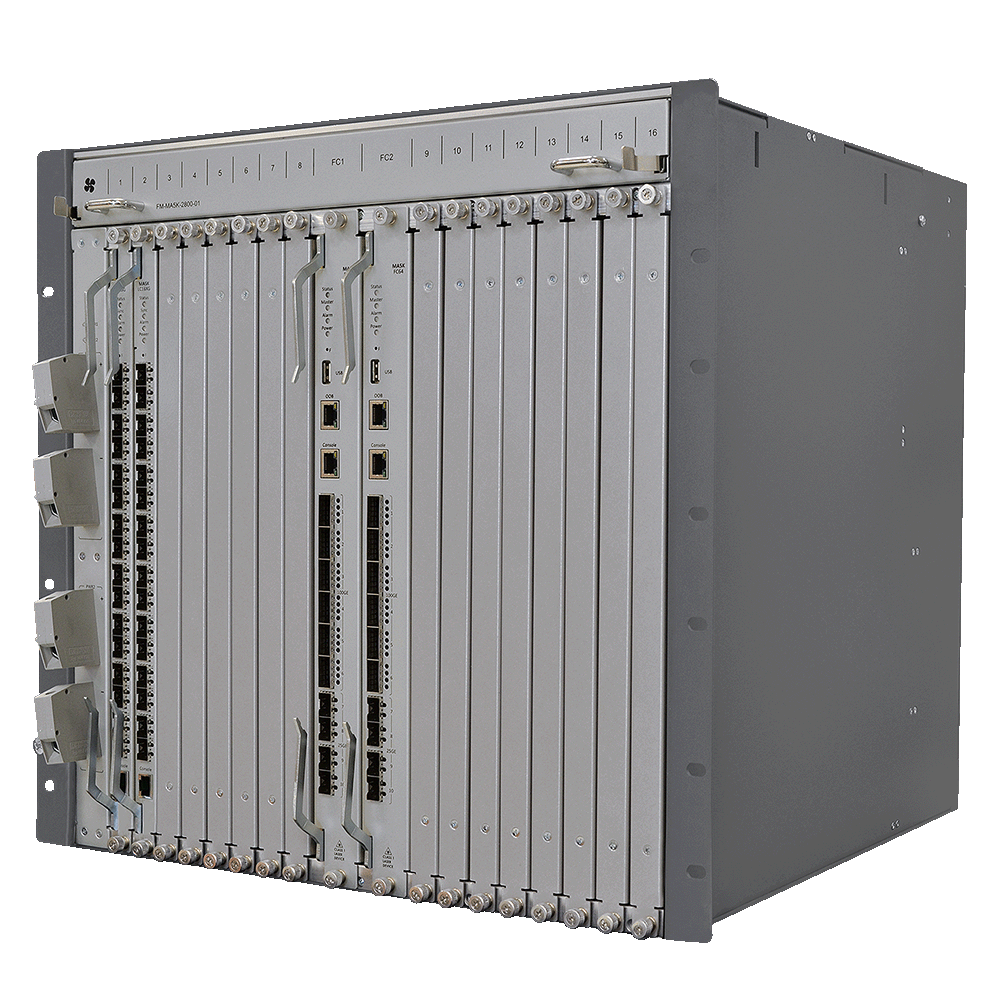

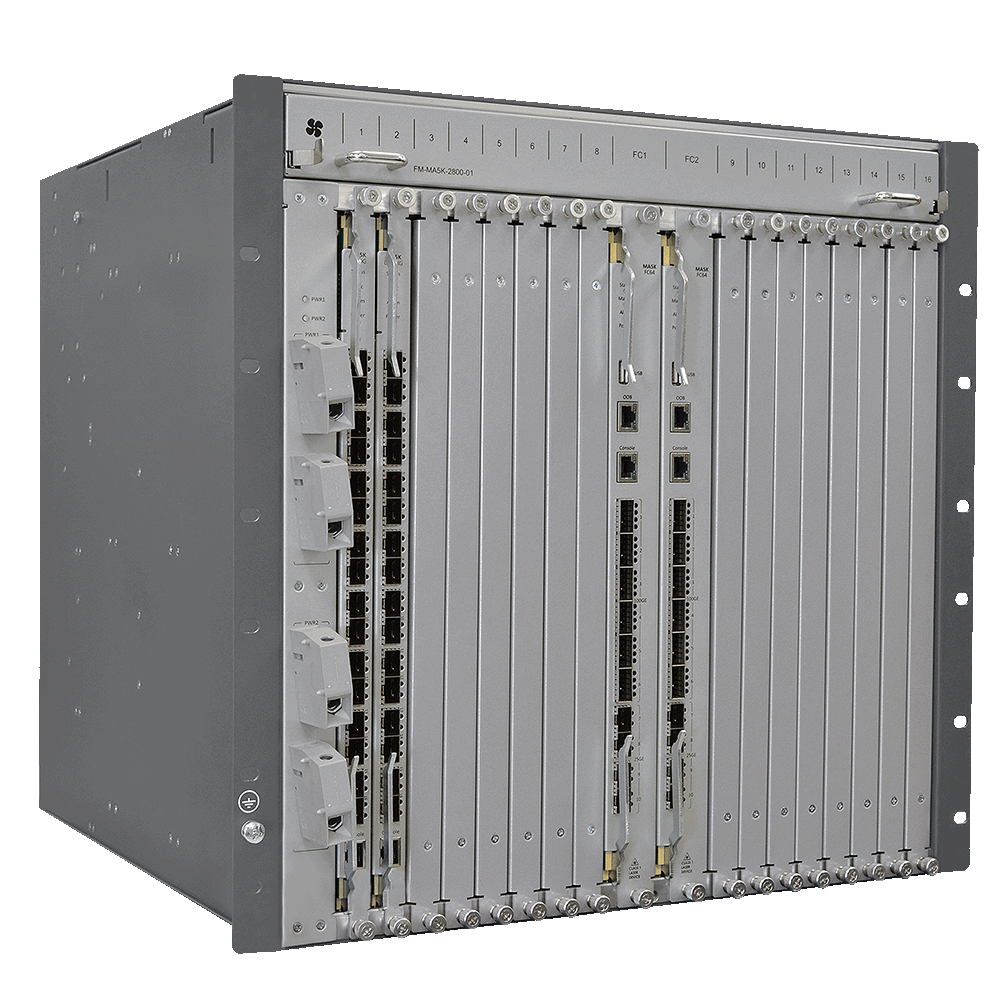

The modules are installed in a standard 19" 11U eurorack. The 11U case has two slots for MA5K-FC64 switch control modules and 16 slots for linear LC modules (GPON/XGS-PON).
The system may contain one or two MA5K-FC64 core switch modules. Installing two modules allows to build a highly reliable system by providing switch redundancy and increasing system bandwidth by distributing data streams between modules through stacking. The modules interact via 100 Gbps interfaces operating in load sharing and redundancy modes.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Form factor:
- 19" 11U eurorack
- GPON/XGS-PON:
- up to 16 GPON/XGS-PON modules (256 GPON/ XGS-PON ports)
- ONT:
- XGS-PON up to 65536 and GPON up to 32768
- Node bus performance:
- 3200 Gbps
- 2 independent power inputs
- Low power consumption
Features and capabilities
For full specifications and manuals see Documents and files section below
General features:
Chassis
Up to 16 LC modules
Up to 2 FC64 modules
MA5K-FC64 switching and control module:
Interfaces of the MA5K-FC64 switching and control module
External connections:
25/10/1GE (SFP28/SFP+/SFP)
4
100/40GE (QSFP28/QSFP+)
6
Interface modules connection:
100GBASE-CR4 (CAUI-4)
16
Central switch modules connection:
100GBASE-CR4 (CAUI-4)
8
Optical transceivers
10G SFP+, 25G SFP28, 40G QSFP+, 100G QSFP28
OOB 10/100/1000BASE-T (RJ-45) interface
Yes
RS-232 (RJ-45) console port
Yes
Port modes of the MA5K-FC64 switching and control module
Port modes SFP28/SFP+/SFP
Duplex mode for 25/10/1 Gbps
Port modes QSFP28/QSFP+
Duplex mode for 100/40 Gbps
MA5K-FC64 Switching and Control Module Switch
Switch performance
3.2 Tbps
VLAN
Up to 4k VLANs according to 802.1Q
Quality of Service (QoS)
Yes
Priority output queues per port
8
PON MA5K-LC16G interface module:
Interface Module Switch PON MA5K-LC16G
Switch performance
120 Gbps
MAC address table
64k entries
VLAN
Up to 4k VLANs according to 802.1Q
GPON SFP parameters MA5K-LC16G:
Transmission medium
SMF fiber optic cable - 9/125, G.652
Split ratio
Up to 1:128 GPON
Received Signal Strength Indication (RSSI)
Yes
Class B+:
Compliance with ITU-T G.984.2, FSAN Class B+, SFF-8472
Yes
Maximum operating distance
20 km
Transmitter: 1490 nm РОС Laser (DFB Laser)
Data rate
2488 Mbps
Average output power
+1.5..+5 dBm
Spectral line width
-20 dB 1.0 nm
Receiver 1310 nm APD/TIA
Data rate
1244 Mbps
Receiver sensitivity:
-28 dBm
Receiver optical overload
-8 dBm
Class C++:
Compliance with ITU-T G.984.2, FSAN Class C++, SFF-8472
Yes
Maximum operating distance
40 km
Transmitter: 1490 nm РОС Laser (DFB Laser)
Data rate
2488 Mbps
Average output power
+7..+10 dBm
Spectral line width
-20 dB 1.0 nm
Receiver: 1310 nm APD/TIA
Data rate
1244 Mbps
Receiver sensitivity
-32 dBm
Receiver optical overload
-12 dBm
Dynamic range of pulse receiver
20 dB
PON MA5K-LC16XG interface module :
Interface Module Switch PON MA5K-LC16XG
Switch performance
300 Gbps
MAC address table
64k entries
VLAN
Up to 4k VLANs according to 802.1Q
XGS-PON SFP parameters PON MA5K-LC16XG
Transmission medium
SMF fiber optic cable - 9/125, G.652
Split ratio
Up to 1:128 GPON, 1:256 XGS-PON
Received Signal Strength Indication (RSSI)
Yes
Compliance with ITU-T G.9807.1
Yes
Transmitter 1577 nm
Data rate
9.953 Gbps
Average output power
+2..+5 dBm
Receiver 1270 nm
Data rate
9.953 Gbps
Receiver sensitivity
-26 dBm
PON MA5K-LC16C interface module:
Interface Module Switch PON MA5K-LC16C
Switch performance
300 Gbps
MAC address table
64k entries
VLAN
Up to 4k VLANs according to 802.1Q
PON SFP parameters PON MA5K-LC16C
Transmission medium
SMF fiber optic cable - 9/125, G.652
Split ratio
Up to 1:128 GPON and 1:256 XGS-PON
Received Signal Strength Indication (RSSI)
Yes
Compliance with ITU-T G.9807.1
Yes
Maximum operating distance
20 km
Transmitter (XGS-PON) 1577 nm (DFB Laser)
Data rate
9.953 Gbps
Average output power
+2..+5 dBm
Transmitter (GPON) 1490 nm (DFB Laser)
Data rate
2.488 Gbps
Average output power
+2..+5 dBm
Receiver (XGS-PON) 1270 нм
Data rate
9.953 Gbps
Receiver sensitivity
-30 dBm
Receiver (XGS-PON) 1310 nm APD/TIA
Data rate
1.244 Gbps
Receiver sensitivity
-30 dBm
Physical specifications and environmental parameters:
Number of power supply inputs
2
Power supply voltage
36–72 V DC
Maximum power consumption
No more than 3000 W
Crate power consumption
No more than 50 W
Power consumption of FC64
No more than 250 W
Power consumption of LC16G
No more than 55 W
Power consumption of LC16XG
No more than 105 W
Power consumption of LC16C
No more than 130 W
Power consumption of FM-MA5K-2800-01 fan module
No more than 400 W
Assembled chassis weight without FC/LC
32.44 kg
MA5K-FC64 weight
3.98 kg
MA5K-LC16G weight
3.04 kg
MA5K-LC16XG weight
3.08 kg
MA5K-LC16C weight
3.08 kg
Weight of MA5K16-FAND deflector
2.9 kg
Weight of FM-MA5K-2800-01 fan module
6.26 kg
Weight of MA5K16-FP-FC plug
0.7 kg
Weight of MA5K16-FP-LC plug
0.58 kg
Dimensions (WxHxD)
487x452x460 mm
Operating temperature range
From -10 to +60°С
Relative humidity
Up to 80 %
