XGS-PON OLT MA5020
- Form factor:
- 19" 2U eurorack
- GPON/XGS-PON:
- up to 2 modules (up to 32 GPON/XGS-PON ports)
- ONT:
- XGS-PON up to 8192 and GPON up to 4096
Description
Multi-service access and aggregation node ΠA5020 is dedicated for access networks based on GPON/XGS-PON technologies. The system allows operators to construct scalable, fault tolerant "last mile" networks meeting high safety requirements in either urban or rural areas. ΠA5020 controls customer equipment, traffic switching and access to transport networks.
A core element of ΠA5020 is a scalable Ethernet L2+ switch MA5K-FC16L, that interacts with optical access modules MA5K-LC16G, MA5K-LC16XG and MA5K-LC16C1 to connect customer devices via GPON/XGS-PON technologies.

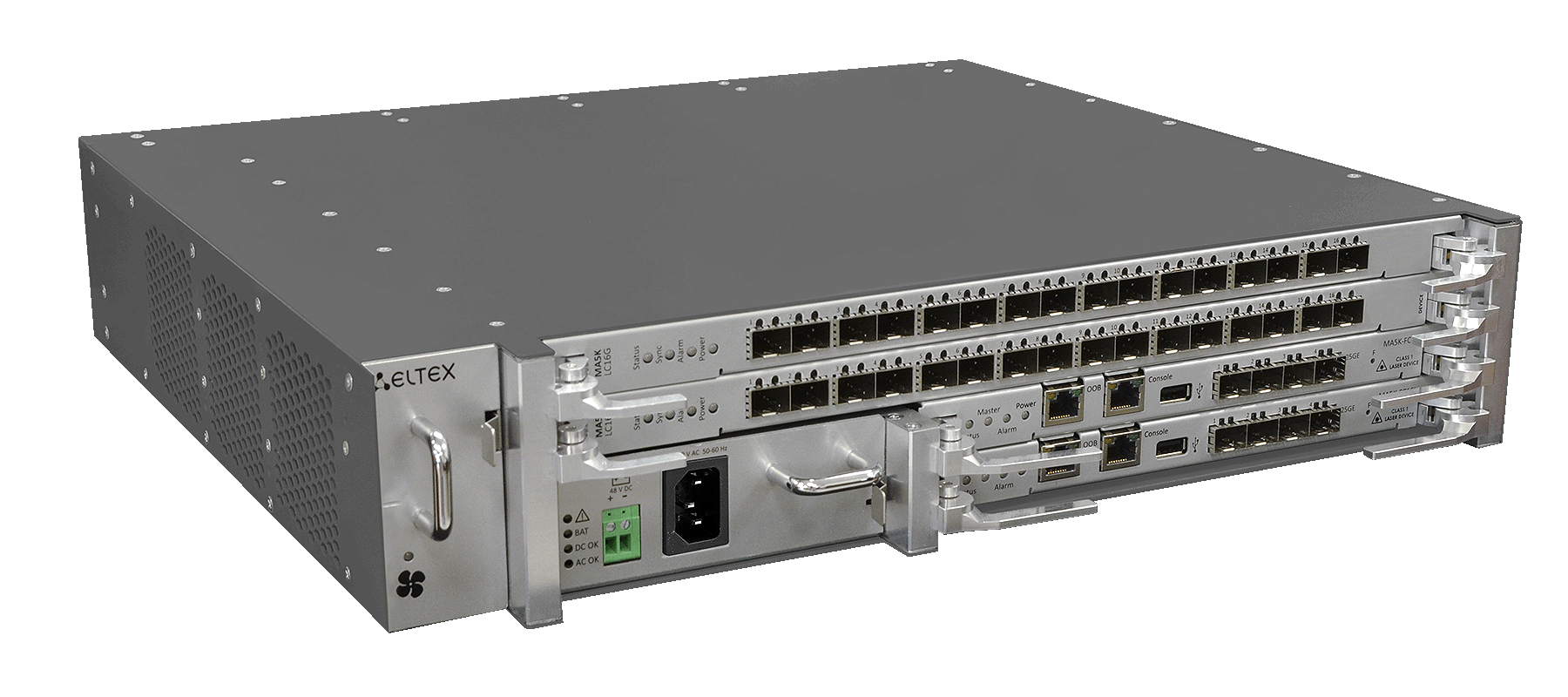

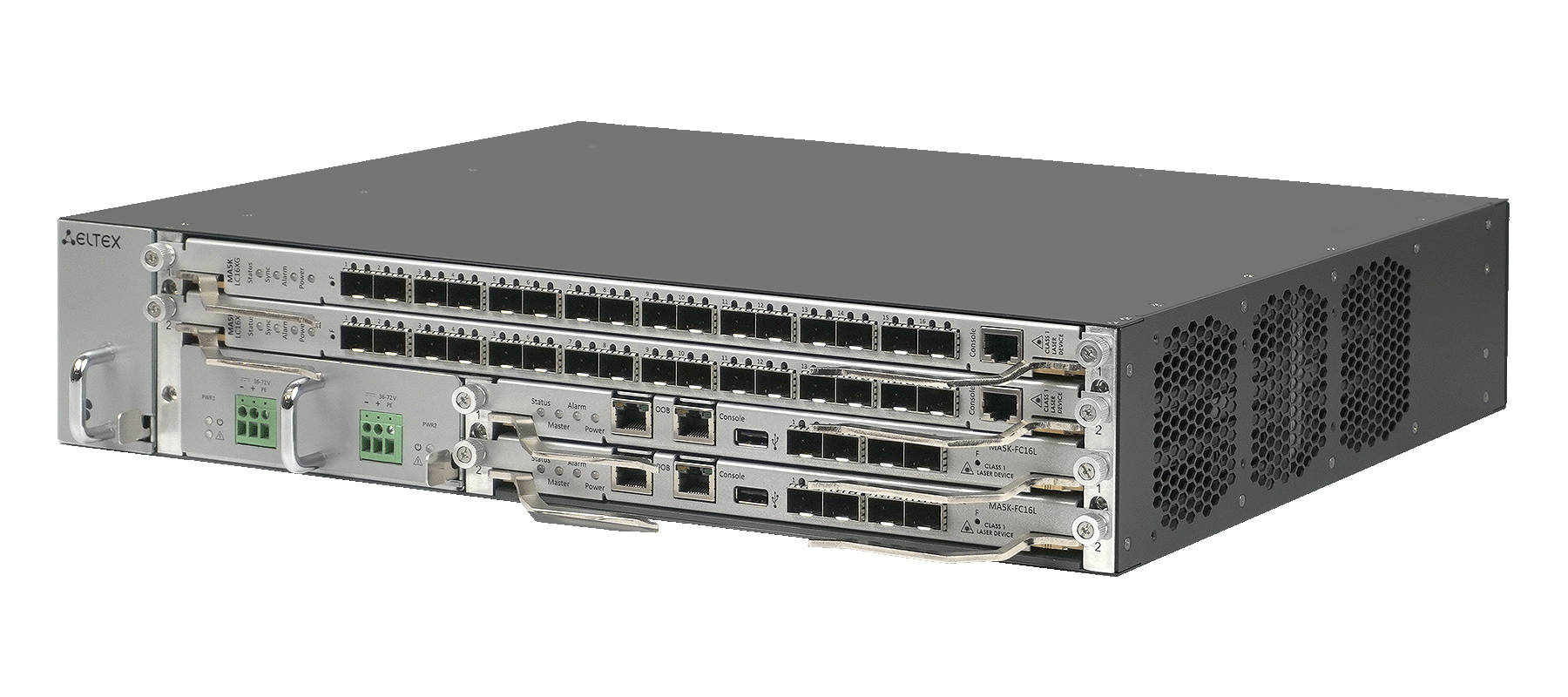

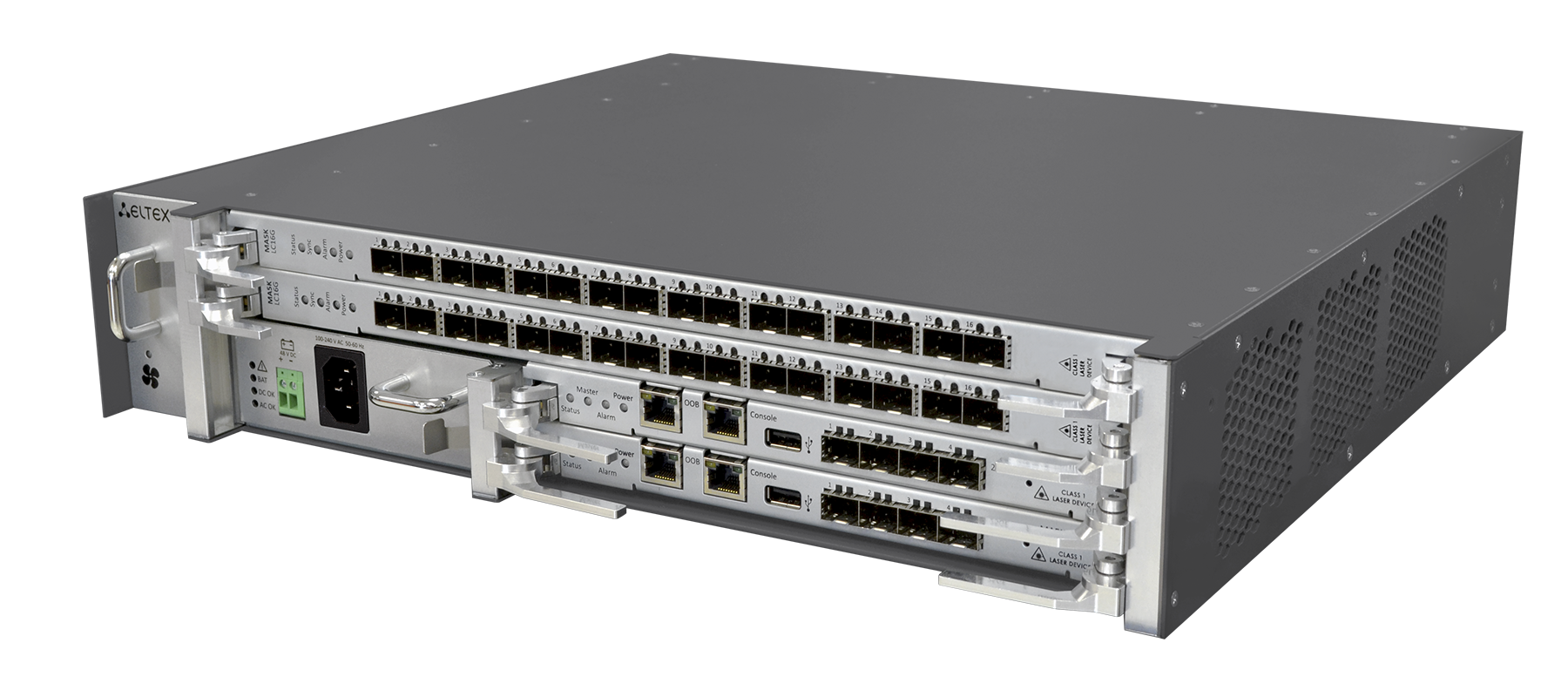

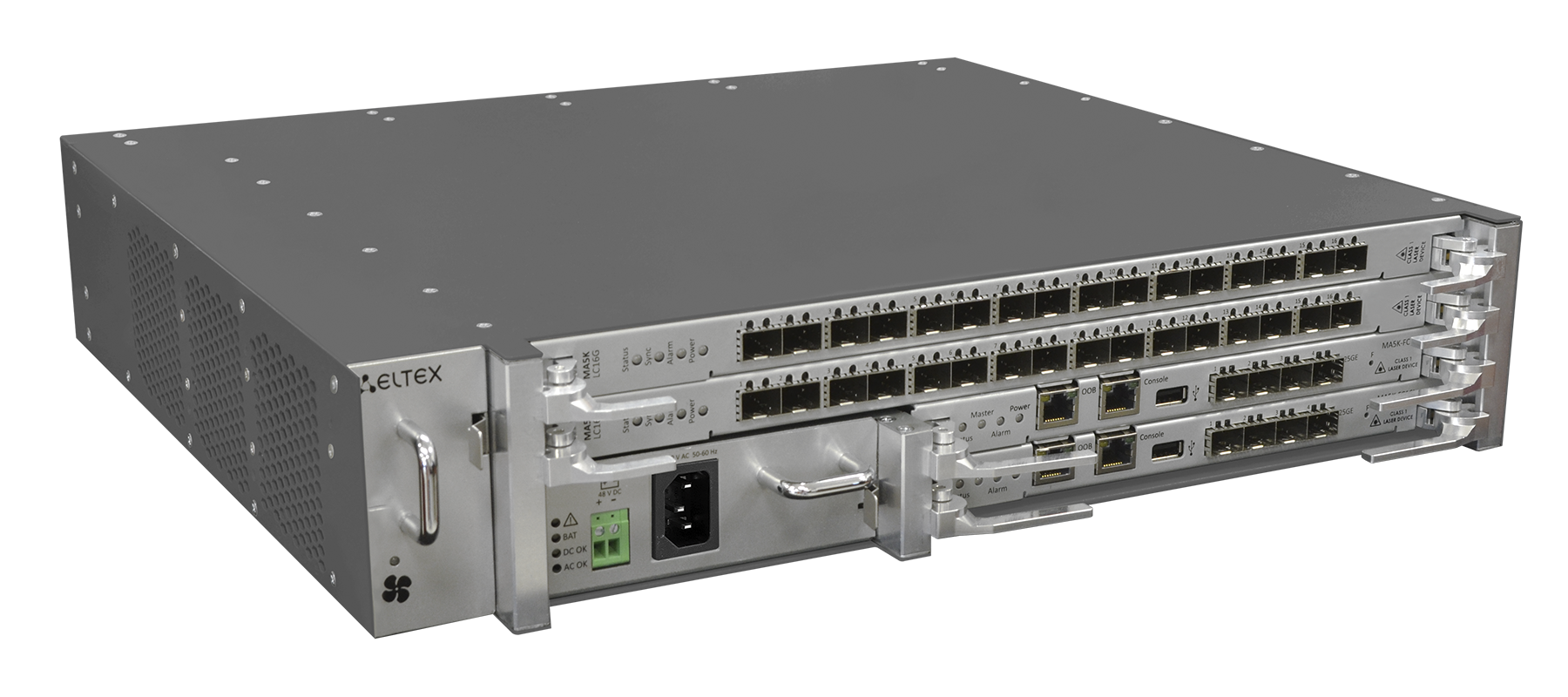

The modules are installed in a standard 19" 2U eurorack. The 9U case has two slots for MA5K-FC16L switch control modules and two slots for linear LC modules (GPON/XGS-PON).
The system may contain one or two MA5K-FC16L core switch modules. Installing two modules allows to build a highly reliable system by providing switch redundancy and increasing system bandwidth by distributing data streams between modules through stacking. The modules interact via 100 Gbps interfaces operating in load sharing and redundancy modes.
Specifications
- Form factor:
- 19" 2U eurorack
- GPON/XGS-PON:
- up to 2 modules (up to 32 GPON/XGS-PON ports)
- ONT:
- XGS-PON up to 8192 and GPON up to 4096
- Node bus performance:
- 400 Gbps
- Low power consumption
- 2 control switches with 1+1 hot standby support
