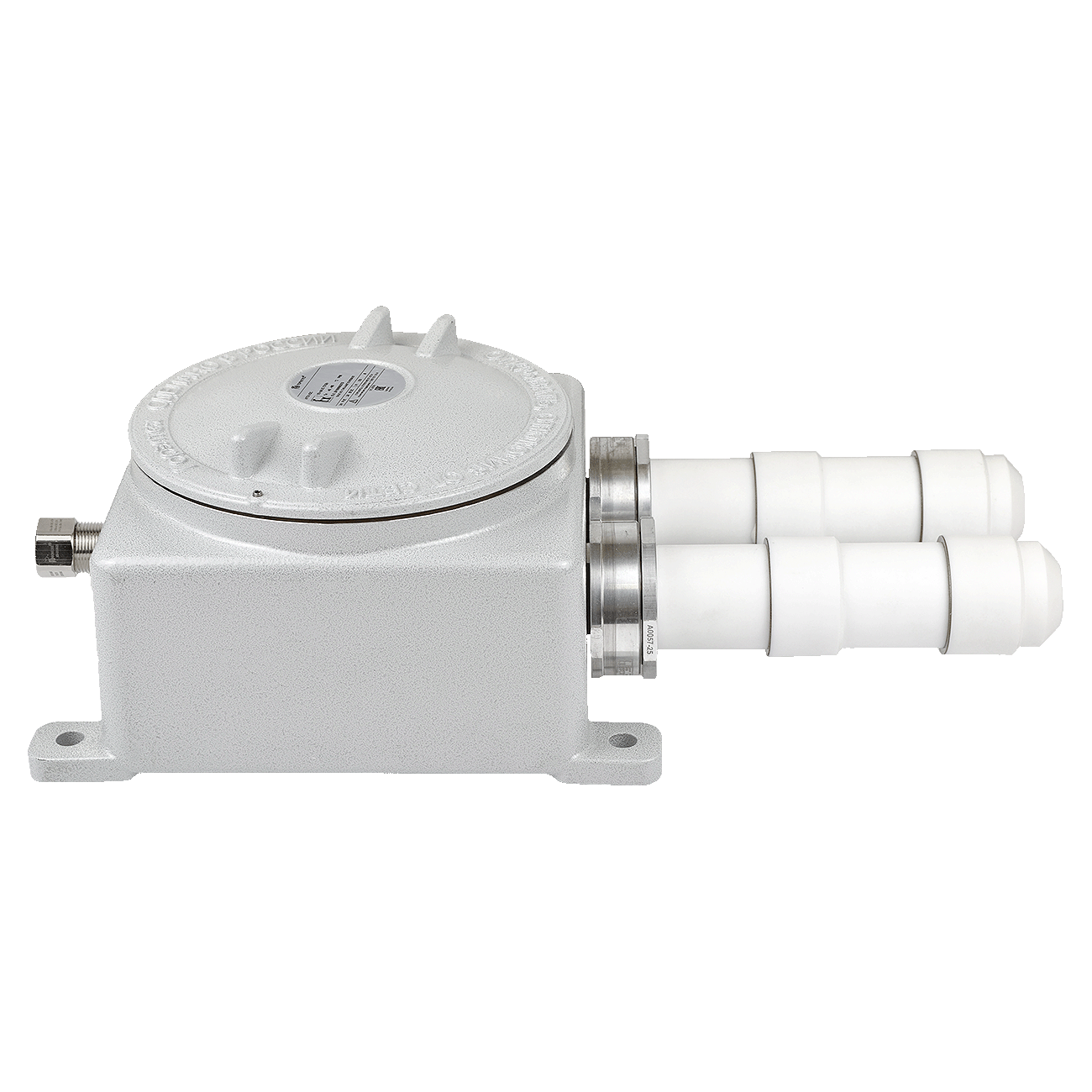

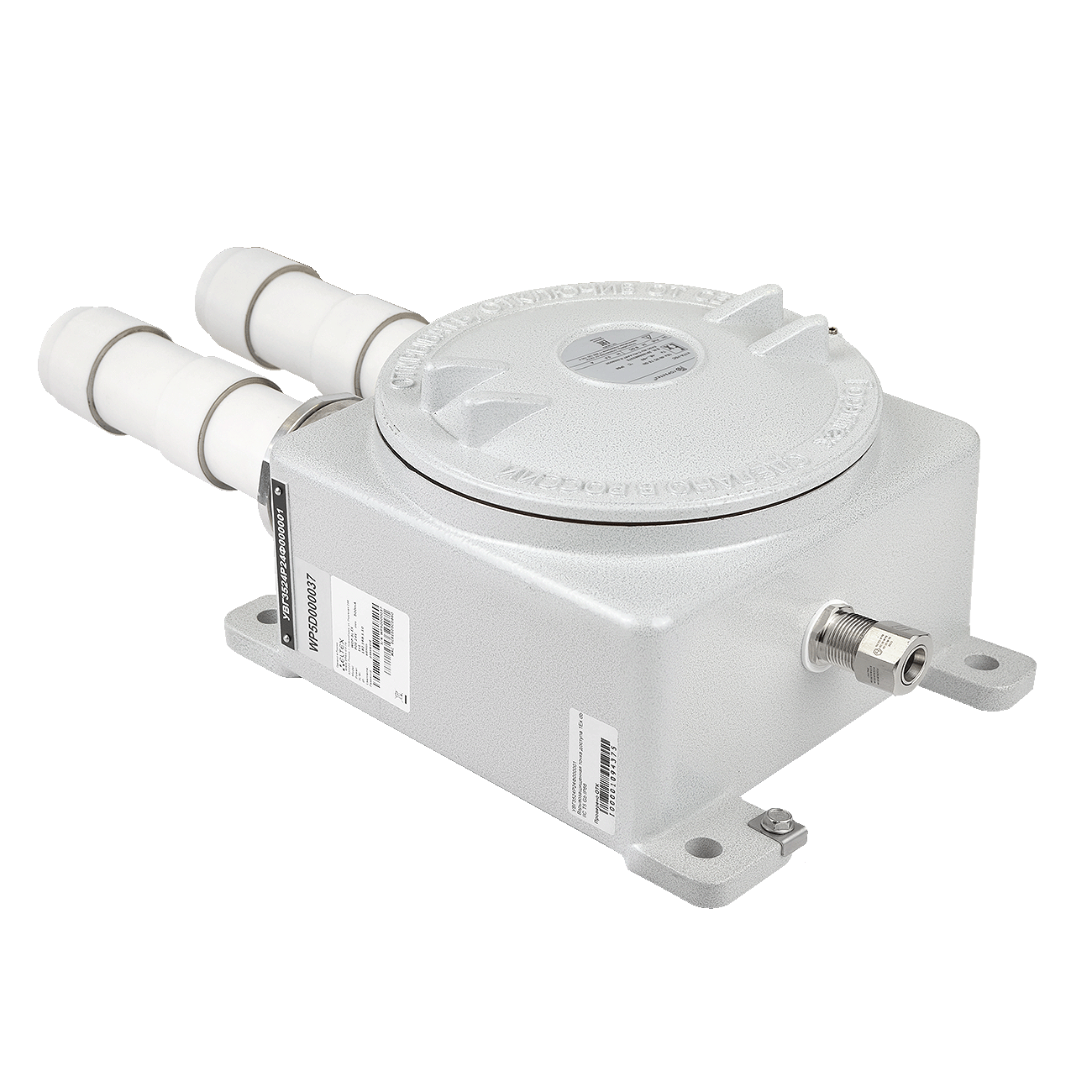

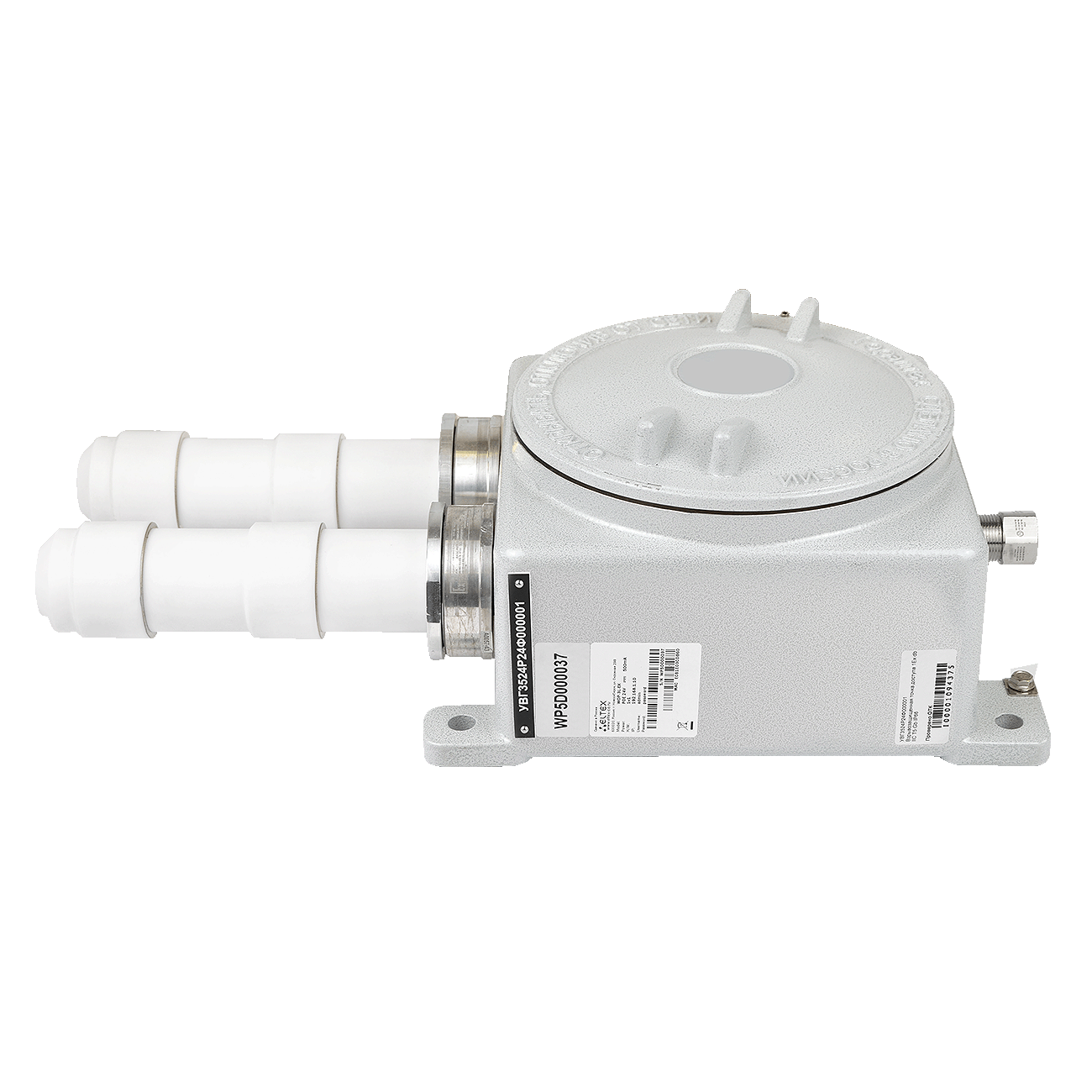

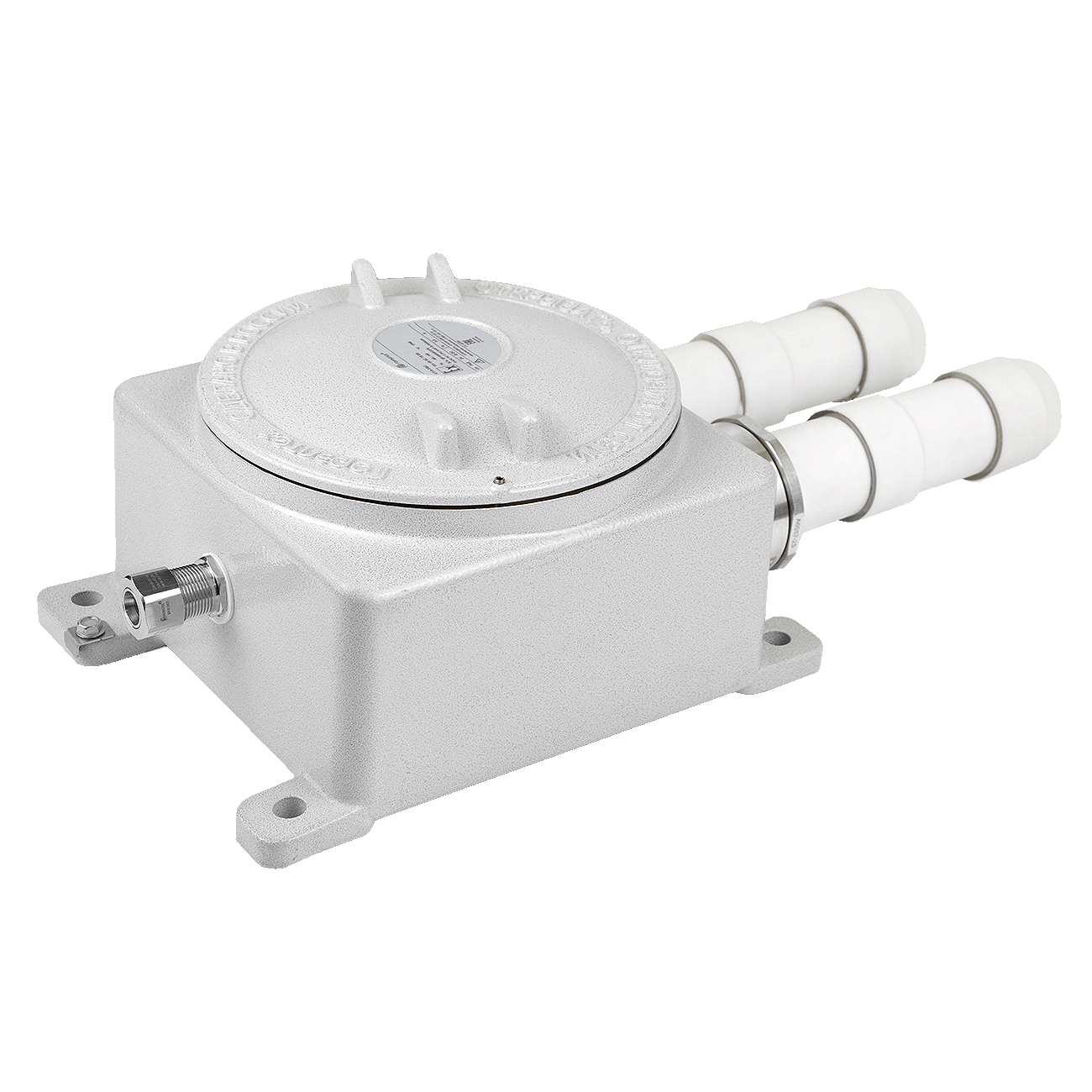

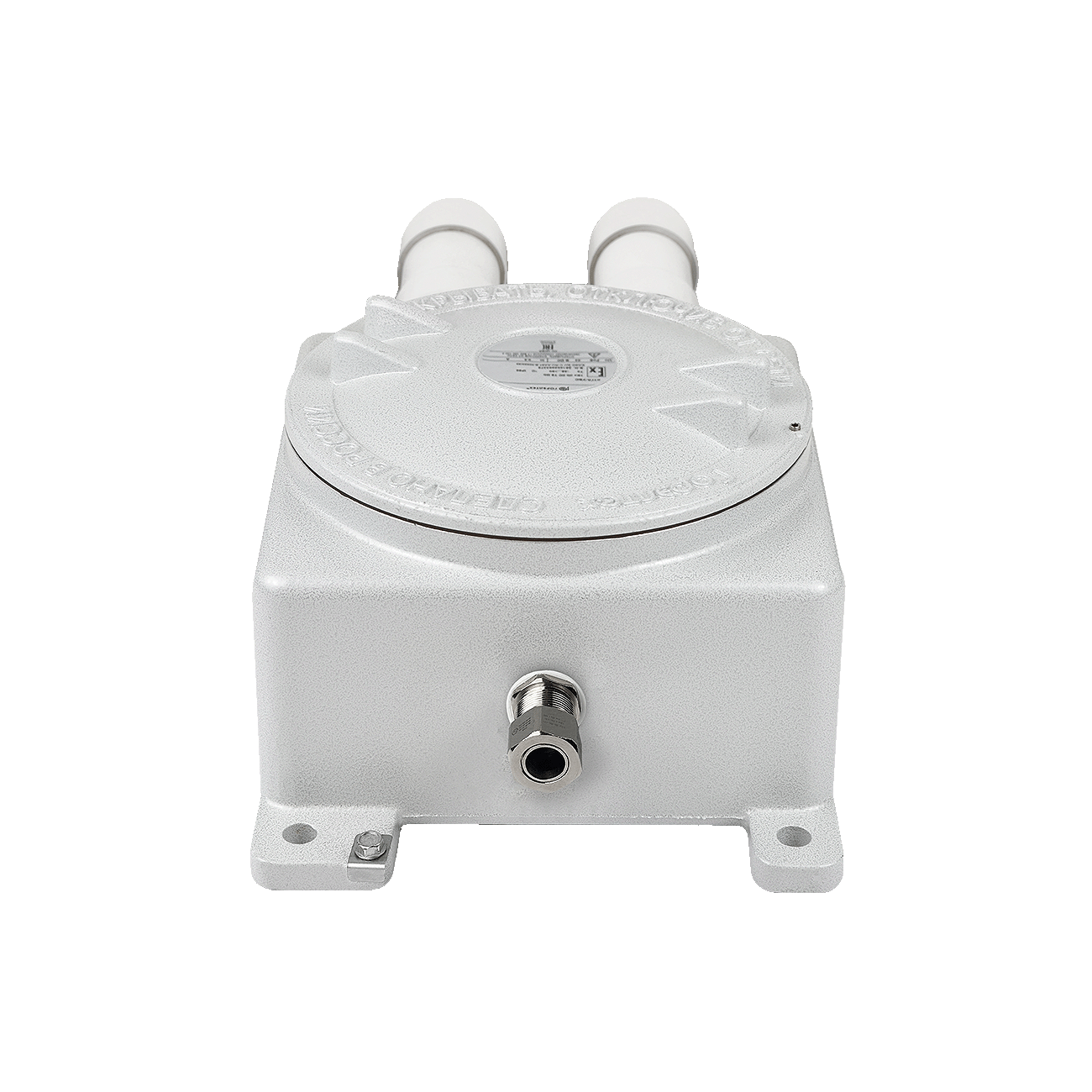

Explosion-proof access point WOP-3L-EX

Wi-Fi 6:
802.11a/b/g/n/ac/ax
MU-MIMO:
2х2
Frequency range:
2.4 GHz, 5 GHz
Under development

Description

WOP-3L-EX is a next-generation industrial Wi-Fi 6 (IEEE 802.11ax) access point that provides a high-speed and secure wireless network. An explosion-proof access point is ideal for installation at manufacturing facilities in the chemical, oil refining, gas, and other industries in areas with a potentially explosive atmosphere. The explosion protection marking 1Ex db IIC T5 Gb allows the device to be used in hazardous areas of indoor and outdoor installations.



Scalability

The WOP-3L-EX wireless access point is an up-to-date flexible solution that allows changing the network coverage area in order to increase the quantity of serviced mobile devices. Due to a high-performance hardware platform, scalability and intuitive interface, it is possible to deploy a wireless IT infrastructure easily and quickly.



Wireless connection

Due to support for IEEE 802.11ax standard the WOP-3L-EX access point provides up to 300 Mbps (2.4 GHz) and up to 1201 Mbps (5 GHz) data rates. The use of MU-MIMO technology and omnidirectional protected antennas makes the WOP-3L-EX a versatile solution for building corporate networks in hazardous environments.



Security

To ensure a secure connection, the modern WPA3 authentication and encryption technologies are supported. The new generation access points meet the highest security and compatibility requirements for earlier versions of the 802.11 standard.



Performance

The high-performance processors are used in the devices in order to provide reliability and high data processing rates.



Power supply

The PoE technology makes installation of the equipment possible virtually everywhere, regardless of the power supply location. That reduces total cost by discarding power cables and makes installation easier and faster.


*Decoding of marking 1Ex db IIC T5 Gb:



  • 1 — Equipment category: for zone 0, the highest level of protection.
  • Ex — Designed for explosive atmospheres.
  • db — Explosion-proof shell, high level of protection.
  • IIC — For the most dangerous gases (hydrogen, acetylene).
  • T5 — Max. surface temperature: ≤100°C.
  • Gb — Protection level: suitable for zone 1 (gas environment).



Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
outdoor
Ingress protection:
IP66
Wi-Fi 6:
802.11a/b/g/n/ac/ax
Roaming:
802.11r/k/v
Captive Portal
Encryption:
WPA/WPA2/WPA3/OWE
Antennas:
internal
MU-MIMO:
2х2
Interfaces:
1x1G
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000BASE-T (RJ-45) с поддержкой PoE
1
Wi-Fi 2.4 GHz
802.11b/g/n
Wi-Fi 5 GHz
802.11a/n/ac/ax
WLAN:
Support
IEEE 802.11a/b/g/n/ac/ax
Roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx)
Yes
Packet priorities and planning
Yes
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
14
Third-party access points detection
Yes
Spectrum analyzer
Yes
WDS
Yes
APSD
Yes
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Access, Trunk, General
DHCP client
Yes
GRE
Yes
Transmission of subscriber traffic outside of tunnels
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3/OWE
Captive Portal
Yes
Authorization via RADIUS server when logging
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHZ
5470–5850 MHZ
Modulations
BPSK,QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Bandwidth
20, 40 MHz for 2.4 GHz
20, 40 and 80 MHz for 5 GHz
Operating channels:
802.11b/g/n
1–13 (2401–2483 MHz)
802.11a/n/ac/ax
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
2.4 GHz, 802.11n
300 Mbps
5 GHz, 802.11ax
1201 Mbps
Maximum power of the transmitter:
2.4 GHz: 20 dBm
5 GHz: 20 dBm
Built-in antenna gain:
2.4 GHz:~5 dBi
5 GHz:~5 dBi
Receiver sensitivity:
2.4 GHz: up to -94 dBm
5 GHz: up to -94 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
Physical specifications:
Power supply
Passive PoE 24 V
Maximum power consumption
No more than 8.5 W
SPI-NAND Flash
128 MB
DDR2 RAM
128 MB
Operating temperature
From -45 to +60°С
Explosion-proof marking
1Ex db IIC T5 Gb
Ingress protection
IP66
Bracing
Pole/wall or mounting plate installation
Dimensions (WxHxD)
235x503x164 mm
Weight
10.2 kg
