Wireless access point WEP-550K

Wi-Fi 7:
802.11be
MU-MIMO:
4x4
Frequency range:
2.4 GHz, 5 GHz, 6 GHz
Roaming:
802.11r/k/v
продукт
продукт
продукт
продукт
продукт
продукт
New

Description

WEP-550K is a next-generation Wi-Fi 7 access point, that delivers maximum throughput and stable wireless connection for connected devices. Operating in three bands — 2.4, 5, and 6 GHz — allows efficient use of available radio bandwidth, reduces interference, and ensures high performance for a large number of clients. With high speed, low latency, energy efficiency and increased throughput, the WEP-550K access point supports a wide range of devices and applications that require maximum performance in demanding enterprise environments.


Compared to previous generation solutions, WEP-550K provides significantly higher data transfer rates and improved performance in high-density environments.


Scalability

The WEP-550K wireless access point provides network flexibility and scalability, enabling easy adaptation of the infrastructure to growing number of users and devices. The high-performance hardware platform, wide channels of up to 320 MHz, 4096-QAM support, and MU-MIMO 4x4 technology ensure stable network operation even under heavy loads.


Wireless connection

With IEEE 802.11be support and tri-band operation (2.4/5/6 GHz), the WEP-550K access point delivers significantly increased data transfer rates of 1376 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 11530 Mbps (6 GHz) and lower latency than Wi-Fi 6 devices. Multi-Link Operation (MLO) technology allows devices to simultaneously use multiple frequency bands and channels, increasing speed, reliability, and reducing connection latency. The use of MU-MIMO and omnidirectional antennas makes WEP-550K a versatile solution for corporate networks.


Safety

For corporate environments, modern WPA3 authentication and encryption mechanisms are supported, ensuring personal data protection and corporate network security. WEP-550K is compatible with earlier 802.11 standards, simplifying integration into the existing infrastructure.


Performance

Thanks to a high-performance hardware platform and optimized operating algorithms, WEP-550K ensures stable operation under maximum load, supporting dozens of simultaneously active clients without reducing data transfer speed.


Power supply

The PoE++ (802.3bt) technology provides power to the device via the network cable and makes installation possible anywhere, regardless of the availability of power outlets. Compatibility with PoE+ (802.3at) provides flexibility for integration into the existing infrastructure, reduces total cost by discarding power cables and makes installation easier and faster.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Wi-Fi 7:
802.11a/b/g/n/ac/ax/be
Placement:
indoor
Roaming:
802.11r/k/v
Encryption:
WPA/WPA2/WPA3/OWE
Antennas:
built-in
MU-MIMO:
4x4
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet

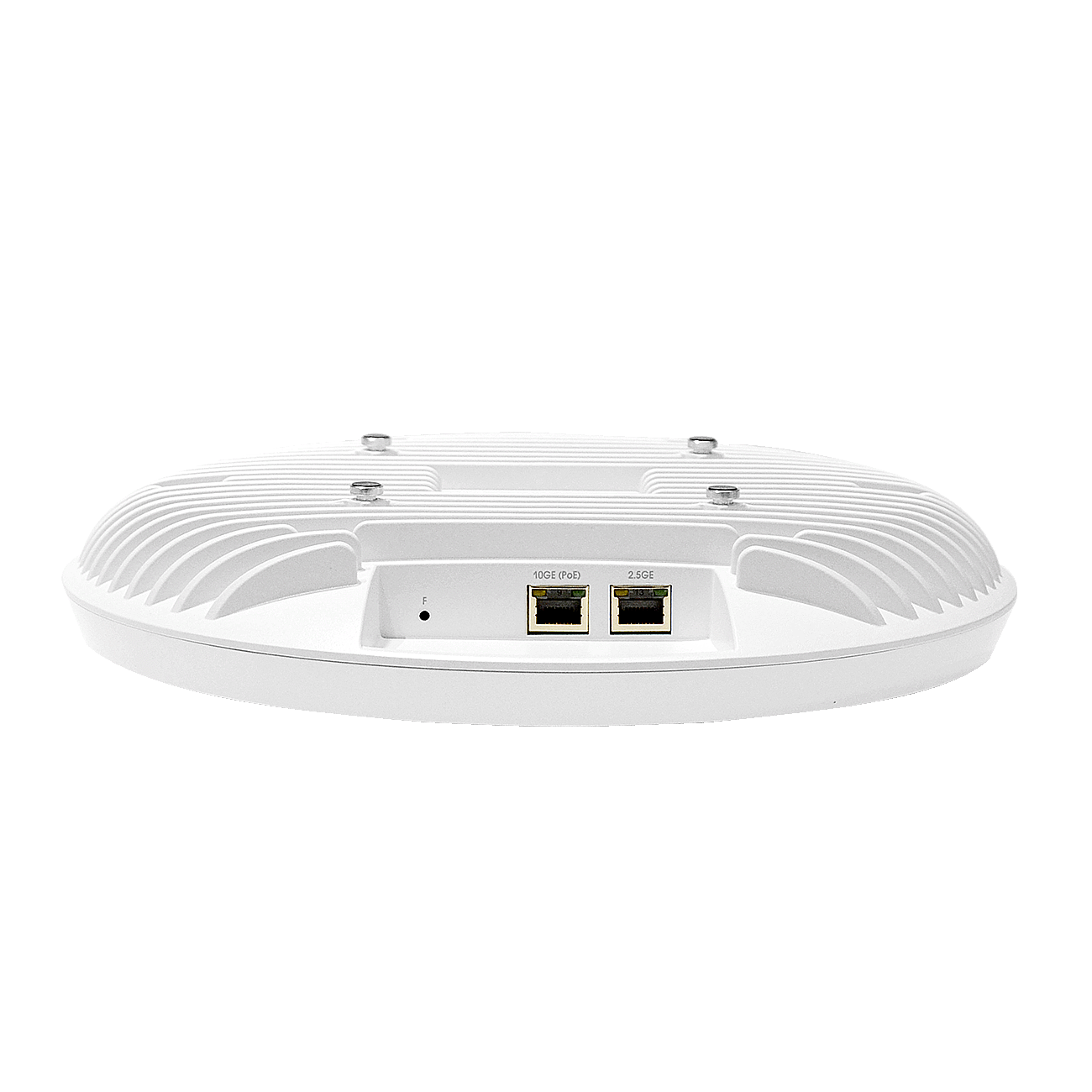

Interfaces:
100M/1G/2.5G/5G/10G BASE-T (RJ-45) with PoE support
1
100M/1G/2.5G BASE-T (RJ-45)
1
Wi-Fi 2.4 GHz
802.11b/g/n/ax/be
Wi-Fi 5 GHz
802.11a/n/ac/ax/be
Wi-Fi 6 GHz
802.11ax/be
WLAN capabilities:
Standards support
IEEE 802.11a/b/g/n/ac/ax/be
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU and А-MSDU
Yes
WMM-based packet priorities and planning
Yes
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Virtual access points
48
Network functions:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN support
Yes
DHCP client
Yes
GRE
Yes
Local switching
Yes
NTP
Yes
Syslog
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS-server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3/OWE
Support for external portal authentication
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
5935–7125 MHz
Modulations
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Bandwidth
20, 40 MHz for 2.4 GHz
20, 40, 80, 160 MHz for 5 GHz
20, 40, 80, 160, 320 MHz for 6 GHz
Operating channels:
802.11b/g/n/ax/be
1–13 (2401–2483 MHz)
802.11a/n/ac/ax/be
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
802.11ax/be
1–233 (5935–7125 MHz)
Data rate:
2.4 GHz, 802.11be
1376 Mbps
5 GHz, 802.11be
5765 Mbps
6 GHz, 802.11be
11530 Mbps
Maximum power of the transmitter:
2.4 GHz: 21 dBm
5 GHz: 21 dBm
6 GHz: 21 dBm
Built-in antenna gain:
2.4 GHz: ~4 dBi
5 GHz: ~6 dBi
6 GHz: ~3 dBi
Receiver sensitivity:
2.4 GHz: до -93 dBm
5 GHz: до -94 dBm
6 GHz: до -94 dBm
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
Physical specifications :
Power consumption
No more than 33 W
SPI-NAND Flash
256 MB
DDR4 RAM
1 GB
Operating temperature
From +5 to +40°C
Bracing
Armstrong, threaded rod, ceiling/wall mount
Dimensions (DxH)
280x64.5 mm
Weight
1,8 kg
VESA
100x100
