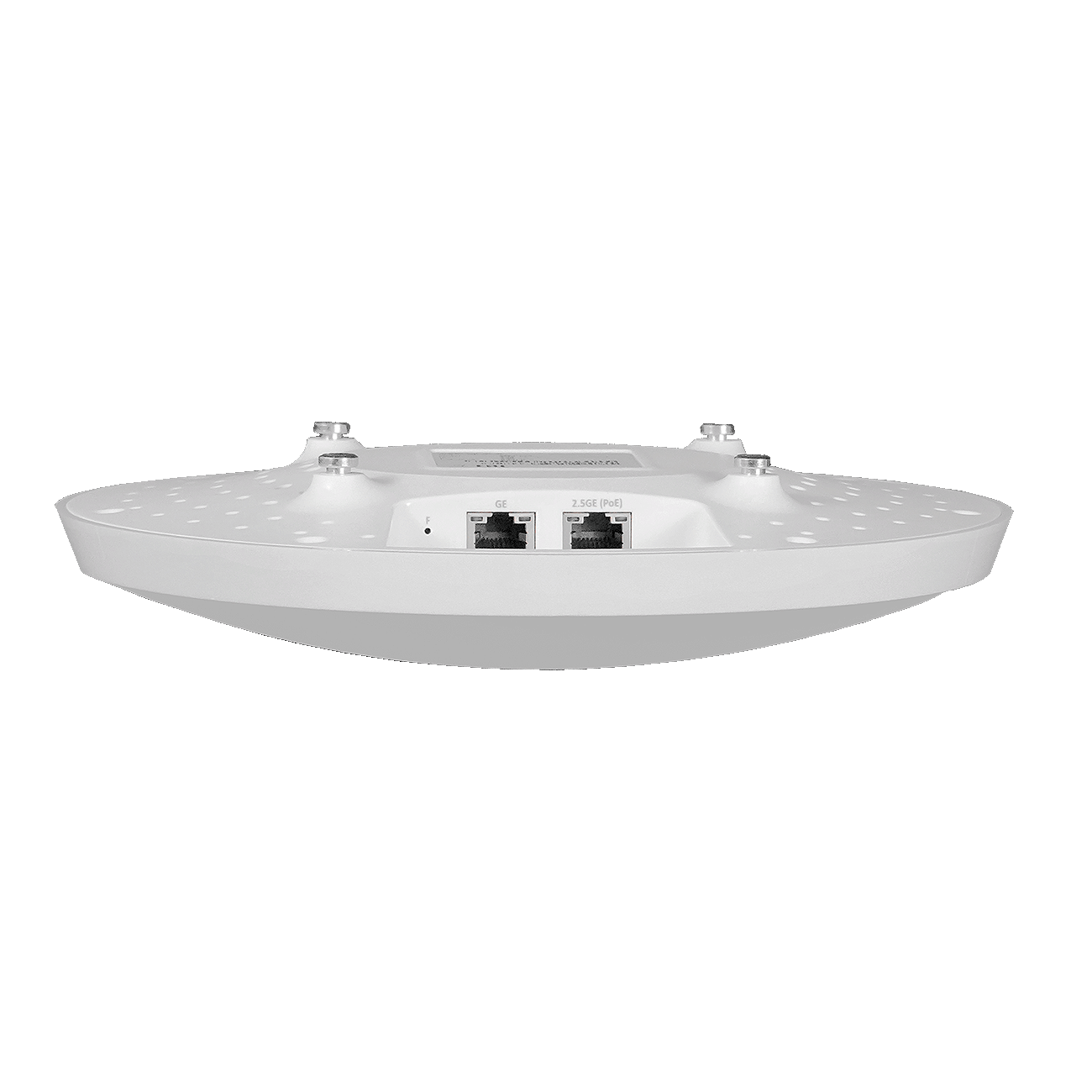

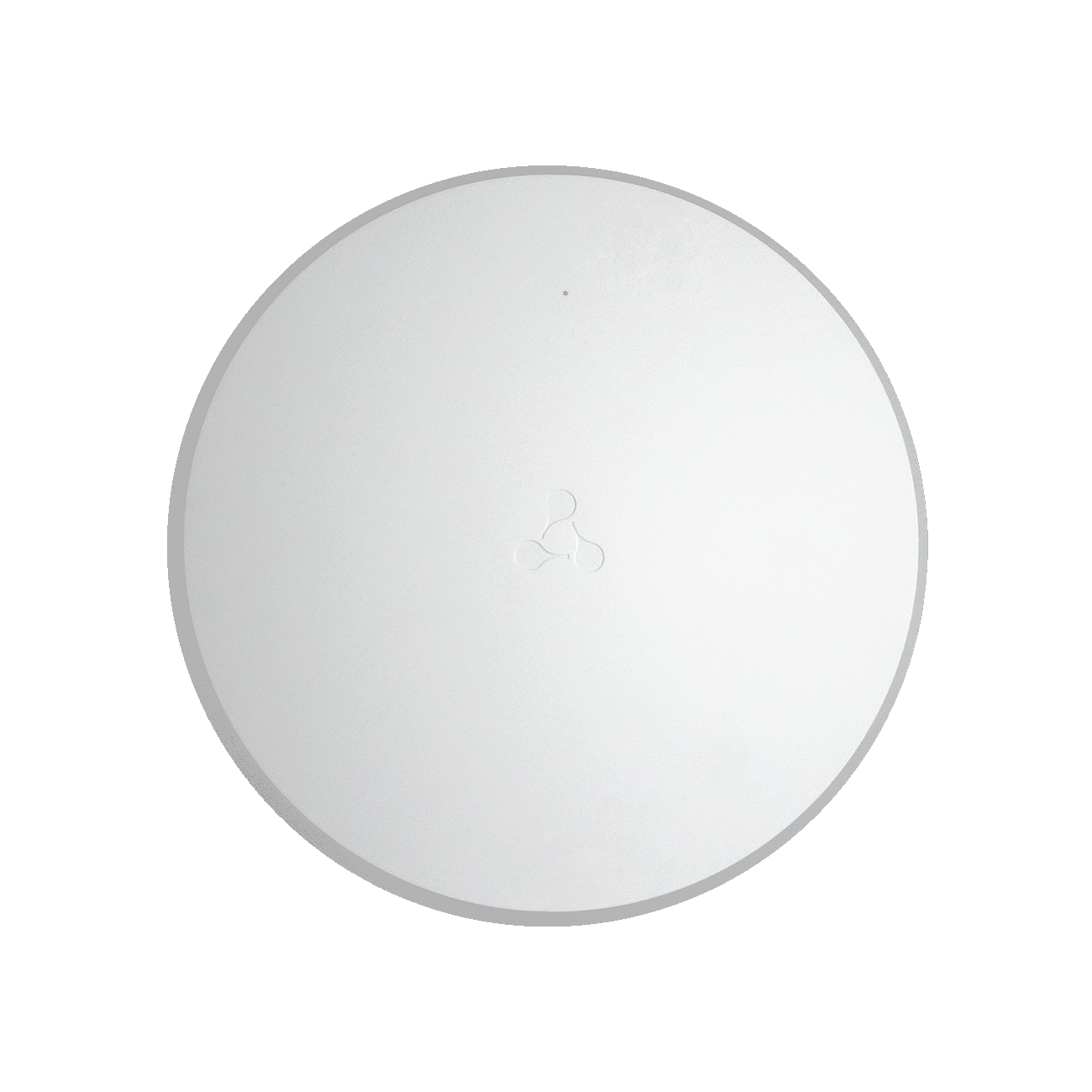

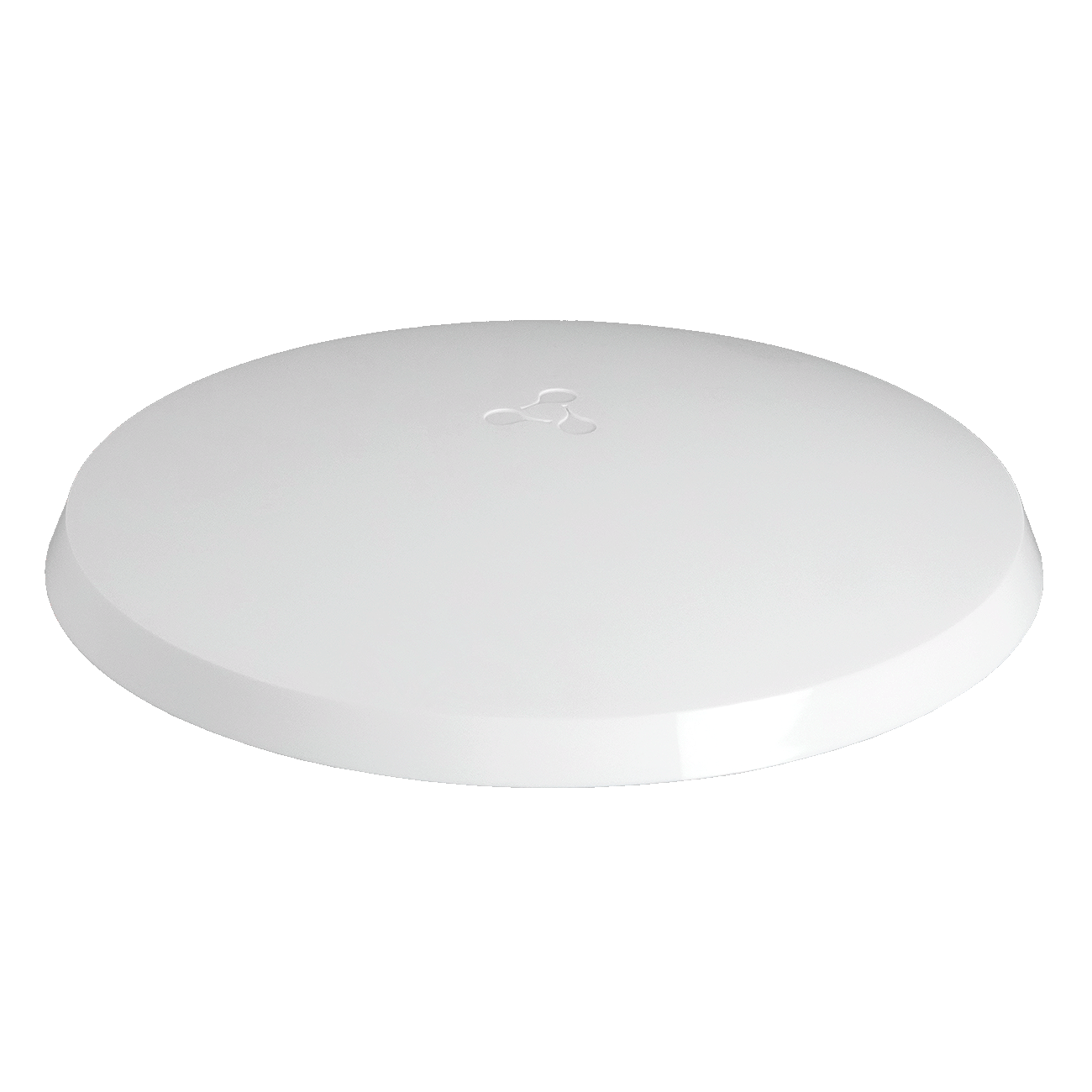

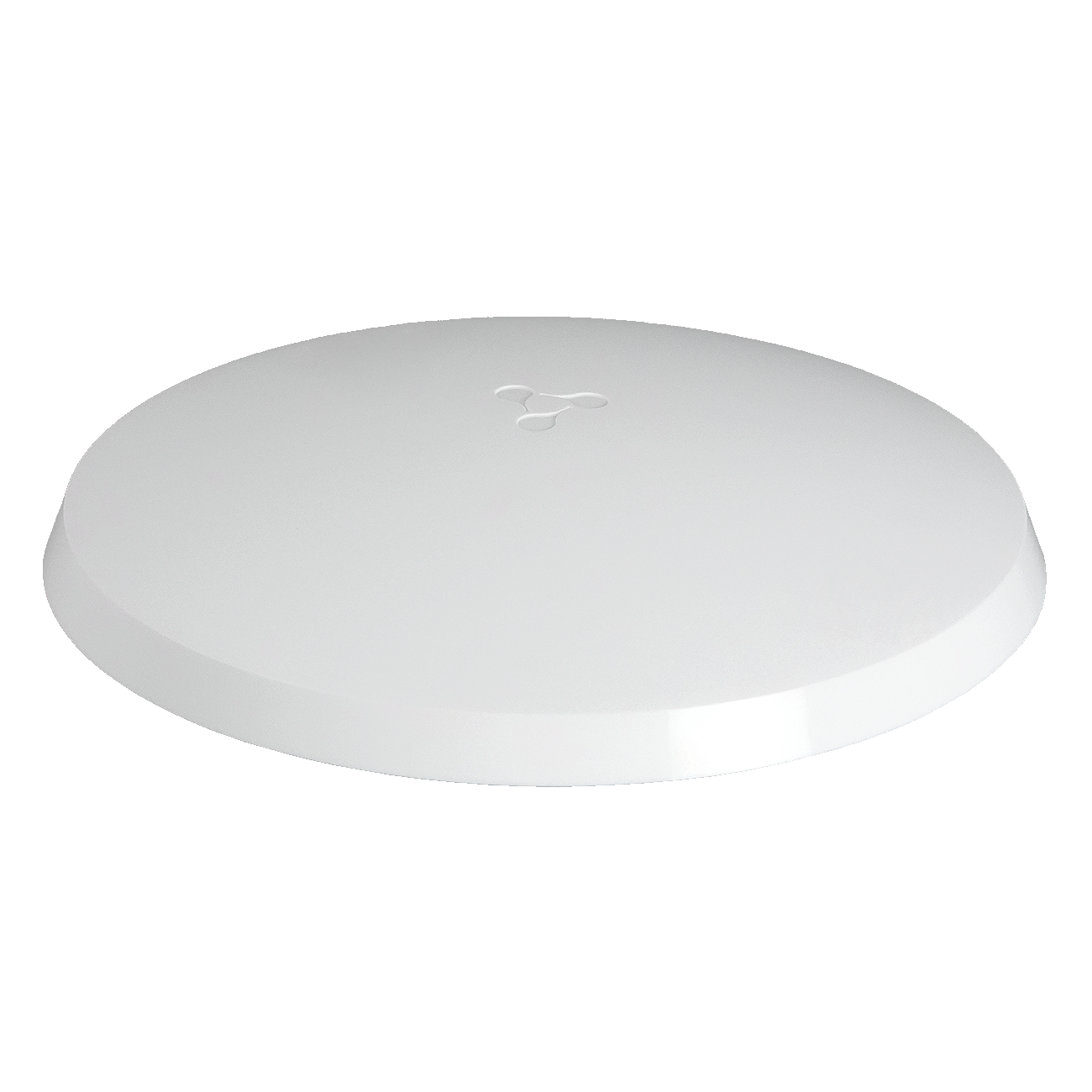

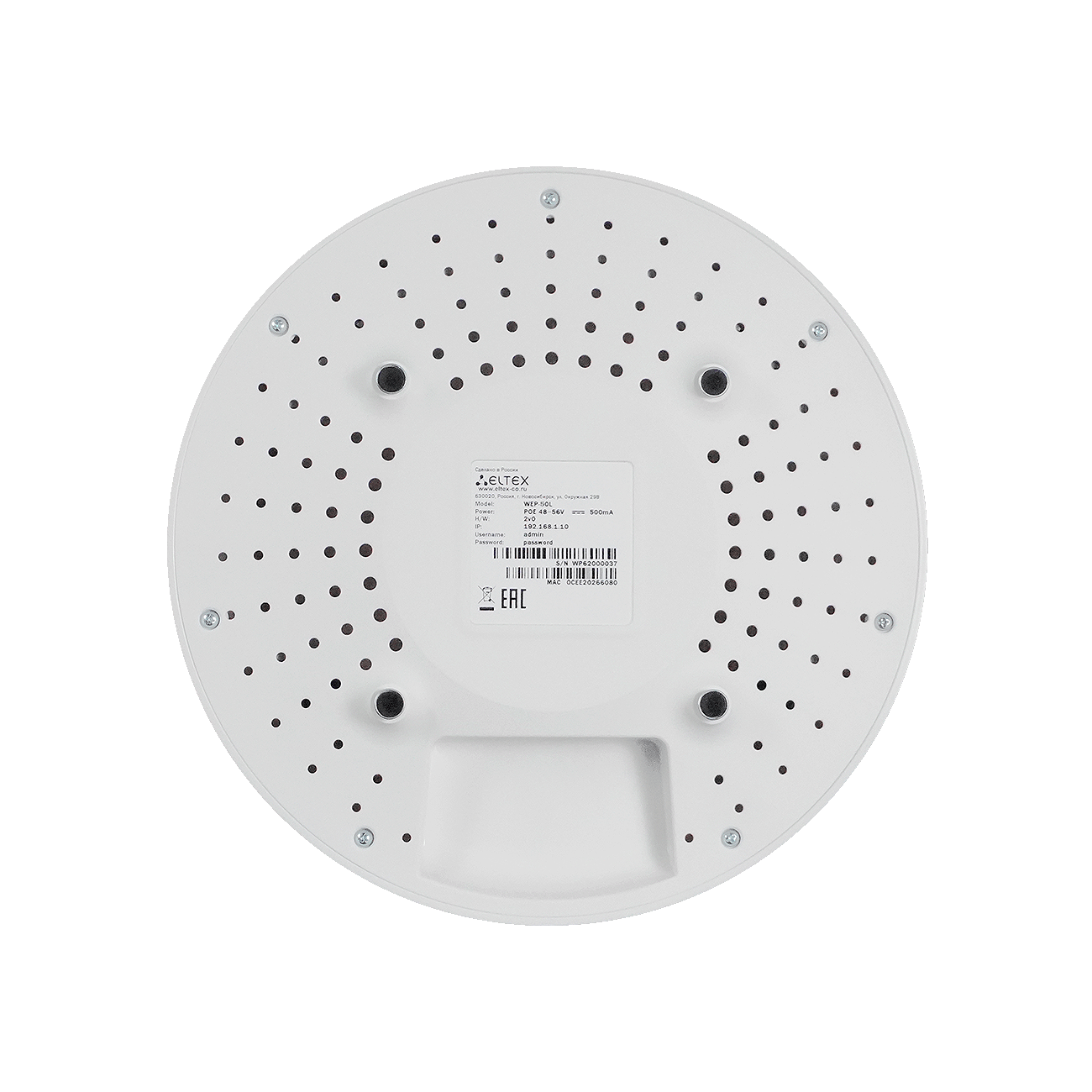

Wireless access point WEP-50L

Wi-Fi 7:
802.11be
MU-MIMO:
2x2
Frequency range:
2.4 GHz, 5 GHz
Roaming:
802.11r/k/v
Power supply:
PoE 48 V/56 V

Description

WEP-50L is a modern Wi-Fi 7 access point for building a reliable and high-performance wireless network in corporate environments. This device provides high data transfer rates, a stable connection, and low latency, helping to quickly deploy Wi-Fi infrastructure for offices, government agencies, hotels, meeting rooms, and other facilities.


Scalability

WEP-50L enables flexible expansion of the wireless network, extending coverage area and increasing the number of connectable devices without complicating the infrastructure. The easy deployment and high efficiency make it a practical solution for expanding enterprise networks.


Wireless connection

With Wi-Fi 7 support, the WEP-50L access point delivers data transfer rates of up to 688 Mbps (2.4 GHz) and up to 2882 Mbps (5 GHz). The MU-MIMO 2×2 support improves network efficiency and ensures stable client device connectivity in everyday enterprise scenarios.


Security

The modern authentication and encryption mechanisms ensure personal data protection and enterprise network security. WEP-50L meets current wireless access security requirements.


Performance

The WEP-50L hardware platform ensures stable operation of the device under daily load, maintaining high-quality wireless connections for office applications, video communications, and cloud services.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
indoor
Roaming:
802.11r/k/v
MU-MIMO:
2x2
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Interfaces:
10/100/1000/2500BASE-T (RJ-45) with PoE
1
10/100/1000BASE-T (RJ-45)
1
Wi-Fi 2.4 GHz
802.11b/g/n/ax/be
Wi-Fi 5 GHz
802.11a/n/ac/ax/be
WLAN capabilities:
Standards support
IEEE 802.11a/b/g/n/ac/ax/be
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU (Tx/Rx) and А-MSDU (Rx)
Yes
WMM-based packet priorities and planning
Yes
Dynamic frequency selection (DFS)
Yes
Virtual access points
14
Third-party access points detection
Yes
Spectrum analyzer
Yes
APSD
Yes
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN
Yes
С-VLAN
Yes
DHCP client
Yes
GRE
Yes
Local switching
Yes
ACL
Yes
NTP
Yes
Syslog
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3/OWE
Captive Portal
Yes
Authorization via RADIUS server when logging
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
Modulations
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Operating channels:
802.11b/g/n/ax/be
1–13 (2401–2483 MHz)
802.11a/n/ac/ax/be
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
Data rate:
2.4 GHz, 802.11be
688 Mbps
5 GHz, 802.11be
2882 Mbps
Maximum power of the transmitter
2.4 GHz: 20 dBm
5 GHz: 24 dBm
Built-in antenna gain
2.4 GHz: ~4 dBi
5 GHz: ~6 dBi
Receiver sensitivity
2.4 GHz: up to -94 dBm
5 GHz: up to -95 dBm
Maximum number of concurrent connections
119
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
SNMP
Yes
Physical specifications:
Power consumption
No more than 17 W
SPI-NAND Flash
128 MB
DDR3 RAM
512 MB
Power supply
PoE+ 48 V/56 V (IEEE 802.3at-2009)
Operating temperature
From +5 to +40°C
Bracing
Armstrong, threaded rod, ceiling/wall mount
Dimensions (DxH)
238x56.5 mm
Weight
0.6 kg
VESA size
100x100
