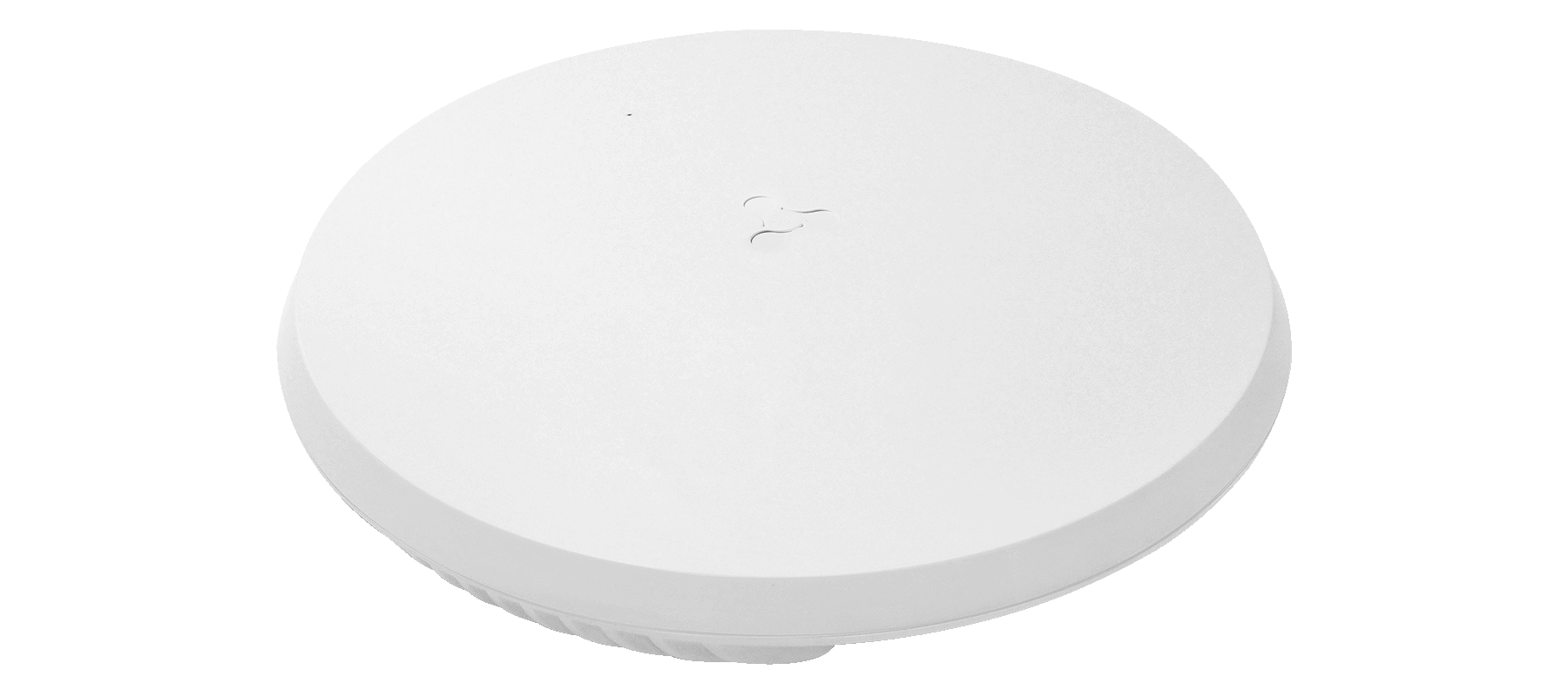

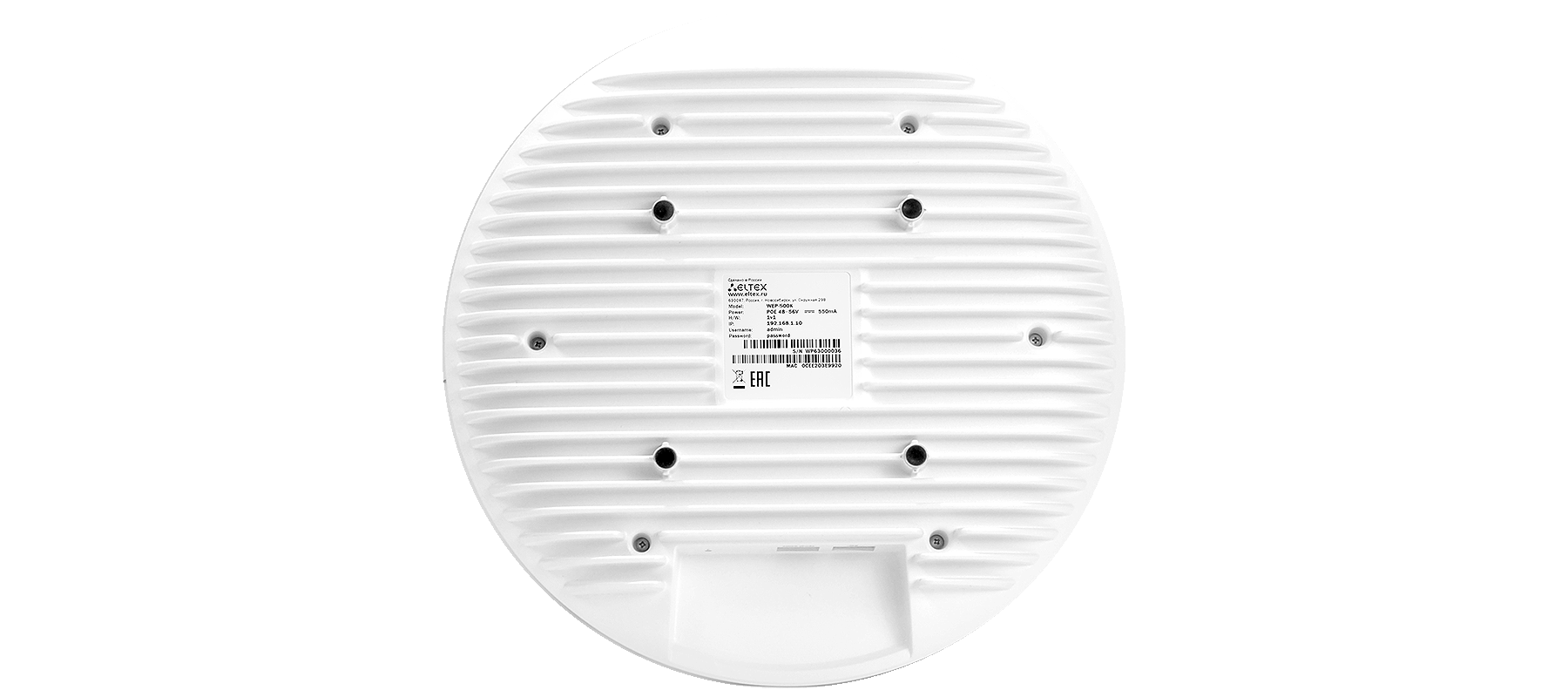

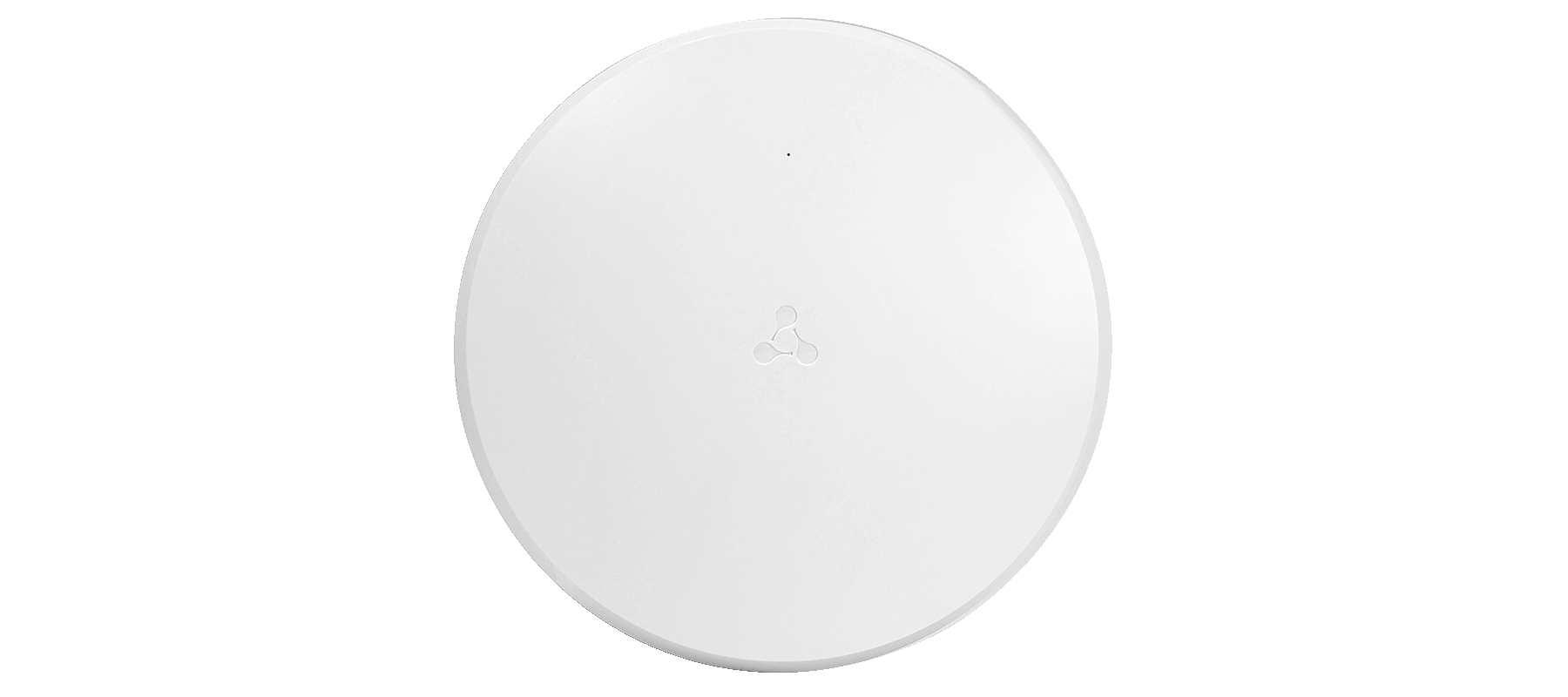

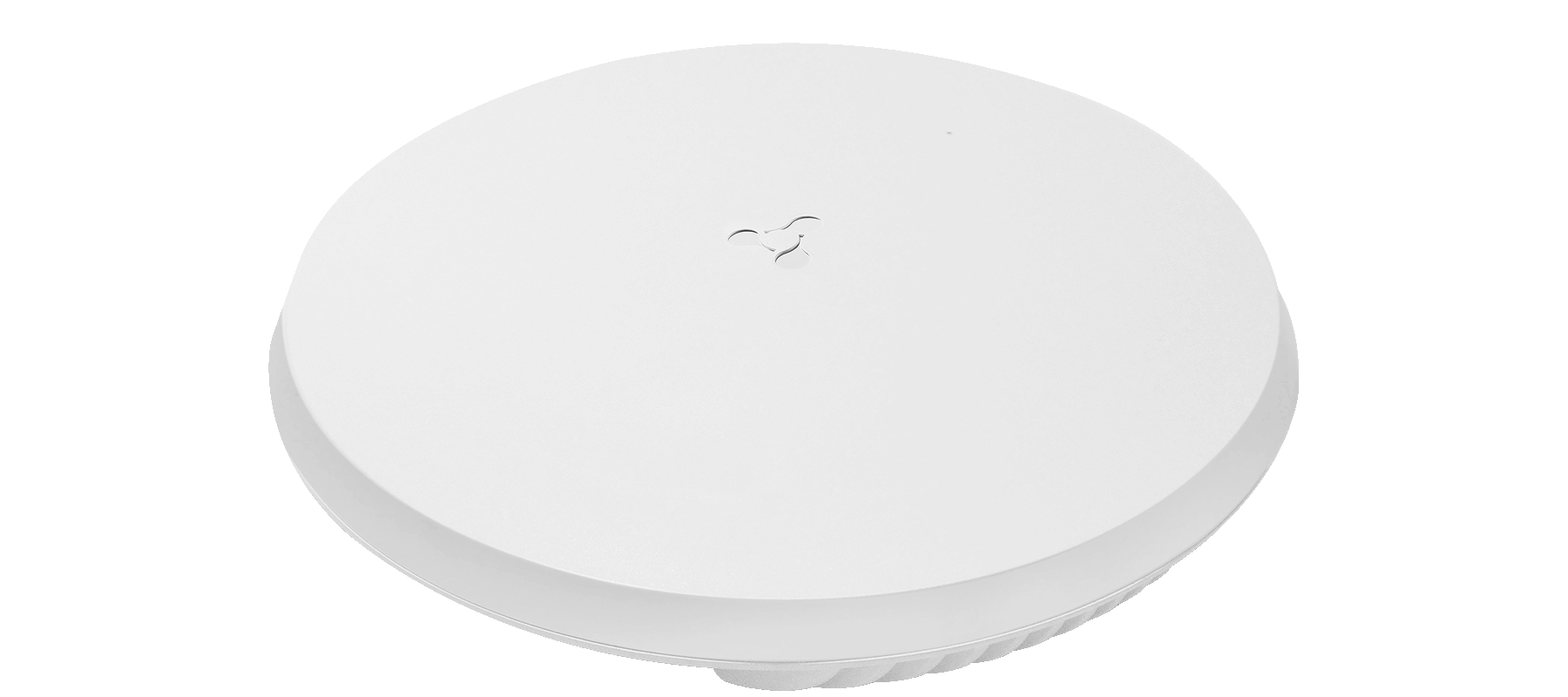

Wireless access point WEP-500K

Wi-Fi 7:
802.11be
MU-MIMO:
2x2, 3x3
Frequency range:
2.4 GHz, 5 GHz, 6 GHz
Roaming:
802.11r/k/v
Power supply:
PoE+ 48 V/56 V

Description

Solution for enterprise

WEP-500K is a tri-band Wi-Fi 7 access point for enterprise networks with a large number of connections. Operating in the 2.4, 5, and 6 GHz bands distributes clients across channels and reduces interference, helping maintain stable speeds even when dozens of devices access the network simultaneously. Compared to the previous-generation Wi-Fi 6 equipment, the WEP-500K access point significantly increases data rates and operates more reliably in densely connected environments. WEP-500K is suitable for offices, government agencies, hotels, conference rooms, labs, and classrooms.


Scalability

The network based on WEP-500K can be expanded to accommodate a growing number of users without overhauling the infrastructure. With channel widths up to 320 MHz, 4096-QAM modulation, and MU-MIMO (2×2 in the 2.4 GHz band, 3×3 in the 5 GHz and 6 GHz bands), it is capable of serving many clients simultaneously. Connecting access points to a hardware (WLC) or virtual (vWLC) controller unifies them into a managed network with centralized configuration and seamless roaming between access points.


Wireless connection

The support for IEEE 802.11be standard provides data rate of up to 688 Mbps in the 2.4 GHz band, 4324 Mbps in the 5 GHz band, and 8647 Mbps in the 6 GHz band with low latency. The Multi-Link Operation (MLO) technology combines multiple frequency bands into a single connection, increasing both total throughput and link reliability. The built-in omnidirectional antennas, along with OFDMA support, ensure uniform coverage and simultaneous service for clients in different directions.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Placement:
Indoor
Wi-Fi 7:
802.11a/b/g/n/ac/ax/be
Roaming:
802.11r/k/v
Encryption:
WPA/WPA2/WPA3/OWE
MU-MIMO:
2x2 for 2.4 GHz
MU-MIMO:
3x3 for 5 GHz, 6 GHz
Multi-Link Operation (MLO)
OFDMA
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet

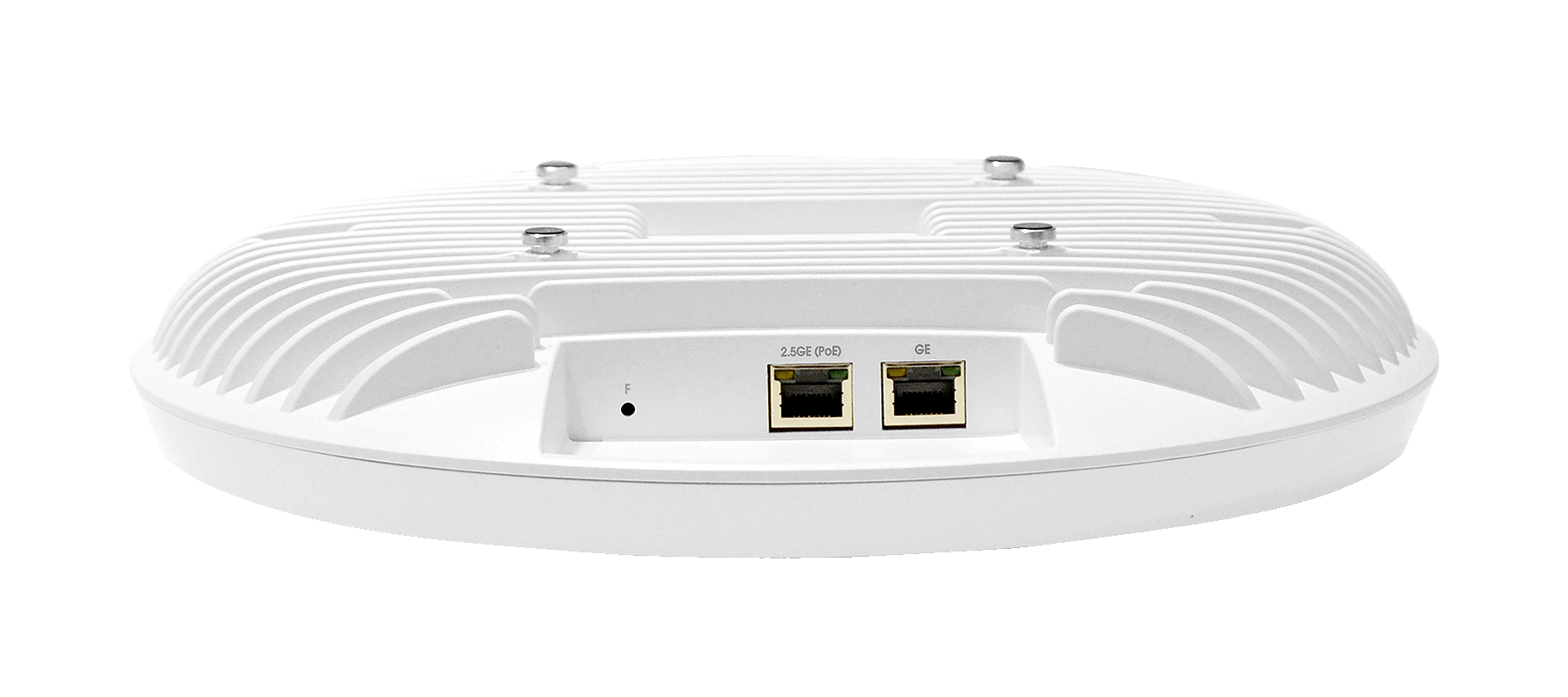

Interfaces:
10/100/1000/2500BASE-T (RJ-45) with PoE
1
10/100/1000BASE-T (RJ-45)
1
Wi-Fi 2.4 GHz
802.11b/g/n/ax/be
Wi-Fi 5 GHz
802.11a/n/ac/ax/be
Wi-Fi 6 GHz
IEEE 802.11ax/be
WLAN capabilities:
Standards support
IEEE 802.11a/b/g/n/ac/ax/be
Support for roaming
IEEE 802.11r/k/v
Data aggregation, including A-MPDU and A-MSDU
Yes
WMM-based packet priorities and planning
Yes
Dynamic frequency selection (DFS)
Yes
Support for hidden SSID
Yes
Auto channel selection
Yes
Virtual access points
48
Network features:
Automatic speed negotiation, duplex mode negotiation and MDI-MDI-X switch-over
Yes
VLAN
Yes
С-VLAN
Yes
DHCP client
Yes
GRE
Yes
Local switching
Yes
NTP
Yes
Syslog
Yes
LLDP
Yes
Security:
Centralized authorization
RADIUS server (802.1X WPA/WPA2/WPA3 Enterprise)
Encryption
WPA/WPA2/WPA3/OWE
Support for external portal authentication
Yes
Wireless interface specifications:
Frequency range
2400–2483.5 MHz
5150–5350 MHz
5470–5850 MHz
5935–7125 MHz
Modulations
BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
MU-MIMO
2x2 for 2.4 GHz
3x3 for 5 and 6 GHz
Multi-Link Operation (MLO)
Yes
OFDMA
Yes
Bandwidth:
20, 40 MHz for 2.4 GHz
20, 40, 80, 160 MHz for 5 GHz
20, 40, 80, 160, 320 MHz for 6 GHz
Operating channels:
802.11b/g/n/ax/be
1–13 (2401–2483 MHz)
802.11a/n/ac/ax/be
36–64 (5170–5330 MHz)
100–144 (5490–5730 MHz)
149–165 (5735–5835 MHz)
802.11ax/be
1–233 (5935–7125 MHz)
Data rate:
2.4 GHz, 802.11be
688 Mbps
5 GHz, 802.11be
4324 Mbps
6 GHz, 802.11be
8647 Mbps
Maximum power of the transmitter:
2.4 GHz
21 dBm
5 GHz
21 dBm
6 GHz
21 dBm
Built-in antenna gain:
2.4 GHz
~4 dBi
5 GHz
~6 dBi
6 GHz
~3 dBi
Receiver sensitivity:
2.4 GHz
Up to -95 dBm
5 GHz
Up to -94 dBm
6 GHz
Up to -95 dBm
Maximum number of concurrent connections
1024
Configuration:
Remote management
Telnet, SSH
CLI
Yes
NETCONF
Yes
Web interface
Yes
Physical specifications:
Power supply
PoE+ 48 V/56 V (IEEE 802.3at-2009)
Power consumption
No more than 24.5 W
SPI-NAND Flash
256 MB
DDR4 RAM
1 GB
Operating temperature
From +5 to +40°C
Bracing
Armstrong, threaded rod, ceiling/wall mount
Dimensions (DxH)
280x64.5 mm
Weight
1.8 kg
VESA size
100x100
