IP phone VP-30P-WB

SIP accounts:
6
Display:
color
Additional features:
Extension consoles connectivity, HD Voice
продукт
продукт
продукт
продукт
продукт
продукт
New

Description

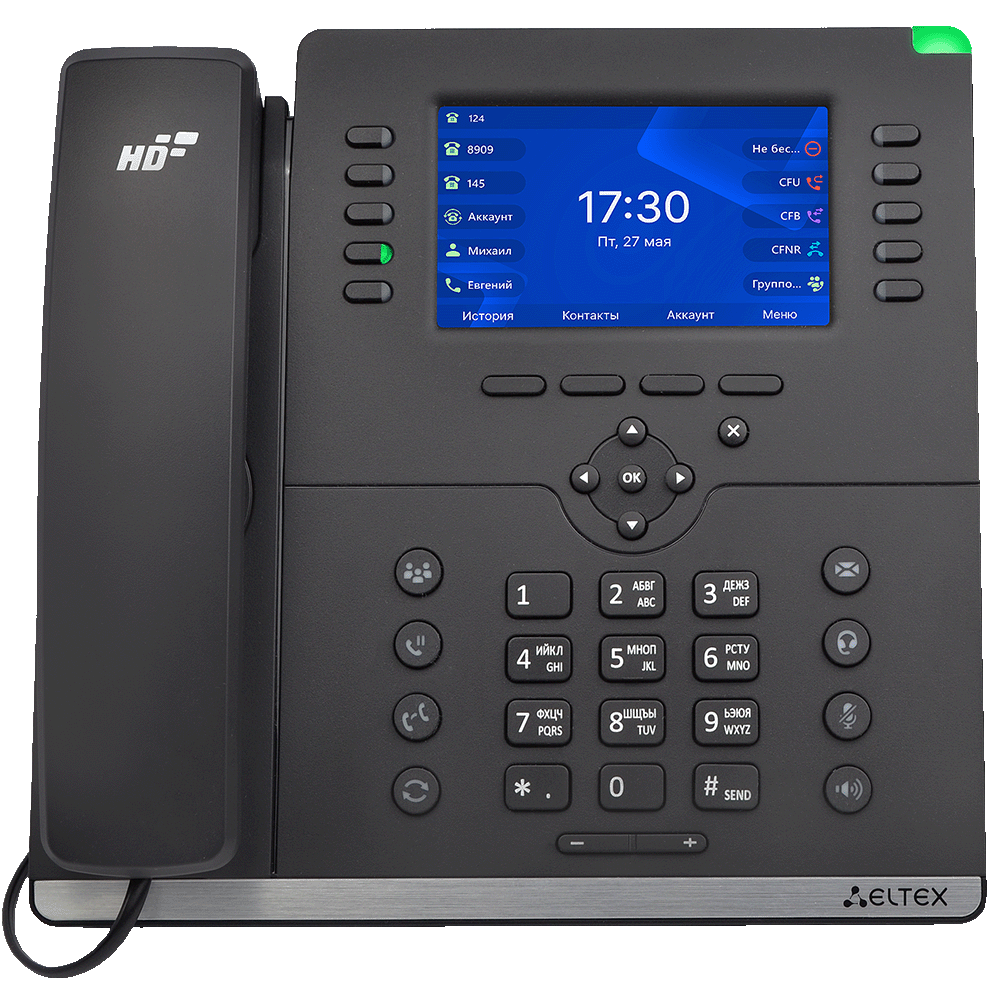

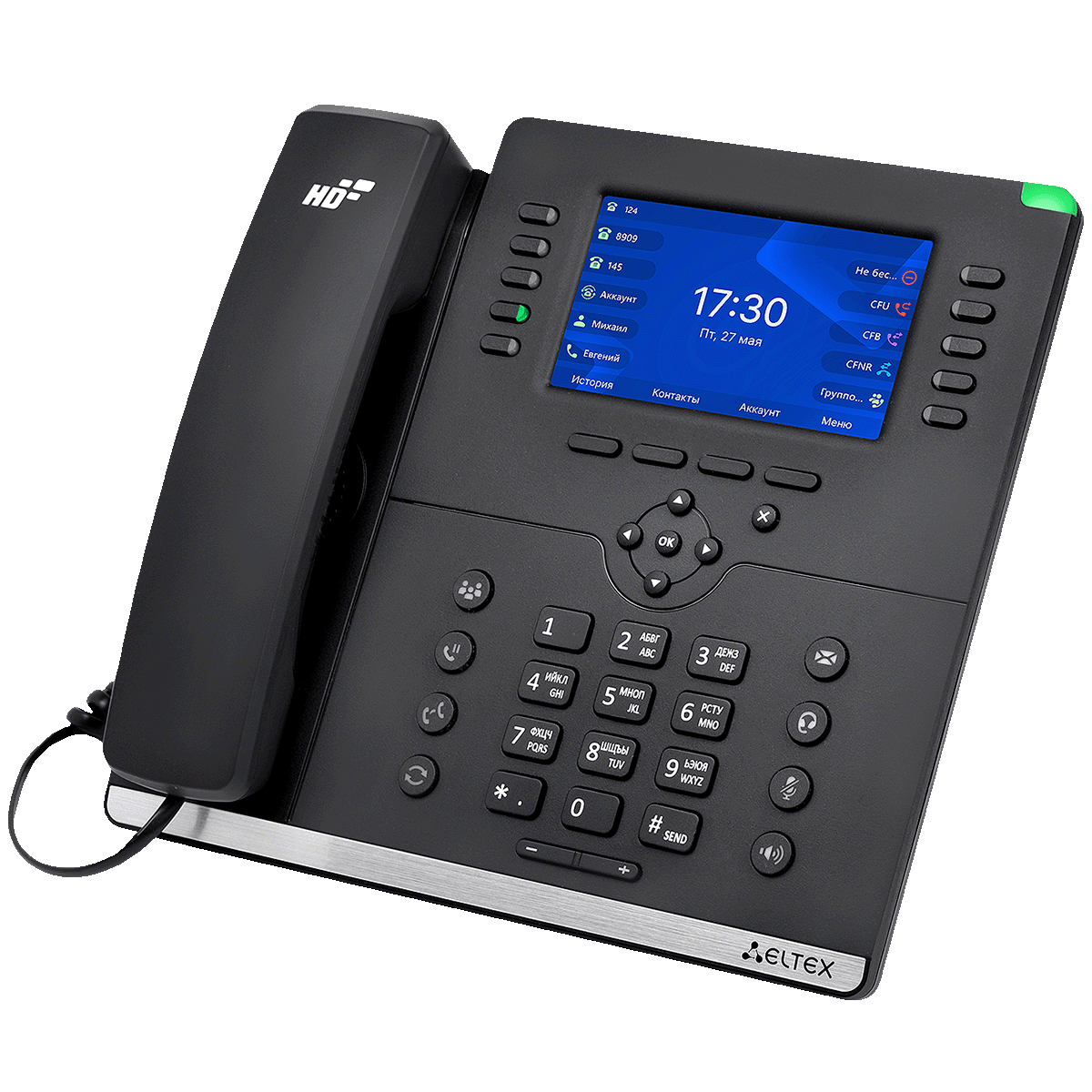

VP-30P-WB is an up-to-date multifunctional IP phone designed for offices. High-resolution color LCD and high-performance hardware provide an intuitive interface and instant system response. The integrated gigabit switch enables connection of user’s PC and IP phone to the same Ethernet switch physical port. The built-in Wi-Fi and Bluetooth module allows connecting the IP phone to a Wi-Fi 802.11ac/a/b/g/n wireless network and using a wireless Bluetooth headset.


Business Solution

VP-30P-WB is designed for companies with high requirements for reliability, usability, and quality of voice data transmission.


High Quality of Sound

The high performance and reliability of VP-30P-WB are provided by the hardware based on advanced chips. Usage of Echo cancellation and Silence Detector, as well as support for all main audio codecs used in VoIP networks (G.711A, G.711U, G.722, G.729, OPUS, iLBC), ensures high quality of voice data when working in both networks with high and limited bandwidth.


Redundancy

In case of the main IP-PBX connection failure, VP-30P-WB is switched automatically to a redundant SIP server with the main server state control.


Usability

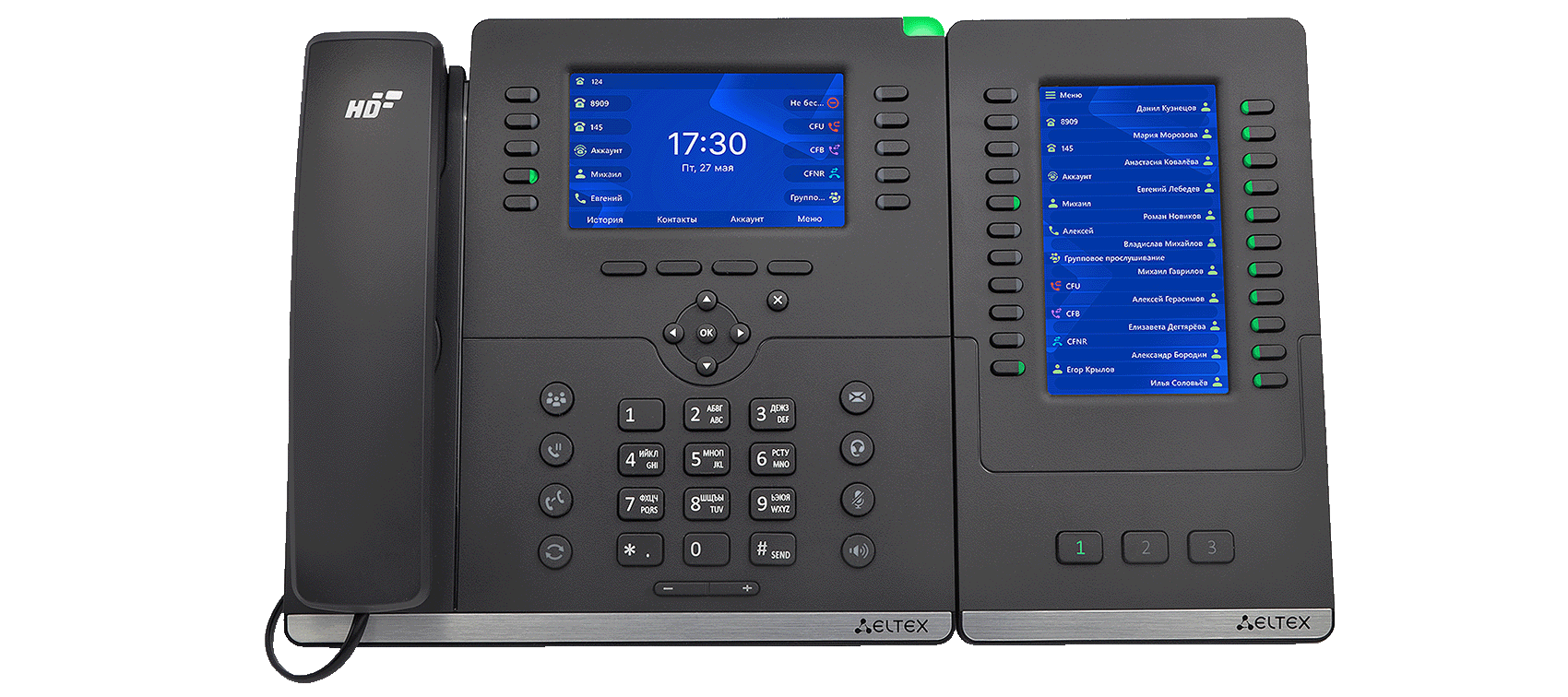

Convenient key location, intuitive menu, and user-friendly web interface provide usability of VP-30P-WB in corporate telephone networks. Support for VP-EXT22 consoles extends the phone capabilities and increases the number of keys, which can be programmed at user’s convenience.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

4.3" color display
Wi-Fi
Bluetooth
Extension consoles connectivity
AutoProvision
AutoProvision (AuP) is a system for automatically configuring IP phones, updating them and monitoring their status
AutoProvision
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
Display, indicators, and keys:
Display
4.3 inch (109 mm)
Resolution
800х480
The backlight
Yes
Two-color programmable keys LED indicators
Yes
Functional keys with LED indications
Message
Headset
Microphone mute
Speakerphone
Functional keys without LED indications
Conference
Call hold
Call transfer
Redial
Volume adjustment
Programmable keys
10
Technical features:
CPU
2 cores of 800 MHz each
DDR3
256 MB
NAND Flash
512 МБ
OS
Linux
Wired interfaces:
RJ-45 10/100/1000 Mbps Ethernet ports
2
RJ-9 (4P4C) for handset connection
1
RJ-9 (4P4C) for headset connection
1
RJ-25 (6P6C) for extension console VP-EXT22 connection
1
PoE+ 802.3at (power class 4)
Yes
USB 2.0 for USB devices
1
Bluetooth
5.0
Physical features:
Power adapter (optional)
Input 100-240V AC
Output 12 V DC, 3 A
Maximum power consumption
17.1 W (without VP-EXT22 extension consoles)
25.5 W (when three VP-EXT22 extension consoles connected)
Operating temperature
From 0 to +40 °С
Relative humidity at 25 °C
Up to 80 %
Desktop implementation
Yes
Dimensions (WxHxD)
228х86х220 mm
Weight
1,057 kg
