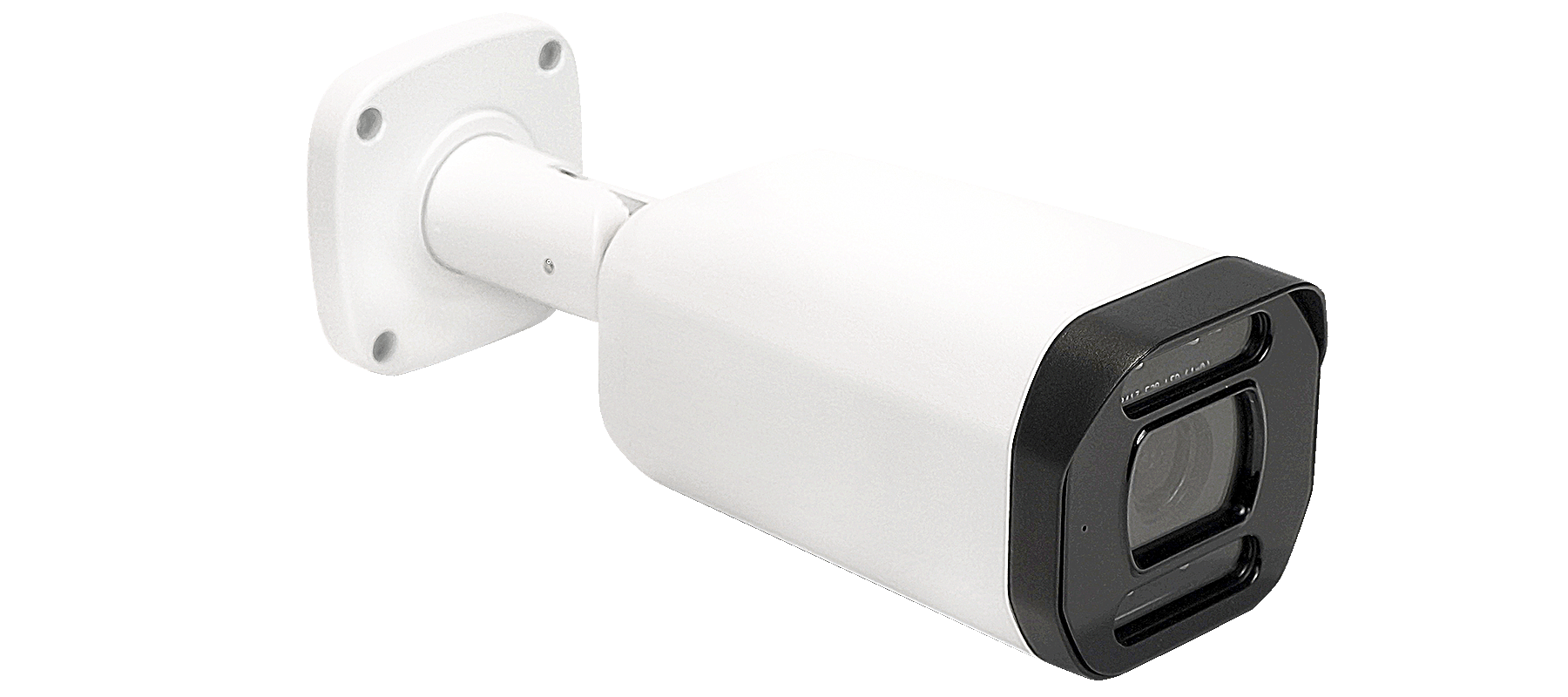

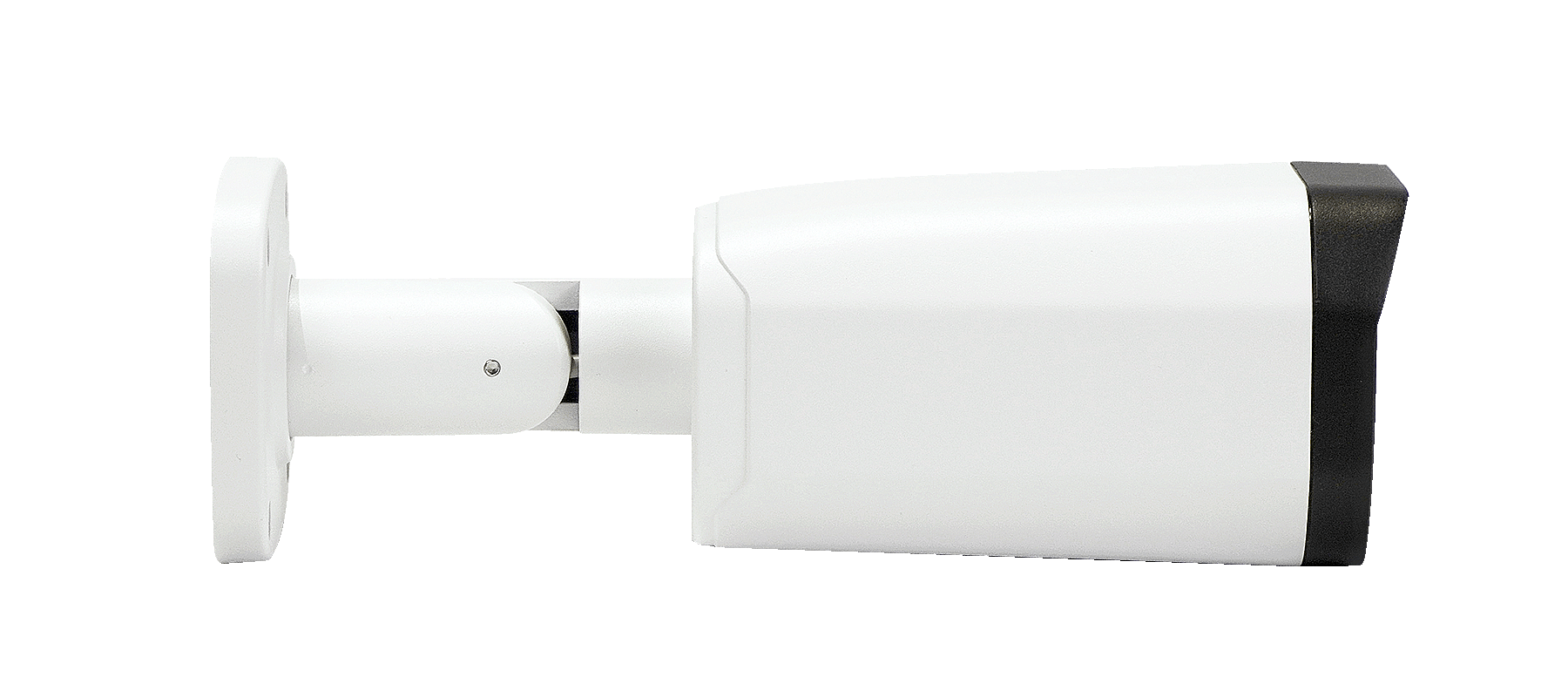

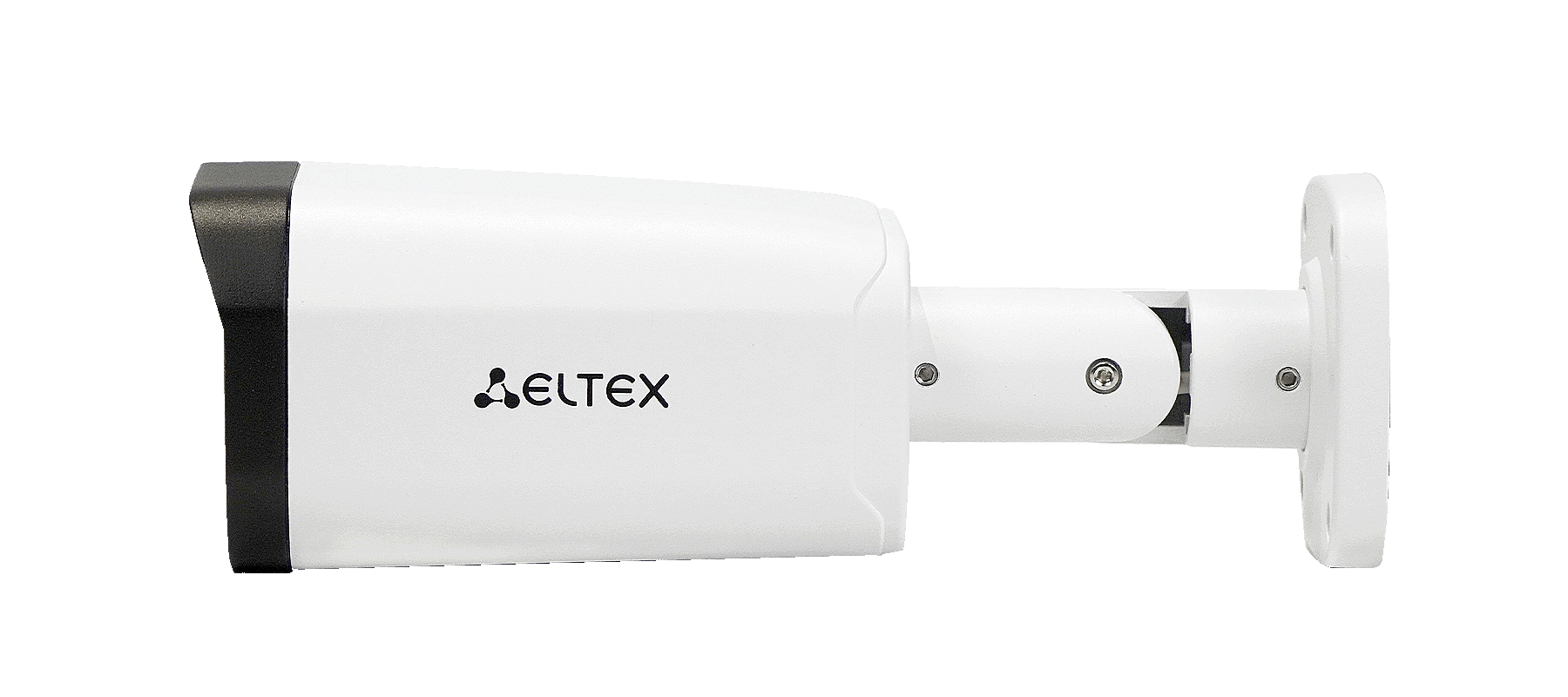

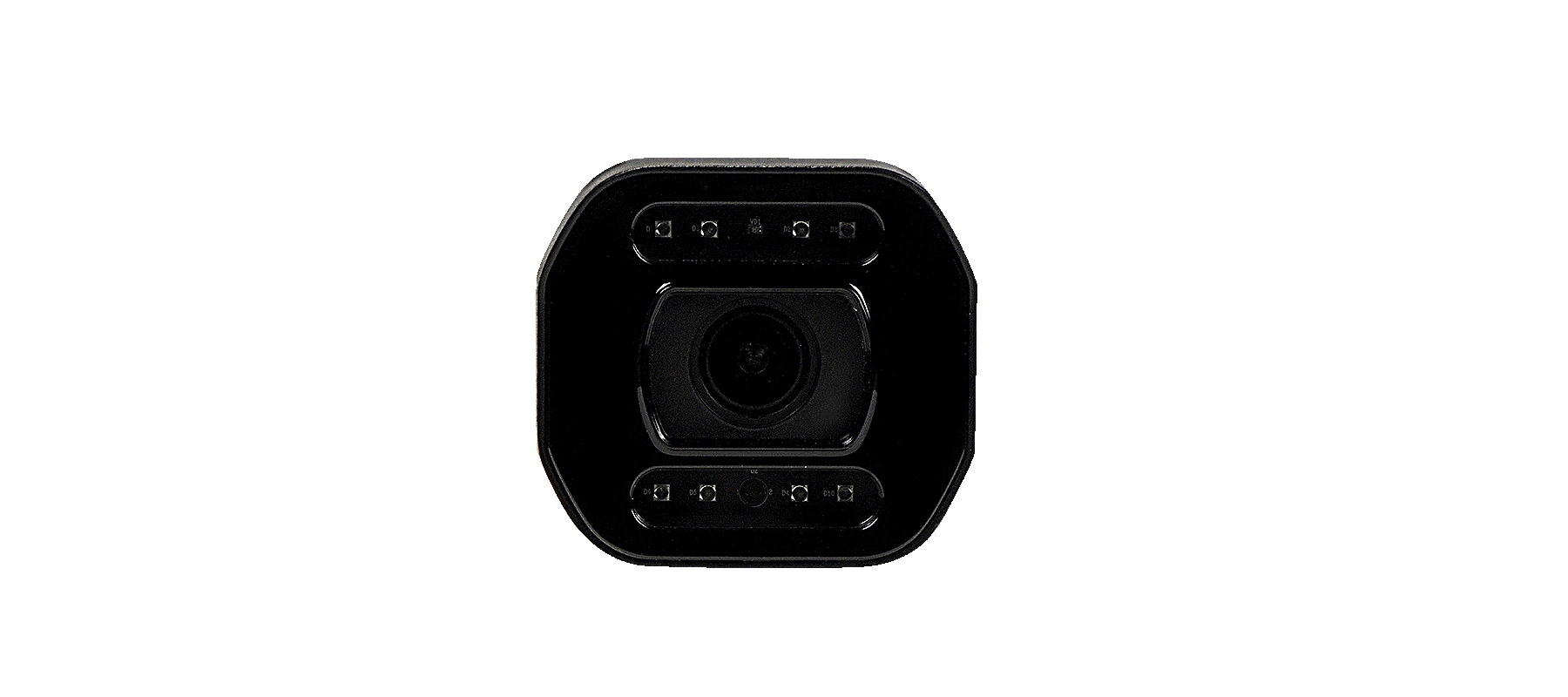

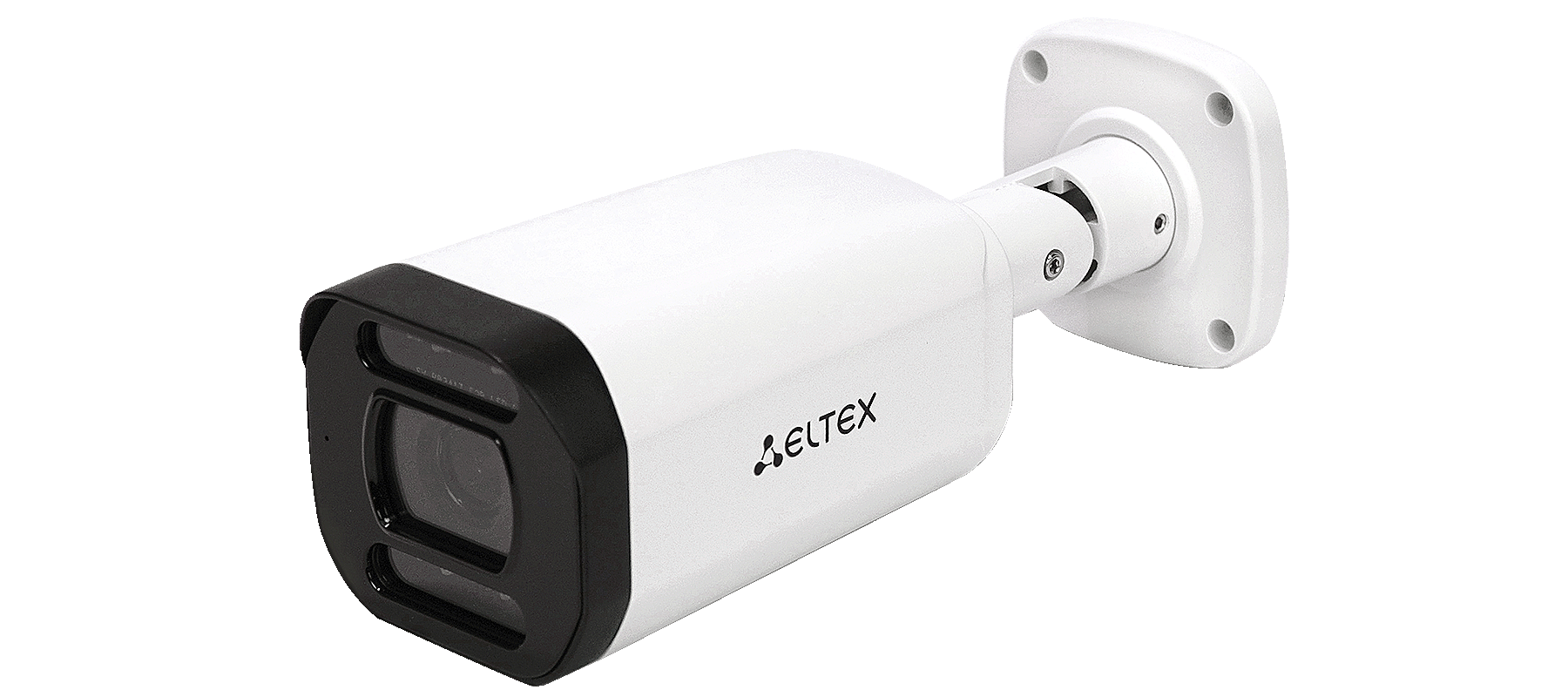

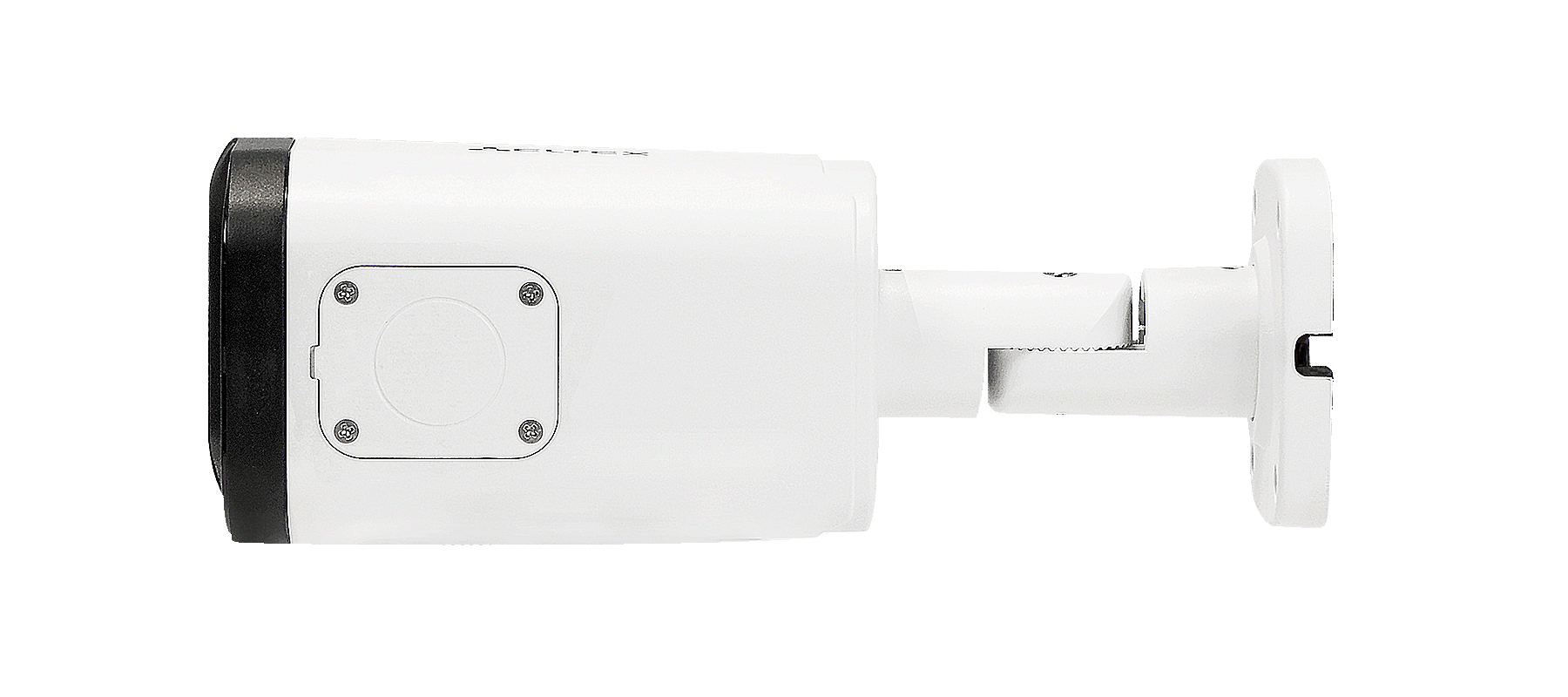

IP camera SV-BB341Z-E2B

Cylindrical 2MP Varifocal IP camera with PoE support

Description

The SV-BB341Z-E2B wired IP camera with a cylindrical design provides a horizontal viewing angle of 108–30° and is equipped with a 2 MP CMOS image sensor for clear video with a resolution of up to 1920×1080. A varifocal lens allows adapting the field of view to a specific location and adjusting the magnification during observation to examine important objects in detail without losing image quality. The device has a night shooting mode (IR illumination), analytics system and the function of saving the video archive to a memory card or network storage. The camera is equipped with an RJ-45 connector that supports major network protocols, as well as an emergency input/output and the ability to connect an external speaker and microphone.

Advanced warranty and support packages

Extend basic package with additional paid services

Learn more

Specifications

Interfaces Ethernet:: 1x10/100BASE-T (RJ-45), support for PoE

Built-in microphone

ONVIF

Interfaces memory card:: 1xMicroSD/SDHC/SDXC up to 512 GB

IR illumination:: Up to 80 m

Configuration via web interface

Ability to connect an external speaker and microphone

Features and capabilities

For full specifications and manuals see Documents and files section below

Data sheet

Interfaces:

Interfaces Ethernet

1x10/100BASE-T (RJ-45) support for PoE

Network:

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL/TLS, QoS, DHCP, DNS, RTP, RTSP, RTMP, NTP, SMB, NFS, TFTP

User/host

Up to 10 users, 2 user levels: administrator and operator

API

ONVIF (Profile S, Profile T), WSS API

Network storage

1xMicroSD/SDHC/SDXC up to 512 GB

Security

Password protection, strong password policy, HTTPS encryption, WS-Username token, WS-Username basic for ONVIF, TLS1.3

Sensor:

Type

1/2.8” progressive scan CMOS

Effective pixels

Lens and illumination:

Focal distance

2.7–13.5 mm

Aperture

F/1.6–3.3

Field of view (horizontal)

108–30°

Field of view (diagonal)

131–35°

Field of view (vertical)

56–17°

Angle adjustment (tilt)

From 0° to 90°

Angle adjustment (rotate)

From 0° to 360°

IR illumination

Yes

IR range

Up to 80 m

Image:


Color

Maximum resolution

1920×1080

Number of independent streams

Maximum frame rate

60 fps

Bit rate

Up to 10 Mbps

Video compression

H.264, H.265

Image quality improvement

DNR 2D/3D, WDR 120 dB, BLC, AE, AWB, HLC, ANTI-FLICKER, DEFOG

Signal-to-noise ratio

No less than 50 dB

Luminous sensitivity

Color: 0.05 lx, bw: 0 lx with IR

Night vision

Yes

Audio:

Built-in microphone

Yes

Audio input/output

1 input/1 output

Alarm interface

1 input/1 output (12 V, 0.3 А)

Audio compression

PPCM, AAC, G.711U (PCMU) , G.711A (PCMA)

Voice pickup distance

Syllable intelligibility: up to 5 meters for the built-in microphone up to 10 meters for an external microphone

Physical specifications:

Power supply

12 V DC, PoE 802.3at Class 4, max. 15 W

RAM

256 MB

ROM

128 MB

Casing

Metal

Form factor

Cylindrical camera

Mount options

Indoor and outdoor

Dimensions (WxHxD)

90x85x250 mm

Weight

0,78 kg

Operating temperature

From -40 to +60 °C

Operating humidity

No more than 90 % (non-condensing)

Ingress protection

IP67

Lightning protection¹

TVS 6000 V (protection against impulse and transient overvoltages)

¹ The protection works only if the device is properly connected to a protective earth (PE). Failure to follow the installation instructions and lack of grounding significantly reduce the effectiveness of the protection and may cause the device to fail during a lightning strike.

Analytics and protocols:

Motion detection

Yes

Line crossing

Yes

Perimeter intersection

Yes

Human face recognition

Yes

Human silhouette recognition

Yes

Sound detection
