IP camera SV-BB331-E2B
- Dome anti-vandal IP camera with PoE support
Description

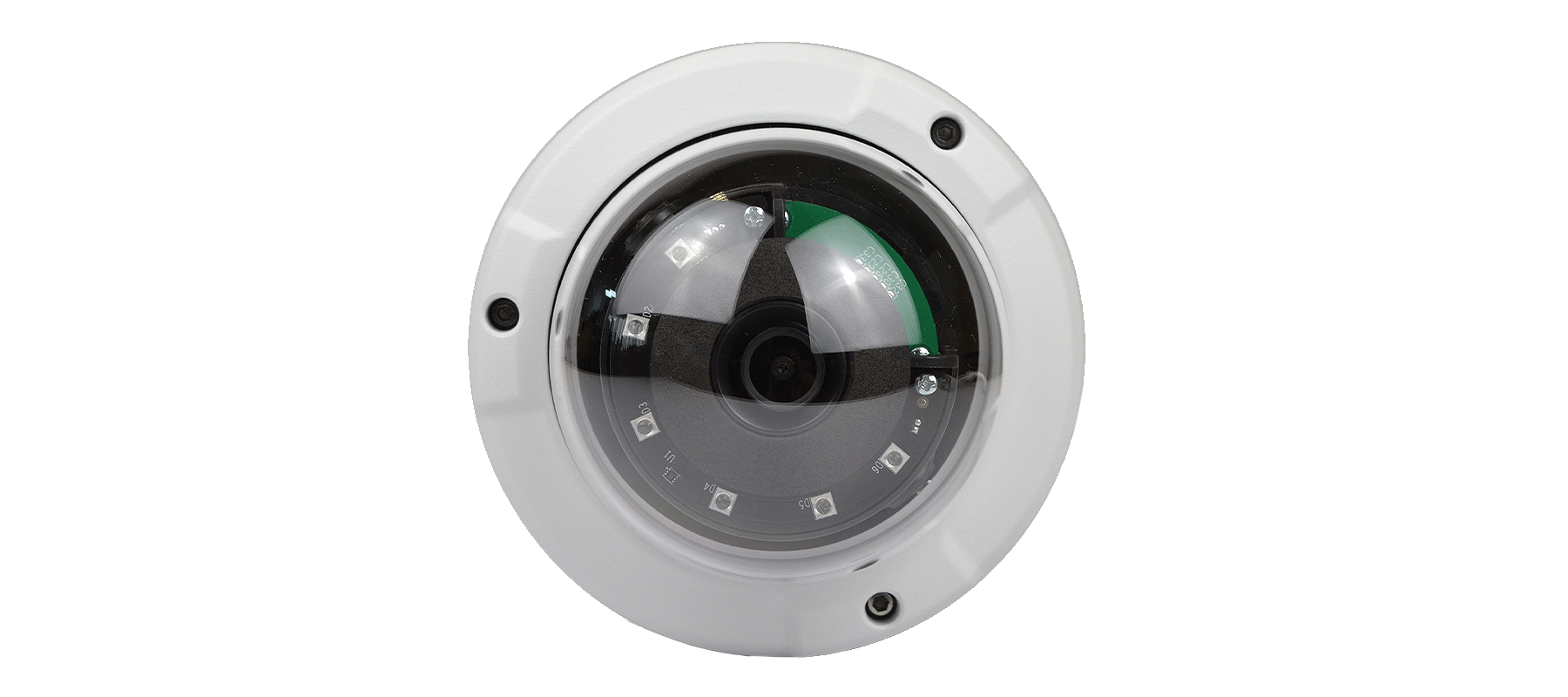

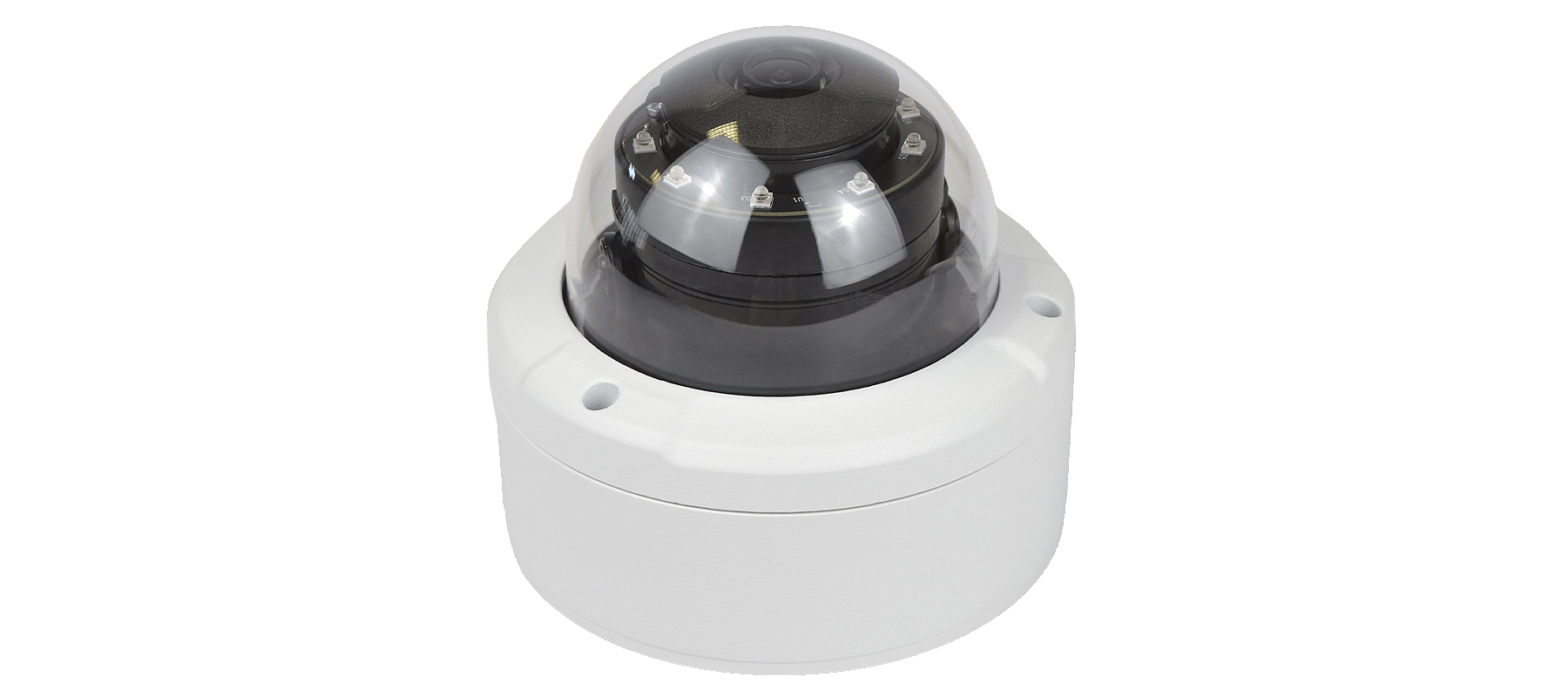

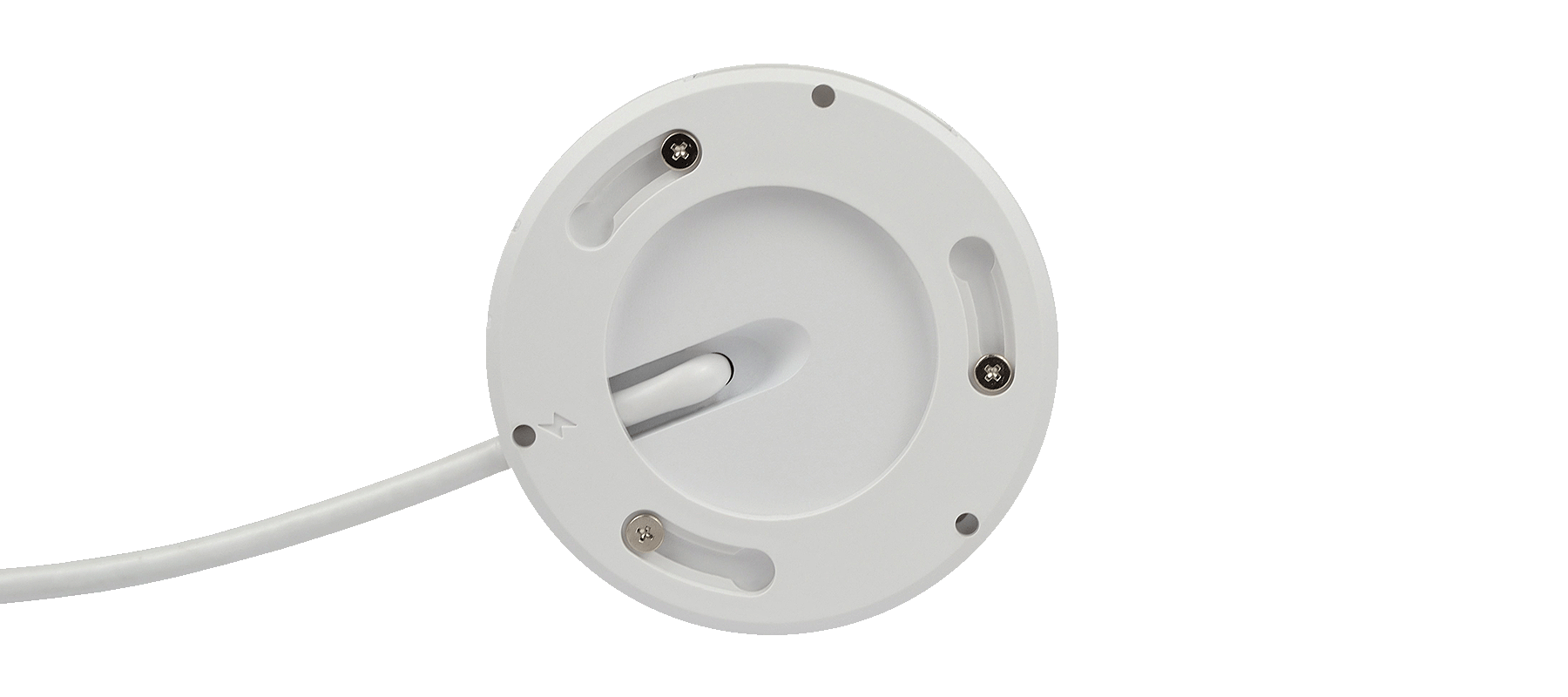

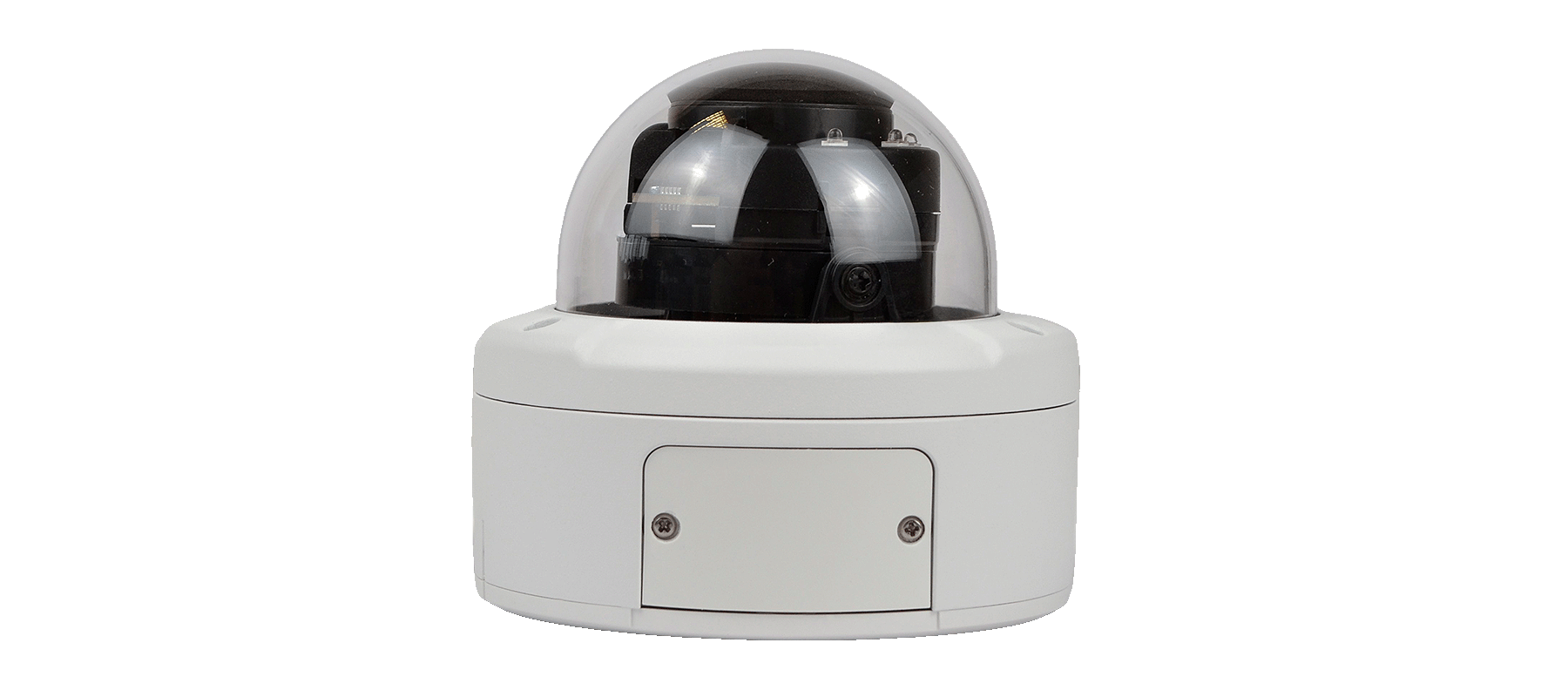

The SV-BB331-E2B wired IP camera in a vandal-resistant dome housing provides a horizontal viewing angle of 108° and is equipped with a 2 MP CMOS image sensor for clear video with a resolution of up to 1920 × 1080. The device has a night shooting mode (IR illumination), video analytics system, and the function of saving the video archive to a memory card or network storage¹.
The camera is equipped with an RJ-45 connector with support for basic network protocols, as well as alarm I/O and audio I/O for external speaker and microphone connectivity.
¹ Under development.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces Ethernet:
- 1x10/100BASE-T (RJ-45) with support for PoE
- True WDR 120 dB
- Impact rating:
- IK10
- Sensor:
- 1/2,8”, 2 M
- Built-in microphone
- Interfaces memory card:
- 1xMicroSD/SDHC/SDXC up to 512 GB
- IR range:
- Up to 40 m
- Web interface for configuration
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Ethernet
1x10/100BASE-T (RJ-45) with support for PoE
Memory card
1xMicroSD/SDHC/SDXC up to 512 GB
Network:
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL/TLS, QoS, DHCP, DNS, RTP, RTSP, RTMP,
NTP, SMB, NFS, TFTP
API
ONVIF (Profile S, Profile T), WSS API
Security
Password protection, strong password policy, HTTPS encryption, WS-Username token, WS-Username basic for ONVIF, TLS1.3
User/host
Up to 10 users, 2 user access levels: administrator and operator
ОS
Linux SDK
Sensor:
Type
1/2.8” progressive scan CMOS
Effective pixels
2M
Lens and illumination:
Focal distance
2.8 mm
Aperture
F/2.0
Field of view (horizontal)
108°
Field of view (diagonal)
128°
Field of view (vertical)
58°
Angle adjustment (tilt)
From 0° to 90°
Angle adjustment (rotate)
From 0° to 360°
IR illumination
Yes
IR range
Up to 40 m
Image:
Color
Maximum resolution
1920x1080
Maximum frame rate
Main stream: 5–60 fps (without WDR),
5–30 fps (with WDR); resolution: 1920x1080, 1280x720
Sub stream: 5–25 fps; resolution: 1920x1080, 1280x720, 960x540, 640x360
Bit rate
512 Kbps to 10 Mbps
Video compression
H.264, H.265
Image enhancement
DNR 2D/3D, WDR 120 dB, BLC, AE, AWB, HLC, ANTI-FLIKER, DEFOG
Signal-to-noise ratio
No less than 50 dB
Luminous sensitivity
Color: 0,005 lx
Bw: 0 lx with IR
Audio:
Built-in microphone
Yes
Audio input/output
1 input/1 output
Alarm input/output
1 input/1 output (12 V, 0.3 A)
Audio compression
PCM, G.711A (PCMA), G.711U (PCMU), AAC, MP2, MP3
Voice pickup distance
Syllabic legibility: up to 5 m for built-in microphone, up to 10 m for external microphone
Physical specifications:
Power
12 V DC, PoE 802.3af
RAM
256 MB
ROM
128 MB
Casing
Metal, plastic
Form factor
Dome
Mount options
Outdoor and indoor
Dimensions (DxH)
100x100 mm
Operating temperature
From -40 to +60 °C
Operating humidity
No more than 90 % (non-condensing)
Ingress protection
IP67
Impact rating
IK10
