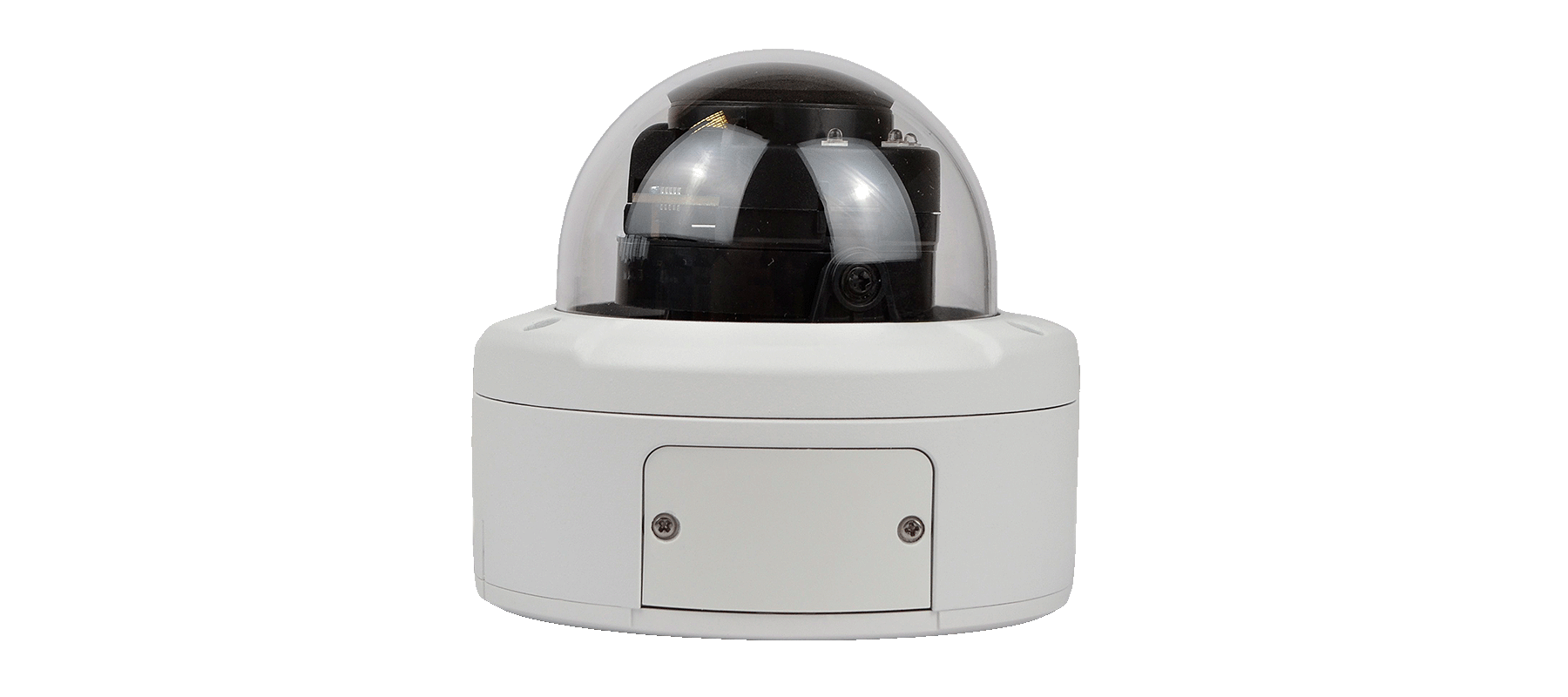

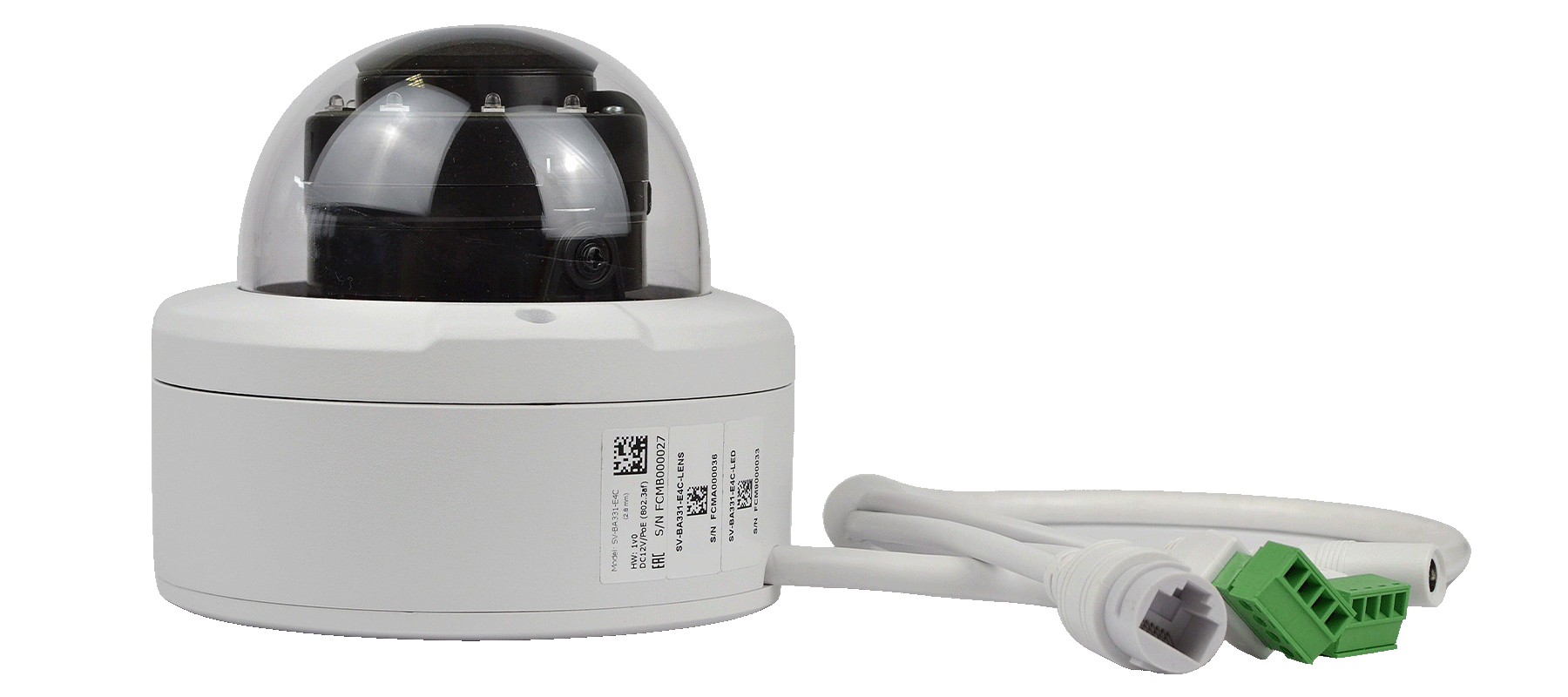

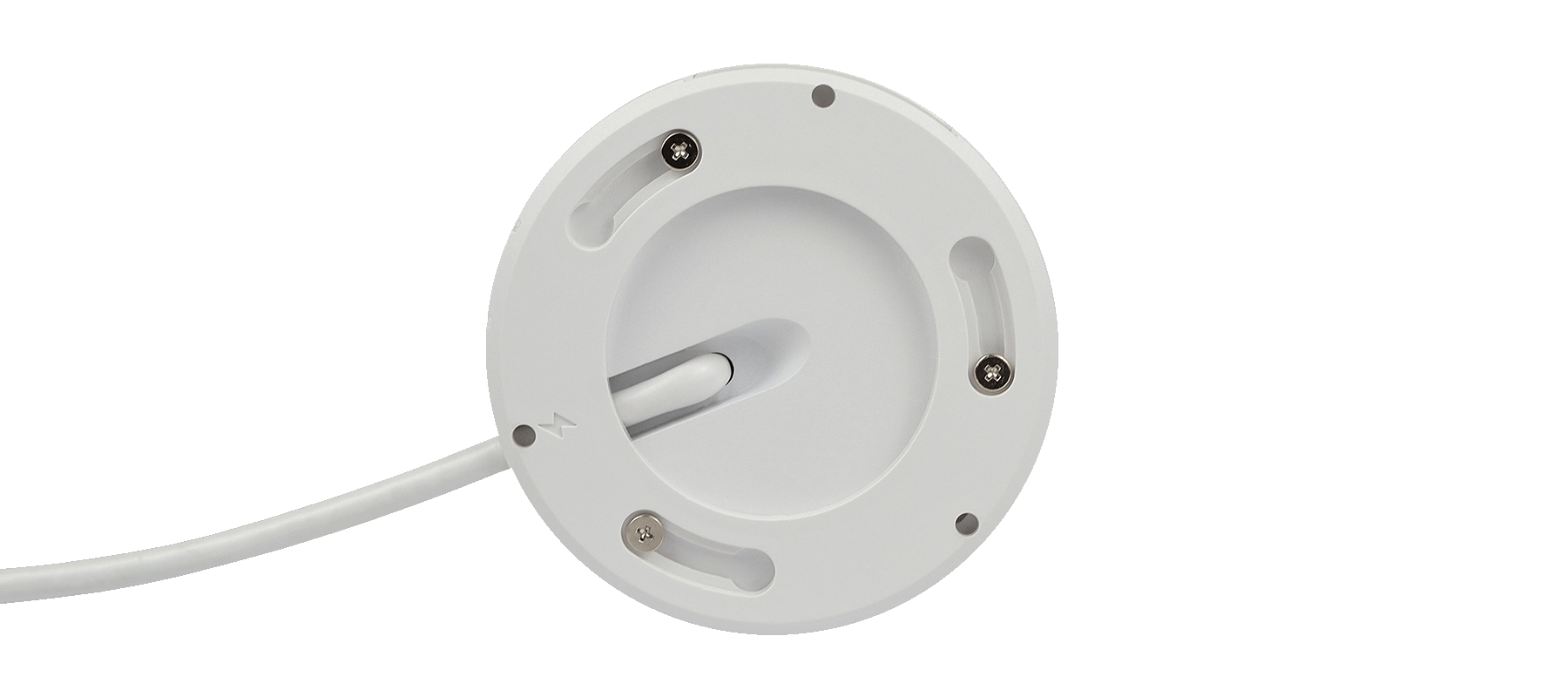

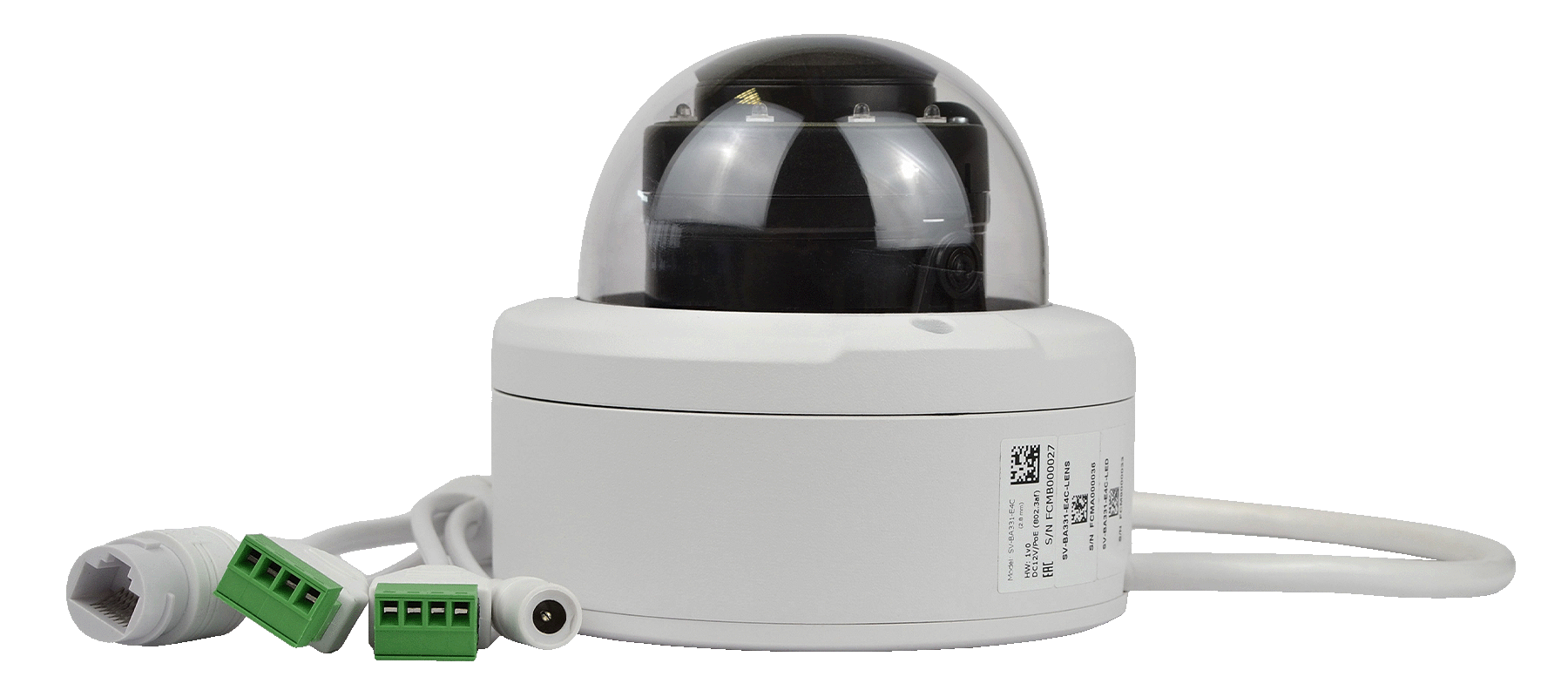

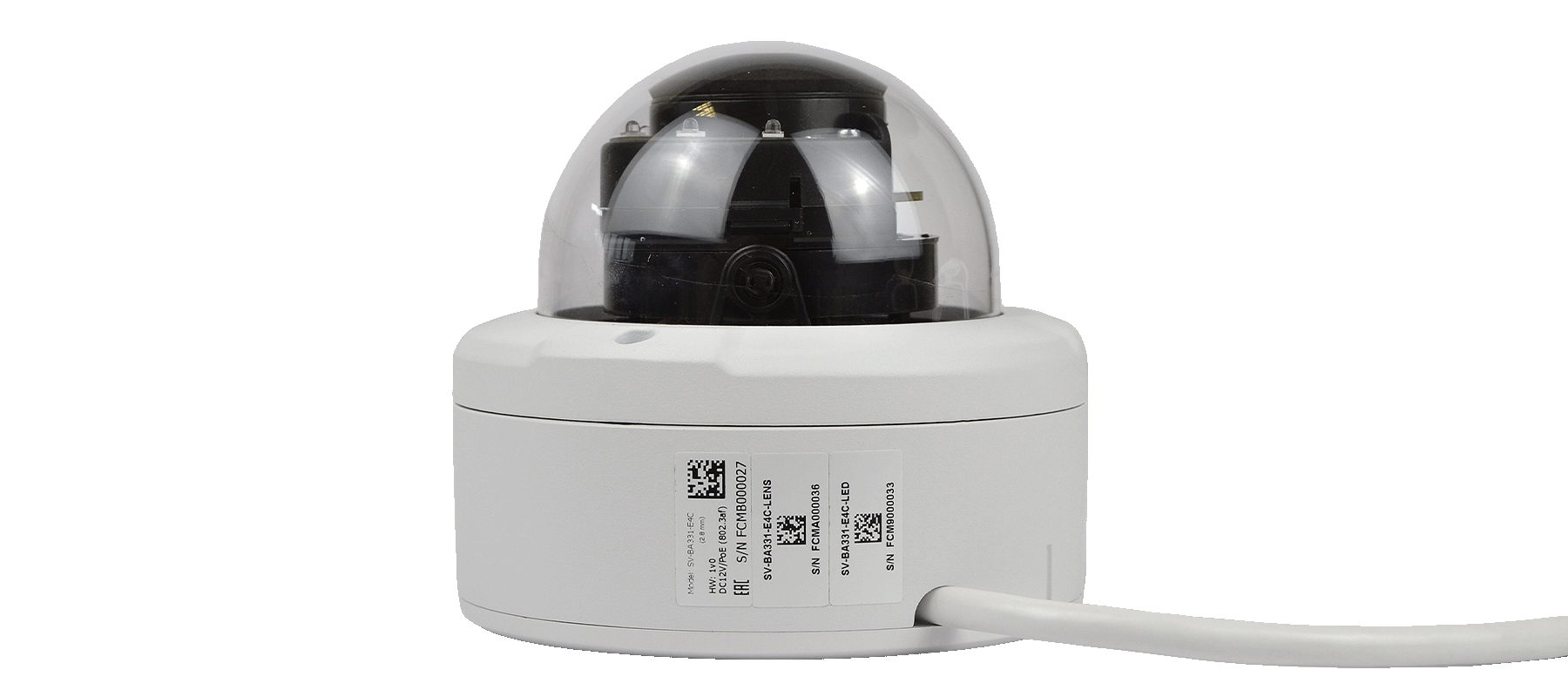

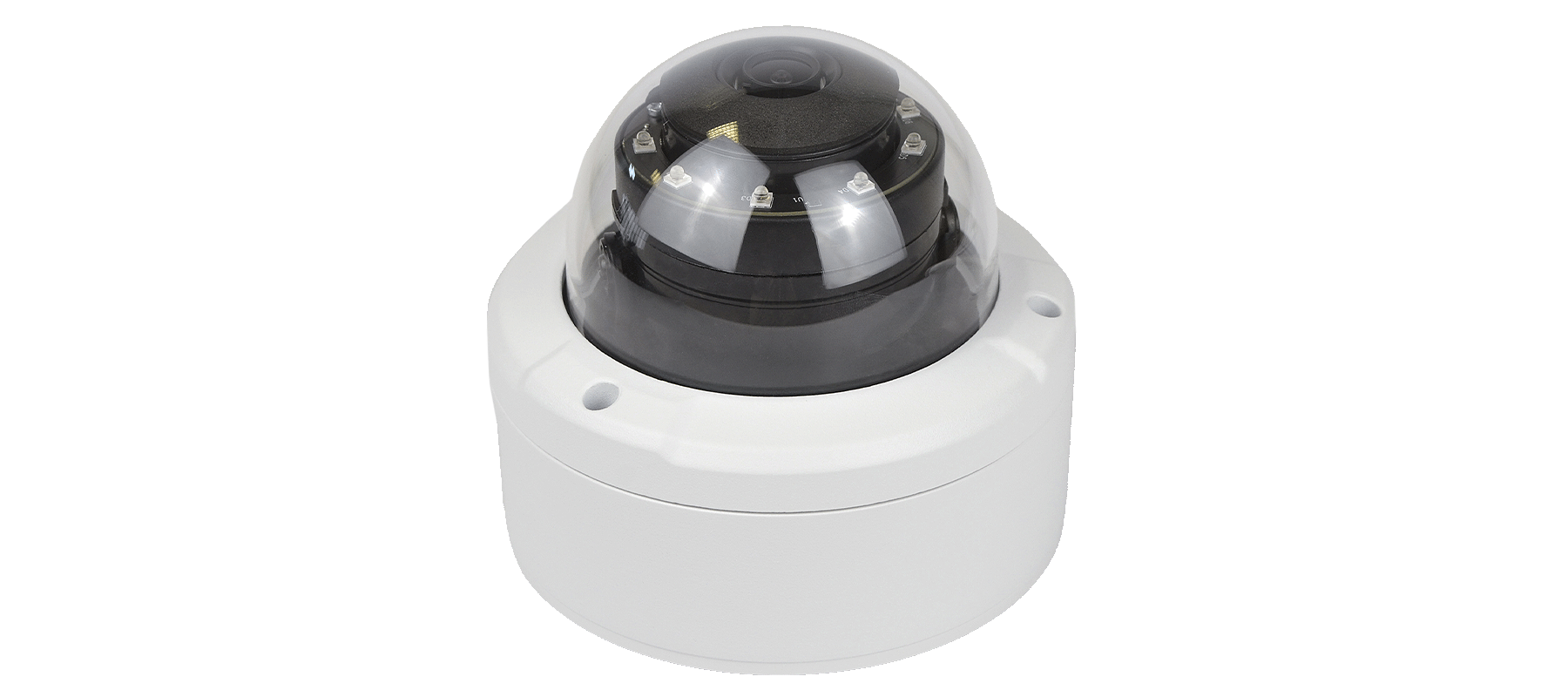

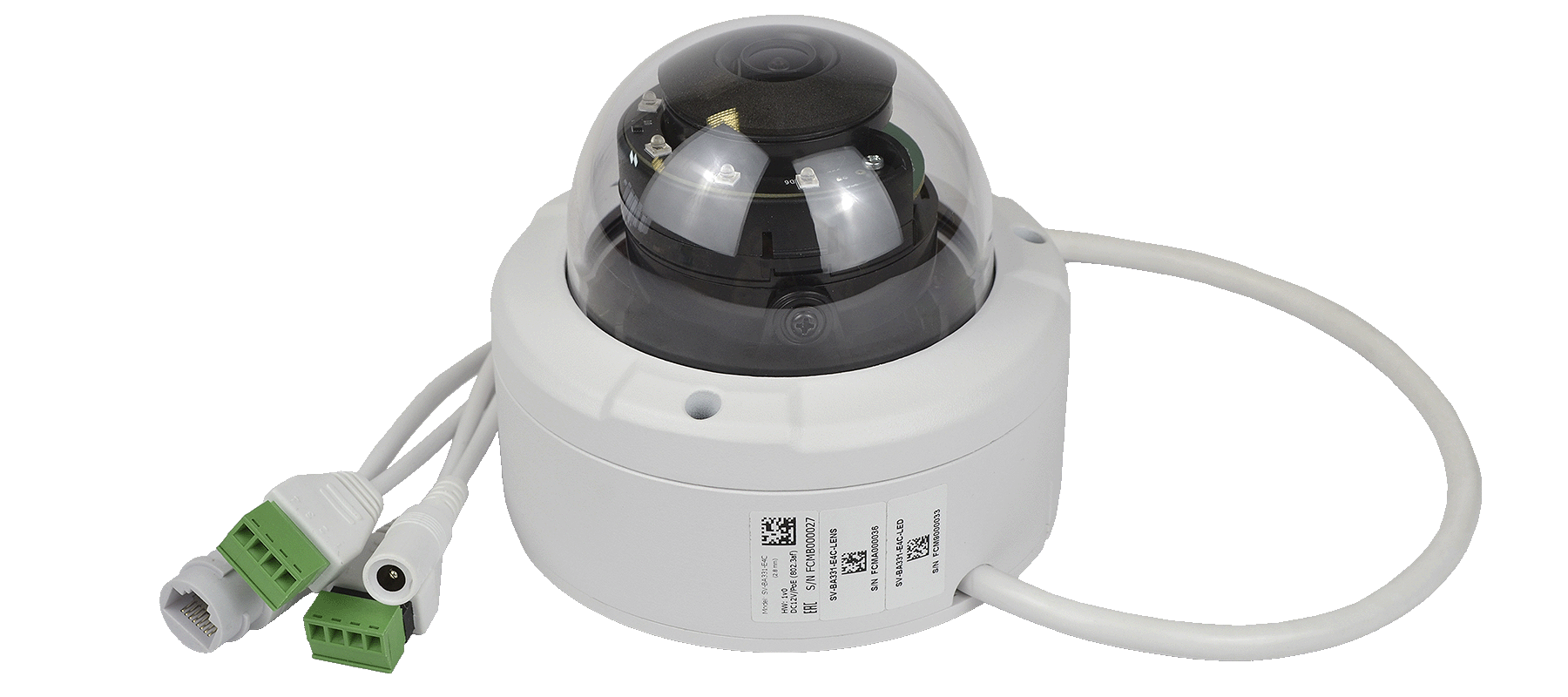

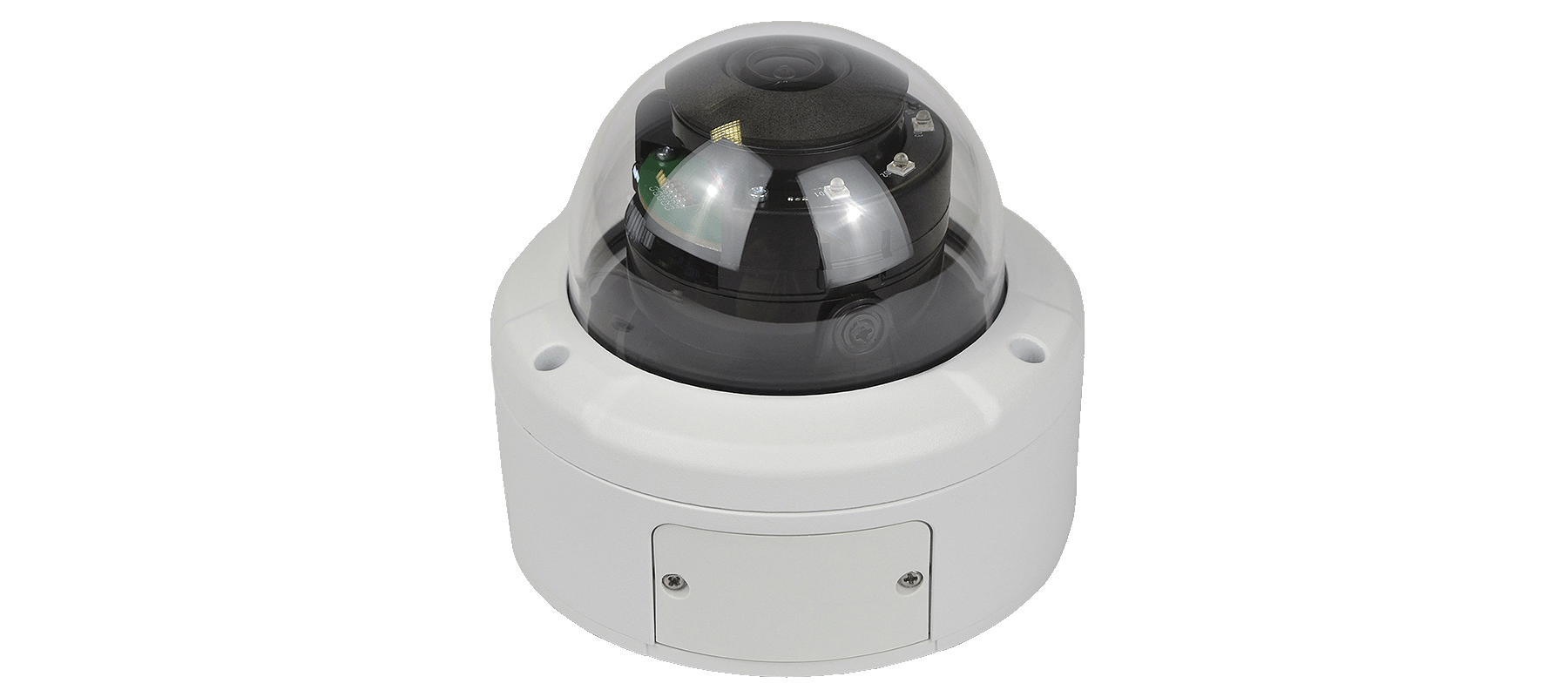

IP camera SV-BA331-E4C
- Dome anti-vandal IP camera with PoE support
Description
The SV-BA331-E4C wired IP Camera in a vandal-resistant dome housing provides a horizontal viewing angle of 112° and is equipped with a 4 MP CMOS matrix for clear video with a resolution of up to 2560×1440. The device has a night shooting mode (IR illumination), motion detection system and the function of saving the video archive to a memory card or network storage1.
The camera is equipped with an RJ-45 connector with support for basic network protocols, as well as alarm I/O and audio I/O for external speaker and microphone connectivity.
1 Under development
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces Ethernet:
- 1x10/100BASE-T (RJ-45) with support for PoE
- Impact rating:
- IK10
- Sensor:
- 1/2.7", 4M
- Built-in microphone
- Interfaces memory card:
- 1хMicroSD/SDHC/SDXC
- IR range:
- up to 40 m
- Web interface for configuration
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Memory card
1xMicroSD/SDHC/SDXC up to 512 GB
Ethernet
1x10/100BASE-T (RJ-45) with support for PoE
Network:
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL/TLS, QoS, DHCP, DNS, RTP, RTSP, RTMP,
NTP, SMB, NFS, TFTP
API
ONVIF (Profile S, Profile T), WSS API
Security
Password protection,strong password, HTTPS encryption,
WS-Username token, WS-Username basic for ONVIF, TLS1.3
User/host
Up to 10 users, 2 user access levels: administrator and operator
OS
Linux SDK
Sensor:
Type
1/2.7” progressive scan CMOS
Effective pixels
4M
Lens and illumination:
Focal distance
2.8 mm
Aperture
F/2.0
Field of view (horizontal)
112°
Field of view (horizontal)
134°
Field of view (vertical)
60°
Angle adjustment (tilt)
From 0° to 90°
Угол поворота
From 0° to 360°
IR illumination
Yes
IR range
Up to 40 m
Image:
Color
Maximum resolution
2560x1440
Maximum frame rate
Main stream: 5–30 frames per second (2560×1440, 1920×1080, 1280×720)
Auxiliary stream: 5–25 frames per second (1920×1080, 1280×720,
960×540, 640×360)
Bit rate
Up to 10 Mbps
Video compression
H.264, H.265
Image enhancement
DNR 2D/3D, DWDR, BLC, AE, AWB, HLC, ANTI-FLIKER, DEFOG
Signal-to-noise ratio
No less than 50 dB
Luminous sensitivity
Color: 0.01 lx
Bw: 0 lx with IR
Audio:
Built-in microphone
Yes
Аудиовход/выход
1 input/1 output
Alarm input/output
1 input/1 output (12V, 0.3 A)
Audio compression
PCM, G.711A (PCMA), G.711U (PCMU), AAC, MP2, MP3
Voice pickup distance
syllabic legibility up to 5 m for built-in microphone :
up to 10 m for external microphone
Physical specifications:
Power
12 V DC, PoE 802.3af
RAM
128 MB
ROM
32 MB
Casing
Metal, plastic
Form factor
Dome
Mount options
Outdoor and indoor
Dimensions (Diameter × Height)
100x100 mm
Operating temperature
From -40 to +60 °C
Operating humidity
No more than 90 % (non-condensing)
Ingress protection
IP67
Impact rating
IK10
