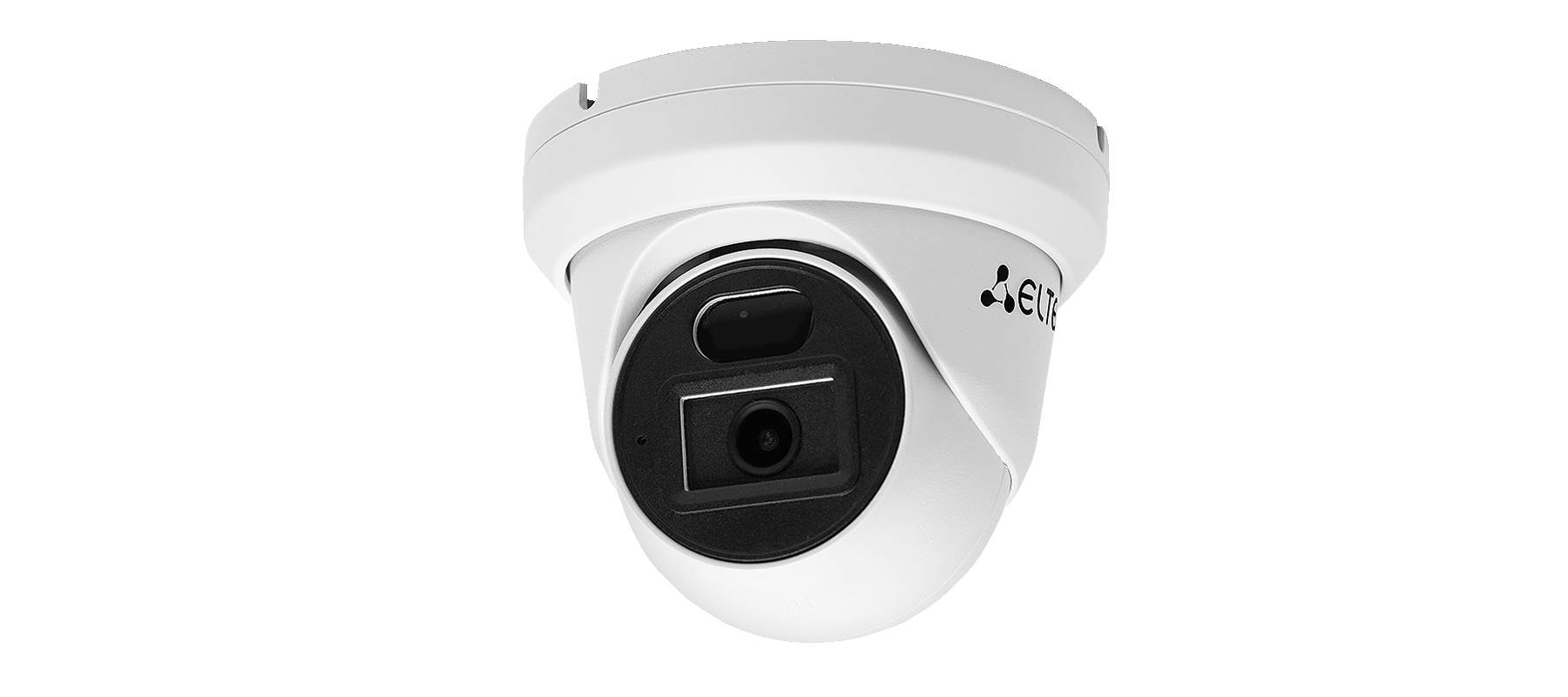

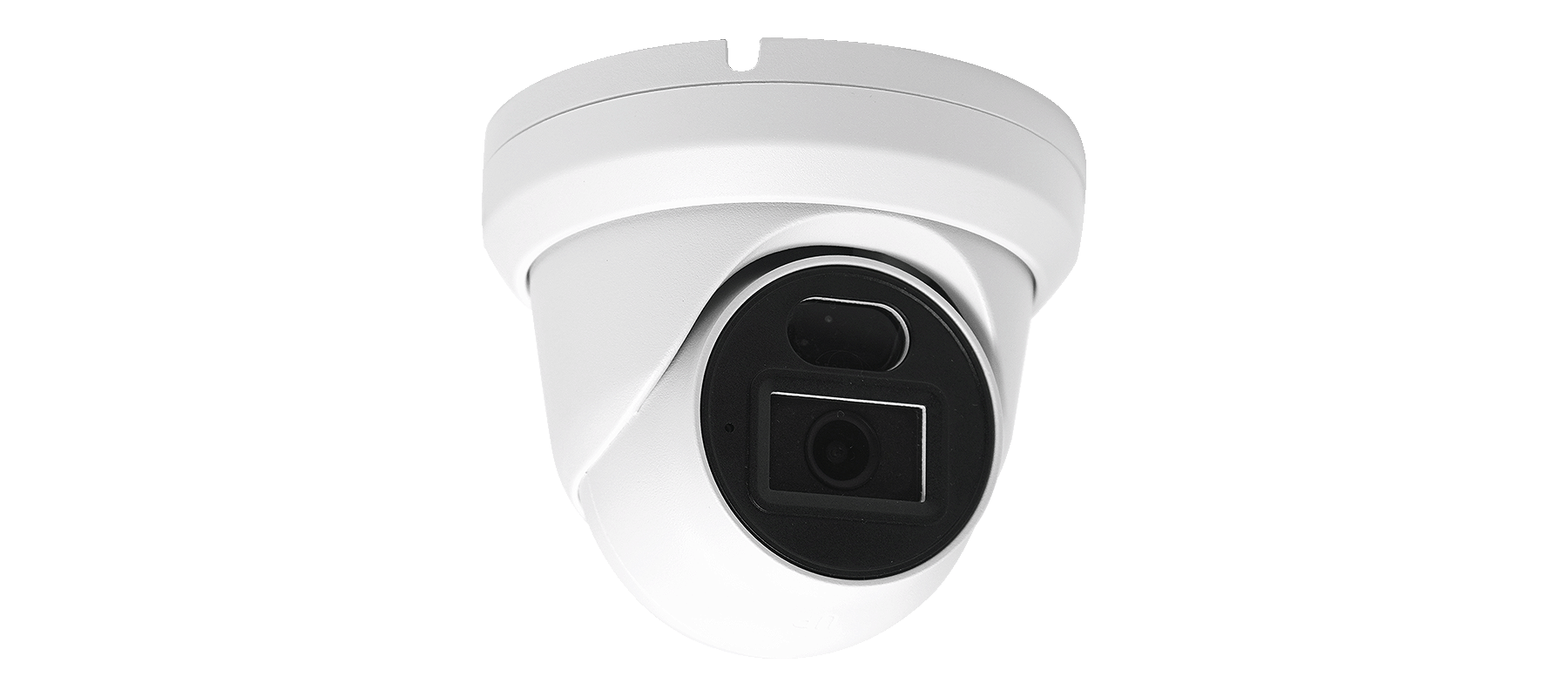

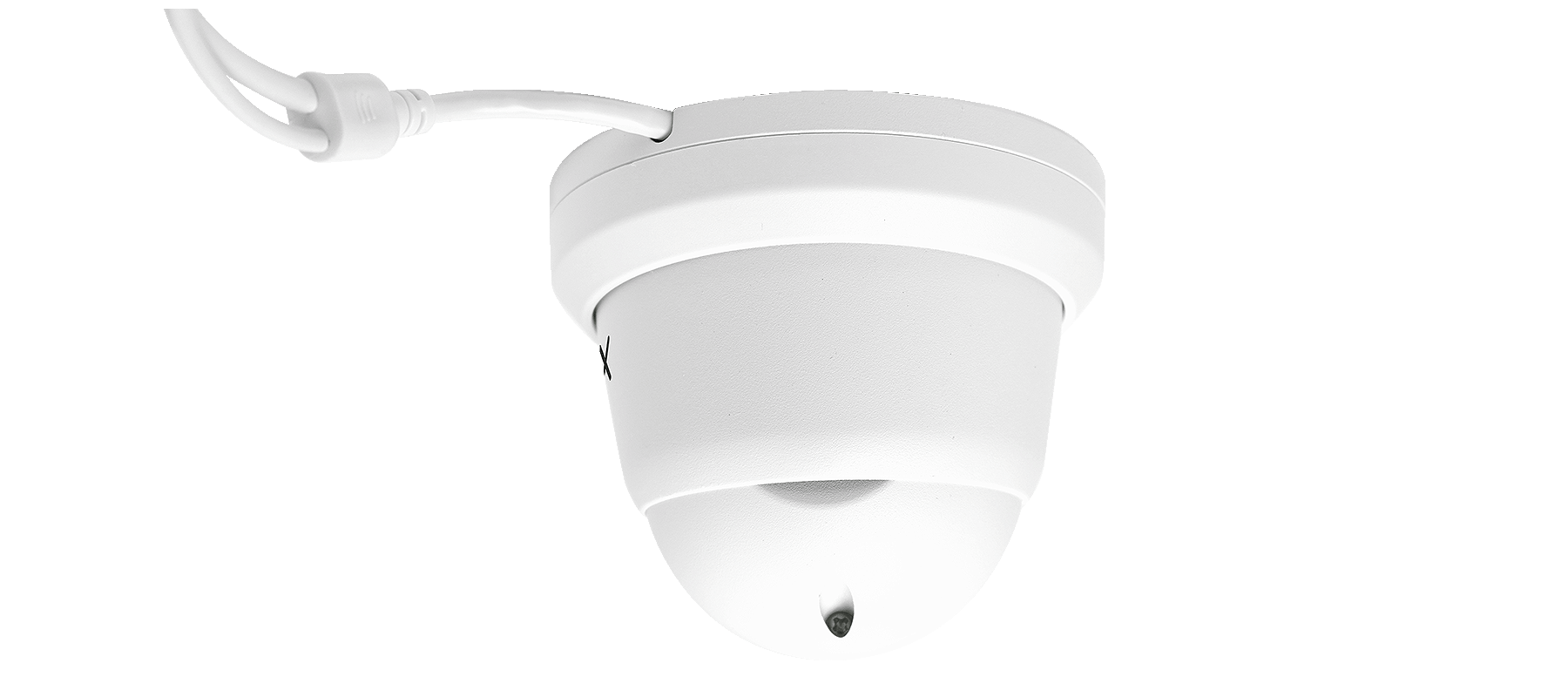

IP camera SV-BA314-E rev.B
- Dome IP video surveillance camera with PoE support
Description
The SV-BA314-E rev.B wired IP camera with a dome design provides a horizontal viewing angle of 112Β° and is equipped with a 4 MP CMOS matrix for clear video with a resolution of up to 2560 Γ 1440.
The device has a night shooting mode (IR illumination), motion detection system and the function of saving the video archive to a memory card or network storageΒΉ. The camera is equipped with an RJ-45 connector with support for basic network protocols.
ΒΉ Under development
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces Ethernet:
- 1x10/100BASE-T (RJ-45), support for PoE
- Interfaces memory card:
- 1xMicroSD/SDHC/SDXC up to 512 GB
- ONVIF
- Maximum resolution:
- 2560Ρ 1440
- Video compression:
- H.264, H.265
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Ethernet
1Ρ
10/100BASE-T (RJ-45), support for PoE
Memory card
1Ρ
MicroSD/SDHC/SDXC up to 512 GB
Network:
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL/TLS, QoS, DHCP, DNS, RTP, RTSP, RTMP,
NTP, SMB, NFS, TFTP
User/host
Up to 10 users, 2 user levels: administrator and operator
ONVIF
ONVIF (Profile S,T)
Sensor:
Type
1/2.7" progressive scan CMOS
Effective pixels
4M
Lens and illumination:
Focal distance
2.8 mm
Aperture
F/2.0
Field of view (horizontal)
112Β°
Field of view (diagonal)
134Β°
Angle adjustment (tilt)
From 0Β° to 105Β°
Angle adjustment (rotate)
From 0Β° to 360Β°
IR illumination
Yes
IR range
Up to 40 m
Image:
Color
Maximum resolution
2560Ρ
1440
Video compression
H.264, H.265
Image quality improvement
BLC, HLC, DWDR, ANTI-FLIKER, DEFOG
White Balance
Rotation mode, saturation, brightness, contrast, sharpness, amplification, white balance
Day/night mode
Yes
Noise reduction system
3D DNR
Maximum frame rate:
Main stream
5β30 fps (2560 Γ 1440, 1920 Γ 1080, 1280 Γ 720)
Sub stream
5β25 fps (1920 Γ 1080, 1280 Γ 720, 960 Γ 540, 640 Γ 360)
Audio:
Built-in microphone
Yes
Voice pickup distance
Syllabic legibility up to 5 m
Environmental noise filtering
Yes
Audio compression
PCM, G.711A (PCMA), G.711U (PCMU), AAC, MP2, MP3
Physical specifications:
Power supply
12 V DC, PoE 802.3af (Mode A, Mode B)
Power consumption
3.3 W
Form factor
Dome camera
Mount options
Indoor and outdoor
Operating temperature
From -40 to +60 Β°C
Operating humidity
No more than 90 % (non-condensing)
Ingress protection
IP67
Reset button
Yes
Dimensions (HxD)
90x110 mm
Weight
0.39 kg
