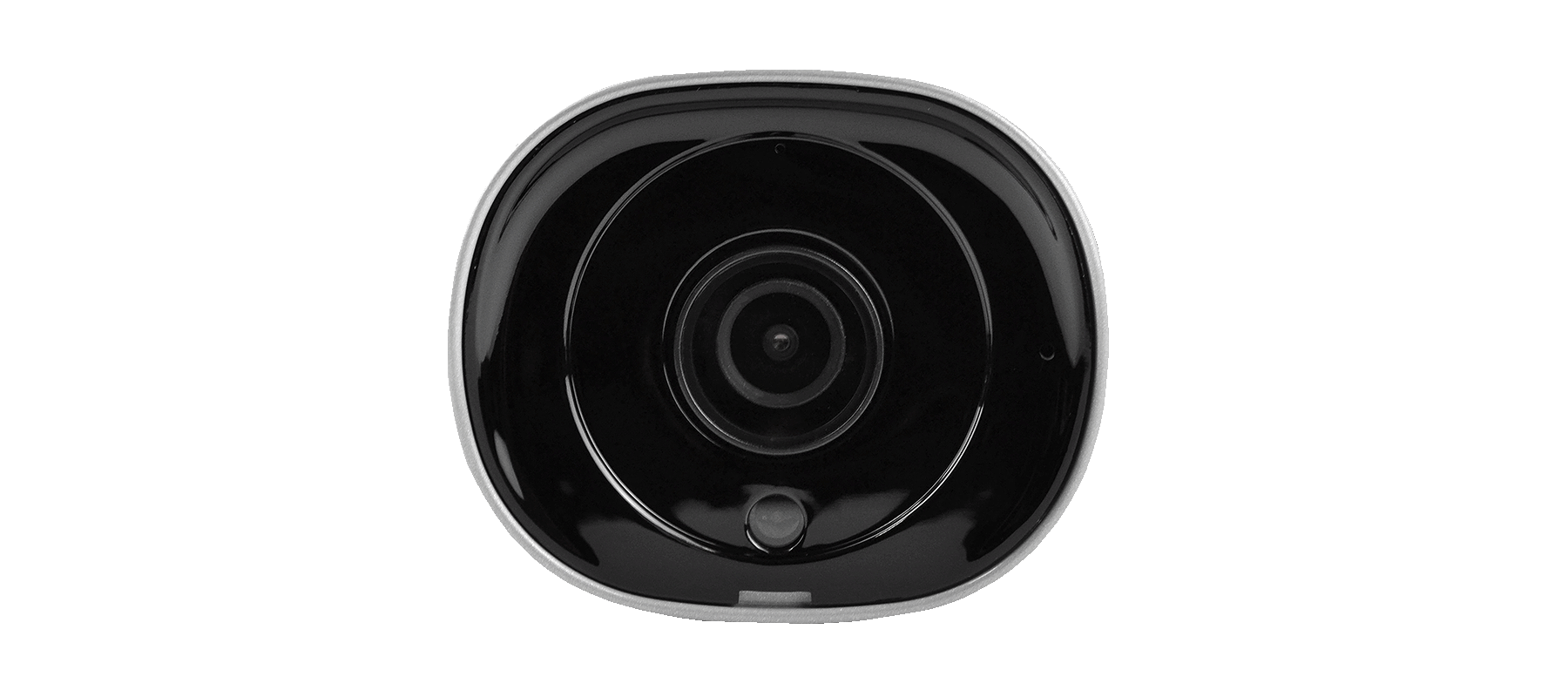

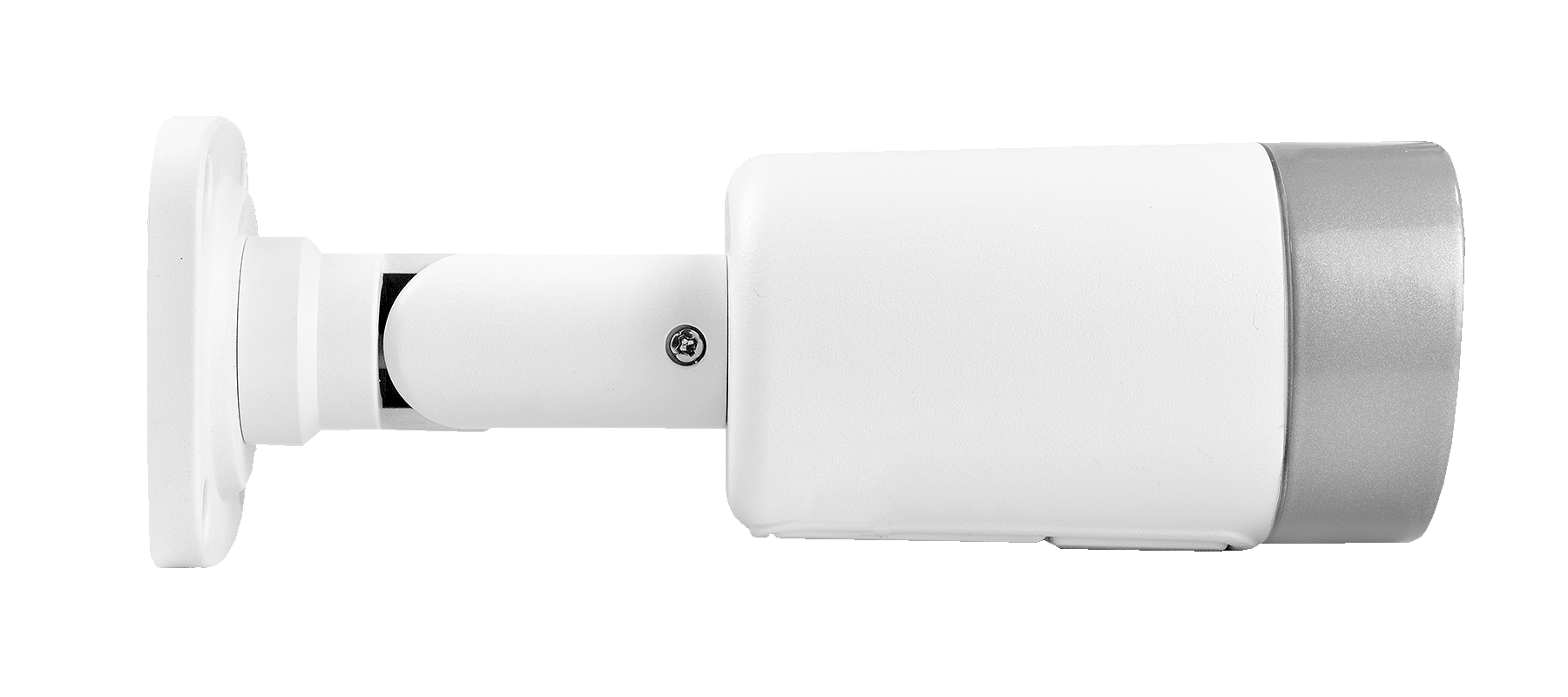

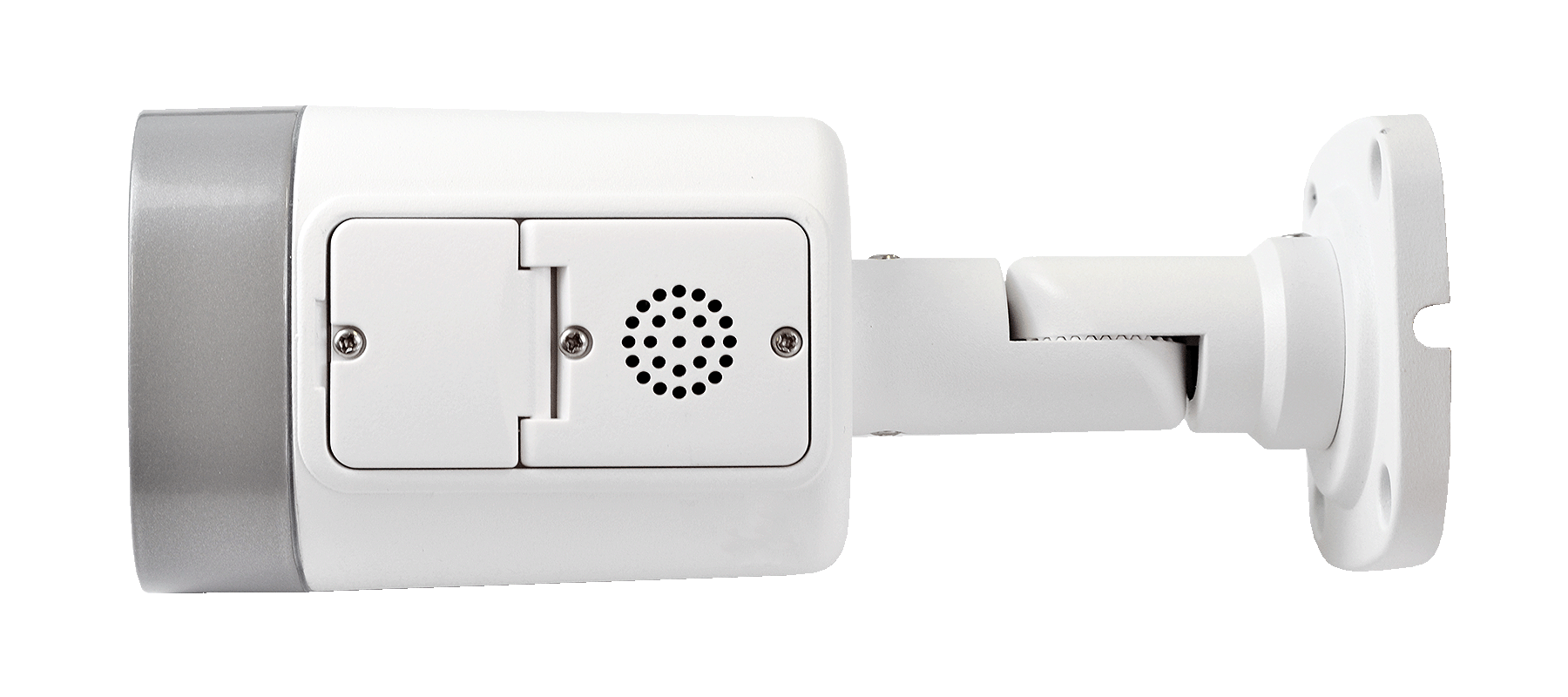

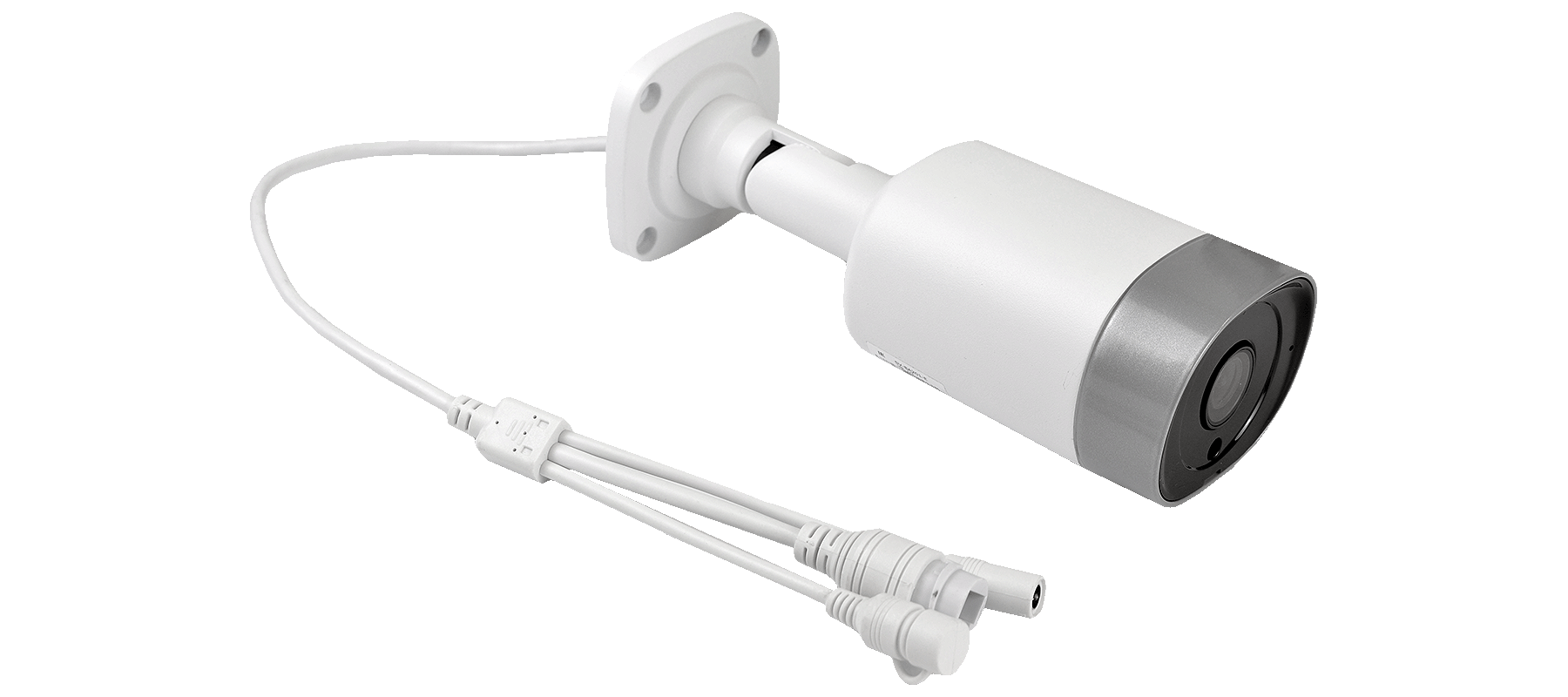

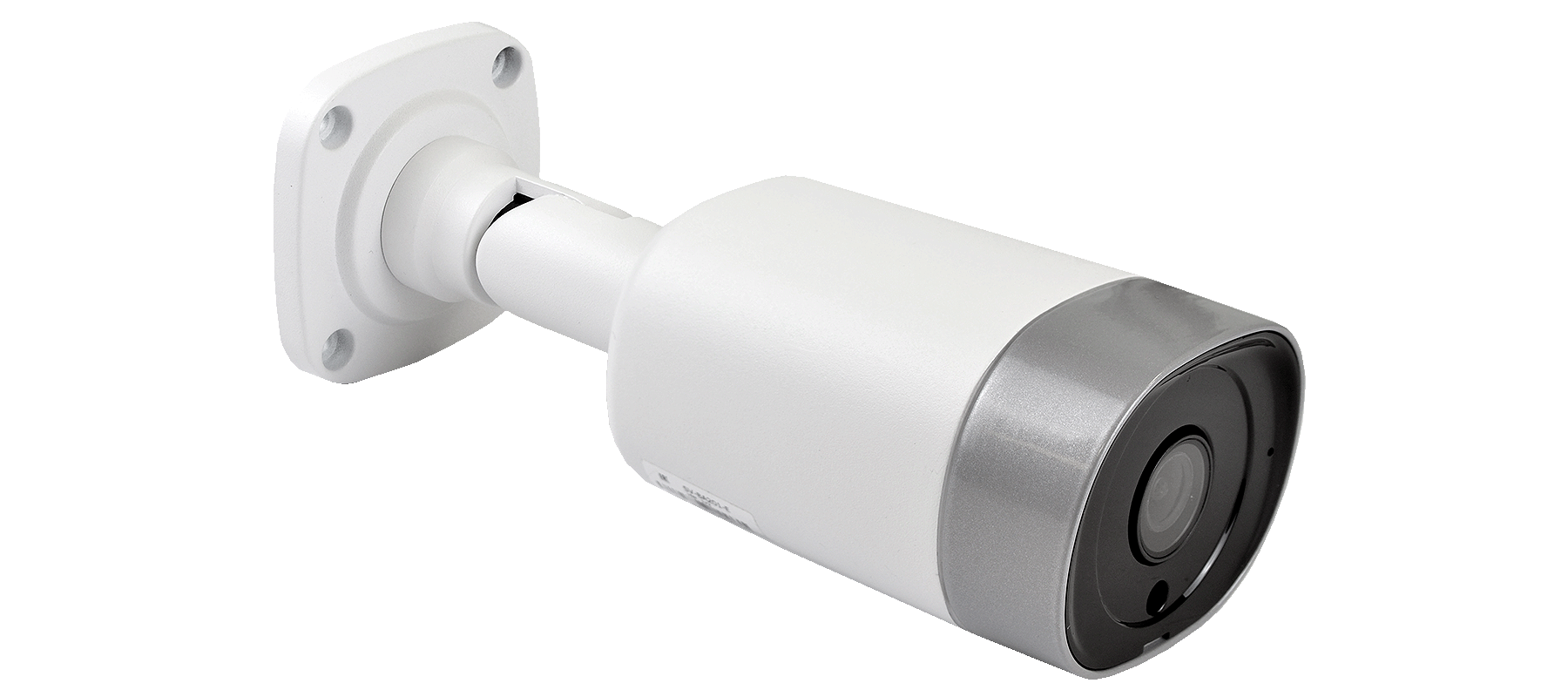

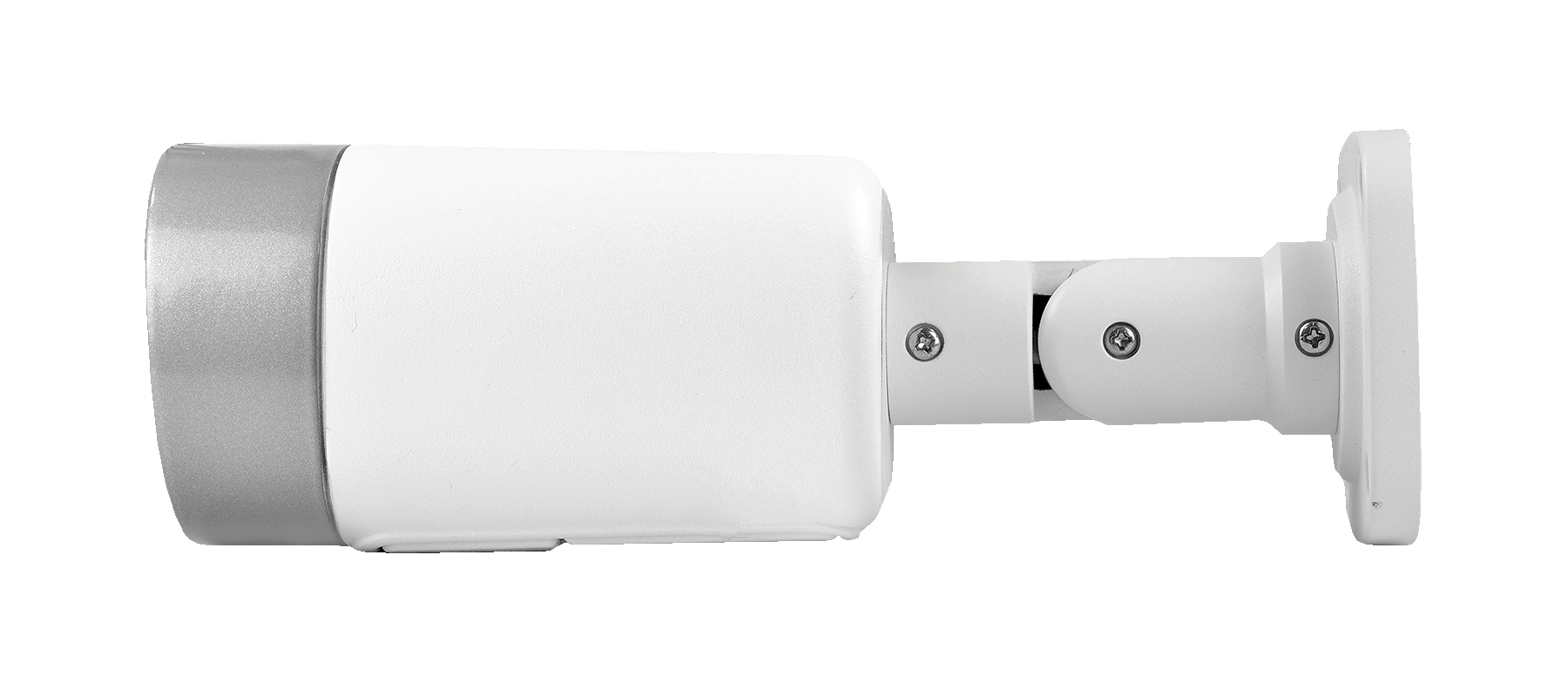

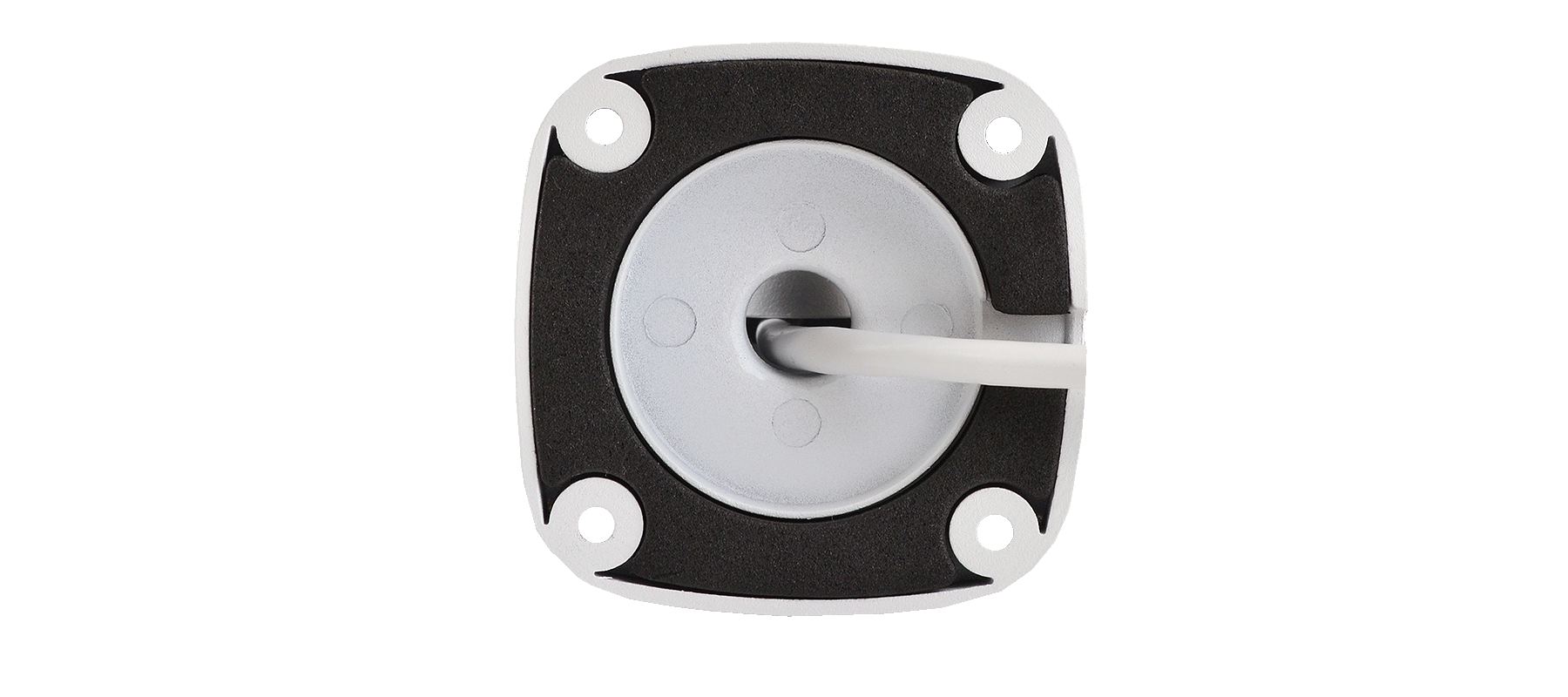

IP camera SV-BA101-E
- IP camera with a cylindrical design
Description
SV-BA114-E is part of the Eltex smart home ecosystem based on ELIS (Eltex IoT System) cloud platform. The user controls smart devices and sensors via a smart home hub using an iOS or Android mobile device with Eltex Home mobile application installed. It can be downloaded from the App Store and Google Play.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Built-in microphone
- Built-in speaker
- Metal casing
- Support for PoE
- IR illumination up to 20 m
- Built-in microSD slot
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Ethernet
1x10/100BASE-T (RJ-45) with support for PoE
Memory card
1xMicroSD/SDHC/SDXC up to 128 GB
Operating system:
Linux SDK
Sensor:
Type
Progressive scan CMOS
Physical size
1/3”
Effective pixels
4М
Lens and illumination:
Focal distance
2,8 mm
Aperture
F/2.0
Field of view (horizontal)
100°
Field of view (diagonal)
116°
Angle adjustment (tilt)
From 0° to 90°
Angle adjustment (rotate)
From 0° to 360°
IR illumination
Yes
IR range
Up to 20 m
Image:
Black-and-white: 0 lx with IR
Color
Maximum resolution
2560х1440
Maximum frame rate
20 fps (2560x1440), 25 fps (1920x1080, 1280x720)
Video compression
H.264, H.265
Image enhancement
DNR 2D/3D, DWDR, ANTI-FLIKER
Signal to noise ratio
No less than 50 dB
Luminous sensitivity
Color: 0.05 lx
Audio:
Built-in microphone
Yes
Built-in speaker
Yes
Audio compression
PCM, AAC, MP2
Voice pickup distance
Syllabic legibility up to 5 m
Physical specifications:
Power
12 B DC, PoE 802.3af (Mode A)¹
¹ Does not support PoE Mode B (power over pairs 4/5 and 7/8)
RAM
128 MB
ROM
32 MB
Casing
Metal
Form factor
Cylindrical camera
Mount options
Outdoor and indoor
Dimensions (WxHxD)
70x67x186 mm
Weight
0.38 kg
Operating temperature
From -40 to +60 °C
Operating humidity
No more than 90 % (non-condensing)
Ingress protection
IP65
