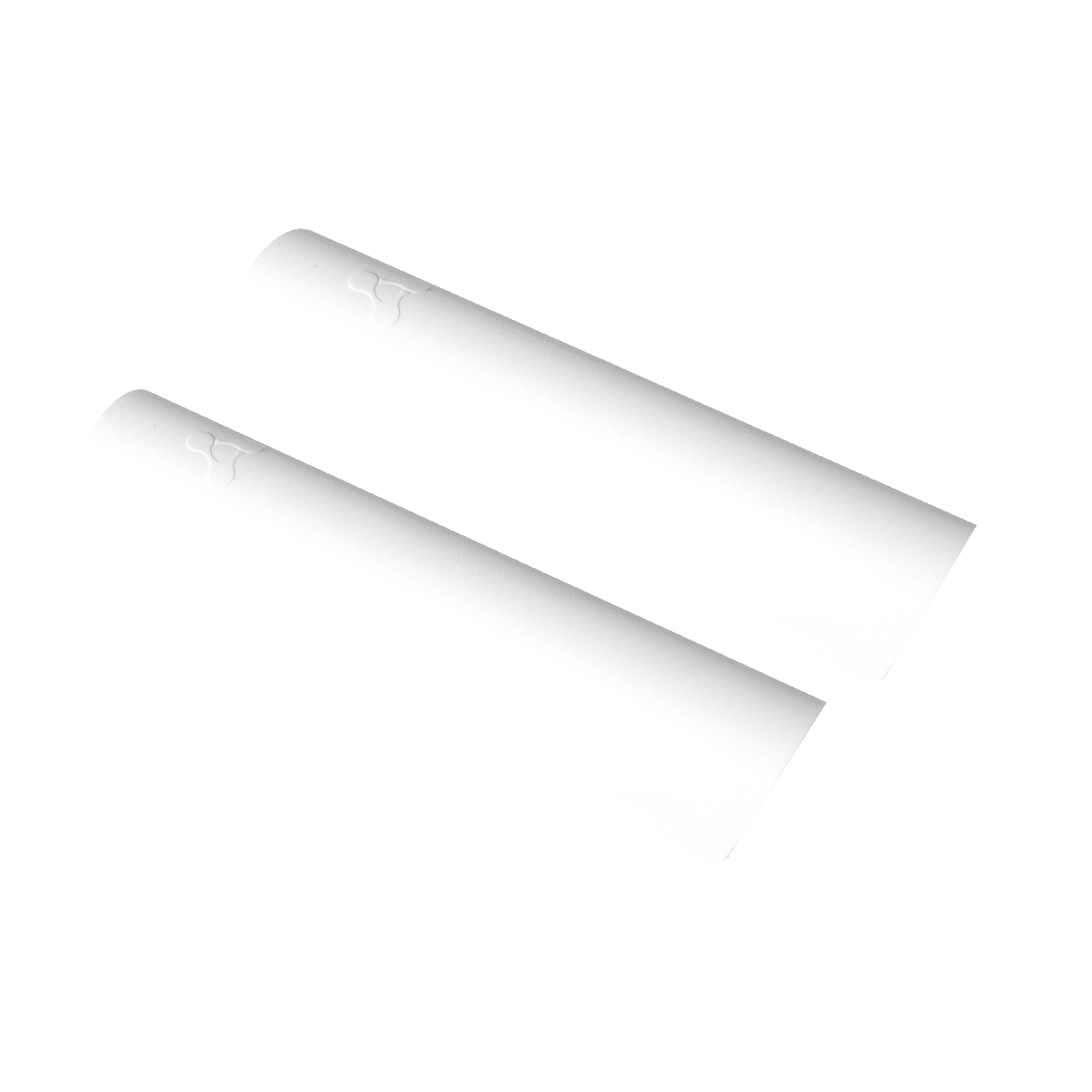

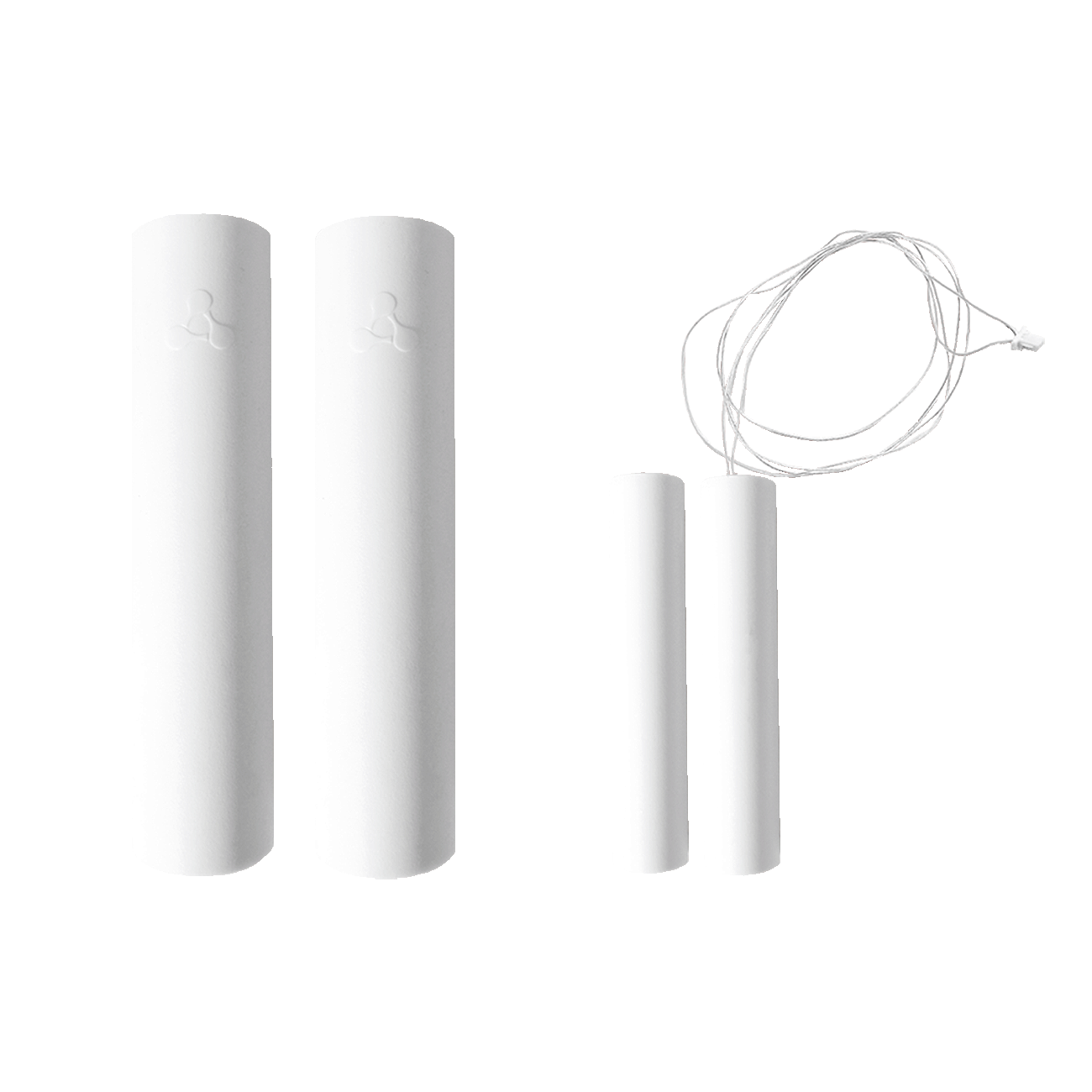

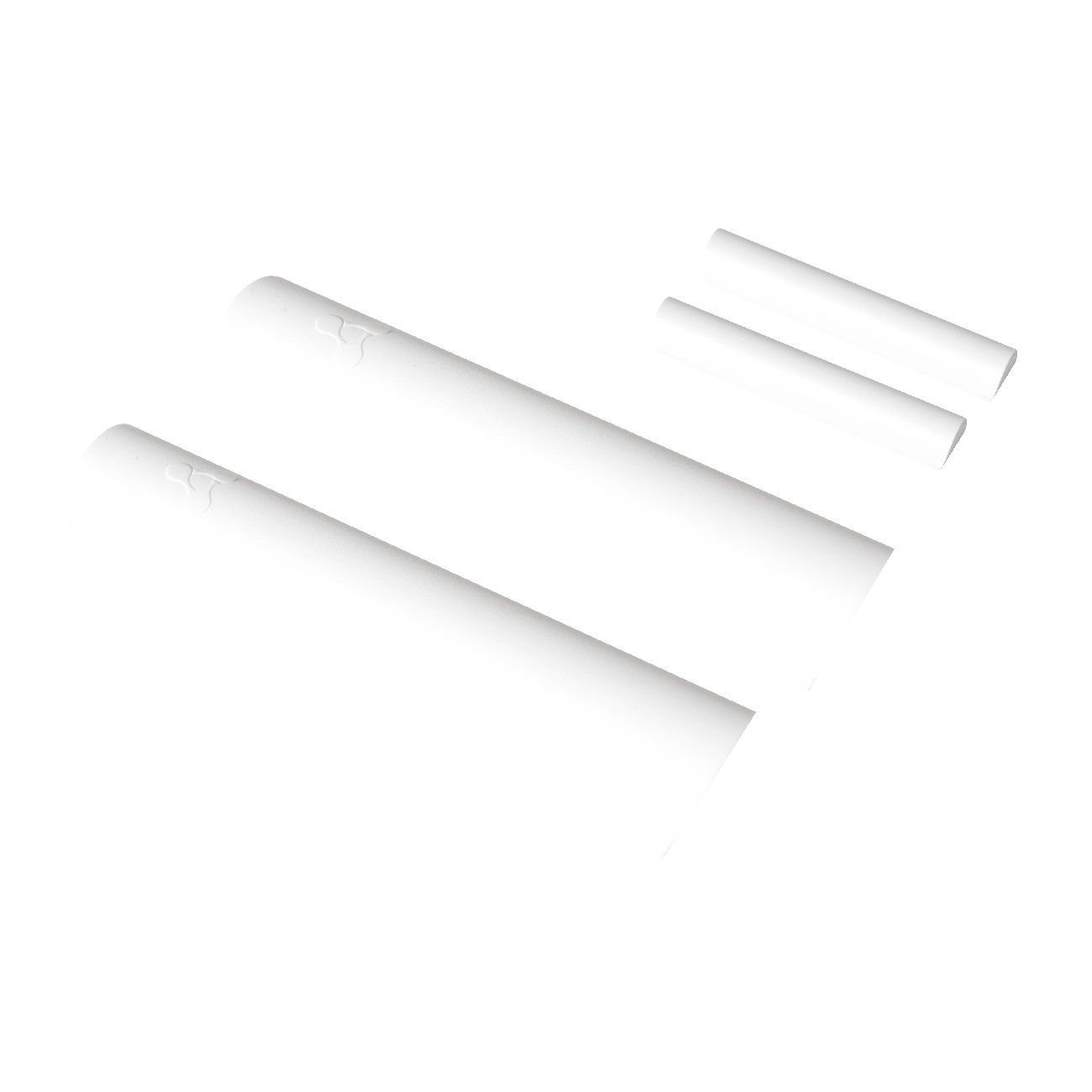

ST-MCT magnetic contact sensor
- Magnetic contact sensor that operates under Matter over Thread technology
Description
ST-MCT is a magnetic contact sensor that operates under Matter over Thread technology. When a controlled door or window is opened or closed, the sensor sends a signal to the smart home hub. The device is battery-powered and can be installed in any location without wires.
Eltex smart home
ST-MCT is part of the Eltex smart home ecosystem based on the ELIS (Eltex Smart IoT System) platform. Users manage smart devices and sensors via a smart home hub using an iOS or Android mobile device with the Eltex Home app installed. It can be downloaded from the App Store and Google Play. The app is also available in Huawei AppGallery.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Battery-powered
- Support for Matter over Thread protocol
- Operation in smart home scenarios
Features and capabilities
For full specifications and manuals see Documents and files section below
Technical features:
Power
Li-ion CR123A, 3 V
Signal frequency
2.4 GHz
Maximum distance from the hub
120 m (within line of sight)
Distance between the sensor and magnet for "Alarm" signal
≥35 mm
Distance between the sensor and magnet for "Normally closed" signal
≤ 25 mm
Ingress protection
IP40
Sensor/magnet dimensions (WxHxD)
21x96x21 mm
Sensor weight (including batteries)
29.5 g
Magnet weight
32.5 g
Operating temperature
From +5 to +45 °C
Operating humidity at +40 °C
Up to 93 %
Maximum RF strength
+14 dBm
