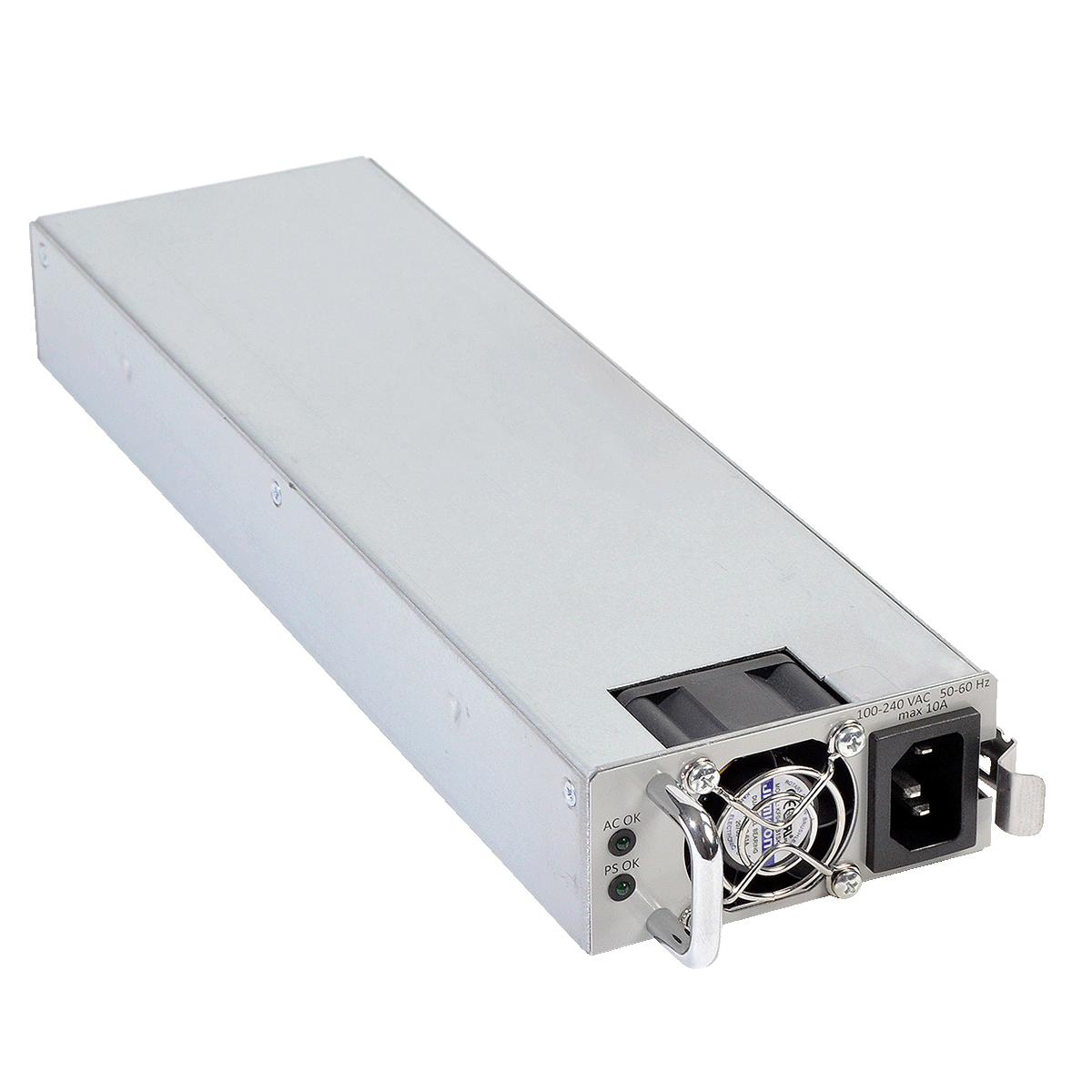

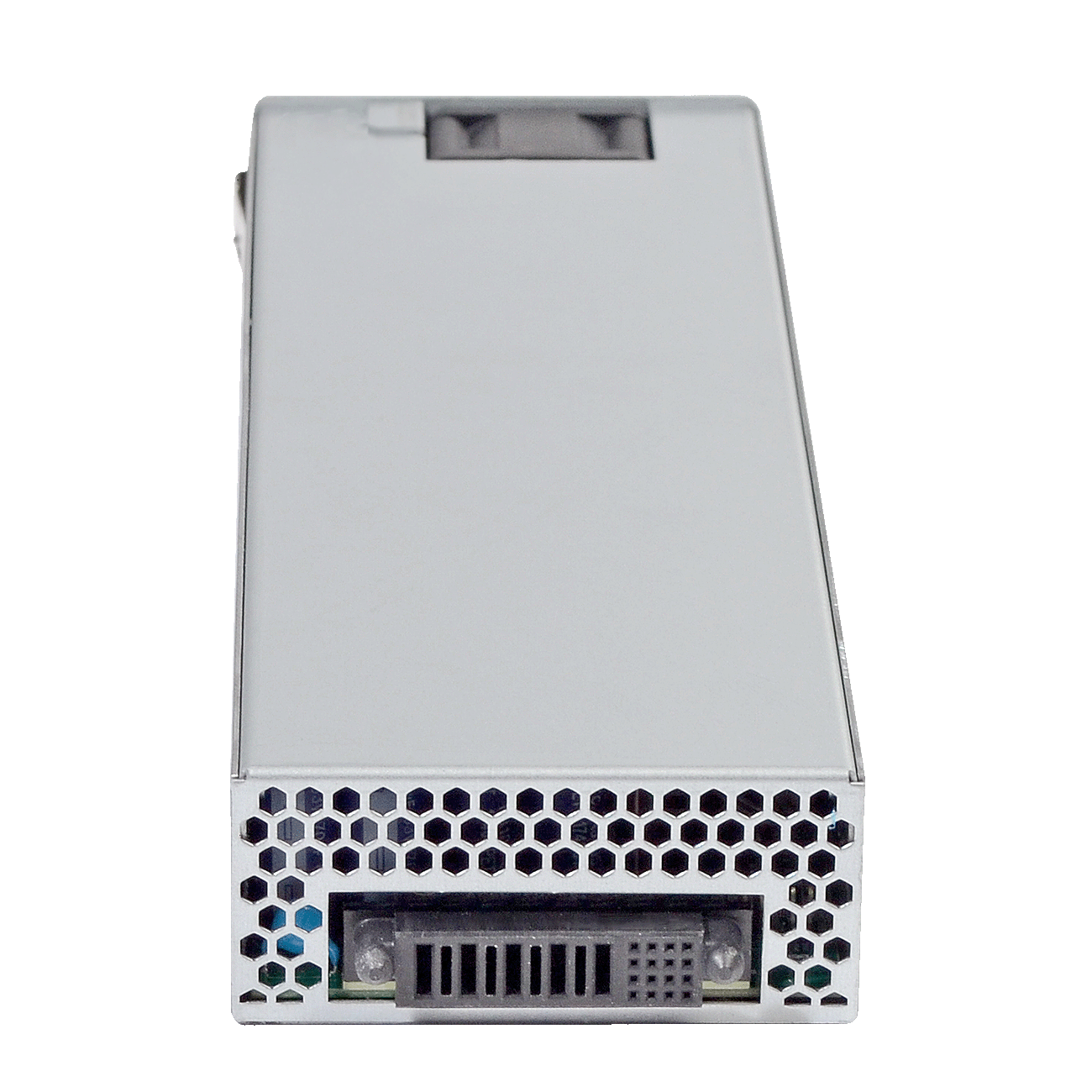

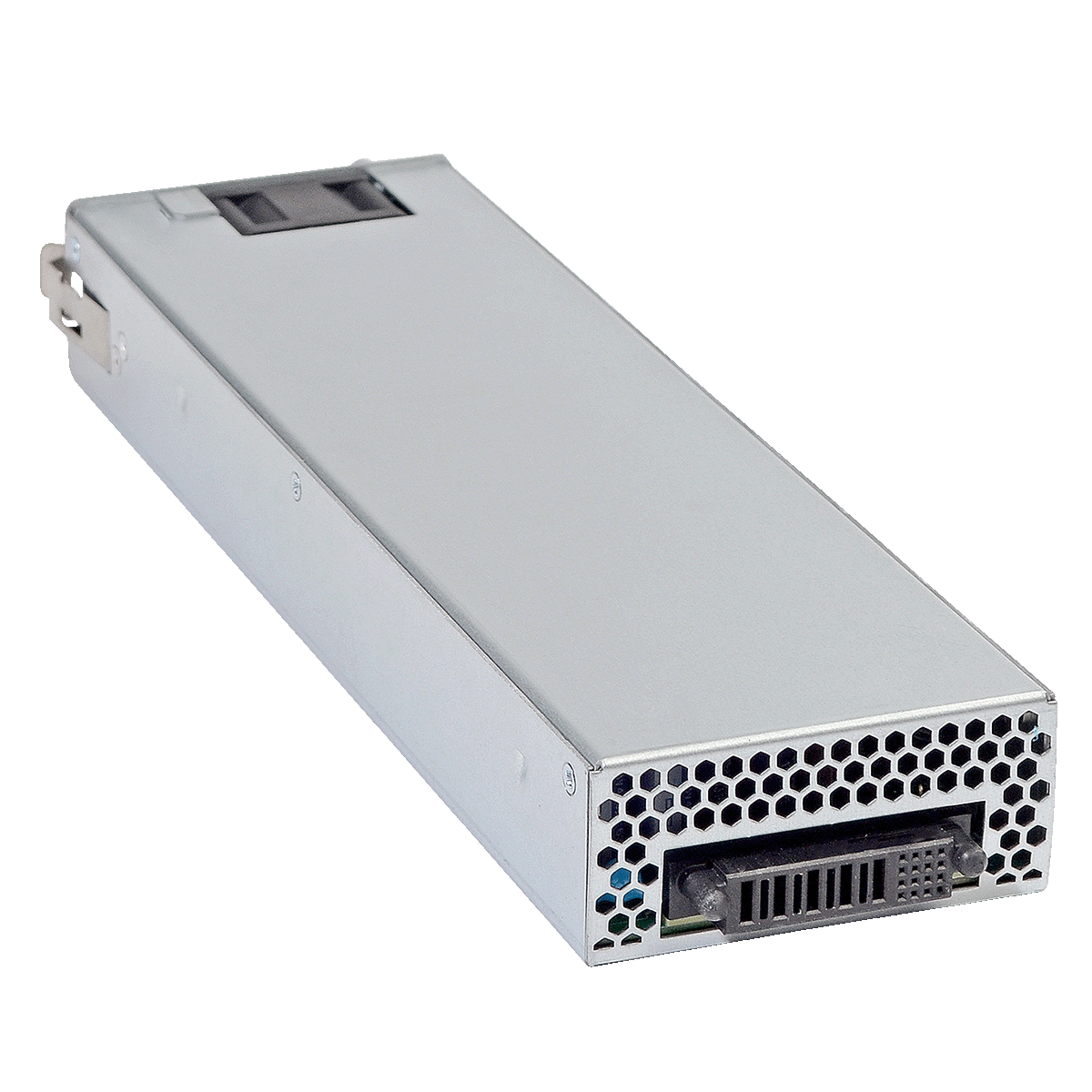

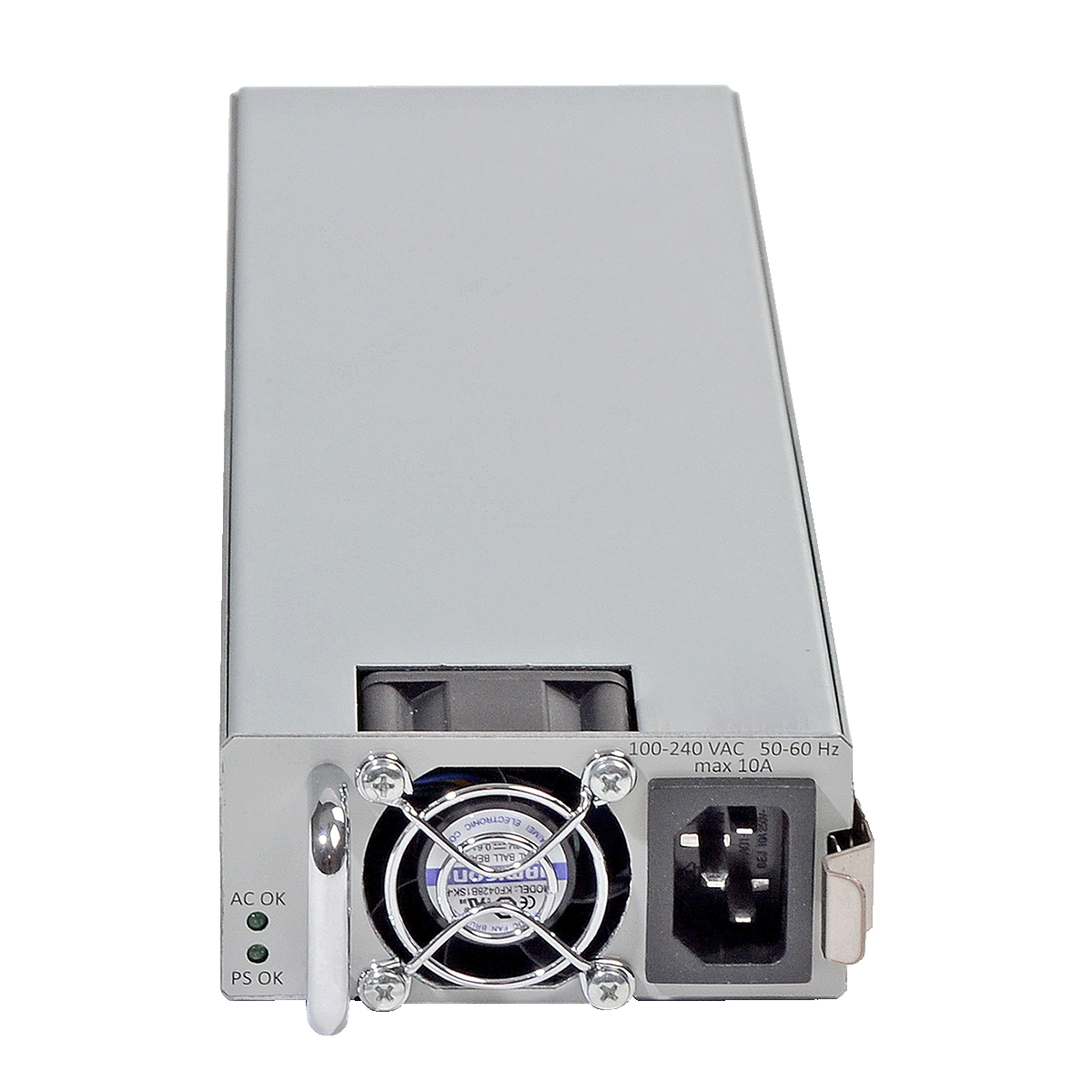

Power module PM950-220/56
- Type:
- AC
- Output voltage:
- 54 V
- Max. output power:
- 950 W
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage ΠΠ‘ max. range
90β264 V AC
Input voltage ΠΠ‘ nominal range
100β240 V AC
Input frequency
47β63 Hz
Output voltage
54 V
Max. output power
950 W
Physical features and ambient parameters:
Operating temperature
-20 to +50 Β°Π‘
Storage temperature
-40 to +70 Β°Π‘
Operating humidity at +25 Β°Π‘
Up to 80 %
Dimensions
90x42x336 mm
Weight
1.6 kg
Power Cable
RPC-186-1-1.8 m (included in the package)
Supported devices
Ethernet Access Switch MES2300-48P

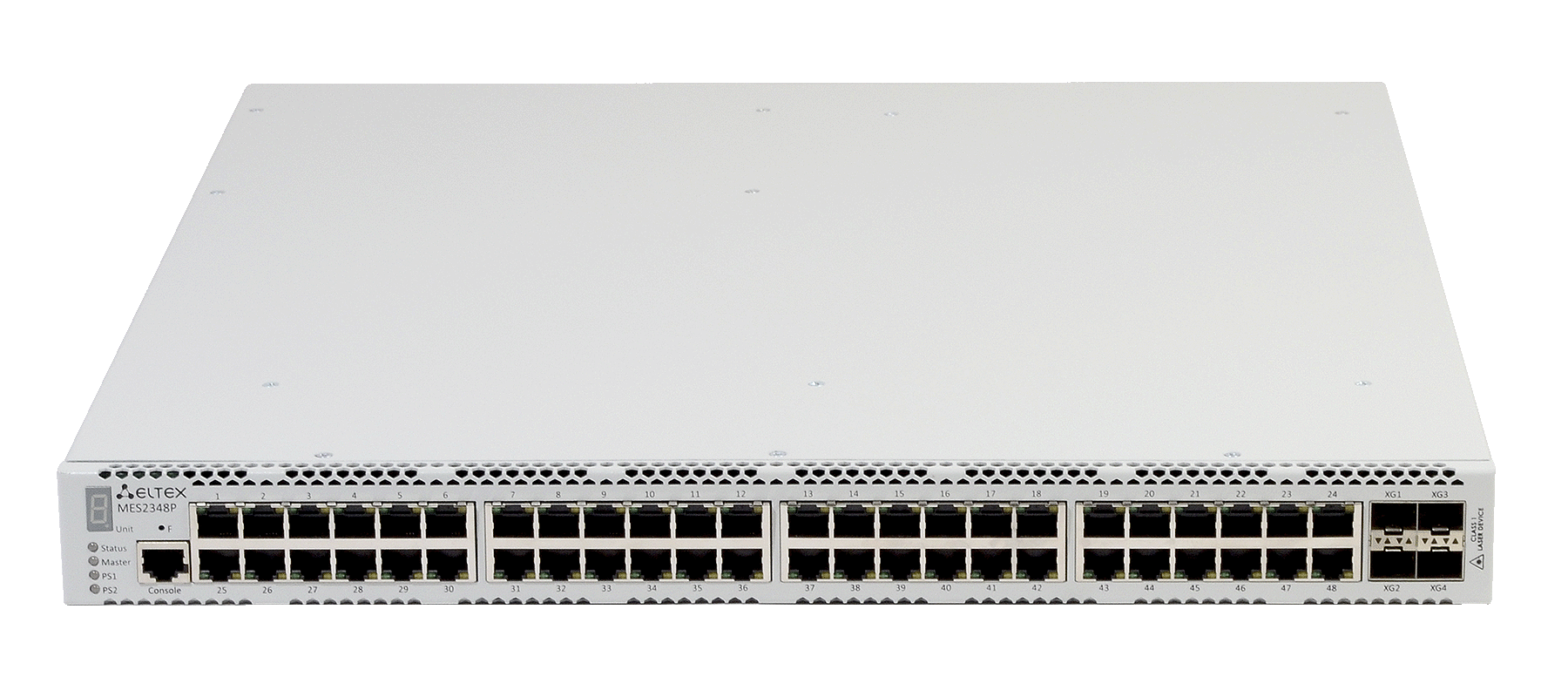

Ethernet Access Switch MES2348P
Ethernet Access Switch MES2420-48P
