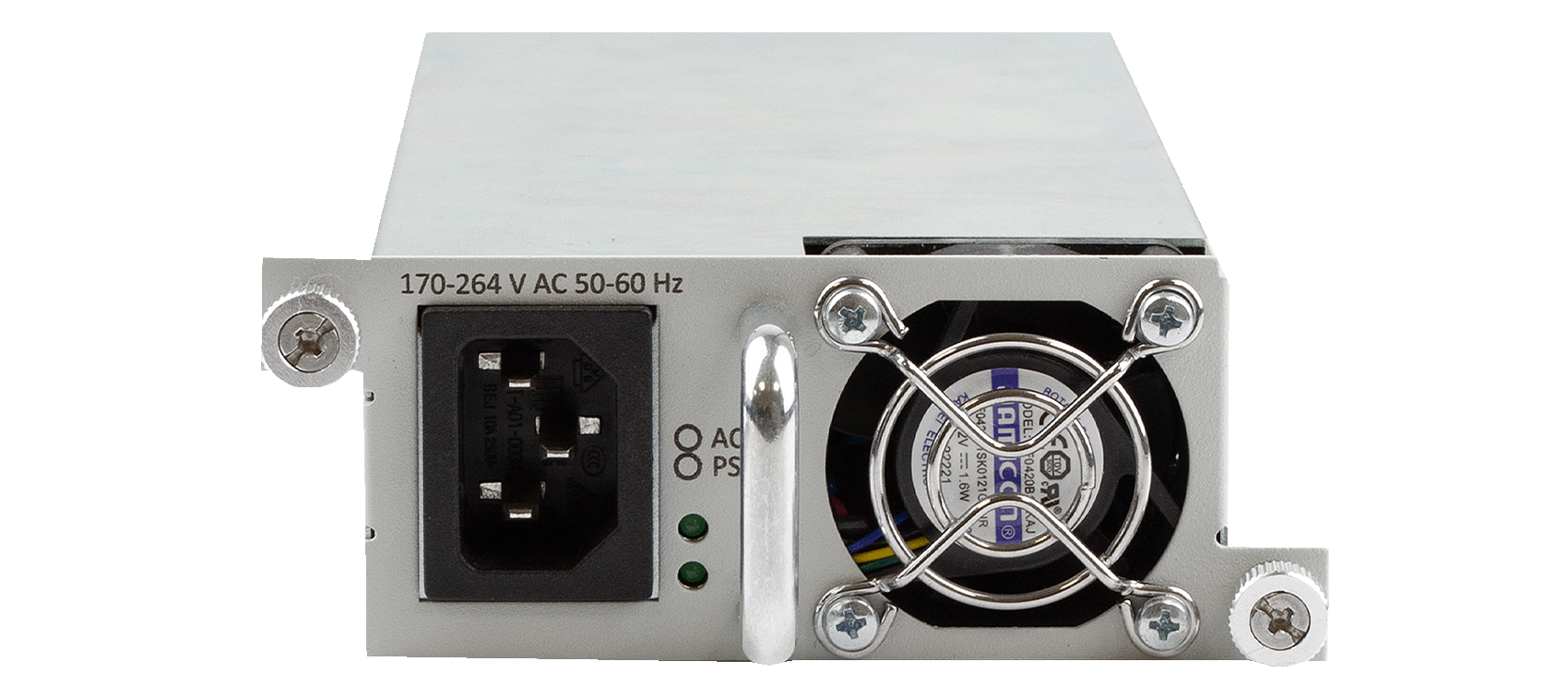

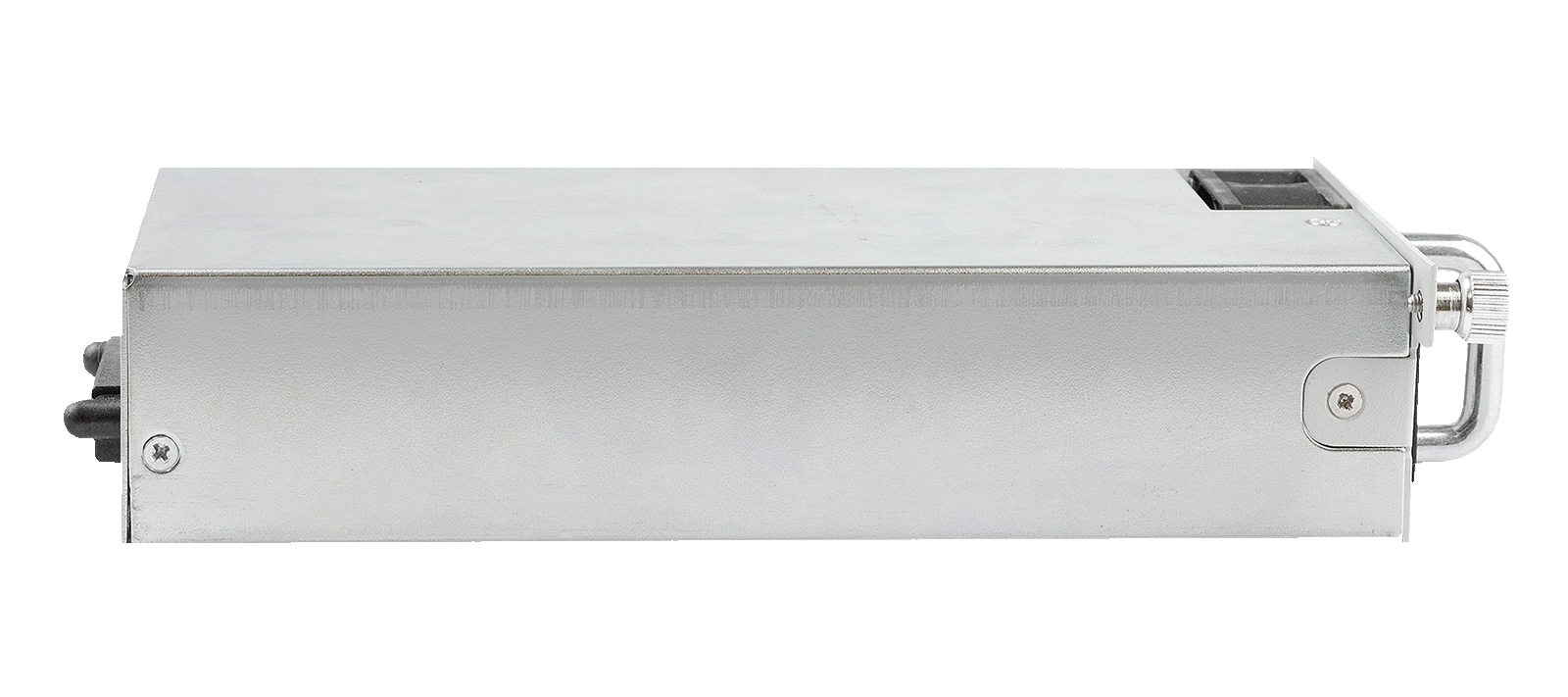

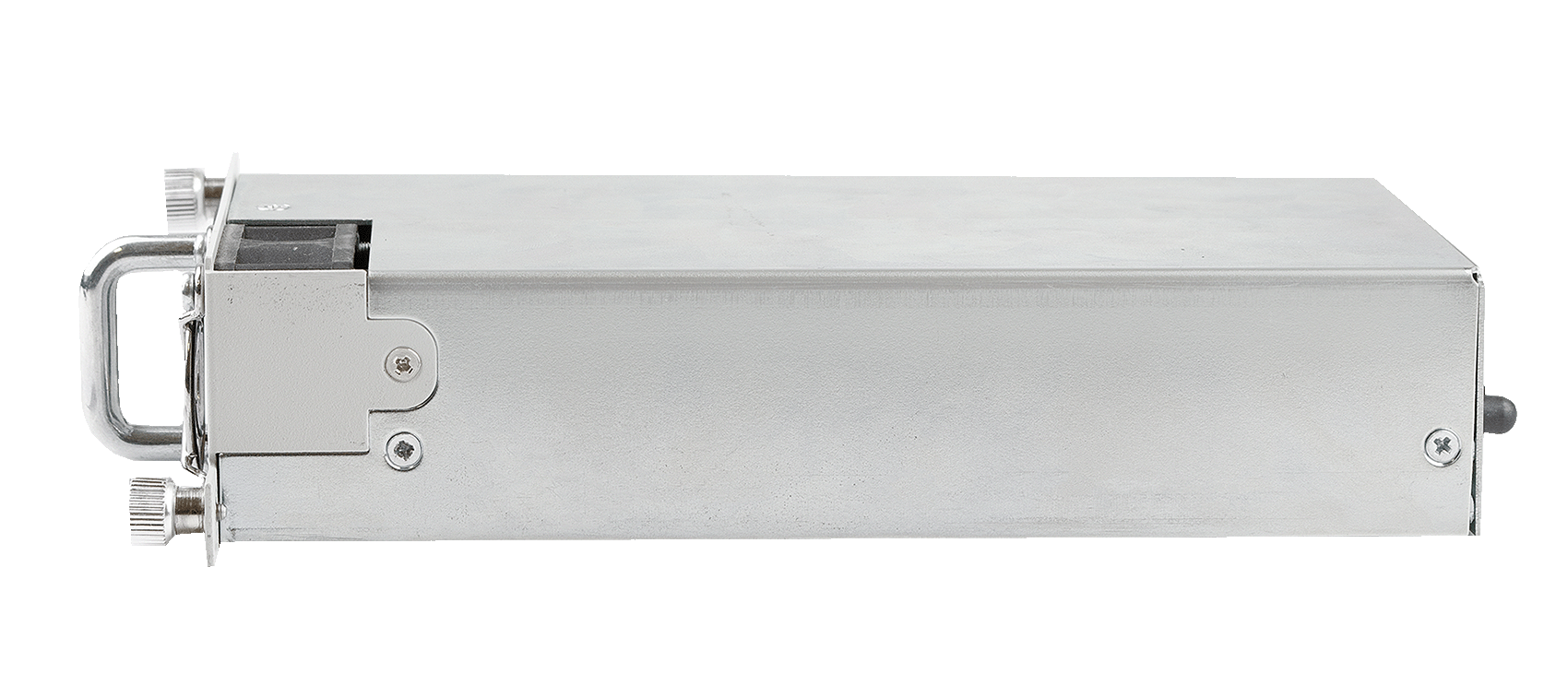

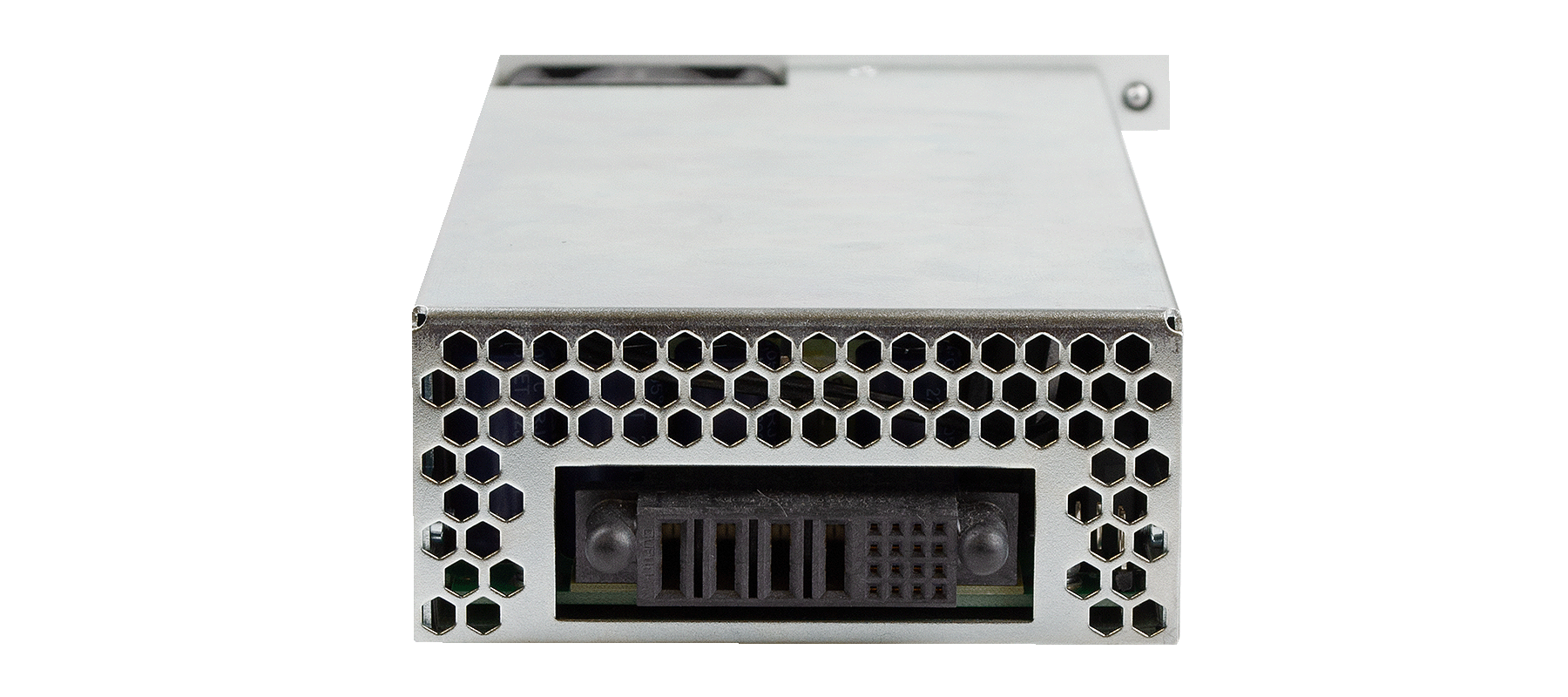

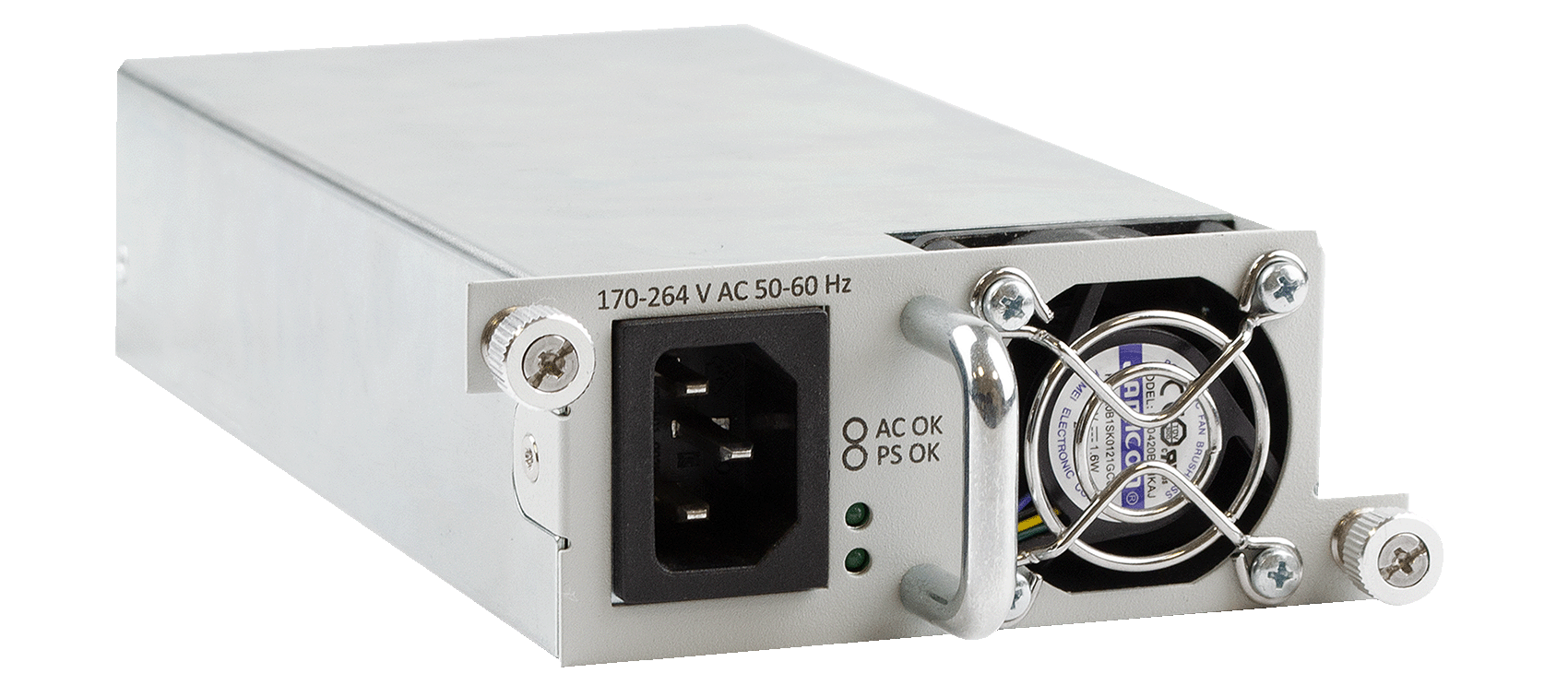

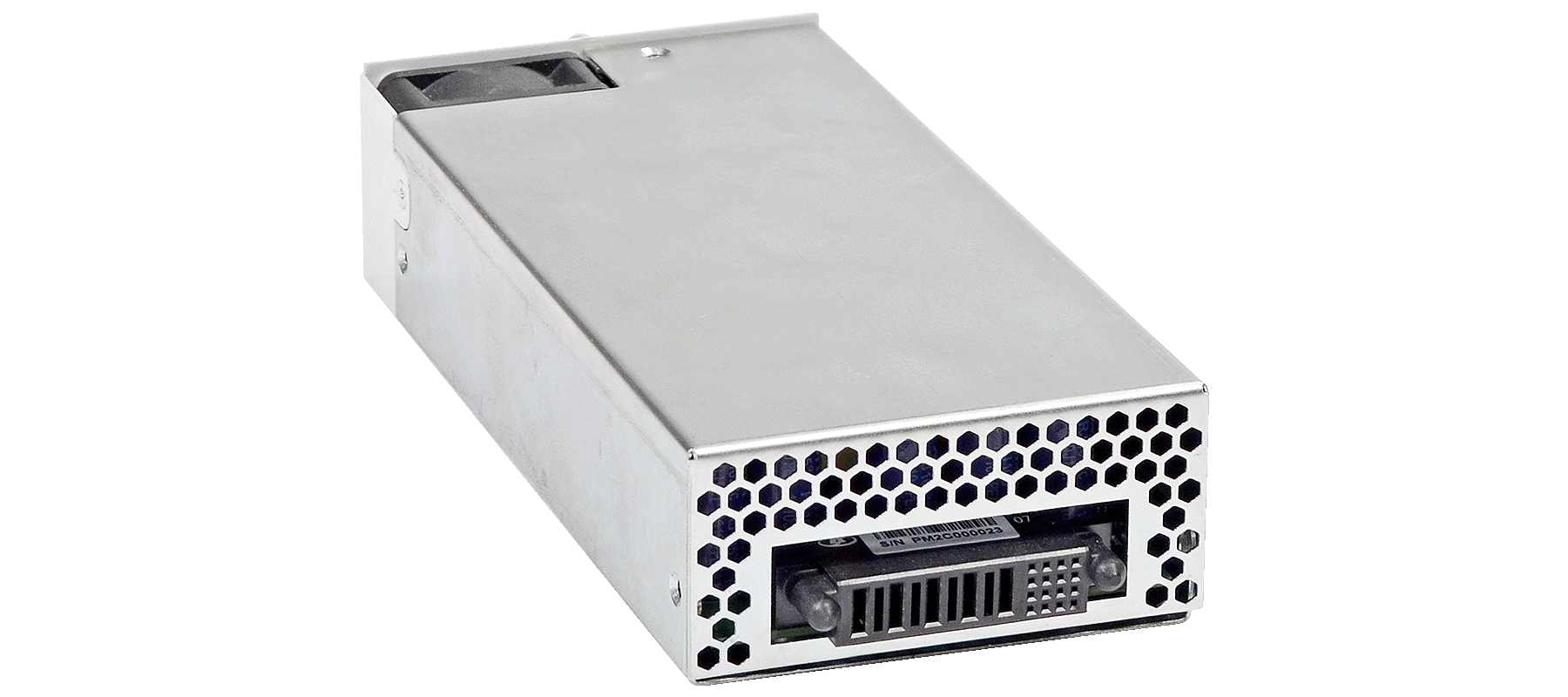

Power module PM380-220/56
- Type:
- AC
- Output voltage:
- 54 V
- Max. output power:
- 380 W


Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage ΠΠ‘ max. range
176β264 V AC
Input voltage ΠΠ‘ nominal range
200β240 V AC
Input frequency
47β63 Hz
Output voltage
54 V
Max. output power
380 W
Physical features and ambient parameters:
Operating temperature
-10 to +50 Β°Π‘
Storage temperature
-40 to +70 Β°Π‘
Operating humidity at +25 Β°Π‘
Up to 80 %
Dimensions
111x43x218 mm
Weight
1.01 kg
Power Cable
Europlug-C13, 1.8m (included)
Supported devices

Ethernet Access Switch MES2300D-24P

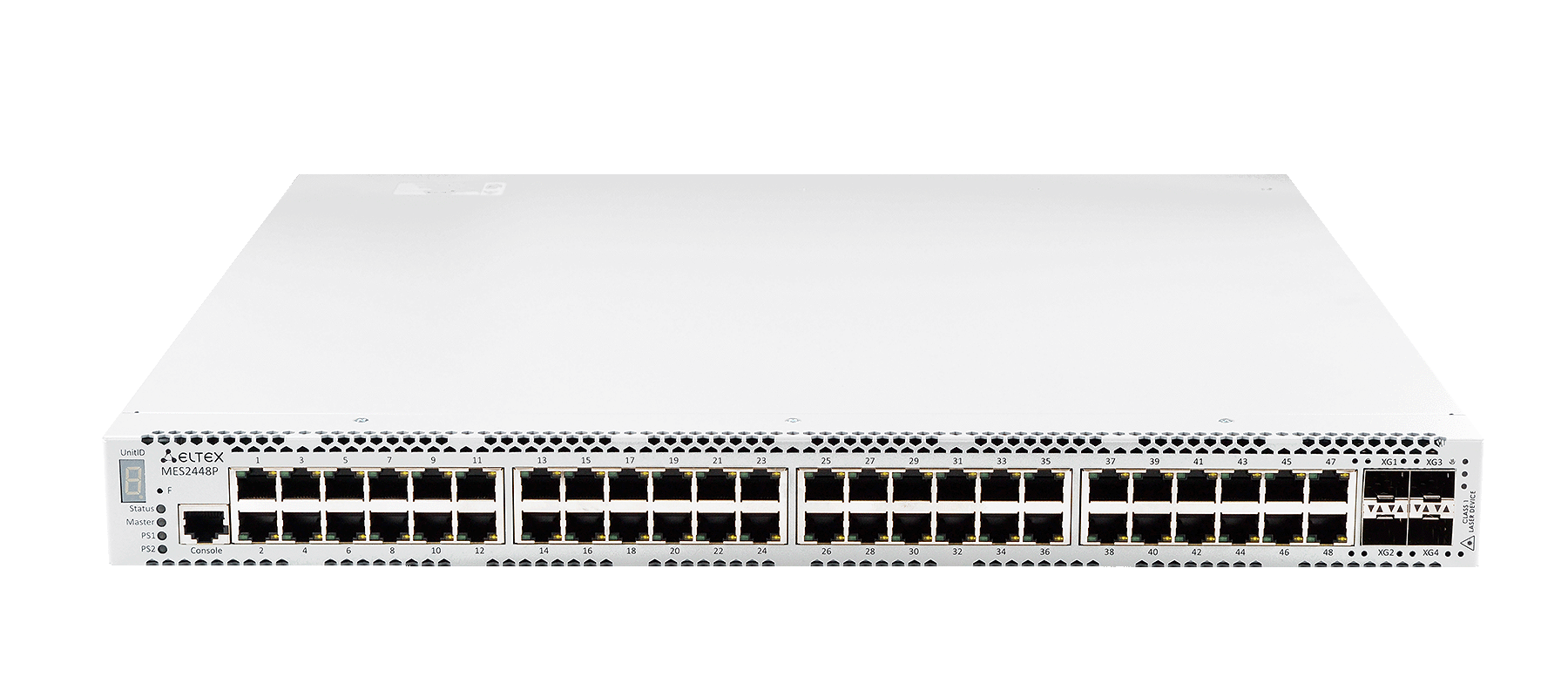

Ethernet Access Switch MES2448P
