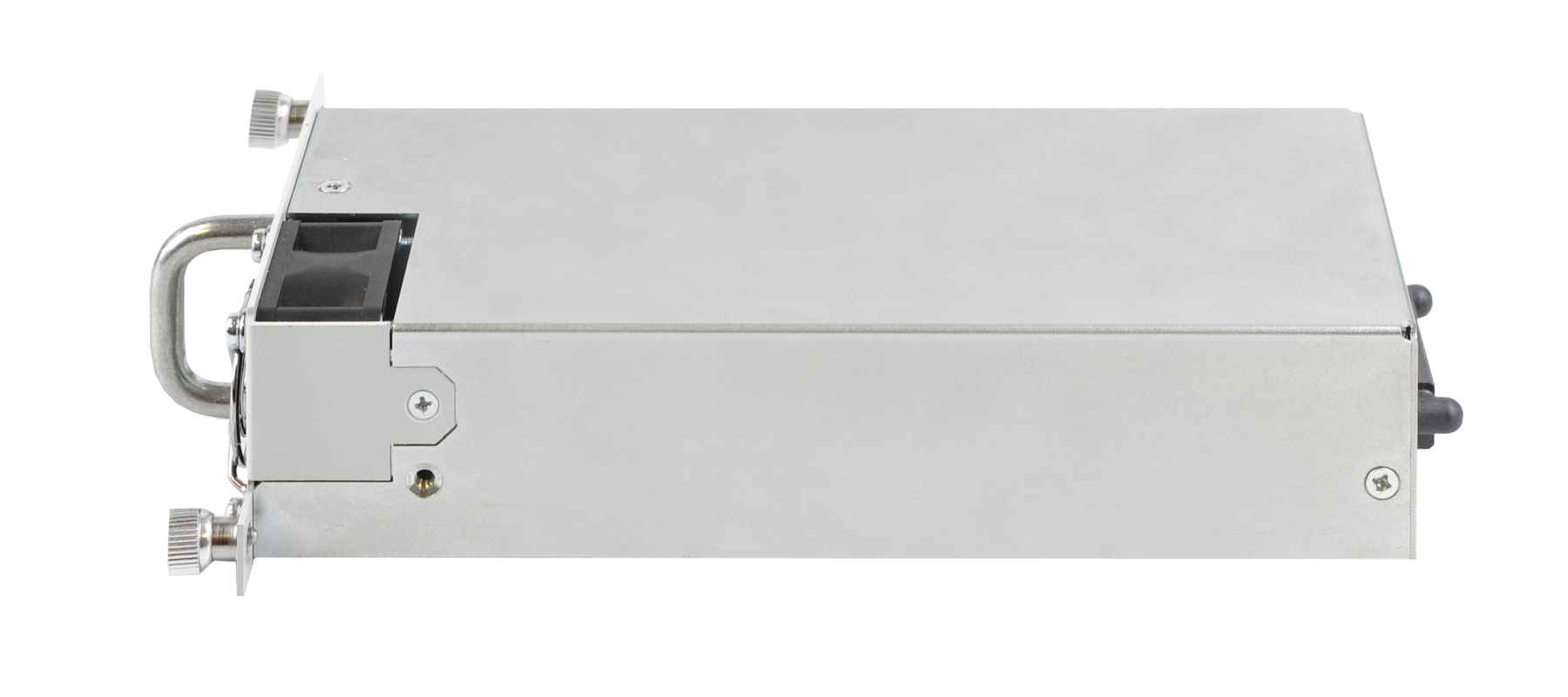

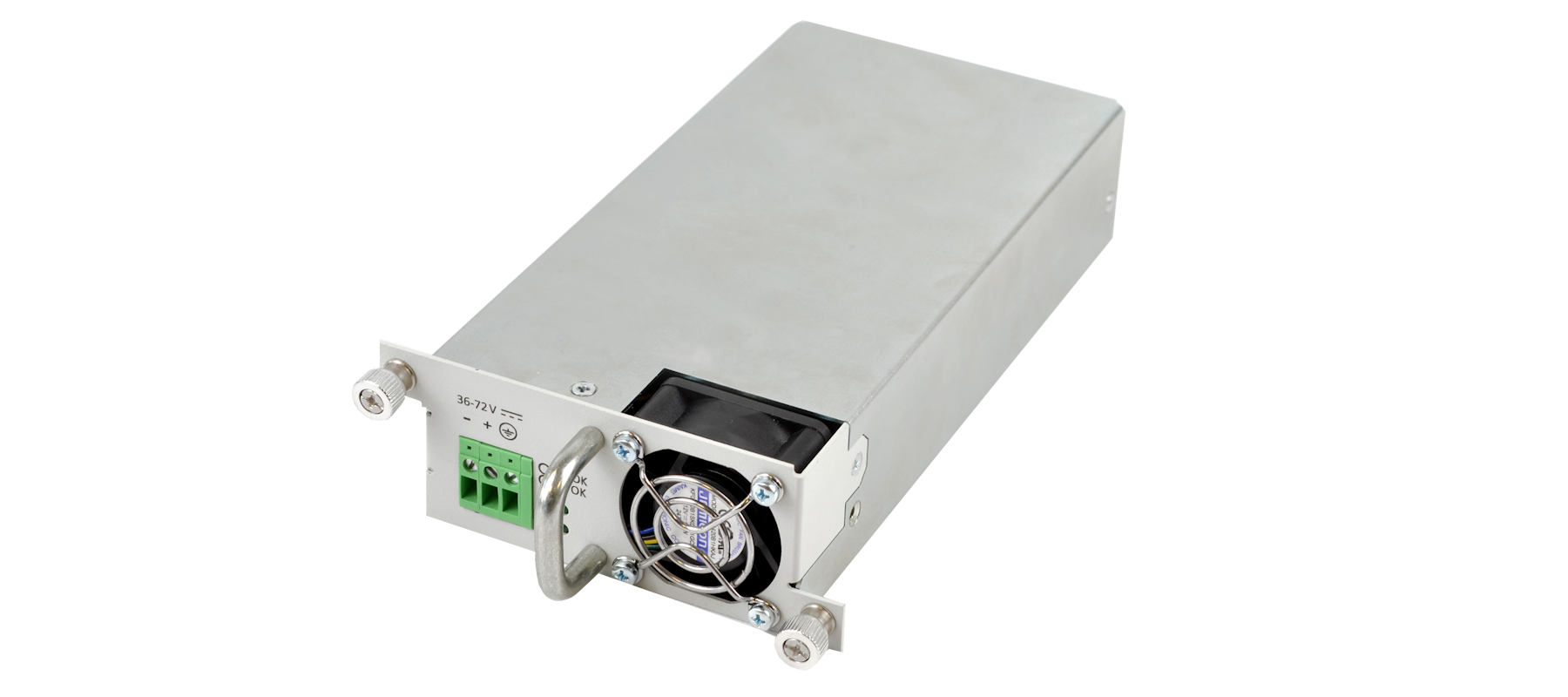

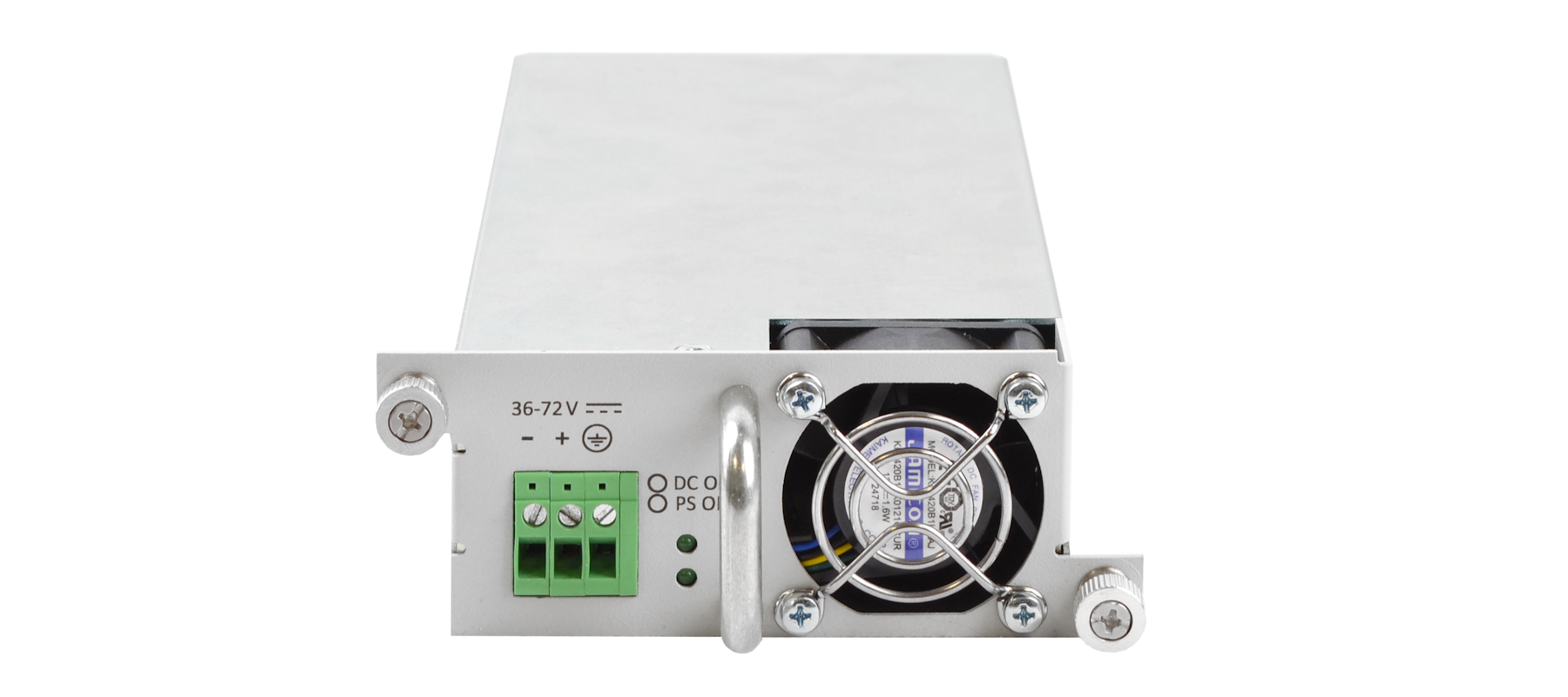

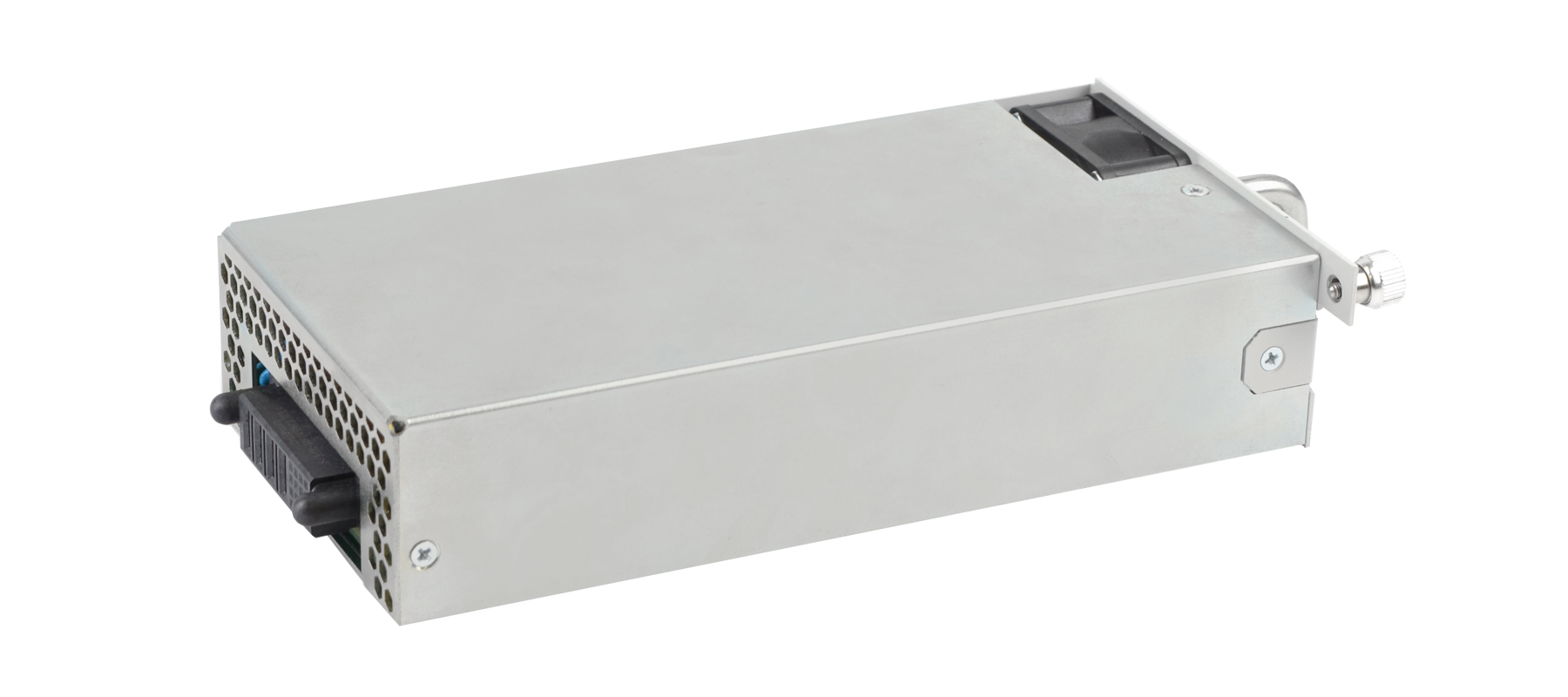

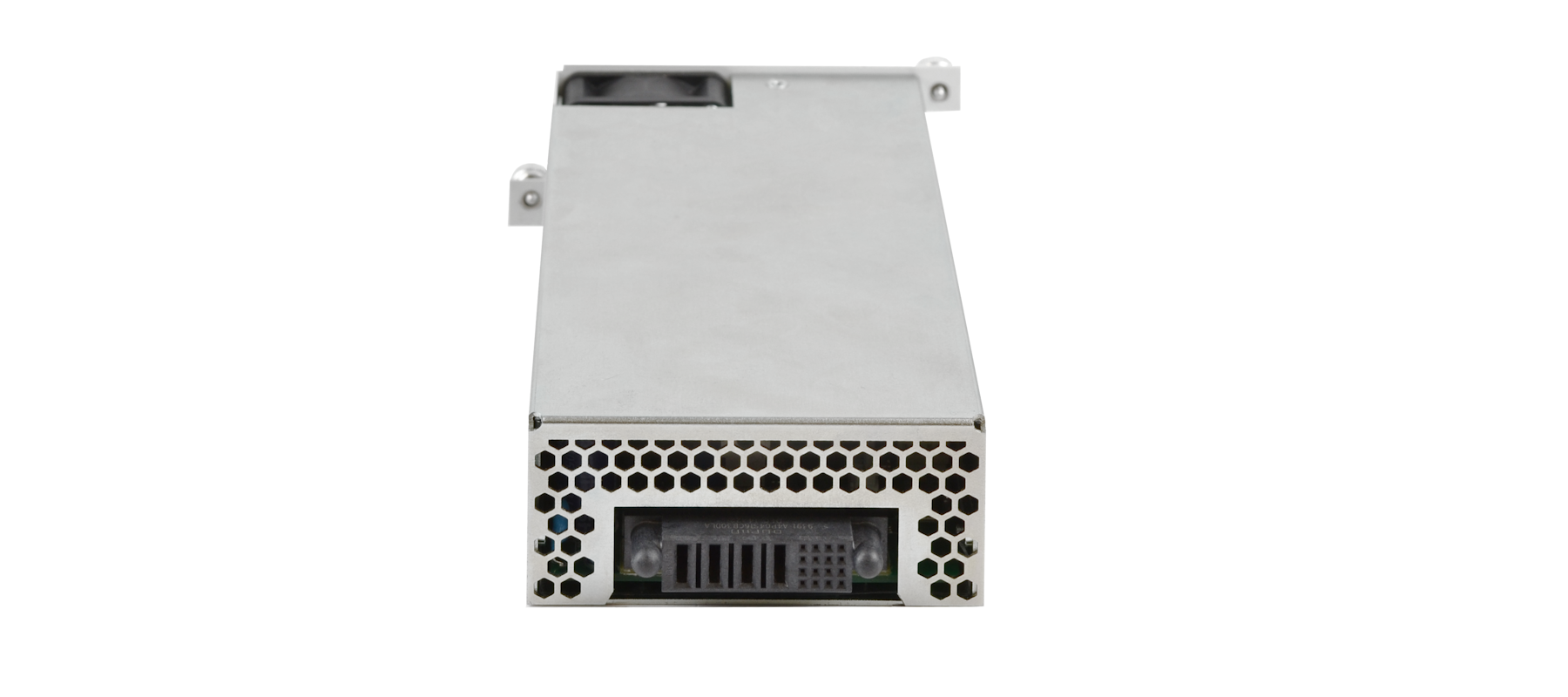

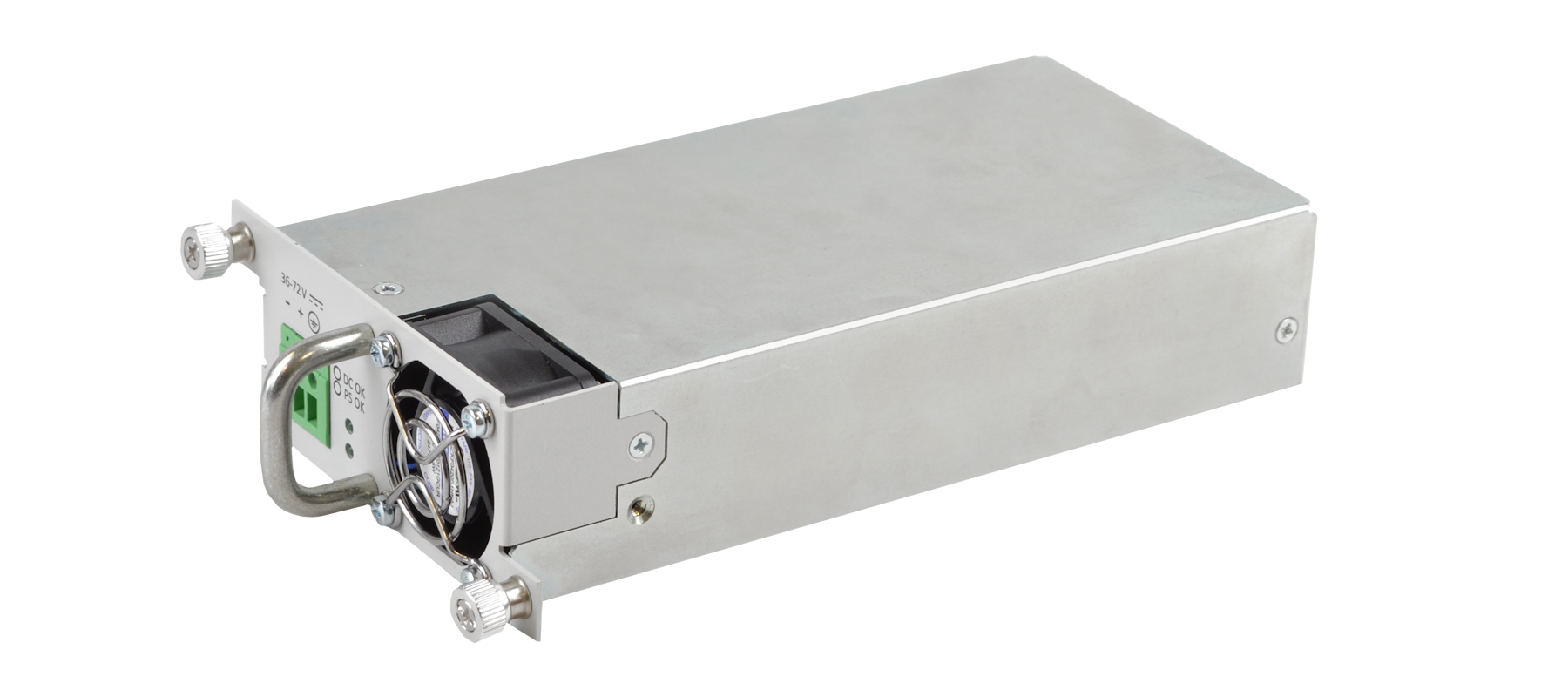

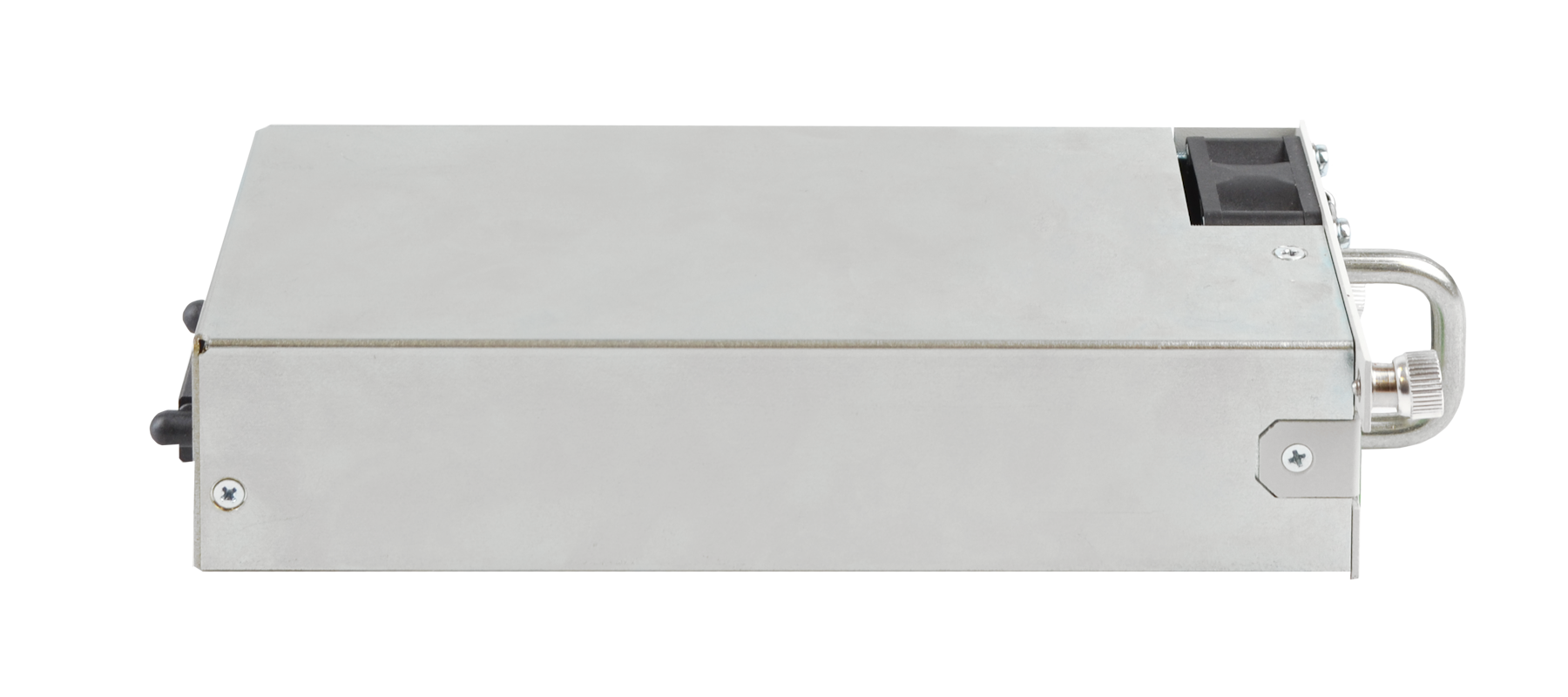

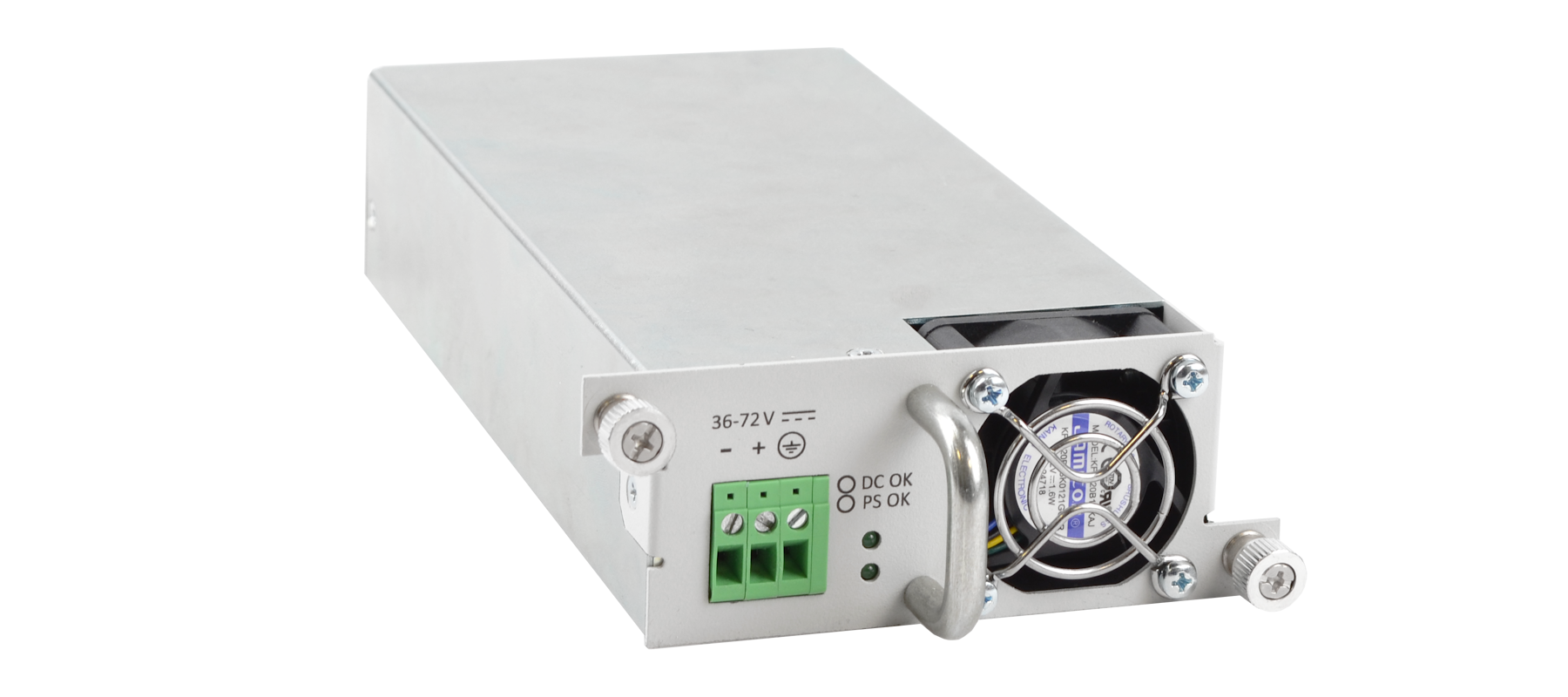

Power module PM380-48/56
- Type:
- DC
- Output voltage:
- 54 V
- Max. output power:
- 380 W
Description
PM380-48/56 power modules are intended to be used for the following Eltex equipment: MES2300D-24P, MES2448P.
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage DС max. range
36–72 V DC
Output voltage
54 V
Max. output power:
380 W
Inrush current
85 А (Vin=48 V)
115 А (Vin=72 V)
Physical features and ambient parameters:
Operating temperature
From -20 to +50 °С
Storage temperature
From -40 to +70 °С
Operating humidity at +25 °C
(without condensation)
Up to 80 %
Dimensions (WxHxD)
111х43х218 mm
Weight
0.9 kg
Supported devices
Ethernet Access Switch MES2300D-24P
Ethernet Access Switch MES2448P
