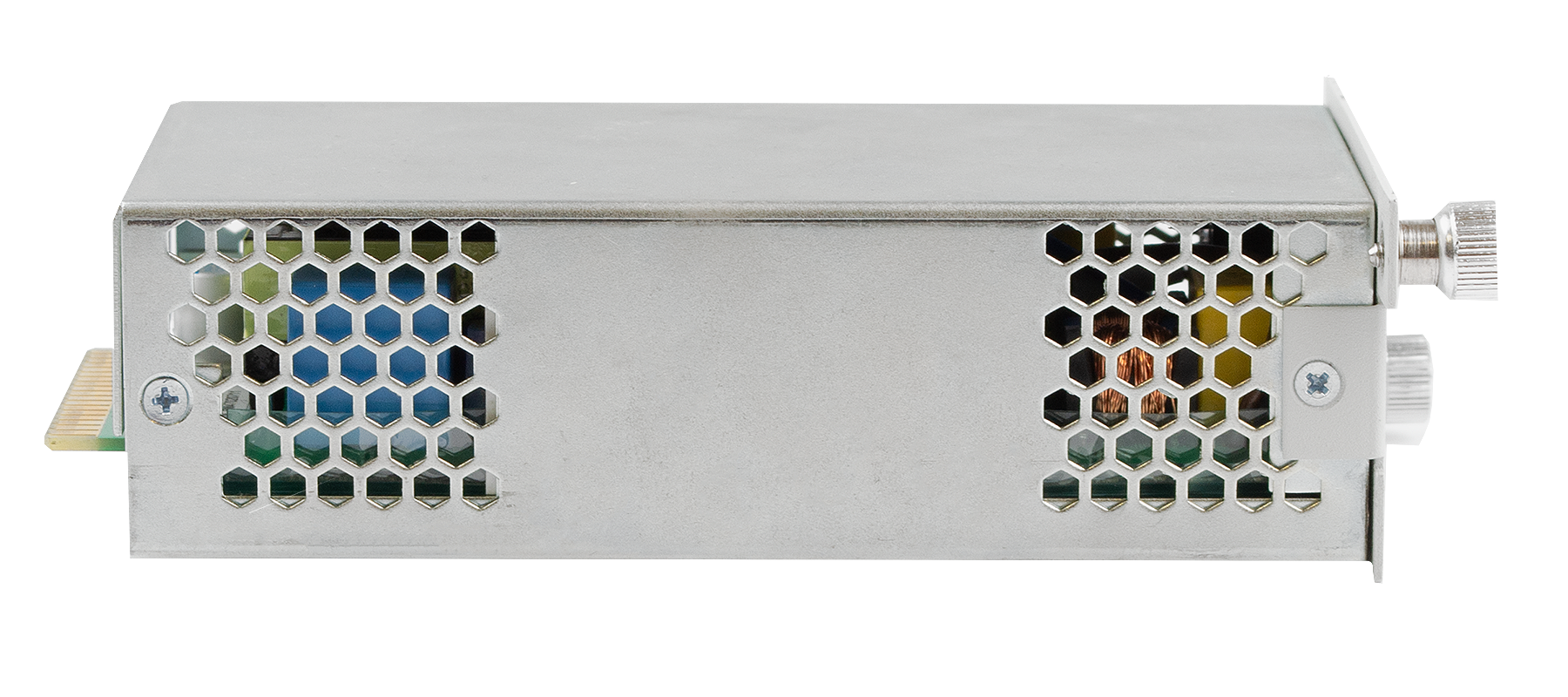

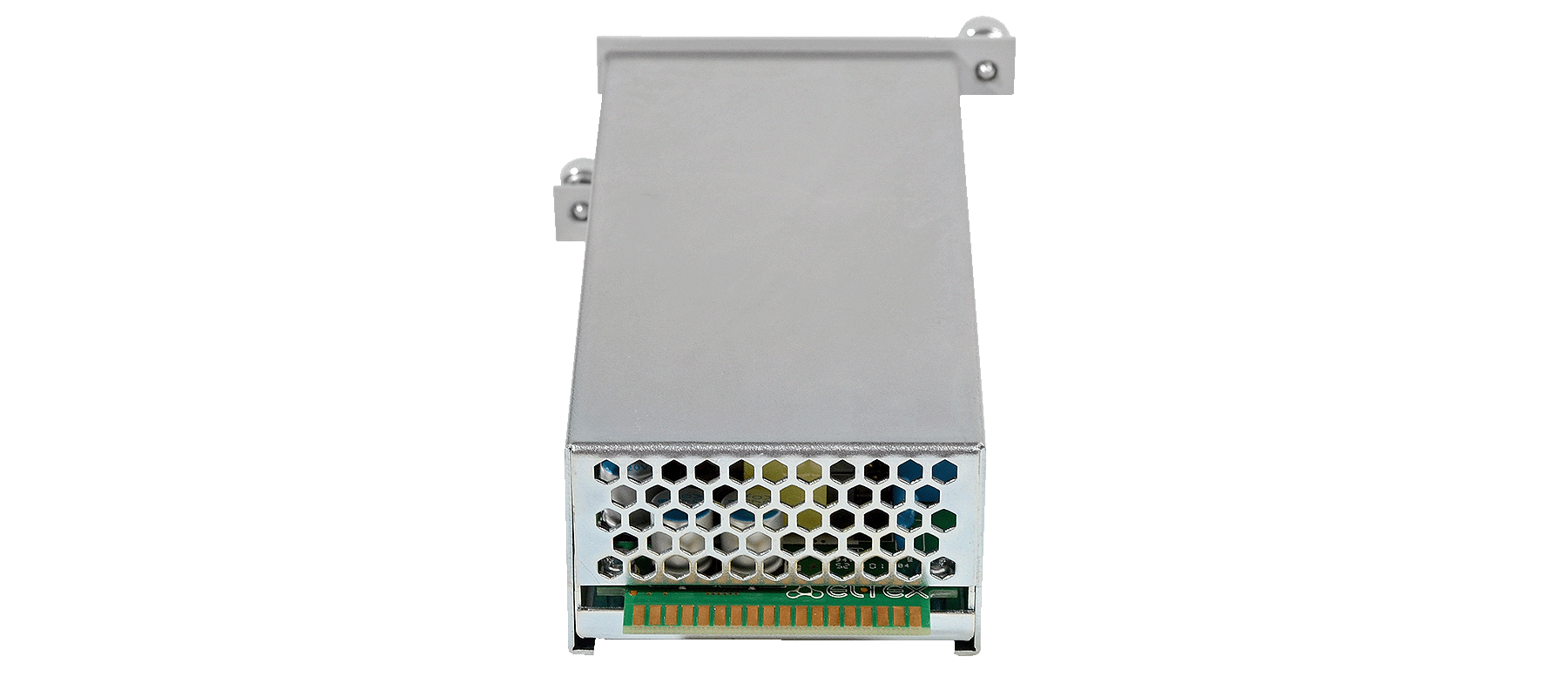

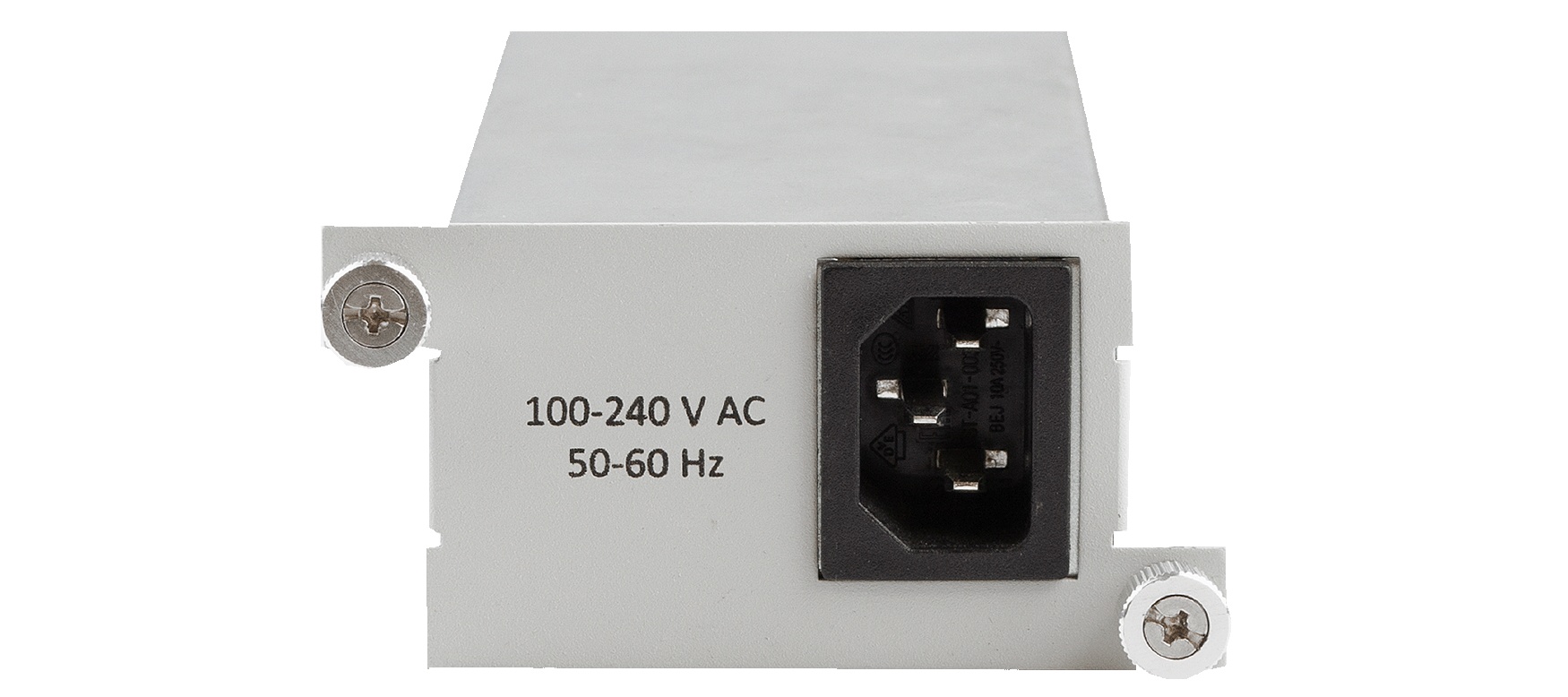

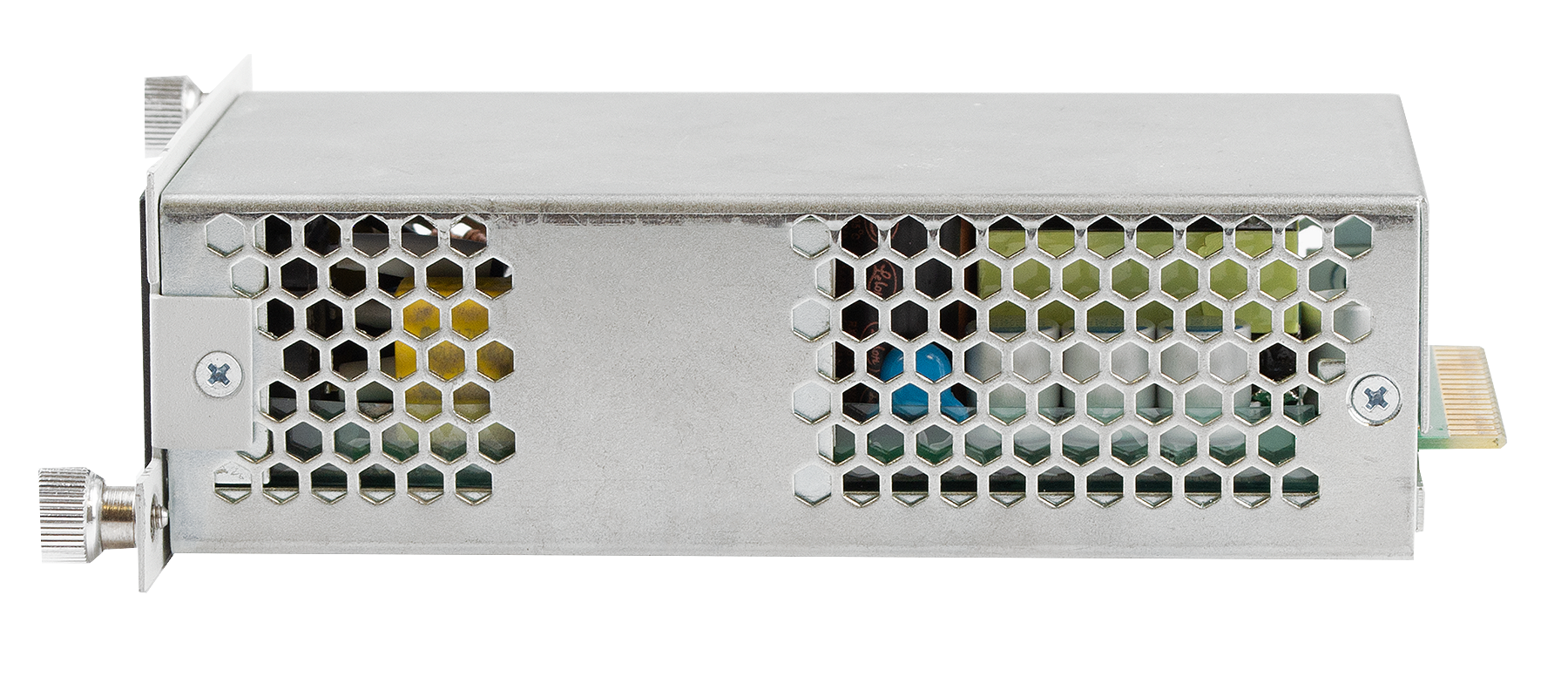

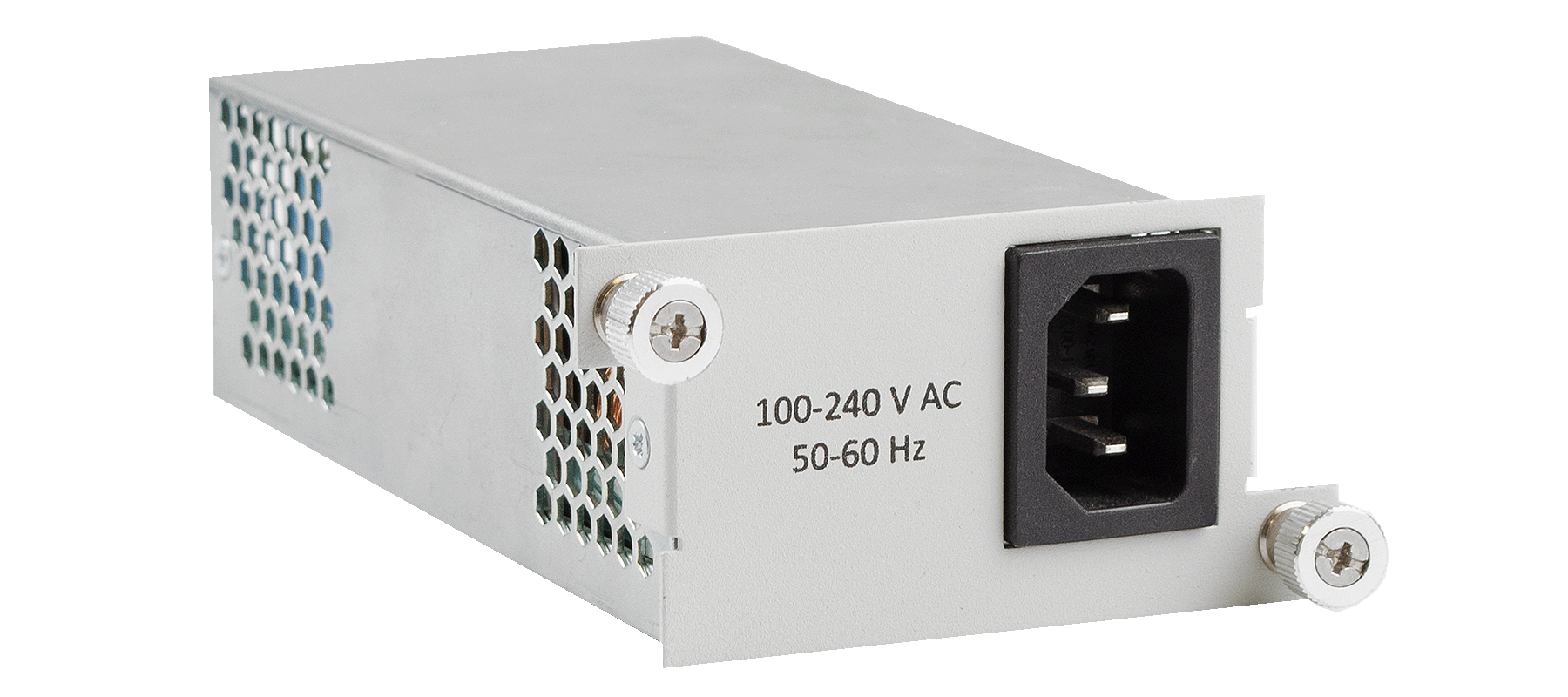

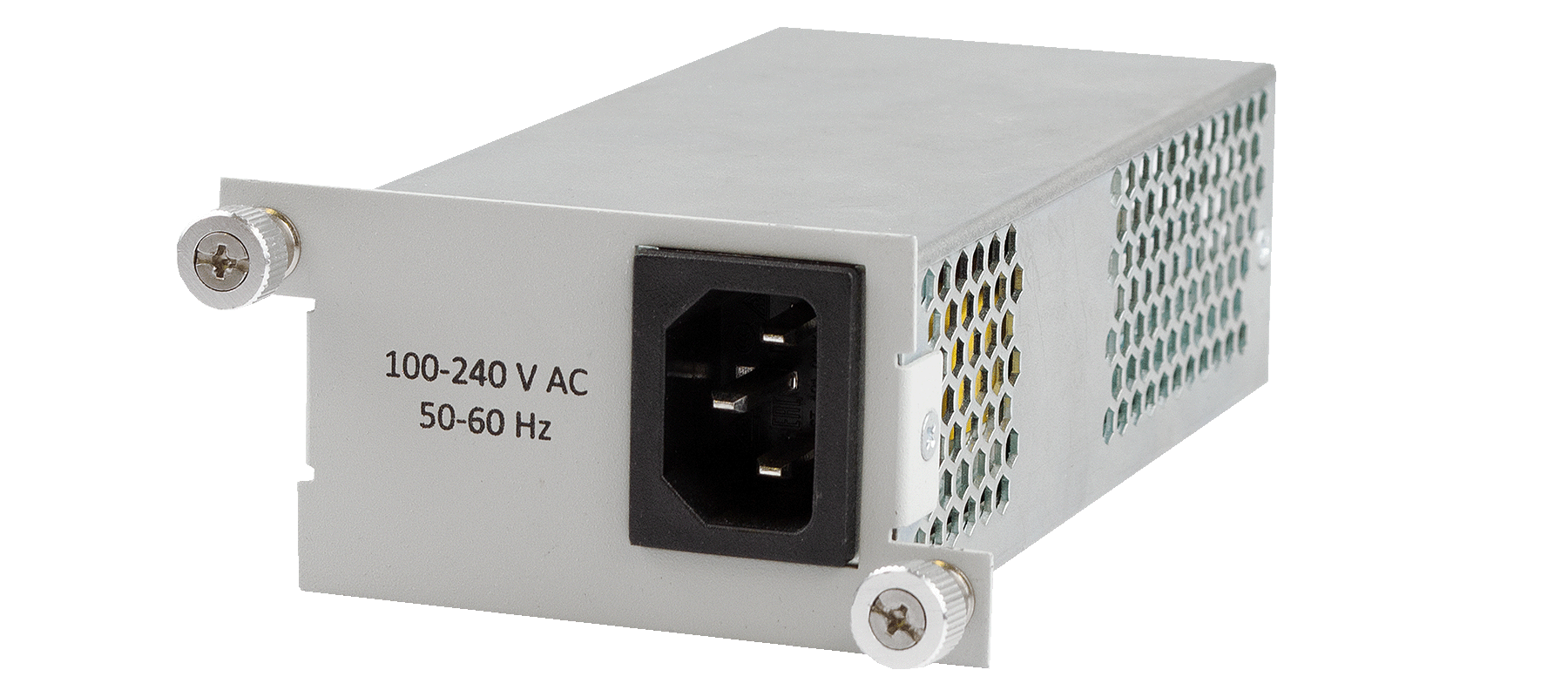

PM165-220/12
- Type:
- AC
- Output voltage:
- 12 V
- Max. output power:
- 165 W
Description
PM165-220/12 power modules are intended to be used for the following Eltex equipment: station equipment, industrial switches, aggregation switches, routers, service routers, subscriber VoIP gateways and trunk gateways.
Specifications
For full specifications and manuals see Documents and files section below
Electrical features:
Input voltage АС max. range
90–264 V
Input voltage АС nominal range
100–240 V AC
Input frequency
47–63 Hz
Inrush current
23 А
Output voltage
12 V
Max. output power
165 W
Physical features and ambient parameters:
Operating temperature
-40 to +70 °С
Storage temperature
-50 to +75 °С
Operating humidity at +25 °C
(without condensation)
Up to 80 %
Dimensions (WxHxD)
86x44x156 mm
Weight
0,5 kg

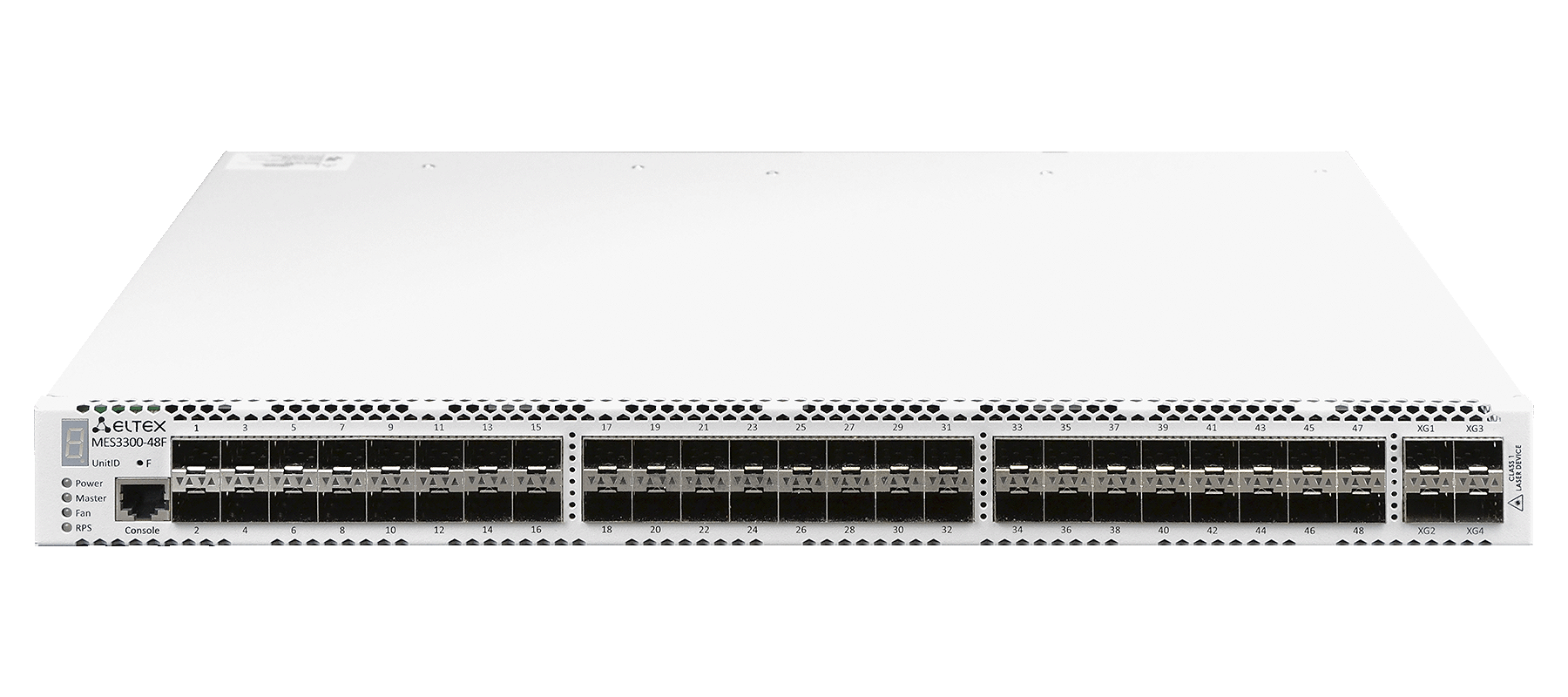

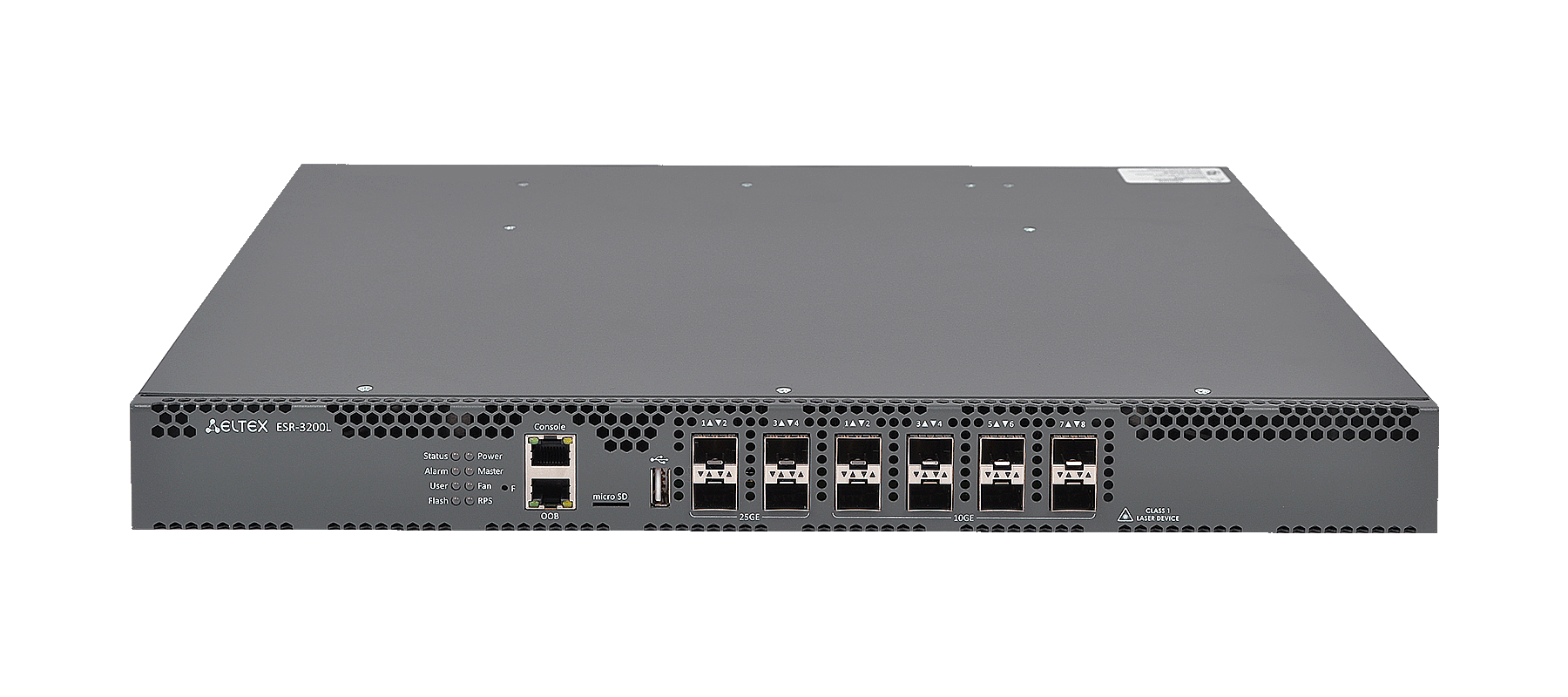

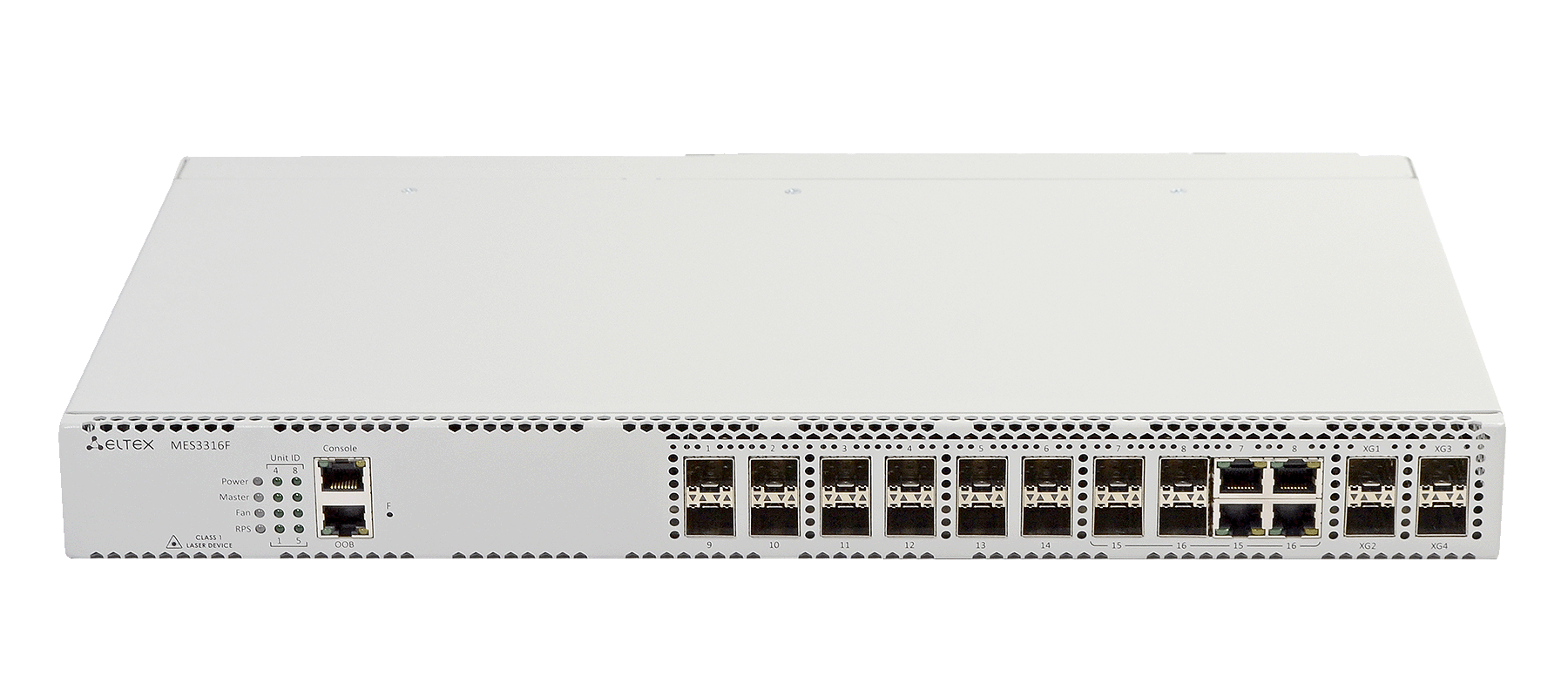

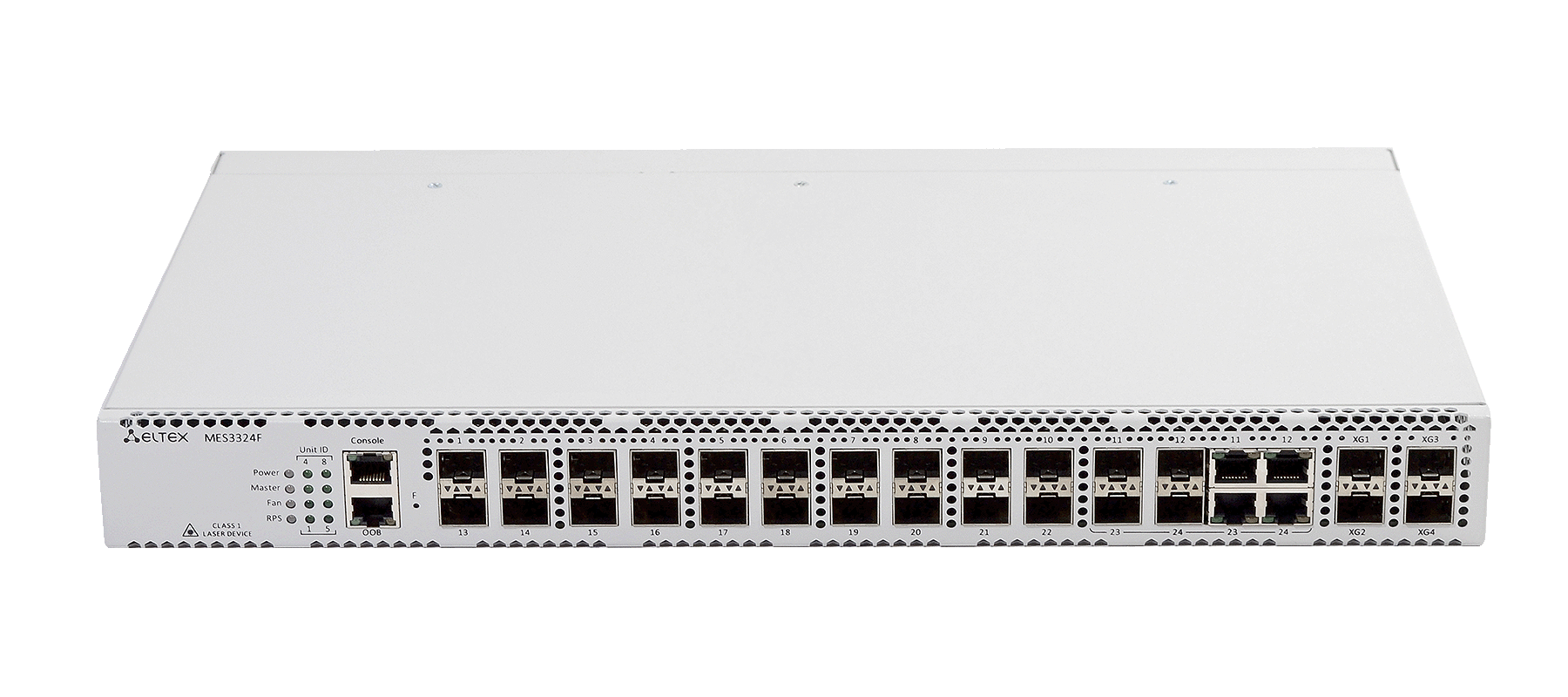

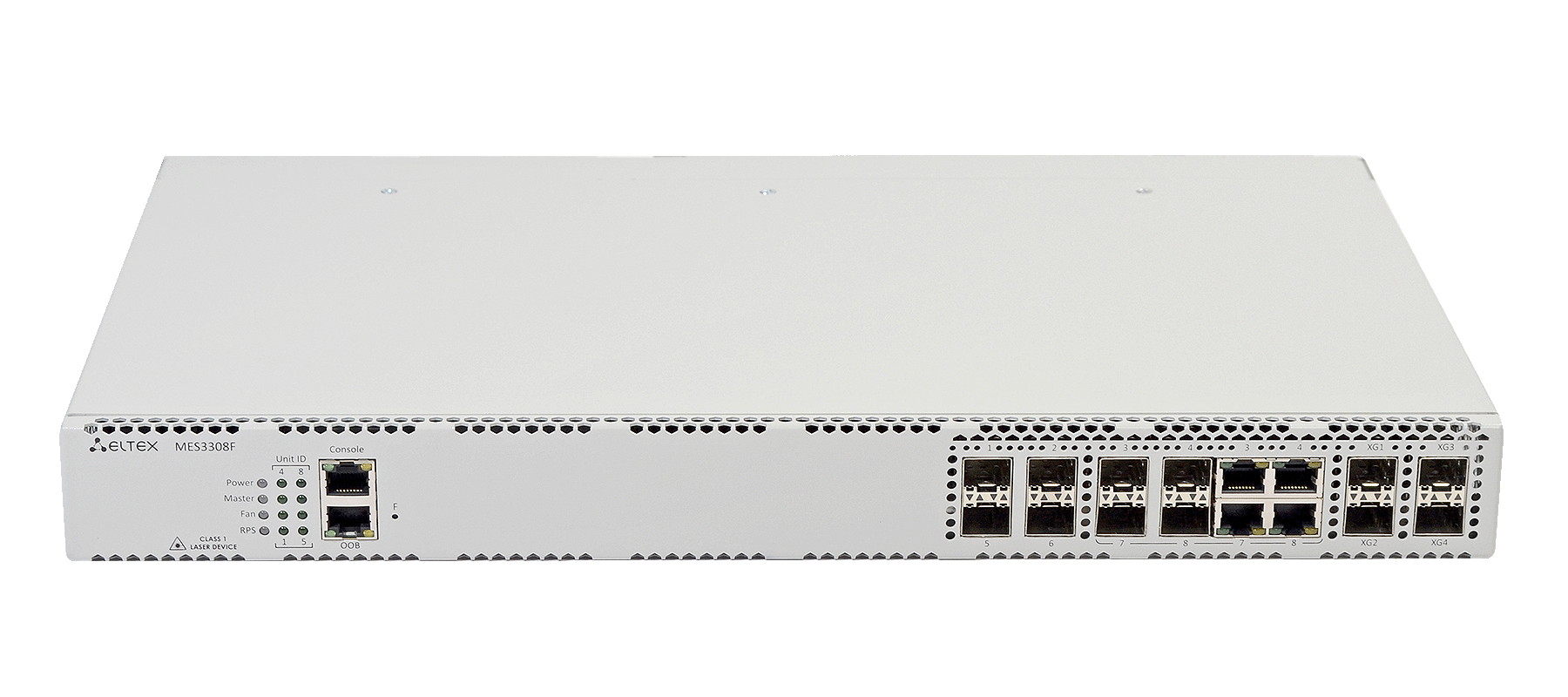

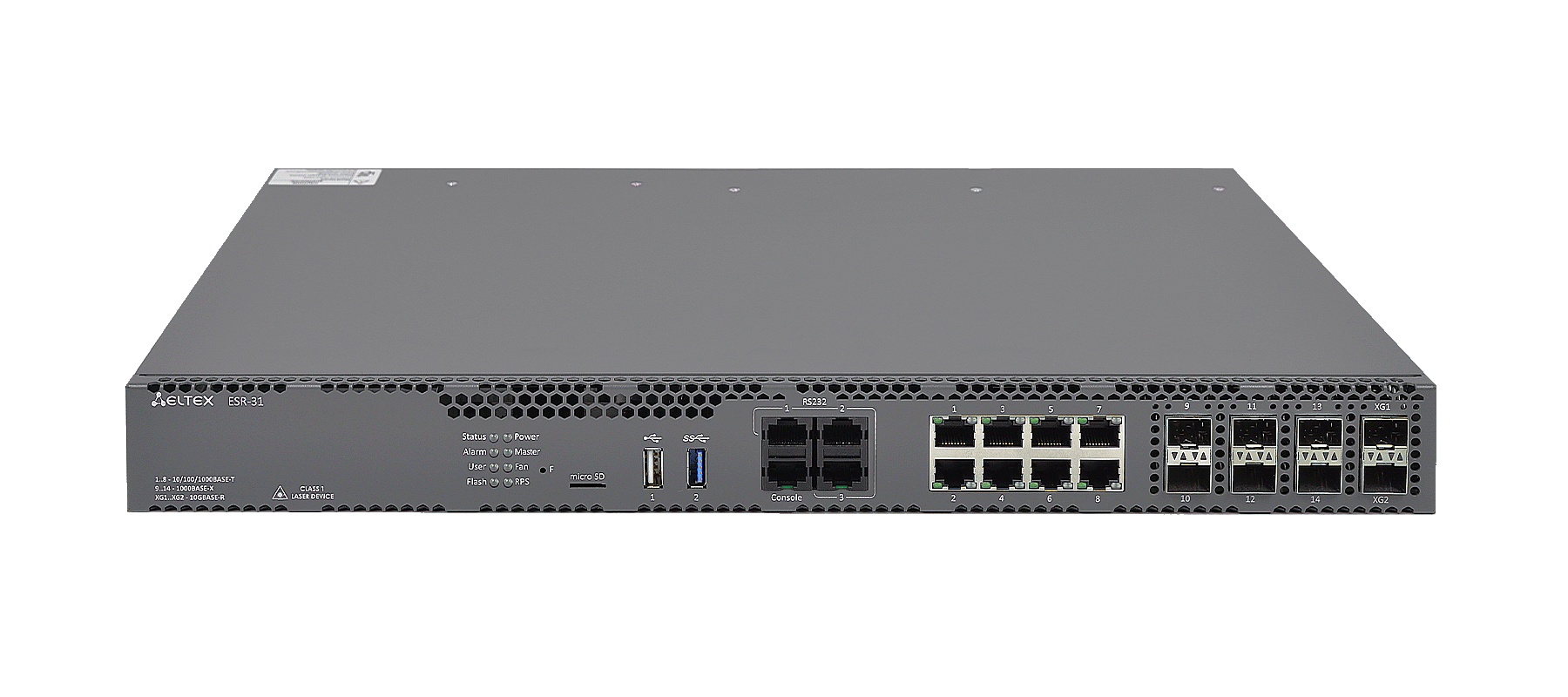

Supported devices

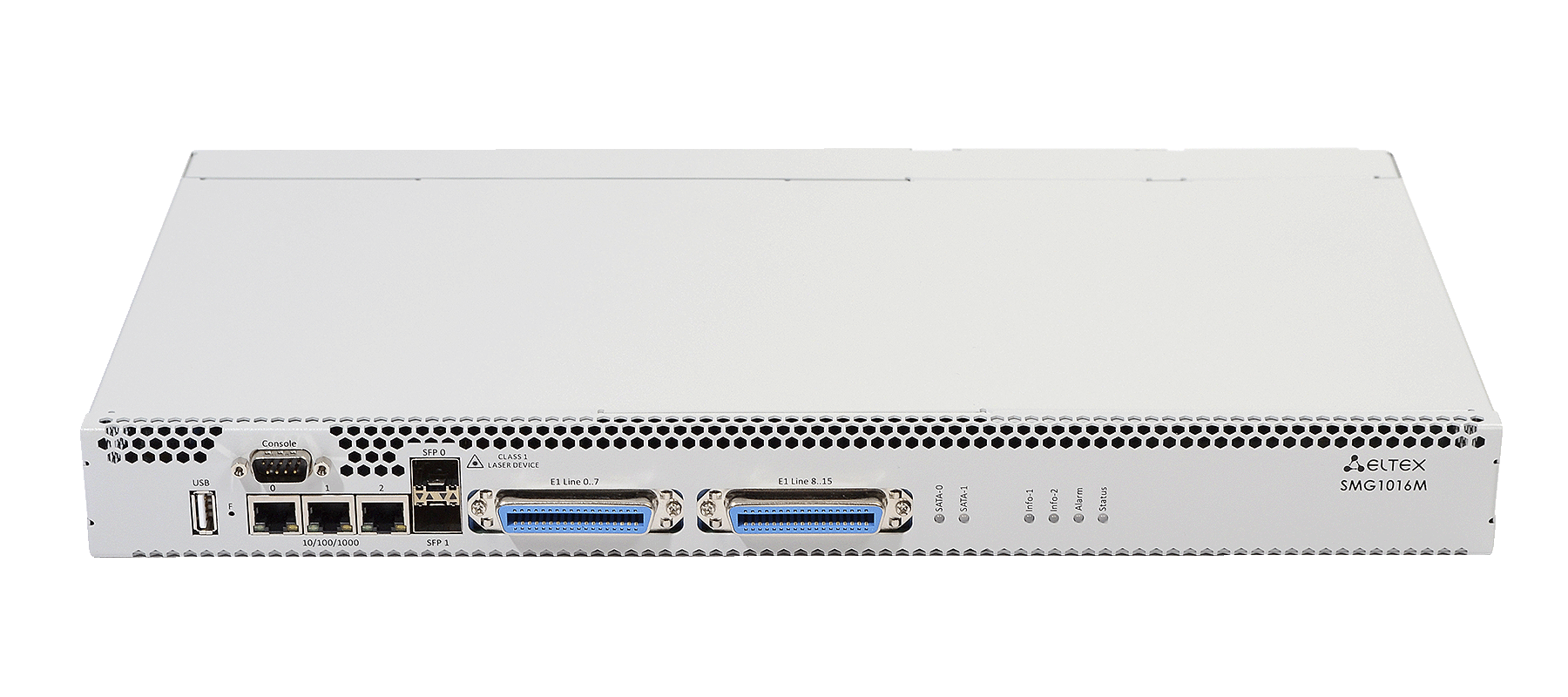

Trunk gateway SMG-1016M with IP PBX functions

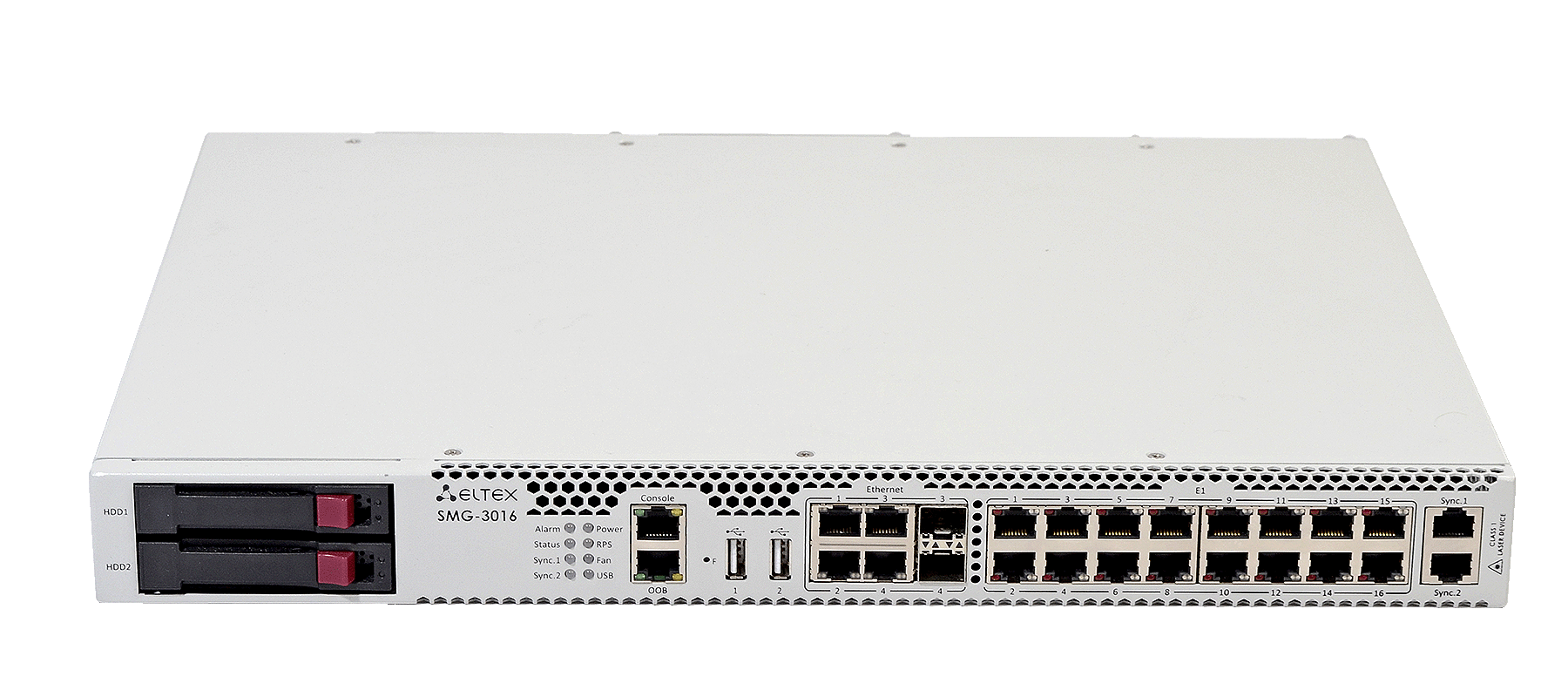

VoIP Trunk Gateway SMG-3016 with IP-PBX support

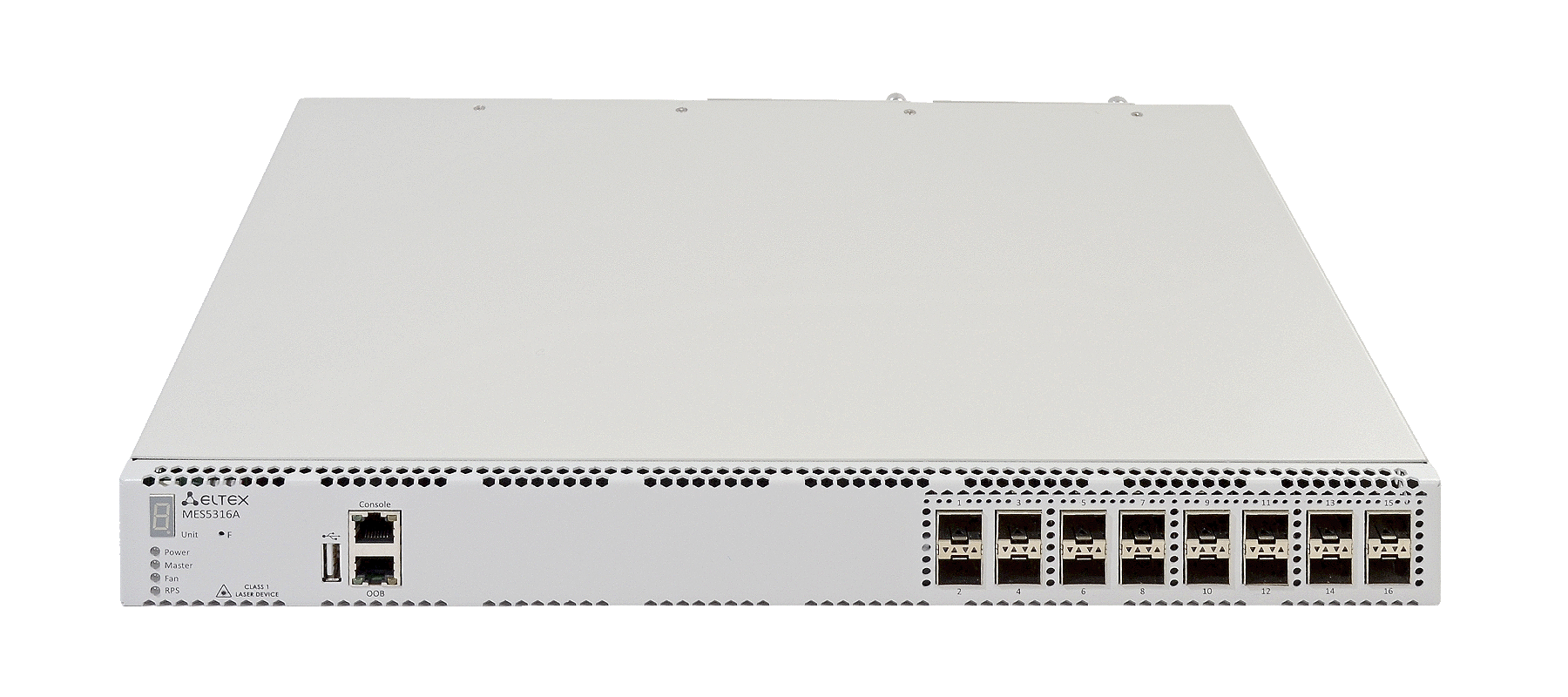

Aggregation 10G Switch MES5316A
Aggregation 10G Switch MES5316A rev.C/C1

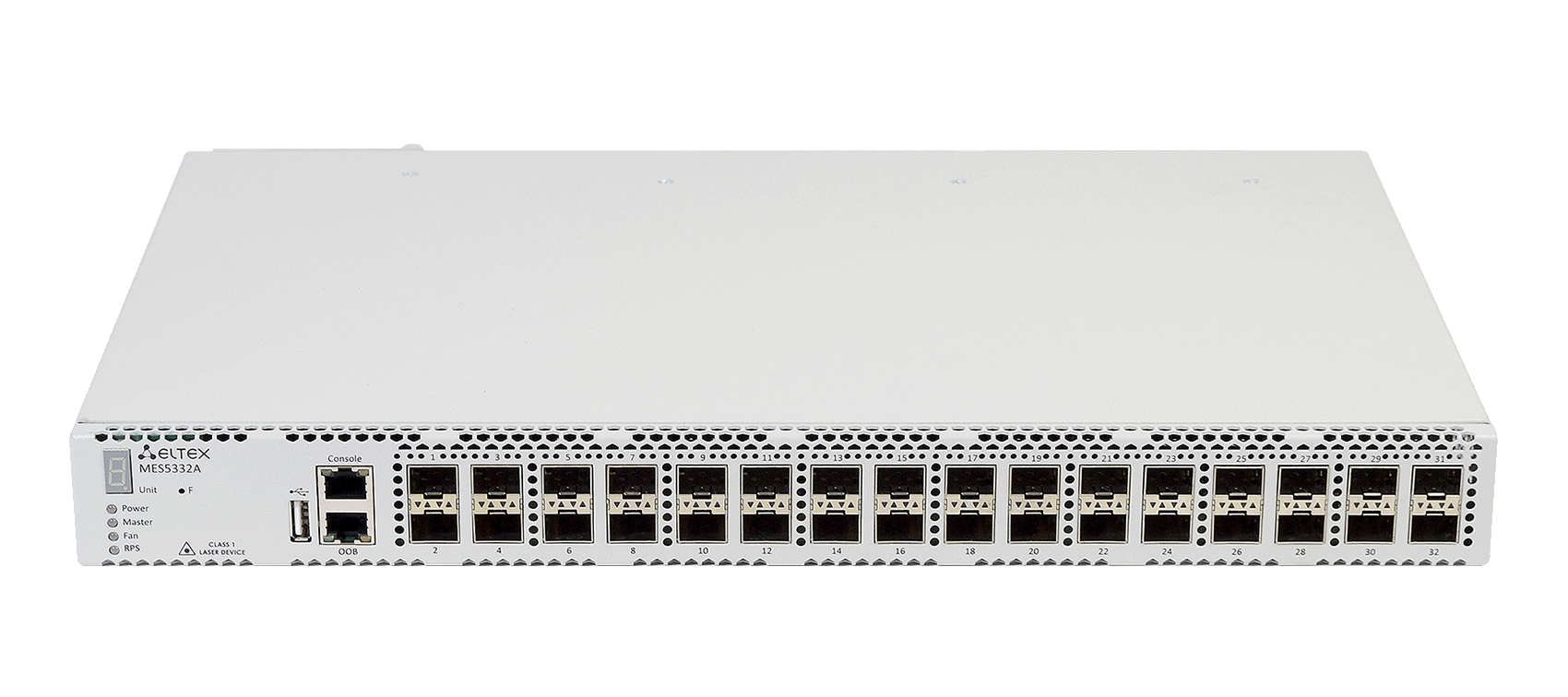

Aggregation 10G Switch MES5332A
Aggregation 10G Switch MES5332A rev.C
