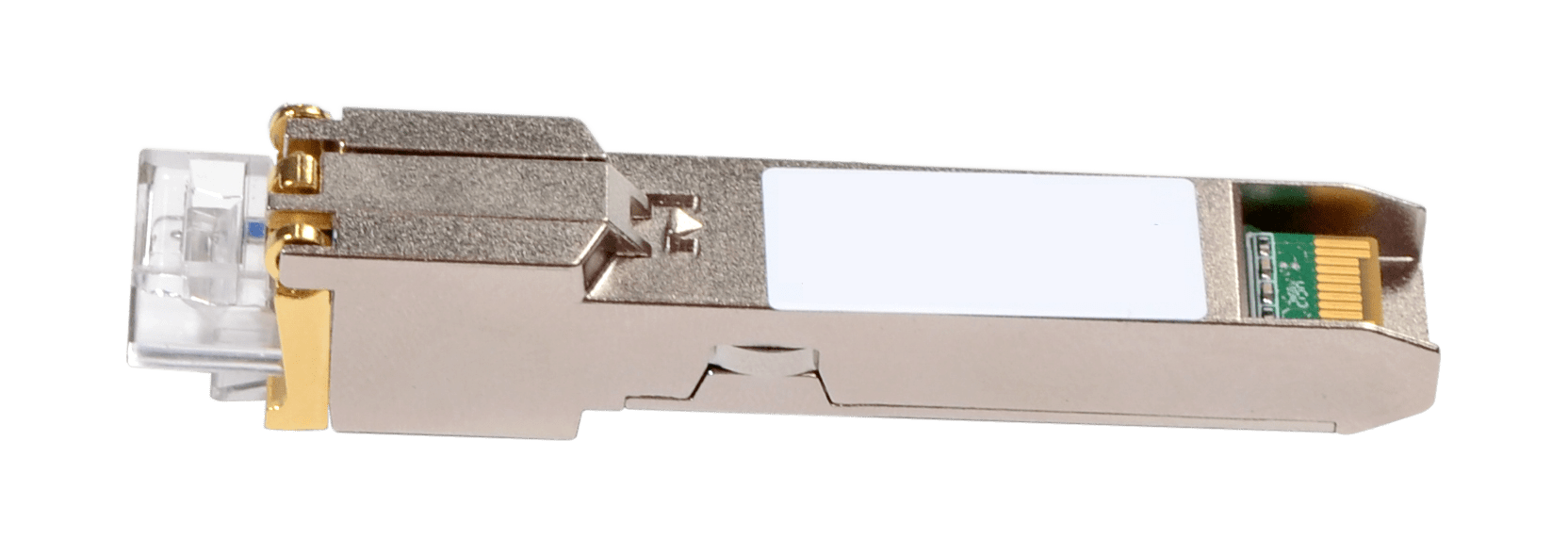

Optical multiplexer ToPGATE-SFP
.png)
Description
ToPGATE-SFP multiplexer provides transmission of structured or unstructured E1 streams over packet networks. The device is implemented in SFP form-factor (Small Form Factor Pluggable).
The multiplexer is designed for fast and easy connection to standard SFP port of any switch. Compact size and lack of separate power supply allows fast and effective E1 streams output at any point of existing network with minimal time spending on mounting, separate power supply connection and management. Having full function set of the ToPGATE line, ToPGATE-SFP is a cost-effective alternative to separate devices for E1 stream transmission over Ethernet and IP networks on endpoints.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- No separate power supply
- Management:
- SNMP, Web, Telnet, SSH
- Opportunity to transmit separate time slots of E1 streams
Features and capabilities
For full specifications and manuals see Documents and files section below
E1 interfaces
Quantity
1 or 2 in RJ-45 form-factor
Standards
G.703, G.704, G.823
Interface
Symmetric 120 Ohm, HDB3/AMI
Synchronisation
Inner, incoming Е1 stream synchronisation
Connector
RJ-45
TDM over Packet Network (Ethernet/IP)
Protocols
TDMoP, SAToP, CESoPSN
Transmission delay
1-2000 ms
Reservation
1+1 redundancy
Ethernet interface
Standrds
1000Base-X, SGMII
Connector
SFP
VLAN
802.1Q VLAN
TDMoP VLAN,MGMT VLAN
Other characteristics
Management interface
IDProm, DDM
Ethernet
Control means
Telnet CLI, menu
SSH
Web interface
SNMP v1, v2c, v3
RADIUS, TACACS+ authentication
Physical parameters
Power supply
From main device
Maximum power consumption 1W
Dimensions
SFP (14x14x67)
Weight
0.2 kg
