Optical multiplexer ToPGATE-4E1-2FG
Description
ToPGATE multiplexer – flexible compact equipment for E1 streams transmission through packet networks via TDM over packet (TDMoP), Structure-Agnostic Time Division Multiplexing over Packet (SAToP), Structure-Aware Time Division Multiplexed Circuit Emulation Service over Packet Switched Network (CESoPSN) technologies. The devices provide transparent independent connection of classic telephony equipment upon a unified network infrastructure. Optic-fiber interfaces which are realized through connected SFP and CSFP modules and embedded Ethernet switch allows to construct networks with different topologies without additional equipment.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Transmission of 4 structured or unstructured E1 streams
- DyingGasp
- Support:
- SNMP, Web, Telnet, SSH, RADIUS, TACACS+
Features and capabilities
For full specifications and manuals see Documents and files section below

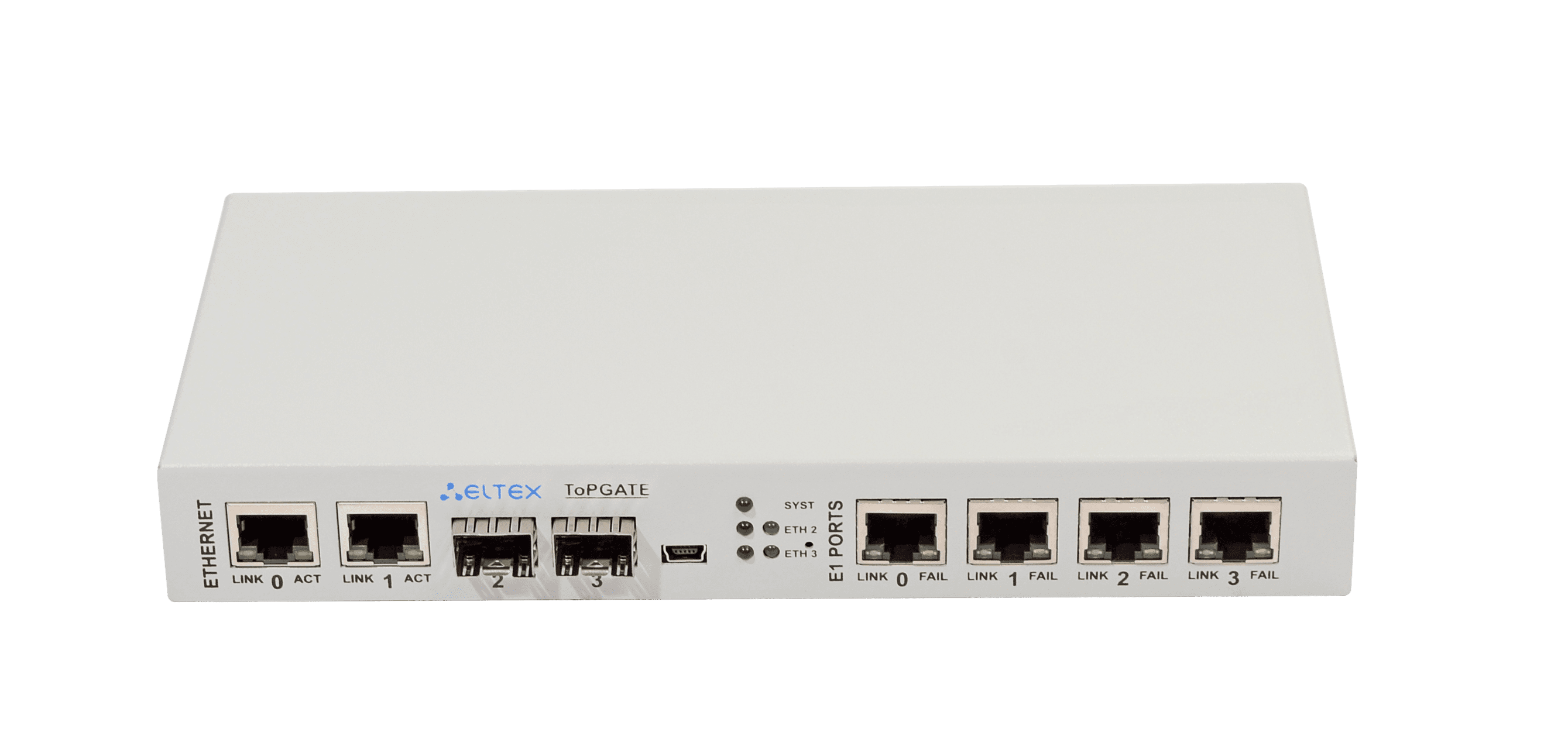

E1 interfaces
Quantity
4 RJ-45
Standards
G.703, G.704, G.706, G.823
Interface
Symmetric 120 Ohm, HDB3/AMI
Synchronisation
Inner, incoming Е1 stream synchronisation
Link distance
500 m
TDM over Packet Network (Ethernet/IP)
Protocols
TDMoP, SAToP, CESoPSN
Transmission delay
1–2000 ms
Reservation
1+1 redundancy
Ethernet interfaces
Quantity
4
Interfaces
2 Gigabit Ethernet
2 SFP/CSFP Gigabit
Cooper interfaces standards
IEEE 802.3i 10Base-T
IEEE
802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x
Flow Control
Optical interfaces standards
IEEE 802.3u 100Base-FX
IEEE
802.3z 1000Base-X
IEEE 802.3x Flow Control
Management
Local management
Mini USB connector
Management trough IP network
Telnet CLI, menu, SSH,
Web interface, SNMP v1, v2c, v3
Authentication
RADIUS, TACACS+
Physical parameters

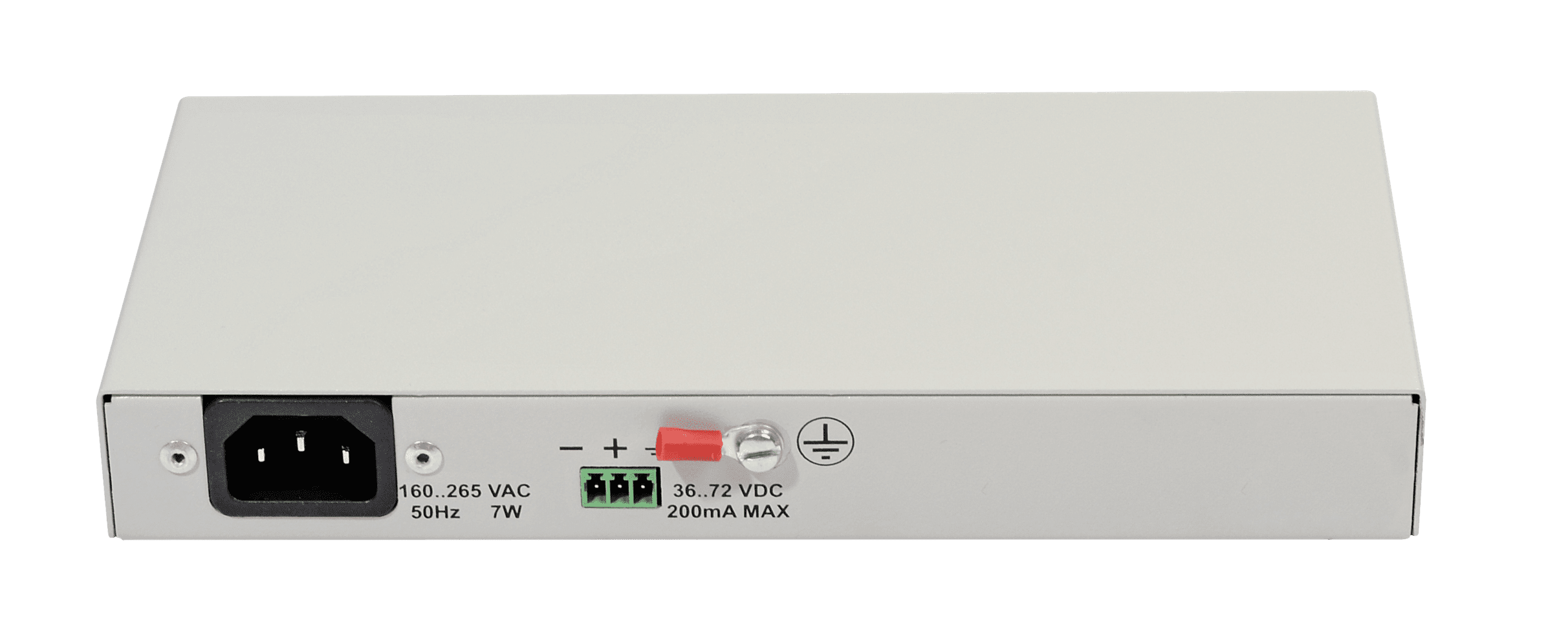

Power supply
220 VAC, -48 VDC
Maximum power consumption 6W
Dimensions
215х28.5х105, 19"
form-factor
Weight
0.8 kg
