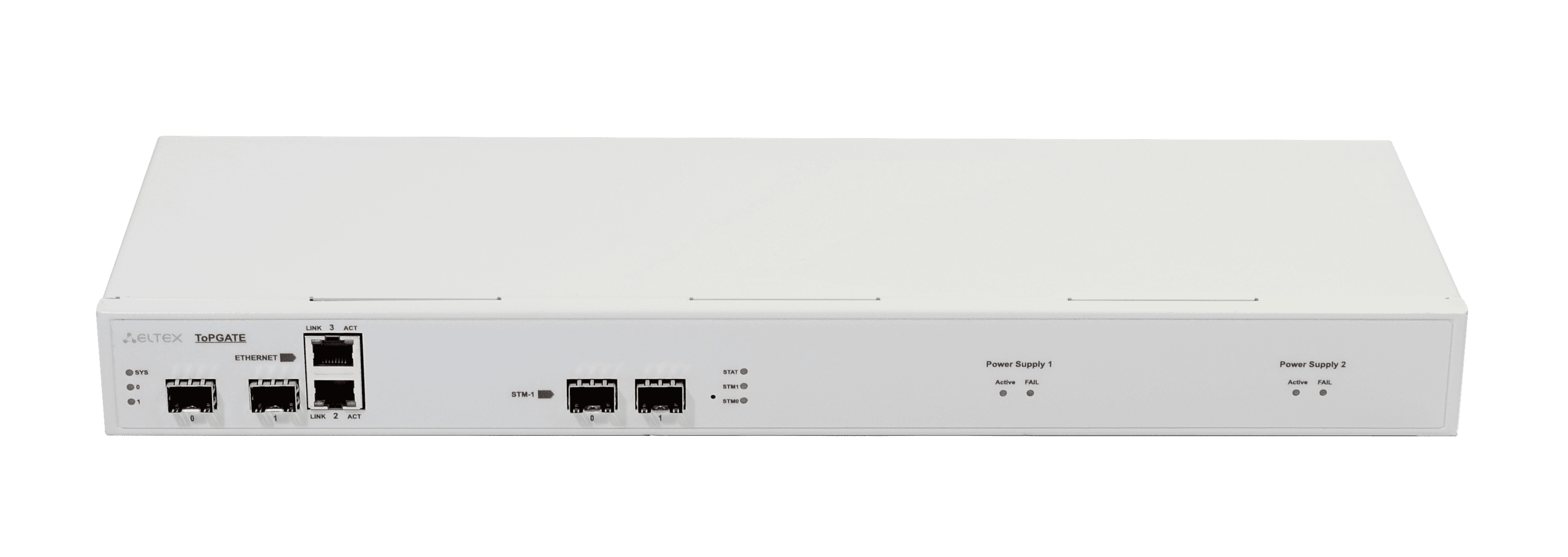

Optical multiplexer ToPGATE-2STM1-2FG

Description

TopGATE-2STM1-2FG multiplexer is dedicated for demultiplexing of structured and unstructured E1 streams (G.703, G.704) out of STM-1 stream (SDH) and for transmission of this data through packet data network (Ethernet) via TDMoP.



Due to the embedded full-featured Gigabit Ethernet L2+ switch and 2 optic-fiber interfaces (up to 80 km link distance for a single fiber), there is an opportunity to built small transport networks without additional equipment.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Up to 126 E1 streams transmission via TDMoP
Embedded full-featured L2 switch
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet
STM1 interfaces
Quantity
2 SFP
Standard
G.707
Synchronisation
Inner, incoming Е1 stream synchronisation
Transmission delay
From 2.5 ms to 512 ms
Ethernet interfaces
Quantity
4
Interfaces
2 Gigabit Ethernet (RJ-45)
2 Gigabit Ethernet (SFP)
Cooper interfaces standards
IEEE 802.3i 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Optical interfaces standards
IEEE 802.3u 100Base-FX
IEEE 802.3z 1000Base-X
IEEE 802.3x Flow Control
Management
Local management
1 USB port, 1 RS-232
Management through IP network
Telnet CLI, menu, Web interface, SNMP v1, v2
Physical parameters
Power supply
220 VAC, -48 VDC
Maximum power consumption 10 W
Dimensions
430х44х150, 19" formfactor, 1U, wall mounting
Weight
2 kg
