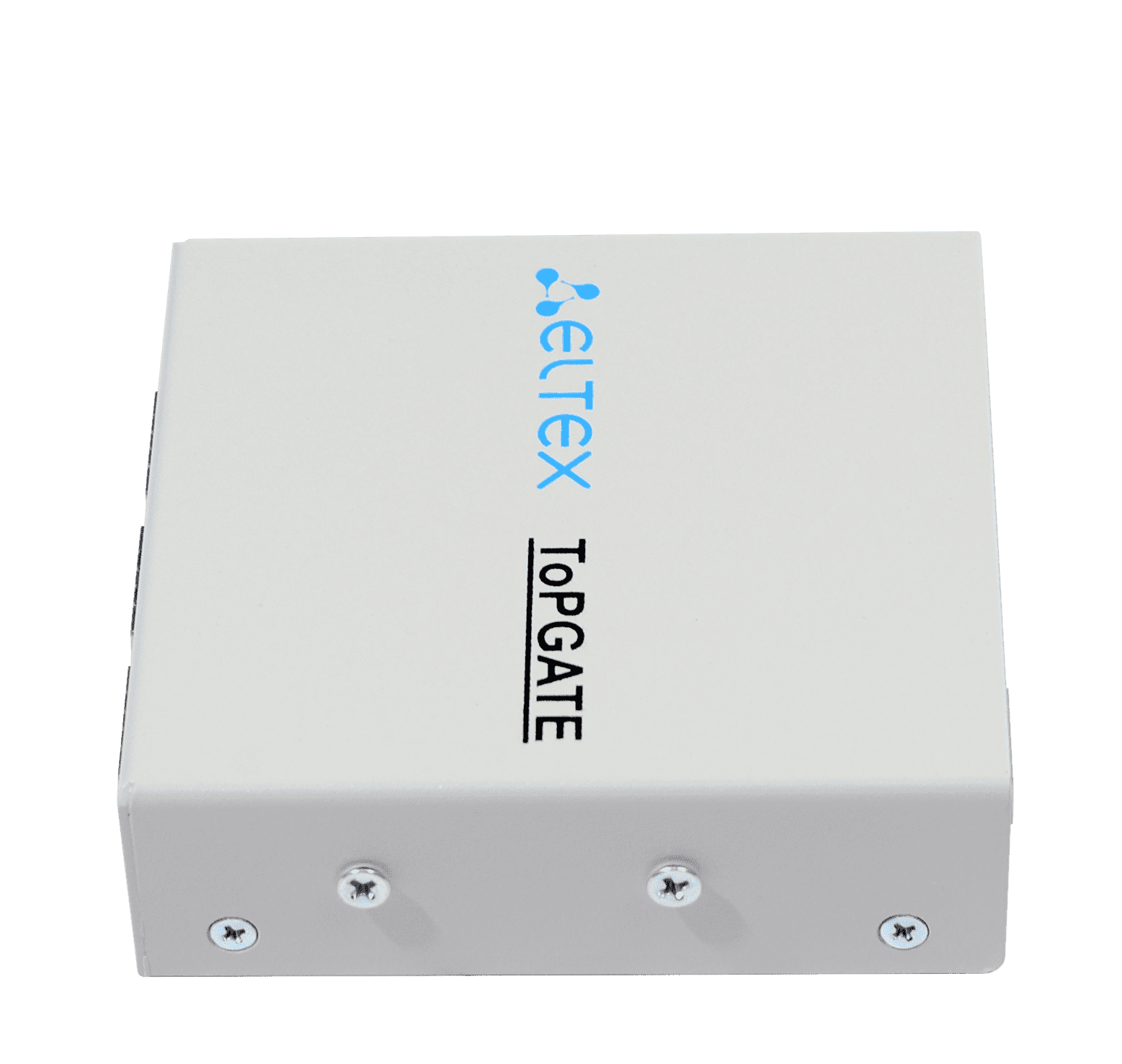

Optical multiplexer ToPGATE-2E1-1F
Description
ToPGATE multiplexer – flexible compact equipment for E1 streams transmission through packet networks via TDM over packet (TDMoP), Structure-Agnostic Time Division Multiplexing over Packet (SAToP), Structure-Aware Time Division Multiplexed Circuit Emulation Service over Packet Switched Network (CESoPSN) technologies. The devices provide transparent independent connection of classic telephony equipment upon a unified network infrastructure. Optic-fiber interfaces which are realized through connected SFP and CSFP modules and embedded Ethernet switch allows to construct networks with different topologies without additional equipment.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Transmission of 2 structured or unstructured E1 streams
- Support:
- SNMP, Web, Telnet, SSH, RADIUS, TACACS+
Features and capabilities
For full specifications and manuals see Documents and files section below

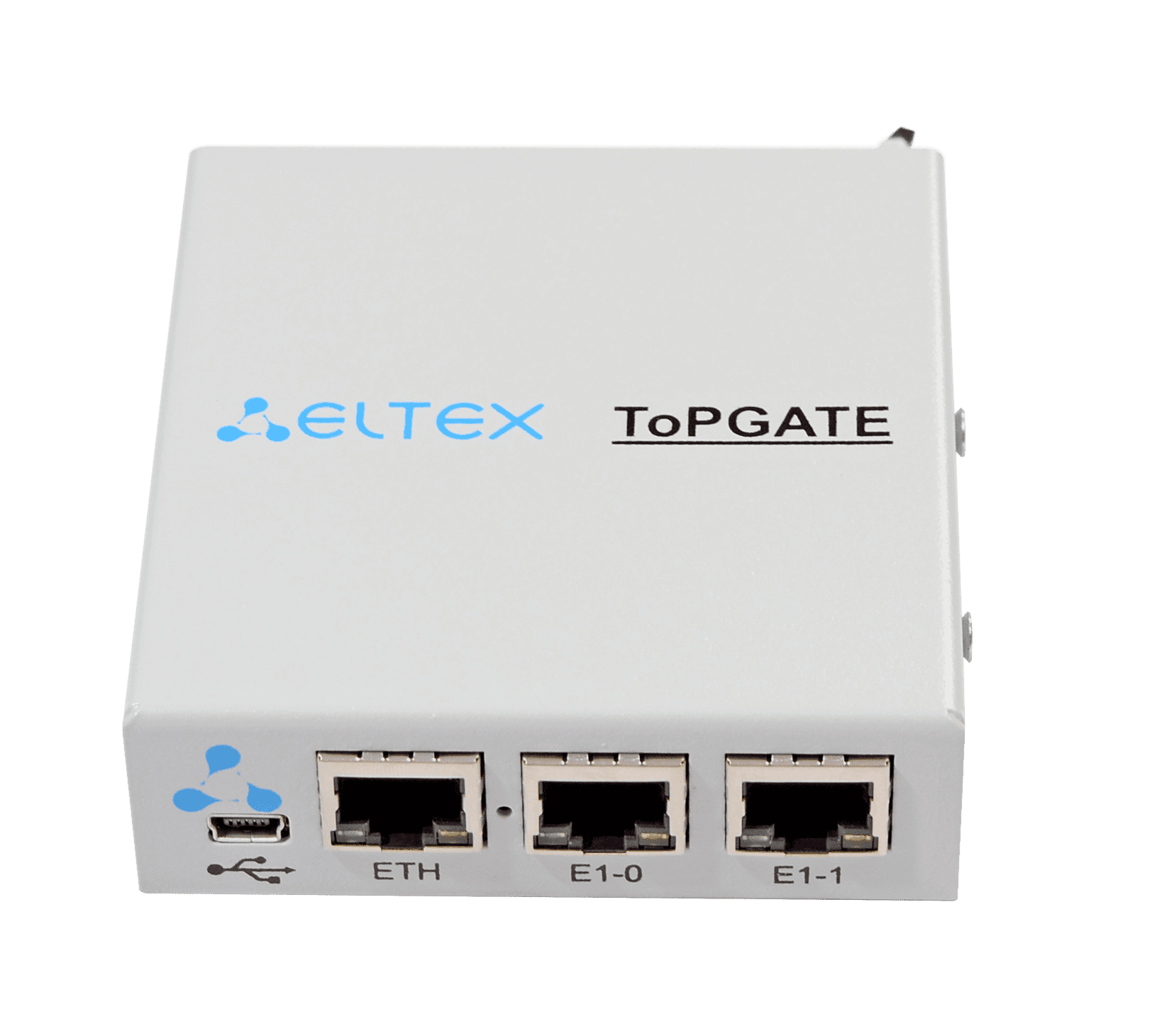

E1 interfaces
Quantity
2 RJ-45
Standards
G.703, G.704, G.706, G.823
Interface
Symmetric 120 Ohm, HDB3/AMI
Synchronisation
Inner, incoming Е1 stream
synchronisation
Link distance
500 m
TDM over Packet Network (Ethernet/IP)
Protocols
TDMoP, SAToP, CESoPSN
Transmission delay
1-2000 ms
Reservation
1+1 redundancy
Ethernet interfaces
Quantity
1 RJ-45
Type
10/100/1000 Mbps Auto MDI/MDI-X RJ-45
Link distance
160m
Support for standards
IEEE 802.3, 802.3u, 10Base-T, 100Base-T,
1000Base-TX
VLAN
802.1Q VLAN
TDMoP VLAN,MGMT VLAN
Parameters and capabilities
Maximum frame size
1522
Use of DSCP in QoS
Support for NAT while Е1 streams transmission
Management
Management means
Telnet CLI, menu
SSH
Web interface
SNMP v1, v2c, v3
RADIUS, TACACS+ authentication
Physical parameters

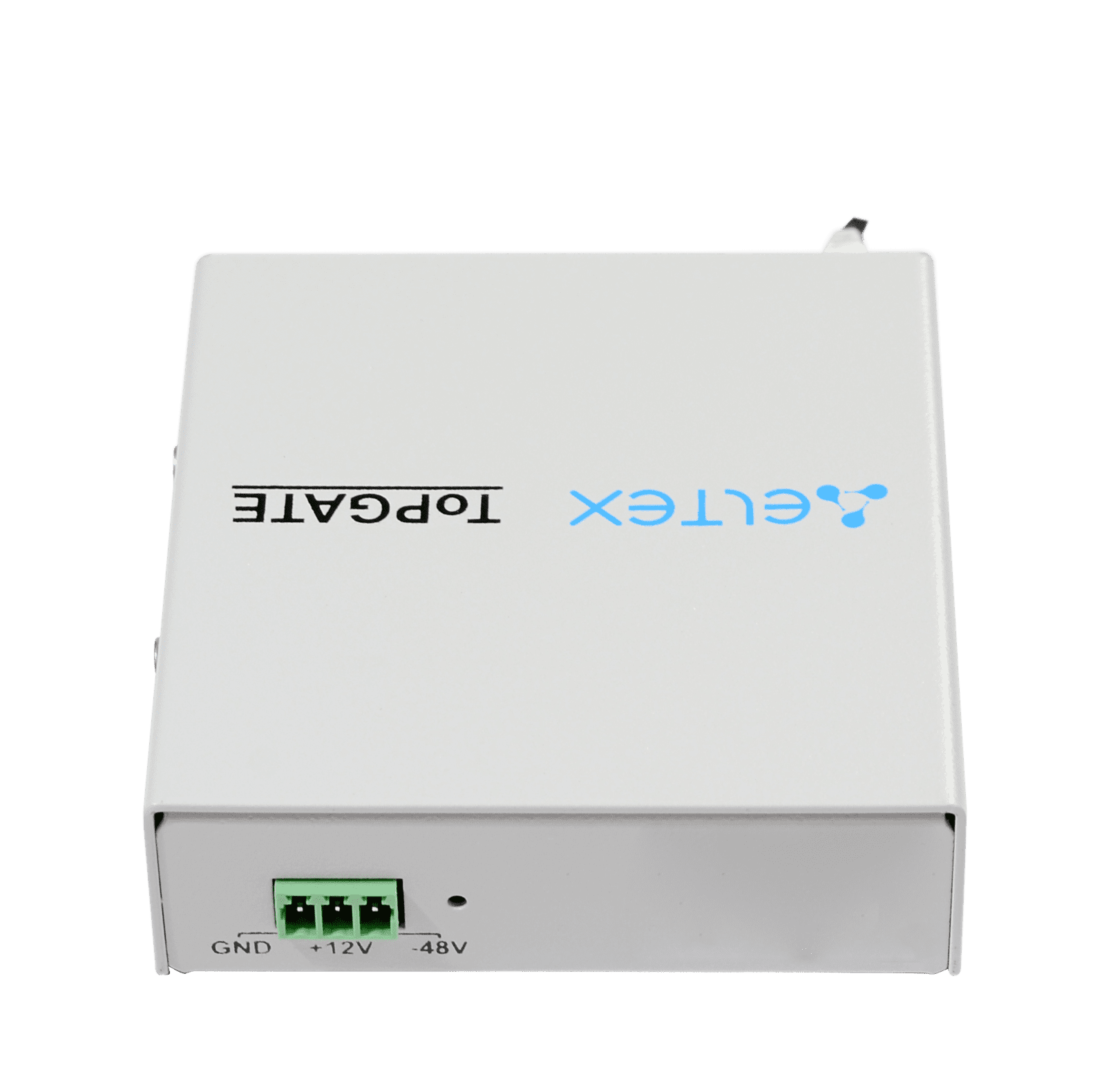

Power supply
220 VAC, 12 VDC (the convector ~220V into 12V is
in the package)
Maximum power consumption 5W
Dimensions
82х26х85.5, 19" formfactor
Weight
0.25 kg
