Optical multiplexer ToPGATE-1E1-1FG

Description

ToPGATE multiplexer – flexible compact equipment for E1 streams transmission through packet networks via TDM over packet (TDMoP), Structure-Agnostic Time Division Multiplexing over Packet (SAToP), Structure-Aware Time Division Multiplexed Circuit Emulation Service over Packet Switched Network (CESoPSN) technologies. The devices provide transparent independent connection of classic telephony equipment upon a unified network infrastructure. Optic-fiber interfaces which are realized through connected SFP and CSFP modules and embedded Ethernet switch allows to construct networks with different topologies without additional equipment.

Advanced warranty and support packages
Extend basic package with additional paid services
Learn more

Specifications

Transmission of single structured or unstructured E1 stream
Support:
SNMP, Web, Telnet, SSH, RADIUS, TACACS+
DyingGasp
Features and capabilities
For full specifications and manuals see Documents and files section below
Data sheet

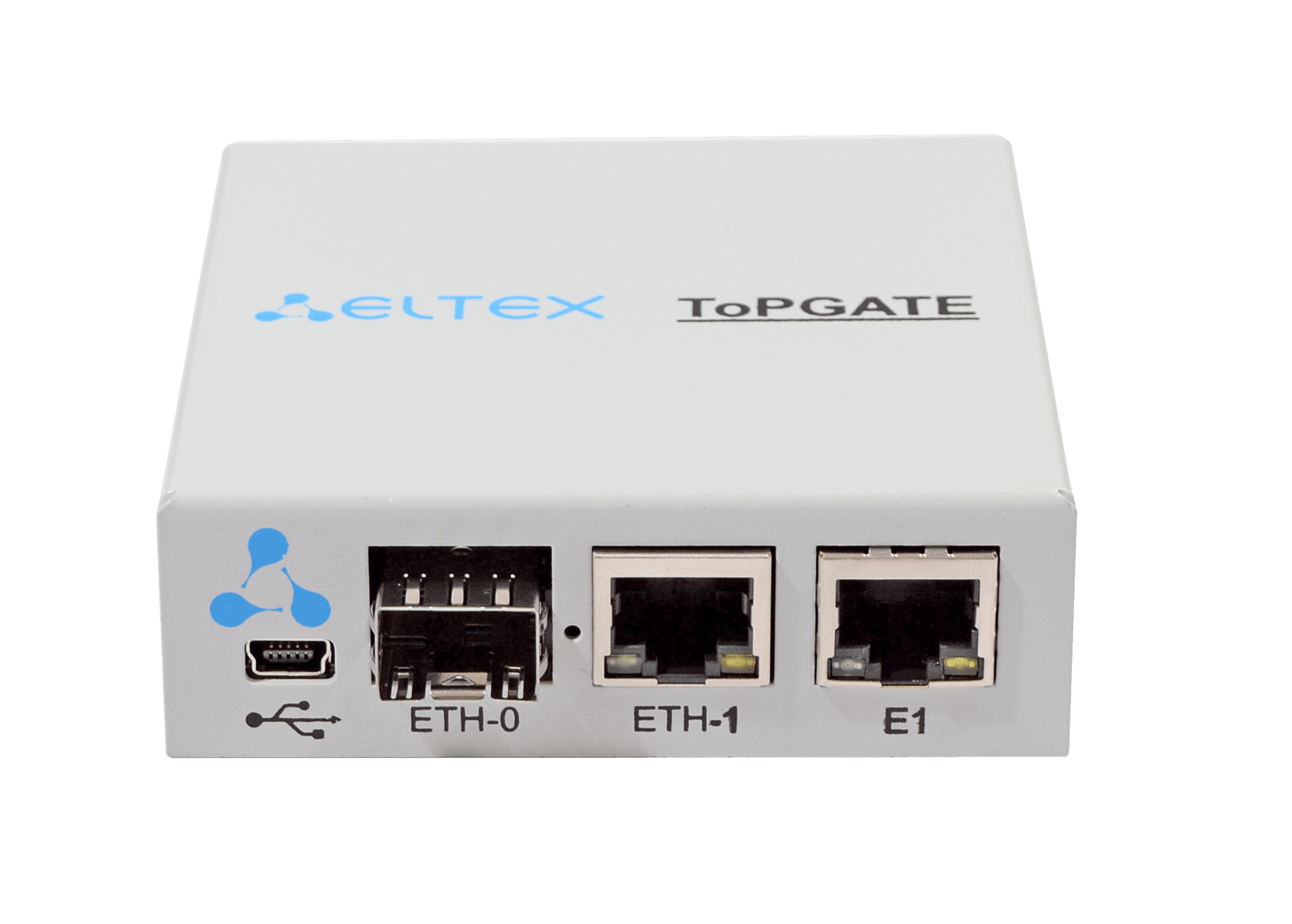

E1 interfaces
Quantity
1 RJ-45
Standards
G.703, G.704, G.706, G.823
Interface
Symmetric 120 Ohm, HDB3/AMI
Synchronisation
Inner, incoming Е1 stream synchronisation
Link distance
500 m
TDM over Packet Network (Ethernet/IP)
Protocols
TDMoP, SAToP, CESoPSN
Transmission delay
1-2000 ms
Reservation
1+1 redundancy
Ethernet interfaces
Quantity
1 RJ-45, 1 SFP
Type
10/100/1000 Mbps Auto MDI/MDI-X RJ-45
Type
IEEE 802.3 1000Base-X
Support for standards
IEEE 802.3, 802.3u, 10Base-T, 100Base-TX, 1000Base-TX
Parameters
MAC table
8192 entries
Embedded switch bandwidth
Up to 2 Gbps, 2.98 Mpps
Maximum frame size
10240 bytes
Management
Management means
Telnet CLI, menu
SSH
Web interface
SNMP v1, v2c, v3
RADIUS, TACACS+ authentication
Physical parameters

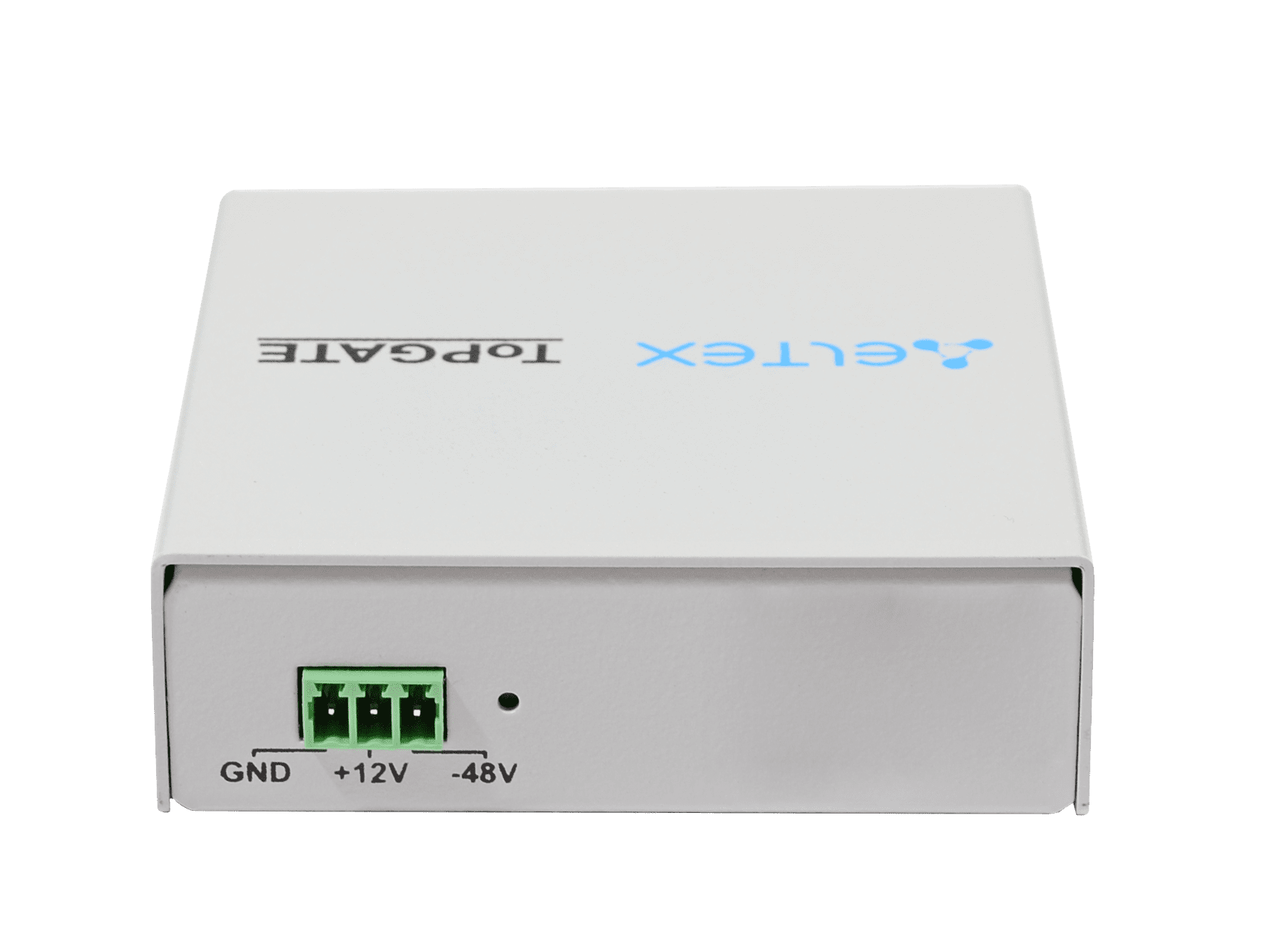

Power supply
220 VAC, 12 VDC (the convector ~220V into 12V is in the package)
Maximum power consumption 6W
Dimensions
82х26х85.5
Weight
0.25 kg
