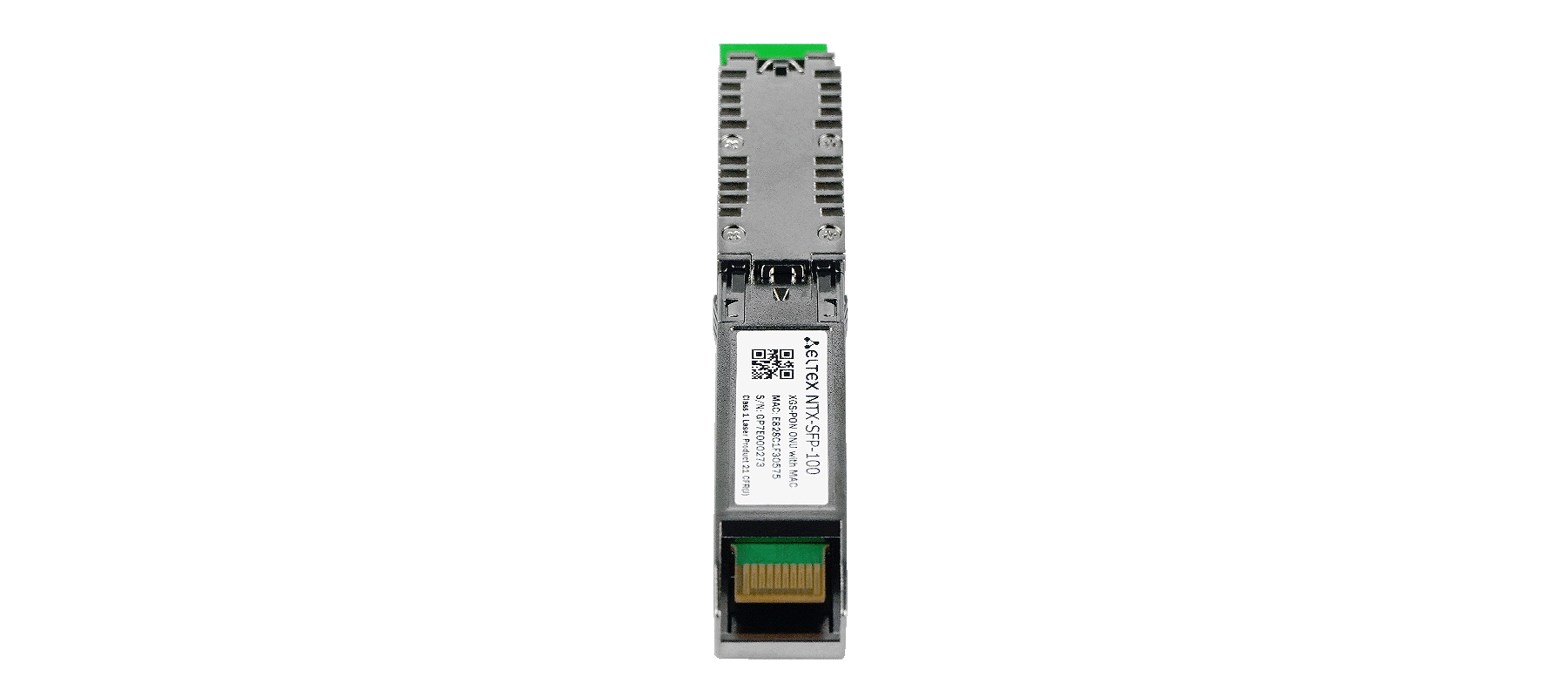

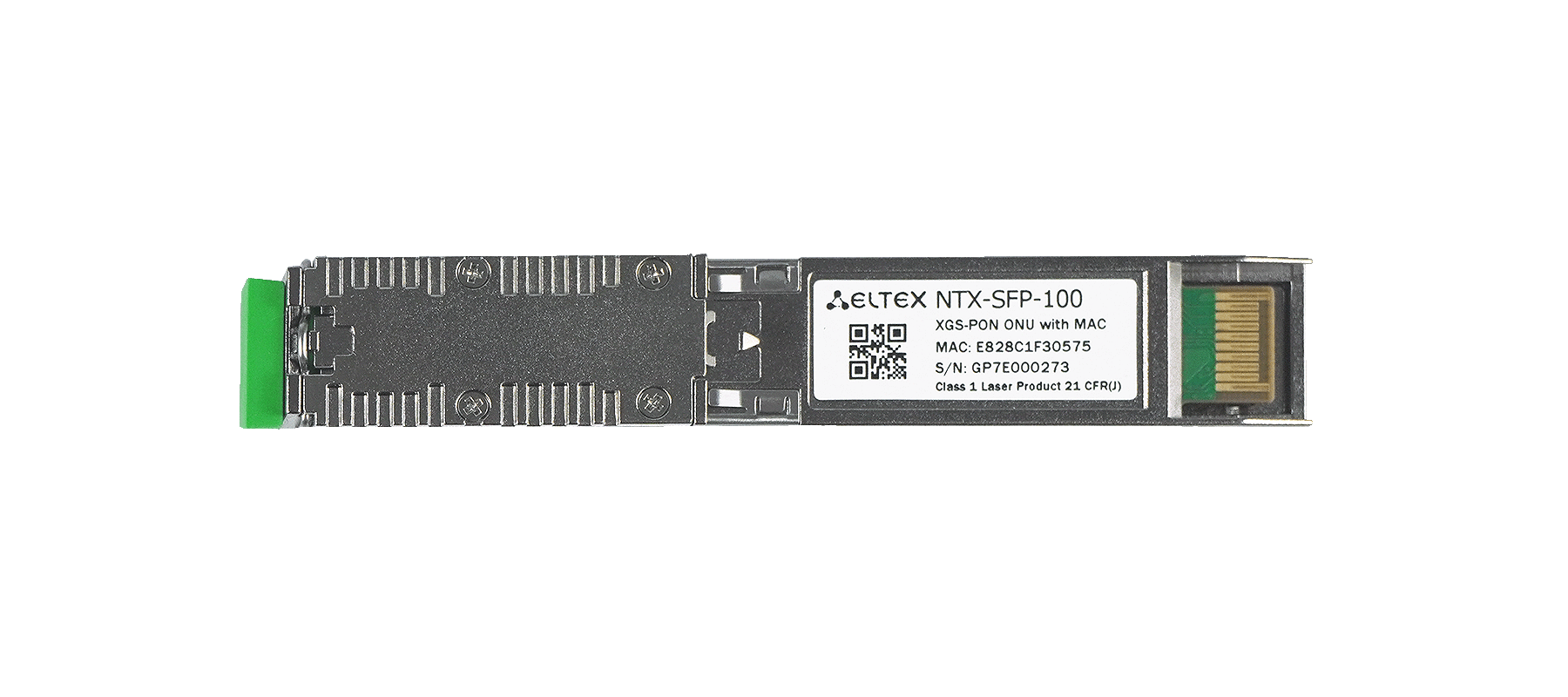

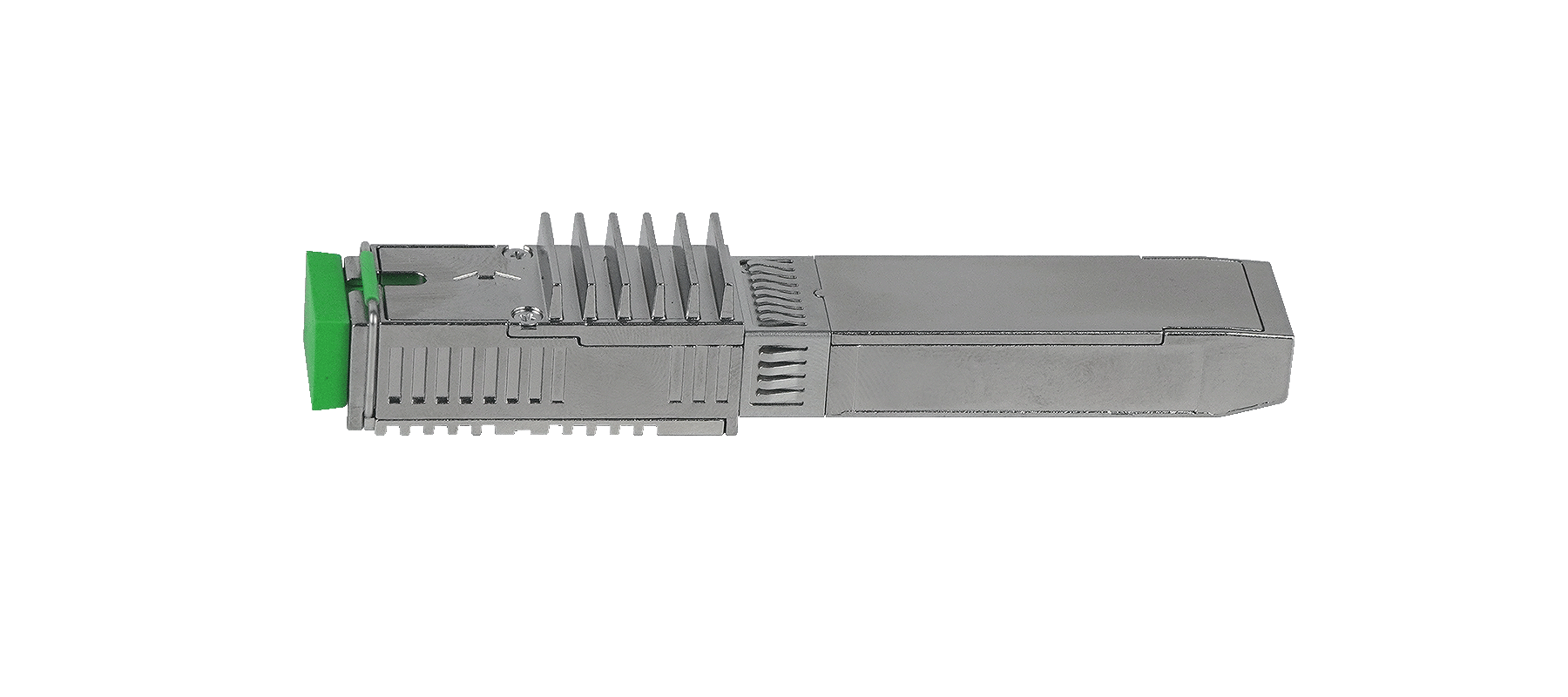

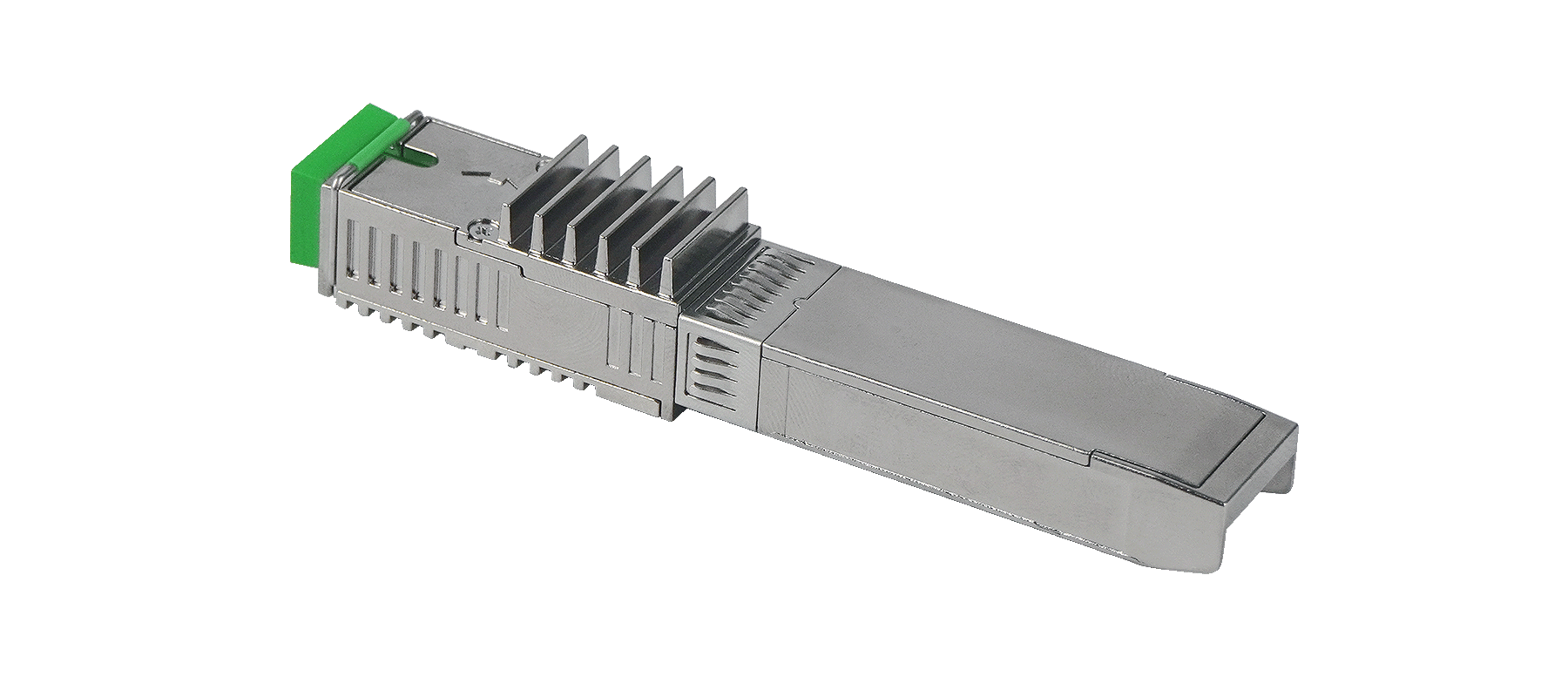

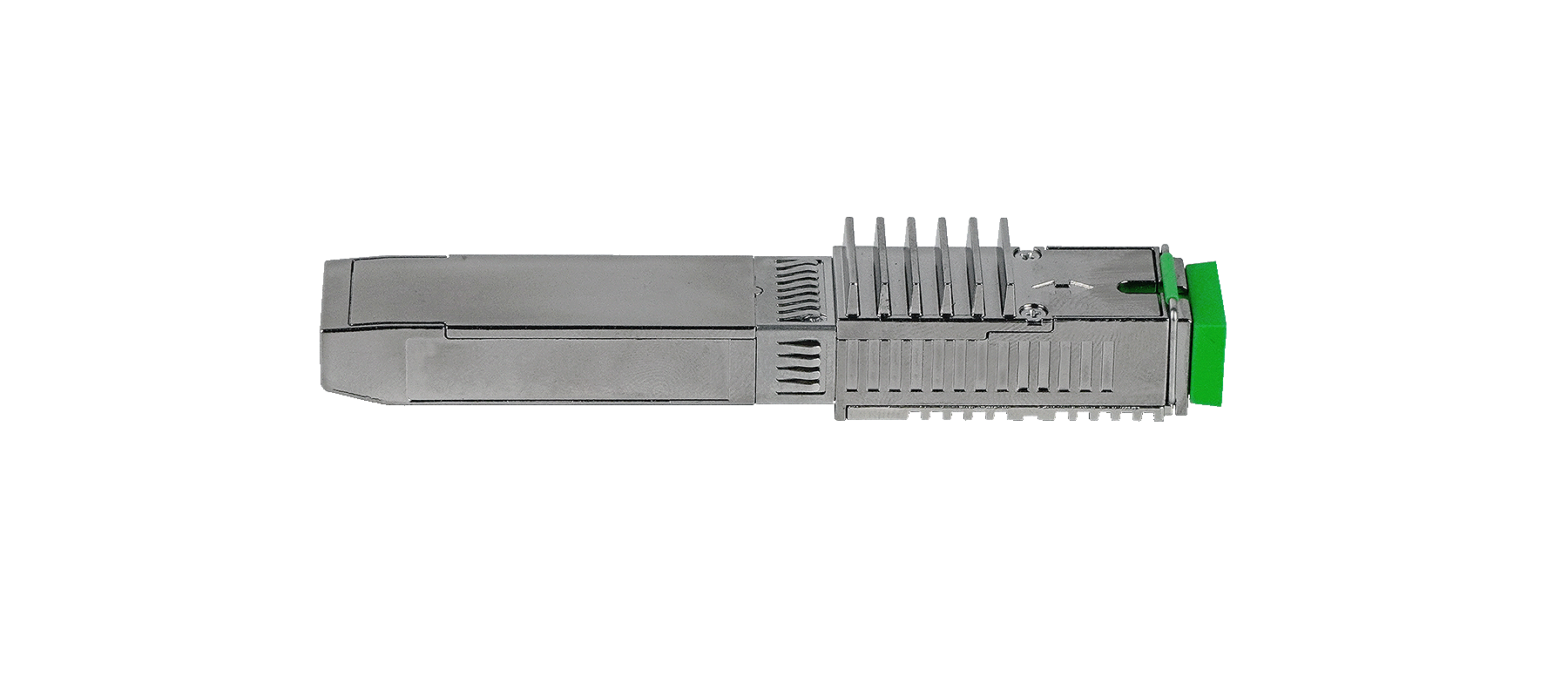

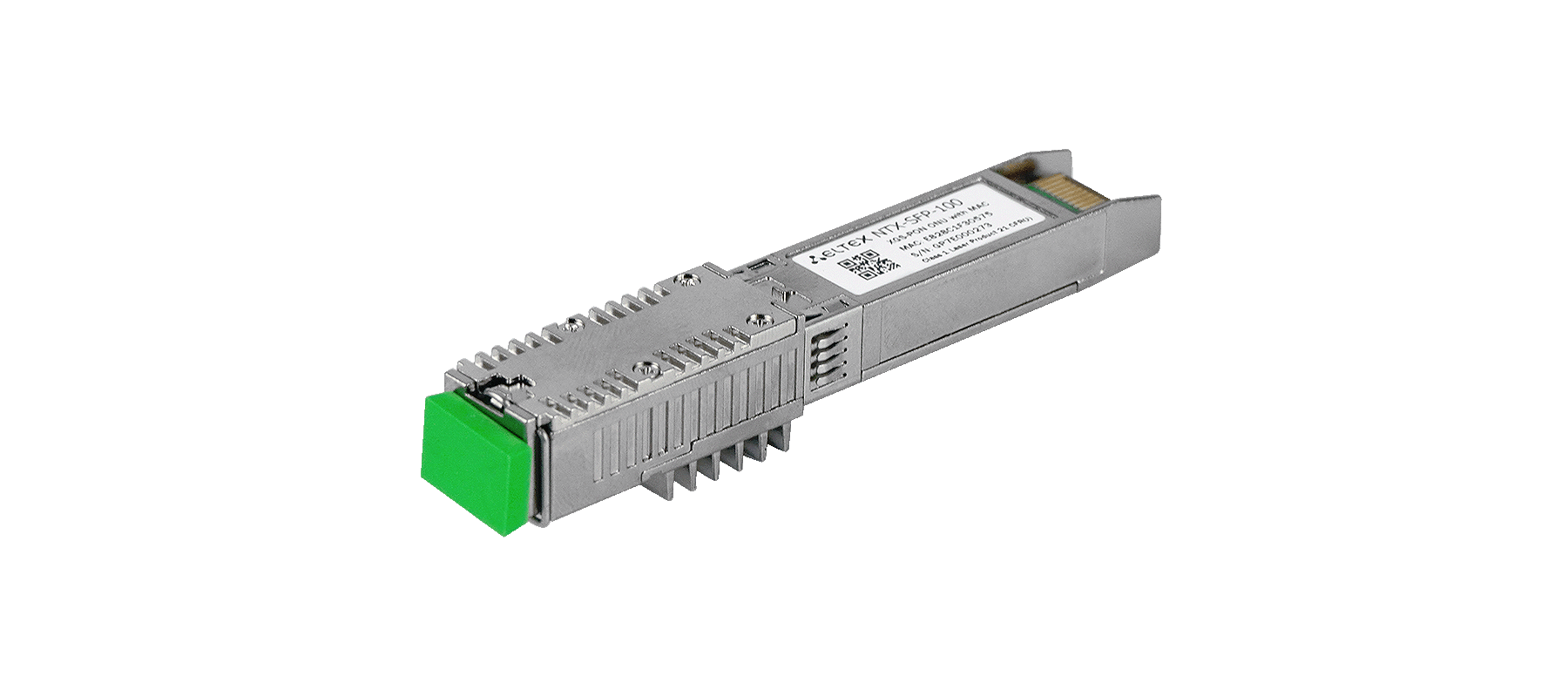

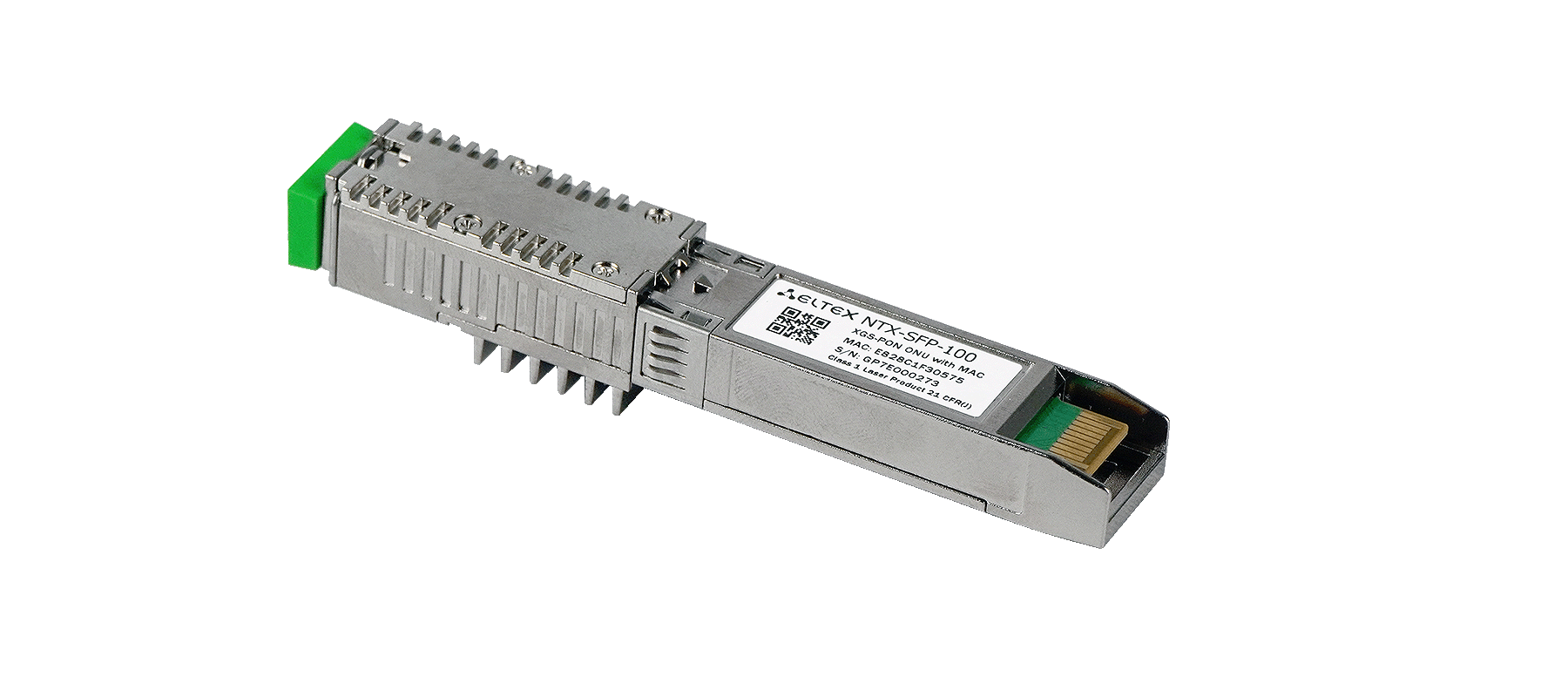

ONT NTX-SFP-100
- Technology:
- 10G-PON
- Interfaces:
- 1хPON SC/APC, 1х10G SFP+
Description
NTX-SFP-100 is a high-performance subscriber terminal designed to provide connectivity to upstream passive optical network (PON) equipment and deliver broadband access services to end users. Connection to XGS-PON networks is implemented via a PON interface. SFP or SFP+ interfaces are used to connect customer terminal equipment. The number of services is determined by the OLT capabilities. NTX-SFP-100 supports operation in bridge mode.
The device supports various use cases:
- Forwarding untagged traffic from the switch to a specific VLAN (802.1q) or VLAN stack (QinQ);
- Forwarding tagged traffic from the switch to a predefined VLAN transparently or using VLAN manipulation (replacing the 802.1q tag with another 802.1q tag or a tag stack);
- Forwarding all traffic from the switch encapsulated in a specific 802.1q tag (standard tunneling).
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Maximum data transfer rate:
- 9.95 Gbps
- Interfaces:
- 1хPON SC/APC, 1х10G SFP+
- 10G-PON
ACS
The Automatic Configuration Server(ACS) is designed to automate and facilitate the configuration of subscriber devices (CPEs) using the protocol described in the TR-069 standard. Allows the operator to centrally manage client equipment
Features and capabilities
For full specifications and manuals see Documents and files section below
Supported standards:
ITU-T G.984.3
Yes
G.988
Yes
G.9807.1
Yes
G.987.3
Yes
General parameters:
Maximum data transfer rate
9.95 Gbps
Compatible equipment
MES switches
Emitted power
+4...+9 dBm
Receiver sensitivity
-28 dBm
Management
OMCI
MAC address table size
4096
Number of supported services
Up to 30
Number of registered IGMP groups
256
FEC
Yes
Encoding
Yes
DDMI interface
Yes
Physical parameters:
Power consumption
Up to 3 W
Operating temperature range
From 0 to +70 °С
Relative humidity
From 5 to 95% without condensation
Size (WxHxD)
80,5х13,05х14 mm
Free
Basic warranty
Up to 5 years
Extended warranty
