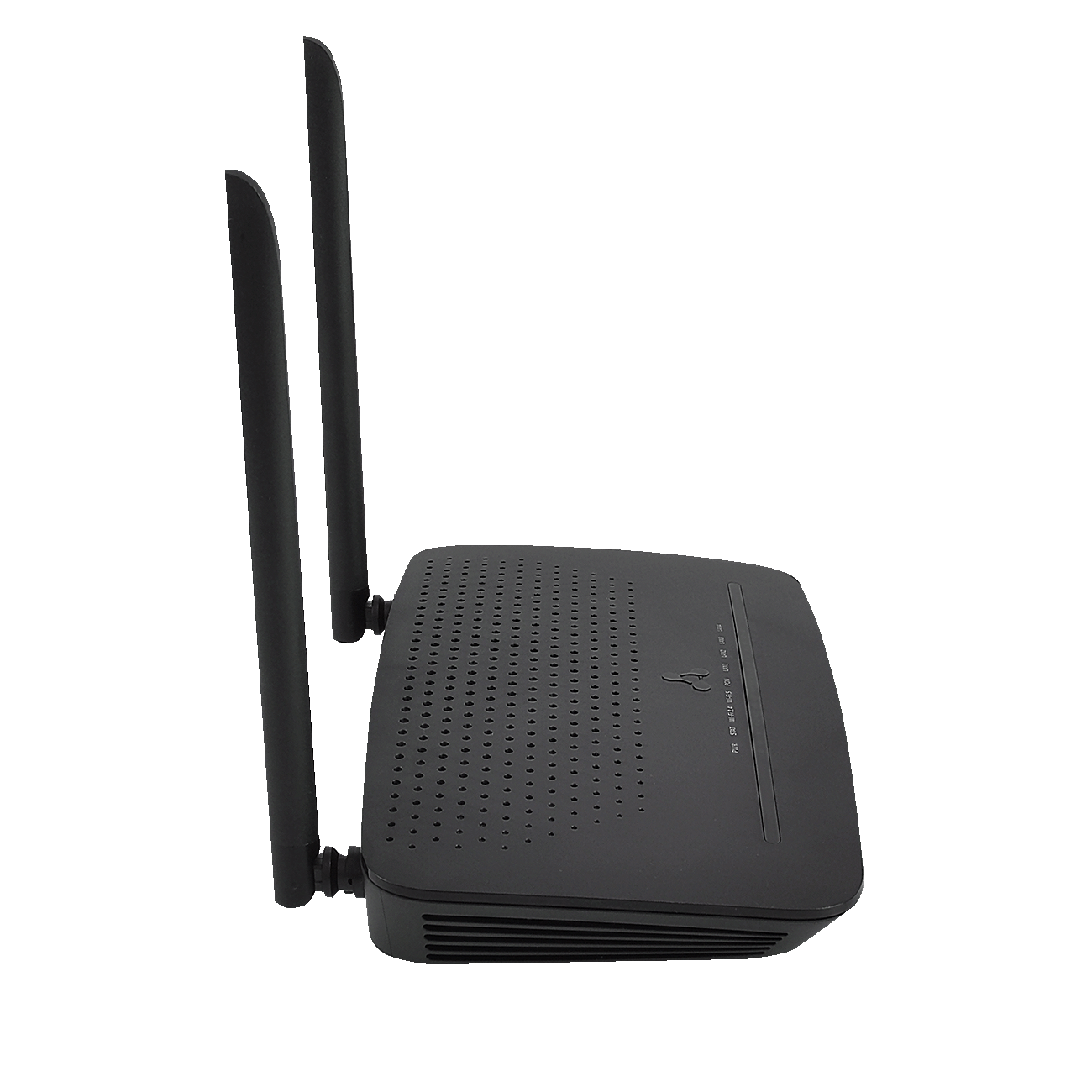

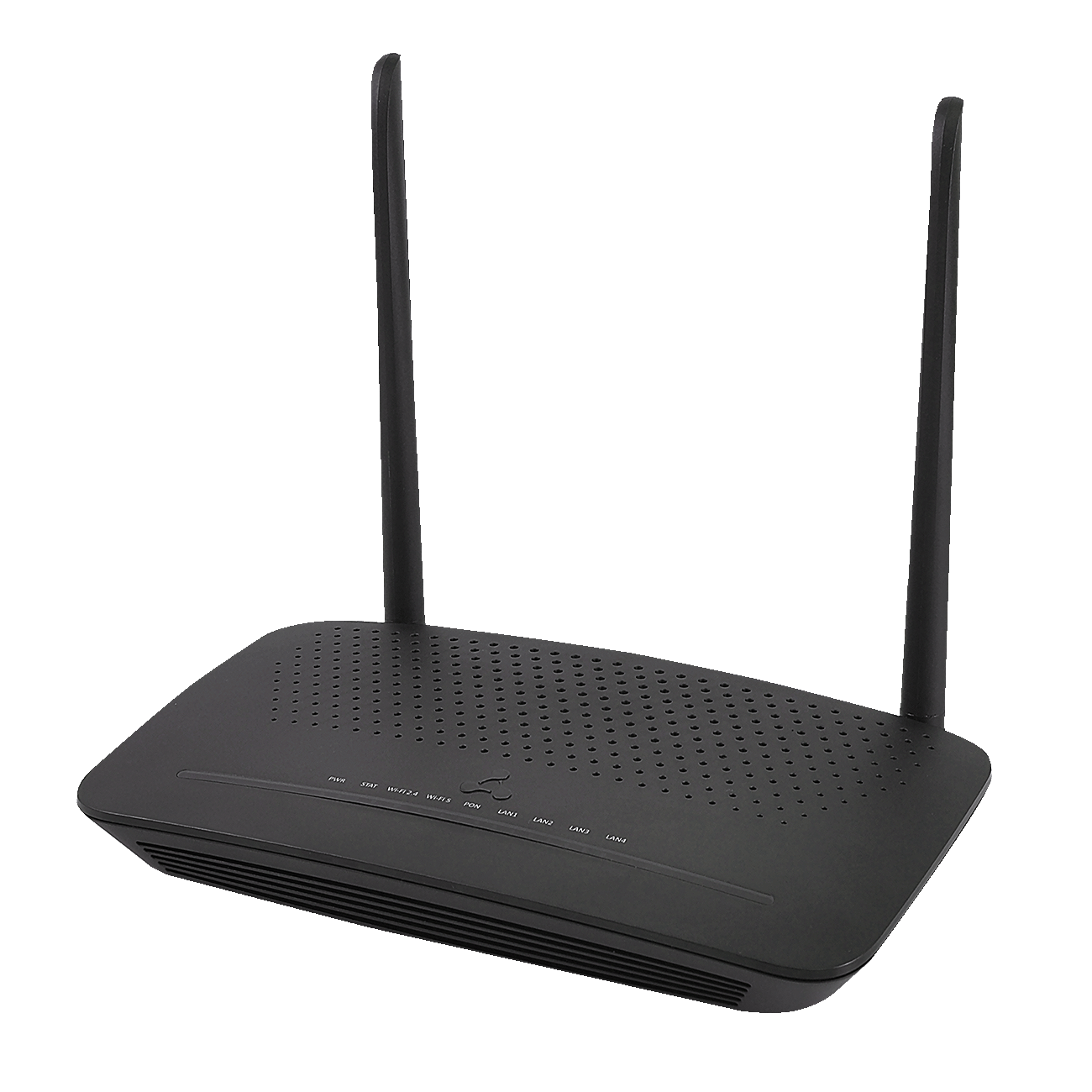

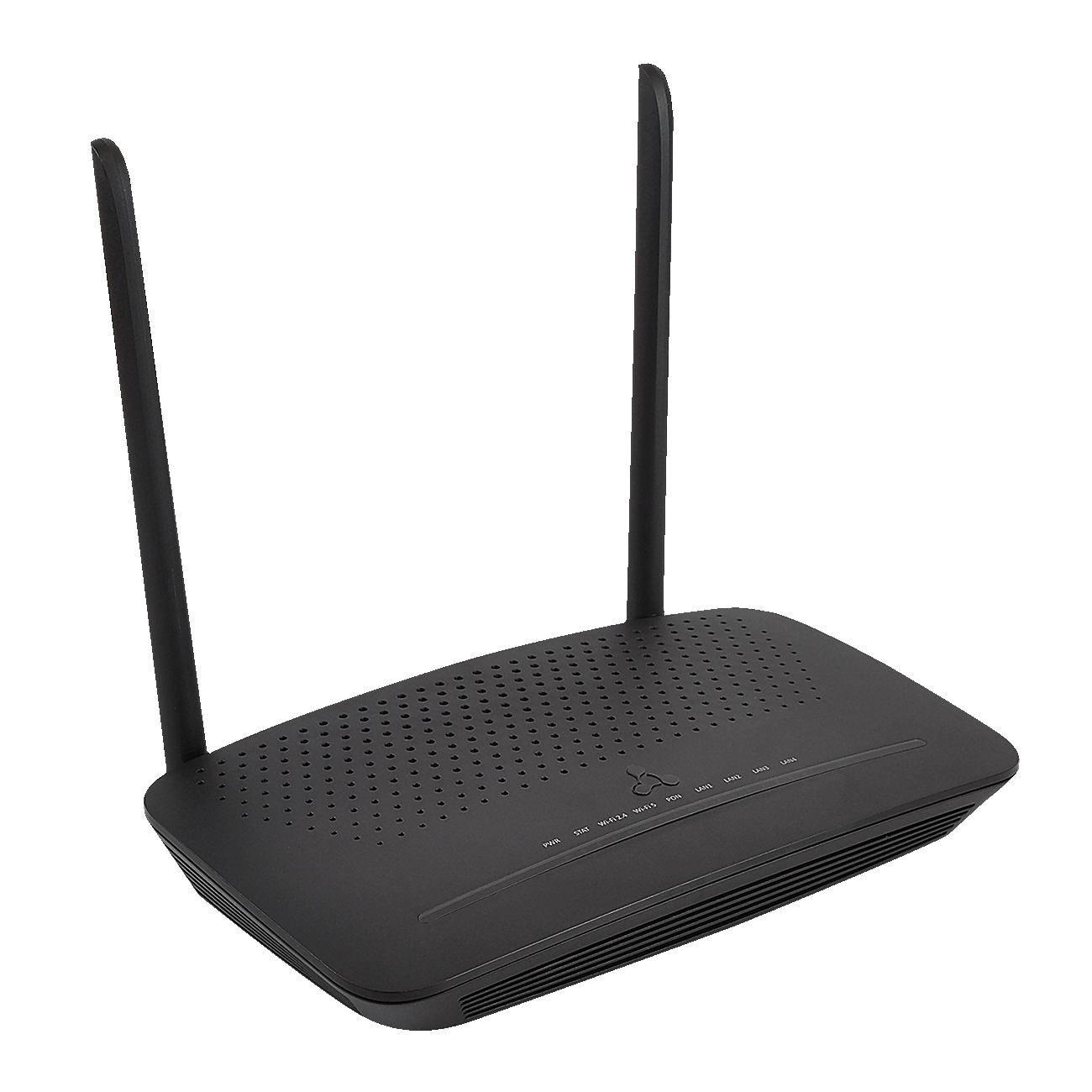

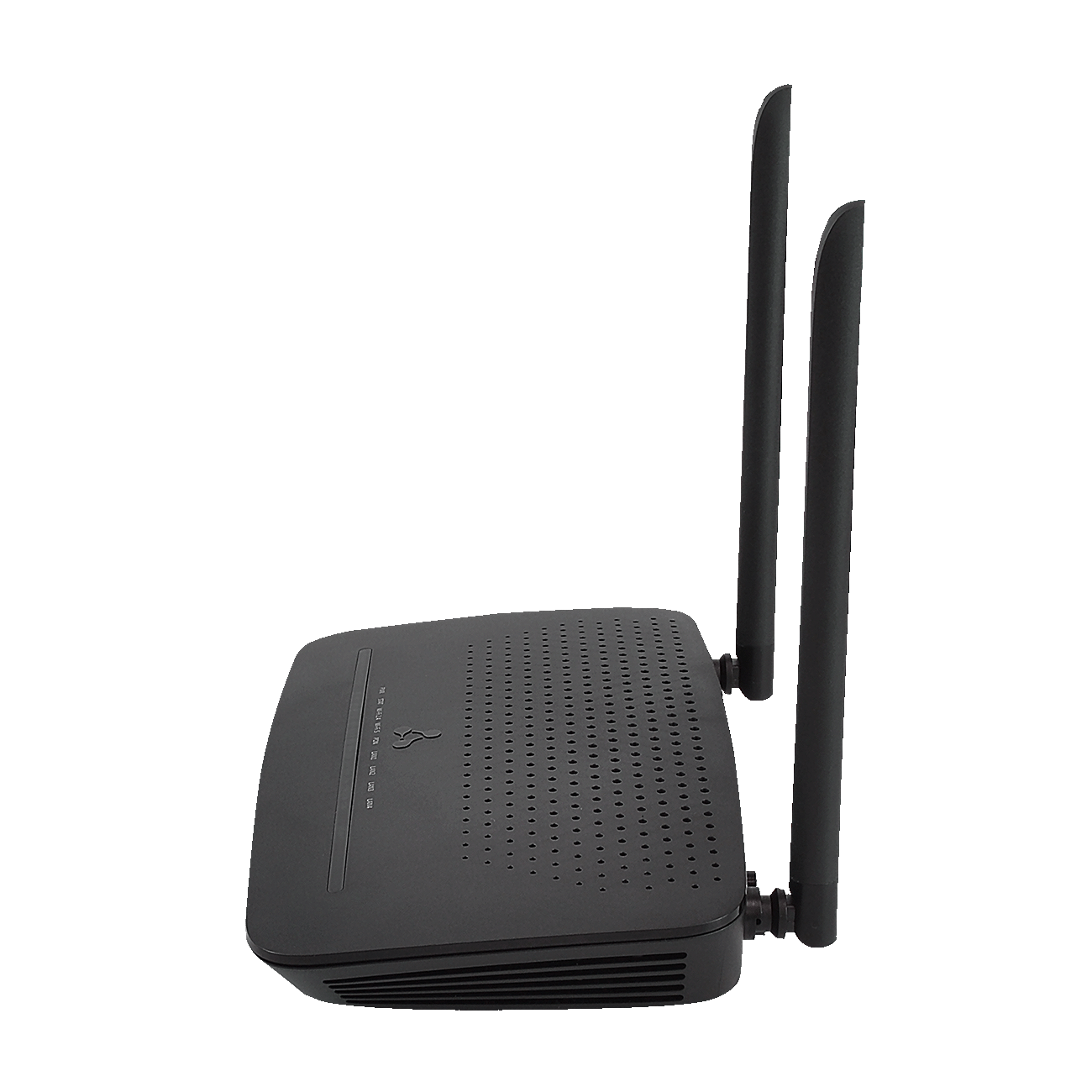

Subscriber terminal ONT NTU-RG-5720L
- Technology:
- GPON
- Interfaces:
- 1xGPON, 4x1G
- Wi-Fi 7:
- 802.11be
- MU-MIMO:
- 2x2
Description
ONT NTU-RG-5720L are high performance multifunctional subscriber terminal designed to access modern IPTV, OTT and Internet services. The NTU-RG-5720L subscriber terminal support the 802.11be standard, that provides data rates up to 2882 Mbps and delivers modern high-speed services to subscriber equipment via the wireless network. Two integrated Wi-Fi controllers ensure simultaneous dualband operation in 2.4GHz and 5 GHz.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces:
- 1xGPON, 4x1G
- Wi-Fi 7:
- 802.11be
Features and capabilities
For full specifications and manuals see Documents and files section below

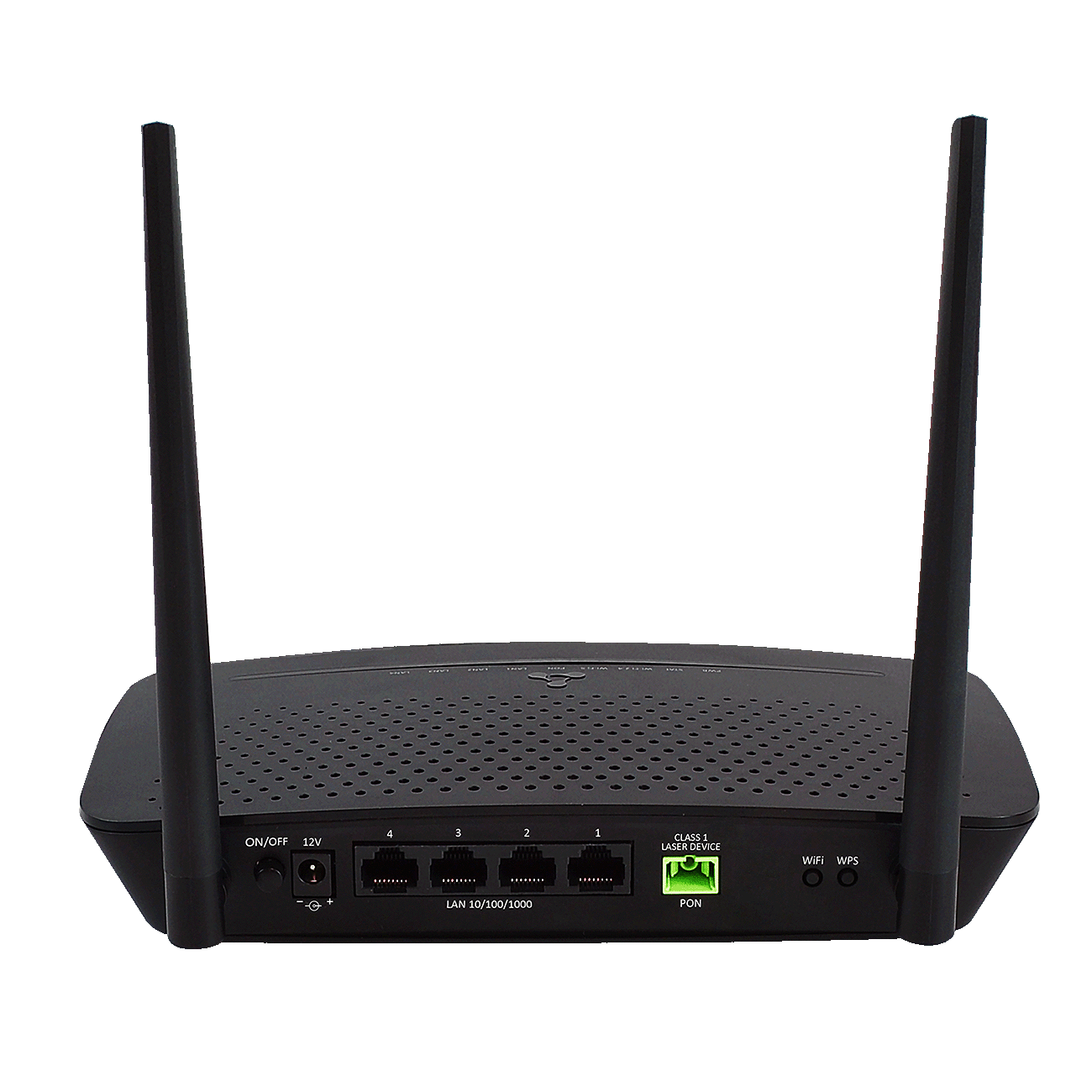

Interfaces:
GPON
1
10/100/1000BASE-T (RJ-45)
4
Wi-Fi
802.11a/b/g/n/ac/ax/be
Wireless interface parameters:
Standards
802.11a/b/g/n/ac/ax/be
Frequency range
2400 - 2483.5 MHz
5150-5350 MHZ
5650-5850 MHZ
Data rate:
802.11b
1; 2; 5,5 and 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11n
300 Mbps (20 MHZ channel)
802.11ac
866 Mbps (80 MHZ channel)
802.11ax
2402 Mbps (160 MHZ channel)
802.11be
2882 Mbps (160 MHZ channel)
Maximum power output of the transmitter:
802.11b (11 Mbps)
21 dBm
802.11а (54 Mbps)
20 dBm
802.11g (54 Mbps)
20 dBm
802.11n (MCS0)
21 dBm
802.11n (MCS7)
19 dBm
802.11ac (MCS9)
18 dBm
802.11аx (MCS11)
17 dBm
802.11be (MCS13)
16 dBm
Functional specifications:
TR-069
Yes
Bridge and router (including virtual ones) operation modes
Yes
PPPoE (auto, PAP, MSCHAP and CHAP authorization)
Yes
IPoE (DHCP-client and static)
Yes
DHCP server on LAN side
Yes
Multicast traffic transmission via Wi-Fi
Yes
DNS (Domain Name System)
Yes
DynDNS (Dynamic DNS)
Yes
UPNP (Universal Plug and Play)
Yes
NAT (Network Address Translation)
Yes
NTP (Network Time Protocol)
Yes
Quality of Service (QoS)
Yes
IGMP Snooping
Yes
IGMP Proxy
Yes
UPNP, SMB, FTP/FTP-alg, Print Server
Yes
VLAN
With IEEE 802.1Q
VPN in L2TP mode
Yes
L2TP over IPSec
Yes
Configuration and monitoring:
TR-069
Yes
OMCI
Yes
Web interface
Yes
Firmware updating
OMCI, TR-069, HTT
Physical specifications:
Power supply
12 V/2 A DC power adapter
Power consumption
No more than 19 W
Operating temperature
From +5 to +40 °C
Relative humidity
Up to 80 %
Dimensions (WxHxD)
225x42x130 mm
Free
Basic warranty
Up to 5 years
Extended warranty
