ONT NTU-1L GPON
- Technology:
- GPON
- Interfaces:
- 1xGPON, 1x1G
Description

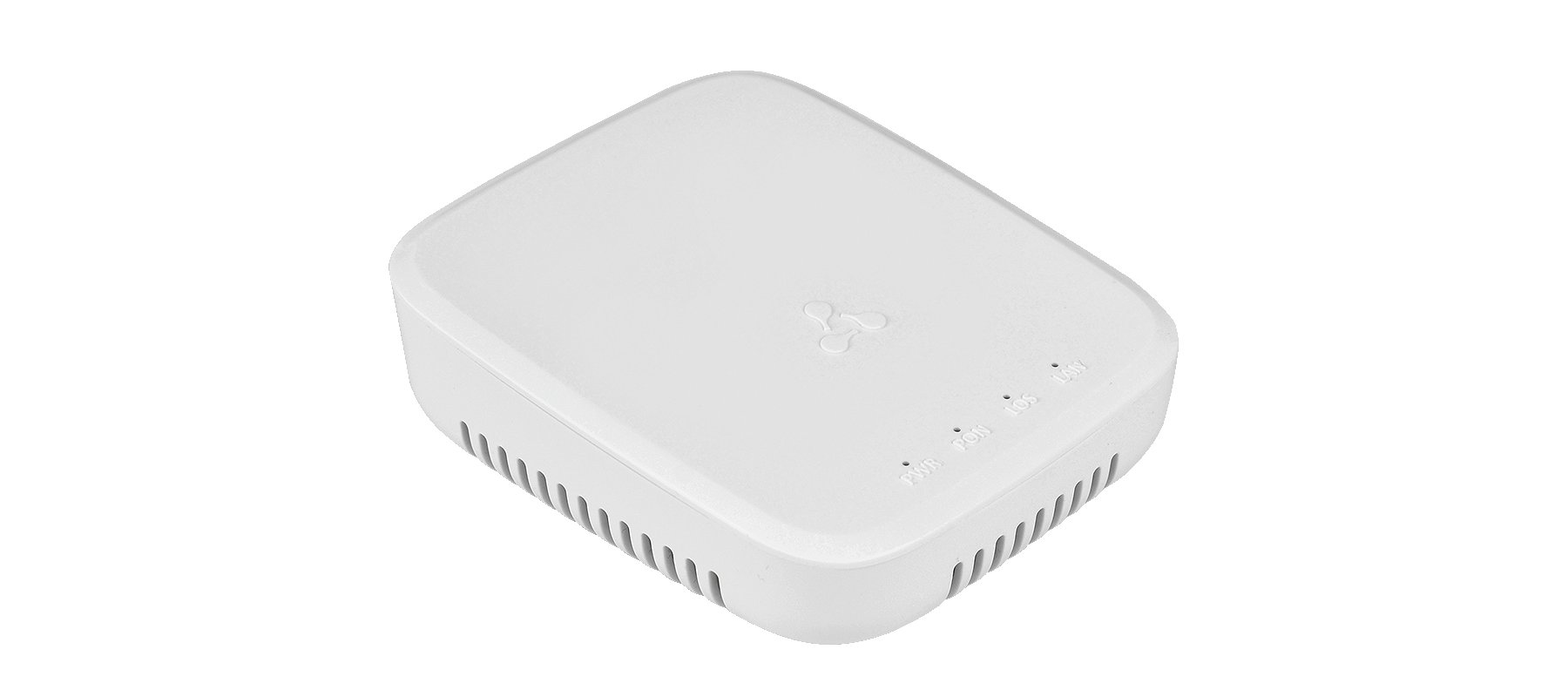

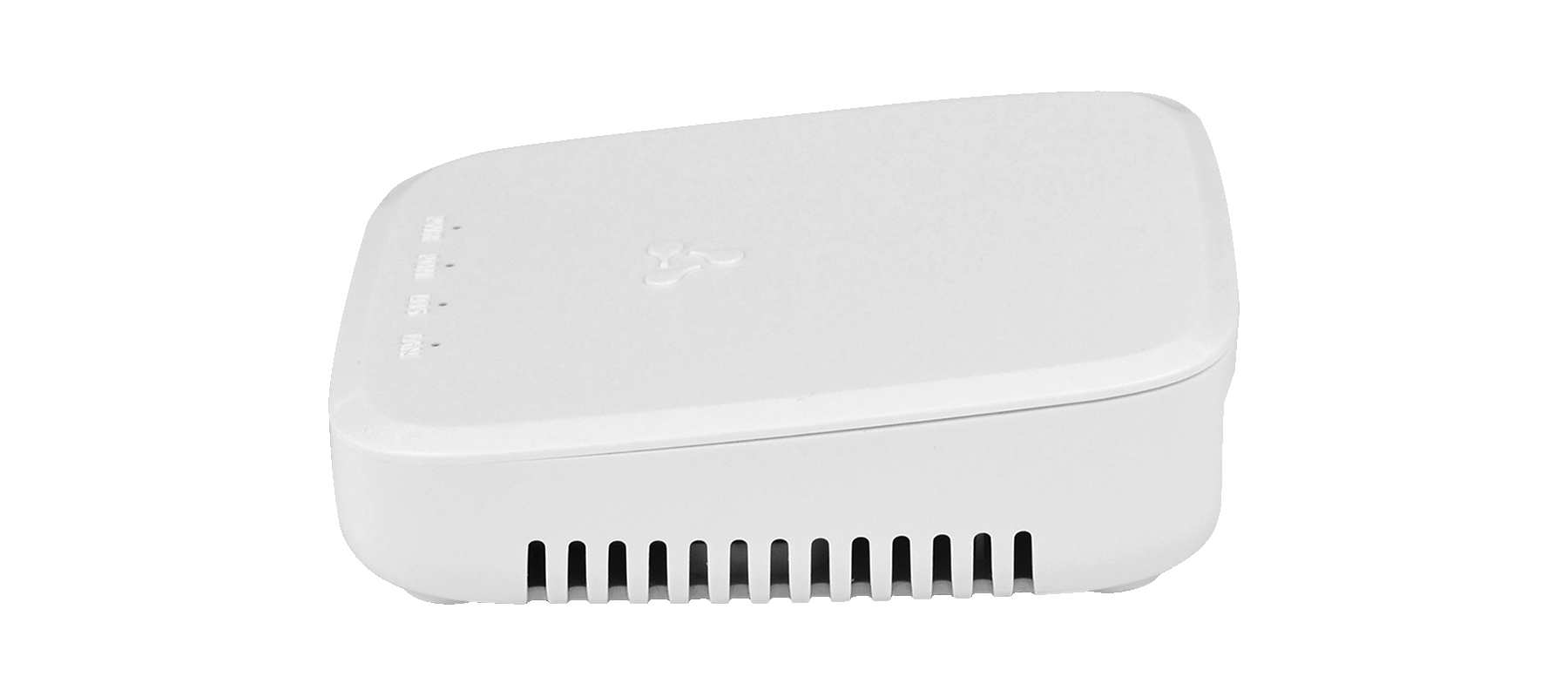

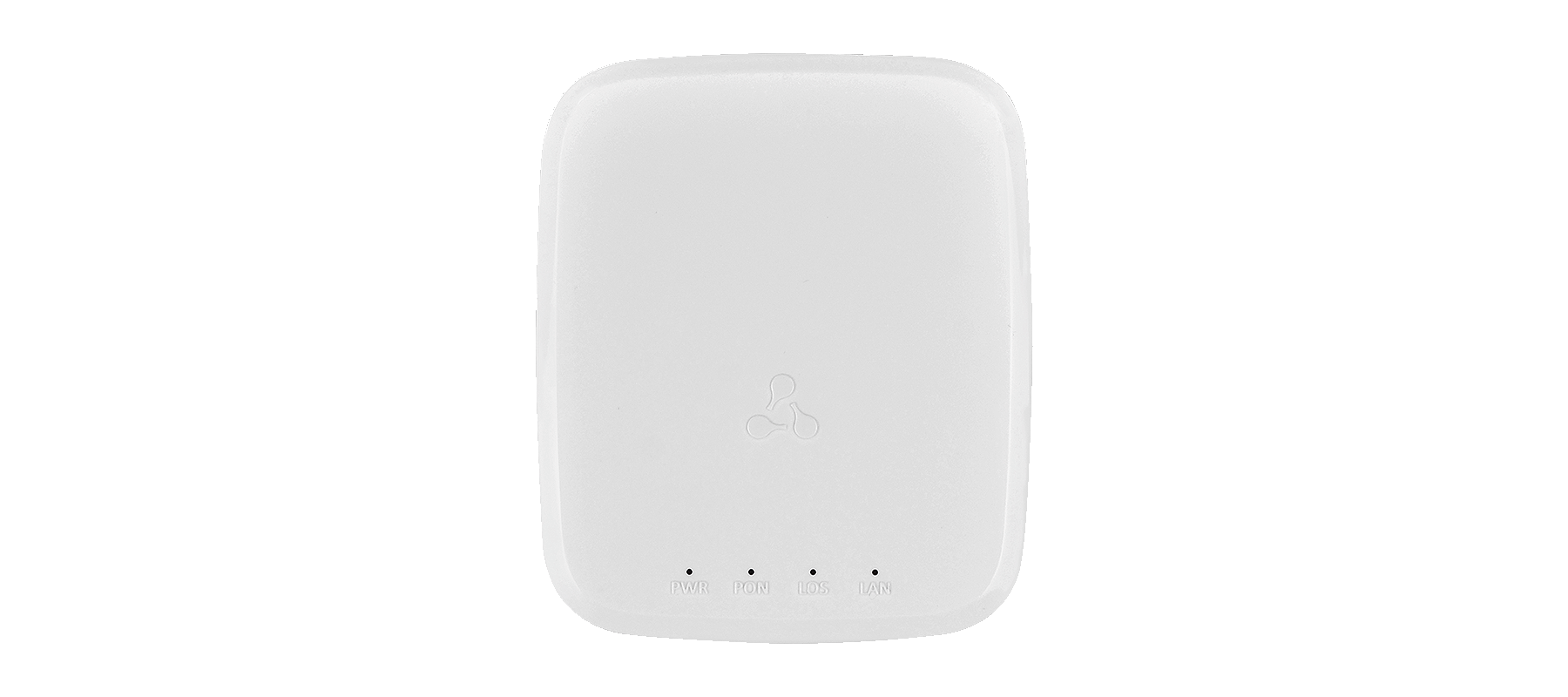

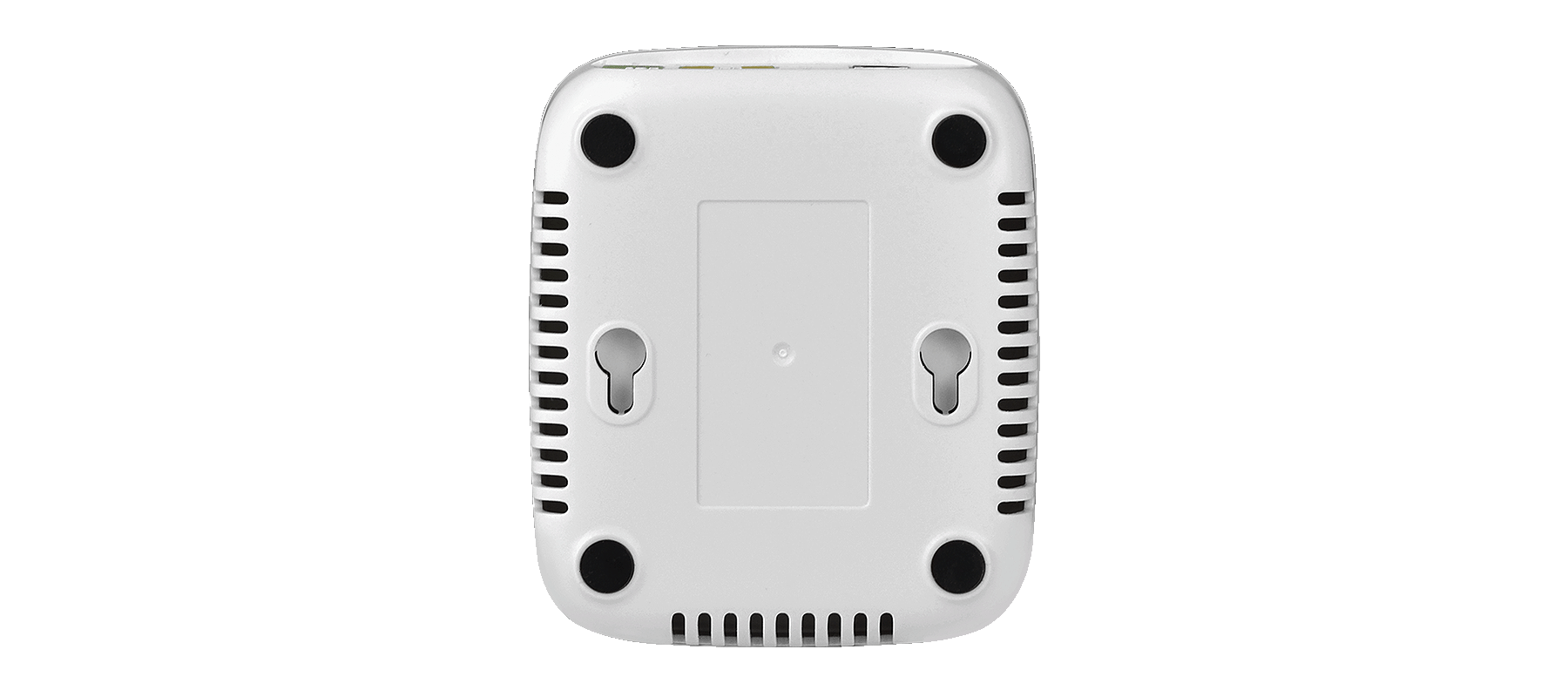

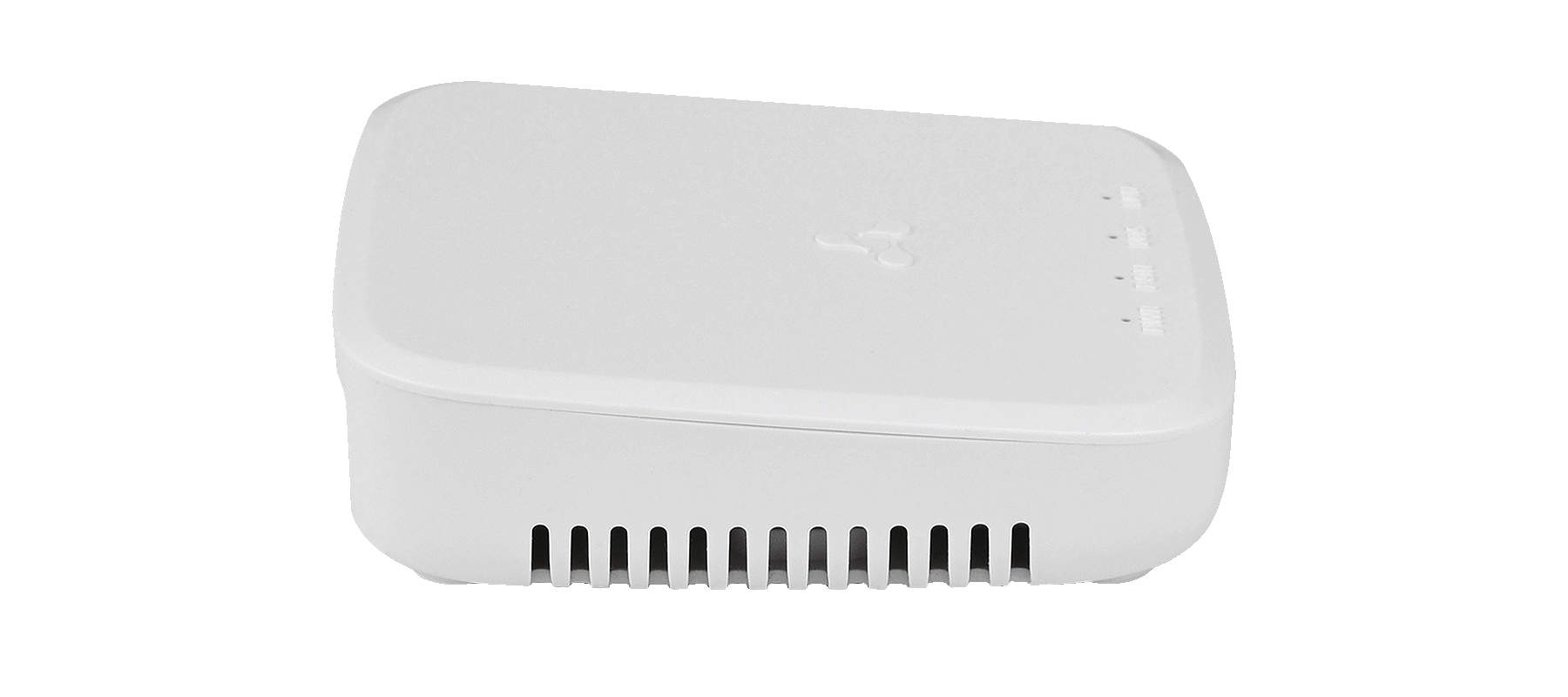

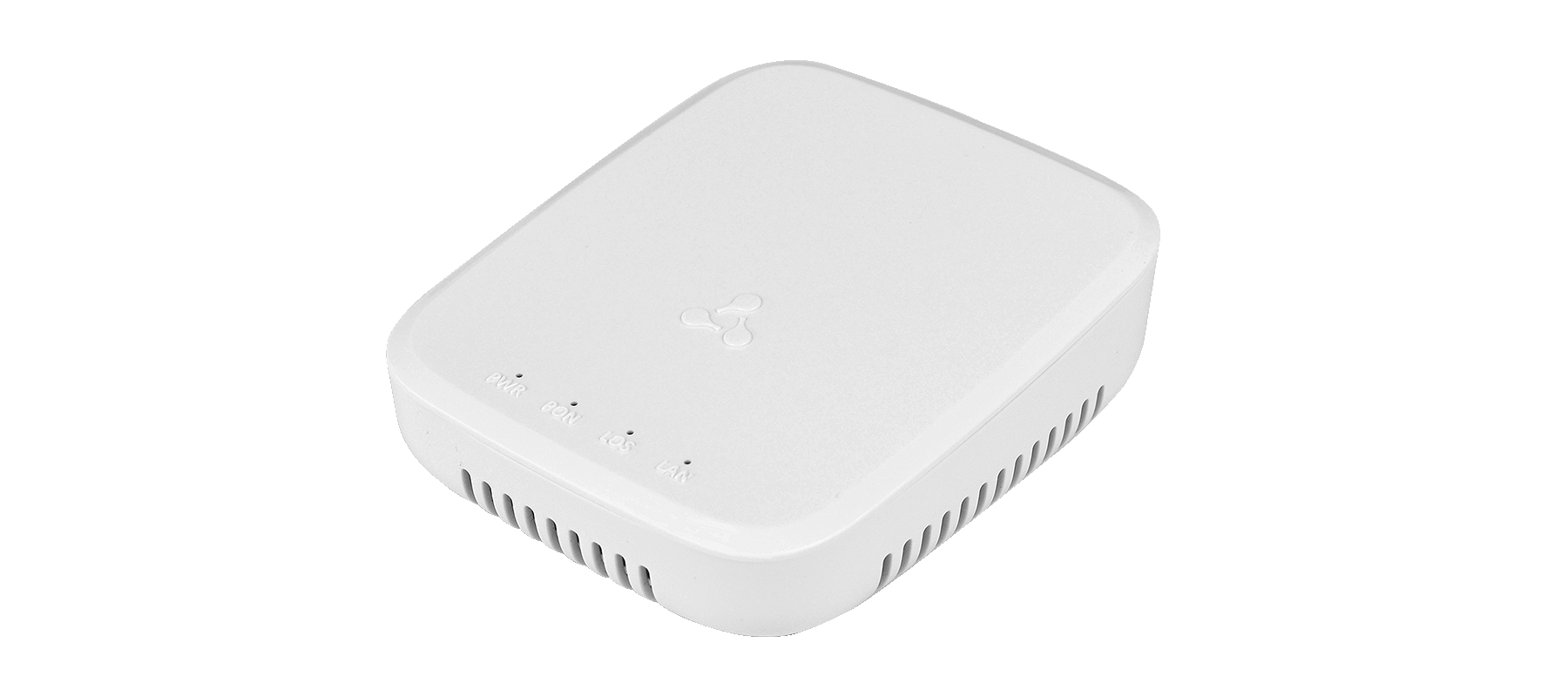

NTU-1L is an Optical Network Terminal (ONT) dedicated to connect users to data network via PON technology.
PON technology
PON is one of the most modern and effective solutions for "last mile", which allows significant savings on cable infrastructure and provides data transmission rates of up to 2.5 Gbps downlink and 1.25 Gbps uplink. The use of PON-based solutions in access networks makes it possible to provide end users with new IP services.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- GPON
- Interfaces:
- 1xGPON, 1x1G
- Remote management via OMCI
Features and capabilities
For full specifications and manuals see Documents and files section below

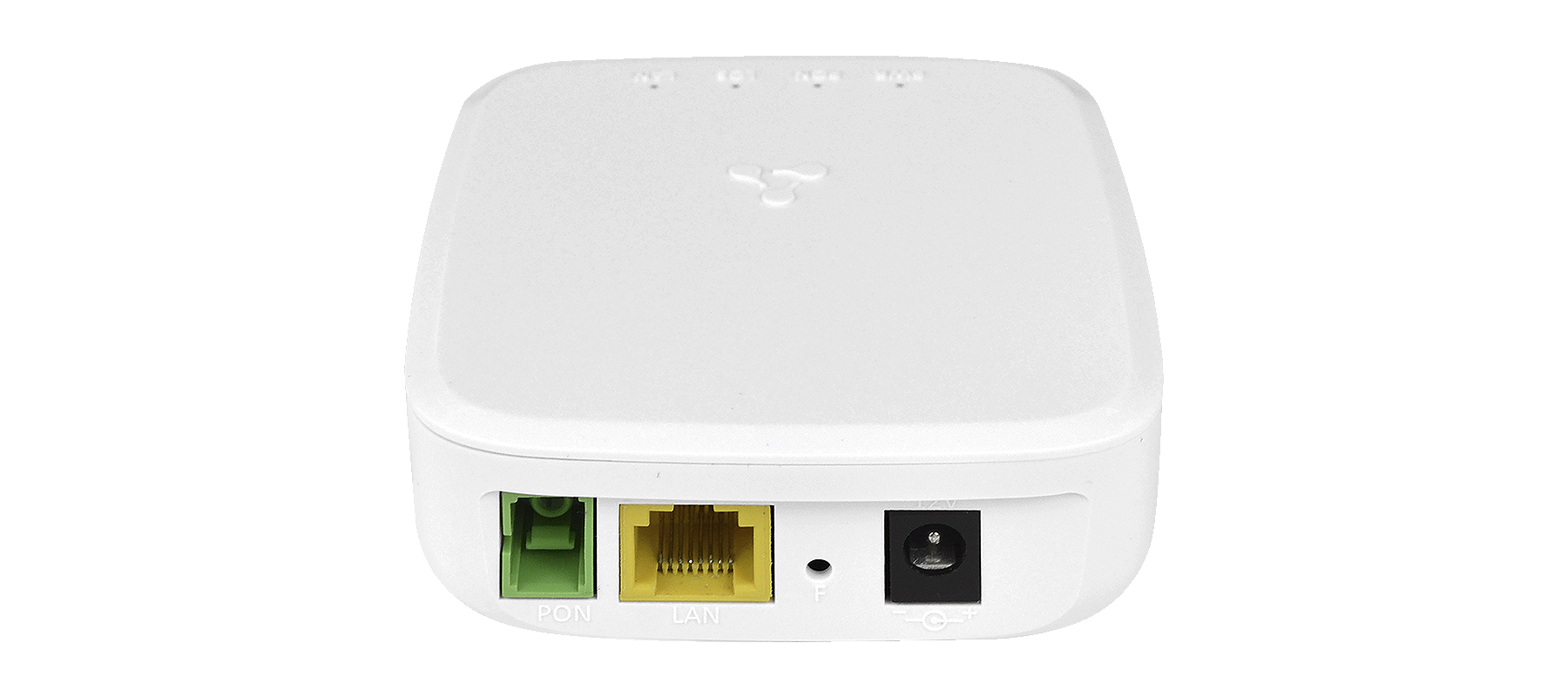

Interfaces:
GPON
1
Ethernet 10/100/1000BASE-T (RJ-45)
1
PON interface parameters:
Compliance with ITU-T G.984.2, ITU-T G.984.5 Filter, FSAN Class B+, SFF-8472
Yes
Connector type
SC/APC
Transmission medium
Single-mode optical fiber (SMF) - 9/125, G.652
Maximum operating distance
20 km
Transmitter:
1310 nm DFB laser, burst mode
Data rate
1244 Mbps
Average launch power
+0,5..+5 dBm
Spectral line width
1 nm (-20 dB)
Receiver:
1490 nm APD/TIA digital receiver, CW Mode
Data rate
2488 Mbps
Receiver sensitivity
-28 dBm, BERβ€1.0x10^-10
Receiver optical overload
- 8 dBm
Functional features:
Support for QoS mechanisms
Yes
VLAN
In compliance with IEEE 802.1Q
Physical parameters:
Power supply
DC power adapter 12 V/0.5 A
Maximum power consumption
5 W
Operating temperature range
From +5 to +40 Π‘
Operating humidity
Up to 80%
Dimensions
80,3x29x94,3 mm
