Data center switch MES5700-32
- Level:
- L3
- Bandwidth:
- 25.6 Tbps
- Interfaces:
- 32x400G QSFP56-DD, 2х10G SFP+, 1xOOB
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Description
MES5700-32 switch is a high performance device with 400GBASE-R8 and 10GBASE-R interfaces that can be used as Spine, Super Spine, Top-of-Rack or End-of-Row switch for data centers.
The non-blocking architecture guarantees lossless packet forwarding at wire speed with minimum and predictable delays for all types of traffic.

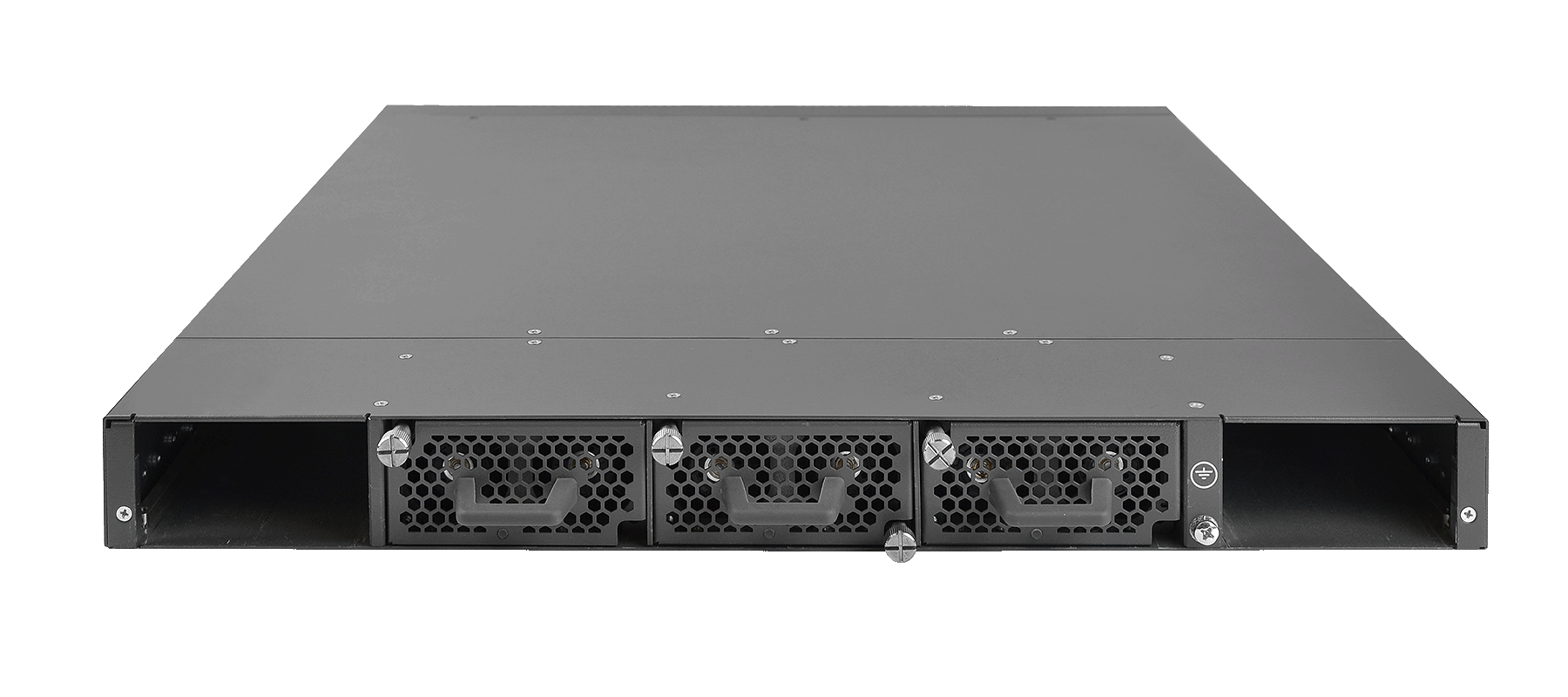

MES5700-32 supports Front-to-Back and Back-to-Front cooling which provides effective cooldown in modern data centers.
Fault tolerance of the device is ensured by redundant power supplies (1+1) and the use of replaceable fans. The redundant and hot-swappable fans and power supplies provide high reliability and uninterrupted services.
The device supports EVPN/VXLAN technology to create networks with simple, high-performance and scalable data center architecture for data centers.
Specifications
- Interfaces:
- 32x400G QSFP56-DD, 2х10G SFP+, 1xOOB
- Dynamic routing:
- RIP/OSPF/IS-IS/BGP
- Bandwidth:
- 25.6 Tbps
- EVPN/VXLAN
- Power supply:
- AC/DC, 2 hot-swappable power supplies
- Cooling:
- Front-to-Back/Back-to-Front
