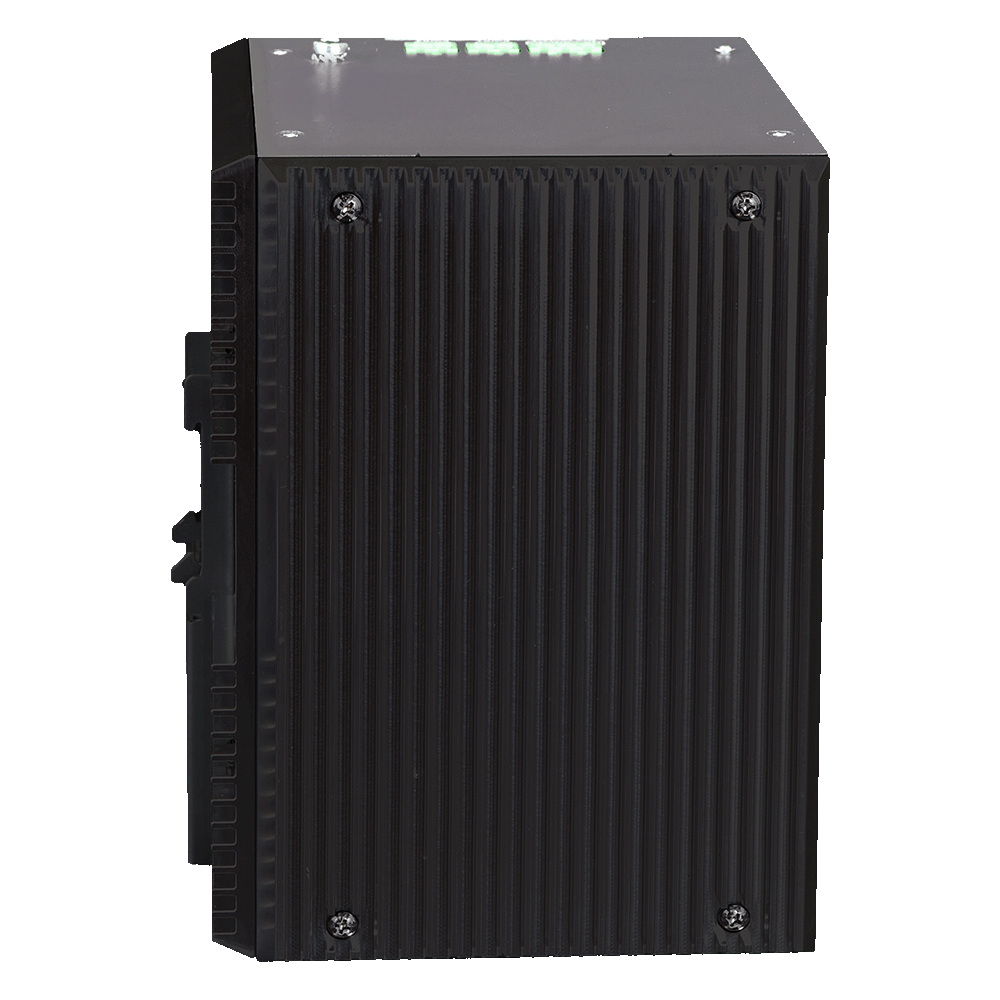

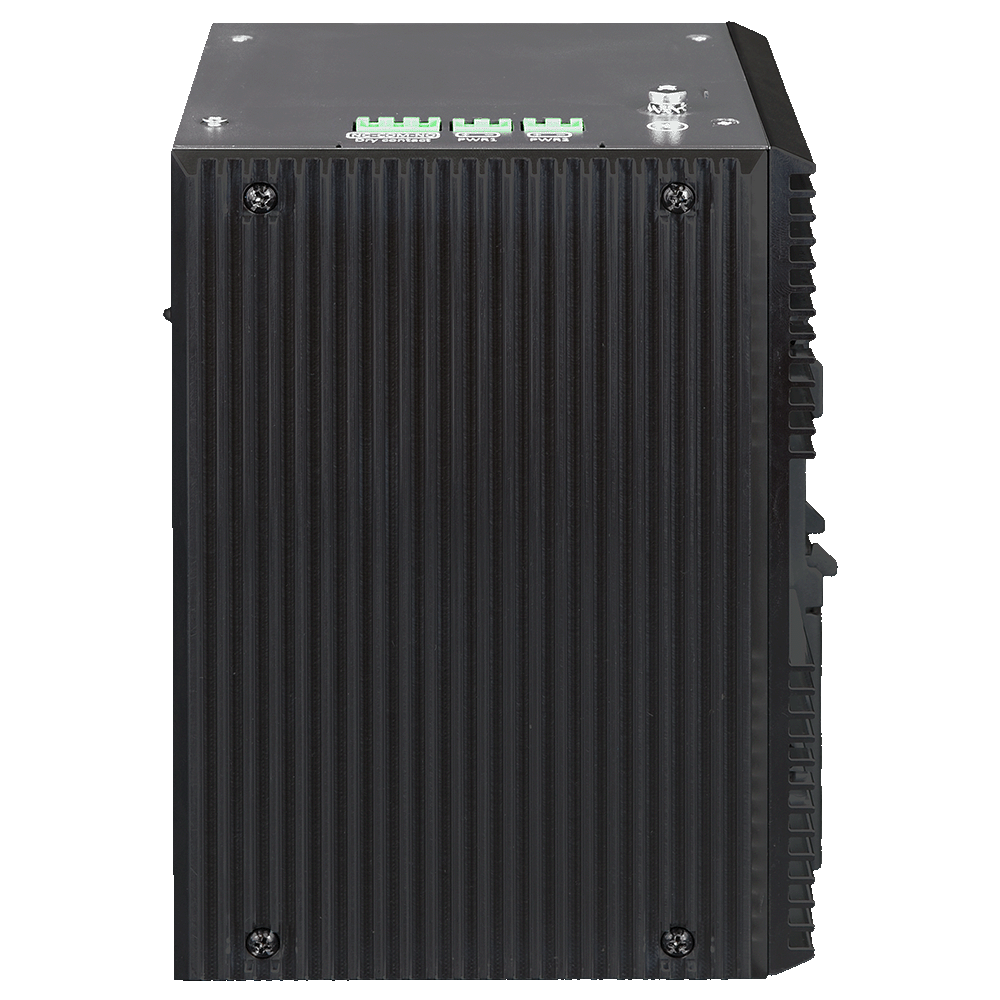

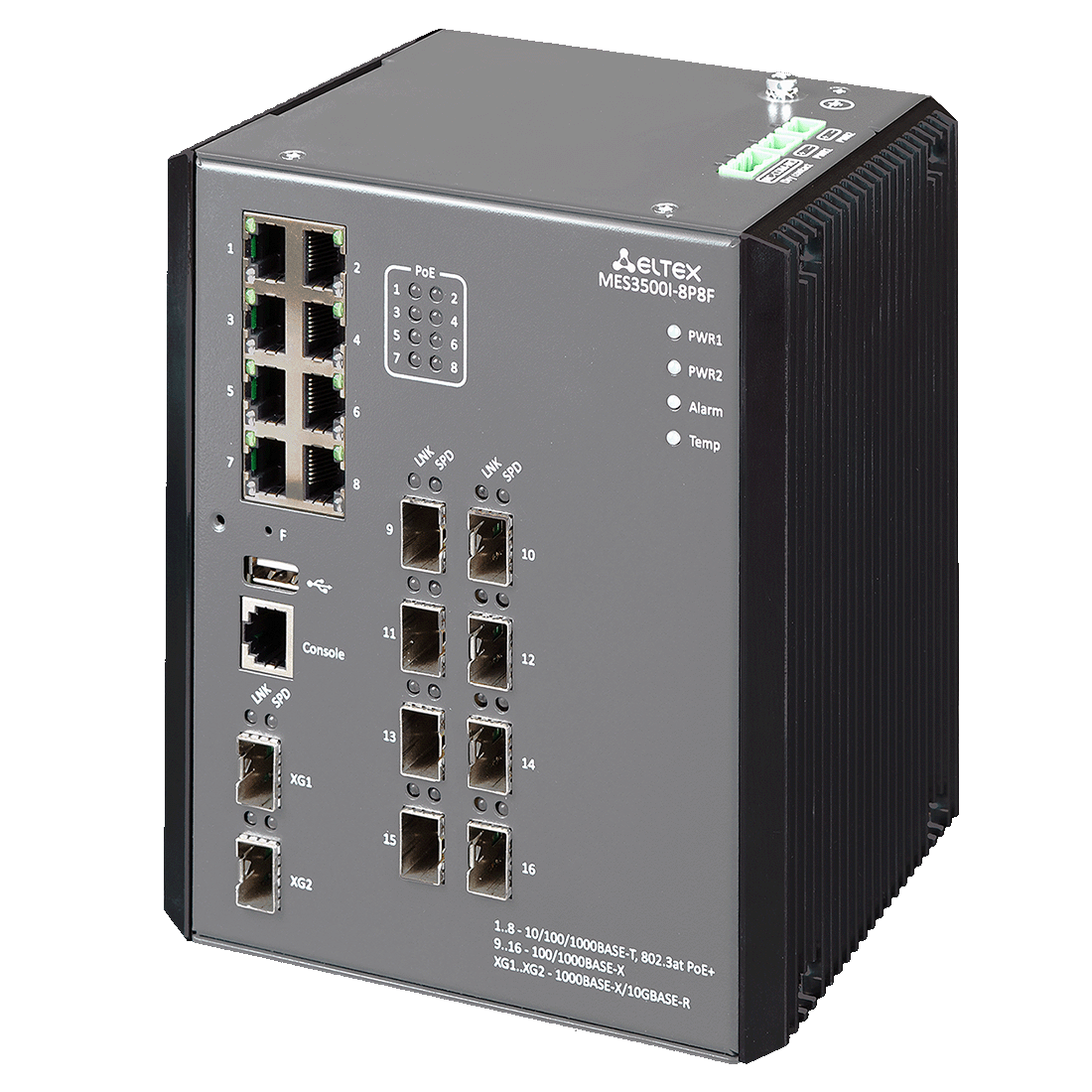

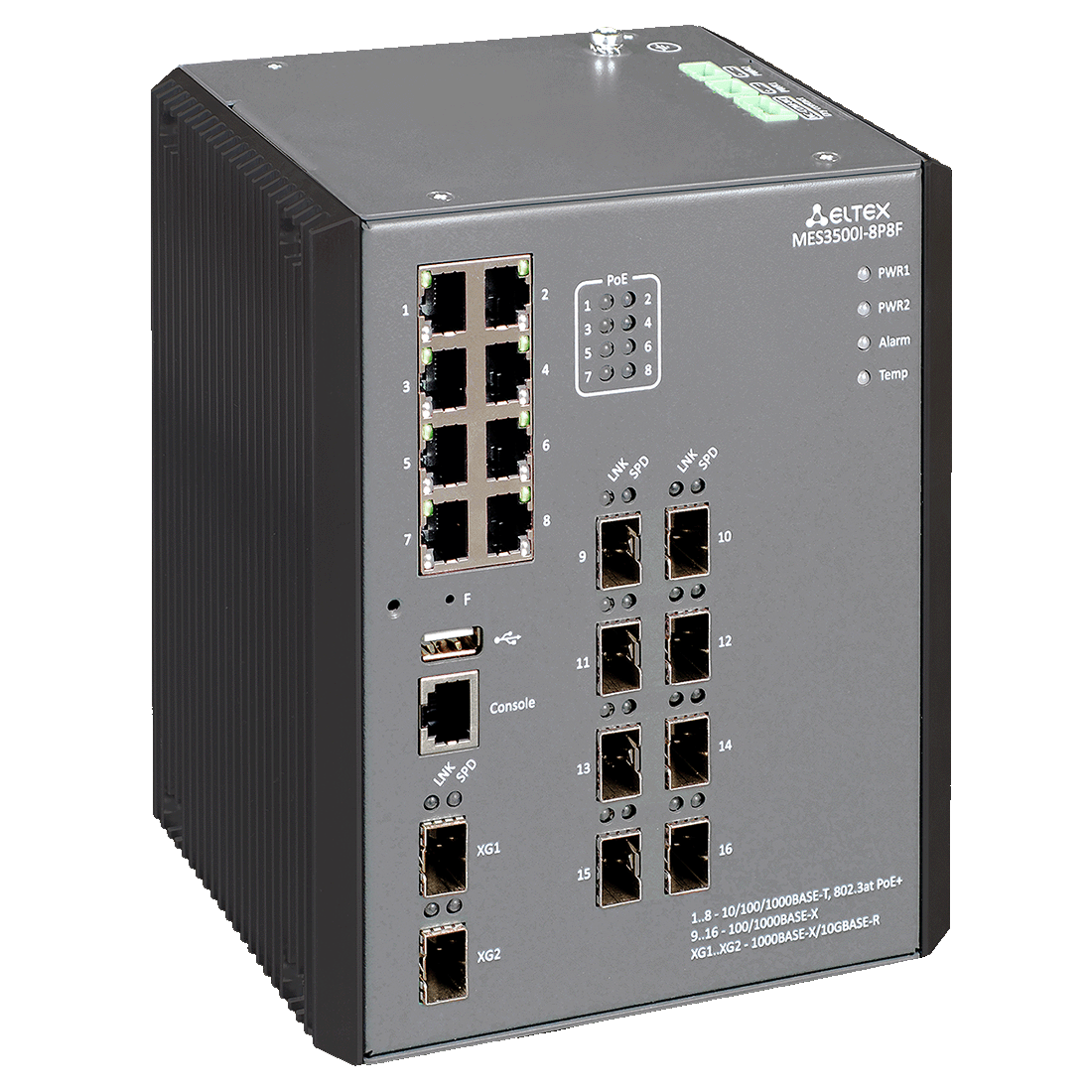

Industrial switch MES3500I-8P8F
- Level:
- L3
- Bandwidth:
- 72 Gbps
- Interfaces:
- 8x1G PoE/PoE+ (RJ-45), 8x1G SFP, 2x10G SFP+
- Power supply:
- DC
Description
The MES3500I-8P8F industrial switches are designed to organize secure fault-tolerant data transmission networks at sites where it is necessary to meet requirements for ensuring resistance to various types of impacts: temperature, mechanical effects, vibration, etc. These switches have 10/100/1000BASE-T Gigabit ports with PoE/PoE+ support. The MES3500I-8P8F switches have 100BASE-FX/ 1000BASE-X ports for installing SFP transceivers and 1000BASE-X/10GBASE-R ports for installing SFP and SFP+ transceivers.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth:
- 72 Gbps
- Interfaces:
- 8x1G PoE/PoE+ (RJ-45), 8x1G SFP, 2x10G SFP+
- Housing:
- IP30
- Cooling:
- passive
- QoS:
- 8 egress queues per port
- Power supply:
- DC
- ARP:
- 4029
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
10/100/1000BASE-T PoE/PoE+ (RJ-45)
8
100BASE-FX/1000BASE-X (SFP)
8
1000BASE-X (SFP)/10GBASE-R (SFP+)
2
Console port RS-232 (RJ-45)
1
USB 2.0
1
Performance:
Bandwidth
72 Gbps
VLAN table
4094
VRRP routers
255
Link Aggregation Groups (LAG)
32, up to 8 ports per LAG
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
10240 bytes
Physical features and ambient parameters:
Power supply
With PoE enabled: 45–57 V DC
With PoE disabled: 20–57 V DC
Maximum power consumption
290 W
PoE budget
240 W (recommended supply voltage for the 802.3at standard is 54–56 V DC)
Heat dissipation
50 W
Dry contacts
Alarm relay output 1 A, 24 V DC with normal closed (NC — Normal Closed) and normal
open (NO — Normal Open) contacts
Dying Gasp
No
Operating temperature
From -40 to +70 °С
Storage temperature
From -50 to +85 °С
Operating humidity
From 5 to 95 % (without condensing)
Cooling
Passive
Housing
Metal, IP30

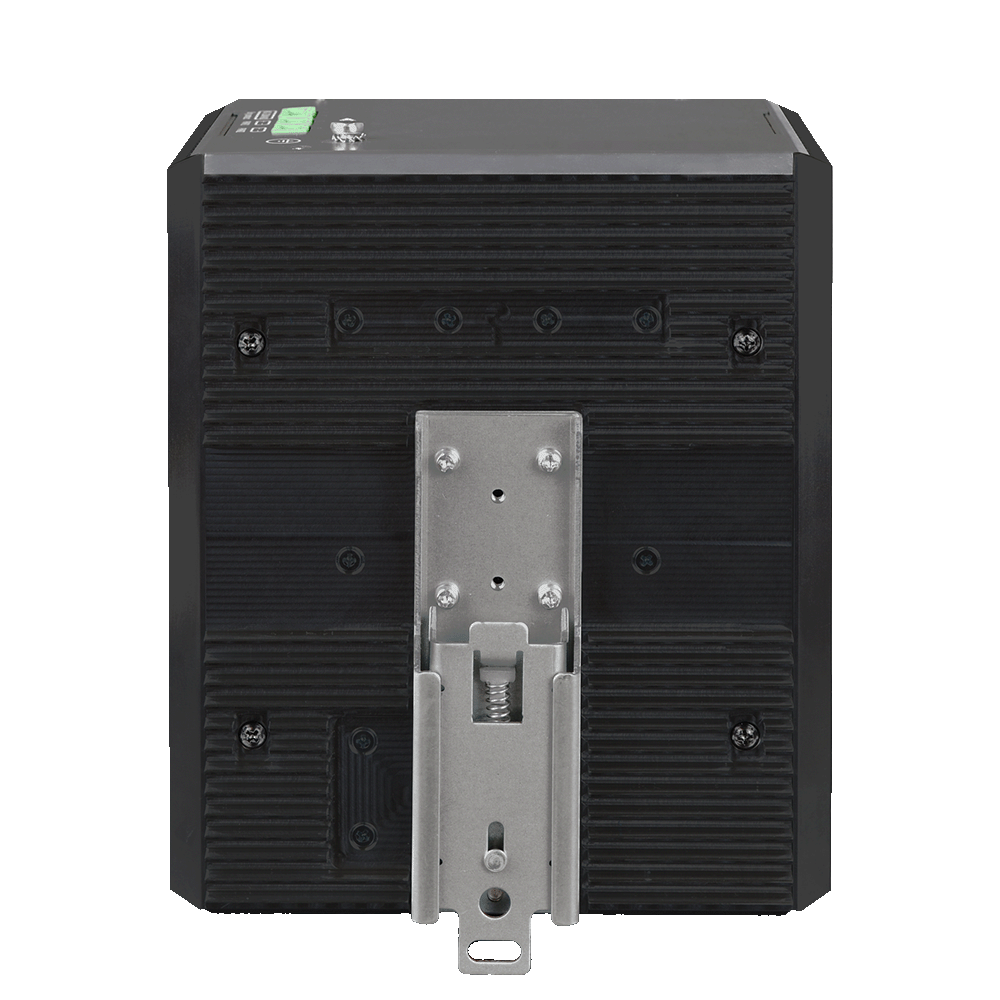

Mounting
DIN rail for wall mounting (optional)
Dimensions (WxHxD)
150x175x124 mm
Weight
2.8 kg
