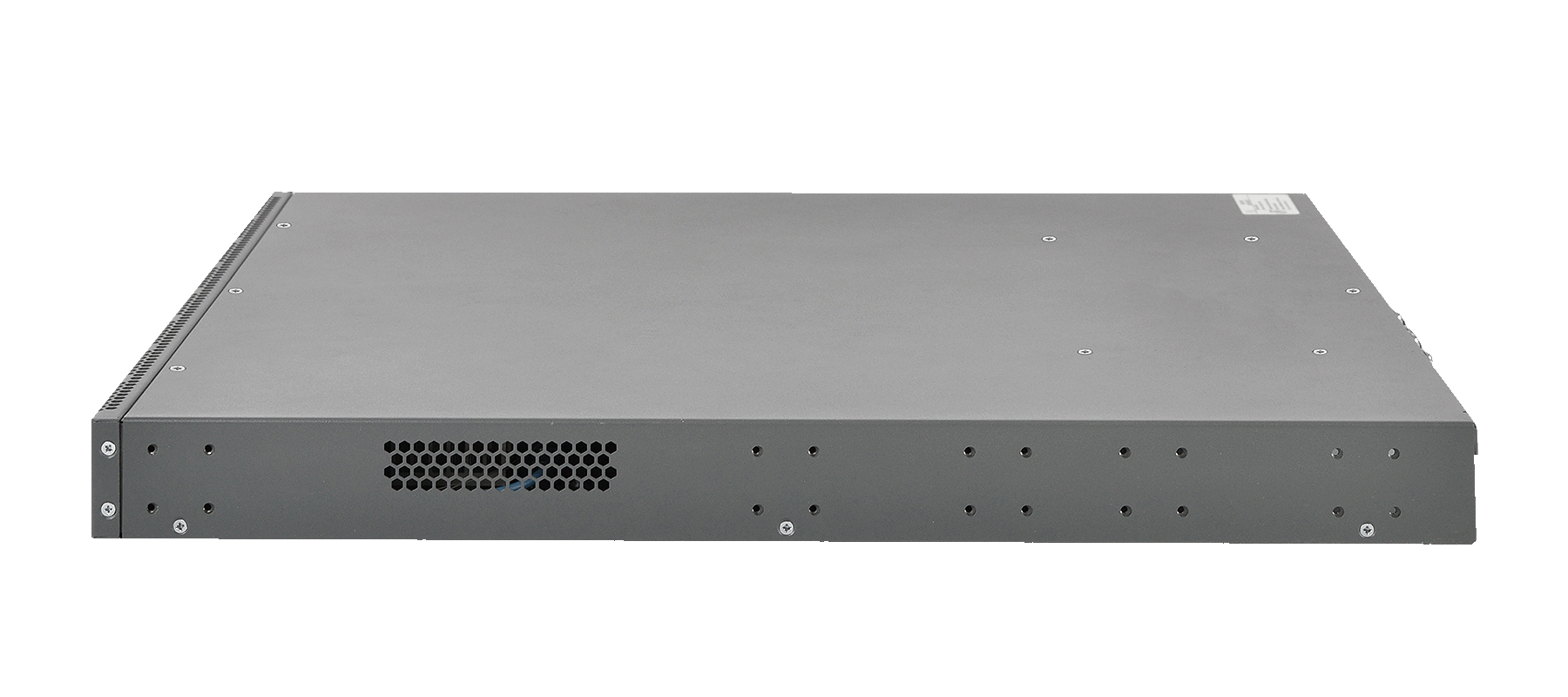

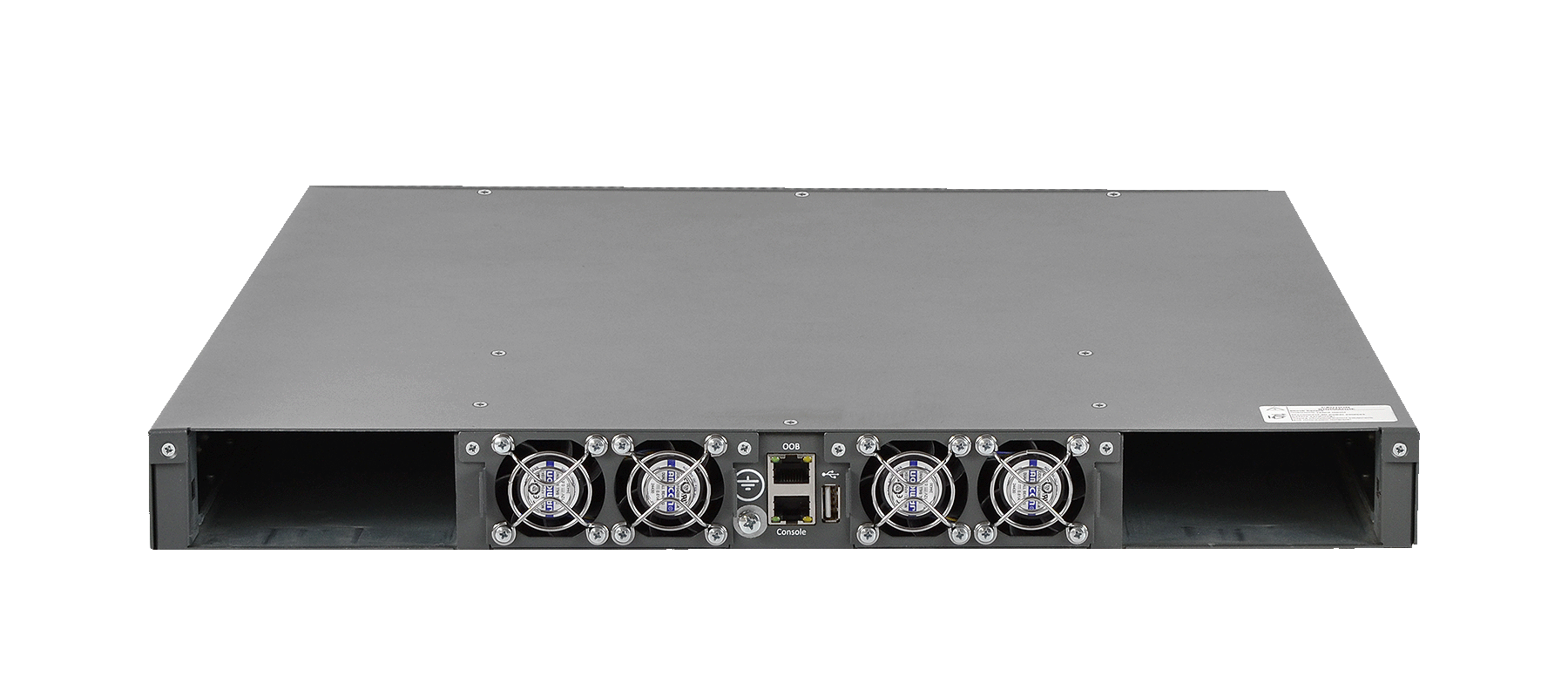

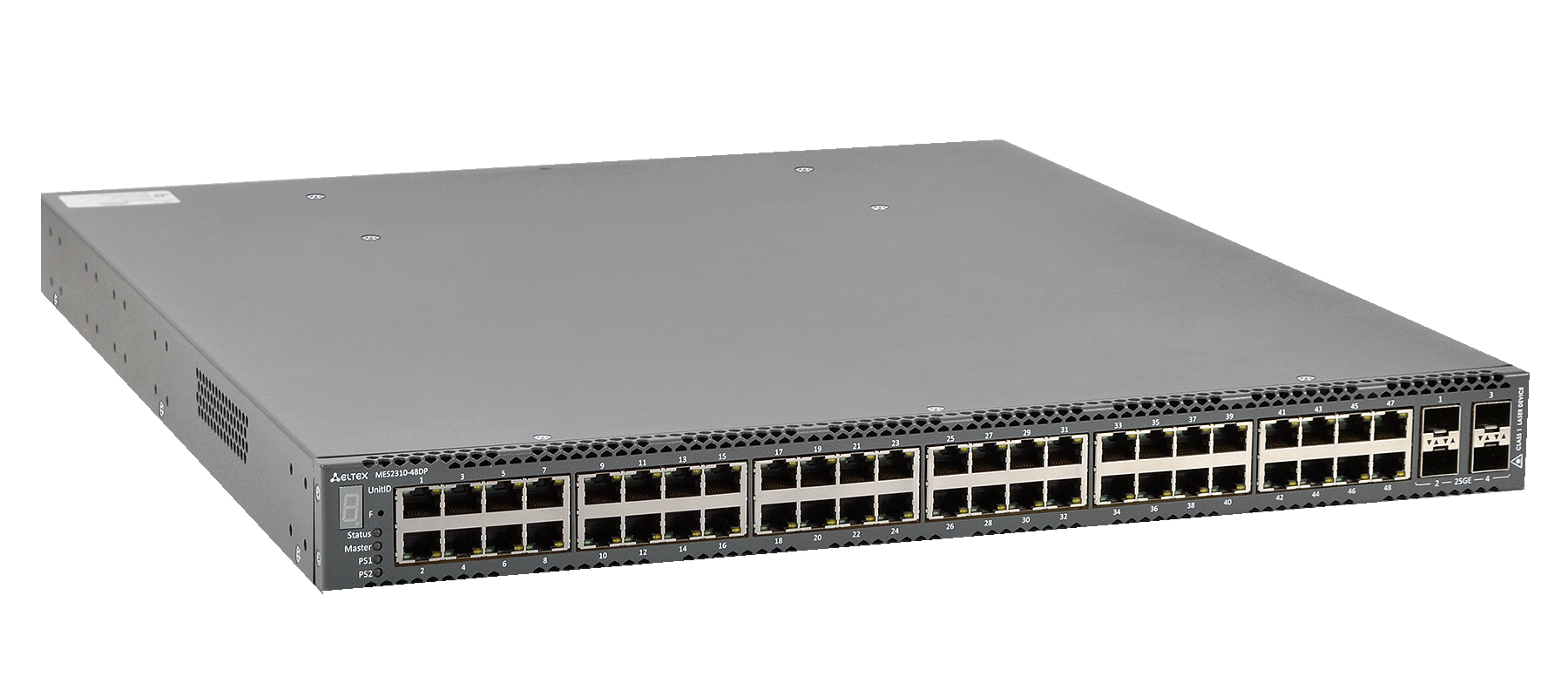

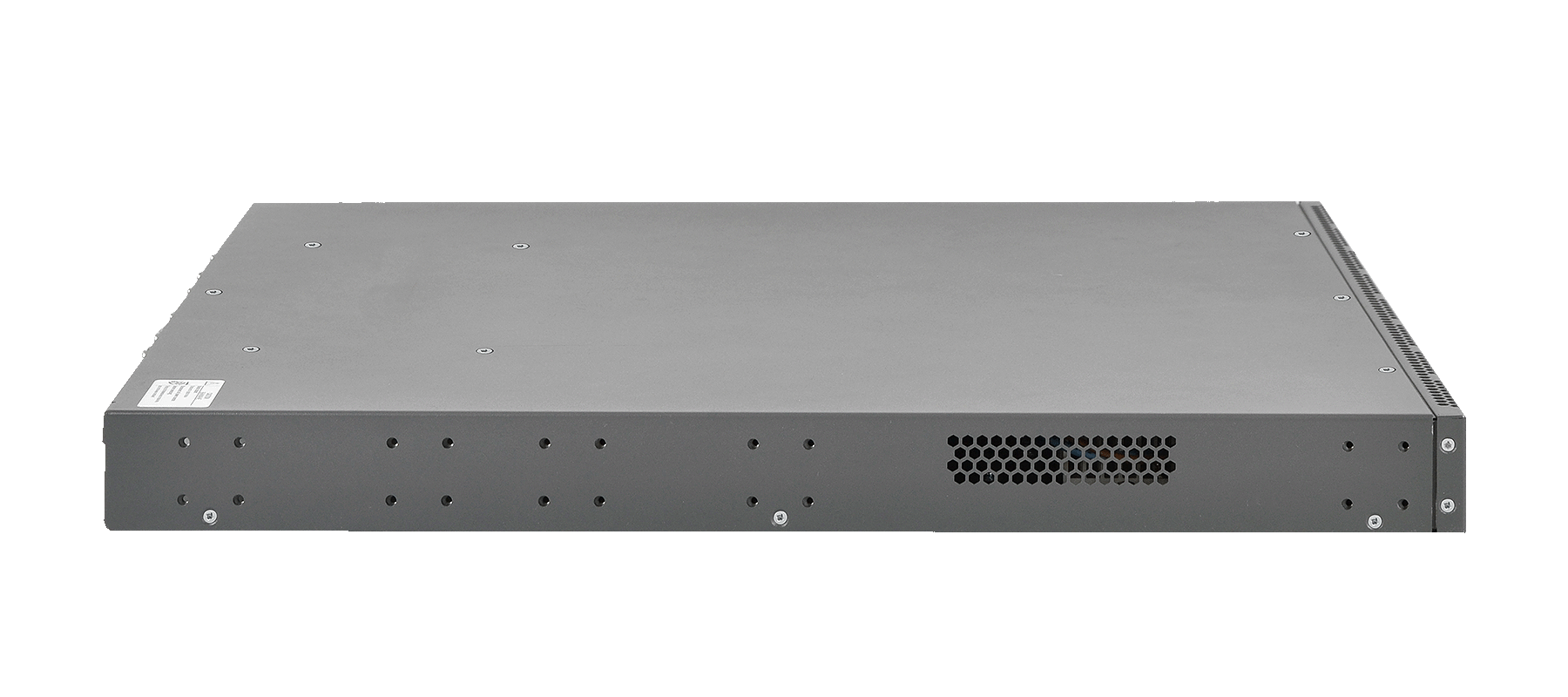

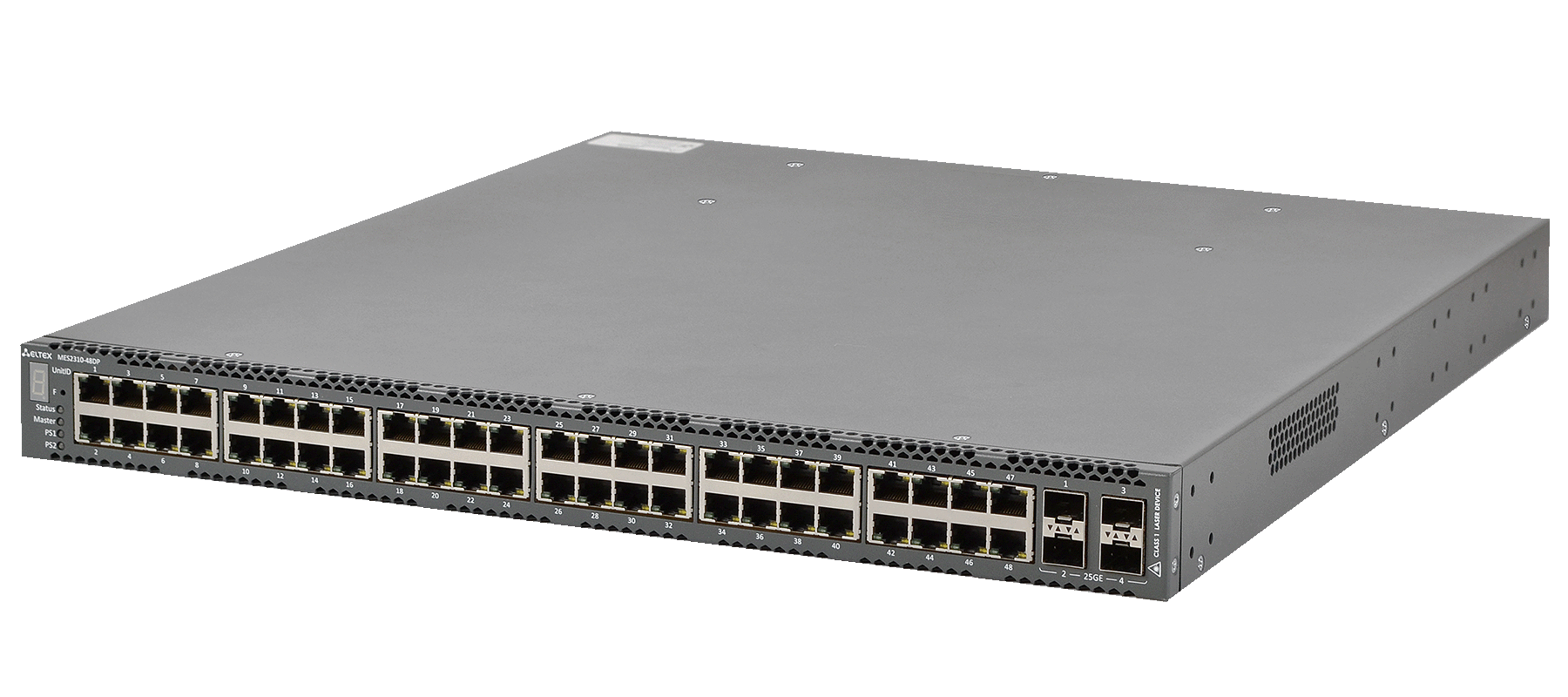

Ethernet access switch MES2310-48DP
- Level:
- L3
- Bandwidth:
- 440 Gbps
- Interfaces:
- 48x2.5G PoE/PoE+, 4x25G SFP28
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Description
MES2310-48DP with PoE support is designed to connect end users to the network of large enterprises, small and medium-sized businesses and to the telecommunication operators network using 1G/10G interfaces.
The switch features provide physical stacking, support for virtual local area networks, multicast distribution groups, and advanced security.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Level:
- L3
- Bandwidth:
- Up to 440 Gbps
- PoE budget:
- 1450 W
- Interfaces:
- 48x2.5G PoE/PoE+, 4x25G SFP28
- QoS:
- 8 egress queues per port
- Power supply:
- AC, 2 hot-swappable power supplies
- Stacking:
- 8 devices
ECCM
Eltex Cloud Configuration Manager is a centralized system for network equipment management
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
10/100/1000/2500BASE-T PoE/PoE+
48
1000BASE-X (SFP)/10GBASE-R (SFP+)/25GBASE-R (SFP28)
4
10/100/1000BASE-T (OOB)
1
USB 2.0
1
Console port RS-232 (RJ-45)
1
Performance:
Bandwidth
440 Gbps
Quality of Service (QoS)
8 egress queues per port
Jumbo frames
Maximum packet size is 10240 bytes
Stacking
8 devices
Physical parameters:
Power supply
200–240 V AC, 47–63 Hz
36–72 V DC
Up to 2 hot-swappable power supplies
PoE budget
1450 W
Cooling
Front-to-Back, 4 fans
