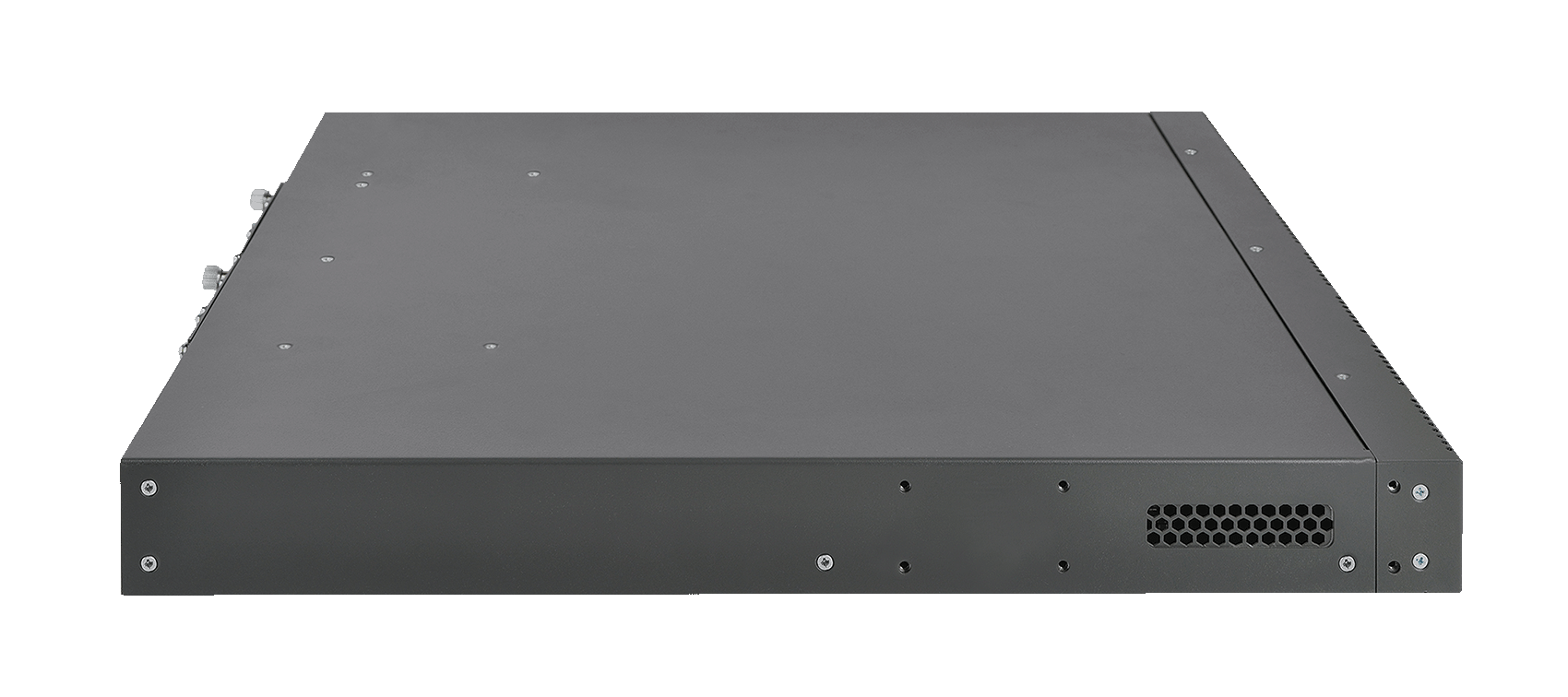

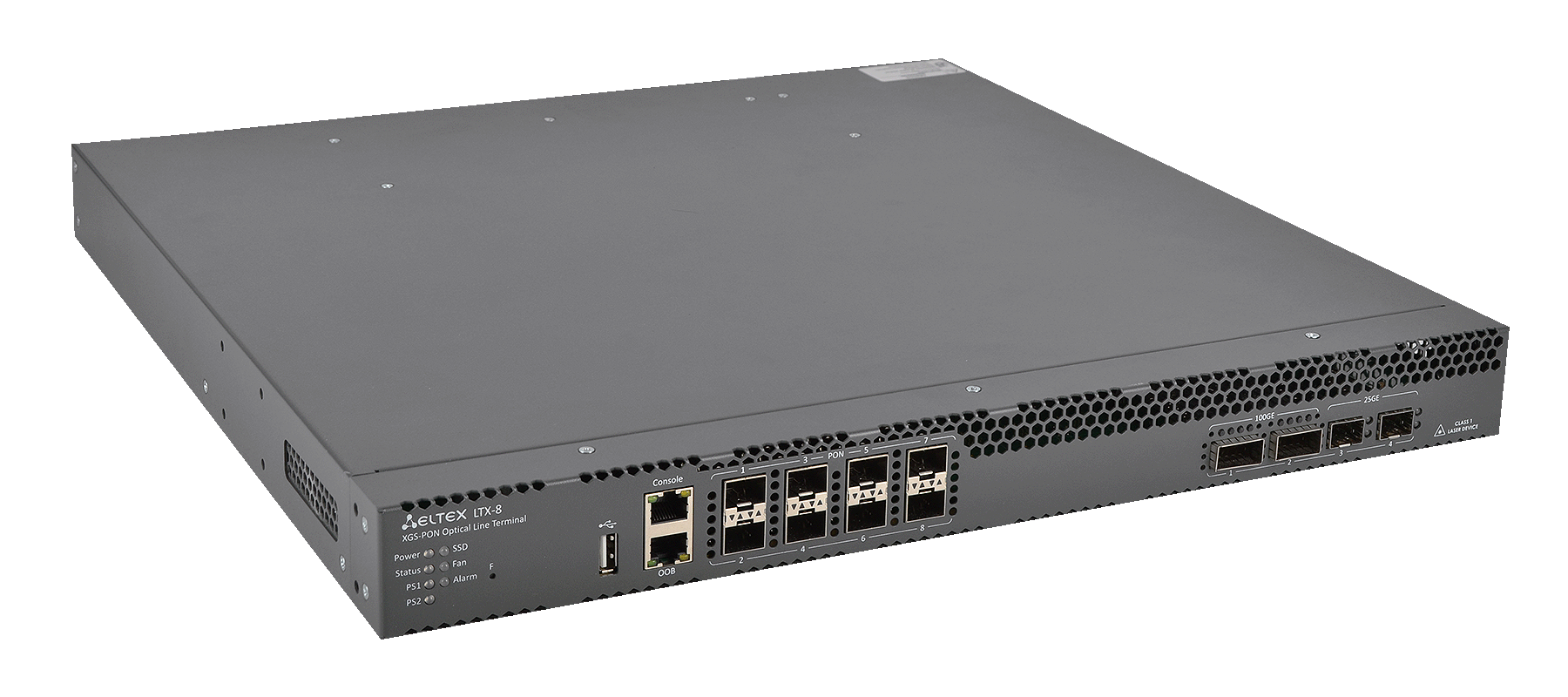

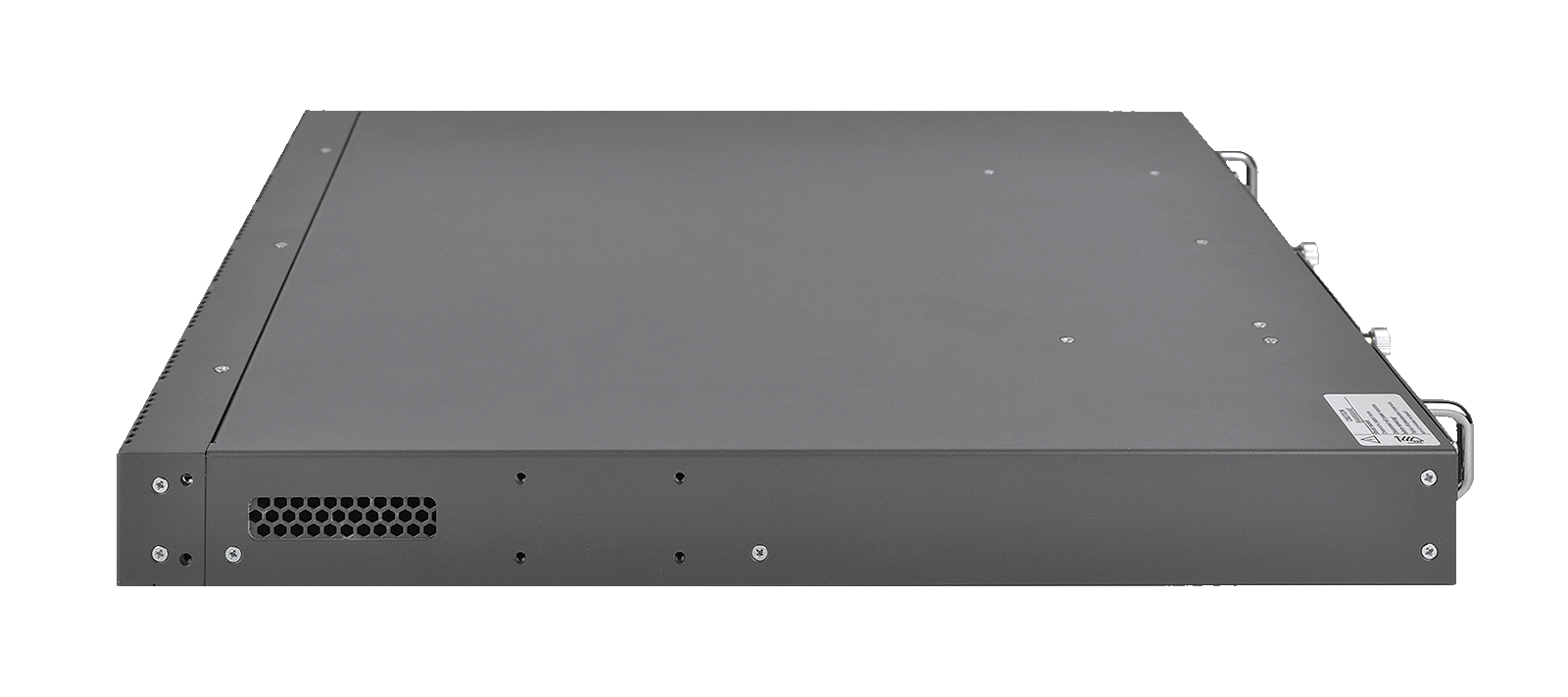

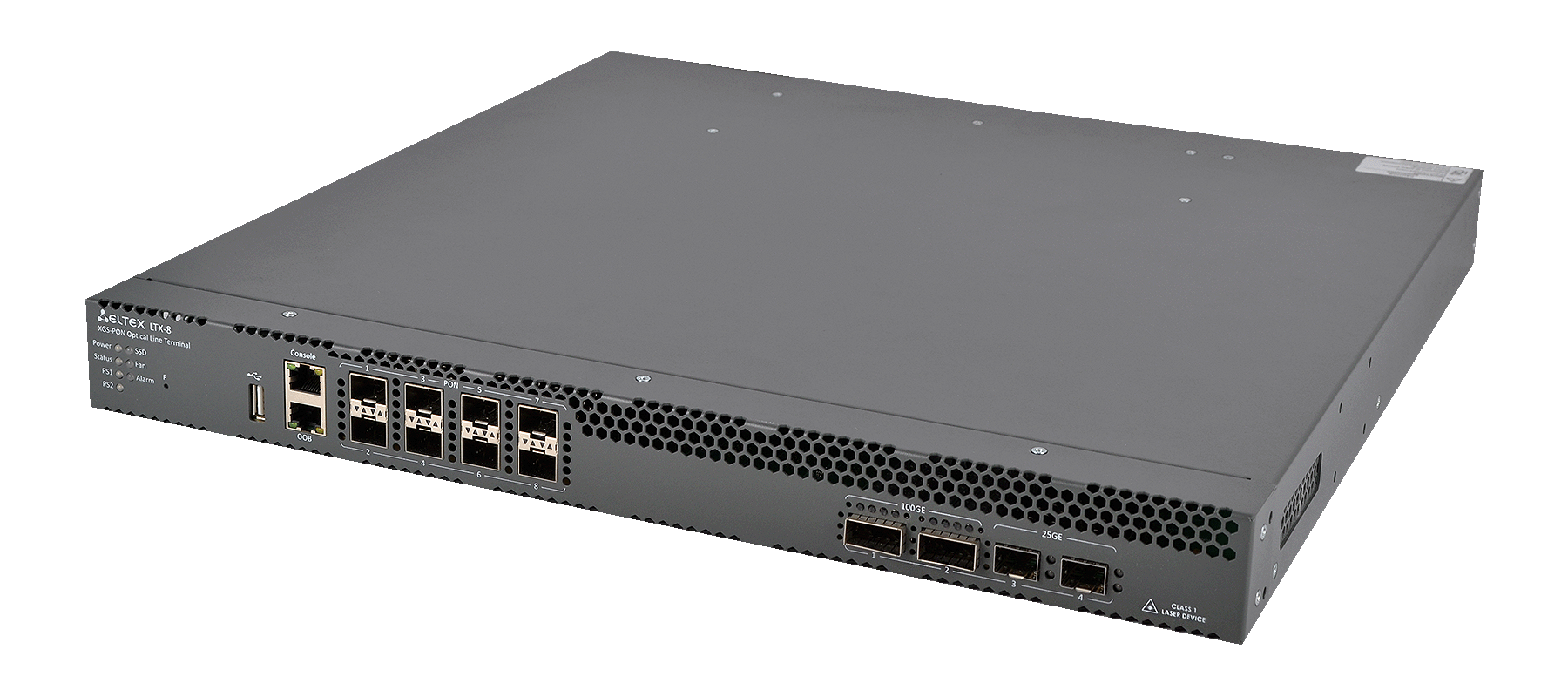

Station equipment XGS-PON OLT LTX-8 rev.B

LTX series OLTs are designed to provide broadband access over Passive Optical Networks (PON).

Combo XGS-PON interfaces are used to connect an optical distribution network. Up to 128 optical subscriber terminals can be connected to each interface via a single fiber by the GPON standard and up to 256 subscriber terminals by the XGS-PON standard. Access to the carrier’s transport net work is provided via 100 Gigabit and 25 Gigabit uplink interfaces.

OLT LTX allows carriers to build scalable, last mile fault tolerant networks to ensure the highest safety standards. OLT manages subscriber devices, traffic switching and connection to the transport network.

Broadband subscriber access using the FTTH technology is the highest quality Triple Play service delivery option, as it provides high data transmission rates over long distances.

The main advantage of PON technology is the absence of electrically powered active nodes within the section from OLT to ONT, which significantly reduces the network operating cost. In addition, PON technology saves on cabling infrastructure by reducing the total length of the optical fiber, as a single fiber is used from the central node to the splitter for a group of subscribers.

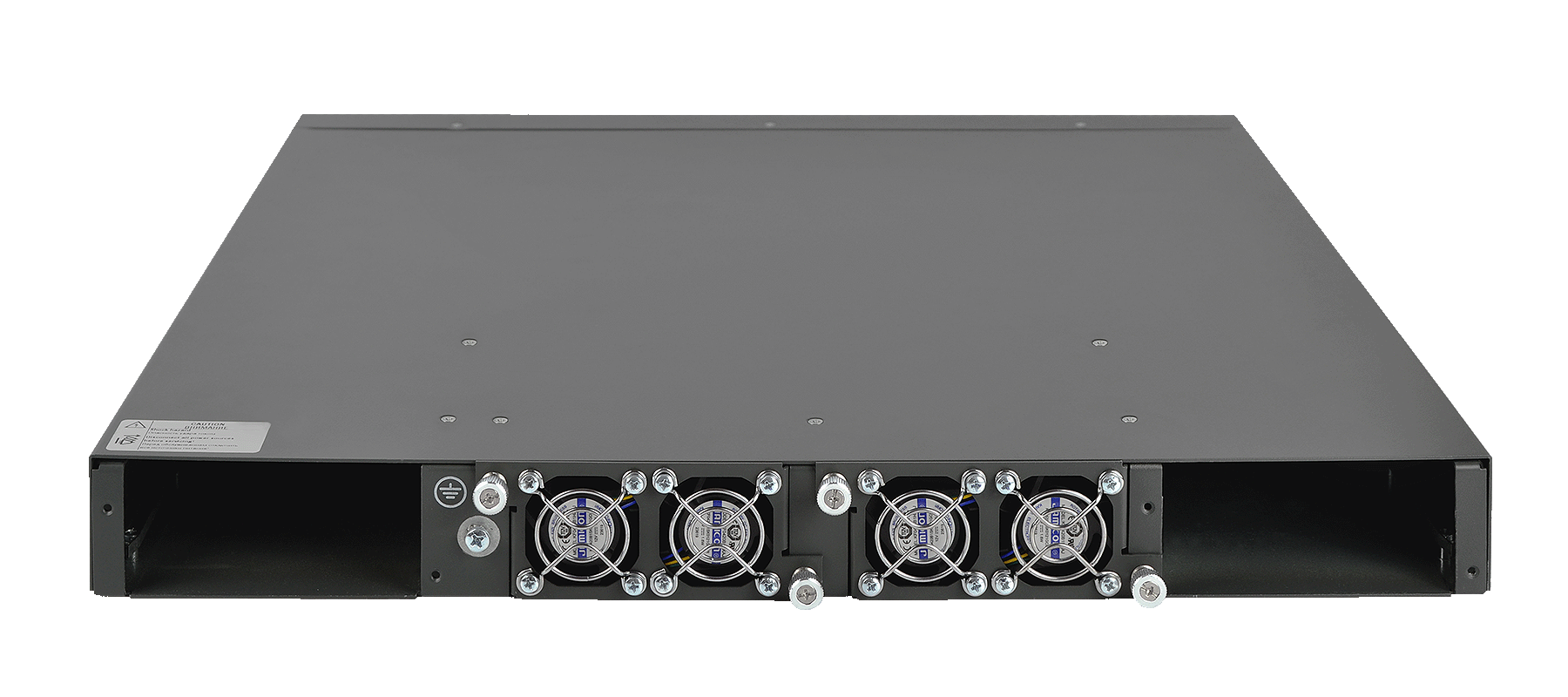

OLTs support two hot-swappable power modules with the ability to automatically switch to a redundant power unit.
