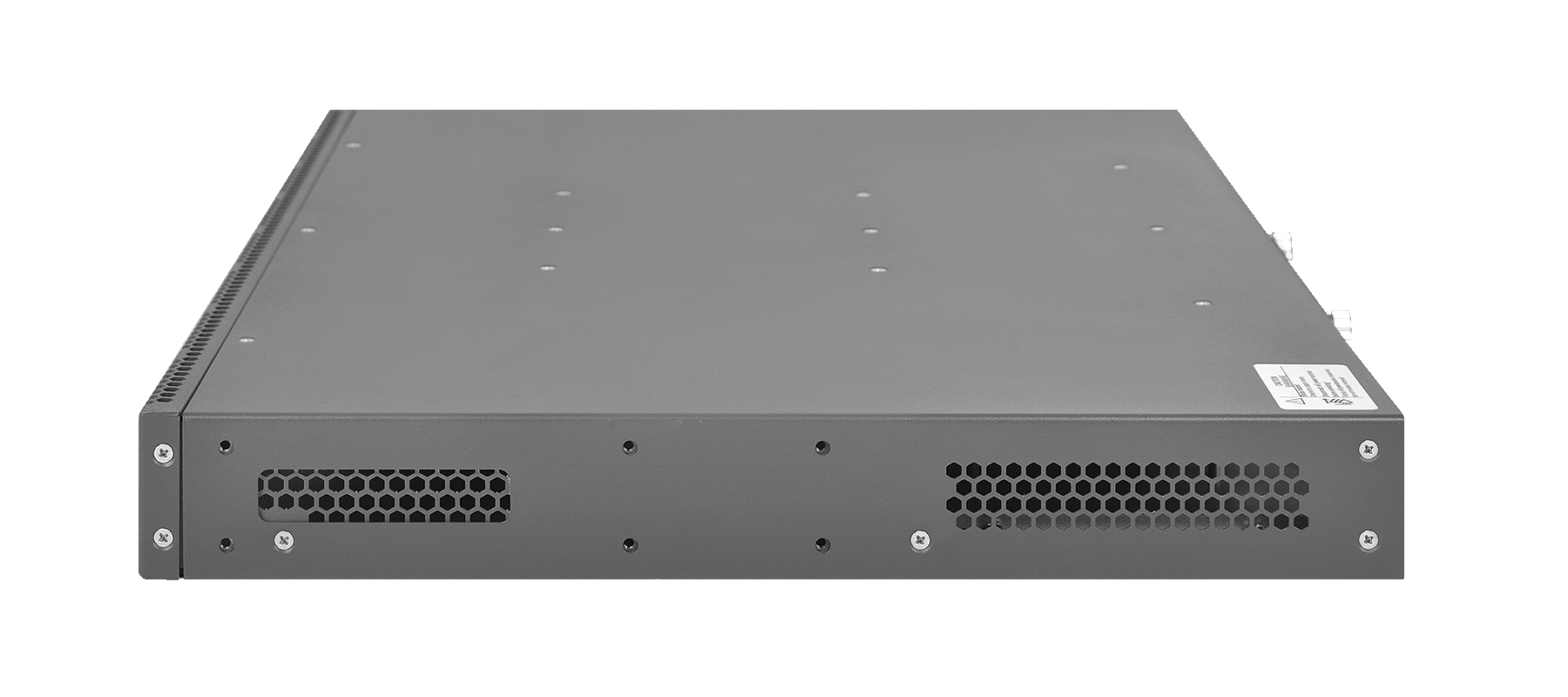

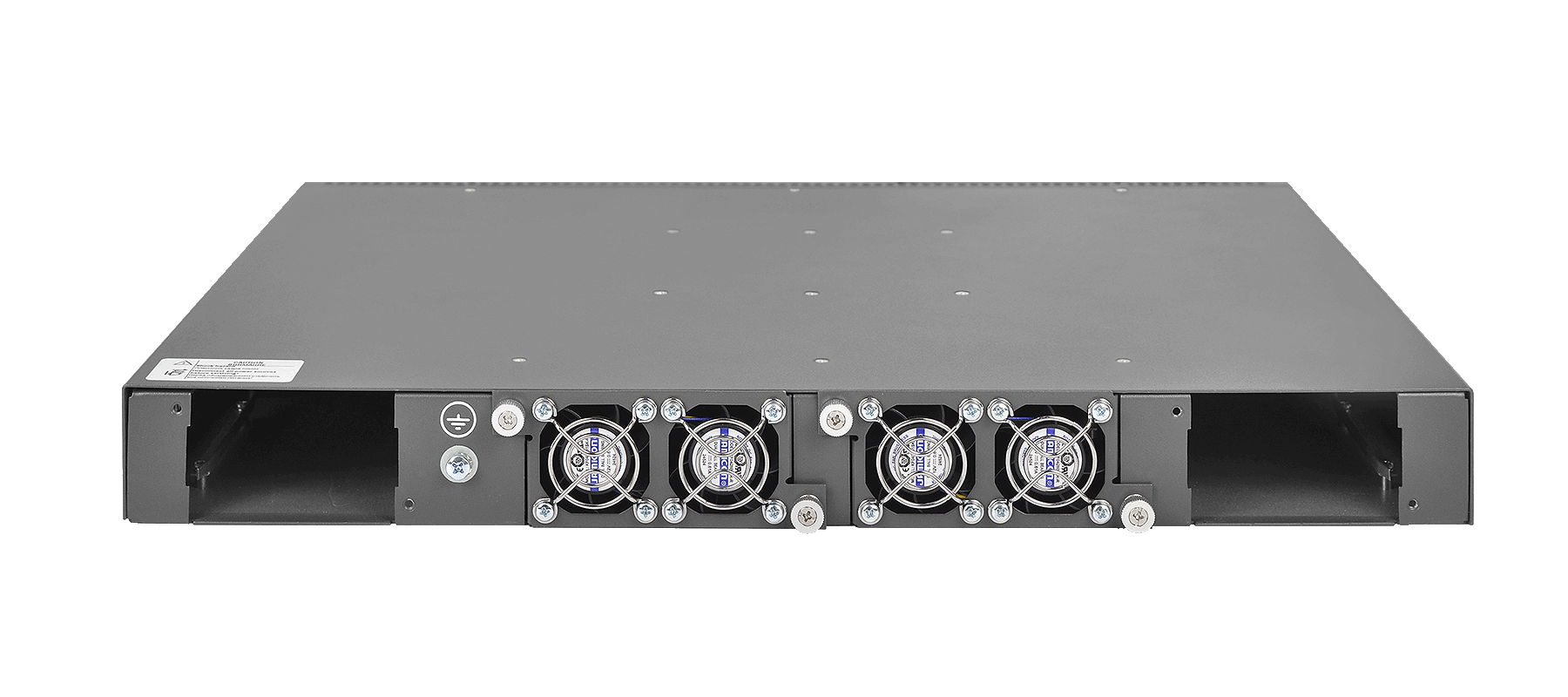

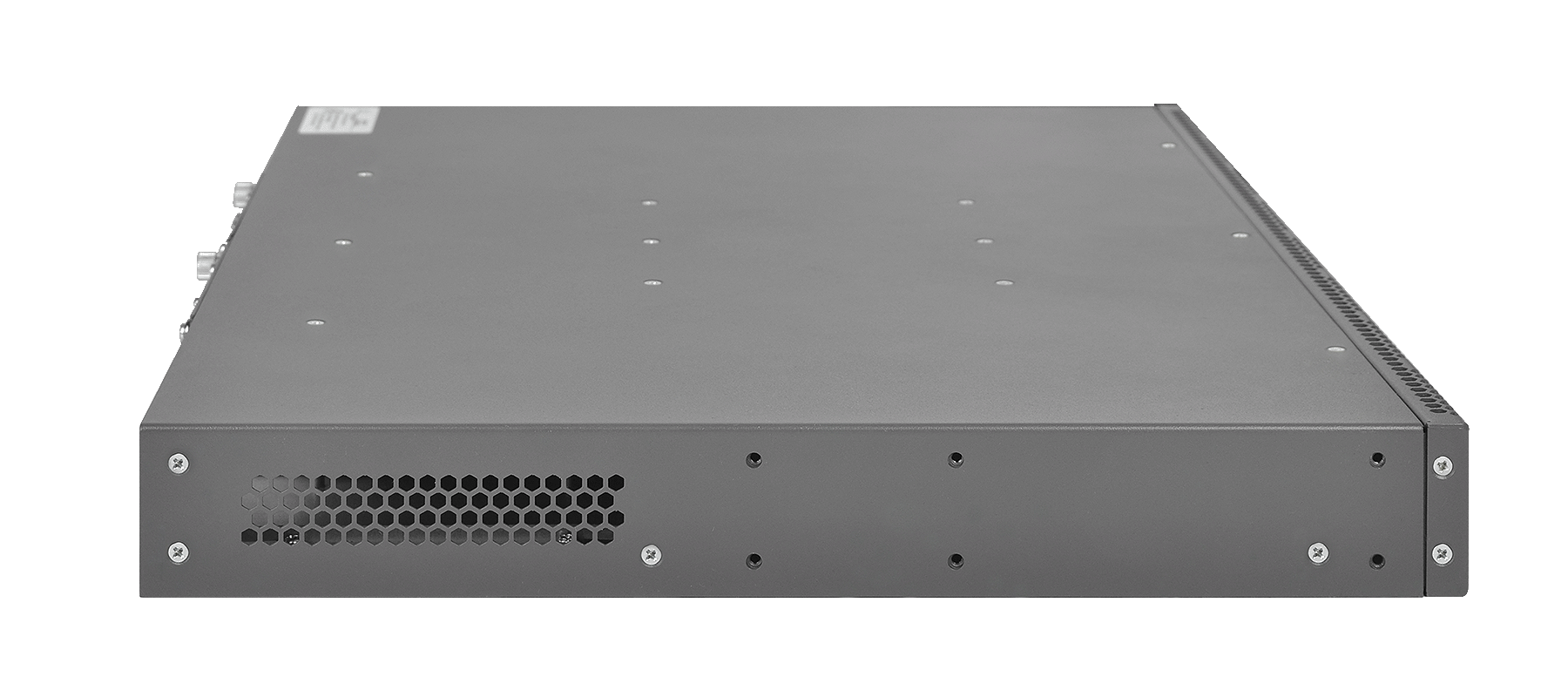

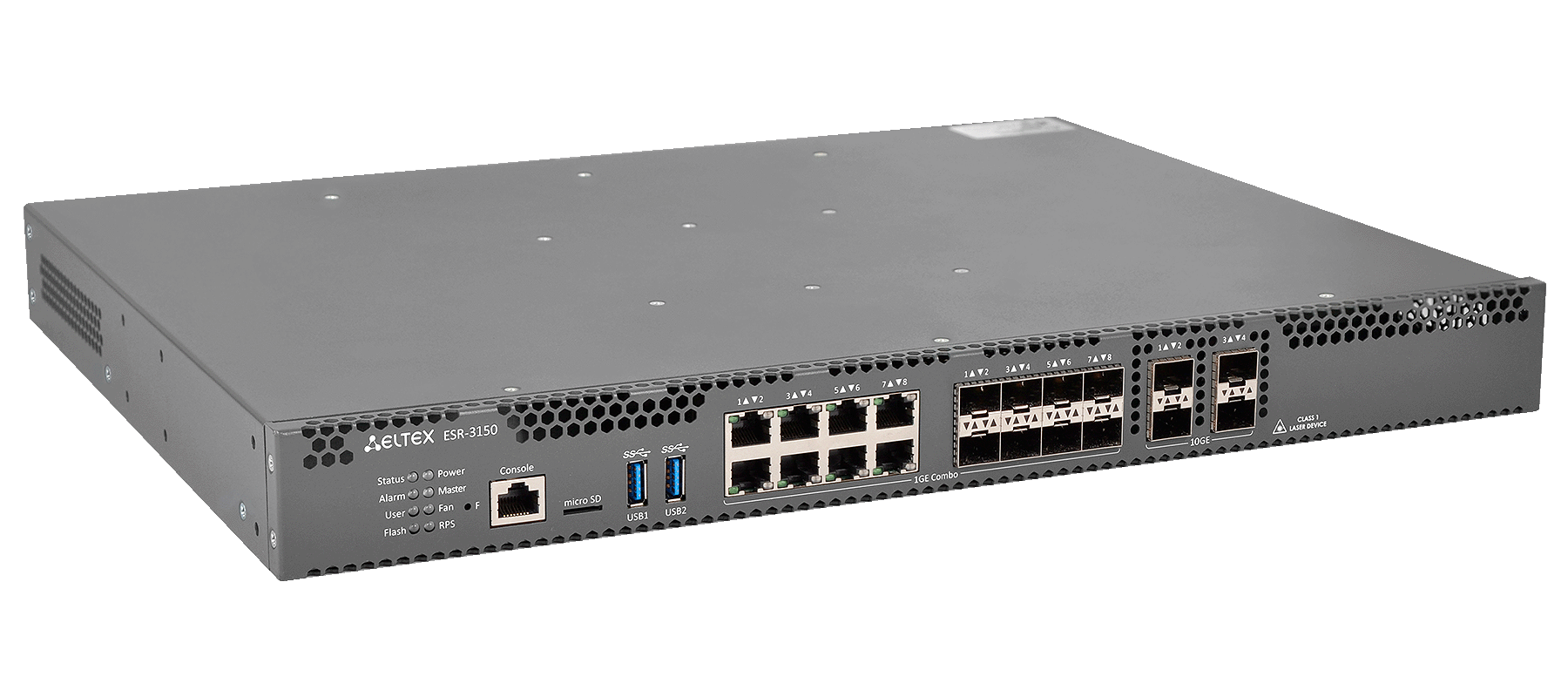

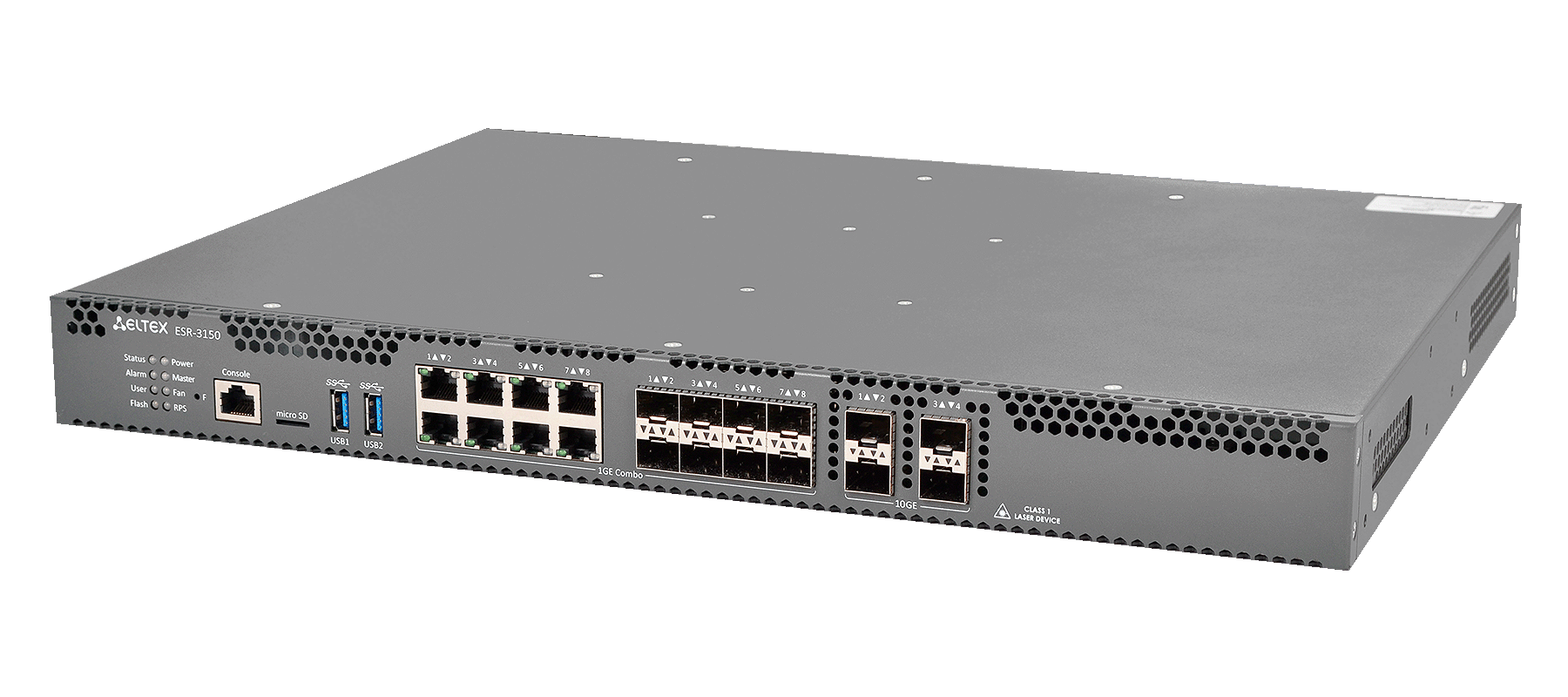

Service gateway ESR-3150
- Interfaces:
- 8x1G Combo, 4x10G SFP+
- Performance:
- FW - 21.69 Gbps, IPsec VPN - 3.35 Gbps
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Description
ESR-3150 service routers are universal hardware platforms capable of performing a wide range of tasks related to network security, data encryption, subscriber termination, etc. The product line includes models that can be used in networks of various sizes: from small enterprise networks to carrier networks and data centers.
The key elements of the series are hardware and software data processingmeans
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Interfaces:
- 8x1G Combo, 4x10G SFP+
- Firewall:
- 21,69 Gbps
- FIB:
- 1,7M
- Routing:
- BGP/OSPFv3/IS-IS/RIP(ng)/Static
- GRE tunnels:
- 500
- IPsec tunnels:
- 500
- MPLS
- Hierarchical QoS
- Security:
- ACL/Firewall/IPS/IDS
- Power supply:
- AC/DC, 2 hot-swappable power supplies
Features and capabilities
For full specifications and manuals see Documents and files section below
Interfaces:
Combo 10/100/1000BASE-T/1000BASE-X (SFP)
8
1000BASE-X (SFP)/10GBASE-R (SFP+)
4
Console port RS-232 (RJ-45)
1
USB 2.0
No
USB 3.0
2
SD card slot
No
microSD card slot
1
Performance:
Firewall/routing (1518B frames)
21,69 Gbps;
1,78M pps
Firewall/routing (IMIX)
10,5 Gbps;
1,91M pps
IPsec VPN (1456B frames)
3,35 Gbps;
288k pps
IPsec (IMIX)
2,16 Gbps;
405k pps
IPsec tunnel (1456В frames)
484 Mbps;
41.5k pps
IPsec tunnel (IMIX)
330 Mbps;
62k pps
Network and service functions:
L2 Management
VLAN
LAG/LACP
Bridge
SPAN/RSPAN Mirroring
STP protocol family: rstp, vstp, mstp
Dynamic routing
BGP
OSPFv3
IS-IS
RIP
Static
Remote access
PPTP, L2TP over IPsec,OpenVPN, WireGuard
User authentication
Connection encryption
Support for PPPoE/PPTP/L2TP client
Security
ACL
Zone-based Firewall
Protection against DoS/DDoS/Spoof attacks and their logging
IPS/IDS
Filtering by applications
Backup and clustering
VRRP v2, v3
Tracking
DHCP/Firewall failover
MultiWAN
Dual-Homing
Monitoring
Netflow
SNMP MIB
Zabbix
SLA
Syslog Support
Services
DHCP
NAT
QOS
HTTP/HTTPS Proxy
NTP
Physical specifications and environmental parameters:
RAM
32 GB DDR5
Flash
256 GB NVMe
Maximum power consumption
70 W
Power supply
100–240 V AC, 50–60 Hz;
36–72 V DC
Up to two hot-swappable power supplies
Operating temperature
From -10 to +45 °С
Storage temperature
From -40 to +70 °С
Operating humidity
No more than 80 %
Storage humidity
From 10 to 95 %
Dimensions (WxHxD)
430x43.6x329 mm
Weight
4.291 kg
