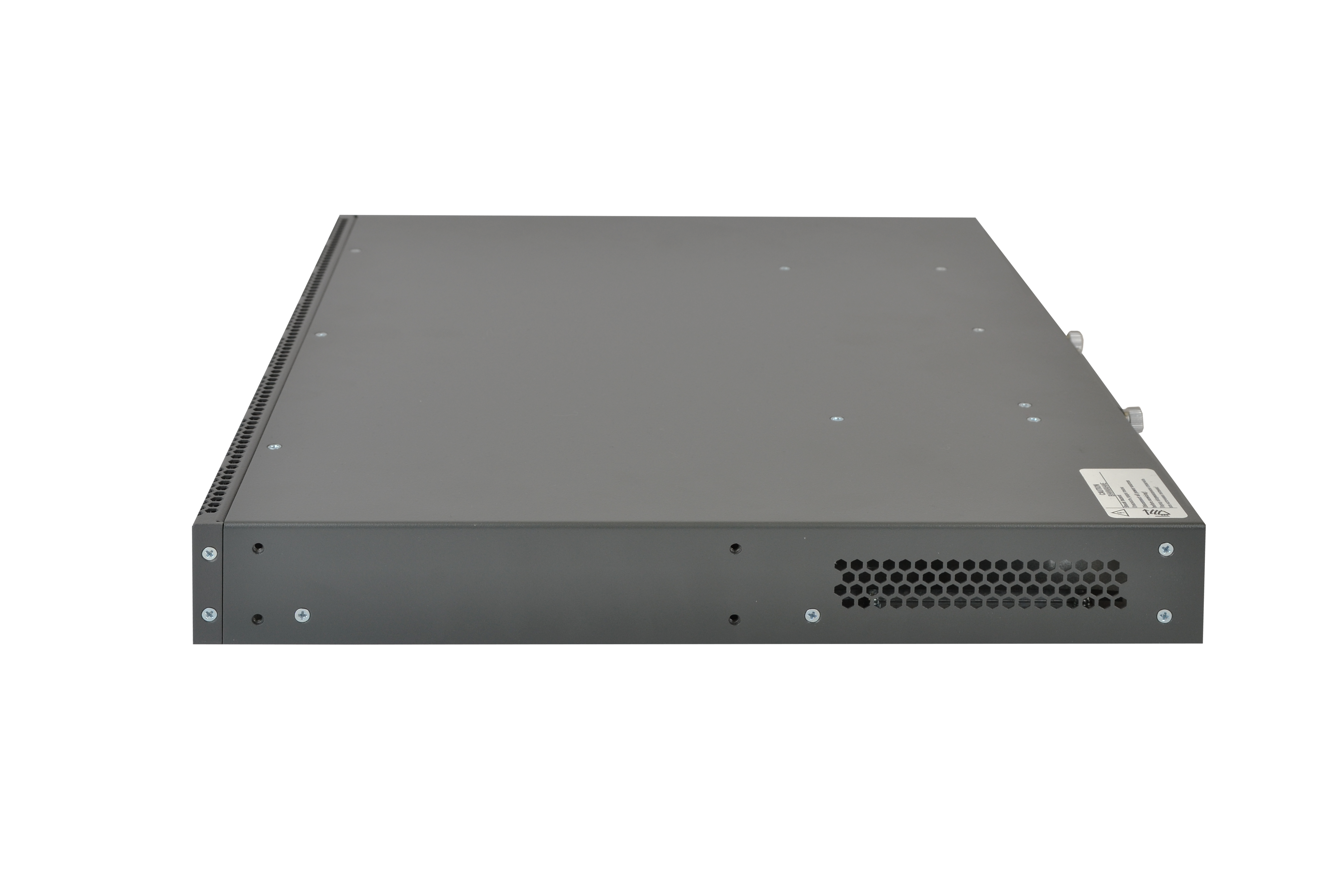

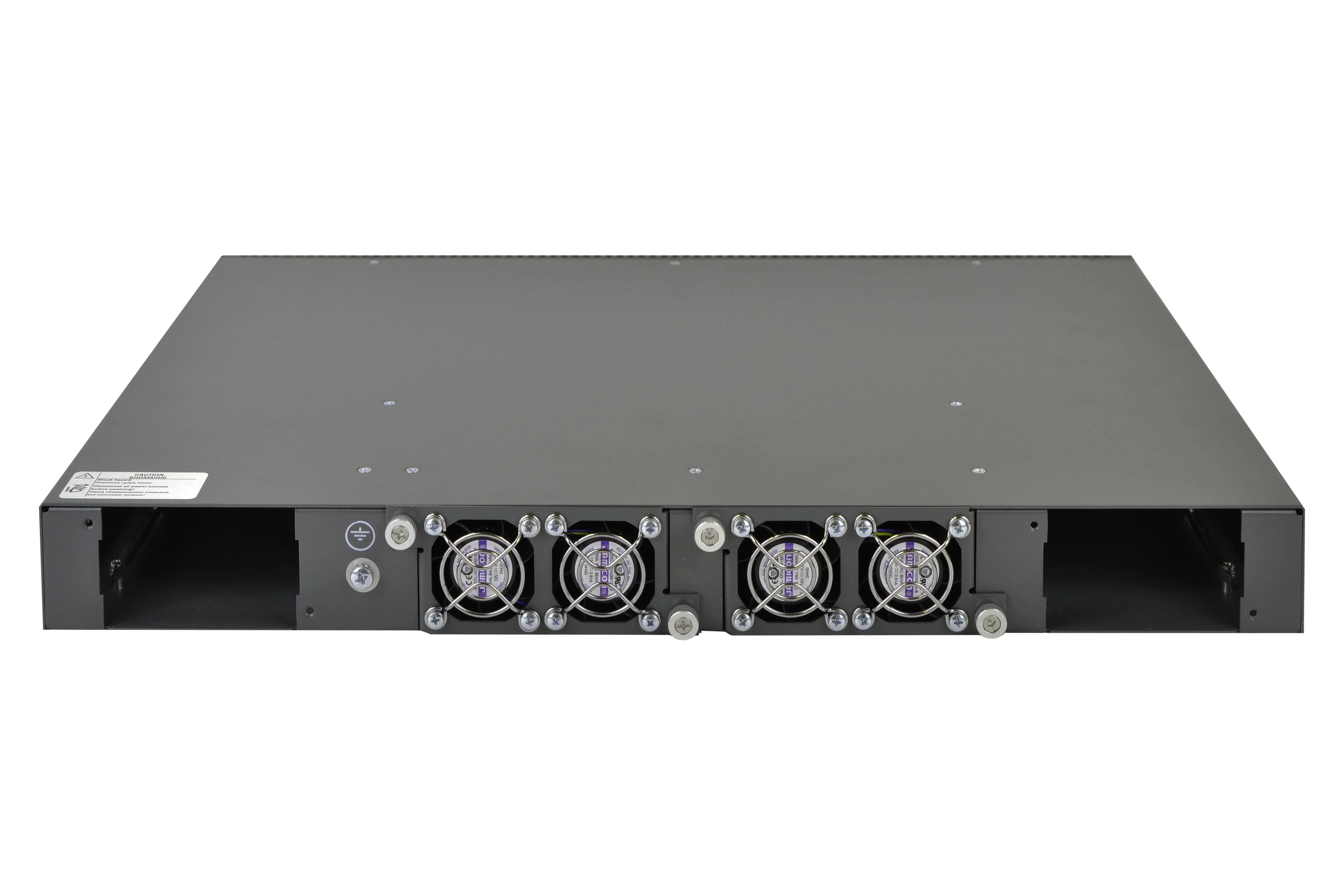

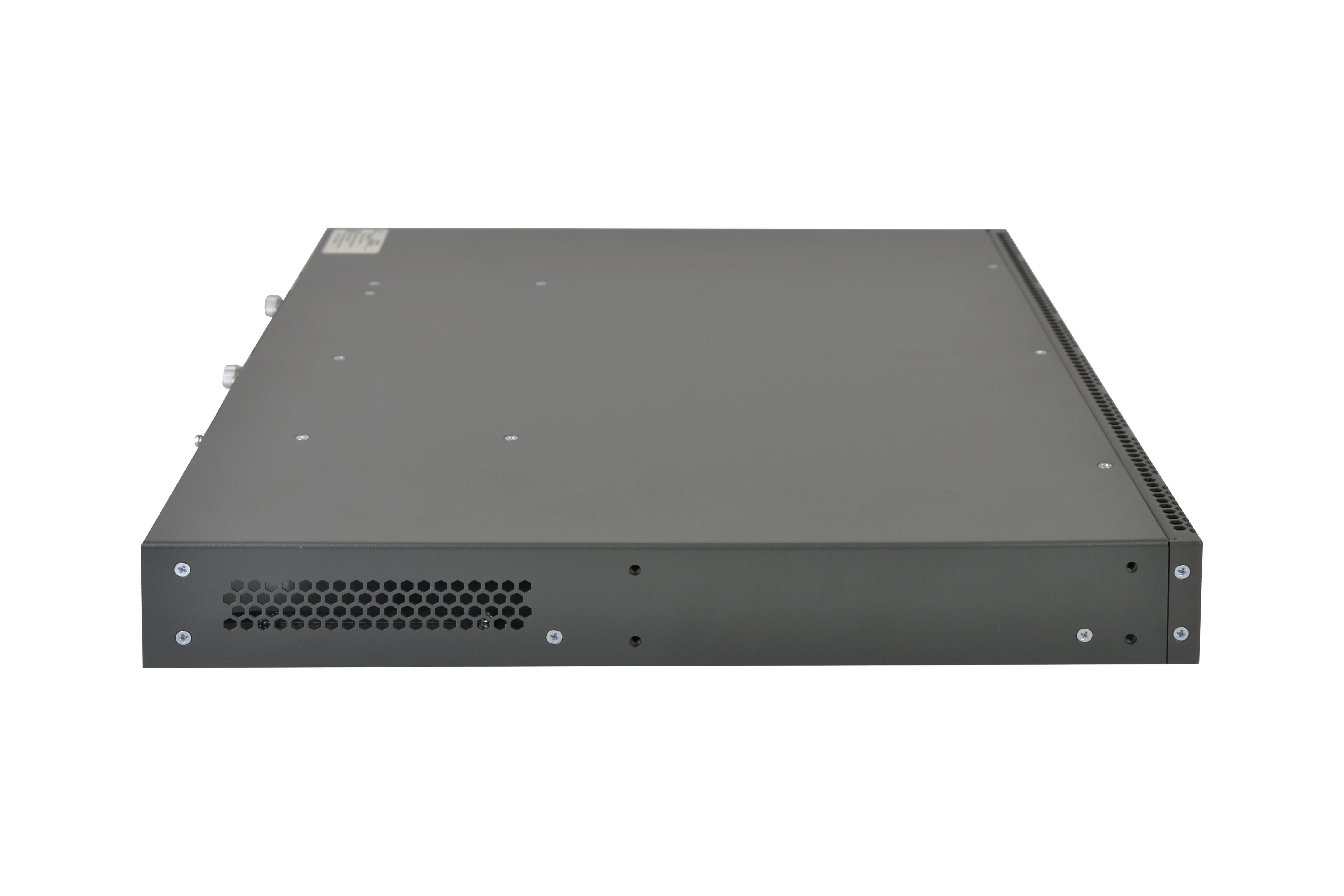

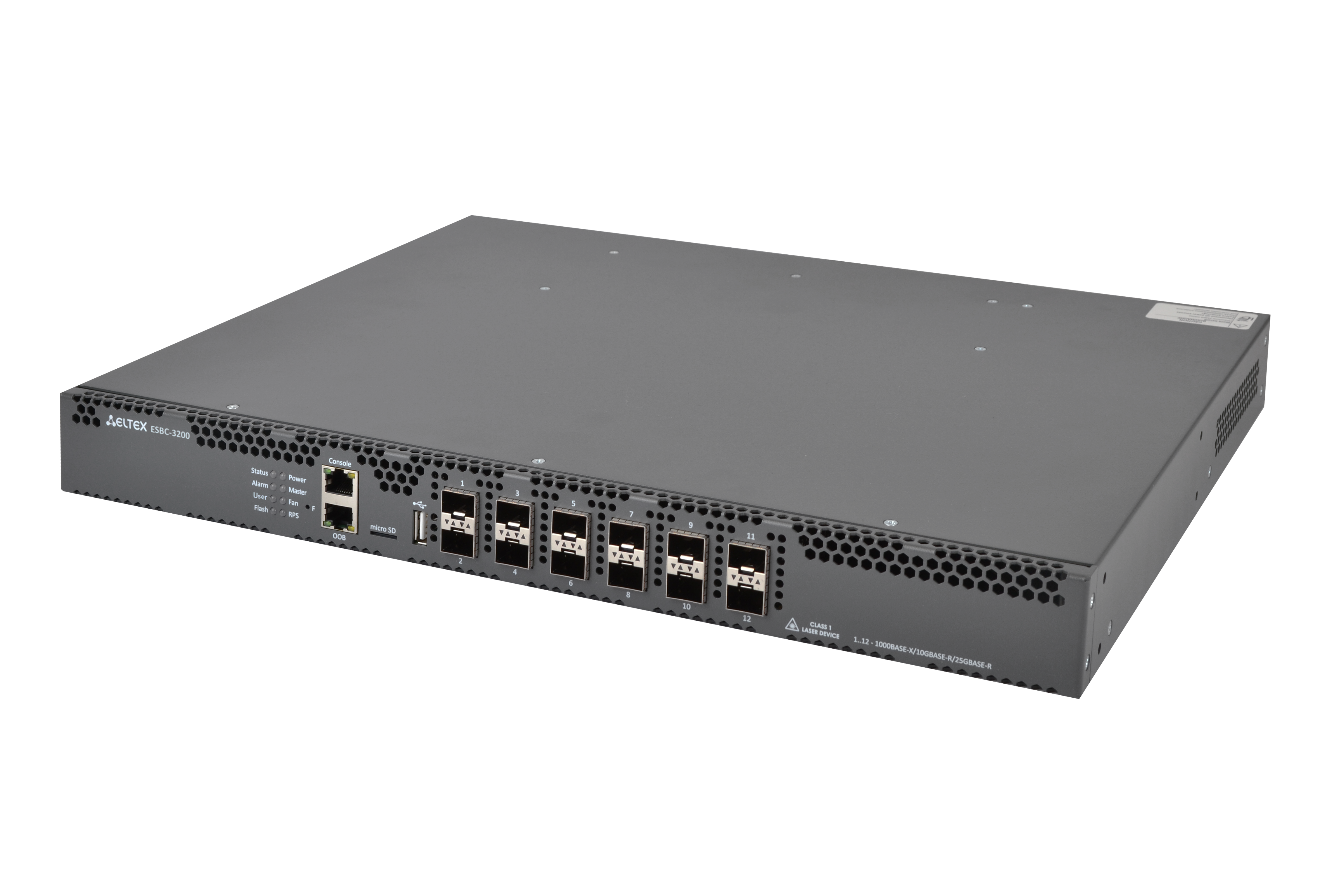

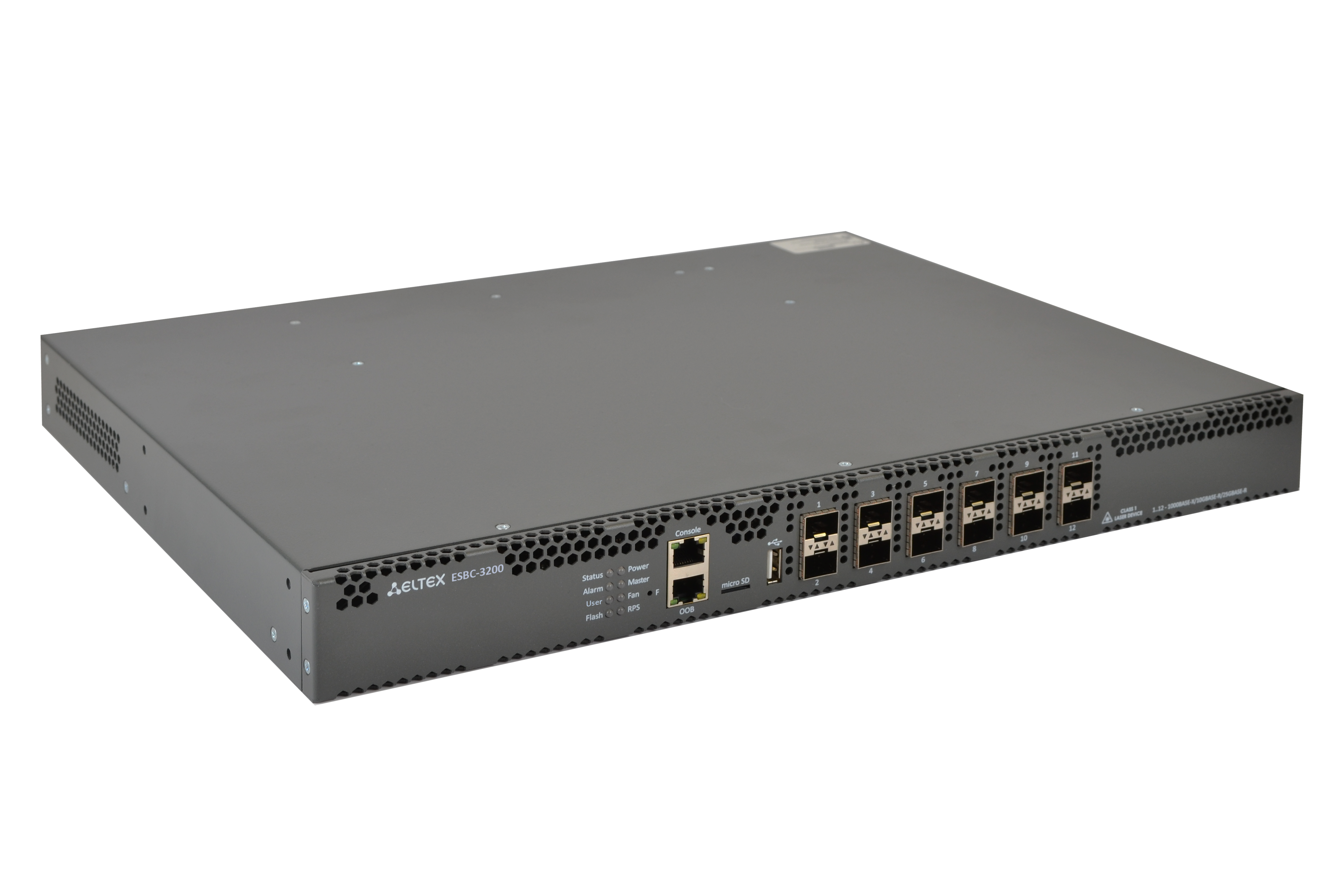

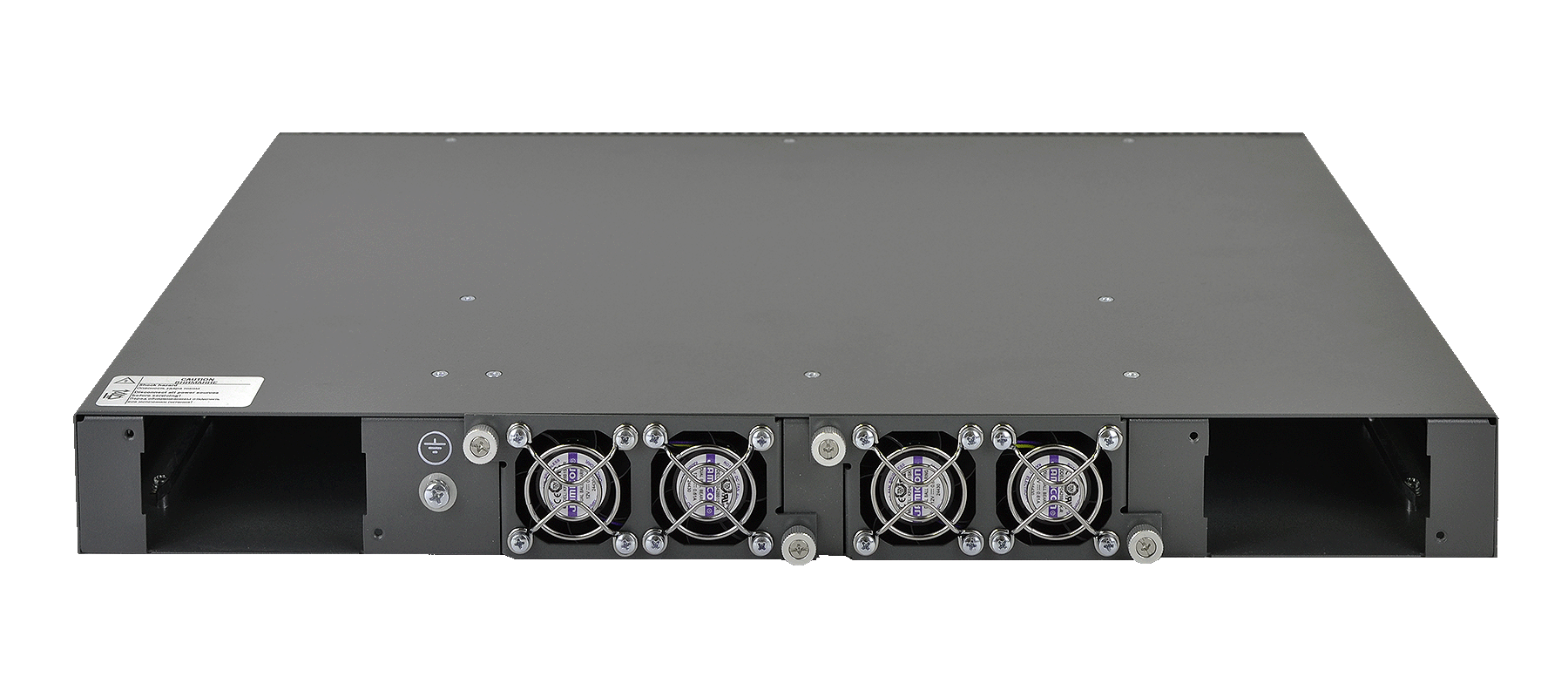

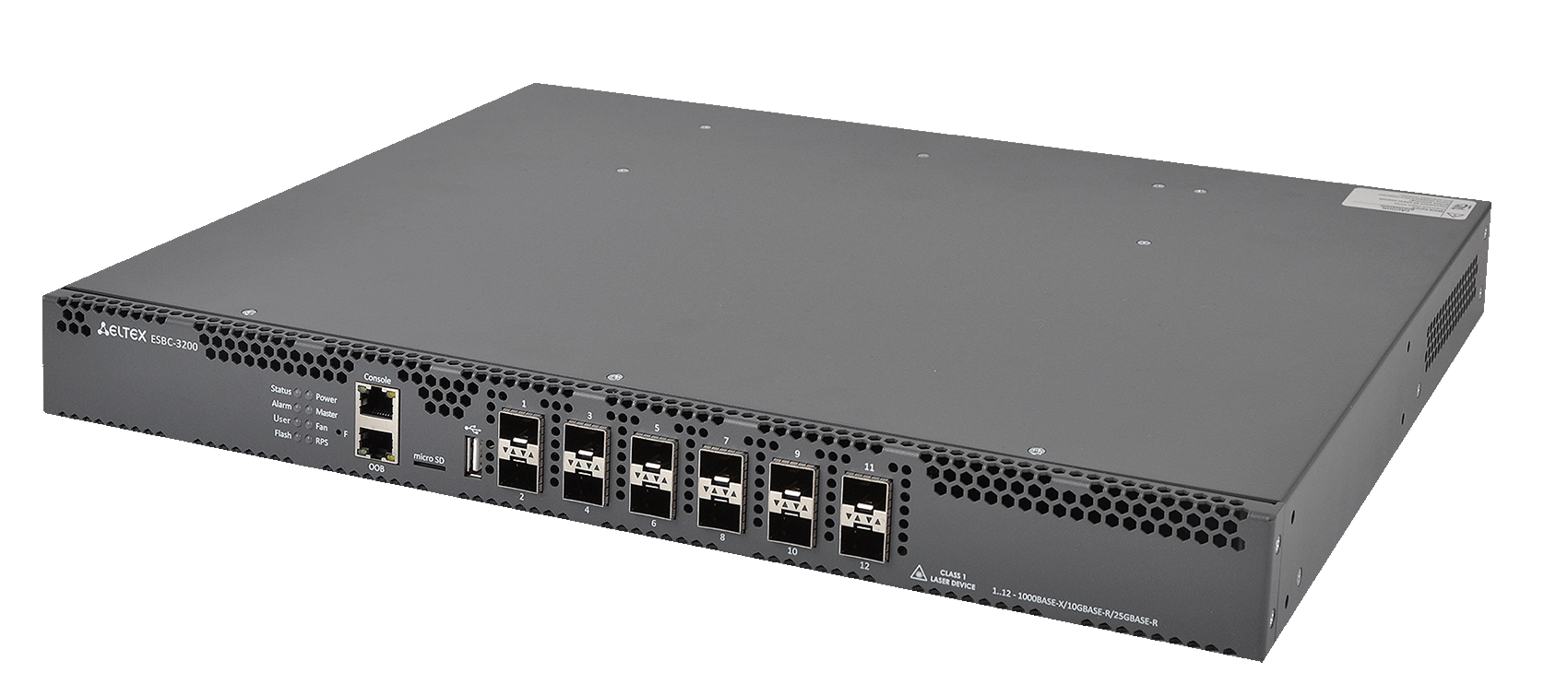

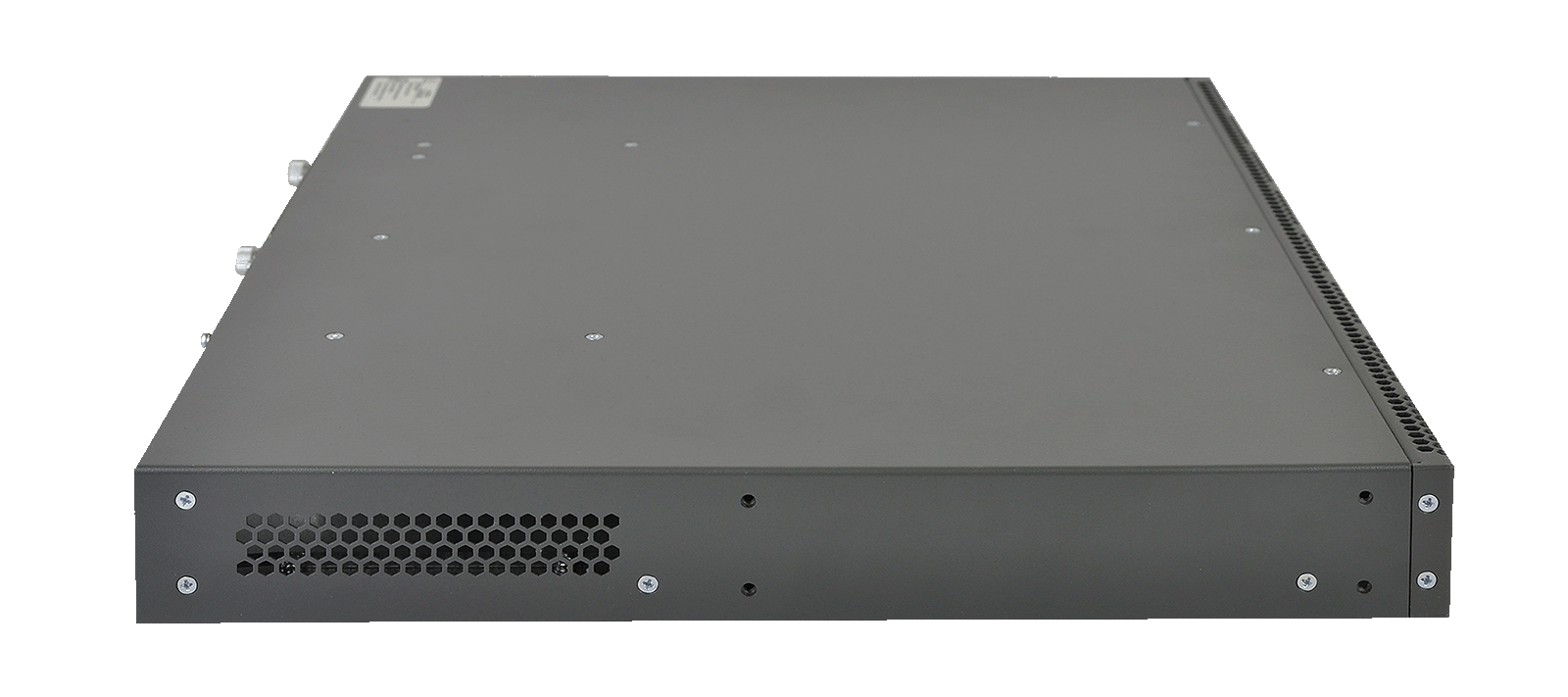

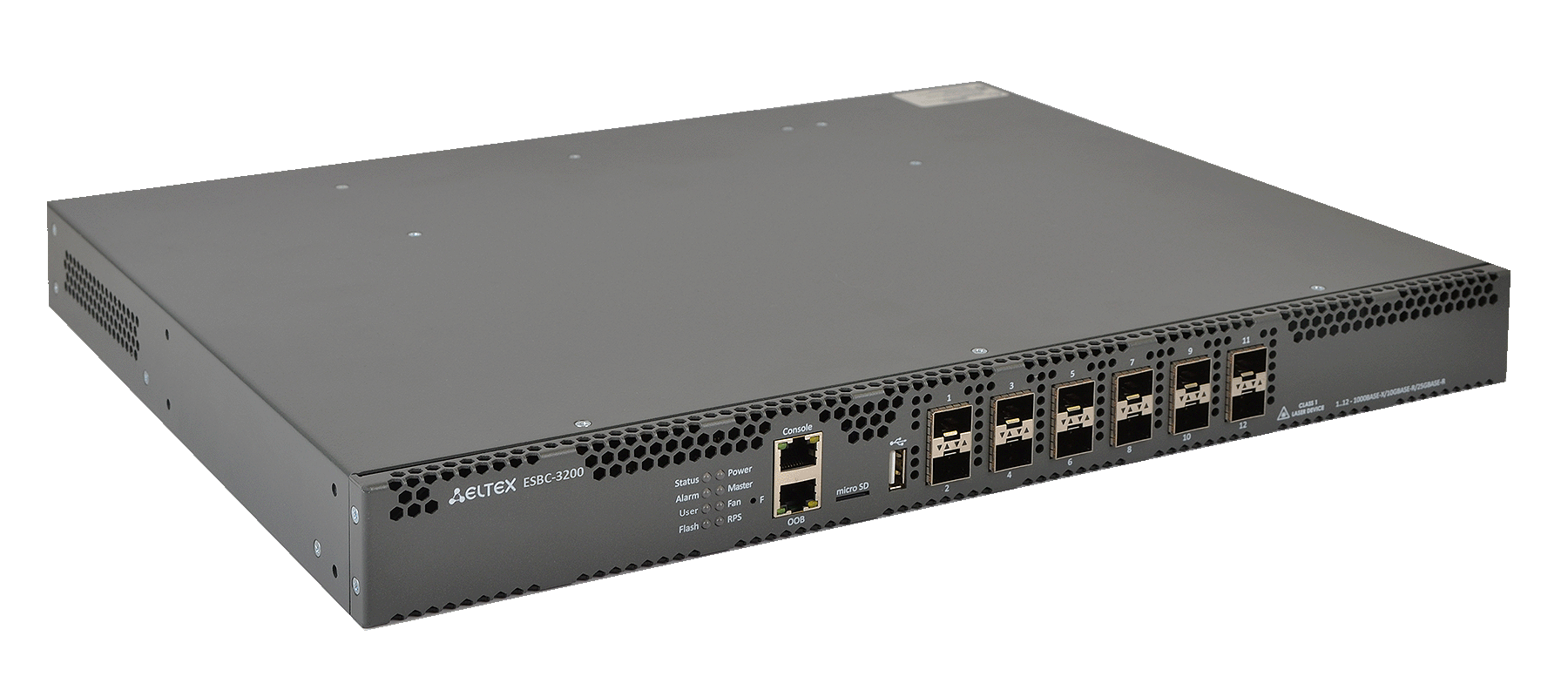

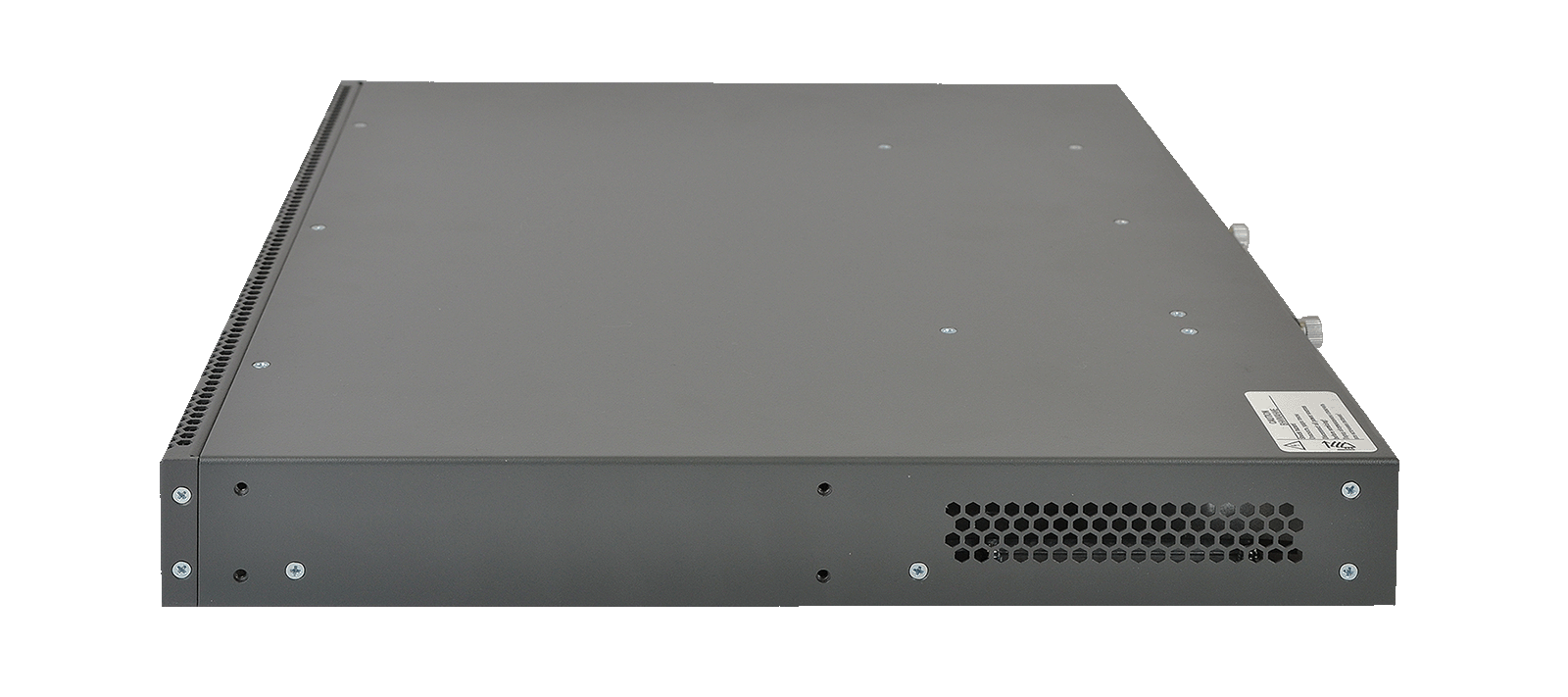

Session border controller ESBC-3200
- Load:
- Up to 6000 calls
Description
ESBC is an element of VoIP network that participates in call processing as a session border controller. The device provides signal protocol normalization, network protection against unauthorized access and attacks, and statistics collection.
ESBC is deployed at the border of the IP networks:
- between service providers networks;
- between service provider network and Customer’s
corporate network; - between service provider network and a public network.
Advanced warranty and support packages
Extend basic package with additional paid services
Learn more
Specifications
- Load:
- up to 6000 calls
- Up to 150 CPS
- Network topology hiding
- Protection against DoS and VoIP attacks
- Up to two hot-swappable power supplies
- Redundancy 1+1
Features and capabilities
For full specifications and manuals see Documents and files section below
Performance:
Maximum number of simultaneous calls:
Proxying with G711a codec
Up to 6000
Transcoding G711a <---> G729
Up to 280
Proxying with G711a codec and RTP <---> SRTP (SDES) conversion
Up to 5000
Maximum number of calls per second (CPS):
Proxying with G711a codec
Up to 150
Transcoding G711a <---> G729
Up to 150
Proxying with G711a codec and RTP <---> SRTP (SDES) conversion
Up to 150
Interfaces:
1000BASE-X/10GBASE-R/25GBASE-R
12
OOB
1
Console RS-232 (RJ-45)
1
USB 2.0
1
microSD card slot
1
CPU:
CPU
24
Physical specifications and ambient parameters:
RAM
24 GB
Flash
8 GB eMMC
Maximum power consumption
118 W
Operating temperature
From -10 to +45 °С
Storage temperature
From -40 to +70 °С
Operating humidity
No more than 80 %
Operating storage humidity
From 10 to 95%
Power supply
100–240 V АС, 50–60 Hz
36–72 V DC
Up to two hot-swappable power supplies
Dimensions (WxHxD)
430x44x330 mm
Weight
5.3 kg
